Eizo FS2434 User Guide
User’s Manual
Color LCD Monitor
Important
Please read PRECAUTIONS, this User’s Manual, and the Setup Guide
(separate volume) carefully to familiarize yourself with safe and
effective usage.
• Please refer to the Setup Guide for basic information ranging from
connection of the monitor to a PC or external device to using the
monitor.
• The latest User’s Manual is available for download from our web site:
http://www.eizoglobal.com
Location of Caution Statement
WARNING
AVERTISSEMENT
WARNUNG
<For USA-California Only>
CR Coin Lithium Battery contains Perchlorate Material - special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
This product has been adjusted specically for use in the region to which it was originally shipped. If
operated outside this region, the product may not perform as stated in the specications.
No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by
any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation.
EIZO Corporation is under no obligation to hold any submitted material or information condential unless
prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every
effort has been made to ensure that this manual provides up-to-date information, please note that EIZO
monitor specications are subject to change without notice.
2
Notice for this monitor
This product is suited to purposes like displaying video games and viewing multimedia content.
This product has been adjusted specically for use in the region to which it was originally shipped. If the
product is used outside the region, it may not operate as specied in the specications.
This product may not be covered by warranty for uses other than those described in this manual.
The specications noted in this manual are only applicable when the following are used:
· Power cords provided with the product
· Signal cables specied by us
Only use optional products manufactured or specied by us with this product.
If you place this product on a lacquer-coated desk, the color may adhere to the bottom of the stand due
to the composition of the rubber. Check the desk surface before use.
It takes about 30 minutes for the performance of electrical parts to stabilize. Please wait 30 minutes or more
after the monitor power has been turned on, and then adjust the monitor.
Monitors should be set to a lower brightness to reduce changes in luminosity caused by long-term use and
maintain a stable display.
When the screen image is changed after displaying the same image for extended periods of time, an
afterimage may appear. Use the screen saver or power save function to avoid displaying the same image for
extended periods of time. Depending on the image, an afterimage may appear even if it was displayed for
a short period of time. To remove such a phenomenon, change the image or keep the power turned off for
several hours.
If the monitor displays continuously over a long period of time, dark smudges or burn-in may appear. To
maximize the life of the monitor, we recommend the monitor be turned off periodically.
Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime (refer
to “Cleaning” (page 4)).
The LCD panel is manufactured using high-precision technology. Although, missing pixels or lit pixels may
appear on the LCD panel, this is not a malfunction. Percentage of effective dots: 99.9994% or higher.
The backlight of the LCD panel has a xed lifetime. When the screen becomes dark or begins to icker,
please contact your EIZO representative.
Do not press on the panel or edge of the frame strongly, as this may result in display malfunctions, such
as interference patterns, etc. If pressure is continually applied to the panel, it may deteriorate or damage
your panel. (If the pressure marks remain on the panel, leave the monitor with a black or white screen. The
symptom may disappear.)
Do not scratch or press on the panel with any sharp objects, as this may result in damage to the panel. Do
not attempt to brush with tissues as this may scratch the panel.
Notice for this monitor
3
When the monitor is cold and brought into a room or the room temperature goes up quickly, dew
condensation may occur on the interior and exterior surfaces of the monitor. In that case, do not turn the
monitor on. Instead wait until the dew condensation disappears, otherwise it may cause some damage to the
monitor.
Cleaning
Attention
• Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet
or panel, and also quality deterioration of the image.
• Never use any thinner, benzene, wax, and abrasive cleaner, which may damage the cabinet or panel.
Note
• The optional ScreenCleaner is recommended for cleaning the cabinet and panel surface.
If necessary, the stains on the cabinet and panel surface can be removed by moistening part of a soft
cloth with water.
To use the monitor comfortably
• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor
according to the environmental conditions.
• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.
Notice for this monitor
4
CONTENTS
Notice for this monitor ......................................... 3
Cleaning .................................................................... 4
To use the monitor comfortably ............................. 4
CONTENTS ............................................................. 5
Chapter 1 Introduction ....................................... 7
1-1. Features ......................................................... 7
1-2. Controls and Functions ............................... 8
Front ................................................................ 8
●
Rear ................................................................. 9
●
Before Using Remote Control ........................ 11
●
1-3. Basic Operations and Functions ...............12
Basic operation of the Setting menu ..............12
●
Functions ........................................................13
●
Chapter 2 Adjusting Screens .......................... 14
2-1. Compatible Resolutions/Formats ..............14
DVI-D Input and HDMI Input (PC signal) .......14
●
HDMI Input (video signal) ...............................14
●
2-2. Setting the Resolution ................................15
2-3. Adjusting Color ............................................16
To select the display mode (Color Mode) .......16
●
To perform advanced adjustments ................17
●
Adjustable settings in each mode ..................17
●
To adjust brightness .......................................18
●
To Adjust Black Level “Black Level” ...............18
●
To adjust contrast ...........................................18
●
To adjust the color saturation .........................19
●
To adjust hue ..................................................19
●
To adjust color temperature .......................... 20
●
To adjust gamma ........................................... 20
●
To adjust gain .................................................21
●
To reduce noise ..............................................21
●
To set the enhancement ratio of
●
ContrastEnhancer ......................................... 22
To set overdrive intensity .............................. 22
●
2-4. Setting the Color Space for the HDMI
input signal .................................................. 23

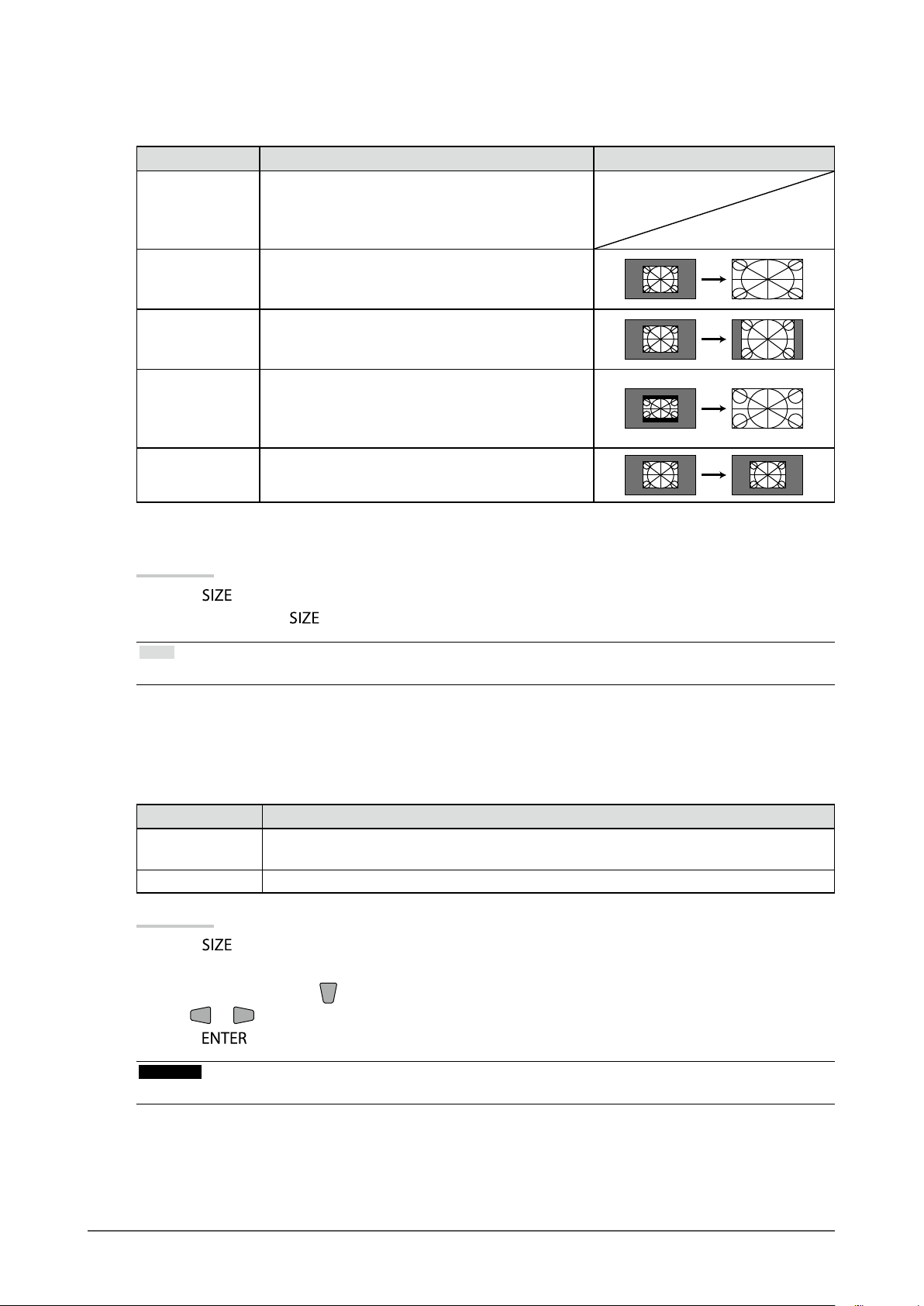

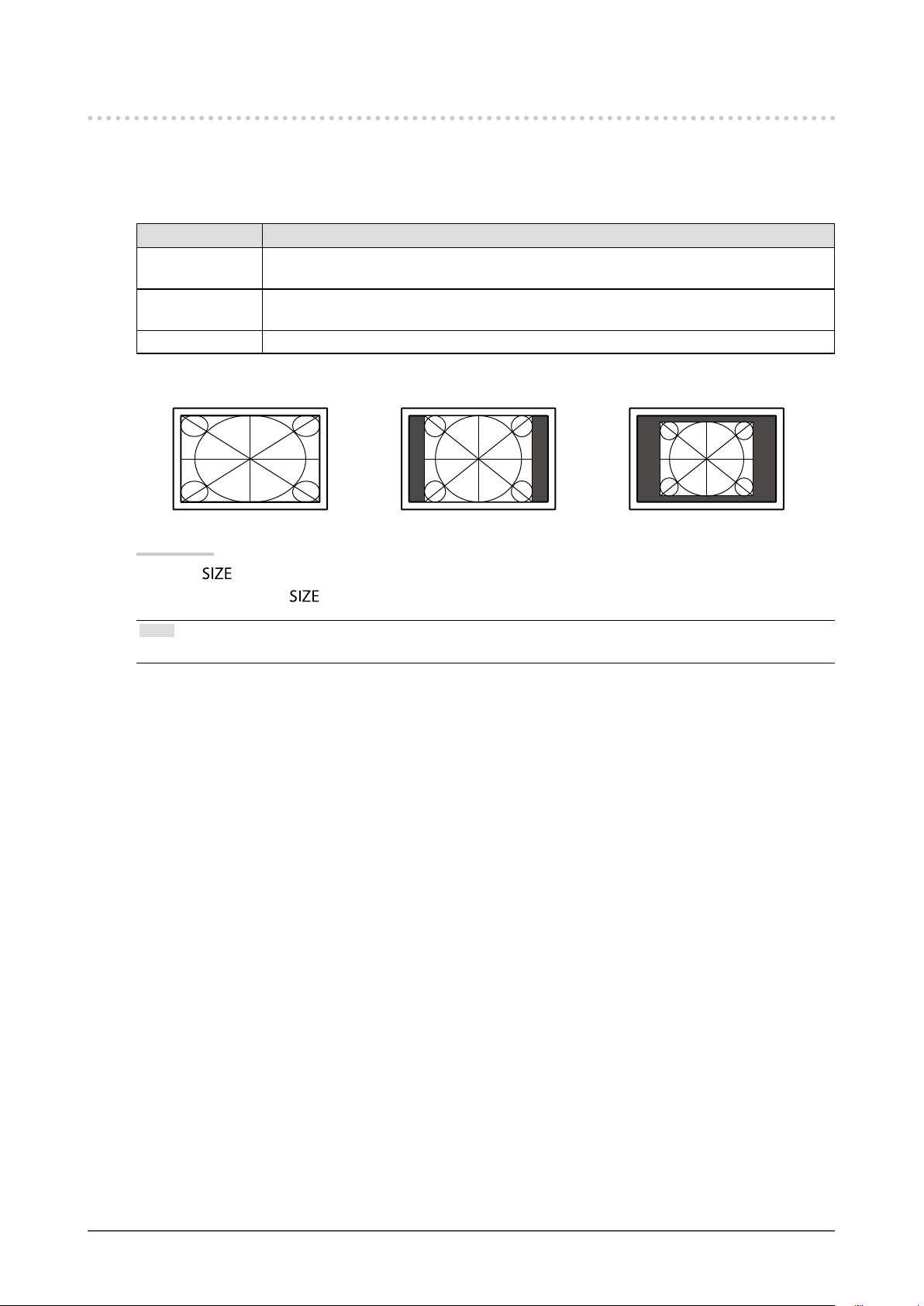

2-5. Screen Size Changing ................................ 24
DVI-D Input and HDMI Input (PC signal) .......24
●
HDMI Input (video signal) .............................. 25
●
To modify blurred characters/lines ................ 26
●
Chapter 3 Setting Monitor ............................... 27
3-1. Switching sound source for HDMI signal
input ............................................................. 27
3-2. Adjusting Volume........................................ 27
To turn the volume up/down .......................... 27
●
To mute the sound temporarily...................... 28
●
3-3. To adjust the sound level ........................... 28
3-4. Locking Operation Buttons ....................... 29
3-5. Showing and hiding the EIZO logo ........... 29
3-6. Setting Language ........................................ 29
3-7. Changing the authentication method for
HDMI signal input ........................................ 30
3-8. Resetting the Monitor to the Default
Settings ........................................................ 30
To reset the color adjustments ...................... 30
●
To reset all adjustments to the default
●
settings ...........................................................31
Chapter 4 Using Smart Function .................... 32

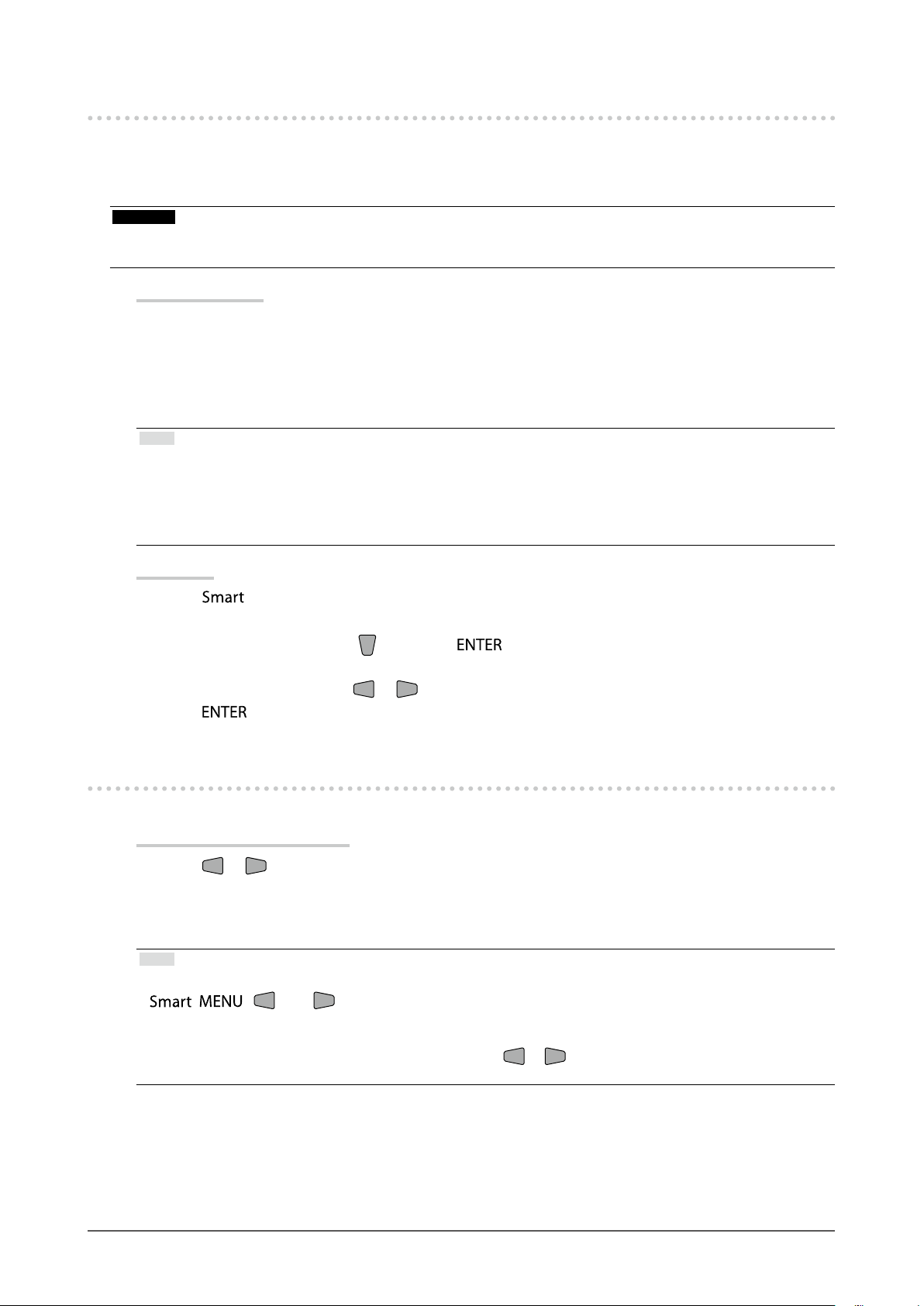

4-1. Setting “Smart Detection” ......................... 32
4-2. Setting “Smart Resolution” ....................... 33
4-3. Setting “Smart Insight 2” ........................... 34
4-4. Checking the setting status ....................... 34
Chapter 5 Power Saving Functions ................ 35
5-1. Setting Power Saving ................................. 35
Monitor .......................................................... 35
●
To change the exiting method from the
●
power saving mode ....................................... 36
Audio Output ................................................. 36
●
USB ................................................................37
●
5-2. Setting Power Indicator ...............................37
5-3.
Enabling/Disabling Automatic
Brightness Adjustment “Auto EcoView”
5-4. Reducing Glare “EcoView Optimizer” ...... 38

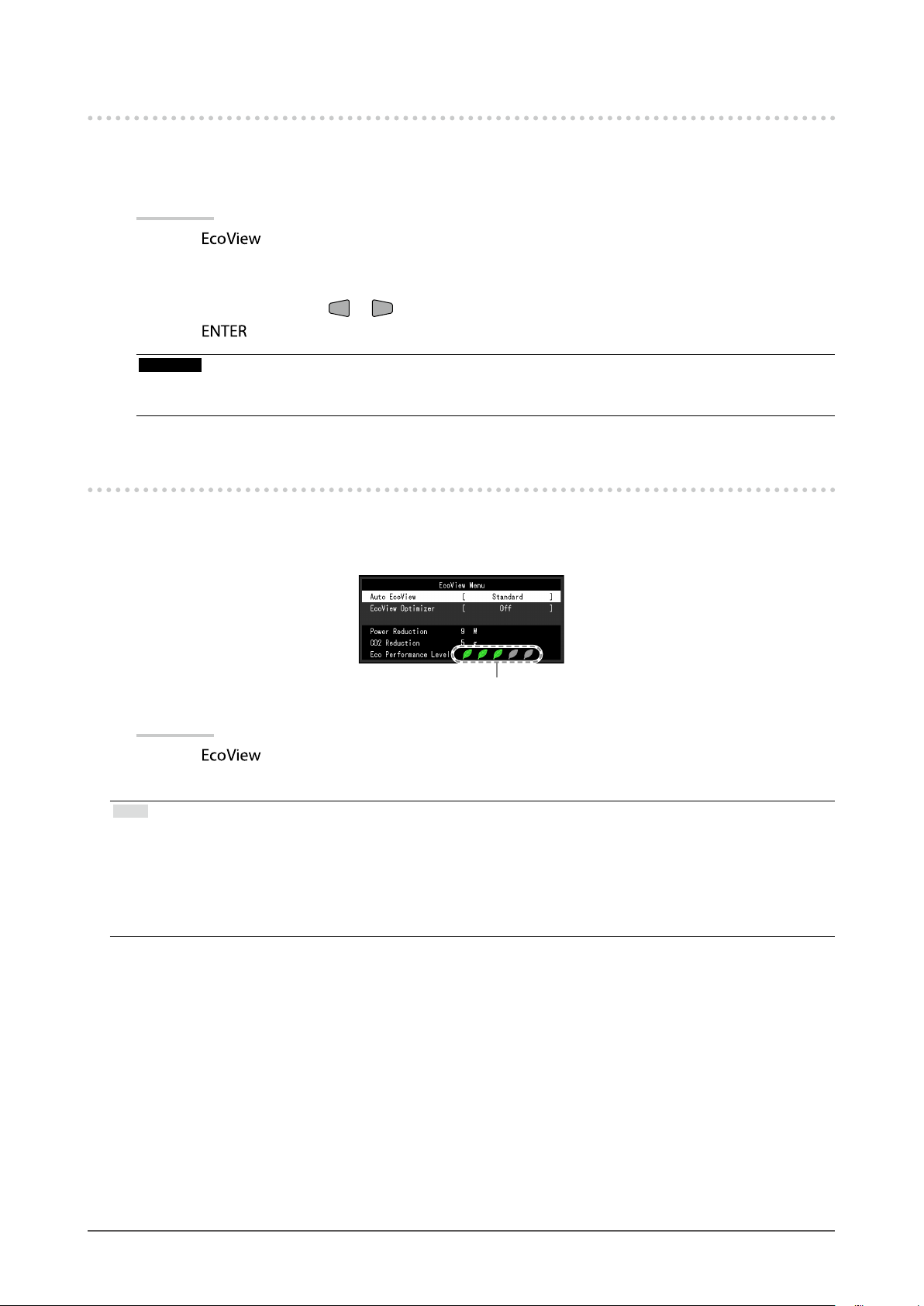

5-5. Checking the power saving level .............. 38
5-6. Enabling/Disabling Auto Power-OFF
“Off Timer” .................................................. 39
Chapter 6 Connecting Cables ......................... 40

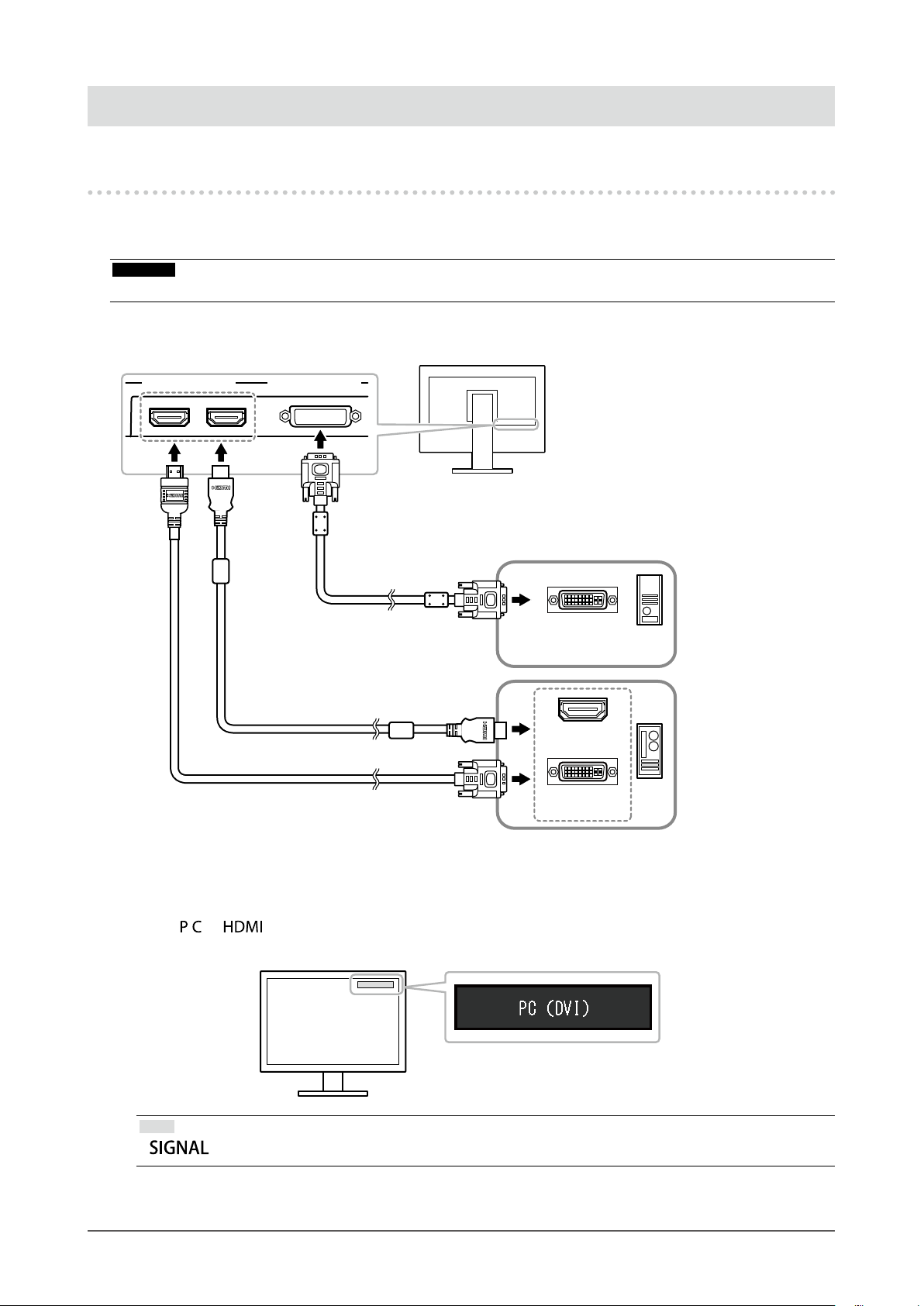

6-1. Connecting Multiple External Devices ..... 40
To switch among input signals ...................... 40
●

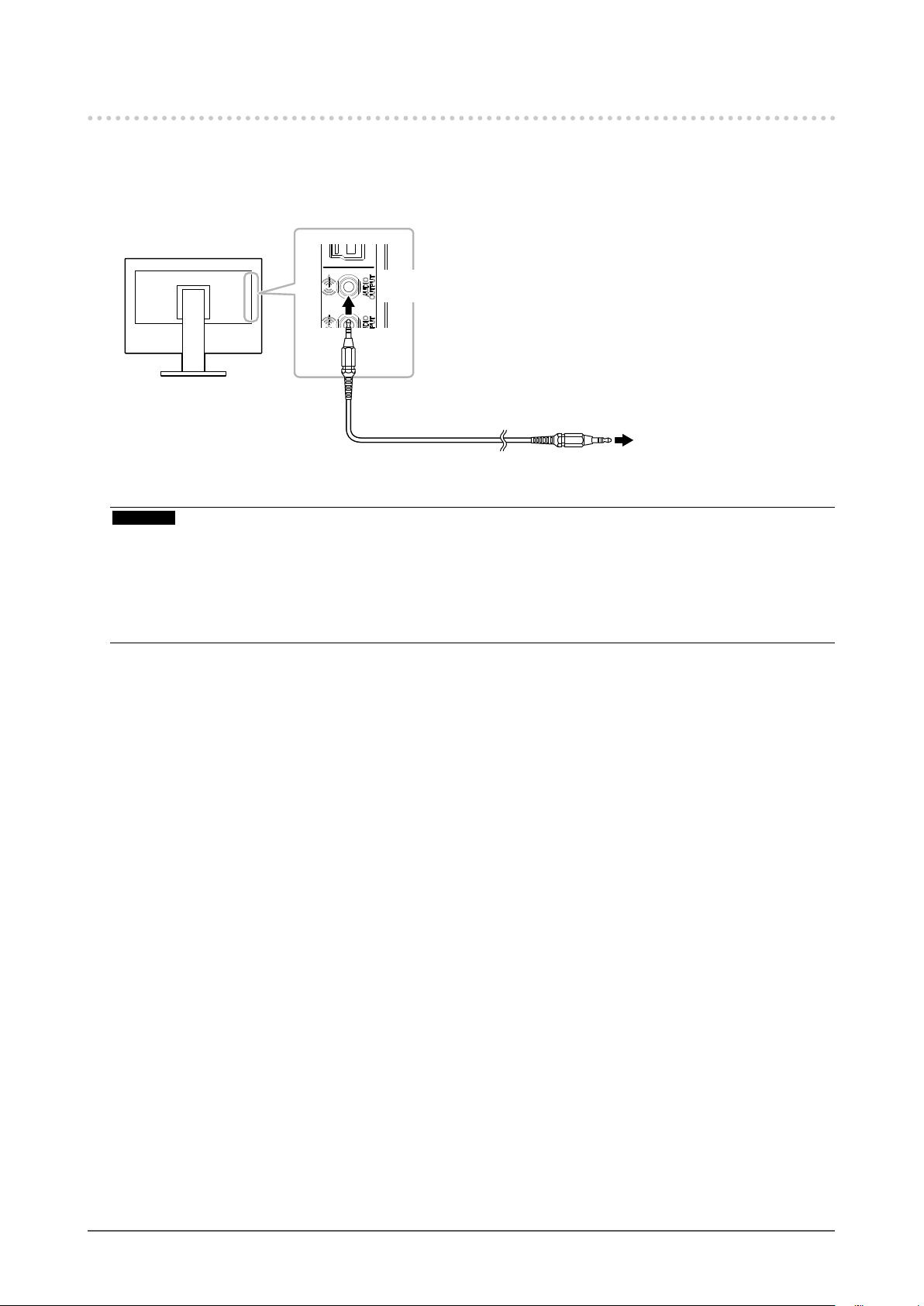

6-2. Connecting External Speaker ....................41
Chapter 7 Troubleshooting .............................. 42

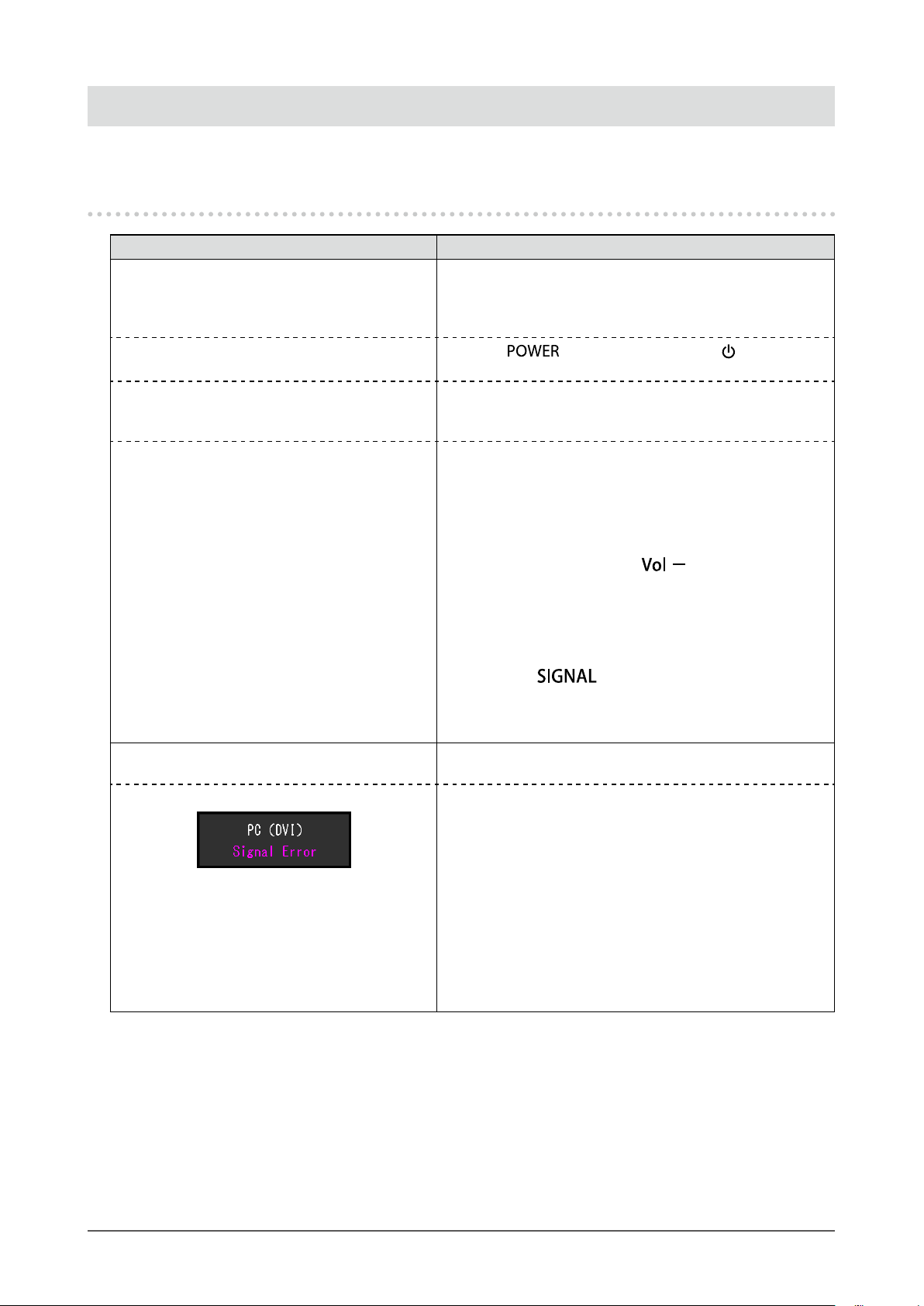

7-1. No picture .................................................... 42
7-2. Imaging problems ....................................... 43
7-3. Other problems ........................................... 44
Chapter 8 Reference ........................................ 46

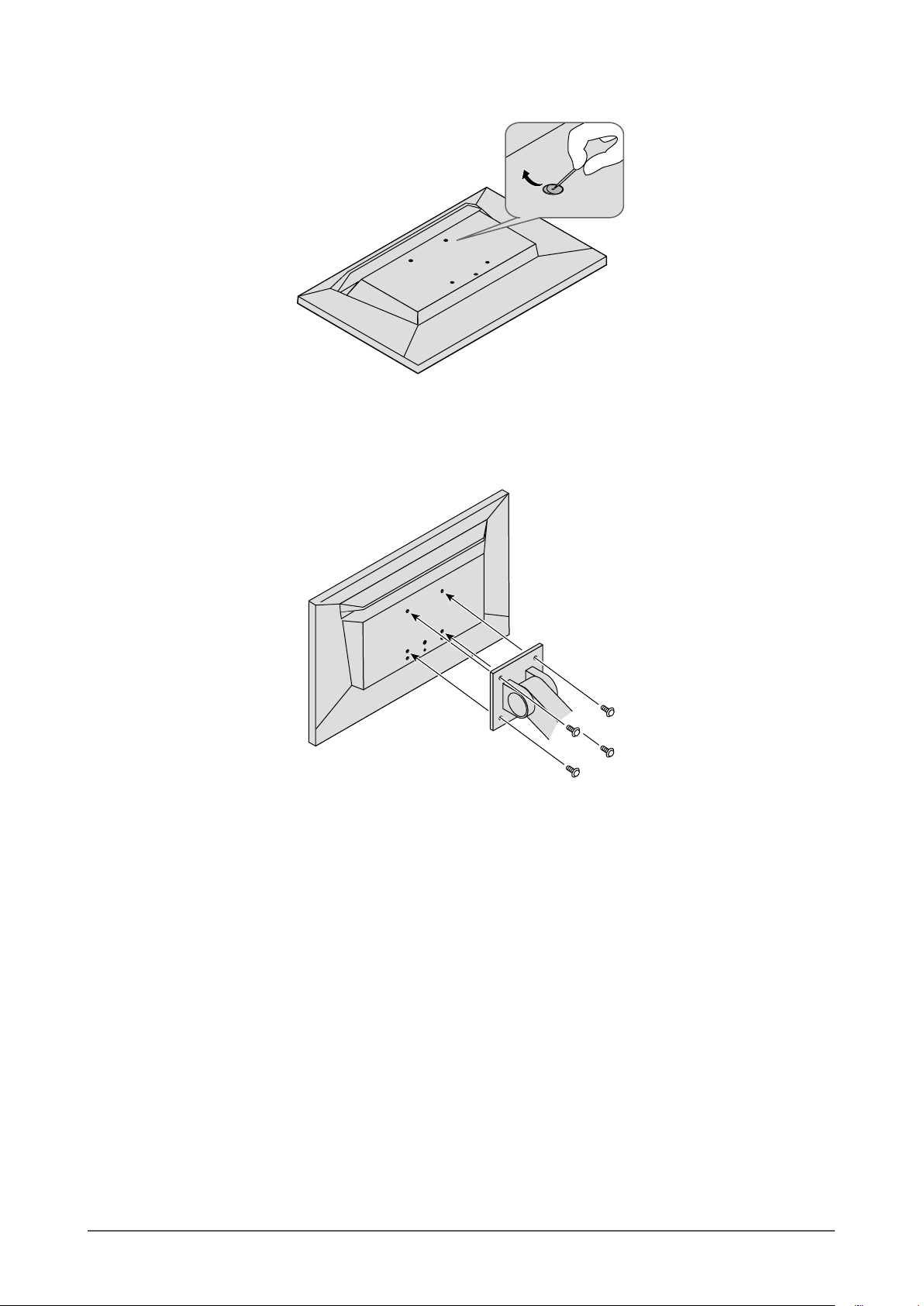

8-1. How to Attach the Optional Arm ............... 46

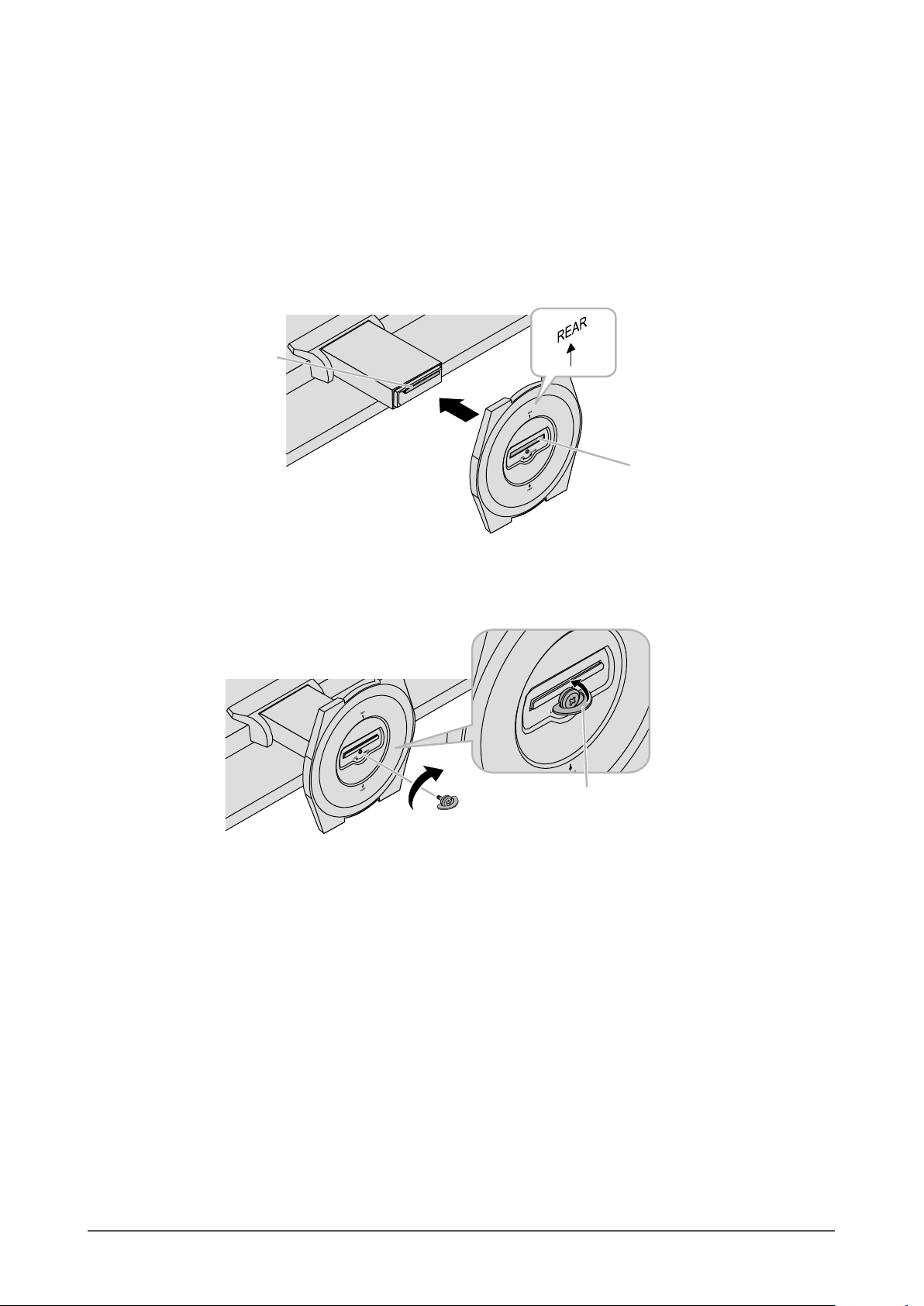

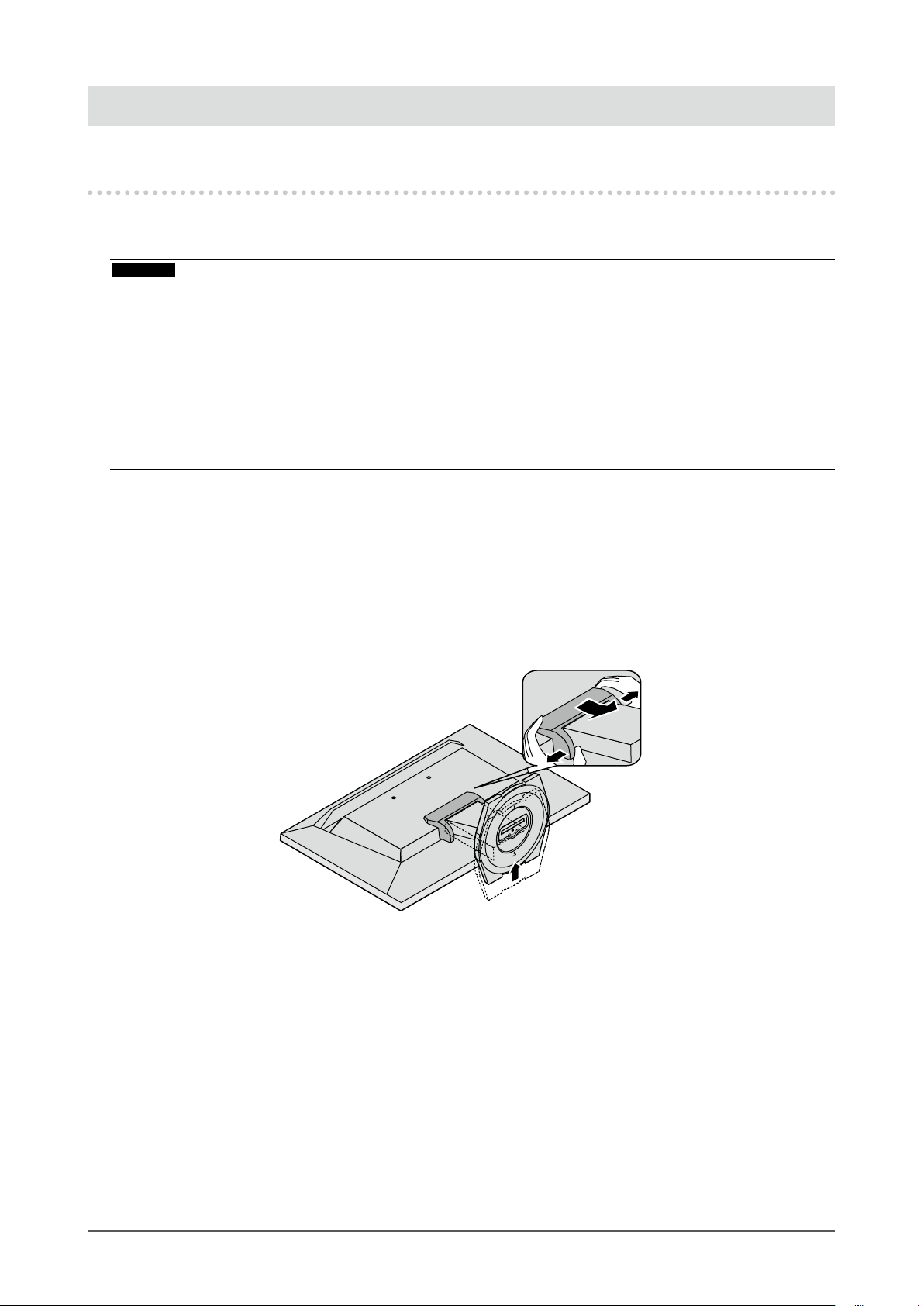

8-2. Detaching/Attaching Stand Base .............. 48

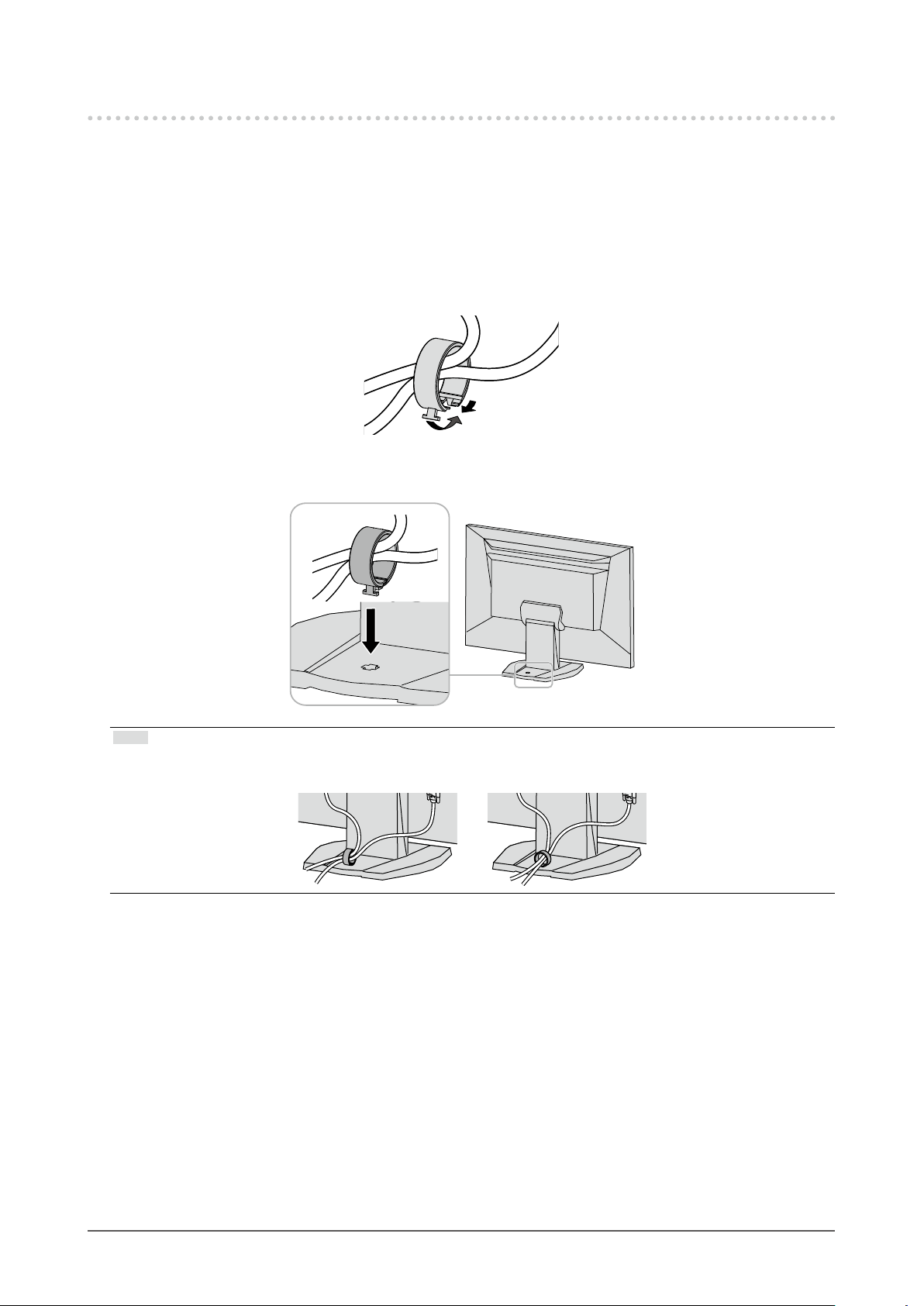

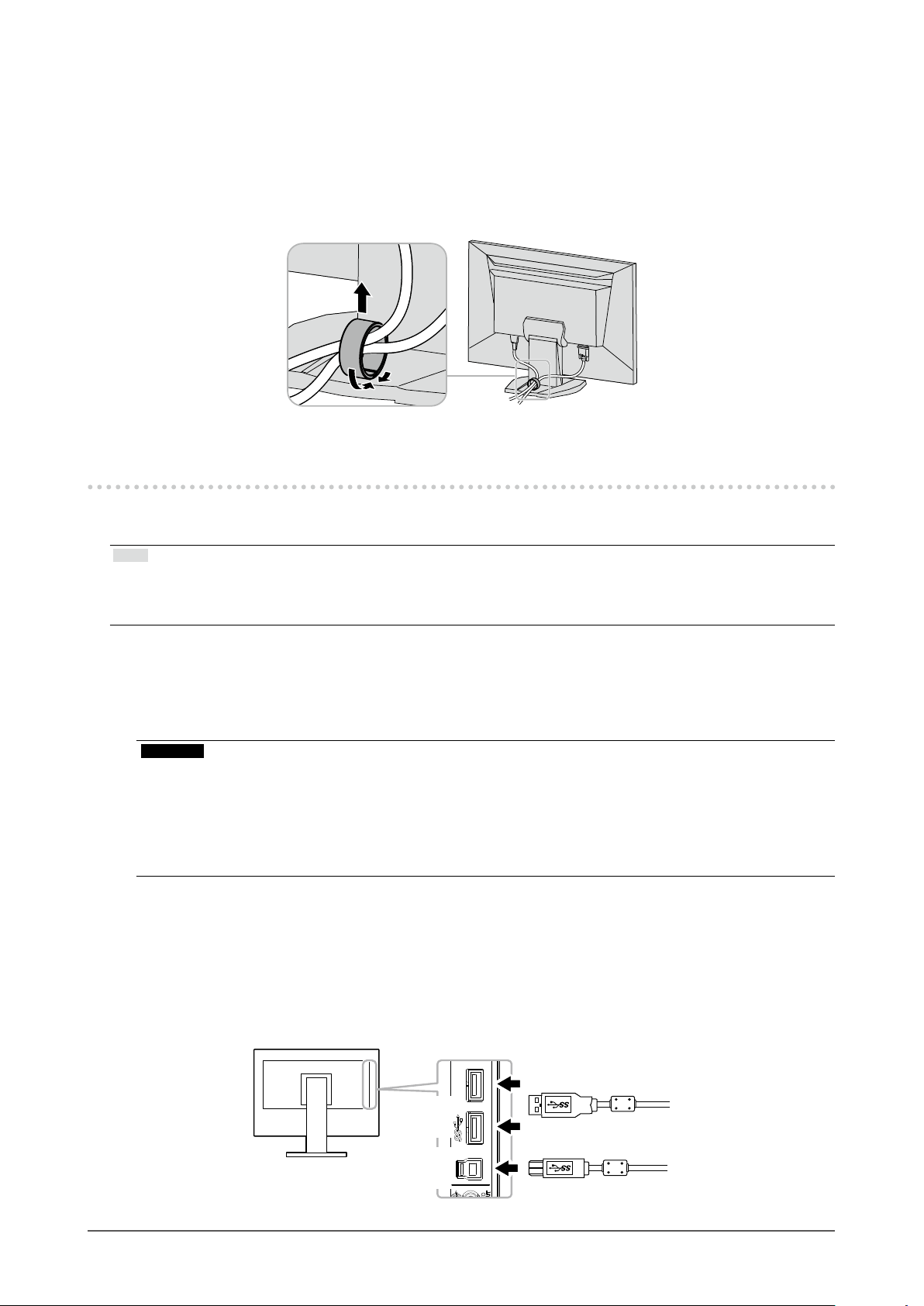

8-3. Attaching/Detaching Cable Holder ........... 50
Making Use of USB (Universal Serial Bus)
8-4.
Required System Environment ......................51
●
Connection procedure (Setup of USB function)
●

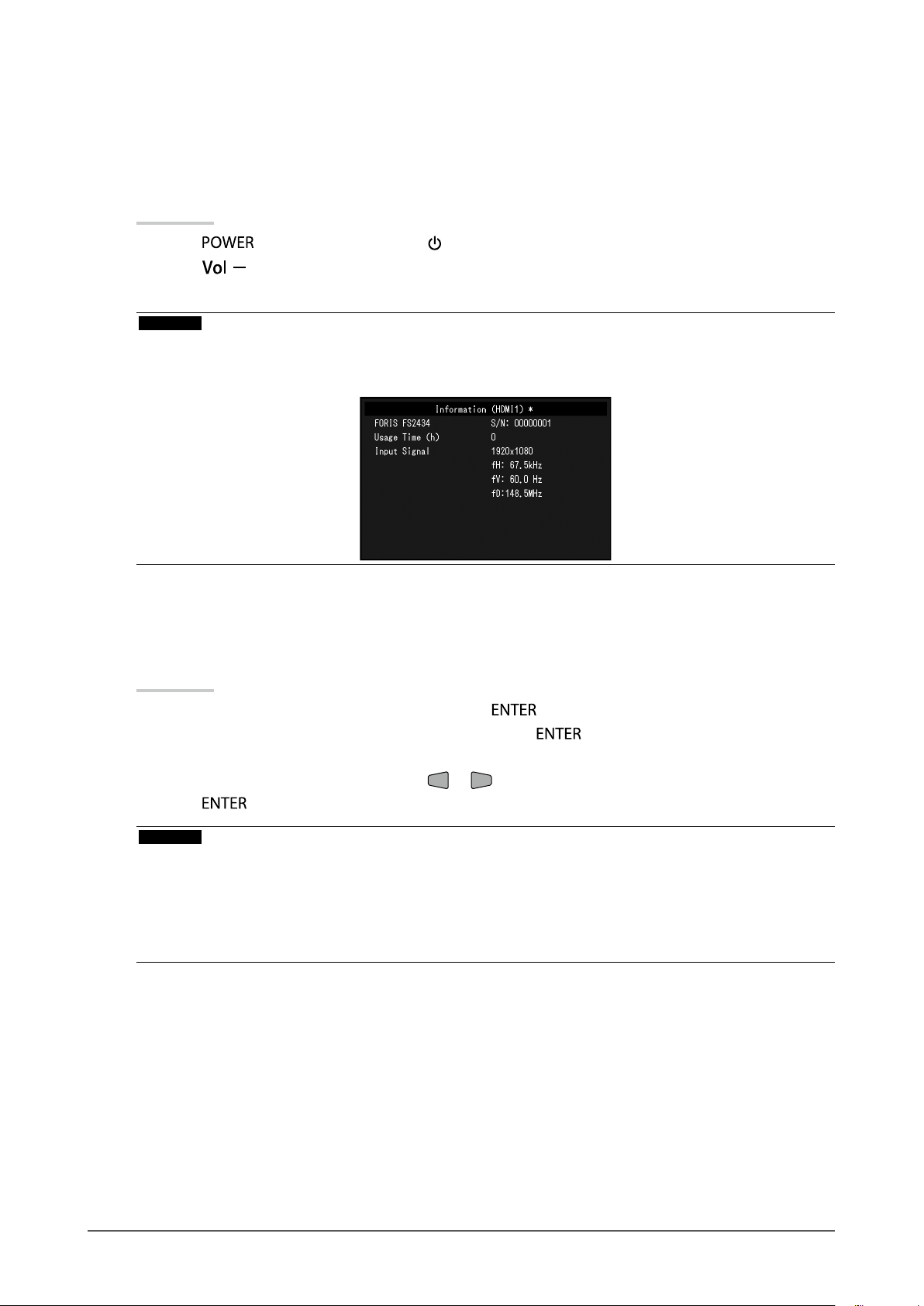

8-5. Displaying Monitor Information ................ 52

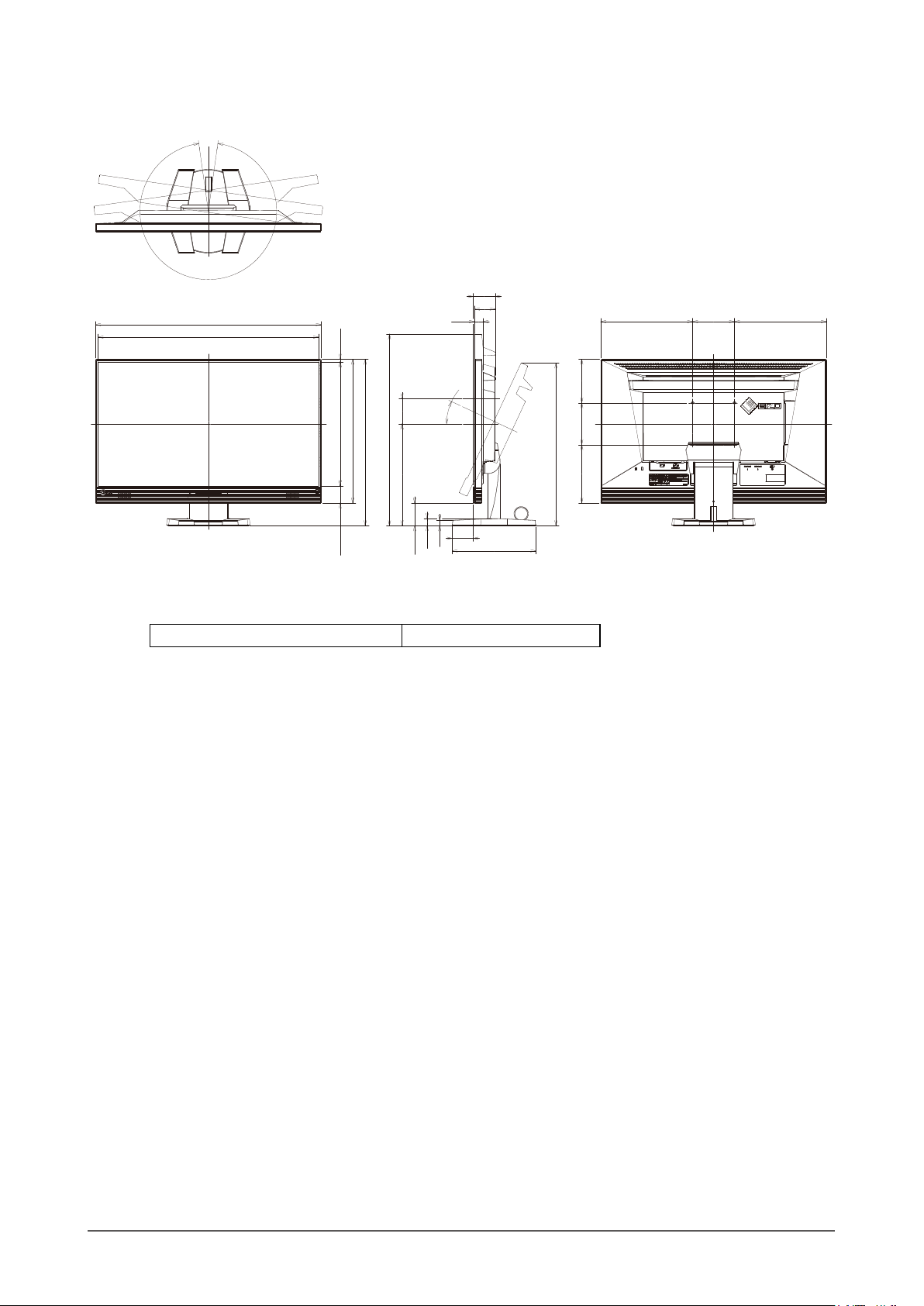

8-6. Specications ............................................. 53
...37
...51
...51
CONTENTS
5
Chapter 9 Glossary .......................................... 56
Appendix .............................................................. 58
Trademark ............................................................... 58
License / Copyright ................................................ 58
FCC Declaration of Conformity ............................ 59
Hinweise zur Auswahl des richtigen
Schwenkarms für Ihren Monitor ........................... 60
Hinweis zur Ergonomie : ....................................... 60
LIMITED WARRANTY ..............................................61

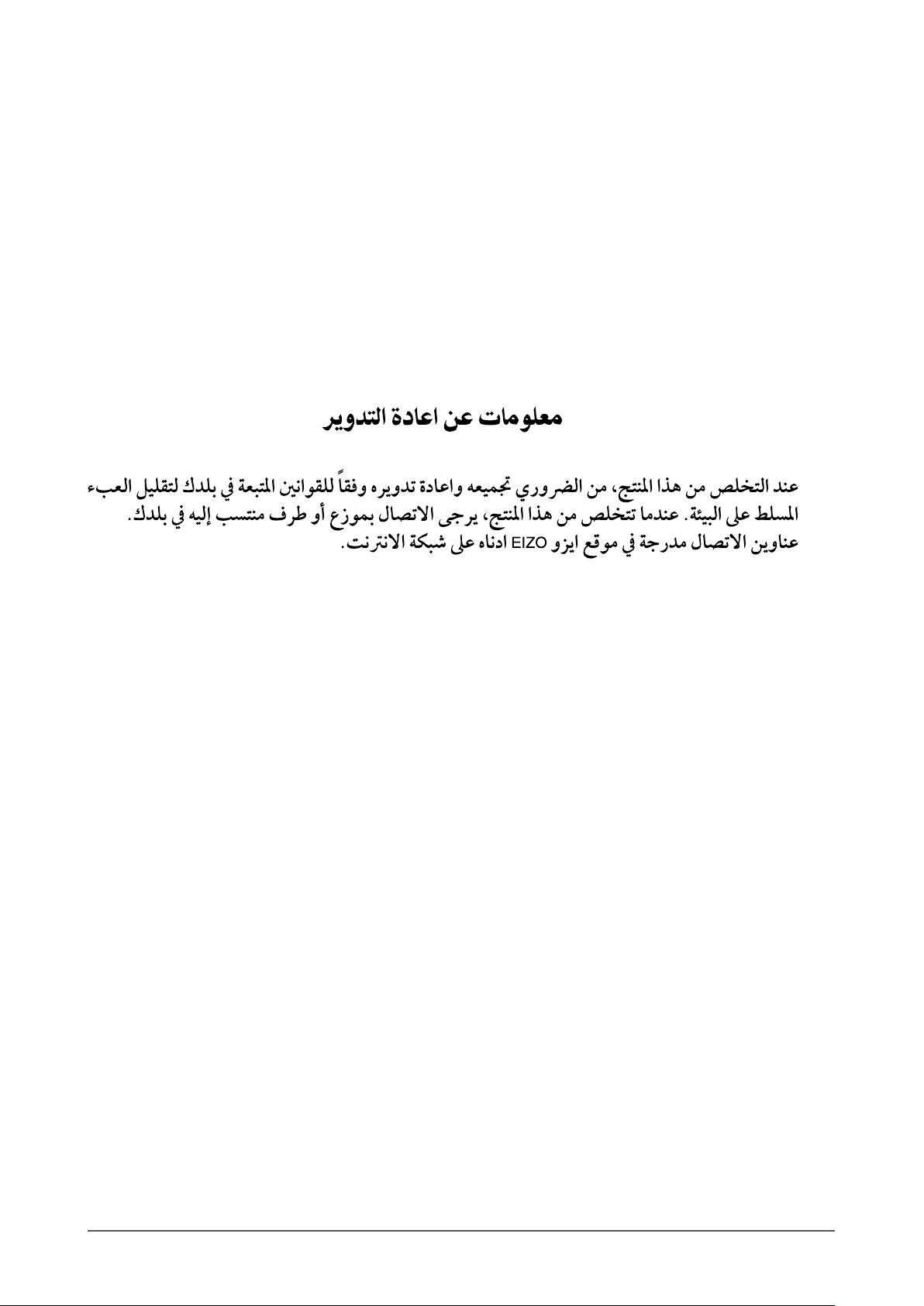

Recycling Information ............................................70
6
CONTENTS
Chapter 1 Introduction
Thank you very much for choosing an EIZO color LCD monitor.
1-1. Features
• 23.8″ wide format LCD
• Supports a resolution of 1920 × 1080
• Panel with a wide eld of view adopted
IPS panel with 178 º horizontal and vertical viewing angles.
• HDMI connector × 2
Applicable to the PC input signal using HDMI input, allowing three different digital signal inputs from a PC.
• The Color Mode function allows the user to select the display mode optimum to the displayed
image.
See “To select the display mode (Color Mode)” (page 16).
• EIZO’s unique “Smart” technology
- Smart Detection function
This function allows the user to change the area on the screen to which the Smart Resolution or Smart
Insight 2 function is applied (only animated images or whole screen).
- Smart Resolution function
This function adjusts the perceived resolution of the images so that the blurs are reduced and images are
displayed vividly and clearly.
In addition, you can correct the color of skin and text affected by the “Smart Resolution” settings.
- Smart Insight 2 function
This function analyzes the image and corrects the brightness for each pixel to make dark area of
images visible. It also increases the color saturation.
See “Chapter 4 Using Smart Function” (page 32).
• Input lag is less than 0.05 frames.
Mouse movements and keyboard inputs are instantaneously reected on the screen.
• Adopts EyeCare dimming
Suppresses icker when the LED backlight intensity is reduced.
• Equipped with a USB 3.0 hub function.
Supports high-speed data transfers of up to 5 Gbps. Massive data can be transferred in a short time, e.g.
when using a USB storage device.
• Thin bezel
The thin bezel does not interfere with the movement of the line of sight when using multiple monitors.
• Stand with wide range of movement
The monitor can be adjusted to a position where it provides you with a comfortable and less tiring work
environment.
(Tilt: 25 ° up / 0 ° down, Swivel: 344°, Adjustable height: 60 mm (2.36 inch))
• Remote control enables easy operation, setting and adjustment of the monitor.
See “1-2. Controls and Functions” (page 8).
• Built-in stereo speakers and headphone jack
See “1-2. Controls and Functions” (page 8).
• Line output connector
A speaker with built-in amplier can be connected to the monitor to output sound.
See “6-2. Connecting External Speaker” (page 41).
• Displays HDCP (High-bandwidth Digital Protection) protected content.
• Supports the “G-Ignition” software which allows for screen adjustment via mouse or keyboard.
Can be downloaded from our website (http://www.eizoglobal.com).
Chapter 1 Introduction
7
1-2. Controls and Functions
Front
●
Setting menu
*1
7
1 32 4 5 6
1. Auto EcoView sensor Detects ambient brightness (Auto EcoView function (page 37), EcoView Optimizer
function (page 38)).
2.
3.
4.
5. Power indicator Indicates the monitor’s operation status.
6. Remote control
detector
7. Speaker Outputs audio source.
*1 See “Basic operation of the Setting menu” (page 12) for how to use.
button Switches input signals for display (page 40).
PC (DVI) → HDMI1 → HDMI2
/ button Displays the volume adjustment menu to volume up or down.
button Turns the power on or off.
White: Operating
Orange: Power saving mode
Red: Power off
OFF: Main power off
Receives the signal from the remote control.
Chapter 1 Introduction
8
Rear
●
16
11
12
13
14
15
17
18
10
19
8 9
8. Main power switch
9. Power connector Connects the power cord.
10. Input signal connector (Left: HDMI connector (HDMI1) / Center: HDMI connector (HDMI2) /
11. USB downstream port Connects a peripheral USB device.
12. USB upstream port Connects the USB cable to use software that needs a USB connection, or to use the
13. Line output connector (Stereo mini jack)
14. Line input connector (Stereo mini jack)
15. Headphone jack Connects the headphones.
16. Handle Handle used for transportation
Turns the main power on or off. (
Right: DVI-D connector)
Connects external devices such as a PC.
USB hub function (pag e 51).
Connects a speaker with built-in amplier (p age 41) .
Connects external devices such as a PC.
Attention
• Firmly grasp and hold the monitor by the bottom while grabbing the handle, and
carefully convey the monitor so as not to drop it.
: Off : On)
17. Security lock slot Complies with Kensington’s MicroSaver security system.
18. Stand
19. Cable holder Covers the monitor cables.
*2 An optional arm (or an optional stand) can be attached by removing the stand (see “8-1. How to Attach the
*2
Optional Arm” (page 46)).
Adjusts the height and angle (tilt and swivel) of the monitor.
Chapter 1 Introduction
9
Remote Control
1
2
3
4
5
6
7
10
11
12
13
14
1. PC Switches to PC signal input.
2. HDMI Switches to HDMI signal input.
8
9
3. MODE Changes the color mode.
4. MENU Displays/Exits the Setting menu.
5. EcoView Displays/Exits “EcoView Menu”.
6. SIZE Changes the screen size.
7. Smart Displays/Exits the “Smart Functions” menu.
8. POWER Turns the power on or off.
9. OFF TIMER Sets the time until the monitor power-off.
10.
11. ENTER Determines an item on the menu screen, and saves
12. RETURN Returns to the previous menu in menu operation.
13. VOLUME +/- Adjusts the volume.
14. MUTE Mutes sound temporarily.
/ / /
Each time you press
HDMI1 and HDMI2.
• Provides the menu selection as well as the adjustment
and setting of a function.
•
/ : Displays the brightness adjustment menu
(page 18).
values adjusted.
, the system toggles between
Chapter 1 Introduction
10
Before Using Remote Control
●
How to install battery
1. On the back of the remote control, slide the battery
cover off in the direction of an arrow.
2. Insert a battery with the positive side up. (Battery model
number: CR2025)
3. Reattach the cover.
Receivable Range of Remote Control
Use the remote control inside of the range as below.
5m
7m
30°
30°
3m
20°
20°
3m
5m
Chapter 1 Introduction
11
1-3. Basic Operations and Functions
Basic operation of the Setting menu
●
Displaying the Setting menu
1.
1. Press on the remote control. The Setting menu appears.
Adjusting/Setting
2.
1. Choose a menu to adjust/set with , , and then press . The Sub menu appears.
2. Choose an item to adjust/set with , , and then press . The adjustment/setting menu
appears.
3. Adjust/set the selected item with , , , , and then press .
Exiting
3.
1. Press .
Note
• To go back to the previous menu, press .
Chapter 1 Introduction
12
Functions
●
The following table shows the Setting menu and setting items of each menu.
Main menu Setting Reference
*1
Color
Screen Color Space
Sound Source
Color Mode “2-3. Adjusting Color” (page 16)
Brightness
Black Level
Contrast
Saturation
Hue
Temperature
Advanced Settings Gamma
Gain
Noise Reduction
ContrastEnhancer
Smart Functions
Overdrive
Color Reset “3-8. Resetting the Monitor to the
*2
Smoothing “To modify blurred characters/lines”
*2
Sound Level “3-3. To adjust the sound level” (page
Power Save “Audio Output” (page 36)
(Regarding “Smart Functions”, see
“Chapter 4 Using Smart Function”
(page 32).)
Default Settings” (page 30)
“2-4. Setting the Color Space for the
HDMI input signal” (page 23)
(page 26)
“3-1. Switching sound source for HDMI
signal input” (page 27)
28)
PowerManager Power Save “5-1. Setting Power Saving” (page
35)
Monitor Settings Key Lock “3-4. Locking Operation Buttons”
(page 29)
Logo “3-5. Showing and hiding the EIZO
logo” (page 29)
Power Indicator “5-2. Setting Power Indicator” (page
37)
Language “3-6. Setting Language” (page 29)
USB Power Save “USB” (page 37)
Reset “3-8. Resetting the Monitor to the
Default Settings” (page 30)
Information “8-5. Displaying Monitor Information”
(page 52)
*1 The adjustment/settings available on the “Color” menu depend on the selected Color mode (see
“Adjustable settings in each mode” (page 17)).
*2 This function is available with HDMI signal input.
Chapter 1 Introduction
13
Chapter 2 Adjusting Screens
2-1. Compatible Resolutions/Formats
The monitor supports the following resolutions and signal format.
DVI-D Input and HDMI Input (PC signal)
●
Resolution Vertical Scan Frequency
640 × 480 60 Hz
720 × 400 70 Hz
800 × 600 60 Hz
1024 × 768 60 Hz
1280 × 720 60 Hz
1280 × 960 60 Hz
1280 × 1024 60 Hz
1680 × 1050 60 Hz
1920 × 1080
*1 Recommended resolution
HDMI Input (video signal)
●
• Video signal
*1
60 Hz
Formats
VGA - √
480p - √
480i - √
576p √ -
576i √ -
720p √ √
1080p √ √
1080i √ √
• Audio signal
- 2ch linear PCM (32 kHz / 44.1 kHz / 48 kHz)
Vertical Scan Frequency
50 Hz 60 Hz
Chapter 2 Adjusting Screens
14
2-2. Setting the Resolution
When you connect the monitor to the PC and nd that the resolution is improper, or when you want to
change the resolution, follow the procedure below.
Windows 10
1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click “Display Settings”.
3. On the “Customize your display” dialog box, click “Advanced display settings”.
4. Select a monitor, then choose a resolution from the “Resolution” pull-down menu.
5. Click the “Apply” button.
6. When a conrmation dialog box is displayed, click “Keep changes”.
Windows 8.1 / Windows 7
1. For Windows 8.1, click the “Desktop” tile on the Start Screen to display the desktop.
2. Right-click the mouse anywhere on the desktop except for icons.
3. From the displayed menu, click “Screen resolution”.
4. On the “Screen Resolution” dialog box, select the monitor.
5. Click “Resolution” to select the desired resolution.
6. Click the [OK] button.
7. When a conrmation dialog box is displayed, click [Keep changes].
Windows Vista
1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click “Personalize”.
3. On the “Personalization” window, click “Display Settings”.
4. On the “Display Settings” dialog box, select the “Monitor” tab and select desired resolution in the
“Resolution” eld.
5. Click the [OK] button.
6. When a conrmation dialog box is displayed, click [Yes].
OS X Mountain Lion (10.8) or later
1. Select “System Preferences” from the Apple menu.
2. When the “System Preferences” dialog box is displayed, click “Displays”.
(If using OS X Mountain Lion (10.8), click “Displays” in “Hardware”.)
3. In the displayed dialog box, select the “Display” tab and select “Change” in the “Resolutions” eld.
4. Select the resolution from the list of possible resolution settings.
If the target resolution is not displayed in the list, press and hold the Option key on the keyboard and select
“Change”.
5. Your selection will be reected immediately. When you are satised with the selected resolution,
close the window.
Chapter 2 Adjusting Screens
15
Mac OS X 10.7
1. Select “System Preferences” from the Apple menu.
2. When the “System Preferences” dialog box is displayed, click “Displays” for “Hardware”.
3. On the displayed dialog box, select the “Display” tab and select desired resolution in the
“Resolutions” eld.
4. Your selection will be reected immediately. When you are satised with the selected resolution,
close the window.
2-3. Adjusting Color
To select the display mode (Color Mode)
●
This function allows easy selection of a desired mode according to monitor application.
Display Modes
Mode Purpose
User1 Select one of these user modes to dene a desired set of parameter settings.
User2
Game (Dark scene) Suitable for displaying games with dark images.
Game (Light scene) Suitable for displaying games with bright images.
Cinema Produces theater screen-like images. Suitable for displaying images from media such as
movies.
Web / sRGB Suitable while displaying a web browser or for color matching with sRGB compatible
peripherals.
Paper Produces a printed paper effect. Suitable for displaying images from media such as
books and documents.
Displays the current mode.
Procedure
1. Press
The mode name appears at the center of the screen.
2. The mode among the list is highlighted in turn each time is pressed.
You can switch the current mode with or while the mode menu is being displayed.
→User1←→User2←→Game(Darkscene)←→Game(Lightscene)←→Cinema←→Web/sRGB←→Paper←
Note
• The Setting menu and the Mode menu cannot be displayed at the same time.
• When “G-Ignition” is used, the Color Mode automatically switches to the corresponding setting for the
software being used.
(“G-Ignition” is a software that can be used to adjust the screen via mouse or keyboard. It is available for
download on our website (http://www.eizoglobal.com).)
on the remote control.
Chapter 2 Adjusting Screens
16
To perform advanced adjustments
●
The “Color” menu of the Setting menu allows you to set and save the independent color adjustment
for each mode.
Attention
• The monitor will take about 30 minutes before its internal electric components stabilize. Wait 30 minutes or
more after turning the monitor power on before starting adjustment.
• The same image may be seen in different colors on multiple monitors due to their monitor-specic
characteristics. Make ne color adjustment visually when matching colors on multiple monitors.
Note
• You can adjust the color via mouse and keyboard by using “G-Ignition”. You can also save and load the
adjusted settings as color data.
Adjustable settings in each mode
●
The adjustable settings depend on the mode. (Non-adjustable or non-settable function cannot be
selected.)
For instructions on how to adjust or set each function, refer to subsequent pages.
Regarding “Smart Functions”, see “Chapter 4 Using Smart Function” (page 32).
√: Adjustable -: Not adjustable
Color Mode
Game
Function
Brightness √ √ √ √ √
Black Level √ √ √ - Contrast √ √ √ - -
Saturation √ √ √ - -
Hue √ √ √ - Temperature √ √ √ - √
Advanced Settings Gamma √ √ √ - -
Gain √ - - - -
Noise Reduction √ √ - - -
ContrastEnhancer √ √ √ - -
Smart Functions Smart
Detection
Smart
Resolution
Smart
Insight 2
Overdrive √ √ √ - -
Color Reset √ √ √ √ √
User1
User2
(Dark scene)
Game
(Light scene)
√ √ - - √
√ √ √ - √
√ √ √ - -
Cinema Web/sRGB Paper
Chapter 2 Adjusting Screens
17
To adjust brightness
●
The screen brightness is adjusted by changing the brightness of the backlight (light source from the
LCD back panel).
Adjustable range
0 to 100
Procedure
1. Press
The Brightness menu appears.
2. Use or for adjustment.
3. Press
Note
• If you feel that the image is too dark even if the brightness is set to 100, adjust the contrast.
• Alternatively, you can use “Brightness” under “Color” in the Adjustment menu to adjust it.
To Adjust Black Level “Black Level”
●
You can adjust the level of brightness at the black part of an image by adjusting the black level.
Please use a black test pattern or background for adjustment of the black level.
Adjustable range
0 to 100
Procedure
1. Choose “Color” in the Setting menu, and press
2. Choose “Black Level” in the “Color” menu, and press
The “Black Level” menu appears.
3. Use or for adjustment.
4. Press
or .
to exit.
.
.
to exit the adjustment.
Note
• After completing black level adjustment, readjust the contrast as appropriate.
To adjust contrast
●
The brightness of the screen is adjusted by varying the video signal level.
Adjustable range
0 to 100
Procedure
1. Choose “Color” in the Setting menu, and press
2. Choose “Contrast” in the “Color” menu, and press
The “Contrast” menu appears.
3. Use or for adjustment.
4. Press
Note
• In the contrast of 50, every color gradation is displayed (for PC input signal only).
• When adjusting the monitor, it is recommended to perform the brightness adjustment which may not lose the
gradation characteristics, prior to the contrast adjustment.
• Perform the contrast adjustment in the following cases.
- When you feel the image is too dark even if the brightness is set to 100 (Set the contrast to higher than 50.)
to exit the adjustment.
.
.
Chapter 2 Adjusting Screens
18
To adjust the color saturation
●
This function allows you to adjust color saturation.
Adjustable range
-50 to 50
Procedure
1. Choose “Color” in the Setting menu, and press
2. Choose “Saturation” in the “Color” menu, and press
The “Saturation” menu appears.
3. Use or for adjustment.
4. Press
Attention
• Using this function may make some color gradations unavailable for display.
Note
• The minimum value (-50) changes the screen to monochrome.
To adjust hue
●
This function allows you to adjust hue.
Adjustable range
-50 to 50
Procedure
1. Choose “Color” in the Setting menu, and press
2. Choose “Hue” in the “Color” menu, and press
The “Hue” menu appears.
3. Use or for adjustment.
4. Press
to exit the adjustment.
to exit the adjustment.
.
.
.
.
Attention
• Using this function may make some color gradations unavailable for display.
Chapter 2 Adjusting Screens
19
To adjust color temperature
●
Color temperature can be adjusted.
The color temperature is normally used to express the hue of “White” and/or “Black” by a numerical
value. The value is expressed in degrees “K” (Kelvin).
The screen becomes reddish at a low color temperature, and bluish at a high color temperature, like
the ame temperature. A gain preset value is set for each color temperature setting value.
Adjustable range
Off, 4000K-10000K (specied by every 500K unit, including 9300K)
Procedure
1. Choose “Color” in the Setting menu, and press
2. Choose “Temperature” in the “Color” menu, and press
The “Temperature” menu appears.
3. Use or for adjustment.
4. Press
Note
• The value shown in “K” is available only as reference.
• “Gain” allows you to perform more advanced adjustment (see “To adjust gain” (page 21)).
• If you set to “Off”, the image is displayed in the preset color of the monitor (Gain: 100 for each RGB).
• When gain is changed, the color temperature is changed to “Off”.
to exit the adjustment.
.
.
To adjust gamma
●
Gamma can be adjusted. The brightness of the monitor varies depending on the input signal,
however, the variation rate is not proportional to the input signal. To keep the balance between the
input signal and the brightness of the monitor is called as “Gamma correction”.
Adjustable range
1.8, 2.0, 2.2, 2.4, 2.6, 2.8, Power, RTS
Procedure
1. Choose “Color” in the Setting menu, and press
2. Choose “Advanced Settings” in the “Color” menu, and press
3. Choose “Gamma” in the “Advanced Settings” menu, and press
The “Gamma” menu appears.
4. Use or for adjustment.
5. Press
Note
• Choosing “Power” will help to sharpen halftone images by increasing their contrast.
• “RTS” is suitable for display of RTS games and brightens low gradation areas of the screen.
to exit the adjustment.
.
.
.
Chapter 2 Adjusting Screens
20
To adjust gain
●
The brightness of each color component red, green, and blue is called “Gain”. You can change the
hue of “white” by adjusting gain.
Adjustable range
0 to 100
Procedure
1. Choose “Color” in the Setting menu, and press
2. Choose “Advanced Settings” in the “Color” menu, and press
3. Choose “Gain” in the “Advanced Settings” menu, and press
The “Gain” menu appears.
4. Adjust gain with or for each of red, green, and blue.
5. Press
Attention
• Using this function may make some color gradations unavailable for display.
Note
• The value of gain changes with that of color temperature.
• When gain is changed, the color temperature is changed to “Off”.
To reduce noise
●
It is possible to reduce block noise (mosaic pattern) that is experienced when displaying compressed
videos.
Procedure
1. Choose “Color” in the Setting menu, and press
2. Choose “Advanced Settings” in the “Color” menu, and press
3. Choose “Noise Reduction” in the “Advanced Settings” menu, and press
The “Noise Reduction” menu appears.
4. Select “Enable” or “Disable” with or .
5. Press
to exit the adjustment.
to exit the adjustment.
.
.
.
.
.
.
Attention
• When “Noise Reduction” is set to “Enable,” details of the image can be lost.
Chapter 2 Adjusting Screens
21
To set the enhancement ratio of ContrastEnhancer
●
This function allows you to automatically adjust the contrast according to the darkness or brightness
of an image and change in scenes. You can set the level of the adjustment.
Adjustable range
Enhanced, Standard, Off
Procedure
1. Choose “Color” in the Setting menu, and press
2. Choose “Advanced Settings” in the “Color” menu, and press
3. Choose “ContrastEnhancer” in the “Advanced Settings” menu, and press
The “ContrastEnhancer” menu appears.
4. Use or for adjustment.
5. Press
Attention
• Using this function may make some color gradations unavailable for display.
To set overdrive intensity
●
This function allows you to set overdrive intensity based on the use of the monitor. For example, you
can reduce image lags by setting the adjustment level to “Enhanced” when displaying fast moving
images such as game images.
Adjustable range
Enhanced, Standard, Off
Procedure
1. Choose “Color” in the Setting menu, and press
2. Choose “Advanced Settings” in the “Color” menu, and press
3. Choose “Overdrive” in the “Advanced Settings” menu, and press
The “Overdrive” menu appears.
4. Use or for adjustment.
5. Press
to exit the adjustment.
to exit the adjustment.
.
.
.
.
.
.
Attention
• The overdrive function is disabled in the following cases:
- For setting “Overscan [Off]” (page 25)
• When the vertical scanning frequency of the input signal exceeds 70 Hz.
• When “Screen Size” is set to “Normal” (unless the display resolution is 1920 x 1080)
- For setting “Overscan [On]” (page 25)
• When the display resolution is either 640 x 480, 720 x 480, or 720 x 576
Chapter 2 Adjusting Screens
22
2-4. Setting the Color Space for the HDMI input signal
You can specify the Color Space for the HDMI input signal. If the correct color is not displayed, change
the setting to other than “Auto”.
√: Can be set -: Cannot be set
Settings Function
Auto Identies the color space of the input signal automatically
(recommended).
YUV 4:2:2 Converts the color space of the input signal to a YUV 4:2:2
format.
YUV 4:4:4 Converts the color space of the input signal to a YUV 4:4:4
format.
RGB Full Range Converts the color space of the input signal to a RGB (0 to
255) format.
RGB Limited Range Converts the color space of the input signal to a RGB (16 to
235) format.
Procedure
1. Choose “Screen” from the Setting menu, and press
2. Choose “Color Space” from “Screen”, and press
The “Color Space” menu appears.
.
.
3. Use or for adjustment.
4. Press
to exit.
PC
signal
- √
√ √
√ √
√ √
√ √
Video
signal
Attention
• The setting is required when a DVI device is connected to the monitor (at the HDMI connector port) using the
DVI-HDMI conversion connector.
• Even if “Auto” is set, correct color might not be displayed. If this happens, change the setting to one where
the screen is displayed correctly.
Chapter 2 Adjusting Screens
23
Loading...
