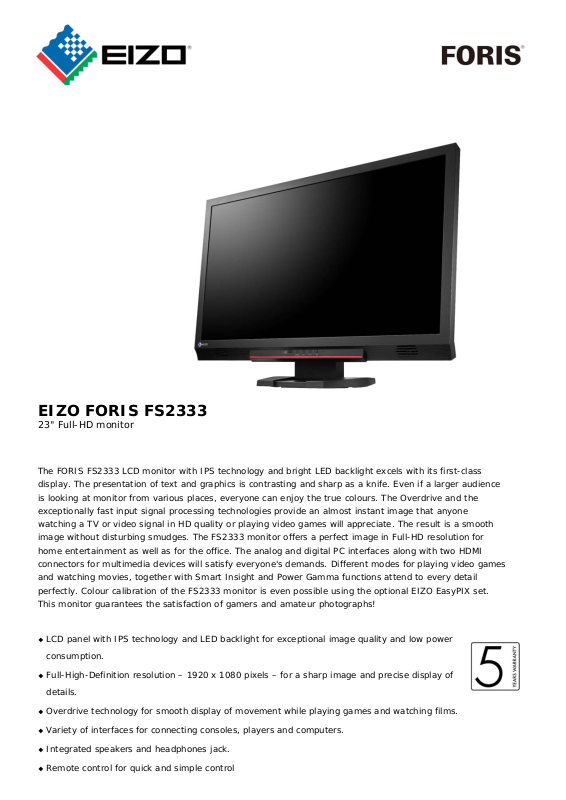

EIZO FORIS FS2333
23" Full-HD monitor
The FORIS FS2333 LCD monitor with IPS technology and bright LED backlight excels with its first-class
display. The presentation of text and graphics is contrasting and sharp as a knife. Even if a larger audience
is looking at monitor from various places, everyone can enjoy the true colours. The Overdrive and the
exceptionally fast input signal processing technologies provide an almost instant image that anyone
watching a TV or video signal in HD quality or playing video games will appreciate. The result is a smooth
image without disturbing smudges. The FS2333 monitor offers a perfect image in Full-HD resolution for
home entertainment as well as for the office. The analog and digital PC interfaces along with two HDMI
connectors for multimedia devices will satisfy everyone's demands. Different modes for playing video games
and watching movies, together with Smart Insight and Power Gamma functions attend to every detail
perfectly. Colour calibration of the FS2333 monitor is even possible using the optional EIZO EasyPIX set.
This monitor guarantees the satisfaction of gamers and amateur photographs!
LCD panel with IPS technology and LED backlight for exceptional image quality and low power
consumption.
Full-High-Definition resolution – 1920 x 1080 pixels – for a sharp image and precise display of
details.
Overdrive technology for smooth display of movement while playing games and watching films.
Variety of interfaces for connecting consoles, players and computers.
Integrated speakers and headphones jack.
Remote control for quick and simple control
EIZO FORIS FS2333
Main features
IPS-LCD panel with LED backlight The IPS module
guarantees a large viewing angle (up to 178°) and the most
stable presentation of colour tones and contrast. It ideally
satisfies the demands of larger audiences, viewing the screen
from various angles, yet seeing the colours properly. The
FS2333 model excels with a modern LED backlight providing
continuous high brightness and contrast. In darker
environments, the brightness level can be reduced to as low as
3 cd/m², sparing the eyesight of the viewer and at the same
time providing a clear picture even at this level.
Overdrive Pixel changing accelerated via precalculated
excitement (Overdrive). The FS2333 model reaches a grey-grey
response time of 3.4 ms displaying a brilliant image without
interference.
Instant display The input lag is less than 0.05 frames,
meaning the image is displayed almost instantly. This is an
advantage when playing games that require a quick reaction or
synchronization.
Input pallet Two HDMI inpu ts bring a crystal clear Full-HD
1080p signal to the screen. At either 60 Hz or 50 Hz, the
FS2333 monitor displays images with the original frequency
and artefact-free. One DVI-D and DSub connector is available
for PC connection. The FS233 model can even process a signal
encrypted according to the HDCP standard.
Auto-EcoView The EcoView sensor measures the ambient
light and fully automatically adapts the image brightness.
However, manually configuring the brightness is also possible.
The minimum and maximum display brightness can be
configured at random.
Game and Cinema modes Cinema mode brings out small
differences in colour tones. This leads to the improvement of
viewing conditions. Structures and textures are distinguished
better. Game mode allows you to see enemies hiding in dark
corners earlier. Benefit: the ability to react more quickly
strengthens your chances in a game. In Eco mode, the FS2333
monitor can lower its power consumption to a level that
satisfies the Energy Star guideline.
Smart Insight and Power Gamma The FS2333 model is
equipped with common Gamma curves such as 1.8 or 2.2. In
addition to this, it also provides two special functions: Power
Gamma brings out low contrasts and makes darker parts of the
image more visible. Smart Insight optimizes dark scenes and
brings out its contents.
Smart Resolution The function searches and fixes areas in
the image lacking sharpness, motion artefacts and colour tones.
Activating the Text Enhancer, Skin Tone Enhancer, Video Area
Enhancer functions is optional. Smart solution: Smart
Resolution only fixes the parts of the image that will benefit
from the change. The picture is sharp and clear and has a
realistic and live effect.
Colour on request Three colour stripes (red, blue and grey)
give the monitor a personalized look. With the whip of your
hand, the stripe will be locked in place on the front side of the
monitor. The typical black device receives a colourful twist.
Remote control makes adjusting optimal settings easier.
Important functions are intuitively available with the press of a
button. This in particularly concerns the following: switching
between consoles, video player and computer, selecting
between Cinema, Game, Paper and sRGB modes and adjusting
the volume.
Reducing reflections Polished and glossy surfaces make
viewing harder. The display area of the FS2333 model prevents
the formation of disturbing reflections, ensuring optimal
ergonomics. Undesired reflections are suppressed.
Internal speakers The front panel of the FS2333 monitor
contains a jack for connecting headphones and speakers can be
found on both sides of the device. The audio signal is
transmitted via the HDMI interface.
Logos and standards
Technical specifications
Panel size 58 cm (23 inches), 16:9 aspect ratio
Models (colour versions) FS2333-BK (black)
Viewable image size 510 mm (width) x 287 mm (height)
Viewable image size - diagonal 584 mm
Ideal/Recommended resolution 1,920 x 1,080 pixels
Pixel pitch 0.265 mm x 0.265 mm
Colour depth 16.7 million
Max. brightness 250 cd/m²
Max. contrast 5,000:1 with the use of Contrast Enhancer
Max. Viewing angle Horizontal: 178°; Vertical: 178°
LCD technology IPS
Typical response time, medium
tone
Main features Full-HD and 2 HDMI connectors, Game,
Adjustment functions brightness, contrast, Gamma, Power
Resolution 1920 x 1080 full screen 1:1,
Horizontal frequency Analog: 31–81 kHz
Vertical frequency Analog: 55-76 Hz
Video bandwidth Analog: 148.5 MHz, Digital: 148.5 MHz
Picture signals RGB Analog, DVI (TMDS), HDMI
Input connectors 2x HDMI, DVI-D, DSub
Plug & Play VESA DDC CI
Power Management VESA DPMS, DVI-DMPM
Power consumption max. power consumption** 42 W,
Dimensions (WxHxD) 55 cm x 39 to 45 cm x 20 cm
Net weight 5.4 kg
Rotation / Tilt 25°/5° back/front
Adjustable Height 6 cm
Standards CE, TÜV GS, TÜV Ergonomics,
Accessories included Czech, English and French manual, remote
Warranty 5 year, onsite exchange warranty.
* EasyPix bundled with the FS2333 monitor or as optional accessories.
** At maximum brightness, two signal inputs and active speakers.
Full-High-Definition resolution
1,000:1 static contrast
3. ms grey-grey
Cinema, Paper modes, sRGB and Eco,
Overdrive, Power Gamma, Smart Resolution,
Contrast Enhancer, 10bit Look-Up-Table,
HDCP decoder, remote control, Auto
EcoView, red, blue or grey decorative stripe,
headphones / speakers jack, hardware
calibration with EIZO EasyPIX* set
Gamma, Smart Insight, Smart Resolution,
Overdrive, colour saturation, intensity,
temperature, clock, phase, position,
resolution, off timer,
OSD language (De, UK, Fr, Se, Es, It),
volume
1080p&i, 720p and 480p&i at 60 Hz
1080p&i, 720p and 576p&i at 50 Hz
enlarged to full screen or 1:1
Digital: 15-68 kHz
Digital: 49-61 Hz
typical power consumption 22 W,
standby 0 W
ISO 9241-307 Pixel failure category I,
TCO 5.2, Energy Star
controller, decorative stripe (red, blue,
grey), Screenmanager Utility Disk software,
power, audio and signal cable (DVI-D-DVID), ICC profile
