Eizo eClient User Manual

Integrated LCD Monitors/Windows-Based Terminals

EIZO's eClient. WBT and Display Technology in One Package.

Innovative Design Lowers TCO While Redefining
the Term "Thin Client"

EIZO, the brand of choice of business and graphics professionals
seeking the highest quality display monitors, brings its technologi­cal expertise to the burgeoning Windows-based Terminal (WBT)
market with its eClient series. The eClient blends EIZO's know­how in manufacturing top-of-the-line monitors with WBT technol­ogy for an innovative, simple, and cost effective thin client alterna­tive. The new additions to the eClient lineup are the eClient
531L, an integrated 15-inch LCD monitor-WBT unit, and the
eClient 531LT-GR which also includes a touchscreen panel.
These models contain the compact design, specifications, and flex­ibility to fulfill the thin client needs of almost any environment or
application including general administration, point-of-sales, facto­ries, kiosks, and call centers.

With nearly all administrative and managerial tasks including soft­ware installation and upgrade handled on the server, WBTs offer
an economical and practical alternative to desktop PCs.
EIZO takes the simplicity and cost effectiveness of standard
WBTs one step further by combining the display and terminal
into one compact, hassle-free unit. The result is an attractive,
space efficient design with the WBT so seamlessly integrated into
the monitor that the eClient appears to be a standard LCD moni­tor. At a depth of less than 17 cm the eClient minimizes footprint
so users can maximize desktop space. IT managers will appreciate
this all-in-one arrangement with its lower total cost of ownership
(TCO) alternative to acquiring the WBT and display separately.
Furthermore, users no longer have to sacrifice desktop or floor
space to accommodate a separate thin client terminal or the exter­nal power unit common with many LCD monitors. Setup of the
eClient is almost effortless; just connect the LAN cable and the
single power cord and the unit is ready for operation.

Standard WBT System

Server Terminal

eClient

Power Cord

Display

Keyboard

Power Cord

Mouse

Advanced Design Blends Performance and Value

The eClient's 15-inch active matrix TFT LCD is uniquely
designed for environments where performance as well as a compact
design is essential. Specifications include a resolution of 1024 dots

×

768 lines, 0.297 mm pixel pitch, 300:1 contrast ratio, and a

200 cd/m

2

brightness level. Total weight with the stand included

is only 5.0 kg.

The eClient produces sharp, clear pictures free from flicker,
unstable brightness, and poor contrast so users can work for long
hours without eye fatigue, stress, and headaches. The single unit
design of the eClient assures the interface between the mother­board and LCD panel remains purely digital.

The CPU is MIPS compatible 64 bit Reduce Instruction Set Com­puter (RISC) with a speed of 168 MHz. It also contains 16 MB of
flash memory and 32 MB of SDRAM. The eClient includes a PS/2
keyboard and two button mouse, and provides local printer sup­port with a parallel port. The unit does not utilize a fan or other
moving parts so operation is virtually silent.

Network Administrator Software for Fast Deployment,
Easy Management

The optional proprietary Network Administrator software allows
systems administrators to configure and maintain each client indi-

vidually and from a remote location.

Serial Port for Increased Usage Options

A serial port (RS-232C) adds connection flexibility through
peripheral support. By attaching a modem, remote users can
access the network from any location through a dial-up or dial-in
connection. With a barcode scanner, the eClient can serve as a ter­minal for inventory and production
control. Using an IC card reader
allows for user confirmation and
greater network security.
Connecting a credit card reader
facilitates use in retail and
banking industries.

Mouse

Keyboard

VESA Compliant

10BaseT Connector

Power
Connecter

Parallel Port
(Local Printer Support)

Serial Port

Touchscreen Support with the eClient 531LT-GR

While delivering the same high level of performance as its coun­terpart, the eClient 531LT-GR incorporates an analog resis­tive type panel that accepts both finger and pen touch input
and has a typical transparency rate of 79%. This is the per­fect solution for factories, kiosks, point of sales, and other
environments that require not only the network capabili­ty and low maintenance of WBTs, but also the option of
simple data input available only with a touchscreen
monitor.

Windows 2000 Ready

®

With support for Microsoft

Remote Desktop

Protocol (RDP) 5.0, the eClient operates with

®

not only Microsoft Windows

NT

™

Terminal

Server Edition 4.0 but also the Windows
2000 Server series for a more efficient serv­er/client environment.

WBT Standard 1.5 and ICA Client

6.0 Included

Based on the new
WBT Standard 1.5, the eClient deliv­ers faster processing and graphics per­formance for overall improved man­ageability and efficiency.

®

In conjunction with Citrix

™

1.8, Feature Release 1,

Frame
the bundled Citrix Independent
Computing Architecture (ICA)
Client 6.0 provides various per­formance enhancements such
as 16-bit color to raise the
eClient's maximum number
of displayable colors to
65,536 and 128-bit
encryption for increased
security.

Meta-

Free Mount Capability and Portrait Mode

Especially useful in space constrained environ-

ments, the eClient's detachable panel provides a

way to reclaim 100% of the desktop. Once mount-

ed on an arm, the eClient supports portrait mode

for full page viewing of text documents and web

sites.

Low Energy Consumption

Designed for maximum energy savings, the eClient con-

sumes only 30 watts of power during normal operation.

This is about half the power used by a stand alone termi-

nal and monitor, making it one of the most energy efficient

WBT solutions on the market today and further lowering

long term TCO. For additional reduction in electric and cool-

ing costs and prevention of unnecessary use of the LCD's back-

light, the eClient enters a power saving mode during periods of

inactivity where power consumption drops to less than 5 watts.

Comparison of Power Consumption

eClient 531L/
eClient 531LT-GR

Standard WBT
Product

Power Consumed by WBT*
Power Consumed by Separately Purchased 15" LCD*

*These figures are approximations. Actual
figures vary by manufacturer and model.

Compliance with International Standards

The eClient 531L meets the requirements of the industry's

strictest ergonomic and energy standards including

TCO'99, TÜV/Ergonomics, the CE Mark, and the EPA

ENERGY STAR

®

Program.

Server

eClient

Keyboard

Power Cord

Mouse

*The eClient 531LT-GR is neither TCO'99 nor TÜV/Ergonomics compliant.

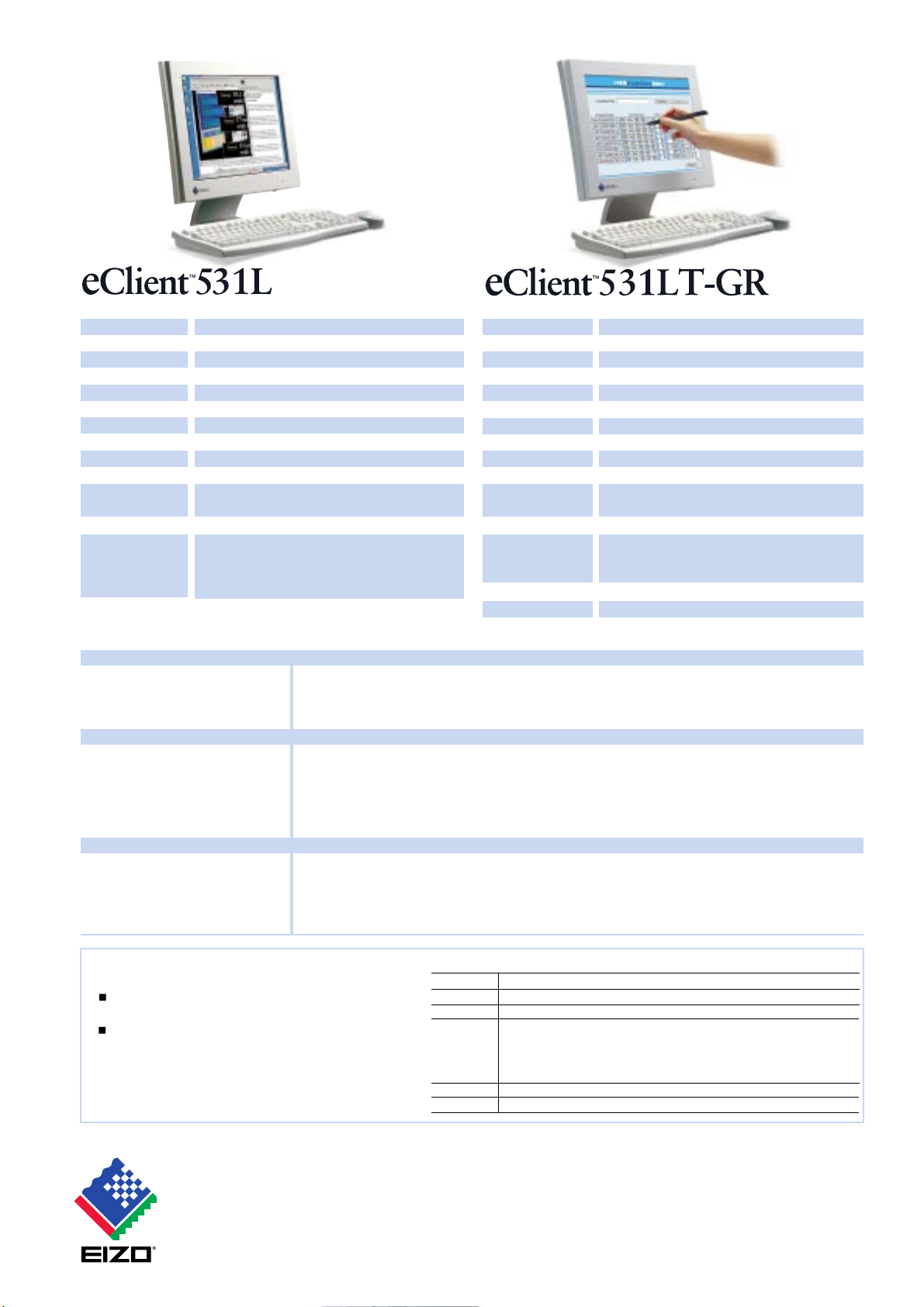

Specifications Specifications

Panel Size and Type
Pixel Pitch
Resolution
Viewing Angle
Brightness
Contrast Ratio
Active Display Size
Viewable Image Size
Power Consumption
Power Save Mode
Dimensions

Net Weight
Regulatory Standards

38 cm (15 inch) TFT color LCD panel

0.297 mm
1024
Horizontal: 140°, Vertical: 120°
200 cd/m

× 768

2

(typical)

× 0.297 mm

300:1 (typical)
304 mm (H)

× 228 mm (V)

380 mm (diagonal)
30 watts
Less than 5 watts
396 mm (W) × 390 mm (H) × 164 mm (D) (with stand)
396 mm (W)

×

312 mm (H) × 55 mm (D) (without stand)

5.0 kg (with stand) 3.6 kg (without stand)
TCO'99, TÜV/GS, CB, CE, TÜV/Ergonomics, Energy
2000, EPA ENERGY STAR

®

¨

Program, UL 1950, CSA
C22.2 No.950, FCC-A, Canadian ICES-003-A, VCCI­A, TÜV/S

Panel Size and Type
Pixel Pitch
Resolution
Viewing Angle
Brightness
Contrast Ratio
Active Display Size
Viewable Image Size
Power Consumption
Power Save Mode
Dimensions

Net Weight
Regulatory Standards

Touch Panel Type
Transparency
Interface

38 cm (15 inch) TFT color LCD panel

0.297 mm
1024
Horizontal: 140°, Vertical: 120°
160 cd/m

× 768

2

(typical)

× 0.297 mm

300:1 (typical)
304 mm (H)

× 228 mm (V)

380 mm (diagonal)
30 watts
Less than 5 watts
396 mm (W) × 390 mm (H) × 164 mm (D) (with stand)
396 mm (W)

×

312 mm (H) × 58 mm (D) (without stand)

5.5 kg (with stand) 4.1 kg (without stand)
TÜV/GS, CB, CE, Energy 2000, EPA ENERGY STAR
Program, UL 1950, CSA C22.2 No.950, FCC-A,
Canadian ICES-003-A, VCCI-A, TÜV/S

Analog Resistive (accepts finger and pen touch input)
79% (typical)
4-wire analog (CPU I/F direct connection)

®

Hardware

CPU
Ram Memory
Flash Memory
Video Memory

MIPS compatible 64 bit RISC/168 MHz
32 MB SDRAM
16 MB Flash ROM
2D graphics controller (2 MB VRAM built-in)

Software

Operating System
Display Protocols
Bundled Software
Compliant Server
Software
Transport Protocol

Windows CE
Microsoft RDP, Citrix ICA
Microsoft Windows CE Version 2.12J, Windows-Based Terminal Kit Version 1.5J, Citrix ICA Client 6.0
Windows NT Server 4.0 Terminal Server Edition, Windows 2000 Server, Windows 2000 Advanced Server,
Windows 2000 Datacenter Server, Citrix MetaFrame 1.8, Feature Release 1
TCP/IP with DNS, DHCP, and PPP

Peripheral Ports

Parallel Port
Serial Port
Keyboard
Mouse
Network

DB-25 female connector
D-Sub 9 pin (RS-232C)
PS/2
PS/2 2-button mouse
10Base-T Ethernet (RJ-45)

Network Administrator

Utility Software for the eClient
Provides control
reduced total cost of ownership.
The following configurations are possible for the eClient:

•

Save configuration settings on the FTP server

•

Update configuration settings

•

Update firmware

•

Update network settings

•

Reboot eClient

of all eClient terminals from one host PC for

System Requirements (Host PC)

CPU
Memory
HDD

OS

Resolution
Network

Intel Pentium 133 MHz minimum
64 MB minimum
10 MB minimum of additional hard disk space

Microsoft Windows 2000 Professional
Microsoft Windows 2000 Server
Microsoft Windows NT Workstation 4.0 (Service Pack 3 or later)
Microsoft Windows NT Server 4.0 (Service Pack 3 or later)
Microsoft Windows NT Server 4.0 Terminal Server Edition

× 768 or higher

1024
LAN (TCP/IP protocol)
