Please read PRECAUTIONS, this User’s Manual, and the Setup Guide
(separate volume) carefully to familiarize yourself with safe and
effective usage.
• Please refer to the Setup Guide for basic information ranging from
connection of the monitor to a PC to using the monitor.
• The latest User’s Manual is available for download from our web site:
http://www.eizoglobal.com
Location of Caution Statement
WARNING
AVERTISSEMENT
WARNUNG
This product has been adjusted specically for use in the region to which it was originally shipped. If
operated outside this region, the product may not perform as stated in the specications.
No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by
any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation.
EIZO Corporation is under no obligation to hold any submitted material or information condential unless
prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every
effort has been made to ensure that this manual provides up-to-date information, please note that EIZO
monitor specications are subject to change without notice.
2
Notice for this monitor
Aside from general purposes like creating documents, viewing multimedia content, this product is also suited
to applications such as graphics creation and digital photo processing, where accurate color reproduction is
a priority.
This product has been adjusted specically for use in the region to which it was originally shipped. If the
product is used outside the region, it may not operate as specied in the specications.
This product may not be covered by warranty for uses other than those described in this manual.
The specications noted in this manual are only applicable when the following are used:
• Power cords provided with the product
• Signal cables specied by us
Only use optional products manufactured or specied by us with this product.
If you place this product on a lacquer-coated desk, the color may adhere to the bottom of the stand due to
the composition of the rubber. Check the desk surface before use.
It takes about 30 minutes for the performance of electrical parts to stabilize. Please wait 30 minutes or more
after the monitor power has been turned on, and then adjust the monitor.
Monitors should be set to a lower brightness to reduce changes in luminosity caused by long-term use and
maintain a stable display.
When the screen image is changed after displaying the same image for extended periods of time, an
afterimage may appear. Use the screen saver or power save function to avoid displaying the same image for
extended periods of time.
If the monitor displays continuously over a long period of time, dark smudges or burn-in may appear. To
maximize the life of the monitor, we recommend the monitor be turned off periodically.
Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime (refer
to “Cleaning” (page 4)).
The LCD panel is manufactured using high-precision technology. Although, missing pixels or lit pixels may
appear on the LCD panel, this is not a malfunction. Percentage of effective dots: 99.9994 % or higher.
The backlight of the LCD panel has a xed lifetime. When the screen becomes dark or begins to icker,
please contact your local EIZO representative.
Do not press on the panel or edge of the frame strongly, as this may result in display malfunctions, such
as interference patterns, etc. If pressure is continually applied to the panel, it may deteriorate or damage
your panel. (If the pressure marks remain on the panel, leave the monitor with a black or white screen. The
symptom may disappear.)
Do not scratch or press on the panel with any sharp objects, as this may result in damage to the panel. Do
not attempt to brush with tissues as this may scratch the panel.
Notice for this monitor
3
When the monitor is cold and brought into a room or the room temperature goes up quickly, dew
condensation may occur on the interior and exterior surfaces of the monitor. In that case, do not turn the
monitor on. Instead wait until the dew condensation disappears, otherwise it may cause some damage to
the monitor.
Cleaning
Attention
• Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet
or panel, and also quality deterioration of the image.
• Never use any thinner, benzene, wax, and abrasive cleaner, which may damage the cabinet or panel.
Note
• The optional ScreenCleaner is recommended for cleaning the cabinet and panel surface.
The stains on the cabinet and panel surface can be removed by moistening part of a soft cloth with water.
To use the monitor comfortably
• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor
according to the environmental conditions.
• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.
Notice for this monitor
4
Contents
Notice for this monitor ......................................... 3
• The provided Color Management Software "ColorNavigator 6" enables you to calibrate monitor
characteristics and generate color proles
See “1-3. EIZO LCD Utility Disk” (page 9)
• Equipped with a USB Hub function that supports USB 3.0
Achieves high-speed data transfers of up to 5 Gbps, which enables transfers of large amounts of data to and
from USB memory devices in a short amount time.
Also, the
tablet in a short period of time.
See
“6-5. Making Use of USB (Universal Serial Bus)” (page 39) and “USB CHARGE Port” (page 24)
• Displays HDCP (High Bandwidth Digital Protection) protected content.
USB downstream port supports quick charging, so you can recharge your smartphone or
Note

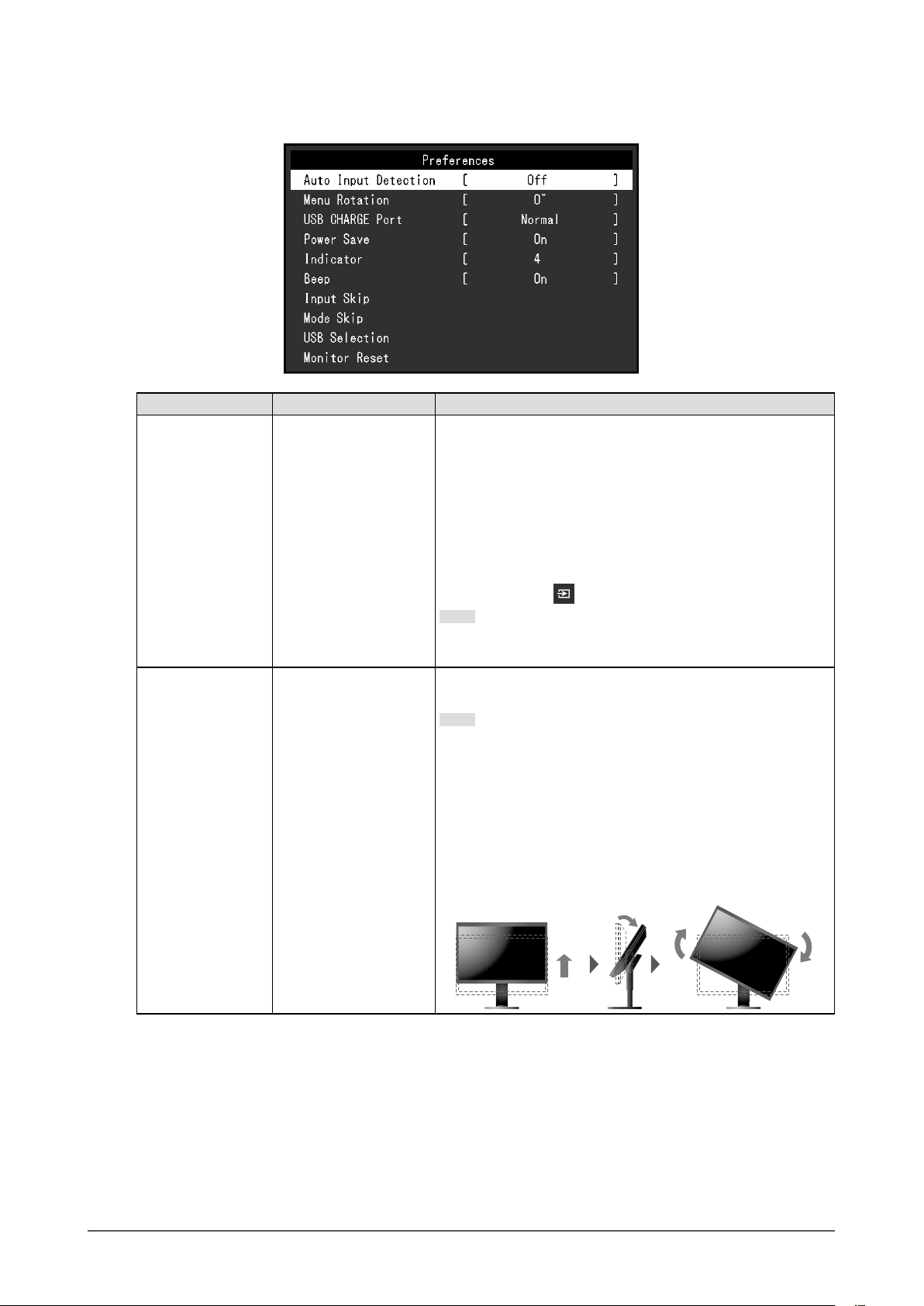

• This monitor supports a portrait orientation display. When using the screen in a portrait position, you can
change the orientation of the Setting menu (see “Menu Rotation” (page 23)).
• When using the monitor screen in a portrait position, the graphics board supporting portrait display is
required. When placing the monitor in a portrait position, settings of your graphics board need to be
changed. Refer to the User’s Manual of the graphics board for details.
Chapter 1 Introduction
6
1-2. Controls and Functions
2
1
Front
●
Setting menu
1. Operation switchesDisplays menus. Operate the switches according to the operation
guide.
The switch indicator is lit white when you turn the power on.
2. Power switch Turns the power on or off.
The switch indicator is lit when you turn the power on. The indicator
color differs depending on the monitor's operation status.
White: Operating
Orange: Power saving mode
OFF: Power off
*1
*1 See “3-1. Basic Operation of the Setting Menu” (page 16) for how to use.
Chapter 1 Introduction
7
Rear
●
8
7
9
10
11
6543
3. Main power switchTurns the main power on or off.

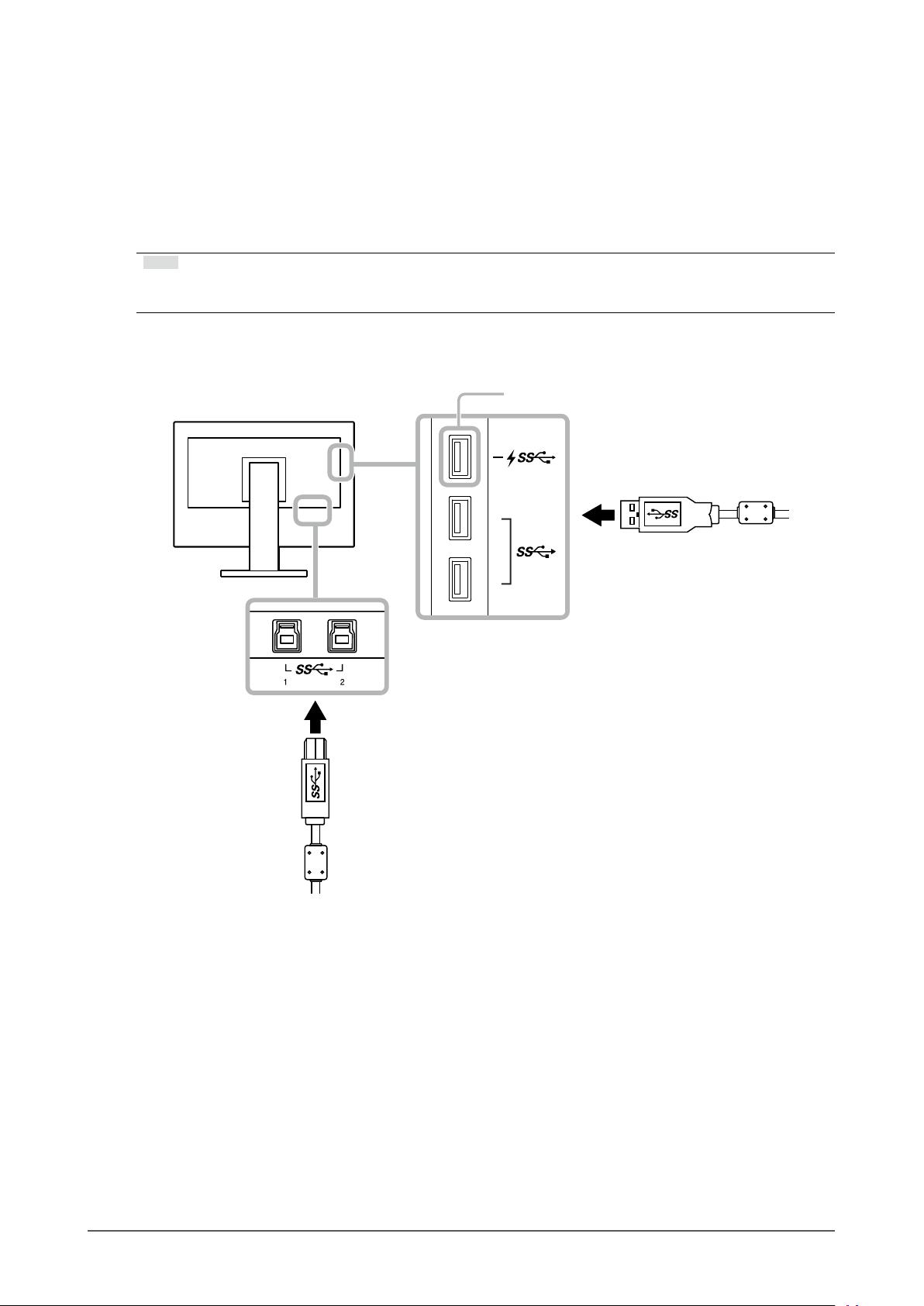

6. USB upstream portConnects to the USB cable when using software that requires a USB
connection, or when using the USB Hub function (page 39).
7. USB downstream portConnects to a peripheral USB device.
The
8. HandleThis handle is used for transportation.
Attention
• Firmly grasp and hold the monitor by the bottom while grabbing the
handle, and carefully convey the monitor so as not to drop it.
9. Security lock slotComplies with Kensington’s MicroSaver security system.
10. Stand
11. Cable holder

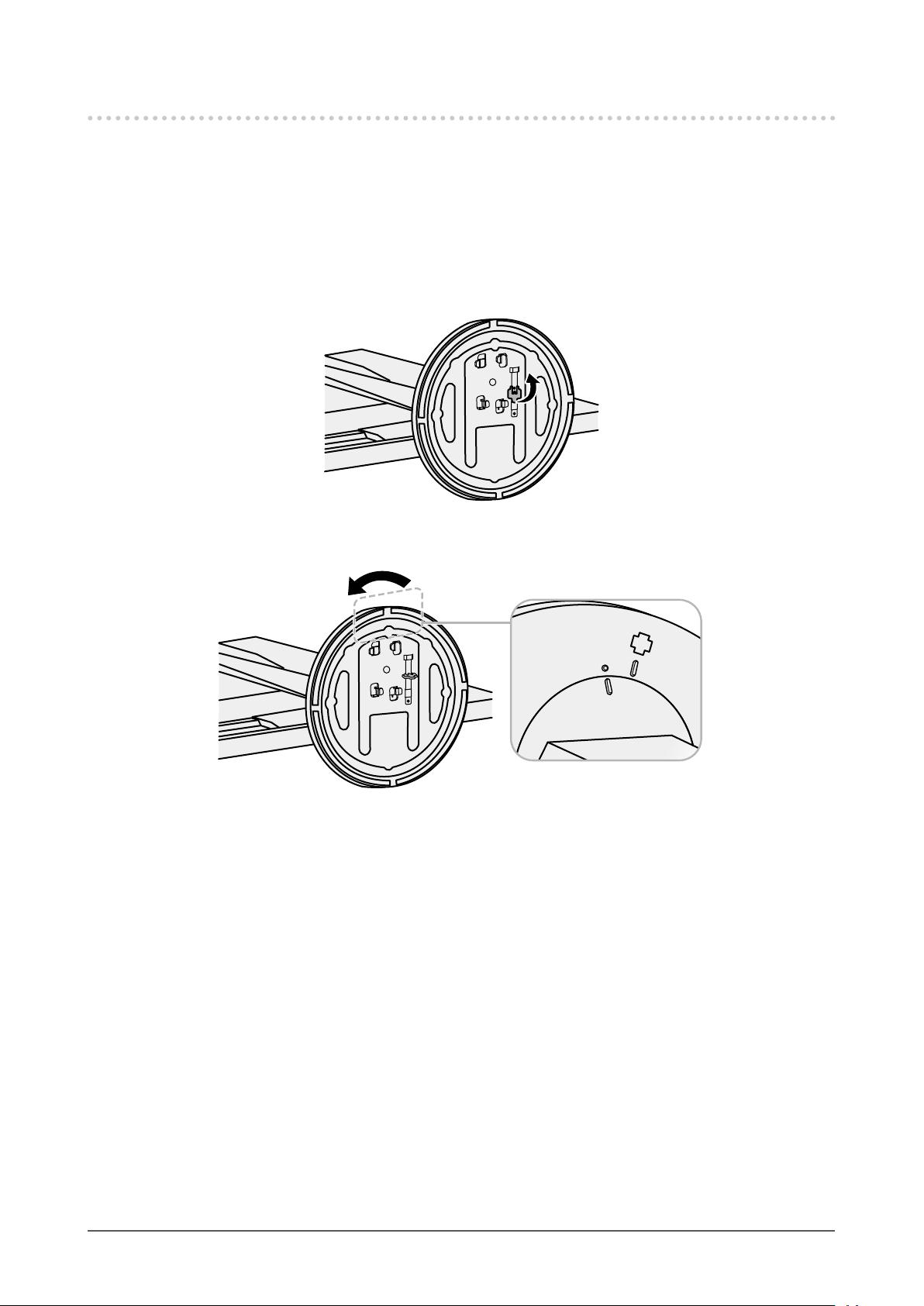

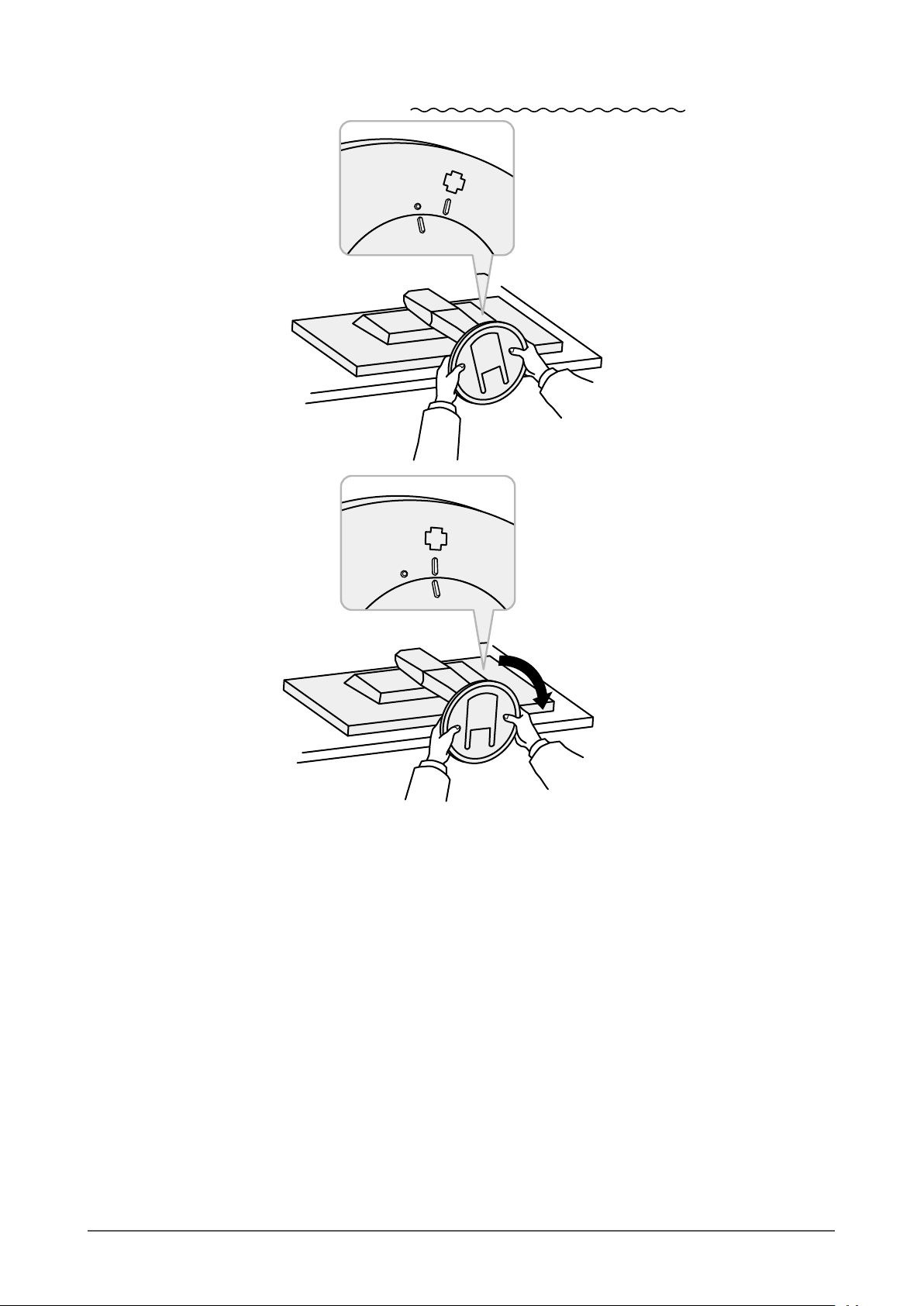

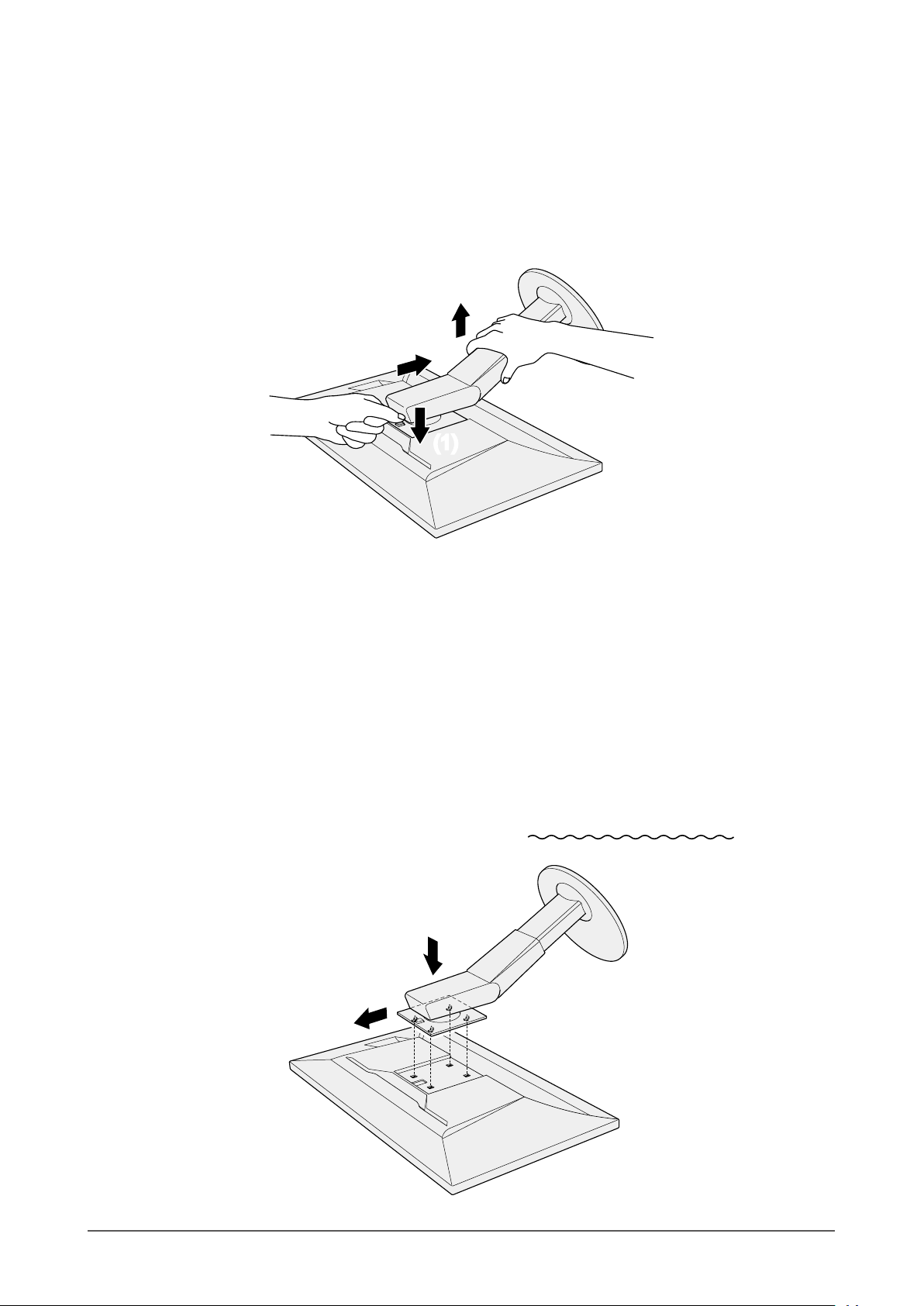

*2 An optional arm (or an optional stand) can be attached by removing the stand section (see “6-1. Attaching

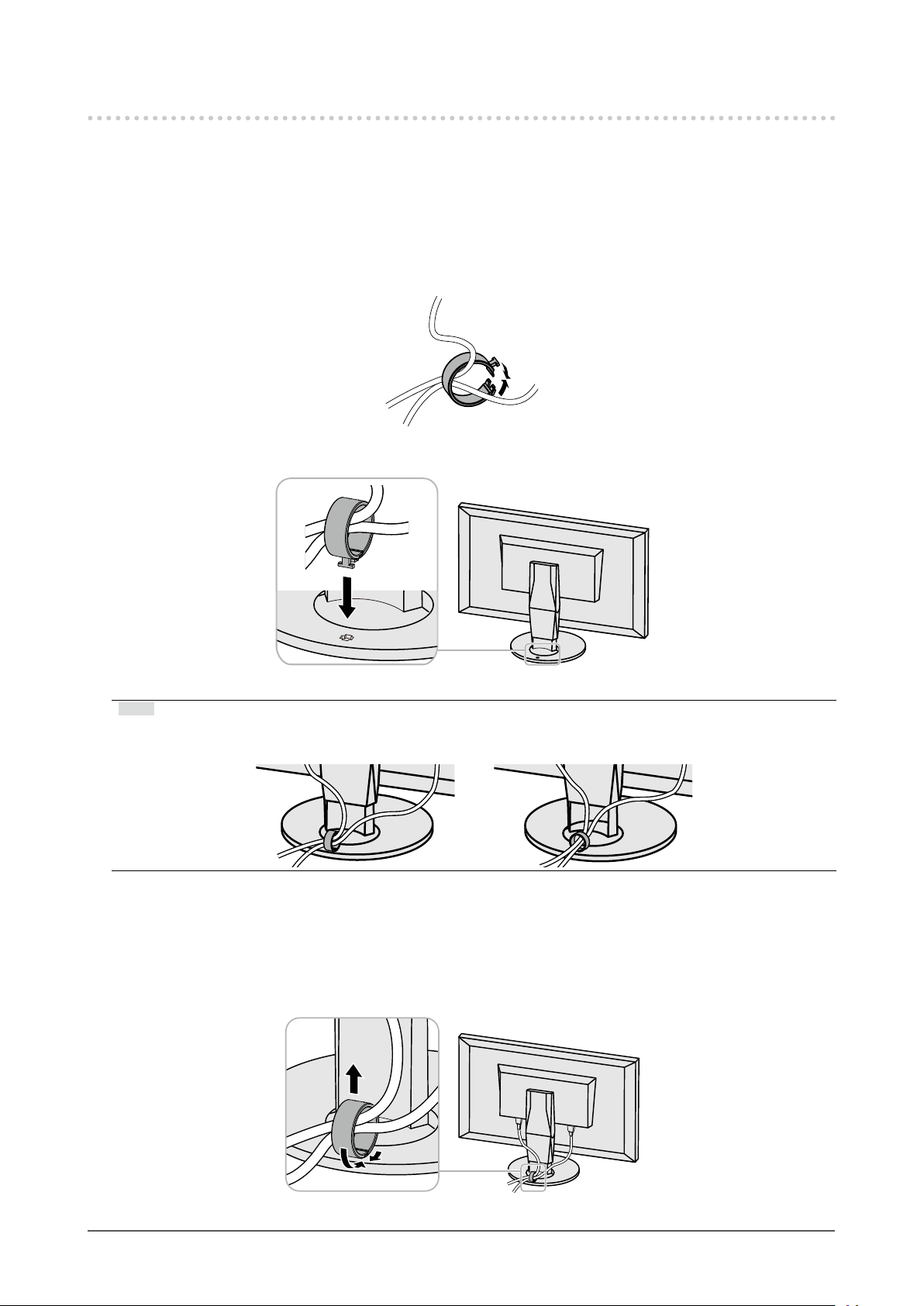

*3 For details on mounting the cable holder, see “6-3. Attaching/Detaching the Cable Holder” (page 37).
*2
*3
the Optional Arm” (page 32)).
Adjusts the height and angle (tilt and swivel) of the monitor.
Covers the monitor cables.
port supports quick recharging (page 24).
Chapter 1 Introduction
8
1-3. EIZO LCD Utility Disk
An "EIZO LCD Utility Disk" (CD-ROM) is supplied with this product. The following table shows the disk
contents and an overview of the software programs.
Disk contents and software overview
●
The disk includes application software programs for calibration, and the User's Manual. Refer to
“Readme.txt” or the “read me” le on the disk for software startup procedures or le reference
procedures.
Contents Overview
A "Readme.txt" or "read me" le
ColorNavigator 6An application software for measuring and calibrating monitor characteristics and
generating ICC proles (for Windows) and Apple ColorSync proles (for Macintosh).
(The monitor and PC must be connected using the USB cable.)
User’s Manual of this monitor (PDF le)
To use ColorNavigator 6
●
Refer to the User’s Manual on the CD-ROM disk for details on how to install and use the software.
When using this software, you will need to connect a PC to the monitor with the supplied USB cable.
For details on the USB cable connection, see (page 40).
Attention
• While using ColorNavigator 6, do not operate the power switch or operation switches on the front side on the
monitor.
Chapter 1 Introduction
9
1-4. Compatible Resolutions
The monitor supports the following resolutions.
DVI
●
Resolution
Dot
clock
Horizontal
scanning
frequency
Vertical
scanning
frequency
DVI
(Dual Link*1)
DVI
(Single Link*1)
640 x 48025.175 MHz31.469 kHz59.940 Hz√√
640 x 48025.200 MHz31.500 kHz60.000 Hz√
*3
720 x 40028.322 MHz31.469 kHz70.087 Hz√√
800 x 60040.000 MHz37.879 kHz60.317 Hz√√
1024 x 76865.000 MHz48.363 kHz60.004 Hz√√
1280 x 720p74.250 MHz37.500 kHz50.000 Hz√
1280 x 720p74.250 MHz45.000 kHz60.000 Hz√
*3
*3
1280 x 960108.000 MHz60.000 kHz60.000 Hz√√
1280 x 1024108.000 MHz63.981 kHz60.020 Hz√√
1600 x 1200162.000 MHz75.000 kHz60.000 Hz√√
1680 x 1050119.000 MHz64.674 kHz59.883 Hz√
1680 x 1050146.250 MHz65.290 kHz59.954 Hz√
*3
*3
1920 x 1080138.500 MHz66.587 kHz59.934 Hz√√
1920 x 1080p74.250 MHz27.000 kHz24.000 Hz√
1920 x 1080p74.250 MHz28.125 kHz25.000 Hz√
1920 x 1080p74.250 MHz33.750 kHz30.000 Hz√
1920 x 1080p148.500 MHz56.250 kHz50.000 Hz√
*3
*3
*3
*3
1920 x 1080p148.500 MHz67.500 kHz60.000 Hz√√
*3
√
*3
√
*3
√
*3
√
*3
√
*3
√
*3
√
*3
√
*3
√
1920 x 1200154.000 MHz74.038 kHz59.950 Hz√√
2048 x 108074.250 MHz27.000 kHz24.000 Hz√
2560 x 1440
2560 x 1440
*2
146.250 MHz43.945 kHz29.935 Hz-√
*2
241.500 MHz88.787 kHz59.951 Hz√-
*3
*3
√

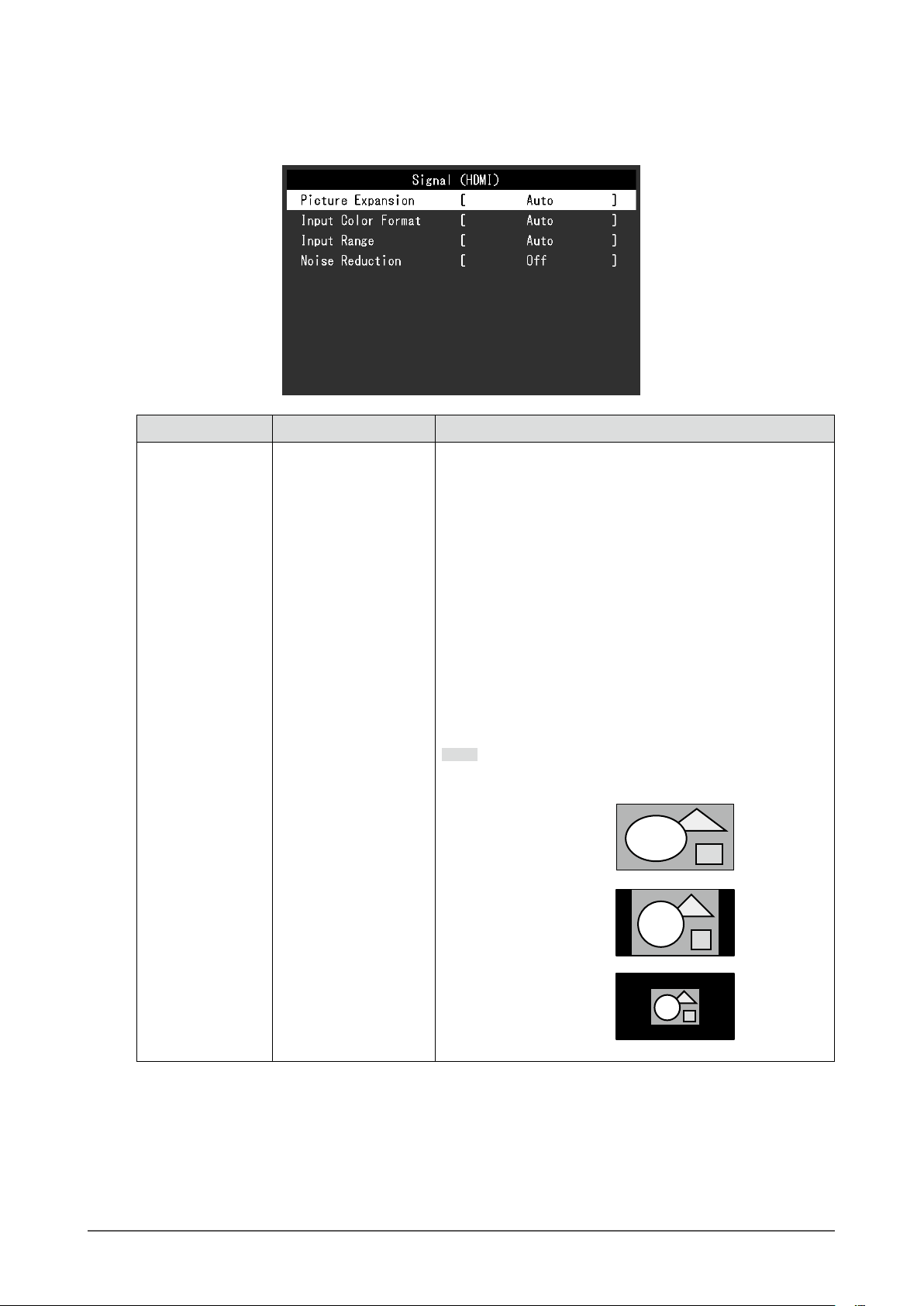

*1 “Signal Format” (page 28) must be set.
*2 Recommended resolution
*3 The output device must be dened. Refer to the User’s Manual of the output device for further details.
Chapter 1 Introduction
10
DisplayPort
●
Horizontal
scanning
frequency
Vertical scanning
frequency
DisplayPort
Resolution
Dot
clock
640 x 48025.175 MHz31.469 kHz59.940 Hz√
640 x 48025.200 MHz31.500 kHz60.000 Hz√
720 x 40028.322 MHz31.469 kHz70.087 Hz√
720 x 480p (4:3)27.027 MHz31.500 kHz60.000 Hz√
720 x 480p (16:9)27.027 MHz31.500 kHz60.000 Hz√
800 x 60040.000 MHz37.879 kHz60.317 Hz√
1024 x 76865.000 MHz48.363 kHz60.004 Hz√
1280 x 720p74.250 MHz37.500 kHz50.000 Hz√
1280 x 720p74.250 MHz45.000 kHz60.000 Hz√
1280 x 960108.000 MHz60.000 kHz60.000 Hz√
1280 x 1024108.000 MHz63.981 kHz60.020 Hz√
1600 x 1200162.000 MHz75.000 kHz60.000 Hz√
1680 x 1050119.000 MHz64.674 kHz59.883 Hz√
1680 x 1050146.250 MHz65.290 kHz59.954 Hz√
1920 x 1080138.500 MHz66.587 kHz59.934 Hz√
1920 x 1080p74.250 MHz27.000 kHz24.000 Hz√
1920 x 1080p74.250 MHz28.125 kHz25.000 Hz√
1920 x 1080p74.250 MHz33.750 kHz30.000 Hz√
1920 x 1080p148.500 MHz56.250 kHz50.000 Hz√
1920 x 1080p148.500 MHz67.500 kHz60.000 Hz√
*2
*2
*2
*2
*2
*2
*2
*2
*2
*2
*2
1920 x 1200154.000 MHz74.038 kHz59.950 Hz√
2048 x 108074.250 MHz27.000 kHz24.000 Hz√
2560 x 1440
2560 x 1440
*1
*1
146.250 MHz43.945 kHz29.935 Hz√
241.500 MHz88.787 kHz59.951 Hz√
*2
*2
*1 Recommended resolution
*2 The output device must be dened. Refer to the User’s Manual of the output device for further details.
*1 Recommended resolution
*2 The output device must be dened. Refer to the User’s Manual of the output device for further details.
*1
*1
146.250 MHz43.945 kHz29.935 Hz√
241.500 MHz88.787 kHz59.951 Hz√
*2
*2
Chapter 1 Introduction
12
1-5. Setting the Resolution
If the resolution is incorrect after connecting the monitor to a PC or if you want to change the resolution,
follow the procedure below.
Windows 10
●
1. Right-click anywhere on the desktop except for on icons.
2. From the displayed menu, click "Display Settings".
3. In the "Customize your display" dialog box, click "Advanced display settings".
4. Select the monitor, and select the resolution from the "Resolution" pull-down menu.
5. Click "Apply".
6. When a conrmation dialog box appears, click "Keep changes".
Windows 8.1 / Windows 7
●
1. For Windows 8.1, click the “Desktop” tile on the Start Screen to display the desktop.
2. Right-click anywhere on the desktop except for on icons.
3. From the displayed menu, click “Screen resolution”.
4. Select the monitor, and select the resolution from the "Resolution" pull-down menu.
5. Click "OK".
6. When a conrmation dialog box is displayed, click “Keep changes”.
Note
• When changing the size of the characters or other items that are displayed, select "Display" from the control
panel and change the scaling level.
OS X Mountain Lion (10.8) or later
●
1. Select “System Preferences” from the Apple menu.
2. When the "System Preferences" dialog box is displayed, click "Displays".
(If using OS X Mountain Lion (10.8), click "Displays" in "Hardware".)
3. In the displayed dialog box, select the "Display" tab and select "Change" in the "Resolutions" eld.
4. Select the resolution from the list of possible resolution settings.
If the target resolution is not displayed in the list, press and hold the Option key on the keyboard
and select "Change".
5. Your selection will be reected immediately. When you are satised with the selected resolution,
close the window.
Mac OS X 10.7
●
1. Select “System Preferences” from the Apple menu.
2. When the "System Preferences" dialog box is displayed, click "Displays" in "Hardware".
3. On the displayed dialog box, select the "Display" tab and select the resolution in the "Resolutions"
eld.
4. Your selection will be reected immediately. When you are satised with the selected resolution,
close the window.
Chapter 1 Introduction
13
Chapter 2 Basic Adjustments/Settings
This chapter describes the basic functions that can be adjusted and set by touching the switches on the front
of the monitor.
For advanced adjustment and setting procedures using the Setting menu, see “Chapter 3 Advanced
Adjustments/Settings” (page 16).
2-1. Switch Operation Method
Displaying the operation guide
1.
1. Touch any switch (except ).
The operation guide appears on the screen.
Adjusting/setting
2.
1. Touch a switch for adjustment/setting.
The Adjustment/Setting menu appears.
2. Use the switches to adjust/set the selected item, and then select to conrm.
Exiting
3.
1. Select to exit the menu.
2. When no menu is displayed, the operation guide will automatically disappear after a few seconds
if no switches are operated.
Note
• The contents of the guide will differ depending on the selected menu or status.
2-2. Switching Input Signals
When a monitor has multiple signal inputs, the signal to display on-screen can be changed.
When the input signal is switched, the connector name of the displayed signal appears at the bottom right
of the screen.
Chapter 2 Basic Adjustments/Settings
14
2-3. Switching the Display Mode (color mode)
This function allows easy selection of a display mode according to monitor application.
Display Modes
●
Color ModePurpose
Standard ModeAdjust color using the monitor's Setting menu.
CustomSelect for conguring color settings according to your preference.
®
Adobe
sRGBSuitable for color matching with sRGB compatible peripherals.
Calibration Mode (CAL mode)Adjusts the monitor’s color using the “ColorNavigator 6” color
CAL1Displays the screen adjusted by ColorNavigator 6.
CAL2
CAL3
RGBSuitable for color matching with Adobe®RGB compatible peripherals.
management software.
Note
• The Setting menu and the Mode names cannot be displayed at the same time.
• You can disable specic mode selections. For more information, see “Mode Skip” (page 24).
• The adjustment result of ColorNavigator 6 is reected in each of the following modes, depending on the
connector used for connecting the monitor and PC.
- CAL1: DVI
- CAL2: DisplayPort
- CAL3: HDMI
2-4. Adjusting the Brightness
The brightness of the screen can be adjusted to suit the installation environment or personal preference.
Adjustable Range
0 % to 100 %
Chapter 2 Basic Adjustments/Settings
15
Chapter 3 Advanced Adjustments/Settings
This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu.
For the basic adjustment/setting functions using the switches on the front of the monitor, see “Chapter 2
Basic Adjustments/Settings” (page 14).
3-1. Basic Operation of the Setting Menu
Menu display
1.
1. Touch any switch (except ).
The operation guide appears.
2. Select .
The Setting menu appears.
Adjusting/setting
2.
1. Choose a menu to adjust/set with , and then select .
The Sub menu appears.
2. Choose an item to adjust/set with , and then press .
The Adjustment/Setting menu appears.
3. Adjust/set the selected item with , and then select .
The Sub menu appears.
Selecting
making changes.
Chapter 3 Advanced Adjustments/Settings
16
during adjustment/setting will cancel the adjustment/setting and restore the state prior to
Exiting
3.
1. Select .
The Setting menu appears.
2. Select .
The Setting menu exits.
Note
• The contents of the guide will differ depending on the selected menu or status.
Chapter 3 Advanced Adjustments/Settings
17

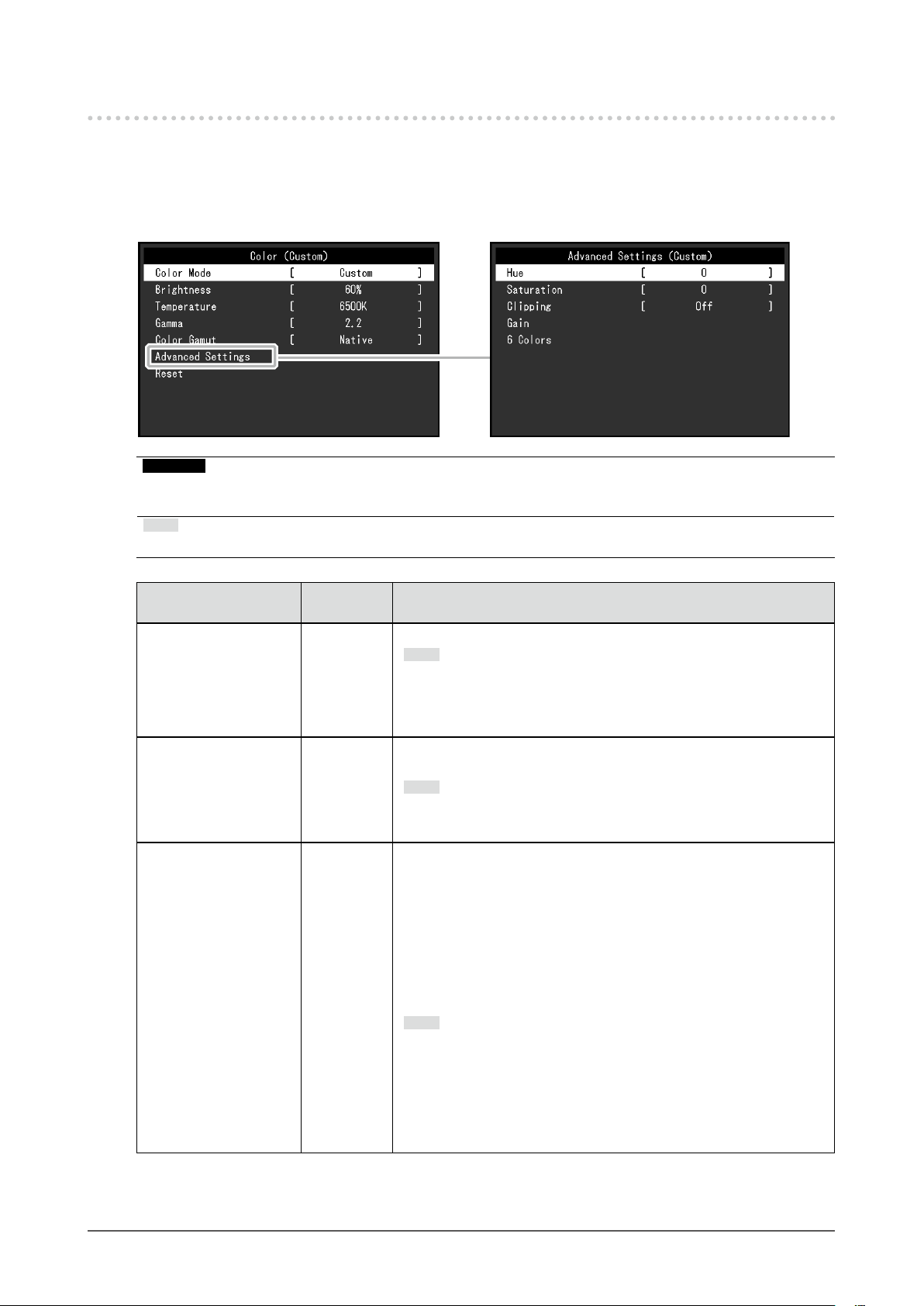

3-2. Setting Menu Functions
Color
●
When the screen is displayed in Standard Mode (Custom / Adobe®RGB / sRGB), you can adjust the
color settings of each color mode according to your preference.
Attention
• The same image may be seen in different colors on multiple monitors due to differences between individual
monitors. Make ne color adjustment visually when matching colors on multiple monitors.
Note
• Use the values shown in “K” and “%” as a guide only.
Function
Color ModeCustom
Brightness0 % to 100 % The screen brightness is adjusted by changing the brightness of the
TemperatureNative
Adjustable
Range
®
Adobe
sRGB
CAL1
CAL2
CAL3
4000 K to
10000 K
Adobe
sRGB
RGB
®
RGB
Description
Switch to the desired mode according to the monitor application.
Note
• For more information on how to switch modes, see “2-3. Switching
the Display Mode (color mode)” (page 15).
backlight (light source from the LCD back panel).
Note
• If the entered value cannot be set, the value will appear in
magenta. In such a case, change the value.
The color temperature can be adjusted.
The color temperature is used to express the hue of "White" or
"Black" by a numerical value. The value is expressed in degrees "K"
(Kelvin).
The screen becomes reddish at a low color temperature, and bluish
at a high color temperature, like the temperature of a ame.
Specify a color temperature in units of 100 K, or select a standard
name.
Note
• When you select "Native", the original color of the monitor (Gain:
100 % for each RGB) is displayed.
• “Gain” allows you to perform more advanced adjustment. When
gain is changed, the color temperature is changed to “User”.
• The gain preset values are set for each color temperature setting
value
.
Chapter 3 Advanced Adjustments/Settings
18
Function
Adjustable
Range
Gamma1.6 to 2.7
®
Adobe
sRGB
Color GamutNative
®
Adobe
sRGB
Advanced
Hue-100 to 100Adjust the hue.
Settings
Saturation-100 to 100Adjust the color saturation.
ClippingOn
Off
Description
Adjust the gamma.
The brightness of the monitor varies depending on the input signal,
RGB
however, the variation rate is not simply proportional to the input
signal. The control performed to keep the balance between the input
signal and the brightness of the monitor is called “Gamma correction”.
Set the gamma, or select a standard name.
Set the color reproduction area (color gamut).
"Color Gamut" is the range of colors that devices such as monitors, digital
RGB
cameras and printers can represent. Multiple standards are dened.
Note
• Select "Native", to display the original color gamut of the monitor.
• The method of displaying colors outside the monitor's displayable
range within the dened color gamut can be set. For more
information, see “Clipping” (page 19).
Note
• Using this function may make some color gradations unavailable
for display.
Note
• Using this function may make some color gradations unavailable
for display.
• The minimum value (-100) changes the screen to monochrome.

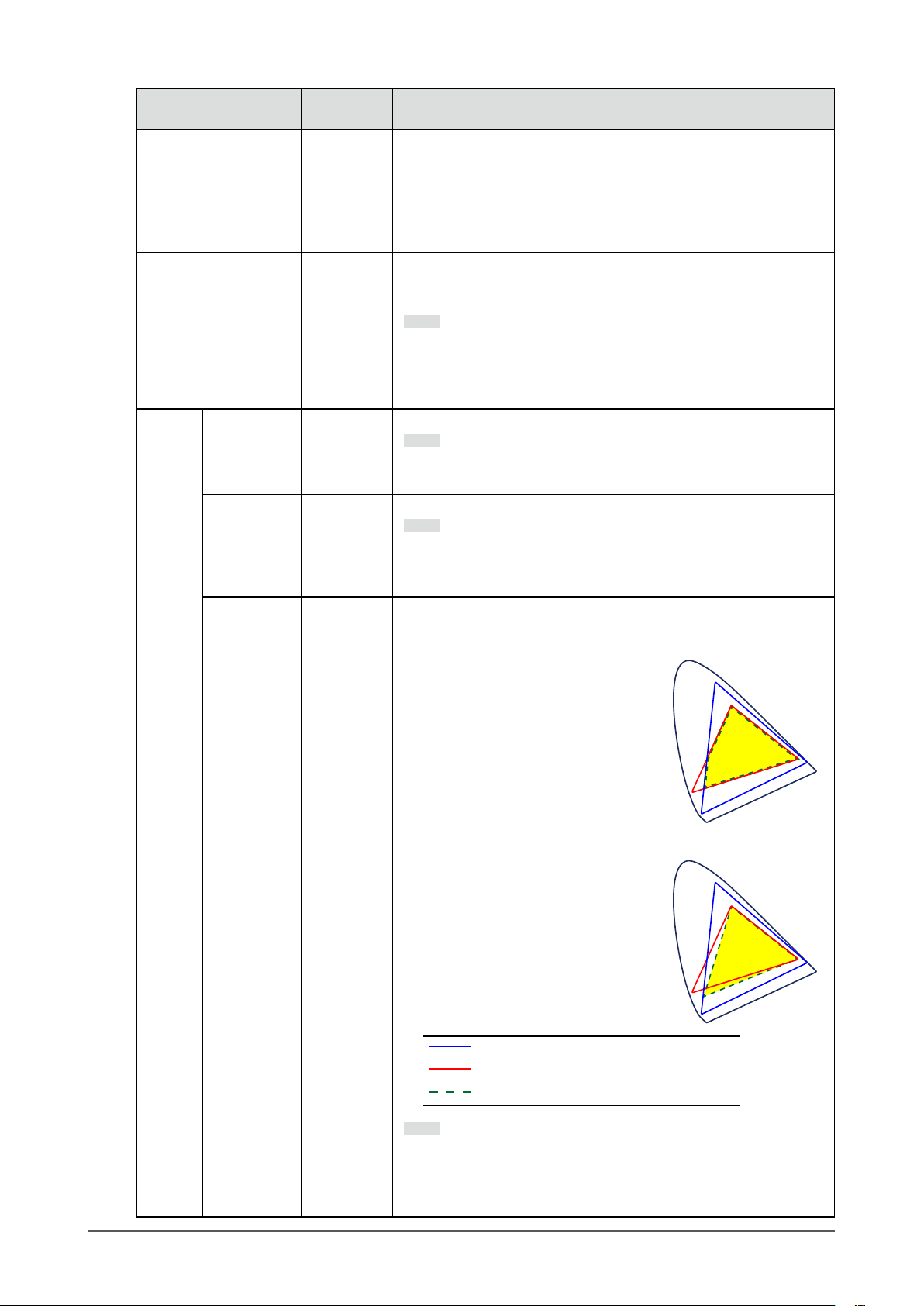

The method of displaying colors outside the monitor's displayable
range within the color gamut specied in accordance with ”Color
Gamut” (page 19) can be set.
• "On"
The range of colors that are
displayable on the monitor
will be accurately displayed in
accordance with the standard.
Colors outside the displayable
range will be saturated.
• "Off"
Displays colors with priority on the
color gradation rather than the color
accuracy. The vertices of the color
gamut dened in the standard move
to a range that can be displayed by
the monitor. This allows the closest
colors displayable by the monitor to
be displayed.
Color gamut displayable by the monitor
Color gamut defined by standard
Color gamut displayed on screen
Note
• The diagrams shown above are conceptual diagrams, and they do
not display the actual color gamut of the monitor.
• This setting will be disabled if "Native" is selected at “Color Gamut”
(page 19)
.
Chapter 3 Advanced Adjustments/Settings
19
Function
Advanced
Settings
Reset-
Gain0 % to 100 % The brightness of each color component red, green, and blue is
6 Colors-100 to 100The hue, saturation and lightness can each be adjusted for the colors
Adjustable
Range
Description
called Gain. The hue of "white" can be changed by adjusting the gain.
Note
• Using this function may make some color gradations unavailable
for display.
• The gain value changes according to the color temperature.
• When gain is changed, the color temperature is changed to “User”.
Magenta, Red, Yellow, Green, Cyan, and Blue.
Resets any color adjustments for the currently selected color mode back
to the default settings.
Chapter 3 Advanced Adjustments/Settings
20
Signal
●
The signal settings are used to congure advanced settings for input signals, such as the screen
display size and color format.
FunctionAdjustable RangeDescription
Picture ExpansionAuto
*1
Full Screen
Aspect Ratio
Dot by Dot
The screen size of the monitor display can be changed.
• "Auto"
The monitor automatically changes the screen size
according to the resolution information and aspect ratio
information from the input signal.
• "Full Screen"
Displays an image in full screen. Images are distorted in
some cases because the vertical rate is not equal to the
horizontal rate.
• "Aspect Ratio"
Displays an image in full screen. However, since aspect
ratios are maintained, part of an image may not be visible
in horizontal or vertical direction.
• "Dot by Dot"
Displays the image at the set resolution or at the size
specied by the input signal.
Note
• Example settings
- Full Screen
- Aspect Ratio
- Dot by Dot
(Input Signal)
*1 Only enabled when input signal information according to which the setting can be automatically
determined is detected during HDMI input
Chapter 3 Advanced Adjustments/Settings
21
FunctionAdjustable RangeDescription
Input Color FormatAuto
*2 Only enabled when input signal information according to which the setting can be automatically
determined is detected
*3 Only enabled during HDMI input
*4 Only enabled during DisplayPort input
*2
YUV 4:2:2
YUV 4:4:4
*4
YUV
RGB
*3
*3
Try changing this setting if colors are not displayed correctly.
Note
• This cannot be congured when DVI input is used. The color
space for DVI input is always set to "RGB".
The color space of the input signal can be specied.
Function
Input RangeAuto
Adjustable RangeDescription
*5
Full
Limited (109 % white)
Limited
Depending on the external device, the black and white levels
in the video signal output to the monitor may be restricted. If
the signal is displayed on the monitor in its restricted form,
the blacks will be faint, the whites dull, and contrast will
be reduced. The brightness range of such signals can be
extended to match the actual contrast ratio of the monitor.
• "Auto"
The monitor automatically recognizes the brightness range of
input signals and displays images appropriately.
• "Full"
The input signal brightness range is not extended.
• "Limited (109% white)"
The brightness range of the input signal is
16 - 254 (10 bits: 64 - 1019) to 0 - 255 (10 bits: 0 - 1023) for
display.
• "Limited"
The brightness range of the input signal is
16 - 235 (10 bits: 64 - 940) to 0 - 255 (10 bits: 0 - 1023) for
display.
*5 Only enabled during DisplayPort input or HDMI input
Function
Noise ReductionOn
Adjustable RangeDescription
The small noises that occur in dark areas of an image are
Off
reduced. Use this function to reduce noise and roughness in
images.
Note
• This can only be set during HDMI input.
• Using the Noise Reduction function may lead to
deterioration of ne images.
extended from
extended from
Chapter 3 Advanced Adjustments/Settings
22
Preferences
●
The monitor’s settings can be congured to suit the usage environment or personal preference.
FunctionAdjustable RangeDescription
Auto Input Detection On
Off
When this function is set to "On", the monitor automatically
recognizes the connector through which signals are input, so
that the screen can be displayed. When an external device
enters the power saving mode, the monitor automatically
displays another signal.
Menu Rotation0°
90°
When set to "Off",
selected connector regardless of
not. In this case, select the input signal to display using the
operation switch (
Note
• When the main power is turned on/off, the signal is detected
automatically regardless of the setting for this function.
This function allows you to change the orientation of the
Setting menu to align with the installation orientation.
Note
• Be sure that the cables are correctly connected.
• When using the monitor screen in a portrait position, the
graphics board supporting portrait display is required. When
placing the monitor in a portrait position, settings of your
graphics board need to be changed. Refer to the User’s
Manual of the graphics board for details.
• When using the monitor in a portrait position, rotate the
monitor after pulling up the screen to the uppermost position
of the stand and setting the screen tilted upward.
the monitor displays the signal from the
whether a signal is input or
) on the front of the monitor.
Chapter 3 Advanced Adjustments/Settings
23
FunctionAdjustable RangeDescription
USB CHARGE Port Normal
Charging Only
Power SaveOn
Off
The USB downstream port of the monitor supports
USB 3.0 quick charging. By changing this setting to "Charging
Only", devices connected to the
more quickly than when using the "Normal" setting.
Note
• Make sure to complete any communication between connected
USB devices and the PC before switching this setting. When
the setting is switched, all communication will be temporarily
interrupted.
• Devices that are connected to the port must support
quick charging.
• When "Charging Only" is set, data communications between
the PC and connected devices via the
possible, and therefore, connected devices will not work.
• When "Charging Only" is set, charging is possible even
when the monitor and PC are not connected by USB cable.
This function allows you to set the monitor to the power saving
mode, depending on the state of an external device connected
to it.
The monitor changes to power saving mode about 15 seconds
after signal input ceases to be detected. When the monitor has
shifted to power saving mode, images are not displayed on the
screen.
port can be charged
port are not
IndicatorOff
1 to 7
BeepOn
Off
Input SkipSkip
-
Mode SkipSkip
-
• Exiting power saving mode
- If the monitor receives input, it automatically exits power
saving mode and returns to the normal display mode.
Note
• At the time of shifting to power saving mode, a message that
indicates the transition is displayed 5 seconds in advance.
• When you are not using the monitor, switch off the main
power to cut power consumption.
• When the monitor is in power saving mode, devices
connected to the USB downstream port will still work.
Therefore, power consumption of the monitor varies
depending on the connected devices, even in the power
saving mode.
The brightness of the power switch and the operation switches
when the screen is displayed can be set. (Default setting: 4)
You can turn off the beep that sounds each time a switch is
operated.
This function allows skipping of input signals that will not be
used when the input signals are switched.
Note
• Not all input signals can be set to “Skip”.
This function allows skipping of modes that will not be used
when selecting modes. Please use this function if display
modes are limited, or if you want to prevent randomly changing
the display status.
Note
• Not all modes can be set to “Skip”.
• In the
default
settings, available calibration modes (CAL
modes) differ depending on each input signal.
Chapter 3 Advanced Adjustments/Settings
24
FunctionAdjustable RangeDescription
USB SelectionUSB-1
USB-2
Monitor Reset-
When two PCs are connected to the same monitor, input
signals can be associated with the USB upstream port. This
enables the USB port to be switched automatically when the
input signal is switched. You do not need to change the USB
cable connection even when the same monitor is calibrated for
the two PCs. Furthermore, you can connect USB devices such
as a mouse or keyboard to the monitor, and use these devices
from the two PCs.
Note
• A cap is installed on the USB-2 port before the product is
shipped. Remove the cap when using the USB-2 port.
• In order to use the USB ports by switching from one to the
other, two USB cables are required. You need to have one
more cable available.
• Before changing any settings, remove any USB memory or
other storage devices from the monitor. Otherwise, data may
be lost or damaged.
• The key arrangement of the keyboard cannot be changed.
• When the "Auto Input Detection" function is set to "On", the
USB port is switched according to the input signal.
• The USB downstream port operates for the computer from
which images are being displayed.
Restore all settings to their default values except for the
following settings.
• Settings in the "Administrator Settings" menu
• The "USB Selection" item in the "Preferences" menu
Note
• Regarding the default setting, see “Main Default Settings”
(page 44).
Chapter 3 Advanced Adjustments/Settings
25
Languages
●
The display language for menus and messages can be selected.
Adjustable Range
English, Deutsch, Français, Español, Italiano, Svenska, Japanese, Simplied Chinese, Traditional
Chinese
Information
●
You can check the monitor information (model name, serial number, rmware version, usage time,
ColorNavigator license status, resolution, input signal, etc.).
Example:
Chapter 3 Advanced Adjustments/Settings
26
Chapter 4 Administrator Settings
This chapter describes how to congure monitor operation using the "Administrator Settings" menu.
This menu is for administrators. Conguration on this menu is not required for normal monitor use.

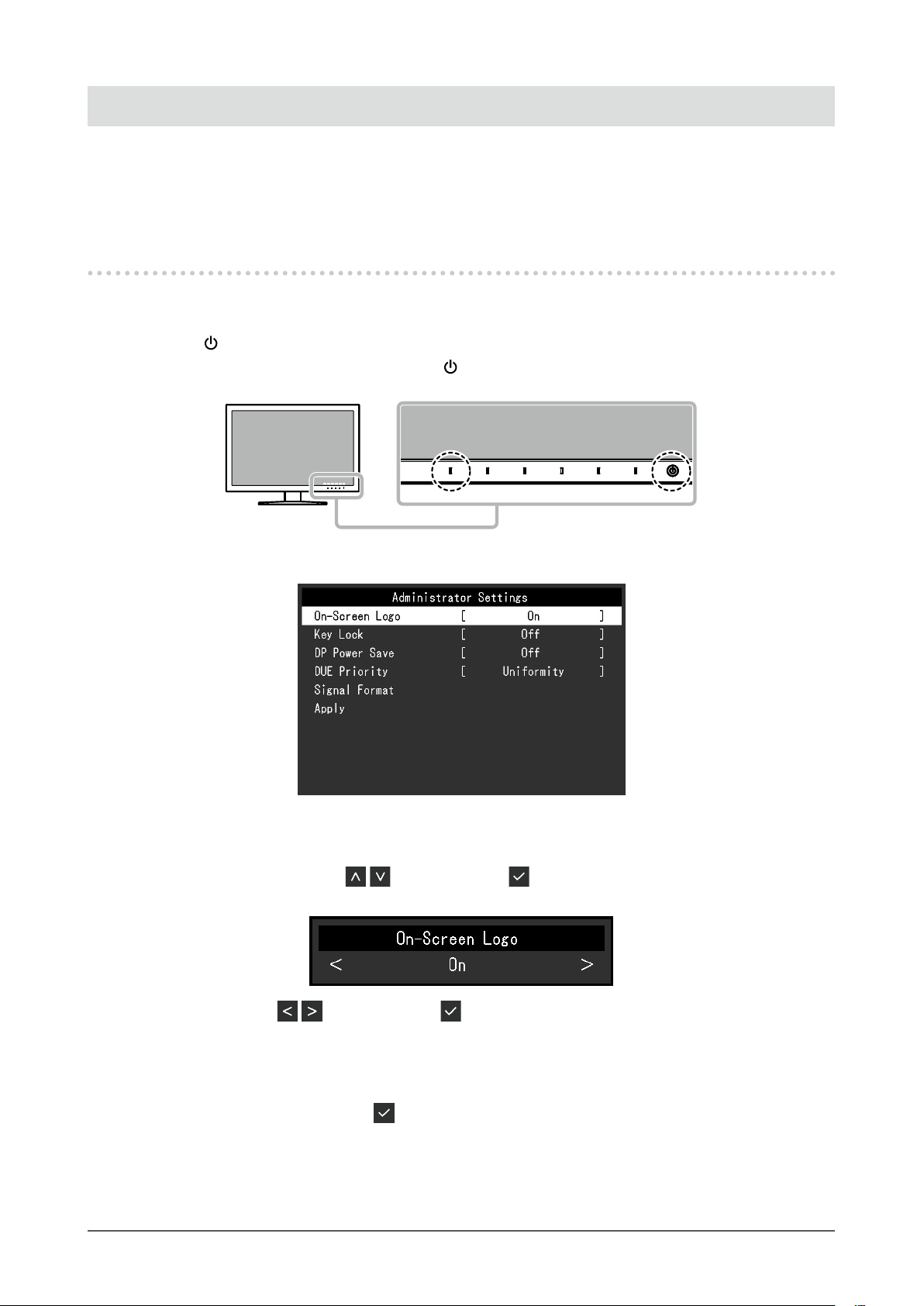

4-1. Basic Operation of the "Administrator Settings"
Menu
Menu display
1.
1. To u c h to turn off the monitor.
2. While touching the leftmost switch, touch
for more than 2 seconds to turn on the monitor.
The "Administrator Settings" menu appears.
Settings
2.
1. Choose an item to set with , and then select .
The Adjustment/Setting menu appears.
2. Set the item with , and then select .
The "Administrator Settings" menu appears.
Applying and exiting
3.
1. Select "Apply", and then select .
The settings are conrmed and the "Administrator Settings" menu quits.
Chapter 4 Administrator Settings
27
4-2. "Administrator Settings" Menu Functions
Function
On-Screen LogoOn
Key LockOff
DP Power SaveOn
DUE PriorityBrightness
Signal
Format
DVISingle Link
DisplayPort RGB
HDMIVideo
Adjustable
Range
Off
Menu
All
Off
Uniformity
Dual Link
RGB/YUV
PC
Description
When the monitor is turned on, the EIZO logo appears on the
screen.
When this function is set to "Off", the EIZO logo does not appear.
In order to prevent changes to settings, the operation switches on
the front of the monitor can be locked.
• "Off" (Default setting)
Enable all switches.
• "Menu"
Lock the
• "All"
Lock all switches except the power switch.
When you switch the power back on or return from power save
mode while the PC is connected via the DisplayPort connector,
windows or icons may have shifted position. In such cases, set
this function to "Off".
This product is equipped with a Digital Uniformity Equalizer (DUE)
function that reduces display unevenness. This DUE setting can
be changed.
• "Brightness"
Prioritizes high brightness and high contrast.
• "Uniformity"
Prioritizes reduction of display unevenness.
Note
• When changing the DUE setting, the monitor whose display is
adjusted
again using ColorNavigator 6. For details, refer to the
ColorNavigator 6 User's Manual (stored on the CD-ROM).
You can switch the signal type that the monitor can display.
To display video signals when using HDMI signal input, set to
"Video".
switch.
must be re-calibrated. Perform the target calibration
Chapter 4 Administrator Settings
28
Chapter 5 Troubleshooting
5-1. No Picture
ProblemPossible cause and remedy
1. No picture
• Power indicator does not light up.
• Power indicator is lighting white. • Increase "Brightness" and/or "Gain" in the Setting menu.
• Power indicator is lighting orange. • Switch the input signal.
• Power indicator is ashing orange and white. • This problem may occur when a PC is connected via
2. The message below appears.This message appears when the signal is not input correctly
• This message appears when no signal is input.
Example:
• The message shows that the input signal is out
of the frequency specication range.
Example:
• Check whether the power cord is connected properly.
• Turn on the main power switch on the rear side of the
monitor.
• Tou c h
• Turn off the main power on the rear side of the monitor,
and then turn it on again a few minutes later.
(See “Color” (page 18))
• Move the mouse or press any key on the keyboard.
• Check whether the PC is turned on.
• Turn off the main power on the rear side of the monitor,
and then turn it on again.
the DisplayPort connector. Connect via the signal cable
specied by EIZO, turn off the monitor, and then turn it on
again.
even though the monitor is functioning properly.
• The message shown left may appear, because some PCs
do not output the signal immediately after power-on.
• Check whether the PC is turned on.
• Check whether the signal cable is connected properly.
• Switch the input signal.
• Turn off the main power on the rear side of the monitor,
and then turn it on again.
• Check whether the PC is congured to meet the
resolution and vertical scan frequency requirements of
the monitor (see “1-4. Compatible Resolutions” (page
10)).
• Reboot the PC.
• Change to the appropriate setting using the graphics
board's utility. Refer to the User's Manual of the graphics
board for details.
.
Chapter 5 Troubleshooting
29
5-2. Imaging Problems
ProblemPossible cause and remedy
1. The screen is too bright or too dark. • Use "Brightness" in the Setting menu to adjust it. (see
“Color” (page 18)). The LCD monitor backlight has a
limited life span. If the screen becomes dark or begins to
icker, contact your local EIZO representative.
2. Afterimages appear • Afterimages are particular to LCD monitors. Avoid
displaying the same image for a long time.
• Use the screen saver or power saving function to avoid
displaying the same image for extended periods of time.
3. Green/red/blue/white dots or defective dots
remain on the screen.
4. Interference patterns or pressure marks
remain on the screen.
5. Noise appears on the screen. • When inputting HDCP system signals, normal images
6. (DisplayPort signal input)
When you switch the power back on or
return from power save mode, windows or
icons may have shifted position.
7. (DisplayPort or HDMI input)
The screen colors look strange.
8. The image does not display on the entire
screen.
• This is due to LCD panel characteristics and not a
malfunction.
• Display a white or black image over the entire screen.
The symptom may disappear.
may not be displayed immediately.
• In the Setting menu, set "DP Power Save" to "Off" (see
“DP Power Save” (page 28)).
• Try changing "Input Color Format" in the Setting menu
(see “Input Color Format” (page 22)).
• For HDMI signal input, try changing "Signal Format" in
the Setting menu (see “Signal Format” (page 28)).
• Try changing "Picture Expansion" in the Setting menu (see
“Picture Expansion” (page 21)).
• For HDMI signal input, check whether "Signal Format" is
set to "PC" in the Setting menu (see “Signal Format” (page
28)).
Chapter 5 Troubleshooting
30
5-3. Other Problems
ProblemPossible cause and remedy
1. The Setting menu/Mode menu cannot be
displayed
2. The monitor connected with the USB cable
is not detected. / USB device connected to
the monitor does not work.
3. Audio is not output. • This monitor does not support DisplayPort/HDMI audio
• Check whether the operation switch lock function works
(see “Key Lock” (page 28)).
• Operation switches are locked when the main window of
ColorNavigator 6 is displayed. Exit the software.
• Check whether the USB cable is connected correctly (see
“6-5. Making Use of USB (Universal Serial Bus)” (page
39)
).
• If a peripheral device is connected to the
checking the "USB CHARGE Port" setting (see “USB
CHARGE Port” (page 24)). If it is set to "Charging
Only", the peripheral device will not work.
• Try changing to a different USB port on the PC.
• Try changing to a different USB port on the monitor.
• Reboot the PC.
• If the peripheral devices work correctly when the PC and
peripheral devices are connected directly, contact your
local EIZO representative.
• Check whether the PC and OS are USB compliant. (For
USB compliance of the respective devices, consult their
manufacturers.)
• Depending on the USB 3.0 host controller that you are
using, connected USB devices may not be recognized
correctly. Update to the latest USB 3.0 driver provided by
each manufacturer, or connect the monitor to the USB 2.0
port.
• Check the PC’s BIOS setting for USB when using
Windows. (Refer to the User's Manual of the PC for
details.)
signals.
port, try
Chapter 5 Troubleshooting
31
Chapter 6 Reference
6-1. Attaching the Optional Arm
An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our
web site for the corresponding optional arm (or optional stand). http://www.eizoglobal.com
Attention
• When attaching an arm or stand, follow the instructions of their User's Manual.
• When using another manufacturer’s arm or stand, conrm the following in advance and select one conforming to
the VESA standard. Use the VESA mounting screws supplied with this product when attaching the arm or stand.
- Clearance between screw holes: 100 mm × 100 mm
- Outside dimensions of the VESA mount section of the arm or stand: 122 mm × 122 mm or less
- Plate thickness: 2.6 mm
- Must be strong enough to support weight of the monitor unit (excluding the stand) and attachments such as
cables.
• When using an arm or stand, attach it to meet the following tilt angles of the monitor.
- Up 45˚, down 45˚
• Connect the cables after attaching an arm or stand.
• Do not move the removed stand up and down. Doing so may result in injury or equipment damage.
• The monitor, arm, and stand are heavy. Dropping them may result in injury or equipment damage.
• When installing the monitor in portrait mode, turn the monitor screen 90˚ in clockwise direction.
Chapter 6 Reference
32
Attaching the Optional Arm (or Optional Stand)
To prevent damaging the panel surface, lay the monitor with its panel surface
1.
facing down on a soft cloth spread on a stable surface.
Remove the stand.
2.
As shown below, keep the lock button pressed down (1) and slide the stand towards the stand base
until it touches (2). Then, lift the stand up (3).
(3)
(2)
(1)(1)
Attach the arm or stand to the monitor.
3.
Use the VESA mounting screws supplied with this product when attaching the arm or stand.
To prevent damaging the panel surface, lay the monitor with its panel surface
2.
facing down on a soft cloth spread on a stable surface.
Attach the original stand.
3.
As shown below, insert the four tabs on the stand into the square holes on the back panel (1) and
slide the stand towards the upper portion of the monitor until it makes a clicking sound (2).
(1)
(2)
(2)
Click!
Chapter 6 Reference
33
6-2. Detaching/Attaching Stand Base
Detachment procedure
The stand base that was attached during setup can be detached using the following procedures.
Lay the LCD monitor on a soft cloth spread over on a stable surface with the
1.
panel surface facing down.
Raise the lever on the bottom of the stand base.
2.
Turn the stand base in the counterclockwise direction to detach it.
3.
Chapter 6 Reference
34

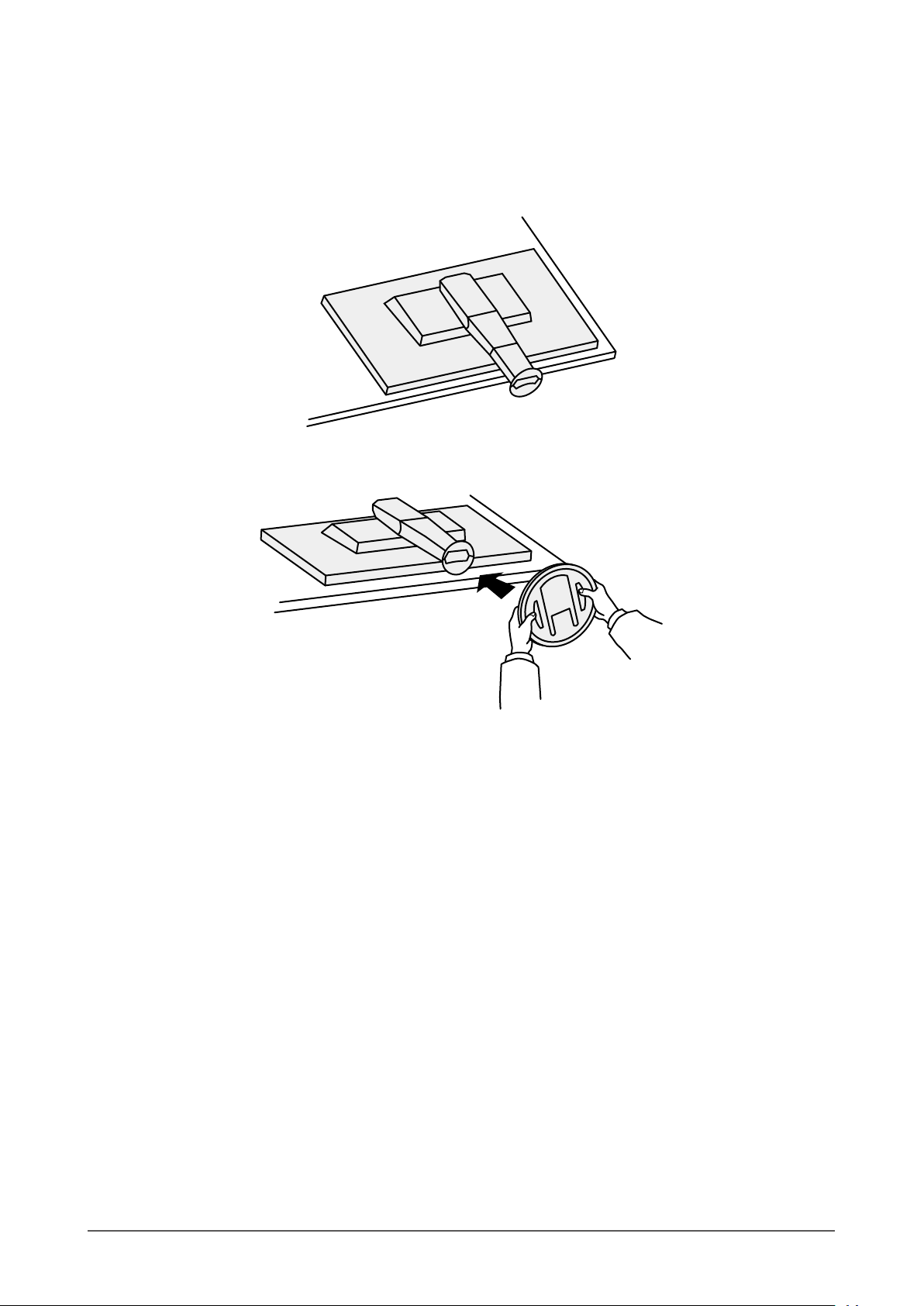

Attachment procedure
The once removed the stand base can be attached to the monitor again with the following procedures.
Lay the LCD monitor on a soft cloth spread over on a stable surface with the
1.
panel surface facing down.
Attach the stand base onto the stand brace.
2.
Chapter 6 Reference
35
Turn the stand base clockwise until it makes a clicking sound.
3.
Click!
Chapter 6 Reference
36
6-3. Attaching/Detaching the Cable Holder
A cable holder is supplied with this product. Use the cable holder to organize the cables connected to the
monitor.
Attachment procedure
Pass the cables through the cable holder.
1.
Close the cable holder.
2.
While holding the cable holder closed, insert it into the stand.
3.
Note
• The cable holder can be inserted either perpendicular or parallel to the stand. Change the orientation of the
cable holder in line with the direction of the cables.
Detachment procedure
Close the cable holder.
1.
While holding the cable holder closed, pull it from the stand.
2.
Chapter 6 Reference
37

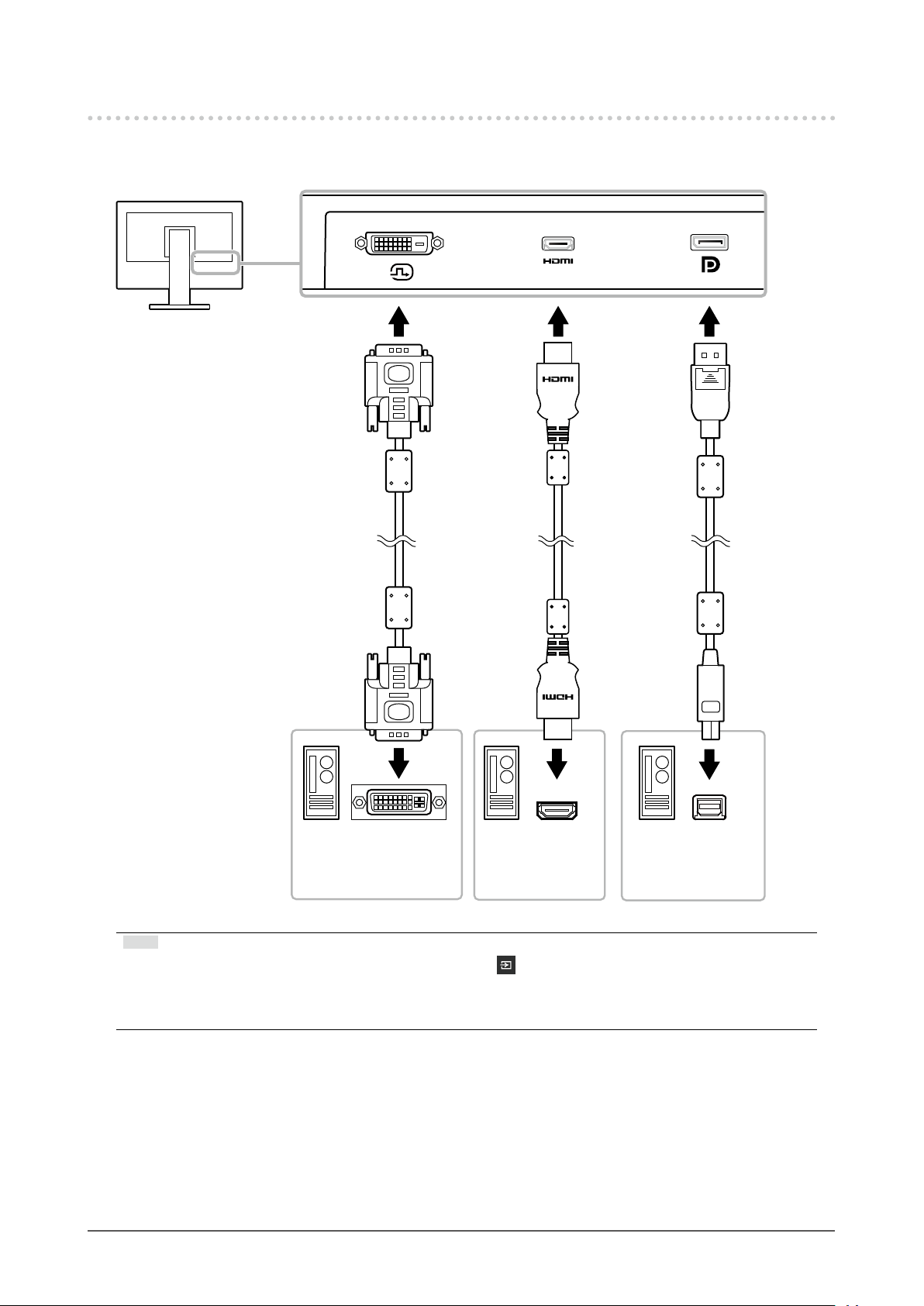

6-4. Connecting Multiple External Devices
The product allows you to connect multiple external devices and switch between them for display.
Connection examples
DVI cable
DD200DL
(supplied)
To external device 1To external device 2
HDMI cable
HH200HS
(optional)
HDMI connectorDVI connector
DisplayPort
cable
PM200
(supplied)
Mini DisplayPort /
Thunderbolt connector
To external device 3
Note
• The input signal changes each time the operation switch ( ) on the front of the monitor is touched. The
selected input connector name appears at the bottom right corner of the screen.
• This product automatically recognizes the connector through which signals are input and displays images on
the screen accordingly. For more information, see “Auto Input Detection” (page 23).
Chapter 6 Reference
38
6-5. Making Use of USB (Universal Serial Bus)
This monitor is equipped with a USB hub. It works as a USB hub when connected to a USB-compatible
PC, allowing the connection of peripheral USB devices.
Note
• This product supports USB 3.0. When connecting peripheral devices that support USB 3.0, high-speed data
communication is possible (however, only when the USB cable used to connect the PC and peripheral device is
USB 3.0 compliant).
• The
tablet in a short period of time. (See “USB CHARGE Port” (page 24))
Required System Environment
●
• A PC equipped with a USB port
• Windows 10 / Windows 8.1 / Windows 7, or Mac OS X 10.7.5 or later
• USB cable (UU200SS (USB 3.0))
USB downstream port also supports quick charging. This allows you to recharge your smartphone or
Attention
• This monitor may not work depending on the used PC, OS or peripheral devices. For USB compatibility of
peripheral devices, contact their manufactures.
• When the monitor is in power saving mode, devices connected to the USB downstream port will still work.
Therefore, power consumption of the monitor varies depending on the connected devices, even in the power
saving mode.
• When the main power of the monitor is off, a device connected to the USB downstream port will not operate.
• When the "USB CHARGE Port" setting in "Preferences" is set to "Charging Only", a peripheral device will
not work if connected to the
• Ensure that communication between all peripheral devices connected to the monitor and the PC is ended
before switching the "USB CHARGE Port" setting. When the setting is switched, all communication will be
temporarily interrupted.
port.
Chapter 6 Reference
39
Connection Procedure (Setup of USB Function)
●
1. Connect the monitor rst to a PC using the signal cable, and start the PC.
2. Connect the USB cable between the USB downstream port of the PC and USB upstream port 1 of
the monitor.
The USB hub function is set up automatically upon connection of the USB cable.
3. Connect the peripheral USB device to the USB downstream port of the monitor.
Note
• In the default settings, USB upstream port 1 is enabled. When connecting two PCs, see “USB Selection”
(page 25).
See “USB CHARGE Port” (page 24)
USB upstream
port
USB downstream port
Chapter 6 Reference
40
6-6. Specications
LCD PanelTypeIPS (Anti-Glare)
BacklightWide color gamut LED
Size68.5 cm (27.0 inch)
Resolution2560 dots × 1440 lines
Display Size (H × V)596.7 mm x 335.6 mm
Pixel Pitch0.2331 mm x 0.2331 mm
Display ColorsApprox. 1073.74 million colors (for 10 bit input)
Viewing Angle (H × V, typical) 178˚ / 178˚
2
Recommended Brightness
(typical)
Contrast Ratio (typical)1000 : 1 (When "DUE Priority" setting is "Brightness")
Response Time (typical)Black - White - Black: 12 ms
Color Gamut Display (typical)Adobe
Video SignalsInput TerminalsDVI-D x 1: Supports 8-bit display (Single Link / Dual Link,
Horizontal scanning frequency 26 kHz to 89 kHz (DVI, DisplayPort), 15 kHz to 89 kHz
Vertical scan frequency23 Hz to 61 Hz (For 720 x 400: 69 Hz to 71 Hz)
Frame Synchronization mode23.75 Hz to 30.5 Hz, 47.5 Hz to 61.0 Hz
Dot clock (Max.)242 MHz
USBPort
StandardUSB Specication Rev. 3.0
Communication Speed
Supply CurrentDownstream: Max. 900 mA per port
PowerInput100–240 VAC ±10 %, 50/60 Hz 1.15 A–0.50 A
Maximum Power Consumption 110 W or less
Power Save Mode0.6 W or less
Standby Mode0.6 W or less
120 cd/m
Gray-to-gray: 10 ms
HDCP-compatible)
HDMI x 1: Supports 8-bit, 10-bit, and 12-bit display
(HDCP-compatible)
DisplayPort x 1: Supports 8-bit and 10-bit display (HDCPcompatible)
*1 The maximum number of display bits for HDMI-input
images is 10.
*2
input signal is 2560 x 1440.
(HDMI)
Upstream port x 2, downstream port x 3 (the port
supports quick charging)
(When “DP Power Save” is set to “ON”, “USB CHARGE
Port” is set to “Normal”, and no USB device is connected)
(When “DP Power Save” is set to “ON”, “USB CHARGE
Port” is set to “Normal”, and no USB device is connected)
or less (Temperature: 5000 K to 6500 K)
®
RGB coverage: 99 %, NTSC ratio 103 %
Supports 8-bit display when the resolution of the HDMI
: Normal: Max. 1.5 A per port, Charging
port)
Only: Max. 2.1 A per port
*1, *2
Chapter 6 Reference
41
Physical
Specications
Operating
Environment
Requirements
Transportation/
Storage Environment
Requirements
Outside DimensionsMin. height: 638 mm × 404.1 mm × 245 mm
(W x H x D) (Tilt: 0˚)
Max. height: 638 mm × 564.5 mm × 264 mm
(W x H x D) (Tilt: 35˚)
Outside Dimensions (Without
Stand)
Net. weightApprox. 8.9 kg
Net Weight (Without Stand)Approx. 6.1 kg
Height adjustment155 mm (at tilt of 0°) / 145 mm (at tilt of 35°)
TiltUp 35˚, down 5˚
Swivel344°
Vertical rotation90° clockwise
Temperature0 ˚C to 35 ˚C
Humidity20 % to 80 % R.H. (no condensation)
Air Pressure540 hPa to 1060 hPa
Temperature-20 ˚C to 60 ˚C
Humidity10 % to 90 % R.H. (no condensation)
Air Pressure200 hPa to 1060 hPa
638 mm × 378.2 mm × 64 mm (W x H x D)
Chapter 6 Reference
42

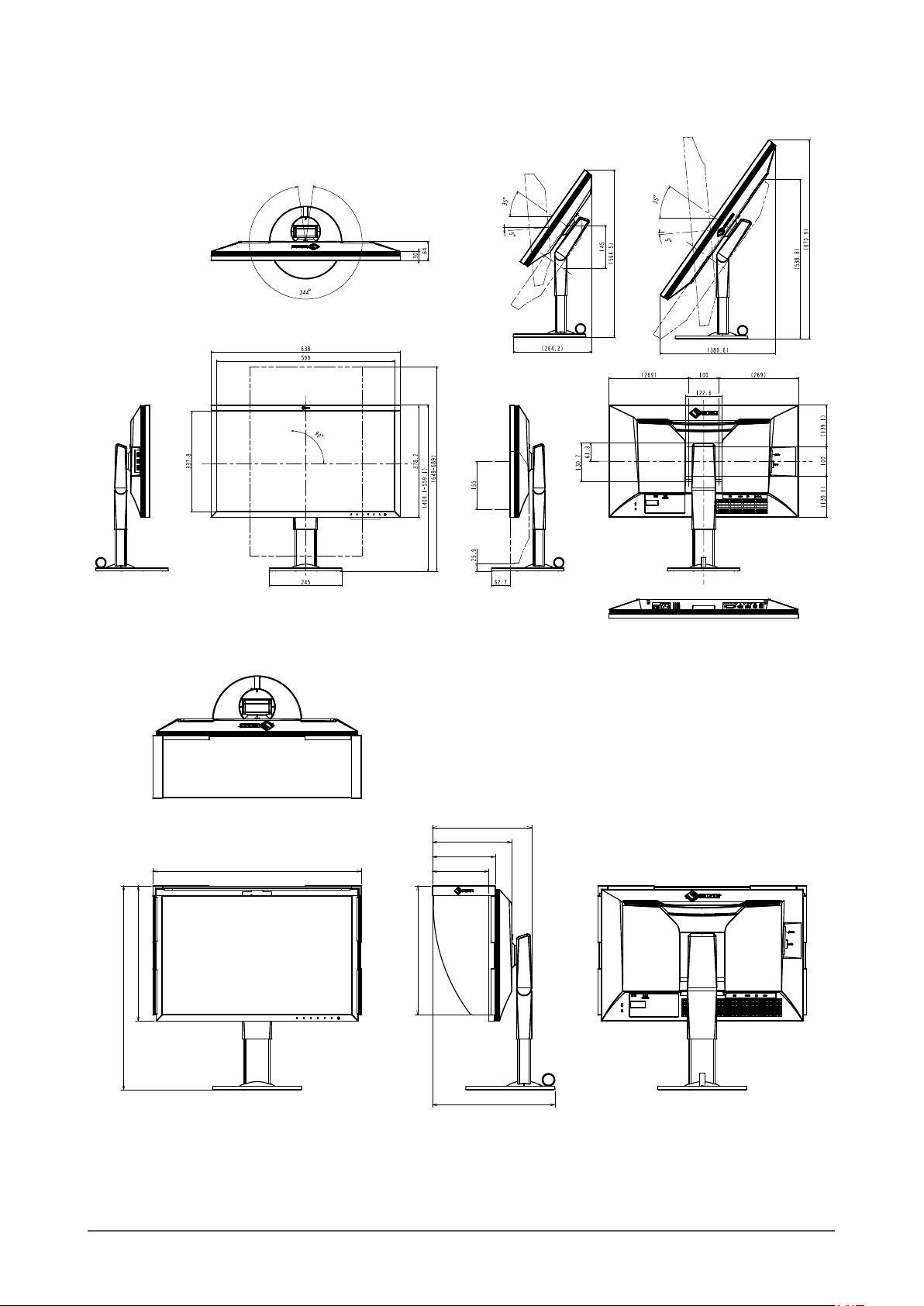

Outside Dimensions
●
Unit: mm
(561)
371.7
572.4
354.7
172.7
154
218
(272.5)
(336)
Chapter 6 Reference
43
Main Default Settings
●
Color ModeCustom
Picture ExpansionDVI inputAspect Ratio
DisplayPort inputAspect Ratio
HDMI inputAspect Ratio (When "Auto" is enabled: Auto)
Input Color FormatDisplayPort inputAuto
HDMI inputAuto (When "Auto" is disabled: RGB)
Input RangeDVI inputFull
DisplayPort inputAuto
HDMI inputAuto
Noise ReductionOff
Auto Input DetectionOff
Menu Rotation0°
USB CHARGE PortNormal
Power SaveOn
Indicator4
BeepOn
LanguagesEnglish
On-Screen LogoOn
Key LockOff
USB SelectionUSB -1
Signal FormatDVIDual Link
DisplayPortRGB
HDMIPC
Accessories
●
Signal cableHH200HS (HDMI - HDMI)
PP200 (DisplayPort - DisplayPort)
For the latest information about the accessories, refer to our web site. http://www.eizoglobal.com
Chapter 6 Reference
44
Chapter 7 Glossary
Adobe®RGB
This is a denition of the practical RGB color space proposed by Adobe Systems in 1998. The
color reproduction range (color gamut) is broader than sRGB, and is highly adaptable to such elds
as printing etc.
Color Space
YUV and RGB, etc. are available. YUV expresses the color by using the luminance (Y), the color
difference of Blue (U), and the color difference of Red (V).
RGB does this by using the gradation of the 3 colors, Red (R), Green (G), and Blue (B).
DisplayPort
This is the interface standard for image signals standardized in accordance with VESA. It was
developed with the aim of replacing the conventional DVI and analog interfaces, and it can transmit
high resolution signals and sound signals, which DVI does not support. The standard size and mini
size connectors have been standardized.
DVI (Digital Visual Interface)
DVI is a digital interface standard. DVI allows direct transmission of the PC’s digital data without
loss.
This adopts the TMDS transmission system and DVI connectors. There are two types of DVI
connectors. One is a DVI-D connector for digital signal input only. The other is a DVI-I connector
for both digital and analog signal inputs.
Gain
This is used to adjust each color parameter for red, green and blue. An LCD monitor displays the
color by the light passing through the panel color lter. Red, green and blue are the three primary
colors. All the colors on the screen are displayed by combining these three colors. The color tone
can be changed by adjusting the light intensity (volume) passing through each color’s lter.
Gamma
Generally, the monitor brightness varies nonlinearly with the input signal level, which is called
“Gamma Characteristic”. When the gamma value is low, the middle tone area is displayed brighter,
and darker when high. Changes to the gamma value will not affect contrast. A gamma value
appropriate for the display content should be selected.
HDCP (High-bandwidth Digital Content Protection)
Digital signal coding system developed to copy-protect the digital contents, such as video, music,
etc.
This helps to transmit the digital contents safely by coding the digital contents sent via the DVI or
HDMI connector on the output side and decoding them on the input side.
Any digital contents cannot be reproduced if both of the equipments on the output and input sides
are not applicable to HDCP system.
Chapter 7 Glossary
45
HDMI(High-DenitionMultimediaInterface)
HDMI is a digital interface standard, developed for consumer electrical appliance or AV device.
This standard is issued on the basis of the DVI standard which is one of an interface specication
for the connection between a PC and a monitor. The projected image, sound and control signal
without compressed enable to be transmitted with one cable.
L*
L* is a lightness value based on the CIELUV and CIELAB color spaces. CIELUV and CIELAB are
color spaces that describe the relationship between color and human vision, in which L*
corresponds to perceived brightness.
Resolution
The LCD panel consists of numerous pixels of specied size, which are illuminated to form images.
This monitor consists of horizontal 2560 pixels and 1440 vertical pixels. At a resolution of 2560 ×
1440, all pixels are illuminated as a full screen (1:1).
sRGB (Standard RGB)
International standard for color reproduction and color space among peripheral devices (such as
monitors, printers, digital cameras, scanners). As a form of simple color matching for the Internet,
colors can be displayed using tones close to those of the transmission and reception devices.
Temperature
Color temperature is a method to measure the white color tone, generally indicated in degrees
Kelvin. The screen becomes reddish at a low temperature, and bluish at a high temperature, like
the ame temperature.
5000 K: Slightly reddish white
6500 K: White referred to as daylight-balanced color
9300 K: Slightly bluish white
Chapter 7 Glossary
46
Appendix
Trademark
The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing, LLC in the United States and other countries.
The DisplayPort Compliance Logo and VESA are registered trademarks of the Video Electronics
Standards Association.
The SuperSpeed USB Trident logo is a registered trademark of USB Implementers
Forum, Inc.
Kensington and Microsaver are registered trademarks of ACCO Brands Corporation.
Thunderbolt is a trademark of Intel Corporation in the United States and/or other countries.
Microsoft, Windows and Windows Vista are registered trademarks of Microsoft Corporation in the United
States and other countries.
Adobe is a registered trademark of Adobe Systems Incorporated in the United States and other
countries.
Apple, Mac OS, Macintosh and ColorSync are registered trademarks of Apple Inc.
EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor
and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries.
ColorEdge Tablet Controller, ColorNavigator, CuratOR, EcoView NET, EIZO EasyPIX, EIZO Monitor
Congurator, EIZO ScreenSlicer, G-Ignition, i • Sound, Quick Color Match, Re/Vue, Screen Administrator
and UniColor Pro are trademarks of EIZO Corporation.
All other company and product names are trademarks or registered trademarks of their respective
owners.
License / Copyright
A round gothic bold bit map font designed by Ricoh is used for the characters displayed on this product.
Appendix
47
FCC Declaration of Conformity
For U.S.A., Canada Only
FCC Declaration of Conformity
We, the Responsible PartyEIZO Inc.
5710 Warland Drive, Cypress, CA 90630
Phone: (562) 431-5011
declare that the productTrade name: EIZO
Model: ColorEdge CS2730
is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures.
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
interference within the limits of a Class B digital device.
- AC Cord
- Shielded Signal Cable (enclosed)
Canadian Notice
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de le classe B est comforme à la norme NMB-003 du Canada.
48
Appendix
LIMITED WARRANTY
LIMITED WARRANTY
EIZO Corporation (hereinafter referred to as “
“
”) warrant, subject to and in accordance with the terms of this limited warranty (hereinafter referred to as the
“
”) who purchased the product
speci ed in this document (hereinafter referred to as the “
”) from EIZO or Distributors, that EIZO and Distributors
shall, at their sole discretion, either repair or replace the Product at no charge if the Original Purchaser becomes aware
within the Warranty Period (de ned below) that the Product malfunctions or is damaged in the course of normal use of
the Product in accordance with the description in the instruction manual attached to the Product (hereinafter referred to
as the “
The period of this Warranty is limited to (i) five (5) years from the date of purchase of the Product; or, limited to the
expiration of (ii) 30,000 hours of its use of the Product (hereinafter referred to as the “
”). EIZO and
Distributors shall bear no liability or obligation with regard to the Product in relation to the Original Purchaser or any third
parties other than as provided under this Warranty.
EIZO and Distributors will cease to hold or store any parts (excluding design parts) of the Product upon the expiration of
ve (5) years after the production of such parts is discontinued. In repairing the monitor, EIZO and Distributors will use
renewal parts which comply with our QC standards. If the unit cannot be repaired due to its condition or the stockout of
a relevant part, EIZO and Distributors may offer the replacement by a product with equivalent performance instead of
repairing it.
The Warranty is valid only in the countries or territories where the Distributors are located. The Warranty does not restrict
any legal rights of the Original Purchaser.
Notwithstanding any other provision of this Warranty, EIZO and Distributors shall have no obligation under this Warranty
whatsoever in any of the cases as set forth below:
(a) Any defect of the Product caused by freight damage, modi cation, alteration, abuse, misuse, accident, incorrect
and/or backlight, etc. (e.g. changes in brightness, changes in brightness uniformity, changes in color, changes in
(g) Any normal deterioration of the product, particularly that of consumables, accessories, and/or attachments (e.g.
To obtain service under the Warranty, the Original Purchaser must deliver the Product, freight prepaid, in its original
package or other adequate package affording an equal degree of protection, assuming the risk of damage and/or loss
in transit, to the local Distributor. The Original Purchaser must present proof of purchase of the Product and the date of
such purchase when requesting services under the Warranty.
The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original
Warranty Period.
EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER
INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS
FOR REPAIR.
EIZO AND DISTRIBUTORS MAKE NO FURTHER WARRANTIES, EXPRESSED OR IMPLIED, WITH RESPECT TO
THE PRODUCT AND ITS QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR
USE. IN NO EVENT SHALL EIZO OR DISTRIBUTORS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL,
CONSEQUENTIAL OR OTHER DAMAGE WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR
LOSS OF PROFIT, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY
LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT OR IN ANY CONNECTION WITH THE
PRODUCT, WHETHER BASED ON CONTRACT, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE, EVEN
IF EIZO OR DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS EXCLUSION
ALSO INCLUDES ANY LIABILITY WHICH MAY ARISE OUT OF THIRD PARTY CLAIMS AGAINST THE ORIGINAL
PURCHASER. THE ESSENCE OF THIS PROVISION IS TO LIMIT THE POTENTIAL LIABILITY OF EIZO AND
DISTRIBUTORS ARISING OUT OF THIS LIMITEDWARRANTY AND/OR SALES.
EIZO”) and distributors authorized by EIZO (hereinafter referred to as the
Distributors
Warranty”), to the original purchaser (hereinafter referred to as the “Original Purchaser
User’s Manual”).
installation, disaster, faulty maintenance and/or improper repair by third party other than EIZO and Distributors;
(b) Any incompatibility of the Product due to possible technical innovations and/or regulations;
(c) Any deterioration of the sensor;
(d) Any deterioration of display performance caused by the deterioration of expendable parts such as the LCD panel
color uniformity, defects in pixels including burnt pixels, etc.);
(e) Any defect of the Product caused by external equipment;
(f) Any defect of the Product on which the original serial number has been altered or removed;
Product
Warranty Period
buttons, rotating parts, cables, User’s Manual, etc.); and
(h) Any deformation, discoloration, and/or warp of the exterior of the product including that of the surface of the LCD
panel.
Appendix
49
Recycling Information
Recycling Information
This product, when disposed of, is supposed to be collected and recycled according to your country’s
legislation to reduce environmental burden. When you dispose of this product, please contact a distributor or
an af liate in your country.
The contact addressees are listed on the EIZO website below.
http://www.eizoglobal.com
For recycling information for customers in Switzerland, please refer to the following website.
http://www.swico.ch
Dieses Produkt muss gemäß den Vorschriften Ihres Landes zur Entlastung der Umwelt recyclet werden.
Wenden Sie sich bei der Entsorgung dieses Produkts an einen Verteiler oder eine Tochtergesellschaft in
Ihrem Land.
Die Adressen zur Kontaktaufnahme sind auf der unten angegebenen Website von EIZO aufgeführt.
http://www.eizoglobal.com
Kunden in der Schweiz entnehmen Informationen zum Recycling der folgenden Website:
http://www.swico.ch
Ce produit doit être jeté aux points de collecte prévus à cet effet et recyclé conformément à la législation de
votre pays, a n de réduire l’impact sur l’environnement. Lorsque vous jetez ce produit, veuillez contacter un
distributeur ou une société af liée de votre pays.
Les adresses des distributeurs sont répertoriées sur le site Web EIZO ci-dessous.
http://www.eizoglobal.com
Pour les clients en Suisse, veuillez consulter le site Web suivant afin d’obtenir des informations sur le
recyclage.
http://www.swico.ch
Este producto debe desecharse y reciclarse según la legislación del país para reducir el impacto
medioambiental. Cuando desee deshacerse de este producto, póngase en contacto con un distribuidor o
una lial de su país.
Encontrará las direcciones de contacto en el sitio web de EIZO que se indica a continuación.
http://www.eizoglobal.com
Per lo smaltimento e il riciclaggio del presente prodotto, attenersi alle normative vigenti nel proprio paese per
ridurre l’impatto ambientale. Per lo smaltimento, rivolgersi ad un distributore o un af liato presenti nel proprio
paese.
Gli indirizzi sono elencati nel sito Web EIZO riportato di seguito.
http://www.eizoglobal.com
Per informazioni sul riciclaggio per i clienti in Svizzera, consultare il sito Web riportato di seguito.
http://www.swico.ch
När denna produkt kasseras ska den hanteras och återvinnas enligt landets föreskrifter för att reducera
miljöpåverkan. När du kasserar produkten ska du kontakta en distributör eller representant i ditt land.
Kontaktadresserna listas på EIZO-webbplatsen nedan.
http://www.eizoglobal.com
Informationen zum Thema Recycling
Informations sur le recyclage
Información sobre reciclaje
Informazioni sul riciclaggio
50
Appendix
Återvinningsinformation
Πληροφορίεςανακύκλωσης
Το προϊόν αυτό, όταν απορρίπτεται, πρέπει να συλλέγεται και να ανακυκλώνεται σύμφωνα με τη νομοθεσία
της χώρας σας έτσι ώστε να μην επιβαρύνει το περιβάλλον. Για να απορρίψετε το προϊόν, επικοινωνήστε με
έναν αντιπρόσωπο ή μια θυγατρική εταιρεία στη χώρα σας.
Οι διευθύνσεις επικοινωνίας αναγράφονται στην τοποθεσία web της EIZO παρακάτω.
http://www.eizoglobal.com
По истечении срока службы данного продукта его следует принести на сборный пункт и
утилизировать в соответствии с действующими предписаниями в вашей стране, чтобы уменьшить
вредное воздействие на окружающую среду. Прежде чем выбросить данный продукт, обратитесь к
дистрибьютору или в местное представительство компании в вашей стране.
Контактные адреса можно найти на веб-узле EIZO.
http://www.eizoglobal.com
Wanneer u dit product wilt weggooien, moet het uit milieu-overwegingen worden verzameld en gerecycled
volgens de betreffende wetgeving van uw land. Wanneer u dit product wilt weggooien, moet u contact
opnemen met een distributeur of een partner in uw land.
De contactadressen worden vermeld op de volgende EIZO-website.
http://www.eizoglobal.com
Este produto, quando o deitar fora, deve ser recolhido e reciclado de acordo com a legislação do seu país
para reduzir a poluição. Quando deitar fora este produto, contacte um distribuidor ou uma lial no seu país.
Os endereços de contacto estão listados no website do EIZO, abaixo.
http://www.eizoglobal.com
Dette produkt forventes ved bortskaffelse at blive indsamlet og genbrugt i overensstemmelse med
lovgivningen i dit land for at reducere belastningen af miljøet. Når du bortskaffer denne produkt, skal du
kontakte en distributør eller et tilknyttet selskab i dit land.
Adresserne på kontaktpersonerne er angivet på EIZO’s websted nedenfor.
http://www.eizoglobal.com
Tuote tulee hävittää kierrättämällä maan lainsäädännön mukaisesti ympäristön kuormittumisen
vähentämiseksi. Kun hävität tuotteen, ota yhteyttä jälleenmyyjään tai tytäryhtiöön maassasi.
Yhteystiedot löytyvät EIZOn Internet-sivustolta.
http://www.eizoglobal.com
Ten produkt po zużyciu powinien być zbierany i przetwarzany zgodnie z krajowymi przepisami dotyczącymi
ochrony środowiska. Wyrzucając ten produkt, należy skontaktować się z lokalnym dystrybutorem lub
partnerem. Adresy kontaktowe można znaleźć we wskazanej poniżej witrynie internetowej rmy EIZO.
http://www.eizoglobal.com
Сведенияпоутилизации
Informatie over recycling
Informação sobre reciclagem
Oplysninger om genbrug
Kierrätystä koskevia tietoja
Wykorzystanie surowców wtórnych
Appendix
51
Informace o recyklaci
Při likvidaci produktu musí být produkt vyzvednut a recyklován podle zákonů příslušné země, aby
nedocházelo k zatěžování životního prostředí. Zbavujete-li se produktu, kontaktujte distributora nebo
pobočku ve své zemi.
Kontaktní adresy jsou uvedeny na následující webové stránce společnosti EIZO.
http://www.eizoglobal.com
Keskkonnakoormuse vähendamiseks tuleks kasutatud tooted kokku koguda ja võtta ringlusse vastavalt teie
riigi seadustele. Kui kõrvaldate käesoleva toote, võtke palun ühendust turustaja või liaaliga oma riigis.
Kontaktisikud on toodud EIZO veebilehel järgmisel aadressil:
http://www.eizoglobal.com
Jelen terméket, amikor eldobjuk, az illető ország törvényei alapján kell összegyűjteni és újrahasznosítani,
hogy csökkentsük a környezet terhelését. Amikor ezt a terméket eldobja, kérjük lépjen kapcsolatba egy
országon belüli forgalmazóval vagy társvállalkozással.
A kapcsolat címei az EIZO alábbi weboldalán találhatók felsorolva:
http://www.eizoglobal.com
Ob koncu uporabe odslužen izdelek izročite na zbirno mesto za recikliranje v skladu z okoljevarstveno
zakonodajo vaše države. Prosimo, da se pri odstranjevanju izdelka obrnete na lokalnega distributerja ali
podružnico.
Kontaktni naslovi so objavljeni na spodaj navedenih spletnih straneh EIZO:
http://www.eizoglobal.com
Pri likvidácii musí byť tento výrobok recyklovaný v súlade s legislatívou vašej krajiny, aby sa znížilo zaťaženie
životného prostredia. Keď sa chcete zbaviť tohto výrobku, kontaktujte prosím distribútora alebo pobočku vo
vašej krajine.
Zoznam kontaktných adries je uvedený na nasledovnej webovej stránke rmy EIZO:
http://www.eizoglobal.com
Utilizējot šo produktu, tā savākšana un pārstrāde veicama atbilstoši jūsu valsts likumdošanas prasībām
attiecībā uz slodzes uz vidi samazināšanu. Lai veiktu šī produkta utilizāciju, sazinieties ar izplatītāju vai
pārstāvniecību jūsu valstī.
Kontaktadreses ir norādītas zemāk minētajā EIZO tīmekļa vietnē.
http://www.eizoglobal.com
Šalinant (išmetant) šiuos gaminius juos reikia surinkti ir perdirbti grąžinamuoju būdu pagal jūsų šalies teisės
aktus, siekiant sumažinti aplinkos teršimą. Kai reikia išmesti šį gaminį, kreipkitės į jūsų šalyje veikiančią
gaminių pardavimo atstovybę arba jos lialą.
Kontaktiniai adresatai nurodyti EIZO interneto svetainėje.
http://www.eizoglobal.com
Ringlussevõtu alane teave
Újrahasznosítási információ
Podatki o recikliranju
Informácie o recyklácii
Pārstrādesinformācija
Informacijaapiegrąžinamąjįperdirbimą
52
Appendix
Информацияотноснорециклиране
При изхвърлянето на този продукт се предлага събирането и рециклирането му съобразно законите на
вашата страна за да се намали замърсяването на околната среда. Когато искате да се освободите от
този продукт, моля свържете се с търговския му представител или със съответните органи отговарящи
за това във вашата страна.
Данните за връзка с нас са описани на следния Интернет сайт на EIZO:
http://www.eizoglobal.com
Acest produs, când debarasat, trebuie colectat şi reciclat conform legislaţiei ţării rspective ca să reducem
sarcina mediului. Când se debarasează de acest produs, vă rugăm să contactaţi un distribuitor sau un a liat
al ţării respective.
Adresele de contact le găsiţi pe pagina de web al EIZO:
http://www.eizoglobal.com
Bu ürünün, atılacağı zaman, ülkenizin çevre kirliliğinin azaltılması konusundaki mevzuatına göre toplanması
ve yeniden değerlendirilmesi gerekmektedir. Ürünü atacağınız zaman lütfen ülkenizdeki bir distribütör veya
ilgili kuruluşla temasa geçiniz.
İrtibat adresleri aşağıdaki EIZO web sitesinde verilmiştir.
http://www.eizoglobal.com
