Eizo CS2410 User Guide
User’s Manual
Color Management LCD Monitor
Important
Please read this “User’s Manual”, and “PRECAUTIONS” (separate
volume) carefully to familiarize yourself with safe and effective usage.
• Refer to the “Setup Guide” for information on the installation /
connection of the monitor.
• For the latest product information including the “User’s Manual”,
refer to our web site :
www.eizoglobal.com
Location of Caution Statement
This product has been adjusted specically for use in the region to which it was originally shipped. If
operated outside this region, the product may not perform as stated in the specications.
No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by
any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation.
EIZO Corporation is under no obligation to hold any submitted material or information condential unless
prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every
effort has been made to ensure that this manual provides up-to-date information, please note that EIZO
monitor specications are subject to change without notice.
2
Notice for this monitor
Aside from general purposes like creating documents, viewing multimedia content, this product is also suited
to applications such as graphics creation and digital photo processing, where accurate color reproduction is
a priority.
This product has been adjusted specically for use in the region to which it was originally shipped. If the
product is used outside the region, it may not operate as specied in the specications.
This product may not be covered by warranty for uses other than those described in this manual.
The specications noted in this manual are only applicable when the following are used:
• Power cords provided with the product
• Signal cables specied by us
Only use optional products manufactured or specied by us with this product.
If you place this product on a lacquer-coated desk, the color may adhere to the bottom of the stand due to
the composition of the rubber. Check the desk surface before use.
It takes about 30 minutes (under our measurement conditions) for the monitor display to stabilize. Please
wait 30 minutes or more after the monitor power has been turned on, and then adjust the monitor.
Monitors should be set to a lower brightness to prevent a loss in the screen quality caused by long-term use
and to maintain stable use.
When the screen image is changed after displaying the same image for extended periods of time, an
afterimage may appear. Use the screen saver or power save function to avoid displaying the same image for
extended periods of time. Depending on the image, an afterimage may appear even if it was displayed for
a short period of time. To remove such a phenomenon, change the image or keep the power turned off for
several hours.
If the monitor displays continuously over a long period of time, dark smudges or burn-in may appear. To
maximize the life of the monitor, we recommend the monitor be turned off periodically.
Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime (refer
to “Cleaning” (page 4)).
The LCD panel is manufactured using high-precision technology. Although, missing pixels or lit pixels may
appear on the LCD panel, this is not a malfunction. Percentage of effective dots: 99.9994 % or higher.
The backlight of the LCD panel has a xed lifetime. Depending on the usage pattern, such as usage for
long continuous periods, the lifespan of the backlight may run out sooner, requiring replacement. When the
screen becomes dark or begins to icker, please contact your local EIZO representative.
Do not press on the LCD panel or edge of the frame strongly, as this may result in display malfunctions, such
as interference patterns, etc. If pressure is continuously applied to the LCD panel surface, the liquid crystal
may deteriorate or the LCD panel may be damaged. (If the pressure marks remain on the panel, leave the
monitor with a black or white screen. The symptom may disappear.)
Do not scratch or press on the LCD panel with any sharp objects, at this may result in damage to the LCD
panel. Do not attempt to brush with tissues as this may scratch the panel.
When the monitor is cold and brought into a room or the room temperature goes up quickly, dew
condensation may occur on the interior and exterior surfaces of the monitor. In that case, do not turn the
monitor on. Instead wait until the dew condensation disappears, otherwise it may cause some damage to the
monitor.
Notice for this monitor
3
Cleaning
The stains on the cabinet and LCD panel surface can be removed by moistening part of a soft cloth with water.
Attention
• Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet
or LCD panel, and also quality deterioration of the image.
• Never use thinner, benzine, wax, or abrasive cleaner as they may damage the cabinet or LCD panel surface.
Note
• It is recommended that ScreenCleaner (available as an option) be used to clean the cabinet and LCD panel surface.
To use the monitor comfortably
• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor
according to the environmental conditions.
• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.
Notice for this monitor
4
Contents
Notice for this monitor ......................................... 3
Cleaning .................................................................... 4
To use the monitor comfortably ............................. 4
Contents ................................................................. 5
Chapter 1 Introduction ....................................... 6
1-1. Features ......................................................... 6
1-2. Controls and Functions ............................... 7
Front ................................................................ 7
●
Rear ................................................................. 8
●
1-3. Supported Resolutions ................................ 9
When using digital signal input (DVI-D,
●
DisplayPort, HDMI: PC signal) ........................ 9
When using digital signal (HDMI: Video
●
1-4. Changing the PC Display Settings.............10
●
●
●
Chapter 2 Basic Adjustments/Settings .......... 12
2-1. Switch Operation Method ...........................12
2-2. Switching Input Signals ..............................13
2-3.
●

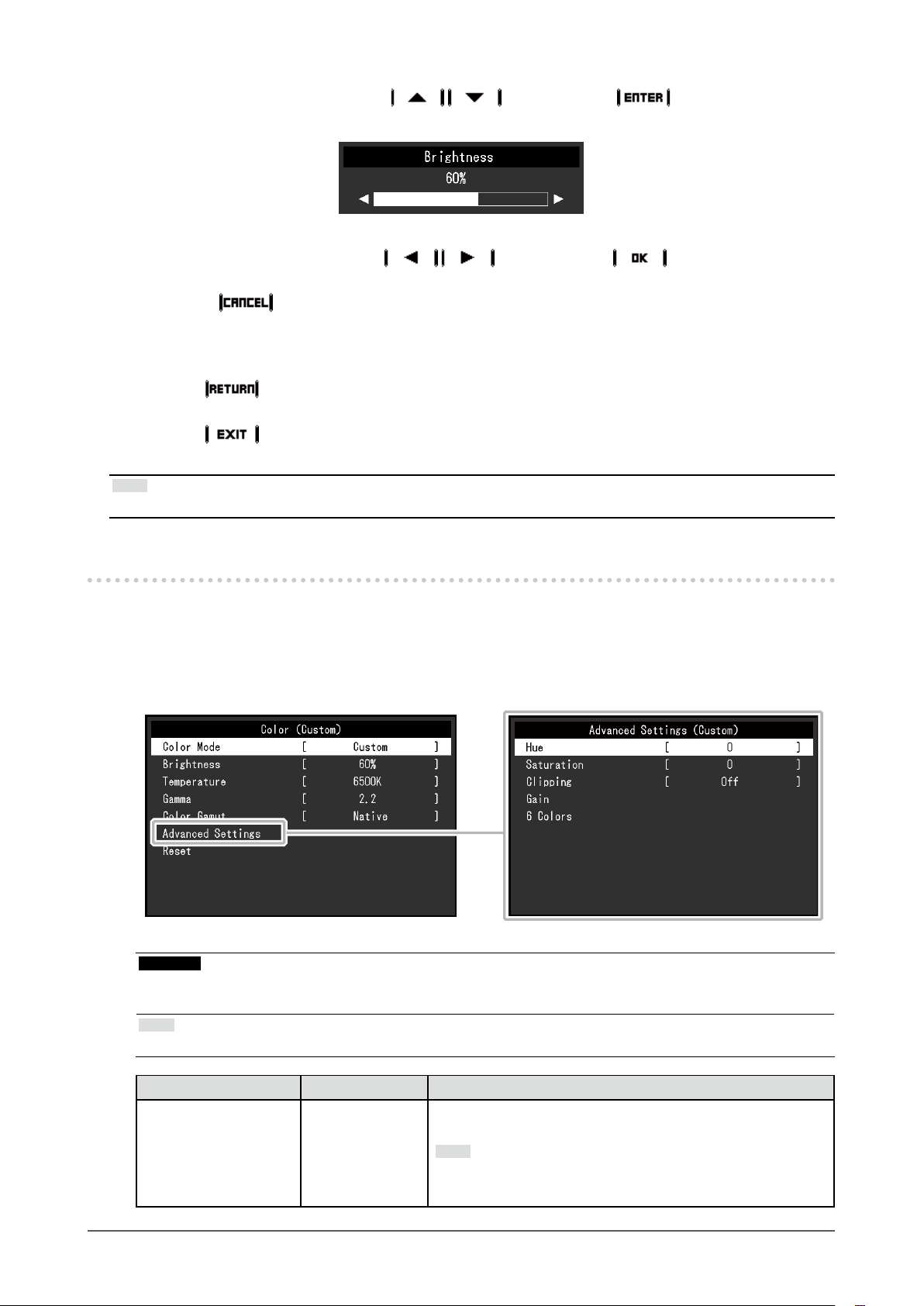

2-4. Adjusting the Brightness ............................14
Chapter 3
3-1. Basic Operation of the Setting Menu ........15
3-2. Setting Menu Functions ..............................16
●
●
●
●
●
Chapter 4 Administrator Settings ................... 25
4-1. Basic Operation of the "Administrator
4-2. "Administrator Settings" Menu
*2
signal
Windows 10 ....................................................10
Windows 8.1 / Windows 7 ..............................10
macOS ...........................................................11
Switching the Display Mode (color mode)
Display Modes ................................................13
Color ...............................................................16

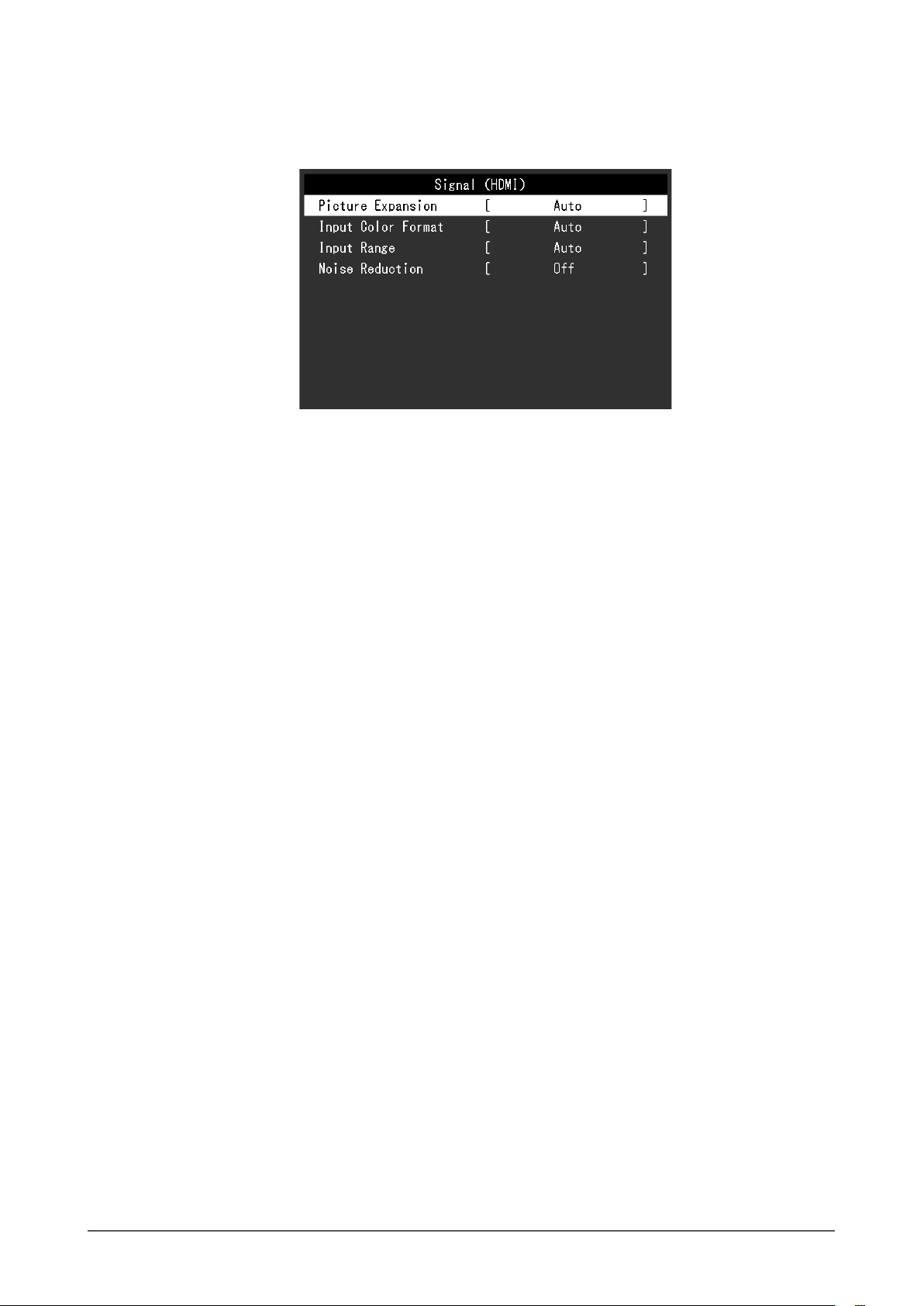

Signal .............................................................19
Preferences ................................................... 22
Languages .....................................................24
Information .....................................................24
Settings" Menu ............................................ 25
Functions ..................................................... 26
) .......................................................... 9
Advanced Adjustments/Settings
...13
... 15
Chapter 5 Troubleshooting .............................. 27
5-1. No Picture .................................................... 27
5-2. Imaging Problems ....................................... 28
5-3. Other Problems ........................................... 29
Chapter 6 Reference ........................................ 30

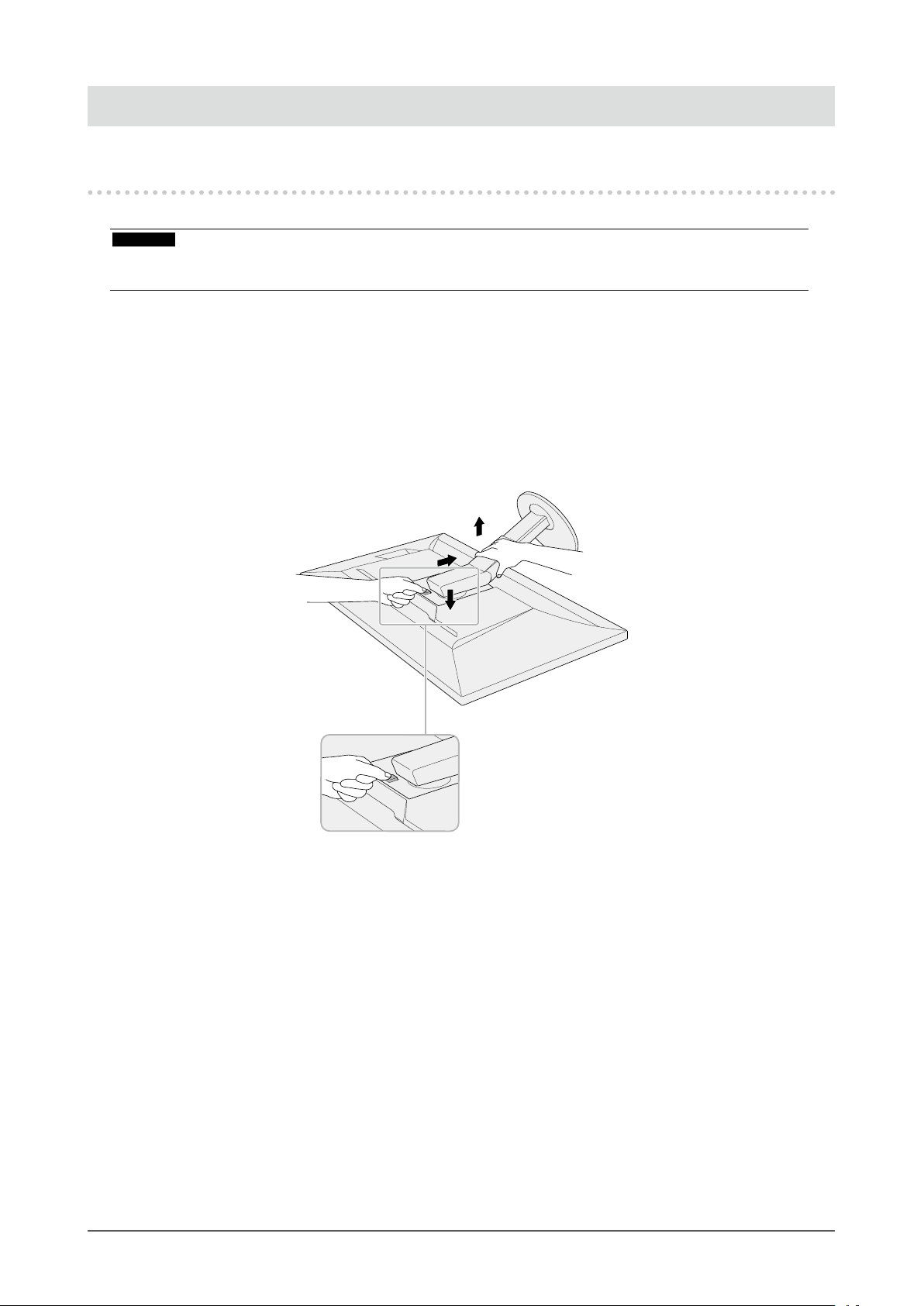

6-1. Removing the Stand ................................... 30
6-2. Attaching the Optional Arm ........................ 31
6-3. Attaching/Detaching the Cable Holder .... 32
6-4. Detaching/Attaching Stand Base .............. 34
6-5. Connecting Multiple External Devices ......37
6-6. Making Use of the USB Hub Function ...... 38
Connection Procedure .................................. 38
●
6-7. Specications ............................................. 39
Accessories ................................................... 40
●
Appendix .............................................................. 41
Trademark ................................................................41
License .....................................................................41
Information for Radio Interference ...................... 42
Contents
5
Chapter 1 Introduction
This chapter describes the features of the monitor and the name of each control.
1-1. Features
• 24″ widescreen
• Resolution: Supports 1920 x 1200
• IPS panel with 89˚ horizontal and vertical wide viewing angles
• Frame synchronization mode supported (23.75 Hz - 30.5 Hz, 47.5 Hz - 61.0 Hz)
• Support for three digital signal inputs (DVI-D x 1, HDMI x 1, DisplayPort x 1)
- DisplayPort (supports 8 bit and 10 bit)
- HDMI (supports 8 bit, 10 bit, and 12 bit)
Supports PC signals by HDMI input
*1 Audio signals not supported.
*2 10 bit and 12 bit are supported only when using HDMI-Video. The maximum screen display is 8 bits.
• Employs stand with wide range of movement.
Allows you to adjust the monitor to the optimal position for easy operation and minimizing fatigue.
(Tilt: up 35˚/down 5˚, Swivel: 344˚, Adjustable height: 155 mm (Tilt: 0°))
• Supports portrait format
• Compatible with color management software "ColorNavigator 7", which enables you to calibrate
monitor characteristics and generate color proles
• Equipped with a USB Hub function that supports USB 3.1
Achieves high-speed data transfers of up to 5 Gbps, which enables transfers of large amounts of data to and
from USB-connected devices in a short amount of time.
Also, the "CHARGE" USB downstream port supports quick charging, so you can recharge your smartphone
or tablet in a short period of time.
See “6-6. Making Use of the USB Hub Function” (page 38) and “USB CHARGE Port” (page 23)
• Displays HDCP (High Bandwidth Digital Protection) protected content.
*1
*1, *2
Note
• This monitor supports portrait format. When using the screen in a portrait position, you can change the
orientation of the Setting menu (see “Menu Rotation” (page 22)).
• When using the monitor screen in a portrait position, the graphics board supporting portrait display is
required. When placing the monitor in a portrait position, settings of your graphics board need to be changed.
Refer to the User's Manual of the graphics board for details.
Chapter 1 Introduction
6
1-2. Controls and Functions
Front
●
21
1. Operation switches Displays menus. Operate the switches according to the operation
guide.
Touch the switch to display its menu.
The switch indicators are lit white when you turn on the power.
2. Power switch Turns the power on or off.
Touch the switch to turn the power on.
The switch indicator is lit when you turn the power on. The indicator
color differs depending on the monitor's operation status.
White : Normal operating mode
Orange : Power saving mode
OFF : Power off
Chapter 1 Introduction
7
Rear
●
3
4
6
6
109 11
7
8
12 14
5
13
3. Transportation handle This handle is used for transportation.
Attention
• Firmly grasp and hold the monitor by the bottom while grabbing the
handle, and carefully convey the monitor so as not to drop it.
4. Lock button Use this button when removing the stand from the monitor.
5. USB Type-A connector
(USB downstream port)
6. Security lock slot Complies with Kensington's MicroSaver security system.
7. Stand
8. Cable holder Covers the monitor cables. For details on attaching the cable holder, see
9. Main power switch
10. Power connector Connects the power cord.
11. DVI connector Connects to an external device that has DVI output.
12. HDMI connector Connects to an external device that has HDMI output.
13. DisplayPort connector Connects to an external device that has DisplayPort output.
14. USB Type-B connector
*1 An optional arm (or an optional stand) can be attached by removing the stand section (refer to “6-2.
*1
(USB upstream port)
Attaching the Optional Arm” (page 31)).
Connects to a peripheral USB device. Supports USB 3.1. The
"CHARGE" port
Adjusts the height and angle (tilt and swivel) of the monitor.
“6-3. Attaching/Detaching the Cable Holder” (page 32).
Turns the main power on or off.
Connects to the USB cable when using software that requires a USB
connection, or when using the USB Hub function.
supports quick recharging (page 23).
: On, : Off
Chapter 1 Introduction
8
1-3. Supported Resolutions
The monitor supports the following resolutions.
When using digital signal input (DVI-D, DisplayPort, HDMI: PC
●
signal)
Resolution Dot Clock
640 x 480 25.175 MHz 31.469 kHz 59.940 Hz
720 x 400 28.322 MHz 31.469 kHz 70.087 Hz
800 x 600 40.000 MHz 37.879 kHz 60.317 Hz
1024 x 768 65.000 MHz 48.363 kHz 60.004 Hz
1280 x 960 108.000 MHz 60.000 kHz 60.000 Hz
1280 x 1024 108.000 MHz 63.981 kHz 60.020 Hz
1600 x 1200 162.000 MHz 75.000 kHz 60.000 Hz
1680 x 1050 119.000 MHz 64.674 kHz 59.883 Hz
1680 x 1050 146.250 MHz 65.29 kHz 59.954 Hz
1920 x 1080 138.500 MHz 66.587 kHz 59.934 Hz
1920 x 1200
*1 Recommended resolution
When using digital signal (HDMI: Video signal *2)
●
Resolution Dot Clock
640 x 480 25.200 MHz 31.500 kHz 60.000 Hz
720 (1440) x 480i (4:3) 27.027 MHz 15.750 kHz 60.000 Hz
720 (1440) x 480i (16:9) 27.027 MHz 15.750 kHz 60.000 Hz
720 x 480p (4:3) 27.027 MHz 31.500 kHz 60.000 Hz
720 x 480p (16:9) 27.027 MHz 31.500 kHz 60.000 Hz
720 (1440) x 576i (4:3) 27.000 MHz 15.625 kHz 50.000 Hz
720 (1440) x 576i (16:9) 27.000 MHz 15.625 kHz 50.000 Hz
720 x 576p (4:3) 27.000 MHz 31.250 kHz 50.000 Hz
720 x 576p (16:9) 27.000 MHz 31.250 kHz 50.000 Hz
1280 x 720p 74.250 MHz 37.500 kHz 50.000 Hz
1280 x 720p 74.250 MHz 45.000 kHz 60.000 Hz
1920 x 1080i 74.250 MHz 28.125 kHz 50.000 Hz
1920 x 1080i 74.250 MHz 33.750 kHz 60.000 Hz
1920 x 1080p 74.250 MHz 27.000 kHz 24.000 Hz
1920 x 1080p 74.250 MHz 28.125 kHz 25.000 Hz
1920 x 1080p 74.250 MHz 33.750 kHz 30.000 Hz
1920 x 1080p 148.500 MHz 56.250 kHz 50.000 Hz
1920 x 1080p 148.500 MHz 67.500 kHz 60.000 Hz
*2 To display video signals by HDMI signal input, you must change the monitor settings beforehand. (See
“Signal Format” (page 26))
*1
154.000 MHz 74.038 kHz 59.950 Hz
Horizontal Scan
Frequency
Horizontal Scan
Frequency
Vertical Scan
Frequency
Vertical Scan
Frequency
Chapter 1 Introduction
9
1-4. Changing the PC Display Settings
If the screen is not properly displayed after connecting the monitor to a PC, follow the procedure below to
change the PC display settings.
Windows 10
●
1. Right-click anywhere on the desktop except for on icons to display the menu.
2. From the displayed menu, click "Display settings" to display the "Settings" screen.
3. If there are multiple monitors including the notebook PC screen connected to the computer,
select "Extend these displays" from the "Multiple displays" menu, and click "Keep changes" in the
conrmation screen. After changing the settings, select the monitor from the "Select and arrange
display" menu.
4. By checking the option "Make this my main display" from the "Multiple displays" menu, the display
of the monitor will be corrected.
5. Conrm that the monitor's recommended resolution is set in the "Resolution" menu (the term
(Recommended) should be displayed after the resolution).
6. To change the size of letters and icons, select the preferred magnication level from the scaling (%)
menu.
7. When after changing these settings a message is displayed that prompts you to sign out, sign out
once and then sign in again.
Windows 8.1 / Windows 7
●
* For Windows 8.1, click the "Desktop" tile on the Start Screen to display the desktop.
1. Right-click anywhere on the desktop except for on icons to display the menu.
2. From the displayed menu, click "Screen resolution" to display the settings screen.
3. If there are multiple monitors including the notebook PC screen connected to the computer, select
"Extend these displays" from the "Multiple displays" menu, and click "Apply". In the conrmation
screen, click "Keep changes".
4. Select the monitor from the "Display" menu, check the option "Make this my main display", and
click "Apply". The display of the monitor will be corrected.
5. Conrm that the monitor's recommended resolution is set in the "Resolution" menu (the term
(Recommended) should be displayed after the resolution).
6. To change the size of letters and icons, click "Make text and other items larger or smaller", select
the preferred size from the settings screen, and click "Apply".
7. When after changing settings a message is displayed that prompts you to sign out or log off, sign
out or log off once and then sign in or log on again.
Chapter 1 Introduction
10
macOS
●
1. Select "System Preferences" from the Apple menu.
2. When the "System Preferences" panel is displayed, click "Displays".
3. If there are multiple monitors including the notebook PC screen connected to the computer, open
the "Arrangement" tab and conrm that "Mirror displays" is not selected. If it is selected, clear it.
4. Select the "Display" tab, and conrm that "Default for display" of "Resolution" is selected. If it is not
selected, select it. This sets the correct resolution. Close the "System Preferences" menu. If there
are multiple monitors including the notebook PC screen connected to the computer, change the
settings for each monitor by using "Display".
5. To select a different resolution, select "Scaled", select a resolution from the resolution list (displayed
in list or icon format), and close the panel.
Chapter 1 Introduction
11
Chapter 2 Basic Adjustments/Settings
This chapter describes the basic functions that can be set by touching the switches on the front of the
monitor.
For advanced adjustment and setting procedures using the Setting menu, see “Chapter 3 Advanced
Adjustments/Settings” (page 15).
2-1. Switch Operation Method
Displaying the operation guide
1.
1. Touch any switch (except ).
The operation guide appears on the screen.
Setting
2.
1. Touch a switch for setting.
The Setting menu appears.
2. Use the switches to adjust/set the selected item, and then select to conrm.
Exiting
3.
1. Select or to exit the menu.
Note
• The contents of the guide will differ depending on the selected menu or status.
12
Chapter 2
Basic Adjustments/Settings
2-2. Switching Input Signals
When a monitor has multiple signal inputs, the signal to display on-screen can be changed.
Touch any switch and select
to switch to the input terminal of the input you want to display.
2-3. Switching the Display Mode (color mode)
This function allows easy selection of a display mode according to monitor application.
Touch any switch and select
to switch to the color mode you want to use.
Display Modes
●
Color Mode Purpose
Standard Mode Adjust color using the monitor's Setting menu.
You can also adjust the monitor’s display using color management
software "ColorNavigator 7".
Custom Select for conguring color settings according to your preference.
sRGB Suitable for color matching with sRGB compatible peripherals.
Advanced Mode Adjusts the monitor’s display using the "ColorNavigator 7" color
management software.
CA L1
CAL2
CAL3
Note
• Use ColorNavigator 7 to set Advanced Mode (CAL1 to CAL3). These settings cannot be changed in the
Setting menu on the monitor.
• You can set the color mode for each input signal.
• You can disable specic color mode selections. For more information, see “Mode Skip” (page 24).
Displays the screen adjusted by ColorNavigator 7.
Chapter 2
Basic Adjustments/Settings
13
Loading...
