Eizo ColorEdge CS2410 catalog

Precision beyond color.

Express your thoughts and inspirations exactly as you envision –

ColorEdge helps to make that a reality. Each detail and nuance is realized

True to Creativity

in the final work, providing you an even greater satisfaction with your

creations. Accurate color, consistent image quality, and ease of use are

why EIZO’s ColorEdge lineup gives creatives around the world the ability

to express their true vision.

Let your imagination soar and your creativity blossom. Your passion will

guide you and ColorEdge will ensure that you can express your ideas

precisely as you have imagined.

2 3

ColorEdge Quality

for Achieving Your

Creative Vision

Ease of Use

ColorEdge meets user needs with a wide range of monitors packed with features for creators

of all levels. Designers and printers can rest assured that ColorEdge will ensure a smooth

and consistent workflow through to the back-end. Video creators can take advantage of the

features that many ColorEdge models include specifically for video creation. Those who

want to enjoy working with digital photography can easily carry out color matching using

ColorEdge. All of these features and more are included to ensure that ColorEdge is optimal

for users’ creative needs.

True Reproducibility

To achieve the most accurate color display, EIZO developed its

own application-specific integrated circuit (ASIC) which is

equipped in each ColorEdge monitor. With this ASIC, the

gamma level of each monitor is adjusted at the factory to ensure

that tones are displayed as intended without color banding.

Long-Term Reliability

As more desktop LCD monitor brands outsource development and production to third

parties, EIZO remains convinced that the best way to deliver the quality that our

customers expect is to maintain an integrated approach. Each ColorEdge monitor is

developed, manufactured, and quality-control tested in-house at EIZO’s own factory.

This gives us the confidence to back each ColorEdge monitor with the industry’s only

five-year manufacturer’s warranty.

4 5

Post Production

Photography

For Professionals

Get the best in both color and convenience
for the optimal creative workflow.

HDR

Print

HDR

Design

HDR

HDR

6 7

HDR

HDR

For Hobbyists and Prosumers

Create, edit, and enjoy photography, illustration,
and more.

NEW

27″

8 9

24.1″

NEW

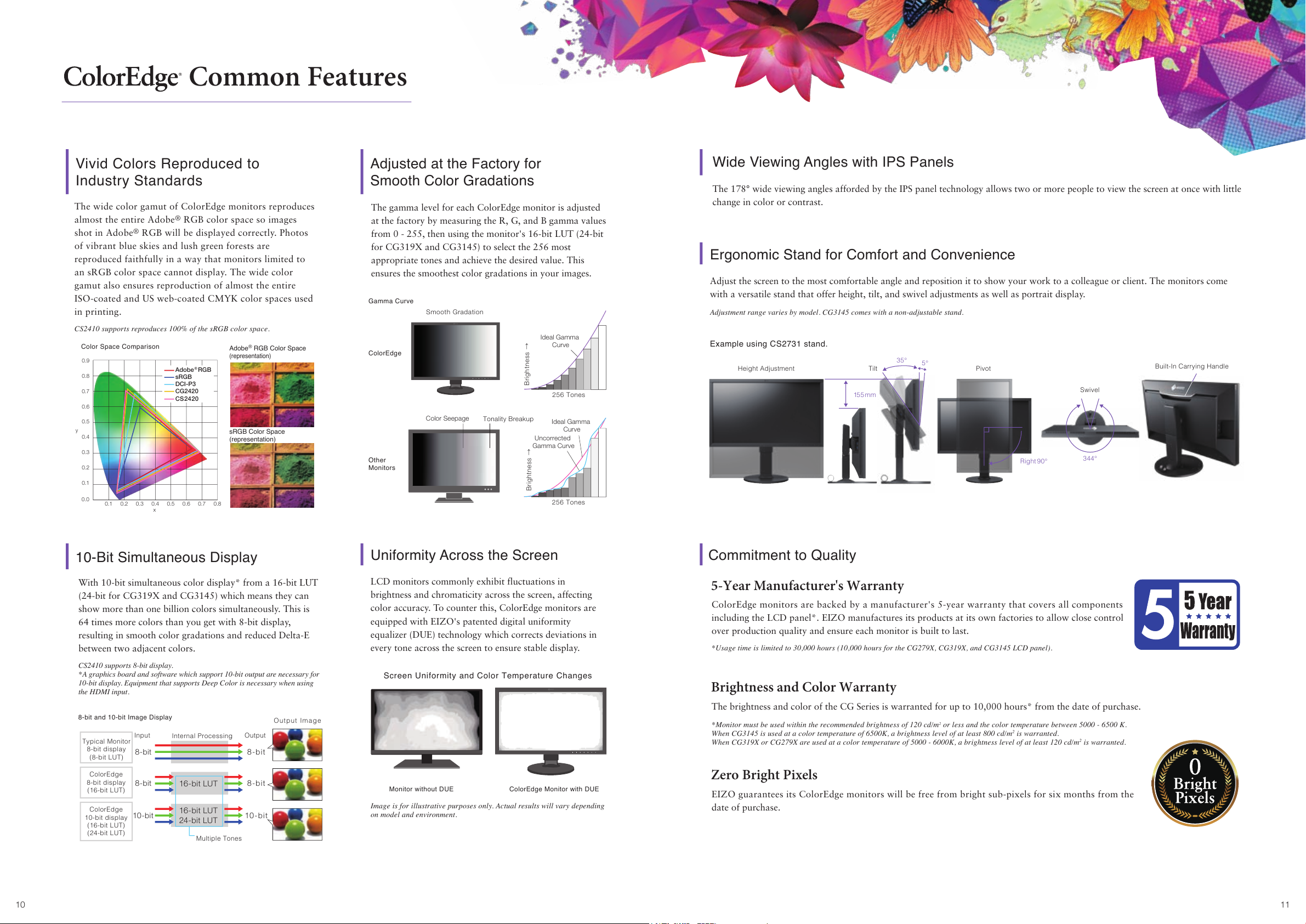

Common Features

Vivid Colors Reproduced to
Industry Standards

The wide color gamut of ColorEdge monitors reproduces

®

almost the entire Adobe

®

shot in Adobe

RGB will be displayed correctly. Photos
of vibrant blue skies and lush green forests are
reproduced faithfully in a way that monitors limited to
an sRGB color space cannot display. The wide color
gamut also ensures reproduction of almost the entire
ISO-coated and US web-coated CMYK color spaces used
in printing.

CS2410 supports reproduces 100% of the sRGB color space.

Color Space Comparison

.9

0

.8

0

.7

0

.6

0

0

.5

y

.4

0

.3

0

.2

0

0.1

.0

0

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

RGB color space so images

Adobe® RGB Color Space
(representation)

Adobe® RGB
sRGB

3

DCI-P
CG2420
CS2420

sRGB Color Space
(representation)

x

Adjusted at the Factory for
Smooth Color Gradations

The gamma level for each ColorEdge monitor is adjusted
at the factory by measuring the R, G, and B gamma values
from 0 - 255, then using the monitor's 16-bit LUT (24-bit
for CG319X and CG3145) to select the 256 most
appropriate tones and achieve the desired value. This
ensures the smoothest color gradations in your images.

Gamma Curve

ColorEdge

Other
Monitors

Smooth Gradation

Color Seepage

Tonality Breakup

Ideal Gamma

Curve

↓

Brightness

256 Tones

Ideal Gamma

Uncorrected

Gamma Curve

↓

Brightness

256 Tones

Curve

Wide Viewing Angles with IPS Panels

The 178° wide viewing angles afforded by the IPS panel technology allows two or more people to view the screen at once with little
change in color or contrast.

Ergonomic Stand for Comfort and Convenience

Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitors come
with a versatile stand that offer height, tilt, and swivel adjustments as well as portrait display.

Adjustment range varies by model. CG3145 comes with a non-adjustable stand.

Example using CS2731 stand.

35°

Height Adjustment Tilt Pivot

155mm

5°

Right 90°

Swivel

344°

Built-In Carrying Handle

10-Bit Simultaneous Display

With 10-bit simultaneous color display* from a 16-bit LUT
(24-bit for CG319X and CG3145) which means they can
show more than one billion colors simultaneously. This is
64 times more colors than you get with 8-bit display,
resulting in smooth color gradations and reduced Delta-E
between two adjacent colors.

CS2410 supports 8-bit display.
*A graphics board and software which support 10-bit output are necessary for
10-bit display. Equipment that supports Deep Color is necessary when using
the HDMI input.

8-bit and 10-bit Image Display

Typical Monitor

8-bit display

(8-bit LUT)

ColorEdge
8-bit display
(16-bit LUT)

ColorEdge

10-bit display

(16-bit LUT)
(24-bit LUT)

Input Output

8-bit

8-bit

10-bit

Internal Processing

16-bit LUT

16-bit LUT
24-bit LUT

Multiple Tones

Output Image

8-bit

8-bit

10-bit

Uniformity Across the Screen

LCD monitors commonly exhibit fluctuations in
brightness and chromaticity across the screen, affecting
color accuracy. To counter this, ColorEdge monitors are
equipped with EIZO's patented digital uniformity
equalizer (DUE) technology which corrects deviations in
every tone across the screen to ensure stable display.

Screen Uniformity and Color Temperature Changes

Monitor without DUE ColorEdge Monitor with DUE

Image is for illustrative purposes only. Actual results will vary depending
on model and environment.

Commitment to Quality

5-Year Manufacturer's Warranty

ColorEdge monitors are backed by a manufacturer's 5-year warranty that covers all components
including the LCD panel*. EIZO manufactures its products at its own factories to allow close control
over production quality and ensure each monitor is built to last.

*Usage time is limited to 30,000 hours (10,000 hours for the CG279X, CG319X, and CG3145 LCD panel).

Brightness and Color Warranty

The brightness and color of the CG Series is warranted for up to 10,000 hours* from the date of purchase.

*Monitor must be used within the recommended brightness of 120 cd/m2 or less and the color temperature between 5000 - 6500 K.
When CG3145 is used at a color temperature of 6500K, a brightness level of at least 800 cd/m
When CG319X or CG279X are used at a color temperature of 5000 - 6000K, a brightness level of at least 120 cd/m

2

is warranted.

2

is warranted.

Zero Bright Pixels

EIZO guarantees its ColorEdge monitors will be free from bright sub-pixels for six months from the
date of purchase.

10 11

Soware Solutions

Color Management Software

ColorNavigator 7 is the latest calibration and quality control software
for ColorEdge color management monitors. It combines all the features
of EIZO's previous color management software, ColorNavigator 6 and
ColorNavigator NX, to create a new and improved solution for
creatives in a range of fields.

Calibrate All Color Modes at Once

New with ColorNavigator 7 is the ability to calibrate every color mode
(Standard Mode) simultaneously so you do not have to spend time
managing each one individually. This saves time and ensures your screen
remains color accurate no matter which color mode you work in.

Multiple Color Modes

ColorNavigator 7 includes multiple color modes so you can choose the
one that matches your field's target values. Furthermore, the color
mode list is populated according to the monitor's OSD menu so you
can rest assured that all possible options are covered.

Schedule Automatic Recalibration

A monitor needs to be recalibrated at regular intervals to maintain
color accuracy. With ColorNavigator 7, you can schedule the monitor
to automatically recalibrate at a specific time or at regular intervals,
even if the monitor is switched off.

1-REC2020
1-REC2020

2-REC709
3-DCI
4-PQ_DCI
5-PQ_REC2100
6-HLG_REC2100

R

7-Adobe RGB

8-sRGB
9-CAL1
10-CAL2

Color Modes in ColorNavigator 7

Color Deviation

1-REC2020

1-REC2020
2-REC709
3-DCI
4-PQ_DCI
5-PQ_REC2100
6-HLG_REC2100

R

7-Adobe RGB

8-sRGB
9-CAL1

10-CAL2

Monitor OSD

Returns to original state

Recalibration

Easy Screen-to-Print Color Matching Tool

Even with all the right equipment, color matching can be a tedious process
and achieving an accurate print takes a great deal of time. Quick Color
Match greatly simplifies the process by automatically adjusting to EIZO's
recommended monitor, retouching software, and printer settings. Simply
drag and drop your photo and begin retouching and printing with no hassle.

Collaboration with Industry Leaders

Quick Color Match was developed under a first-ever collaboration between
EIZO and Adobe, Canon, and Epson. EIZO also collaborated with paper
manufacturers ILFORD, Pictorico, Hahnemühle, SIHL, and Tecco to
support a wide range of paper types.

Automatic Adjustment to EIZO's Recommended Settings

Monitor Adjustment

Quick Color Match automatically
adjusts your ColorEdge monitor's
gain, brightness, gamma, and color
space (Adobe
profile for these settings.

®

RGB) and creates a

Retouching Software Settings

Dragging and dropping your photo to the
Quick Color Match menu automatically
opens Adobe Photoshop
EIZO's recommended settings based on
the printer and paper being used.

®

and adjusts to

Printer Settings

With either Canon Print Studio Pro or
Epson Print Layout printer plugin installed,
Quick Color Match automatically selects
the print profile and color and soft
proofing options recommended by EIZO.

Maintain Calibration Settings with Dierent PCs

With ColorNavigator 7, calibration information is saved to the
monitor instead of the PC's operating system. This means you do
not need to recalibrate the monitor if connecting to more than
one PC.

Calibration information is

Adminstrator PC

saved to the monitor.

What is Calibration?

Calibration is a method by which a monitor’s display characteristics are adjusted to a target value using a special sensor. Software
calibration modifies the signal from your video card to display more accurate color and can be carried out for conventional
monitors. Hardware calibration controls the hardware of the monitor directly by utilizing the LUT (look-up-table) inside the
monitor. This method offers higher precision and better gradation characteristics compared to software calibration. With ColorEdge
and ColorNavigator 7, you can adjust the monitor’s display directly through hardware calibration.

12 13

Client PC

Client PC

Recommended Monitors

1920 x 12002560 x 1440

For a full list of supported monitors, printers, software, and
papers visit

www.eizoglobal.com/products/coloredge/qcm

ColorNavigator or Quick Color Match?

ColorNavigator is for users who want to fine-tune the monitor's color accuracy
and create custom profiles. Quick Color Match offers quick, hassle-free color
matching for users who want to streamline the process without worrying about
technical details. Both solutions support most ColorEdge monitors so you can
build the creative workflow that suits your needs.

For more information visit www.eizoglobal.com/library/management/qcm-cn

CG Series Features

Built-In Sensors to
Automate Your Workflow

CG Series monitors are equipped with a built-in sensor which can
be set to calibrate the monitor automatically at designated times.
This eliminates the need for a third-party calibration device and
ensures your screen stays color-accurate. In addition, the CG279X
and CG319X feature the latest sensor technology, which allows
you to continue using the monitor even during recalibration. The
sensor swings onto the screen, taking up minimal space, so your
work remains uninterrupted.

Only CG279X and CG319X can continue to be operated during recalibration. It is
not recommended to carry out color-critical work during this process, as the
screen's colors will be adjusted. CG3145 is not equipped with a built-in sensor.

Automatically calibrates while you work.

Stable Display Technology for Unrivaled Quality

The color and brightness of an LCD monitor an be affected by changes in
ambient temperature and the temperature of the monitor itself. ColorEdge
monitors are equipped with a temperature sensor for accurately measuring the
temperature inside the monitor, as well as estimating the temperature of the
surrounding environment. With this temperature sensing and estimation
technology, the monitor adjusts in real-time so gradations, color, brightness, and
other characteristics continue to be displayed accurately. Furthermore, EIZO
uses AI (artificial intelligence)* in the estimation algorithm of the ColorEdge
CG3145, CG319X, and CG279X so they can distinguish between various
temperature changing patterns to calculate even more accurate correction.

*Patent pending.

Calibration

Color / Brightness

Adjustment

Uniformity

Adjustment

Gradation (Gamma)

Adjustment

Ambient

Temperature Detection

AI

Certified for Quality and Performance

ColorEdge monitors have obtained TÜV Rheinland's Color Accuracy (Quick Stability grade)
certification. Color Accuracy is the first quality and performance criterion to measure the color
accuracy of display devices for multiple graphics fields such as photography, post production,
design, and printing.

CG Series monitors are also recognized by Fogra as Class A FograCert Softproof Monitors. Using
them in a FograCert Softproofing System ensures designers, print specifiers, and print producers
can rely on the softproof for predictable and consistent results. In addition the CG247X is the first monitor to receive
Idealliance`s display-based soft proofing certification which confirms that the color stability, tone uniformity, and angular viewing
consistency meets global industry standards for high quality proofs.

Visit www.eizoglobal.com/library/management/certifications/ for more information.

4K Resolution
for Exceptional Detail

e Highest Pixel Density Yet

The CG248-4K offers the highest pixel density
yet in the ColorEdge linup at an astonishing
185 ppi for exceptionally smooth image display.
The 4K UHD screen (3840 × 2160) makes it
ideal for high-resolution photography or as a
reference monitor for 4K video creation.

Conventional 23-inch
full HD monitor 96 ppi

185ppiCG248-4K

Stable Color in Just 3 Minutes

A typical monitor takes 30 minutes or more for
its brightness, chromaticity, and tone characteris-
tics to stabilize. The CG Series* takes a mere 3
minutes. Whether you are working in a studio or
taking the monitor with you on location, you get
reliable color display soon after turning the
monitor on.

*The CG277 takes 7 minutes and CG3145 takes 30 minutes.

Film Emulation with 3D LUT

ColorNavigator 7 can create emulation data from the 3D
LUT of the video content used in the color grading system
for matching the look of the film on the monitor.

Not available with the CG2730 or CG2420.

14 15

Light-Shielding Hood

The CG Series comes bundled with a
light-shielding that effectively
prevents glare on the monitor’s
screen caused by ambient lighting.
The hoods attach to the monitor
magnetically, allowing users to attach
the hood quickly and easily without
needing to connect separate parts.

*The CG277 comes with a non-magnetic hood.

Quadruple the Resolution
of Full HD

The CG319X and CG3145 display the DCI
4K standard (4096 × 2160) which is more
than four times that of full HD (1920 × 1080).
They are ideal for creating, editing, and
referencing with 2D and 3D CGI, VFX,
compositing, and color grading.

DCI 4K at 60 Hz with a Single Cable

The CG3145 and CG319X support the DCI 4K resolution at 60
Hz with the DisplayPort or HDMI input.

Full HD

HDMI × 2 DisplayPort × 2 USB Upstream × 1

CG Series Features

For Media and Entertainment

3D LUT for Accurate Color Display

A 3D LUT is included in the CG Series which adjusts
colors individually on an RGB cubic table. The 3D LUT
improves the monitor's additive color mixture
(combination of RGB), which is a key factor in its ability
to display neutral gray tones.

Not available with
the CG2730 or CG2420.

R

G

B

Multiple Preset Color Modes

CG Series monitors provide quick access to several
broadcast-standard preset color modes via a button on the
front of the monitor such as BT.2020 EBU, SMPTE-C, and
DCI. 4K models also include a preset mode for BT.2020. In
addition, CG Series monitors* are equipped with HDR
modes for both HLG and PQ gamma curves.

Not available with the CG2730 or CG2420.
Preset color modes vary by model.

BT.709 Out of Gamut Warning

ColorEdge 4K monitors and CG279X include a Gamut
Warning preset. When selected, the areas of a BT.2020 image
that cannot be reproduced using BT.709 are clearly indicated
by converting them to shades of gray. An additional mode
called BT.709 Clipping (Rec. 709 Clipping for 4K models)
allows the editor to view BT.2020 images with the BT.709
color space, simulating how it would look to their audience
in an HDTV environment.

BT.709

Gamut Warning ON BT.709 ClippingBT.2020 Image Content

True Black Display

In compliance with the DCI standard, the CG319X,
CG247X, CG2730, and CG2420 offer a high contrast
ratio of 1500:1 and CG279X a contrast ratio of 1300:1
for producing true blacks that are otherwise difficult to
display on a typical LCD monitor.The CG Series is also
equipped with a retardation film which allows tones to
retain their depth even when viewed from an angle.

Contrast ratios refer to typical values when DUE Priority is set to
"Brightness".

True HDR

HDR (High Dynamic Range) is a range that approximates the human perception of
color and light as content is shown on a display device. The ColorEdge

2

PROMINENCE CG3145 achieves the 1000 cd/m

high brightness level (typical)
needed for HDR content display. It also offers a typical contrast ratio of 1,000,000:1
for displaying true blacks.

HDR Workflow

In addition to the ColorEdge PROMINENCE
CG3145 HDR reference monitor, EIZO offers
HLG (hybrid log-gamma) and PQ (perceptual
quantization) curves for many of its current
CG Series monitors. The optimized gamma
curves render images to appear more true to
how the human eye perceives the real world
compared to SDR (standard dynamic range).

SDR （Standard Dynamic Range）

Shooting VFX Compositing Color Grading

ColorEdge PROMINENCE CG3145

HDR （High Dynamic Range）

Shooting

VFX

Compositing

Color Grading

31

Shooting

VFX

Compositing

Color Grading

"

.1

4096 × 2160

"

31

.1

I/P Conversion for Flicker-Free Display

Typical Monitor

CG319X

Shooting

Compositing

Color Grading

1920 × 1200

VFX

Shooting

VFX

Compositing

Color Grading

"

24

.1

2560 × 1440 4096 × 2160

"

27

Shooting

Compositing

Color Grading

3840 × 2160

VFX

"

23

.8

The HDMI input of ColorEdge monitors supports I/P (inter-
lace/progressive) conversion for converting the interlace signals

Color Management Monitors with HDR Gamma HDR Reference Monitor

from TV and video into progressive signals for flicker-free display.

Interlace Signal Progressive Signal

16 17

CG Series Features

For Media and Entertainment

Network Color Management Software

CS Series - For Aspiring Creatives

NEW

2560×1440

ColorNavigator Network provides centralized quality control of ColorEdge

CG Series monitors that have ColorNavigator 7 or NetAgent installed.

ColorNavigator Network is hosted on a secure cloud server. An

administrator can set the color modes, schedule self-calibration, activate key

lock to prevent unintended changes to color settings, register or adjust asset

management settings, and import/export monitor settings.

ColorNavigator 7

For many studios, maintaining
properly adjusted monitors had
to be done manually, consuming
a great deal of time.

ColorNavigator 7

ColorNavigator 7

ColorNavigator Network
makes managing multiple
monitors on a network
simple and efficient.

Host Server

ColorNavigator
Network

ColorNavigator
Network

Administrator

ColorNavigator 7

ColorNavigator
Network

ColorNavigator 7

ColorNavigator 7

1920×1200

1920×1200

Sleek, User-Friendly Design

Slimmer Bezels

The slim cabinet design features unobtrusive frames so you
can focus more on the screen. Compared to the previous
model, CS2420's bottom bezel is about 59% slimmer.

59% slimmer

17.3 mm

18.3 mm

CS2420

Built-In Handle for Easy Carrying

A carrying handle on the back of the monitors allows you
to easily move them from one location to another. The
weight of both monitors has been reduced significantly
compared to the previous model to make them even easier
to carry.

Seamless Electrostatic Switches

The flat design uses electrostatic switches on the front bezel
in place of traditional buttons for seamless access to the
monitor settings.

Single Cable Connection with USB Type-C

The CS2731 is the first in the ColorEdge lineup to feature
USB Type-C connectivity with 60 W power delivery. Simply
plug in and get creative without worrying about additional
cable clutter.

Benefits

Remote

Work Efficiency

Significantly reduce your
workload and annual

1

18 19

maintenance costs.

2

Color Management

Unify color display on all
ColorEdge monitors within
your organization, even
those that are located in
other cities or countries.

3

Asset Management

Smoothly manage assets
from a single PC.

Easy-Access USB Ports

The monitors are equipped with
three easy-to-access USB 3.0 ports,
including one port for battery
charging devices such as a
smartphone.

Use the CS Series with Quick Color Match
software to easily achieve accurate prints.

See page 13 for details.

E

x

s

Built-In Calibration Sensors

n

o

i

t

u

l

o

S

e

v

i

t

a

v

o

Business Enterprise

n

n

I

Automatically calibrates while you work

Visual

Creative Work

t

e

n

s

i

v

e

M

a

r

k

e

t

R

e

a

c

h

IP Decoding Solutions

PC-less connection

In-House Optical Bonding

Gap

Resin Layer

With BondingWithout Bonding

Technology

Company

Research and

Research and
Development

Development

5

0

+

Y

e

a

r

s

o

f

E

x

p

e

r

t

i

s

e

Global ReachGlobal Reach

Healthcare

Security & Surveillance /Maritime

／

Market-Focused Cloud Solutions

Healthcare

Air Traffic Control

Creative Work

ManufacturingManufacturing

Quality ControlQuality Control

Software for Improved Workflow

Use a single mouse across two PCs Synchronized adjustment of multiple monitors

20 21

Simplified CMS with automatic software and

printer settings adjustment

CustomizationCustomization

Home Entertainment

／ ／

Air Traffic Control

Specifications

NEWNEW

1, 2, 3

423

4K

434 - 588

IPS
Wide-Gamut LED

23.8" / 60 cm
3840 × 2160 (16:9 aspect ratio)
527 × 296.5 mm

0.137 × 0.137 mm
185 ppi
DisplayPort, HDMI: 1,024 tones
(a palette of 65 thousand)

DisplayPort, HDMI: 1.07 billion
(a palette of 278 trillion)

178°, 178°

2

350 cd/m
120 cd/m2 or less
1000:1
HLG, PQ curve (optional)
14 ms (gray-to-gray)

®

Adobe

RGB: 99%, DCI-P3: 93%
DisplayPort × 2 (HDCP 1.3), HDMI
× 2 (Deep Color, HDCP 1.4)

DisplayPort: 24.5 - 137.5 kHz,

22.5 - 71.5 Hz
HDMI: 14.5 - 135.5 kHz,

22.5 - 71.5 Hz
USB 3.1 Gen 1: Type-B

USB 3.1 Gen 1: Type-A × 3
(Battery Charging 10.5 W max. × 1)
AC 100 - 240 V, 50 / 60 Hz
52 W
136 W
9 W or less
9 W or less
Yes
–
Supported
Yes
Yes
Color Mode (Custom, Adobe RGB,
sRGB, REC709, EBU, SMPTE-C,
DCI, REC2020, Calibration)
AC power cord, USB cable,
setup guide, EIZO LCD Utility
Disk (ColorNavigator software,
PDF user's manual), adjustment
certificate, ScreenCleaner,
monitor hood, quick reference,
warranty card
553 × 394 - 544 × 245 mm
345 × 564 - 642 × 245 mm
553 × 345 × 64 mm

572.4 × 403 - 553 × 340 mm
–

8.5 kg

5.7 kg

9.2 kg
150 mm
35° Up, 5° Down
344°
90°
100 × 100 mm
0 - 35 °C
20 - 80%
CB, CE, TUV/GS, cTUVus, FCC-B, CAN
ICES-3 (B), TUV/S, PSE, VCCI-B,
TUV/Ergonomics, RCM, EAC, TUV/Color
Accuracy (Quick Stability), FograCert
Softproofing System (class A)

1, 2, 3

Five Years

71.5

290

553

IPS
Wide-Gamut LED
27" / 68.4 cm
2560 × 1440 (16:9 aspect ratio)

596.7 × 335.7 mm

0.233 × 0.233 mm
109 ppi
USB Type-C, DisplayPort, HDMI: 1,024
tones (a palette of 65 thousand)
DVI: 256 tones (a palette of 65
thousand)
USB Type-C, DisplayPort, HDMI: 1.07
billion (a palette of 278 trillion)
DVI: 16.77 million (a palette of
278 trillion)
178°, 178°
350 cd/m
–
1300:1
HLG, PQ curve (optional)
13 ms (gray-to-gray)
Adobe
USB Type-C (DisplayPort Alt Mode, HDCP

1.3), DisplayPort (HDCP 1.3), HDMI (Deep
Color, HDCP 1.4), DVI-D (HDCP 1.4)
USB Type-C, DisplayPort,
DVI: 26 - 89 kHz, 23 -61 Hz
HDMI: 15 - 89 kHz, 23 - 61 Hz

USB 3.1 Gen 1: Type-C
(DisplayPort Alt Mode, Power
Delivery Source 15 W max.), Type-B
USB 3.1 Gen 1: Type-A × 2 ,
USB 2.0: Type-A × 2
AC 100 - 240 V, 50 / 60 Hz
32 W
111 W
1 W or less
1 W or less
Yes
Supported
Supported
Yes
Yes
Color Mode (User, BT.2020, BT.709, DCI,
PQ_DCI, PQ_BT.2100, HLG_BT.2100,
Adobe RGB, sRGB, Calibration)
AC power cord, USB cable,
adjustment certificate, setup
guide, ScreenCleaner, monitor
hood, warranty card

638 × 415.9 - 570.9 × 265 mm
390 × 649 - 689 × 265 mm
638 × 390 × 69.4 mm

657.4 × 425.6 - 580.6 × 353.5 mm
–

10.3 kg

6.6 kg
11 kg
155 mm
35° Up, 5° Down
344°
90°
100 × 100 mm
0 - 35 °C
20 - 80 %
CB, CE, TUV/GS, cTUVus, FCC-B, CAN
ICES-3 (B), TUV/S, PSE, VCCI-B,
TUV/Ergonomics, TUV/Color Accuracy
(Quick Stability), RCM, WEEE, EAC, RoHS,
FograCert Softproofing System (class A)
Five Years

64

345

394 - 544

245

Panel

Video
Signals

USB

Power

Built-In Calibration Sensor
Dedicated
Software
Features &
Functions

Supplied
Accessories
(May vary
by country.
Please contact
EIZO for
details.)
Physical
Specifications

Environmental
Requirements
Certifications & Standards
(Please contact EIZO for
the latest information.)

Warranty
Dimensions (Unit: mm)

1

2

When CG3145 is used at a color temperature of 6500K, a brightness level of at least 800 cd/m2 is warranted.
When CG319X or CG279X are used at a color temperature of 5000 - 6000K, a brightness level of at least 120 cd/m2 is warranted.

3

With current LCD technology, a panel may contain a limited number of missing or flickering pixels.

Type
Backlight
Size
Native Resolution
Viewable Image Size (H x V)
Pixel Pitch
Pixel Density
Grayscale Tones

Display Colors

Viewing Angles (H / V, typical)
Brightness (typical)
Recommended Brightness for Calibration
Contrast Ratio (typical)
HDR Gamma
Response Time (typical)
Color Gamut (typical)
Input Terminals

Digital Scanning Frequency (H / V)

Upstream

Downstream

Power Requirements
Typical Power Consumption
Maximum Power Consumption
Power Save Mode
Standby Mode

Quick Color Match
ColorNavigator 7
Brightness Stabilization
Digital Uniformity Equalizer
Preset Modes

Others

Dimensions (Landscape, W x H x D)
Dimensions (Portrait, W x H x D)
Dimensions (Without Stand, W x H x D)
Dimensions (Landscape with Hood, W x H x D)
Dimensions (Portrait with Hood, W x H x D)
Net Weight
Net Weight (Without Stand)
Net Weight (With Hood)
Height Adjustment Range
Tilt
Swivel
Pivot
Hole Spacing (VESA Standard)
Operating Temperature
Operating Humidity

Usage time is limited to 30,000 hours (10,000 hours for the CG3145 LCD panel).
Brightness of the CG Series is warranted for up to 10,000 hours if it is used within the recommended brightness of 120 cd/m2 or less and the color temperature between 5000 - 6000K.

Free from bright sub-pixels for 6 months from the date of purchase.

IPS
Wide-Gamut LED

31.1" / 78.9 cm
4096 × 2160 (17:9 aspect ratio)
698 × 368.1 mm

0.170 × 0.170 mm
149 ppi
DisplayPort, HDMI: 1,024 tones
(a palette of 65 thousand)

DisplayPort, HDMI: 1.07 billion
(a 24-bit palette)

178°, 178°

2

1000 cd/m
–
1,000,000:1
HLG, PQ curve
10 ms (gray-to-gray)
DCI-P3: 99%
DisplayPort × 2 (HDCP 1.3), HDMI
× 2 (Deep Color, HDCP 2.2 / 1.4)

DisplayPort: 25 - 137 kHz, 23 - 61 Hz
HDMI: 15 - 136 kHz, 23 - 61 Hz

USB 3.1 Gen 1: Type-B

USB 3.1 Gen 1: Type-A × 3
(Battery Charging 10.5 W max. × 1)
AC 100 - 240 V, 50 / 60 Hz
267 W
472 W

1.2 W or less

0.7 W or less
–
–
Supported
Yes
Yes
Color Mode (BT.2020, BT.709, DCI,
PQ_BT.2100, PQ_BT.709, PQ_DCI,
HLG_BT.2100, Calibration)
AC power cord, USB cable, setup
guide, adjustment certificate,
ScreenCleaner, monitor hood,
warranty card

757 × 488 × 236.5 mm
–
–
778 × 498.5 × 355.6 mm
–

25.8 kg
–

26.7 kg
–
–
–
–
100 × 100 mm
0 - 30 °C
20 - 80 %
CB, CE, TUV/GS, cTUVus,
FCC-B, CAN ICES-3 (B), TUV/S,
PSE, VCCI-B, TUV/Ergonomics,
RCM, EAC, RoHS, WEEE

1, 2, 3

Five Years

757

IPS
Wide-Gamut LED

31.1" / 78.9 cm
4096 × 2160 (17:9 aspect ratio)
698 × 368.1 mm

0.170 × 0.170 mm
149 ppi
DisplayPort, HDMI: 1,024 tones
(a palette of 65 thousand)

DisplayPort, HDMI: 1.07 billion
(a 24-bit palette)

178°, 178°

2

350 cd/m
–
1500:1
HLG, PQ curve
9 ms (gray-to-gray)

®

Adobe

RGB: 99%, DCI-P3: 98%
DisplayPort × 2 (HDCP 1.3), HDMI
× 2 (Deep Color, HDCP 2.2 / 1.4)

DisplayPort: 25 - 137 kHz, 23 - 61 Hz
HDMI: 15 - 136 kHz, 23 - 61 Hz

USB 3.1 Gen 1: Type-B

USB 3.1 Gen 1: Type-A × 3
(Battery Charging 10.5 W max. × 1)
AC 100 - 240 V, 50 / 60 Hz
52 W
140 W

1.2 W or less

1.2 W or less
Yes
–
Supported
Yes
Yes
Color Mode (BT.2020, BT.709,
DCI, PQ_BT.2100, PQ_DCI,
HLG_BT.2100, Calibration)
AC power cord, USB cable,
setup guide, adjustment
certificate, ScreenCleaner,
monitor hood, warranty card

735 × 434 - 588 × 290 mm
–
735 × 423 × 71.5 mm

754.4 × 443.6 - 597.6 × 381.5 mm
–

12.4 kg

8.3 kg

13.3 kg
154 mm
35 ° Up, 5° Down
344°
–
100 × 100 mm
0 - 35 °C
20 - 80 %
CB, CE, TUV/GS, cTUVus, FCC-B, CAN
ICES-3 (B), TUV/S, PSE, VCCI-B,
TUV/Ergonomics, TUV/Color Accuracy
(Quick Stability), RCM, EAC, RoHS, WEEE,
FograCert Softproofing System (class A)
Five Years

236.5

488

53 55.5

735

290

CG Series CS Series

IPS
Wide-Gamut LED

24.1" / 61.1 cm
1920 × 1200 (16:10 aspect ratio)

518.4 × 324 mm

0.270 × 0.270 mm
94 ppi
DisplayPort, HDMI: 1,024 tones
(a palette of 65 thousand)
DVI: 256 tones
(a palette of 65 thousand)
DisplayPort, HDMI: 1.07 billion
(a palette of 278 trillion)
DVI: 16.77 million
(a palette of 278 trillion)
178°, 178°
350 cd/m
120 cd/m2 or less
1000:1
–
15 ms (gray-to-gray)

®

Adobe

RGB: 99%
DisplayPort (HDCP 1.3), HDMI
(Deep Color, HDCP 1.4), DVI-D
(HDCP 1.4)
DisplayPort, DVI: 26 - 78 kHz,
24 - 61 Hz
HDMI: 15 - 78 kHz, 24 - 61 Hz

USB 3.1 Gen 1: Type-B

USB 3.1 Gen 1: Type-A × 3
(Battery Charging 10.5 W max. × 1)
AC 100 - 240 V, 50 / 60 Hz
26 W
92 W

0.7 W or less

0.6 W or less
–
Supported
Supported
–
Yes
Color Mode (Custom,
Adobe RGB, sRGB, Calibration)

AC power cord, USB cable,
Setup guide, EIZO LCD Utility
Disk (ColorNavigator software,
PDF user's manual), Stand
base, Cable holder, Mounting
screw, Quick reference,
Warranty card

554.4 × 396 - 551 × 245 mm
362 × 565.4 - 647.2 × 245 mm

554.4 × 362 × 64 mm
–
–

7.8 kg
5 kg
–
155 mm
35° Up, 5° Down
344°
90°
100 × 100 mm
0 - 35 °C
20 - 80 %
CB, CE, TUV/GS, cTUVus,
FCC-B, CAN ICES-3 (B),
TUV/S, PSE, VCCI-B,
TUV/Ergonomics,
RCM, RoHS, WEEE, EAC
Five Years

75

404.1 - 559.1

265

2

1, 3

554.4

2

®

RGB: 99%, DCI-P3: 98%

1, 2, 3

638

265

69.4

390

415.9 - 570.9

IPS
Wide-Gamut LED
27" / 68 cm
2560 × 1440 (16:9 aspect ratio)

596.7 × 335.6 mm

0.233 × 0.233 mm
109 ppi
DisplayPort, HDMI: 1,024 tones
(a palette of 65 thousand)
DVI: 256 tones
(a palette of 65 thousand)
DisplayPort, HDMI: 1.07 billion
(a palette of 278 trillion)
DVI: 16.77 million
(a palette of 278 trillion)
178°, 178°

2

300 cd/m
120 cd/m2 or less
1000:1
HLG, PQ curve (optional)
6 ms (gray-to-gray)

®

Adobe

RGB: 99%, DCI-P3: 93%
DisplayPort (HDCP 1.3), HDMI
(Deep Color, HDCP 1.4), DVI-D
(HDCP 1.4)
DisplayPort, DVI: 26 - 89 kHz,

23.75 - 63 Hz
HDMI: 15 - 78 kHz, 23.75 - 61 Hz

USB 2.0: Type-B × 2

USB 2.0: Type-A × 2

AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
43 W
99 W

0.7 W or less

0.5 W or less
Yes
Supported
Supported
Yes
Yes
Color Mode (Custom, Adobe RGB,
sRGB, REC709, EBU, SMPTE-C,
DCI, Calibration)
AC power cord, USB cable,
setup guide, EIZO LCD Utility
Disk (ColorNavigator software,
PDF user's manual), adjustment
certificate, ScreenCleaner,
monitor hood, quick reference,
warranty card
646 × 425 - 576.5 × 281.5 mm
402 × 671 - 704 × 281.5 mm
646 × 402 × 92 mm
653 × 432.5 - 584 × 379.5 mm

410.5 × 679 - 712 × 379.5 mm

12.8 kg

8.8 kg

13.8 kg

151.5 mm
25° Up, 0° Down
344°
90°
100 x 100 mm
0 - 35 °C
20 - 80 %
CB, TUV/GS, CE, cTUVus, FCC-B, CAN
ICES-3 (B), TUV/S, PSE, VCCI-B,
TUV/Ergonomics, RCM, EAC, TUV/Color
Accuracy (Quick Stability), FograCert
Softproofing System (class A)

1, 2, 3

Five Years

646

265

256.5

IPS
Wide-Gamut LED

24.1" / 61 cm
1920 × 1200 (16:10 aspect ratio)

518.4 × 324 mm

0.270 × 0.270 mm
94 ppi
DisplayPort, HDMI: 1,024 tones
(a palette of 65 thousand)
DVI: 256 tones
(a palette of 65 thousand)
DisplayPort, HDMI: 1.07 billion
(a palette of 278 trillion)
DVI: 16.77 million
(a palette of 278 trillion)
178°, 178°

2

400 cd/m
120 cd/m2 or less
1500:1
HLG, PQ curve (optional)
10 ms (gray-to-gray)

®

Adobe

RGB: 99%, DCI-P3: 98%
DisplayPort (HDCP 1.3), HDMI
(Deep Color, HDCP 1.4), DVI-D
(HDCP 1.4)
DisplayPort, DVI: 26 - 78 kHz,
23 - 63 Hz
HDMI: 15 - 78 kHz, 24 - 61 Hz

USB 2.0: Type-B × 2

USB 2.0: Type-A × 2

AC 100 - 120 V, 50 / 60 Hz
22 W
60 W

0.7 W or less

0.5 W or less
Yes
–
Supported
Yes
Yes
Color Mode (Custom, Adobe RGB,
sRGB, REC709, EBU, SMPTE-C,
DCI, Calibration)
AC power cord, USB cable, setup
guide, EIZO LCD Utility Disk
(ColorNavigator software, PDF
user's manual), adjustment
certificate, ScreenCleaner, monitor
hood, warranty card

575 × 417 - 545 × 245.5 mm
398 × 594.5 - 642.5 × 245.5 mm
575 × 398 × 75 mm
596 × 427.8 – 555.8 × 356.7 – 380 mm
–

8.9 kg / 18.6 lbs

6.2 kg / 13.7 lbs

9.7 kg / 21.4 lbs
128 mm
30° Up, 0° Down
344°
90°
100 x 100 mm
0 - 35 °C
20 - 80 %
CB, CE, TUV/GS, cTUVus, FCC-B, CAN
ICES-3 (B), TUV/S, PSE, VCCI-B,
TUV/Ergonomics, RCM, RoHS, WEEE,
EAC, TUV/Color Accuracy (Quick Stability),
FograCert Softproofing System (class A)

1, 2, 3

Five Years

92

402

425 - 576.5

281.5

575

209

75

398

417 - 545

245.5

IPS
Wide-Gamut LED
27" / 68.5 cm
2560 × 1440 (16:9 aspect ratio)

596.7 × 335.7 mm

0.233 × 0.233 mm
109 ppi
DisplayPort, HDMI: 1,024 tones
(a palette of 65 thousand)
DVI: 256 tones
(a palette of 65 thousand)
DisplayPort, HDMI: 1.07 billion
(a palette of 278 trillion)
DVI: 16.77 million
(a palette of 278 trillion)
178°, 178°

2

350 cd/m
120 cd/m2 or less
1500:1
–
13 ms (gray-to-gray)
Adobe® RGB: 99%, DCI-P3: 98%
DisplayPort (HDCP 1.3), HDMI
(Deep Color, HDCP 1.4), DVI-D
(HDCP 1.4)
DisplayPort, DVI: 26 - 89 kHz,
23 - 61 Hz
HDMI: 15 - 89 kHz, 23 - 61 Hz

USB 3.1 Gen 1: Type-B × 2

USB 3.1 Gen 1: Type-A × 3
(Battery Charging 10.5 W max. × 1)
AC 100 - 240 V, 50 / 60 Hz
33 W
95 W

0.6 W or less

0.6 W or less
Yes
Supported
Supported
Yes
Yes
Color Mode (Custom, Adobe RGB,
sRGB, Calibration)

AC power cord, USB cable, setup
guide, EIZO LCD Utility Disk
(ColorNavigator software, PDF
user's manual), adjustment
certificate, ScreenCleaner, monitor
hood, quick reference, warranty
card
638 × 404.1 - 559.1 × 245 mm

378.2 × 649 - 689 × 245 mm
638 × 378.2 × 64 mm

657.4 × 413.8 - 568.8 × 336 mm
–

8.9 kg

6.1 kg

9.5 kg
155 mm
35° Up, 5° Down
344°
90°
100 × 100 mm
0 - 35 °C
20 - 80%
CB, CE, TUV/GS, cTUVus, FCC-B, CAN
ICES-3 (B), TUV/S, PSE, VCCI-B,
TUV/Ergonomics, RCM, RoHS, WEEE,
EAC, TUV/Color Accuracy (Quick Stability),
FograCert Softproofing System (class A)

1, 2, 3

Five Years

638

378.2

404.1 - 559.1

IPS
Wide-Gamut LED

24.1" / 61.1 cm
1920 × 1200 (16:10 aspect ratio)

518.4 × 324 mm

0.270 × 0.270 mm
94 ppi
DisplayPort, HDMI: 1,024 tones
(a palette of 65 thousand)
DVI: 256 tones
(a palette of 65 thousand)
DisplayPort, HDMI: 1.07 billion
(a palette of 278 trillion)
DVI: 16.77 million
(a palette of 278 trillion)
178°, 178°

2

400 cd/m
120 cd/m2 or less
1500:1
–
10 ms (gray-to-gray)

®

Adobe

RGB: 99%, DCI-P3: 98%
DisplayPort (HDCP 1.3), HDMI
(Deep Color, HDCP 1.4), DVI-D
(HDCP 1.4)
DisplayPort, DVI: 26 - 78 kHz,
24 - 61 Hz
HDMI: 15 - 78 kHz, 24 - 61 Hz

USB 3.1 Gen 1: Type-B

USB 3.1 Gen 1: Type-A
(Battery Charging 10.5 W max. × 1)
AC 100 - 240 V, 50 / 60 Hz
20 W
79 W

0.7 W or less

0.6 W or less
Yes
Supported
Supported
Yes
Yes
Color Mode (Custom, Adobe RGB,
sRGB, Calibration)

AC power cord, USB cable, Setup
guide, EIZO LCD Utility Disk
(ColorNavigator software, PDF
user's manual), Adjustment
certificate, ScreenCleaner, Monitor
hood, Quick reference, Warranty
card

554.4 × 396 - 551 × 245 mm
362 × 565.4 - 647.2 × 245 mm

554.4 × 362 × 64 mm

572.4 × 405 - 560 × 336 mm
–

7.8 kg
5 kg

8.5 kg
155 mm
35° Up, 5° Down
344°
90°
100 × 100 mm
0 - 35 °C
20 - 80%
CB, CE, TUV/GS, cTUVus, FCC-B, CAN
ICES-3 (B), TUV/S, PSE, VCCI-B,
TUV/Ergonomics, RCM, RoHS,WEEE, EAC,
TUV/Color Accuracy (Quick Stability),
FograCert Softproofing System (class A)

1, 2, 3

Five Years

64

245

554.4

362

396 - 551

IPS
Wide-Gamut LED
27" / 68.5 cm
2560 × 1440 (16:9 aspect ratio)

596.7 × 335.7 mm

0.233 × 0.233 mm
109 ppi
USB Type-C, DisplayPort, HDMI: 1,024
tones (a palette of 65 thousand)
DVI: 256 tones (a palette of 65
thousand)
USB Type-C, DisplayPort, HDMI:

1.07 billion (a palette of 278 trillion)
DVI: 16.77 million (a palette of 278
trillion)
178°, 178°

2

350 cd/m
–
1000:1
–
16 ms (gray-to-gray)

®

Adobe

RGB: 99%

USB Type-C (DisplayPort Alt Mode, HDCP

1.3), DisplayPort (HDCP 1.3), HDMI (Deep
Color, HDCP 1.4), DVI-D (HDCP 1.4)
USB Type-C, DisplayPort, DVI:
26 - 89 kHz, 23 - 61 Hz
HDMI: 15 - 89 kHz, 23 - 61 Hz

USB 3.1 Gen 1: Type-C
(DisplayPort Alt Mode, Power
Delivery Source 60 W max.), Type-B
USB 3.1 Gen 1: Type-A × 2
USB 2.0: Type-A × 2
AC 100 - 240 V, 50 / 60 Hz
34 W
159 W
1 W or less
1 W or less
–
Supported
Supported
–
Yes
Color Mode (User, Adobe
RGB, sRGB, Calibration)

AC power cord, USB cable,
setup guide, warranty card

638 × 404.1 - 559.1 × 265 mm

378.2 × 649 - 689 × 265 mm
638 × 378.2 × 75 mm
–
–

10.1 kg

6.5 kg
–
155 mm
35° Up, 5° Down
344°
90°
100 × 100 mm
0 - 35 °C
20 - 80%
CB, CE, TUV/GS, cTUVus,
FCC-B, CAN ICES-3 (B),
TUV/S, PSE, VCCI-B,
TUV/Ergonomics, RCM, RoHS,
WEEE, EAC

1, 3

Five Years

64

245

638

265

.2

378

IPS
LED

24.1" / 61.1 cm
1920 × 1200 (16:10 aspect ratio)

518.4 × 324 mm

0.270 × 0.270 mm
94 ppi
DisplayPort, HDMI, DVI-D: 256
tones (a palette of 65 thousand)

DisplayPort, HDMI, DVI-D:

16.77 million

178°, 178°

2

300 cd/m
–
1000:1
–
14 ms (gray-to-gray)
sRGB: 100%
DisplayPort（HDCP 1.3）, HDMI

（DeepColor, HDCP 1.4）, DVI-D
（HDCP 1.4）

DisplayPort, DVI: 26 - 78 kHz,
23 - 63 Hz
HDMI: 15 - 68 kHz, 23 - 63 Hz

USB 3.1 Gen 1: Type-B

USB 3.1 Gen 1: Type-A × 3 (Battery
Charging 10.5 W max. × 1)
AC 100 - 240 V, 50 / 60 Hz
18 W
57 W

0.7 W or less

0.6 W or less
–
Supported
Supported
–
Yes
Color Mode (Custom, sRGB,
Calibration)

AC power cord, USB cable,
setup guide, warranty card

554.4 × 396 - 551 × 245 mm
362 × 565.4 - 647.2 × 245 mm

554.4 × 362 × 64 mm
–
–

7.9 kg

5.1 kg
–
155 mm
35° Up, 5° Down
344°
90°
100 × 100 mm
0 - 35 °C
20 - 80 %
CB, CE, TUV/GS, cTUVus, FCC-B,
CAN ICES-3 (B), TUV/S, PSE,
VCCI-B, TUV/Ergonomics, RCM,
RoHS, WEEE, EAC

1, 3

Five Years

64

362

396 - 551

245

554

.4

245

64

362

- 551

396

245

22 23

Compatible OS

Mac Windows Linux

Accessories

Monitor Hoods

Software

ColorNavigator 7 Compatibility Information (as of May, 2019)

See www.eizoglobal.com for the latest information.

macOS Mojave (10.14) /macOS High Sierra (10.13) /
macOS Sierra (10.12) / OS X El Capitan (10.11)

Windows 10 (32-bit, 64-bit) / 8.1 (32-bit, 64-bit) / 7
(32-bit, 64-bit)

Red Hat Enterprise Linux 7 (64-bit)

Manufacturer Supported Sensor

i1 Monitor (XRGA), i1 Pro (XRGA), i1 Pro 2 (XRGA), i1 Display 3, i1 Display Pro, i1 Studio, ColorMunki PHOTO, ColorMunki DESIGN

Spyder4, Spyder5

EX2, EX3, Built-In Calibration Sensor

DISCUS

K-10, K-10A

PR-655, RP-670, PR-680

CS-2000, CS-2000A, CS-200, CA-210, CA-310

CR-100, CR-250, CR-300

Specbos 1211, Spectraval 1501

SR-3, SR-UL1R

PM-5639

Calibration Device

Adjust CS Series monitors to your ideal settings
with this external calibration device.

Monitor Cleaning Kit

Wipe away dust and fi ngerprints with this screen
cleaner kit. Includes pump spray and cloth. Bundled
with the CG series.

Supported Models: CG248-4K, CG2420, CS2420, CS2410

Supported Models: CG279X, CG2731

Monitor hoods are bundled
with the CG Series and
optional for the CS Series.

Supported Models: CG277

X-Rite

Datacolor

EIZO

basICColor

Klein

Photo Research

Konica Minolta

Colorimetry
Research

JETI

TOPCON

DK Technologies

Copyright © 2019 EIZO Corporation. All rights reserved. (190505)

For the latest information, see www.eizoglobal.com/products/coloredge/cn7

Phone [phone] Fax [phone]

www.eizoglobal.com

153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan

Network color management software for centralized
quality control of ColorEdge monitors on a network.

Network Color Management Software

Easy color matching tool for simplifying monitor,
retouching software, and printer settings.

Screen-to-Print Color Matching Tool

Color Management Software

Color management and quality control software
for simple calibration and predictable color results.

EIZO, the EIZO logo, and ColorEdge are registered trademarks of EIZO Corporation in Japan and other countries. ColorNavigator,
Quick Color Match, and ScreenCleaner are trademarks of EIZO Corporation.

Adobe and Photoshop are either registered trademarks of trademarks of Adobe Systems Incorporated in the United States and/or
other countries. The terms HDMI and HDMI High Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing, LLC in the United States and other countries. Apple, Mac, macOS, macOS High Sierra,
macOS Mojave, OS X El Capitan are registered trademarks of Apple Inc. Linux is a registered trademark of Lonus Torvalds. Red
Hat is a registered trademark of Red Hat, Inc. Windows is a registered trademark of Microsoft Corporation in the United States and
other countries. All other product names are trademarks or registered trademarks of their respective companies.

Compatible OS

Mac Windows Linux

Accessories

Monitor Hoods

Software

ColorNavigator 7 Compatibility Information (as of May, 2019)

See www.eizoglobal.com for the latest information.

macOS Mojave (10.14) /macOS High Sierra (10.13) /
macOS Sierra (10.12) / OS X El Capitan (10.11)

Windows 10 (32-bit, 64-bit) / 8.1 (32-bit, 64-bit) / 7
(32-bit, 64-bit)

Red Hat Enterprise Linux 7 (64-bit)

Manufacturer Supported Sensor

i1 Monitor (XRGA), i1 Pro (XRGA), i1 Pro 2 (XRGA), i1 Display 3, i1 Display Pro, i1 Studio, ColorMunki PHOTO, ColorMunki DESIGN

Spyder4, Spyder5

EX2, EX3, Built-In Calibration Sensor

DISCUS

K-10, K-10A

PR-655, RP-670, PR-680

CS-2000, CS-2000A, CS-200, CA-210, CA-310

CR-100, CR-250, CR-300

Specbos 1211, Spectraval 1501

SR-3, SR-UL1R

PM-5639

Calibration Device

Adjust CS Series monitors to your ideal settings
with this external calibration device.

Monitor Cleaning Kit

Wipe away dust and fi ngerprints with this screen
cleaner kit. Includes pump spray and cloth. Bundled
with the CG series.

Supported Models: CG248-4K, CG2420, CS2420, CS2410

Supported Models: CG279X, CG2731

Monitor hoods are bundled
with the CG Series and
optional for the CS Series.

Supported Models: CG277

X-Rite

Datacolor

EIZO

basICColor

Klein

Photo Research

Konica Minolta

Colorimetry
Research

JETI

TOPCON

DK Technologies

Copyright © 2019 EIZO Corporation. All rights reserved. (190505)

For the latest information, see www.eizoglobal.com/products/coloredge/cn7

Phone [phone] Fax [phone]

www.eizoglobal.com

153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan

Network color management software for centralized
quality control of ColorEdge monitors on a network.

Network Color Management Software

Easy color matching tool for simplifying monitor,
retouching software, and printer settings.

Screen-to-Print Color Matching Tool

Color Management Software

Color management and quality control software
for simple calibration and predictable color results.

EIZO, the EIZO logo, and ColorEdge are registered trademarks of EIZO Corporation in Japan and other countries. ColorNavigator,
Quick Color Match, and ScreenCleaner are trademarks of EIZO Corporation.

Adobe and Photoshop are either registered trademarks of trademarks of Adobe Systems Incorporated in the United States and/or
other countries. The terms HDMI and HDMI High Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing, LLC in the United States and other countries. Apple, Mac, macOS, macOS High Sierra,
macOS Mojave, OS X El Capitan are registered trademarks of Apple Inc. Linux is a registered trademark of Lonus Torvalds. Red
Hat is a registered trademark of Red Hat, Inc. Windows is a registered trademark of Microsoft Corporation in the United States and
other countries. All other product names are trademarks or registered trademarks of their respective companies.
