Eizo ColorEdge CG319X User Manual

User’s Manual

Color Management LCD Monitor

Thank you for purchasing our Color Management LCD Monitor.

Important

Please read this “User’s Manual”, and “PRECAUTIONS” (separate volume) carefully to familiarize yourself with safe and effective usage.

• Refer to the “Setup Guide” for information on the installation / connection of the monitor.

• For the latest product information including the “User’s Manual”, refer to our web site :

http://www.eizoglobal.com

Location of Caution Statement

This product has been adjusted specically for use in the region to which it was originally shipped. If operated outside this region, the product may not perform as stated in the specications.

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by

any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information condential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specications are subject to change without notice.

Notice for This Monitor

About the Usage of This Product

This product is suited for producing videos, where accurate color reproduction is a priority.

This product has been adjusted specically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specied in the specications.

This product may not be covered by warranty for uses other than those described in this manual.

The specications noted in this manual are only applicable when the following are used:

• Power cords provided with the product

• Signal cables specied by us

Only use optional products manufactured or specied by us with this product.

About the LCD Panel

The LCD panel is manufactured using high-precision technology. Although, missing pixels or lit pixels may appear on the LCD panel, this is not a malfunction. Percentage of effective dots: 99.9994 % or higher.

It takes about 3 minutes (under our measurement conditions) for the monitor display to stabilize. Please wait 3 minutes or more after the monitor power has been turned on, and then adjust the monitor.

Monitors should be set to a lower brightness to prevent a loss in the screen quality caused by long-term use

and to maintain stable use.

When the screen image is changed after displaying the same image for extended periods of time, an afterimage may appear. Use the screen saver or power save function to avoid displaying the same image for extended periods of time. Depending on the image, an afterimage may appear even if it was displayed for a short period of time. To remove such a phenomenon, change the image or keep the power turned off for

several hours.

If the monitor displays continuously over a long period of time, smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically. Use the power switch on the

front of the monitor to turn it off.

The backlight of the LCD panel has a xed lifetime. Depending on the usage pattern, such as usage for long continuous periods, the lifespan of the backlight may run out sooner, requiring replacement. When the screen becomes dark or begins to icker, please contact your local EIZO representative.

Do not press on the LCD panel or edge of the frame strongly, as this may result in display malfunctions, such

as interference patterns, etc. If pressure is continuously applied to the LCD panel surface, the liquid crystal may deteriorate or the LCD panel may be damaged. (If the pressure marks remain on the panel, leave the monitor with a black or white screen. The symptom may disappear.)

Do not scratch or press on the LCD panel with any sharp objects, as this may result in damage to the LCD panel. Do not attempt to brush with tissues as this may scratch the panel.

Notice for This Monitor

About the Installation

When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur on the interior and exterior surfaces of the monitor. In that case, do not turn the monitor on. Instead wait until the dew condensation disappears, otherwise it may cause some damage to the

monitor.

If you place this product on a lacquer-coated desk, the color may adhere to the bottom of the stand due to

the composition of the rubber. Check the desk surface before use.

About the Maintenance

Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime.

Cleaning

The stains on the cabinet and LCD panel surface can be removed by using the provided ScreenCleaner.

Attention

• Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet

or LCD panel, and also quality deterioration of the image.

• Never use thinner, benzine, wax, or abrasive cleaner as they may damage the cabinet or LCD panel surface.

To Use the Monitor Comfortably

• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor

according to the environmental conditions.

• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.

Notice for This Monitor

Notice for This Monitor ......................................... 3

Cleaning .................................................................... 4

To Use the Monitor Comfortably ............................ 4

Contents ................................................................. 5

Chapter 1 Introduction ....................................... 6

1-1. Features ......................................................... 6

Large built-in high resolution 4K LCD

●

that is advantageous for video production ...... 6

Support for HDR (High Dynamic Range)

●

video ................................................................ 6

User-dened custom key function ................... 6

●

SelfCalibration function ................................... 7

●

1-2. Controls and Functions ............................... 8

Front ................................................................ 8

●

Rear ................................................................. 9

●

1-3. Setting the Resolution ................................10

Windows 10 ....................................................10

●

Windows 8.1 / Windows 7 ..............................10

●

OS X Mavericks (10.9) or higher ....................10

●

Chapter 2 Basic Adjustments/Settings .......... 11

2-1. Switch Operation Method ...........................11

Operation Guide Icons ................................... 11

●

2-2. Switching Input Signals ..............................12

2-3. Switching the Display Mode (color

mode) .............................................................12

Display Modes ................................................12

●

Color Mode Setting Values ............................13

●

Chapter 3 SelfCalibration ................................ 14

SelfCalibration functions ................................15

●

3-1. Setting targets .............................................. 17

3-2. Executing ......................................................17

Executing regardless of a schedule ...............17

●

Executing by setting a schedule ....................17

●

Activating SelfCalibration in Standard

●

Mode ..............................................................17

Activating SelfCalibration in Calibration

●

Mode (CAL mode) ..........................................18

3-3. Checking results ..........................................18

Chapter 4 Custom Key Settings ...................... 19

4-1. Basic Operation of the Custom Keys ........19

4-2. Assigning a Function to a Custom Key .....19

Functions that can be Assigned to

●

Custom Keys ..................................................21

Chapter 5 Advanced Adjustments/

Settings ............................................ 22

5-1. Basic Operation of the Setting Menu ....... 22

5-2. Setting Menu Functions ............................. 23

Signal ............................................................ 23

●

Color .............................................................. 25

●

SelfCalibration ............................................... 30

●

Screen ............................................................31

●

Preferences ................................................... 36

●

Languages .................................................... 38

●

Information .................................................... 38

●

Chapter 6 Administrator Settings ................... 39

6-1. Basic Operation of the "Administrator

Settings" Menu ............................................ 39

6-2. "Administrator Settings" Menu

Functions ..................................................... 40

Chapter 7 Troubleshooting .............................. 42

7-1. No Picture .................................................... 42

7-2. Imaging Problems ....................................... 43

7-3. SelfCalibration Problems ........................... 44

7-4. Other Problems ........................................... 45

Chapter 8 Reference ........................................ 46

8-1. Attaching the Optional Arm ....................... 46

8-2. Attaching/Detaching the Cable Holder .... 48

8-3. Connecting Multiple External Devices ..... 50

8-4. Making Use of the USB Hub Function .......51

Connection Procedure ...................................51

●

8-5. Specications ............................................. 53

Accessories ................................................... 54

●

Appendix .............................................................. 55

Trademark ............................................................... 55

License .................................................................... 55

FCC Declaration of Conformity ............................ 56

Contents

Chapter 1 Introduction

This chapter describes the features of the monitor and the name of each control.

1-1. Features

Large built-in high resolution 4K LCD that is advantageous for

●

video production

• 31.1-inch widescreen monitor with support for DCI 4K resolution (4096 × 2160) Supports the digital cinema standard for DCI 4K resolution of 4096 × 2160. In addition to 4K videos, which have a high resolution that is more than 4x greater than full HD, multiple full HD videos can

be displayed at the same time.

• Faithful reproduction of video colors with a wide color gamut display

98 % of DCI is covered, for a highly accurate color management environment.

• Built-in IPS LCD panel with 178° horizontal and vertical wide viewing angles

Support for HDR (High Dynamic Range) video

●

• Complies with the international HDR standards for movies and broadcasts Supports both the HDR "PQ format" for streaming and movie production, and the HDR "Hybrid

Log Gamma format" for broadcasts. The "PQ format" complies with the ITU-R BT.2100 SMPTE ST2084*2 international HDR standards, and the "Hybrid Log Gamma format" complies with the ITU-R BT.2100 international HDR standard. This makes it possible to use the monitor for the creation of a wide range of HDR content, such as movies and broadcasts.

*1 ITU-R is the International Telecommunication Union-Radio communication Sector. *2 SMPTE is the Society of Motion Picture and Television Engineers.

• Built-in color mode function

Reproduces a color temperature, gamma, and color gamut compliant with ITU-R BT.2100 and other

standards. See “Color Mode” (page 25).

and

User-denedcustomkeyfunction

●

• Work efciency can be improved by assigning frequently used functions to the switches on the front of the monitor. The functions that can be assigned to custom keys are the following:

- Input range

- Zoom

- REC709 Gamut Warning

- Luminance Warning

- Safe Area Marker

- Aspect Marker

- Prev. Color Mode

- Information

See “Chapter 4 Custom Key Settings” (page 19)

Chapter 1

Introduction

SelfCalibration function

●

• The built-in calibration sensor enables the monitor to calibrate itself by using SelfCalibration.

By setting the calibration targets and execution schedule in advance, the calibration sensor automatically operates and regularly calibrates the monitor. This function can be used with Color Management Software "ColorNavigator 6" or "ColorNavigator NX" to calibrate monitor characteristics and generate color proles. You can set the calibration targets and execution schedule by using software (ColorNavigator 6 or ColorNavigator NX) or the monitor's Setting menu. You can check for the result of the SelfCalibration adjustment by using the monitor's Color menu.

See “Chapter 3 SelfCalibration” (page 14)

Attention

Be careful of the following points when using the built-in calibration sensor.

Do not touch the built-in calibration sensor.

It may reduce the measurement accuracy of the built-in calibration sensor, or result in injury or equipment damage.

Attention

• A high temperature or high humidity environment may affect the measurement accuracy of the built-in

calibration sensor.

Avoid storing or using the sensor where it may be exposed to direct sunlight.

• Since the measurement result for the built-in calibration sensor may be affected, ensure that the level of

ambient light that enters the receiver part of the built-in calibration sensor does not change signicantly

during measuring.

- The use of a monitor hood is recommended.

- While measuring, do not bring your face or any objects close to the monitor, do not look into the sensor.

- Set the monitor in the environment so that external light does not enter the sensor directly.

Chapter 1

Introduction

1-2. Controls and Functions

Front

●

Setting menu

1. Built-in calibration sensor Executes calibration for monitors. (SelfCalibration function)

2. Ambient light sensor Measures ambient light.

3. Operation switches Displays menus. Operate the switches according to the operation

guide.

Touch the switch to display its menu. The switch indicators are lit white when you turn on the power.

4. Power switch Turns the power on or off. Touch the switch to turn the power on. The switch indicator is lit when you turn the power on. The indicator color differs depending on the monitor's operation status.

White : Operating mode Orange : Power saving mode OFF : Power off

*1 See “5-1. Basic Operation of the Setting Menu” (page 22) for more information about how to use the

Setting menu.

432

Chapter 1

Introduction

Rear

●

1110

5. Transportation handle This handle is used for transportation.

Attention

• Firmly grasp and hold the monitor by the bottom while grabbing the

handle, and carefully convey the monitor so as not to drop it. Do not hold the sensor section on the front side of the monitor.

1312

6. USB downstream port Connects to a peripheral USB device.

port supports quick recharging.

7. Security lock slot Complies with Kensington's MicroSaver security system.

8. Stand

9. Cable holder Covers the monitor cables.

10. Main power switch

11. Power connector Connects the power cord.

12. Input signal connectors The following input connectors are located on the monitor rear in order

13. USB upstream port Connects to the USB cable when using software that requires a USB

*2 An optional arm (or an optional stand) can be attached by removing the stand section.

Adjusts the height and angle (tilt and swivel) of the monitor.

Turns the main power on or off.

of left to right.

HDMI connector 1 HDMI connector 2

DisplayPort connector 1 DisplayPort connector 2

connection, or when using the USB Hub function.

: On, : Off

Chapter 1

Introduction

1-3. Setting the Resolution

If the resolution is incorrect after connecting the monitor to a PC or if you want to change the resolution, follow the procedure below.

Windows 10

●

1. Right-click anywhere on the desktop except for on icons.

2. From the displayed menu, click "Display Settings".

3. In the "Customize your display" dialog box, click "Advanced display settings".

4. Select the monitor, and select the resolution from the "Resolution" pull-down menu.

5. Click "Apply".

6. When a conrmation dialog box appears, click "Keep changes".

Windows 8.1 / Windows 7

●

1. For Windows 8.1, click the "Desktop" tile on the Start Screen to display the desktop.

2. Click the right mouse button anywhere on the desktop except for on icons.

3. From the displayed menu, click "Screen resolution".

4. Select the monitor in the "Screen Resolution" dialog box.

5. Click "Resolution", and select the resolution you want to change.

6. After selecting the resolution, click "OK".

7. When a conrmation dialog box is displayed, click "Keep changes".

Note

• When changing the size of the characters or other items that are displayed, select "Display" from the

control panel and change the scaling level.

OS X Mavericks (10.9) or higher

●

1. Select "System Preferences" from the Apple menu.

2. When the "System Preferences" dialog box is displayed, click "Displays".

3. In the displayed dialog box, select the "Display" tab and click "Scaled".

4. Select the resolution you want to change from the list of possible resolution settings. If the target resolution is not displayed in the list, press and hold the Option key on the keyboard

and select "Scaled".

5. Your selection will be reected immediately. When you are satised with the selected resolution,

close the window.

Chapter 1

Introduction

Chapter 2 Basic Adjustments/Settings

This chapter describes the basic functions that can be set by touching the switches on the front of the

monitor. For advanced adjustment and setting procedures using the Setting menu, see “Chapter 5 Advanced

Adjustments/Settings” (page 22).

2-1. Switch Operation Method

Displaying the operation guide

1. Touch any switch (except ).

The operation guide appears on the screen.

Setting

1. Touch a switch for setting.

The Setting menu appears.

2. Use the switches to adjust/set the selected item, and then select to conrm.

Exiting

1. Select to exit the menu.

2. When no menu is displayed, the operation guide will automatically disappear after a few seconds

if no switches are operated.

Note

• The contents of the guide will differ depending on the selected menu or status.

Operation Guide Icons

●

Icon Description

Switches the input signal.

Switches the color mode.

Executes the function assigned to Custom Key 1.

Executes the function assigned to Custom Key 2.

Displays the Setting menu.

Returns to the previous screen.

Moves the cursor.

Executes the selected operation.

Turns the monitor's power on or off.

Chapter 2

Basic Adjustments/Settings

2-2. Switching Input Signals

When a monitor has multiple signal inputs, the signal to display on-screen can be changed.

2-3. Switching the Display Mode (color mode)

This function allows easy selection of a display mode according to monitor application.

Display Modes

●

Color Mode Purpose

Standard Mode Adjust color using the monitor's Setting menu.

REC2020 See “Color Mode Setting Values” (page 13) for detailed setting values

REC709

DCI

PQ_DCI

PQ_REC2100

HLG_REC2100

Adobe

sRGB

Calibration Mode (CAL mode) Adjusts the monitor's color using the monitor's SelfCalibration function or

CA L1 Displays the screen adjusted by SelfCalibration, ColorNavigator 6, or

CAL2

RGB

for each color mode.

color management software "ColorNavigator 6" or "ColorNavigator NX".

ColorNavigator NX.

Chapter 2

Basic Adjustments/Settings

Color Mode Setting Values

●

-: Cannot be changed

Color Mode

Item

Brightness (cd/m2) 100 100 48 300 300 300 120 12 0 -

Temperature REC2020 REC709 DCI DCI REC2020 REC2020

Gamma REC18 86 REC1886 DCI PQ PQ HLG

PQ / HLG Clipping (cd/m

HLG System Gamma - - - - - 1.2 - - -

Color Gamut

Advanced Settings

Hue

Saturation

Gamut Clipping On Off Off Off On On Off Off -

XYZ Format - - Off Off - - - - -

Gain

Red

Green

Blue

Black Level

Red 0 0 0 0 0 0 0 0

Green 0 0 0 0 0 0 0 0

Blue 0 0 0 0 0 0 0 0

6 Colors

Magenta

Hue 0 0 0 0 0 0 0 0 -

Saturation 0 0 0 0 0 0 0 0

Lightness 0 0 0 0 0 0 0 0

Red

Hue 0 0 0 0 0 0 0 0 -

Saturation 0 0 0 0 0 0 0 0

Lightness 0 0 0 0 0 0 0 0

Yel l ow

Hue 0 0 0 0 0 0 0 0 -

Saturation 0 0 0 0 0 0 0 0

Lightness 0 0 0 0 0 0 0 0

Green

Hue 0 0 0 0 0 0 0 0 -

Saturation 0 0 0 0 0 0 0 0

Lightness 0 0 0 0 0 0 0 0

Cyan

Hue 0 0 0 0 0 0 0 0 -

Saturation 0 0 0 0 0 0 0 0

Lightness 0 0 0 0 0 0 0 0

Blue

Hue 0 0 0 0 0 0 0 0 -

Saturation 0 0 0 0 0 0 0 0

Lightness 0 0 0 0 0 0 0 0

REC2020

) - - - 1000 1000 Off - - -

REC2020 REC709 DCI DCI REC2020 REC2020

REC709 DCI

0 0 0 0 0 0 0 0 -

Calculated from color temperature

PQ_

DCI

PQ_

REC2100

HLG_

REC2100

Adobe

RGB

Adobe

RGB

Adobe

RGB

Adobe

RGB

sRGB

sRGB -

CAL1 /

CAL2

Note

• Use ColorNavigator 6 or ColorNavigator NX to set CAL1 / CAL2. These settings cannot be changed in the Setting

menu on the monitor.

• A color mode can be set for each input signal.

• See “Color” (page 25) for details about each item.

• You can disable specic color mode selections. For more information, see “Mode Skip” (page 37).

Chapter 2

Basic Adjustments/Settings

Chapter 3 SelfCalibration

This product is equipped with a built-in calibration sensor. By setting the calibration targets and execution

schedule in advance, the calibration sensor automatically operates and regularly calibrates the monitor. This automatic calibration function is called "SelfCalibration".

The adjustment content of SelfCalibration differs depending on the color mode that is executed.

• Calibration Mode (CAL mode: CAL1 / CAL2):

- When performing SelfCalibration on the monitor itself, calibrate the monitor to match the set targets.

- When using ColorNavigator 6 or ColorNavigator NX, use a measurement device with the

software to maintain the calibrated state of the monitor.

• Standard Mode (color mode excluding CAL1 / CAL2): the monitor's color reproduction gamut is updated and each display mode in Standard Mode is adjusted as follows:

- The temperature is adjusted so that it is as close as possible to the specied value.

- The gamut values are adjusted so that they are close to each specied value.

- Information on brightness is updated.

Note

• SelfCalibration can be executed 30 minutes after turning on the monitor.

• SelfCalibration can also be executed when there are no external device signals being input.

• To preserve adjustments that you set by using ColorNavigator 6 or ColorNavigator NX, it is recommended to execute

SelfCalibration.

• Because brightness and chromaticity will change as you use the monitor, it is recommended to calibrate the monitor

periodically.

• The measurement results from the built-in calibration sensor can be correlated with the measurement results from

the external measurement device that you want to use as a reference. For details, refer to the User's Manual of ColorNavigator 6 or ColorNavigator NX.

You can set the calibration targets and execution schedule by using ColorNavigator 6 or ColorNavigator NX or the monitor's Setting menu. You can download the ColorNavigator 6 or ColorNavigator NX software and User's Manual from our web site:

http://www.eizoglobal.com

Note

• When using the software, you will need to connect a PC to the monitor with the supplied USB cable.

• For details on the USB cable connection, see "Connection Procedure" (page 51).

• While using the software, do not operate the power switch or operation switches on the front side of the monitor.

Chapter 3

SelfCalibration

SelfCalibration functions

●

Set the details for "SelfCalibration".

Function

Execute - SelfCalibration can be executed manually

Settings

Mode Settings Standard Mode On

Calibration Mode

Schedule Start time Power Save

Frequency Daily

CA L1 CAL2OnOff

Adjustable

Range

Off

Immediately Application Off

Weekly Monthly Quarterly Biannually

Annually

Usage Time

Description

regardless of the schedule.

Note

• After selecting "Execute", warming up (after the power to the monitor is switched

on, leaving the monitor on for a certain period of time until the display becomes

stable) may be executed before the built-

in calibration sensor comes out.

Switch between enabling/disabling

SelfCalibration in Standard Mode.

Switch between enabling/disabling

SelfCalibration in each color mode.

Select the timing to execute SelfCalibration upon

reaching the time set in the schedule.

• "Power Save"

To be executed under any of the following

conditions.

- When the monitor is in "Power Save" mode

or power is off at the set time.

- The monitor shifts to the power saving mode or the power is turned off when the set time in the schedule is exceeded.

• "Immediately" SelfCalibration is executed immediately at

the set time.

• "Application"

Execute SelfCalibration according to the timing set using ColorNavigator Network. For details on ColorNavigator Network, refer to our web site (http://www.eizoglobal.com).

• "Off" SelfCalibration is not executed.

Select the SelfCalibration execution cycle.

Chapter 3

SelfCalibration

Function

Settings

Schedule Timing Jan/Apr/Jul/Oct

Week 1st week

Adjustable

Range

Feb/May/Aug/Nov Mar/Jun/Sep/Dec Jan/Jul Feb/Aug Mar/Sep Apr/Oct May/Nov Jun/Dec

Jan to Dec

Every 50 hours to Every 500 hours

to 5th week

Description

When the execution cycle is "Quarterly", "Biannually", "Annually", or "Usage Time", select the timing for executing SelfCalibration.

The setting range differs depending on the

execution cycle setting.

• "Quar terly": Jan/Apr/Jul/Oct, Feb/May/Aug/Nov, Mar/Jun/ Sep/Dec

• "Biannually": Jan/Jul, Feb/Aug, Mar/Sep, Apr/Oct, May/ Nov, Jun/Dec

• "Annually": Jan to Dec

• "Usage Time":

Every 50 hours to Every 500 hours

When the execution cycle is "Monthly", "Quarterly", "Biannually", or "Annually", select the week for executing SelfCalibration.

Note

• When no day has been selected for "Day" in

the selected week, the week of execution will be as follows:

- When the selected week is "1st week": 2nd week

- When the selected week is "5th week": 4th week

Day Sunday to

Saturday

Time 0:00 to 11:55 PM When the execution cycle is "Daily", "Weekly",

Clock Adjustment - Set the monitor date and time.

Result - The SelfCalibration execution result is displayed.

Next Calibration - The next SelfCalibration scheduled execution

When the execution cycle is "Weekly", "Monthly", "Quarterly", "Biannually", or "Annually", select the day for executing SelfCalibration.

"Monthly", "Quarterly", "Biannually", or "Annually", select the time for executing SelfCalibration.

Note

• When the clock has not been set, the

schedule will not be applied.

• If the main power supply is disconnected for an extended period

of time, the clock may need resetting.

• When ColorNavigator 6 or

ColorNavigator NX is started, the date

and time are automatically set.

date is displayed.

Chapter 3

SelfCalibration

3-1. Setting targets

Set calibration targets for Calibration Mode. You can set targets by using ColorNavigator 6 or

ColorNavigator NX, or on the monitor itself. When using the monitor itself, set the following functions in the "Color" menu.

• "Color Mode"

Select the color mode (CAL mode: CAL1 / CAL2) you want to set a target for.

• "Target Settings" Set a calibration target for SelfCalibration.

3-2. Executing

SelfCalibration can be executed by setting a schedule or it can be executed regardless of a schedule. You can set a schedule by using ColorNavigator 6 or ColorNavigator NX, or on the monitor itself. When executing SelfCalibration by setting a schedule on the monitor itself, the method to set the schedule differs depending on the type of color mode (Standard Mode or Calibration Mode).

Attention

• If there is a change in the video signal from the external device during SelfCalibration (the signal disappears, a signal is input during a no-signal state, or other), SelfCalibration is automatically canceled.

Executing regardless of a schedule

●

Manually execute SelfCalibration. There are two methods for executing SelfCalibration, as follows.

• Execute from the "SelfCalibration" menu

In the "SelfCalibration" menu, select "Execute". SelfCalibration is executed for all the color modes selected as "On" in "Settings" - "Mode Settings" of the

"SelfCalibration" menu.

• Executing from the "Color" menu

In "Color Mode" in the "Color" menu, select the color mode (CAL mode: CAL1 / CAL2) you want to execute, and then select "Execute Calibration". Execute SelfCalibration for the displayed color mode.

Executing by setting a schedule

●

Set the calibration schedule for SelfCalibration.

In "Settings" in the "SelfCalibration" menu, set the calibration schedule and monitor date and time for

SelfCalibration.

Attention

• If a scheduled SelfCalibration is automatically canceled, it is executed again when the monitor transitions to the power saving mode an hour or more after cancellation or when the monitor is turned off using SelfCalibration can also be executed regardless of the schedule.

Activating SelfCalibration in Standard Mode

●

Execute SelfCalibration in Standard Mode. In "Settings" in the "SelfCalibration" menu, set the following functions:

• "Mode Settings"

Set "Standard Mode" to "On".

Chapter 3

SelfCalibration

Activating SelfCalibration in Calibration Mode (CAL mode)

●

Execute SelfCalibration in Calibration Mode (CAL mode). In "Settings" in the "SelfCalibration" menu, set the following functions:

• "Mode Settings"

Select "Calibration Mode".

• "Calibration Mode"

Select the color mode (CAL mode: CAL1 / CAL2) you want to execute, and set "On".

3-3. Checking results

Check the SelfCalibration calibration results by using the monitor.

In the "Color" menu, set the following functions:

• "Color Mode"

Select the color mode (CAL mode: CAL1 / CAL2) for which you want to check the result.

• "Result"

Check the calibration result of SelfCalibration.

Chapter 3

SelfCalibration

Chapter 4 Custom Key Settings

You can assign functions to the custom keys to easily start specied functions. This chapter describes how to operate the custom keys and how to assign functions to the custom keys.

4-1. Basic Operation of the Custom Keys

Displaying the operation guide

1. Touch any switch (except ).

The operation guide appears.

Execute

1. Select or .

The function assigned to or is executed.

Note

• If you touch a custom key to which no function has been assigned, the menu for assigning a function to that

custom key appears.

4-2. Assigning a Function to a Custom Key

Displaying the operation guide

1. Touch any switch (except ).

The operation guide appears.

Setting

1. Select .

The Setting menu appears.

Chapter 4

Custom Key Settings

2. Use to select "Preferences", and then select .

The Preferences menu appears.

3. Use to select "Custom Key", and then select .

The Custom Key menu appears.

4. Use to select the custom key to which you want to assign a function, and then select .

The menu for assigning a function appears.

5. Use to select the function that you want to assign, and then select .

That function is assigned to the custom key.

Exiting

1. Press several times.

The Setting menu exits.

Chapter 4

Custom Key Settings

Functions that can be Assigned to Custom Keys

●

Function Description

Off Disables the custom key even when it is touched.

Input Range Sets the Input Range function. For more information, see page 24.

Zoom Sets the Zoom function. For more information, see page 32.

REC709 Gamut

Warning

Luminance Warning Sets the Luminance Warning function. For more information, see page 34.

Safe Area Marker Sets the Safe Area Marker function. For more information, see page 34.

Aspect Marker Sets the Aspect Marker function. For more information, see page 35.

Prev. Color Mode You can return to the previous color mode. This is convenient for checking the

Information

Sets the REC709 Gamut Warning function. For more information, see page 33.

differences between two color modes.

You can view the input signal information and color information.

Example:

Note

• You can check the monitor information under “Information” (page 38) on the

Setting menu.

Chapter 4

Custom Key Settings

Chapter 5 Advanced Adjustments/Settings

This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu.

For the basic setting functions using the switches on the front of the monitor, see "Chapter 2 Basic

Adjustments/Settings" (page 11).

5-1. Basic Operation of the Setting Menu

Menu display

1. Touch any switch (except ).

The operation guide appears.

2. Select .

The Setting menu appears.

Adjusting/setting

1. Choose a menu to adjust/set with , and then select .

The Sub menu appears.

Chapter 5

Advanced Adjustments/Settings

2. Choose an item to adjust/set with , and then press .

The Adjustment/Setting menu appears.

3. Adjust/set the selected item with , and then select .

The Sub menu appears.

Selecting making changes.

Exiting

1. Select .

The Setting menu appears.

2. Select .

The Setting menu exits.

Note

• The contents of the guide will differ depending on the selected menu or status.

during adjustment/setting will cancel the adjustment/setting and restore the state prior to

5-2. Setting Menu Functions

Signal

●

The signal settings are used to congure advanced settings for input signals, such as the screen display size and color format.

Function Adjustable Range Description

Input Color Format Auto

*1 Only enabled during DisplayPort input *2 Only enabled during HDMI input

YUV

YUV 4:2:2 YUV 4:4:4 RGB

The color space of the input signal can be specied.

Try changing this setting if colors are not displayed correctly.

When inputting YUV 4:2:0, select "Auto".

Chapter 5

Advanced Adjustments/Settings

Function

Input Range Auto

HDMI

Settings

Noise Reduction

Adjustable

Full Limited

(109 % white)

Limited

On Off

Range

Description

Depending on the external device, the black and white levels in the video signal output to the monitor may be restricted. If

the signal is displayed on the monitor in its restricted form,

the blacks will be faint, the whites dull, and contrast will

be reduced. The brightness range of such signals can be

extended to match the actual contrast ratio of the monitor.

• "Auto" The monitor automatically recognizes the brightness range of

input signals and displays images appropriately.

• "Full"

The input signal brightness range is not extended.

• "Limited (109 % white)" The brightness range of the input signal is

16 - 254 (10 bits: 64 - 1019) to 0 - 255 (10 bits: 0 - 1023) for

display.

• "Limited" The brightness range of the input signal is

16 - 235 (10 bits: 64 - 940) to 0 - 255 (10 bits: 0 - 1023) for

display.

The small noises that occur in dark areas of an image are reduced. Use this function to reduce noise and roughness in images.

Note

• This can only be set when there is HDMI input.

• Using the Noise Reduction function may lead to deterioration

of ne images.

extended from

Film Detection On

Off

Signal Information - You can check the information for the input signal.

When displaying an interlaced signal, a display method can

be selected. For video, CG, animation, etc., the 24 fps or 30

fps signal is automatically detected, and the optimal image is displayed.

Note

• This can only be set when there is HDMI input.

• "Film Detection" is enabled only when a 1080i signal is input.

• If the video does not display normally when "Film Detection"

is set to "On", change the setting to "Off".

The following information is displayed:

• Resolution

• Vertical scan frequency

• Input range

• Color format

• Color depth

• Colorimetry

• EOTF

Chapter 5

Advanced Adjustments/Settings

Color

●

The setting details differ depending on the color mode selected.

When the color mode is Standard Mode (REC2020 / REC709 / DCI / PQ DCI / PQ_ REC2100 / HLG_REC2100 / Adobe

Each color mode setting status can be adjusted according to personal preference.

Attention

• The same image may be seen in different colors on multiple monitors due to differences between individual monitors. Make ne color adjustment visually when matching colors on multiple monitors.

Note

• Use the values shown in "cd/m2", "K", and "%" as a guide only.

RGB / sRGB)

Function

Color Mode

Brightness

Adjustable

Range

REC2020 REC709 DCI PQ_DCI PQ_REC2100 HLG_REC2100

Adobe

RGB sRGB CA L1 CAL2

40 cd/m2 to 350 cd/m

Description

Switch to the desired mode according to the monitor

application.

Note

• For more information on how to switch modes, see

"2-3. Switching the Display Mode (color mode)" (page 12).

• Regarding "CAL1 / CAL2" see page 28.

The screen brightness is adjusted by changing the brightness

of the backlight (light source from the LCD back panel).

Note

• If a value that cannot be set is selected, the value will appear in magenta. In such a case, change the value.

Chapter 5

Advanced Adjustments/Settings

Function

Adjustable

Temperature Native

4000 K to 10000 K

D50 D65

Adobe sRGB EBU REC709 REC18 86 REC2020 SMPTE-C DCI

User

Range

RGB

Description

The color temperature can be adjusted.

The color temperature is used to express the chromaticity of "White". The value is expressed in degrees "K" (Kelvin). The screen becomes reddish at a low color temperature, and

bluish at a high color temperature, like the temperature of a

ame.

Specify a color temperature in units of 100 K, or select a

standard name.

Note

• When you select "Native", the original color of the LCD

panel (Gain: 100 % for each RGB) is displayed.

• "Gain" allows you to perform more advanced adjustment.

When gain is changed, the color temperature is changed to "User ".

• The gain preset values are set for each color temperature

setting value

Gamma 1.6 to 2.7

Adobe sRGB EBU REC709 REC18 86

RGB

Adjust the gamma.

The brightness of the monitor varies depending on the input

signal, however, the variation rate is not simply proportional

to the input signal. The control performed to keep the balance

between the input signal and the brightness of the monitor is

called "Gamma correction". REC2020 SMPTE-C DCI

Set the gamma, or select a standard name.

Note

• If you select "HLG", you must set "HLG System Gamma".

HLG

PQ / HLG Clipping (Gamma: PQ)

300 cd/m 500 cd/m 1000 cd/m 4000 cd/m

Off (Gamma: HLG) On

• If "PQ" is selected for "Gamma", areas with brightness equal

to or greater than the value set here are displayed as clipping at this setting value for the signal that is input to the monitor.

• If "HLG" is selected for "Gamma", set On / Off for clipping.

Note

• This can be set when "PQ" or

"HLG"

is specied for gamma.

• You can check the areas where clipping occurs. For more information, see "Luminance Warning" (page 34).

Off

HLG System Gamma 1.0 to 1.5 Adjust the system gamma value for the HLG signal that is input

to the monitor.

Note

• This can be set when "HLG" is specied for gamma.

Color Gamut Native

Adobe sRGB EBU REC709 REC18 86 REC2020 SMPTE-C DCI

Chapter 5

Advanced Adjustments/Settings

RGB

Set the color reproduction area (color gamut). "Color Gamut" is the range of colors that can be represented. Multiple standards are dened.

Note

• Select "Native", to display the original color gamut of the monitor.

• The method of displaying colors outside the monitor's

displayable range within the dened color gamut can be

set. For more information, see "Gamut Clipping" (page

27).

Function

Advanced Settings

Hue -100 to 100 The hue can be adjusted.

Adjustable

Range

Note

• Using this function may make some color gradations unavailable for display.

Saturation -100 to 100 The saturation can be adjusted.

Note

• Using this function may make some color gradations unavailable for display.

• The minimum value (-100) changes the screen to monochrome.

Description

Gamut

Clipping

On Off

The method of displaying colors outside the monitor's displayable range within the color gamut specied in accordance with "Color Gamut" (page

26) can be set.

• "On"

The range of colors that are displayable

on the monitor will be accurately displayed in accordance with the

standard. Colors outside the displayable

range will be saturated.

• "Off" Displays colors with priority on the

color gradation rather than the color accuracy. The vertices of the color

gamut dened in the standard move

to a range that can be displayed by

the monitor. This allows the closest

colors displayable by the monitor to be displayed.

Color gamut displayable by the monitor Color gamut defined by standard Color gamut displayed on screen

Note

• The diagrams shown above are conceptual diagrams, and they do

not display the actual color gamut of the monitor.

• This setting will be disabled if "Native" is selected at "Color Gamut"

XYZ Format On

Off

(page 26)

If this function is set to "On", the XYZ signal for digital cinema can be

displayed on the monitor.

Note

• This can be set only when

"Color Gamut" (page 26) is set to

"DCI".

• If you select "On", you cannot set "Color Gamut".

Gain 0 % to 100 % The brightness of each color component red, green, and blue is called

Gain. The chromaticity of "white" can be changed by adjusting the gain.

Note

• Using this function may make some color gradations unavailable for display.

• The gain value changes according to the color temperature.

• When gain is changed, the color temperature is changed to "User".

Chapter 5

Advanced Adjustments/Settings

Function

Advanced Settings

Black Level 0 % to 100 % You can adjust the brightness and chromaticity of black by adjusting the

6 Colors -100 to 100 The hue, saturation and lightness (brightness) can each be adjusted for

Adjustable

Range

Description

black level for red, green, and blue. Display the black test pattern or the background and adjust the black level.

the colors Magenta, Red, Yellow, Green, Cyan, and Blue.

Reset -

Resets any color adjustment values for the currently selected color mode back to the default settings.

When the color mode is Calibration Mode (CAL mode: CAL1 / CAL2)

You can switch color mode, set targets for SelfCalibration, and execute calibration.

Function

Color Mode

Adjustable

Range

REC2020 REC709 DCI PQ_DCI PQ_REC2100 HLG_ REC2100

Adobe

RGB sRGB CA L1 CAL2

Description

Switch to the desired mode according to the monitor application.

Note

• For more information on how to switch modes, see "2-3.

Switching the Display Mode (color mode)" (page 12).

• Regarding "REC2020 / REC709 / DCI / PQ_DCI /PQ_ REC2100 / HLG_REC2100 /

25.

Adobe® RGB / sRGB

", see page

Chapter 5

Advanced Adjustments/Settings

Function

Target Settings

Brightness Min

Adjustable

Range

40 cd/m 350 cd/m

Description

Set the brightness that will be used as a calibration target for

SelfCalibration.

Max

Black Level Min

0.2 to 3.5

White Point

Temperature 4000 K to

10000 K

User D50 D65

Adobe sRGB EBU REC709 REC18 86 REC2020 SMPTE-C

Set the black level that will be used as a calibration target for

SelfCalibration.

Set the White Point that will be used as a calibration target for

SelfCalibration.

Set the White Point using the color coordinates (White(x) / White(y)) or color temperature. When specifying color coordinates, set the values for "White(x)" and "White(y)", respectively.

RGB

When specifying the color temperature, set the color temperature

in units of 100 K or select a color temperature according to each

standard.

Note

• When color coordinates are specied, the color temperature

is changed to "User".

DCI

White(x) / White(y)

Gamma 1.0 to 2.7

0.2400 to

0.4500

Adobe

RGB sRGB EBU REC709 REC18 86 REC2020

Set the gamma that will be used as a calibration target for

SelfCalibration.

Set the gamma, or select the gamma curve dened by each

standard.

Note

• The gamma becomes "Fixed" when adjusting with

ColorNavigator 6 or ColorNavigator NX.

SMPTE-C DCI

L* PQ

HLG Fixed

PQ / HLG Clipping (Gamma:

PQ) 300 cd/m 500 cd/m 1000 cd/m 4000 cd/m

Set the PQ / HLG clipping that will be used as a calibration target

for SelfCalibration.

Note

• This can be set when "PQ" or "HLG" is specied for gamma.

Off (Gamma: HLG) On Off

HLG System Gamma 1.0 to 1.5 Set the HLG system gamma that will be used as a calibration

target for SelfCalibration.

Note

• This can be set when "HLG" is specied for gamma.

Chapter 5

Advanced Adjustments/Settings

Function

Target Settings

Gamma Policy

Adjustable

Range

Standard

Gray

Balance

Fixed Gamma

Description

Select the gamma adjustment method for SelfCalibration.

• "Standard"

Adjust the gray balance while retaining the contrast.

• "Gray Balance" Adjust the monitor so that the chromaticity of the middle tone area equals the white point.

• "Fixed Gamma" Select to use specic gamma settings.

Attention

• If "HLG" is specied for gamma, "Fixed Gamma" is selected

and this setting cannot be changed.

• With "Gray Balance", all points of the grayscale are adjusted

toward the target white point. Select this to prioritize whiteness when correcting the middle tone area. However, the following restrictions apply when "Gray Balance" is selected:

- The contrast may decrease.

- The color gamut may be narrower than when adjusting with

"Fixed Gamma".

Color Gamut Native

Red(x) / Red(y) / Green(x) / Green(y) /

ue(x) /

Blue(y)

Gamut Clipping On

Reset - Resets any calibration targets and calibration result for the

SelfCalibration

●

Adobe sRGB EBU REC709 REC18 86 REC2020 SMPTE-C DCI

User

0.0000 to

1.0000

Off

Set the color gamut that will be used as a calibration target for

SelfCalibration.

RGB

In "Color Gamut", the color gamut dened by each standard can

be selected.

To set a color gamut other than those specied by each standard, specify the color coordinates of each RGB color, and the display method ("Gamut Clipping") of colors outside the color gamut of the

monitor.

Note

• When you select "Native" in "Color Gamut", the preset color

gamut of the monitor is displayed.

• When color coordinates are specied in the color gamut

settings, the color gamut is changed to "User".

currently selected color mode back to the default settings.

Refer to "SelfCalibration functions" (page 15).

Chapter 5

Advanced Adjustments/Settings

Screen

●

The signal settings are used to congure advanced settings for input signals, such as the screen display size and color format.

Function

Picture Expansion Auto

Full Screen

Aspect Ratio

Dot by Dot

Adjustable

Range

Description

The screen size of the monitor display can be changed.

• "Auto" The monitor automatically changes the screen size

according to the resolution information and aspect ratio

information from the input signal (only for HDMI input).

• "Full Screen"

Displays an image in full screen. Images are distorted in some cases because the magnication ratio is not necessarily xed vertically and horizontally.

• "Aspect Ratio" Displays an image in full screen. However, since aspect

ratios are maintained, part of an image may not be visible

in horizontal or vertical direction.

• "Dot by Dot"

Displays the image at the set resolution or at the size specied by the input signal.

Note

• Example settings

- Full Screen

- Aspect Ratio

- Dot by Dot (Input

Signal)

Chapter 5

Advanced Adjustments/Settings

Function

Zoom Off

Center

Lower Left

Upper Left Upper Right

Lower Right

Adjustable

Range

Description

When a 4K signal (a signal with a resolution of 4096 × 2160 or 3840 × 2160) is displayed on the monitor, the specied area can be doubled in size. This is convenient for checking details

in an image.

Example: Enlargi ng "Upp er Right "

Upper Left

Center

Lower Lef t

Note

• You cannot use this function if "Picture Setup" (page 41)

in the "Administrator Settings" menu is set to "Dual".

• You cannot use this function with a 4K HDMI signal.

Upper Right

Lower Right

Chapter 5

Advanced Adjustments/Settings

Function

REC709 Gamut Warning Off

Clip

Adjustable

Range

Description

If "Color Gamut" is set to "REC2020" and a signal is input that complies with the ITU-R REC2020 standard, you can set the display method for colors that exceed the color gamut for the REC709 standard.

• "Off" Images are displayed according to the color gamut for REC2020. (The actual color gamut that is displayed on the monitor will depend on the setting for "Gamut Clipping" (page

27).)

Color gamut defined by the REC2020 standard

Color gamut defined by the REC709 standard

• "Clip"

Colors that are outside of the color gamut for REC709 are expressed within the color gamut for REC709 (clipping oc cur s).

Color gamut defined by the REC2020 standard

Color gamut defined by the REC709 standard

• "On" Colors that are outside of the color gamut for REC709 are

displayed in gray.

Color gamut defined by the REC2020 standard

Color gamut defined by the REC709 standard

Note

• This function can be set only when "Color Gamut" (page

26) is set to "REC2020".

• If this function is set to "On" or "Clip", the "Luminance Warning" function is automatically set to "Off".

Chapter 5

Advanced Adjustments/Settings

Function

Luminance Warning Off

On (Yellow) On (Magenta)

Adjustable

Range

Description

You can check areas with a brightness that is higher than the brightness that is set for the PQ / HLG Clipping function for the input signal (areas where clipping occurs).

Example: Setti ng On (Mag enta)

Note

• If this function is set to "On", the "REC709 Gamut Warning" function is automatically set to "Off".

Marker Safe Area

Marker

Safe Area Size

Off On

80 % to 99 % You can set the size of the safe area.

A safe area is an area that can be displayed on any type of

device.

If this function is set to "On", a frame is displayed around the safe area during video editing, etc. This allows you to visually conrm that subtitles and menus are arranged completely within the safe area.

Note

• If "Picture Setup" (page 41) in the "Administrator Settings" menu is set to "Dual", a frame is displayed around the safe area only if the left and right screens have the same resolution.

• If "Aspect Marker" is set to any setting other than "Off", the

safe area setting is automatically set to "Off".

Chapter 5

Advanced Adjustments/Settings

Function

Marker Aspect

Marker

Adjustable

Range

Off

Marker 1 Marker 2

Description

A frame that supports the aspect ratios for video sizes that are

regulated by digital cinema is displayed.

• "Off"

No aspect marker is displayed.

• "Marker 1"

An outer frame is displayed.

• "Marker 2"

An outer frame and borderlines resulting from trisection

are displayed. This setting can be used to check the composition of an image.

Note

• This can be set when either of the following conditions is satised:

- "Picture Setup" (page 41) in the "Administrator Settings"

menu is set to "Single", and the display resolution is 2048 × 1080 or 4096 × 2160.

- "Picture Setup" (page 41) in the "Administrator Settings"

menu is set to "Dual", the left and right screens have the

same resolution, and the combined resolution is that of 4K signal (4096 x 2160 or 2048 x 1080).

• The left and right outer frames are not displayed for a 4096 × 2160 signal.

• If "Safe Area Marker" is set to "On", Aspect Marker is

automatically set to "Off ".

Aspect

Settings

Border Color White

1.85:1

2.35:1

2.39:1

Red

Green

Blue Cyan Magenta

Yellow Gray

You can set the aspect ratio for the displayed aspect marker.

You can set the color of the frame.

Note

• This setting applies to both "Safe Area Marker" and "Aspect Marker".

Chapter 5

Advanced Adjustments/Settings

Preferences

●

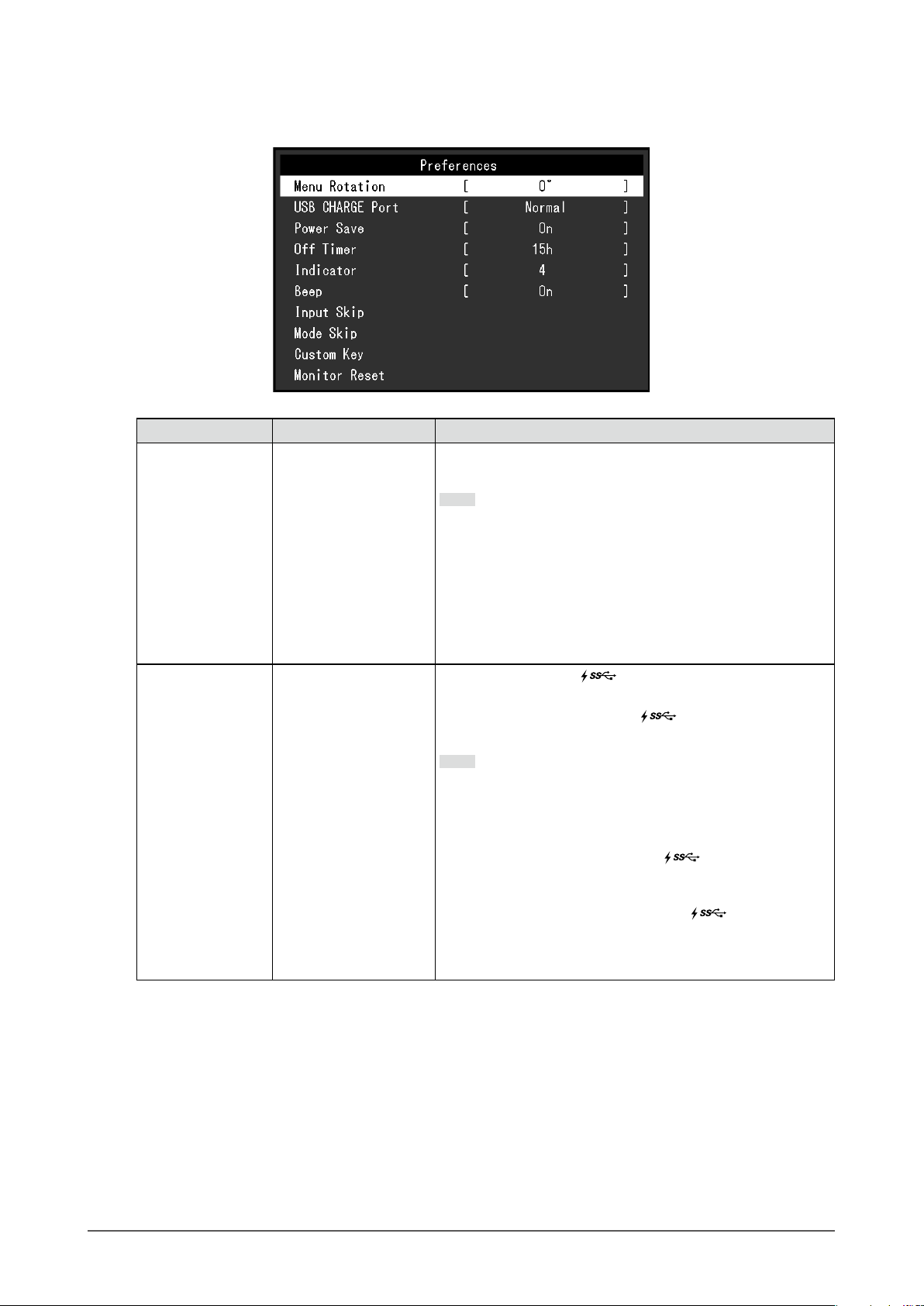

The monitor's settings can be congured to suit the usage environment or personal preference.

Function Adjustable Range Description

Menu Rotation 0°

90°

USB CHARGE Port Normal

Charging Only

This function allows you to change the orientation of the Setting menu to align with the installation orientation.

Note

• When using the monitor screen in a portrait position, the

graphics board supporting portrait display is required. When

placing the monitor in a portrait position, settings of your

graphics board need to be changed. Refer to the User's Manual of the graphics board for details. Also, visit the EIZO website (http://www.eizoglobal.com).

• When using the monitor in the portrait orientation, you must

replace the supplied stand with an arm or similar equipment.

The USB downstream port of the monitor supports USB 3.0 quick charging. By changing this setting to "Charging Only", devices connected to the more quickly than when using the "Normal" setting.

Note

• Make sure to complete any communication between connected USB devices and the PC before switching this setting. When the setting is switched, all communication will be temporarily

interrupted.

• Devices that are connected to the port must support

quick charging.

• When "Charging Only" is set, data communications between the PC and connected devices via the

possible, and therefore, connected devices will not work.

• When "Charging Only" is set, charging is possible even when the monitor and PC are not connected by USB cable.

port can be charged

port are not

Chapter 5

Advanced Adjustments/Settings

Function Adjustable Range Description

Power Save On

Off

Off Timer Off

12h 15h 18h

Indicator Off

1 to 7

Beep On

Off

Input Skip Skip

Mode Skip Skip

Custom

Key

[F1] [F2]

Off Input Range Zoom REC709 Gamut Warning

Luminance Warning

Safe Area Marker Aspect Marker

Prev. Color Mode

Information

This function allows you to set the monitor to the power saving mode, depending on the state of an external device connected

to it.

The monitor changes to power saving mode about 15 seconds

after signal input ceases to be detected. When the monitor has

shifted to power saving mode, images are not displayed on the

screen.

• Exiting power saving mode

- If the monitor receives input, it automatically exits power

saving mode and returns to the normal display mode.

Note

• At the time of shifting to power saving mode, a message that indicates the transition is displayed 5 seconds in advance.

• When you are not using the monitor, turn off the main power

switch to cut down on power consumption.

• When the monitor is in power saving mode, devices connected to the USB downstream port will still work. Therefore, power consumption of the monitor varies depending on the connected devices, even in the power

saving mode.

You can set the time for the monitor's power to automatically turn off. The monitor will automatically turn off when the time

set here elapses after the monitor is turned on, or after the

monitor wakes up from Power Save.

Note

• One minute before the Off Timer function is triggered, a message is displayed to notify you that the monitor's power will be turned off.

• Only the power switch can be operated while this message is displayed.

The brightness of the power switch and the operation switches when the screen is displayed can be set.

You can set the beep that sounds each time a switch is

operated.

This function allows skipping of input signals that will not be used when the input signals are switched.

Note

• Not all input signals can be set to "Skip".

This function allows skipping of modes that will not be used when selecting modes. Please use this function if display modes are limited, or if you want to prevent randomly changing

the display status.

Note

• Not all modes can be set to "Skip".

You can set the function that is assigned to the [F1] or [F2]

switch.

Note

• By default, the [F1] switch is set to the "Luminance Warning" function and the [F2] switch is set to the "Information"

function.

• Regarding the custom keys, see "Chapter 4 Custom Key

Settings" (page 19).

Chapter 5

Advanced Adjustments/Settings

Function Adjustable Range Description

Monitor Reset Cancel

Languages

●

The display language for menus and messages can be selected.

Adjustable Range

English, Deutsch, Français, Español, Italiano, Svenska, Japanese, Simplied Chinese, Traditional

Chinese

Restores all settings to their default values, except for the settings in the "Administrator Settings" menu.

Information

●

You can check the monitor information (model name, serial number (S/N), rmware version, usage time) and the input signal information.

Example:

Chapter 5

Advanced Adjustments/Settings

Chapter 6 Administrator Settings

This chapter describes how to congure monitor operation using the "Administrator Settings" menu. This menu is for administrators. Conguration on this menu is not required for normal monitor use.

6-1. Basic Operation of the "Administrator Settings"

Menu display

1. Touch to turn off the monitor.

2. While touching the leftmost switch, touch

for more than 2 seconds to turn on the monitor.

The "Administrator Settings" menu appears.

Setting

1. Choose an item to set with , and then select .

The Adjustment/Setting menu appears.

2. Set the item with , and then select .

The "Administrator Settings" menu appears.

Applying and exiting

1. Select "Apply", and then select .

The settings are conrmed and the "Administrator Settings" menu quits.

Chapter 6

　Administrator Settings

6-2. "Administrator Settings" Menu Functions

Function

Auto Input Detection Off

On-Screen Logo Off

Key Lock Off

Compatibility Mode Off

DUE Priority Uniformity

Adjustable

Range

All

Brightness

Description

When this function is set to "On", the monitor automatically recognizes the connector through which signals are input, so that the screen can be displayed. If the input signal for the selected connector is lost, the monitor automatically switches to a different

signal.

When set to "Off",

connector regardless of

select the input signal to display using the operation switch ( ) on

the front of the monitor.

When this function is set to "Off", the EIZO logo that is displayed when the monitor is turned on does not appear.

In order to prevent changes to settings, the operation switches on

the front of the monitor can be locked.

• "Off" (Default setting)

Enable all switches.

• "Menu"

Lock the

• "All"

Lock all switches except the power switch.

To avoid the following effects, set this function to "On".

• When you switch the monitor's power back on or return from power saving mode, windows or icons may have shifted position.

• The PC's power save function does not operate correctly.

This product is equipped with a Digital Uniformity Equalizer (DUE) function that reduces display unevenness. This DUE setting can be

changed.

• "Uniformity"

Prioritizes reduction of display unevenness.

• "Brightness"

Prioritizes high brightness and high contrast.

Note

• When changing the DUE setting, the monitor whose display

is adjusted must be re-calibrated. Perform the calibration and, if necessary, correlation again using ColorNavigator 6

or ColorNavigator NX.

• For details, refer to the ColorNavigator 6 User's Manual.

the monitor displays the signal from the selected

whether a signal is input or not. In this case,

switch.

Chapter 6

Administrator Settings

Picture Setup

Function

DisplayPort Single

Adjustable

Range

Dual

Description

To input two separate signals from a single external device into the monitor, and view the side-by-side on the left and right sides of the

screen, change this setting to "Dual".

For example, if your graphics board does not support a 4K (4096 ×

2160) signal output, you can use this setting to display two 2048 × 2160 side-by-side on a 4K screen.

4096×2160

2048×21602048×2160

External device

Note

• For a "Dual" display, the signal that is input to DisplayPort 1 is

displayed on the left side of the screen, and the signal that is input to DisplayPort 2 is displayed on the right side.

• The resolutions that are supported for the "Dual" setting are shown

below.

640×480 / 720×400 / 800×600 / 1024×768 / 1280×960 / 1280×1024 / 1600×1200 / 1920×1080 / 1920×1200 / 1920×2160 / 2048×2160

• When using "Dual" display, the connector settings of the screen on

the left, such as the Color setting, will be applied.

Signal Format

DisplayPort 1 DisplayPort 2

HDMI 1 HDMI 2

Ve r. 1.1 Ver. 1. 2

Extra

4K 30Hz 4K 60Hz 4K 60Hz Extra

You can switch the signal type that the monitor can display.

Try changing this setting if the input signal is not displayed, or if the displayed image does not appear correctly.

Note

• The default setting for 4K 30Hz and 4K 60Hz Extra is 1920 × 1080.

When using 4K resolution, resolution settings of your OS need to

be changed.

Chapter 6

　Administrator Settings

Chapter 7 Troubleshooting

7-1. No Picture

Problem Possible cause and remedy

1. No picture

• Power indicator does not light up.

• Power indicator is lighting white. • Increase "Brightness" and/or "Gain" in the Setting menu (see

• Power indicator is lighting orange. • Switch the input signal.

• Power indicator is ashing orange and

white.

2. The message below appears. This message appears when the signal is not input correctly even

• This message appears when no signal is

input.

Example:

• The message shows that the input signal is out of the frequency specication range.

Example:

• Check whether the power cord is connected properly.

• Turn on the main power switch on the rear side of the monitor.

• Tou c h

• Turn off the main power switch on the rear side of the monitor,

and then turn it on again a few minutes later.

“Color” (page 25)).

• Move the mouse or press any key on the keyboard.

• Check whether the external device is turned on.

• Turn off the main power switch on the rear side of the monitor,

and then turn it on again.

• If the external device is using a DisplayPort connection, try

changing the DisplayPort version in the next procedure.

1. Touch

2. While touching the leftmost switch, touch

3. Select "Signal Format".

4. Change the DisplayPort version to 1.1.

5. Select "Apply", and then select

• This problem may occur when an external device is

connected via the DisplayPort connector. Connect via the

signal cable specied by EIZO, turn off the monitor, and then

turn it on again.

though the monitor is functioning properly.

• The message shown left may appear, because some external

devices do not output the signal immediately after power-on.

• Check whether the external device is turned on.

• Check whether the signal cable is connected properly.

• Switch the input signal.

• Turn off the main power switch on the rear side of the monitor,

and then turn it on again.

• Try changing "Signal Format" in the "Administrator Settings"

menu (see “Signal Format” (page 41)).

• Check whether the external device is congured to meet the resolution and vertical scan frequency requirements of the

monitor. For details, refer to the list of compatible resolutions.

(The list is available for download from our web site (http://

www.eizoglobal.com).)

• Reboot the external device.

• Change to the appropriate setting using the graphics board's

utility. Refer to the User's Manual of the graphics board for

details.

to turn off the monitor.

for more than

2 seconds.

The "Administrator Settings" menu appears.

Chapter 7

Troubleshooting

7-2. Imaging Problems

Problem Possible cause and remedy

1. The screen is too bright or too dark. • Use "Brightness" in the Setting menu to adjust it (see “Color”

(page 25)). The LCD monitor backlight has a limited life span.

If the screen becomes dark or begins to icker, contact your local EIZO representative.

2. Afterimages appear • Afterimages are particular to LCD monitors. Avoid displaying

the same image for a long time.

• Use the screen saver or power saving function to avoid

displaying the same image for extended periods of time.

3. Green/red/blue/white dots remain on the screen / Defective dots remain on the screen

4. Interference patterns or pressure marks remain on the screen.

5. Noise appears on the screen. • When inputting HDCP system signals, normal images may not

6. When you switch the power back on or return from power saving mode, windows or icons may have shifted position.

7. (DisplayPort / HDMI input) The screen colors look strange.

8. The image does not display on the entire screen.

• This is due to LCD panel characteristics and not a malfunction.

• Display a white or black image over the entire screen. The

symptom may disappear.

be displayed immediately.

• In the "Administrator Settings" menu, set "Compatibility Mode"

to "On" (see “Compatibility Mode” (page 40)).

• Try changing "Input Color Format" in the Setting menu (see

“Input Color Format” (page 23)).

• For HDMI signal input, try changing "Signal Format" in the "Administrator Settings" menu (see “Signal Format” (page

41)).

• Try changing "Picture Expansion" in the Setting menu (see

“Picture Expansion” (page 31)).

• Try changing "Signal Format" in the settings menu (see “Signal

Format” (page 41)).

• Is the resolution set to the recommended resolution (4096 x

2160)? For details on the settings, refer to the User's Manual of

the graphics board.

• Depending on the graphics board, it may not be possible to

output 4K resolution (4096 x 2160 or 3840 x 2160). Check the specications of the graphics board.

• If the image is displayed on only half the screen, check whether "Dual" is not selected in “Picture Setup” (page 41) in the

"Administrator Settings" menu.

Chapter 7

Troubleshooting

7-3. SelfCalibration Problems

Problem Possible cause and remedy

1. The built-in calibration sensor does not come out/stays out.

2. SelfCalibration cannot be executed.

3. SelfCalibration failure • Refer to the error code table. If an error code that does not appear

4. SelfCalibration is canceled while in progress.

• Turn off the main power, and then turn it on again a few minutes later.

• Check whether a color mode for executing SelfCalibration has been

set (see “Mode Settings” (page 15)).

• Check whether the date and time are set correctly on the monitor (see

“Clock Adjustment” (page 16)).

• Check whether the execution schedule been set (see “Schedule”

(page 15)).

• Check whether the calibration targets are set correctly (see “Target

Settings” (page 29)).

• Try calibrating the monitor by using ColorNavigator 6 or

ColorNavigator NX.

in the error code table is displayed, contact your local EIZO

representative.

• If there is a change in the video signal from the external device

during SelfCalibration (the signal disappears, a signal is input during a no-signal state, or other), SelfCalibration is canceled.

• Prevent any changes in the video signal while executing SelfCalibration.

• If a scheduled SelfCalibration is canceled, it is executed again when

the monitor transitions to the power saving mode after an hour or more or when the monitor is turned off using also be executed regardless of the schedule (see “3-2. Executing”

(page 17)).

. SelfCalibration can

Error Code Table

If an error related to any of the following values occurs, the error code and error message are displayed

in the "Color" menu.

• Calibration target value

• Adjustable brightness range

• Adjustable black level range

Error Code Error Message

000020 The sensor failed to open.

Check whether there is any foreign object near the sensor.

000021 The sensor failed to open.

Check whether there is any foreign object near the sensor.

010141 Invalid target value has been set.

Check the target value.

****52 The target black level is too low.

Up the target black level or set "Min".

Chapter 7

Troubleshooting

7- 4. Other Problems

Problem Possible cause and remedy

1. The Setting menu/Mode menu cannot be displayed

2. The monitor connected with the USB cable is not detected. / The peripheral USB device connected to the monitor does not work.

3. Audio is not output. • This monitor does not support DisplayPort / HDMI audio signals.

• Check whether the operation switch lock function works (see “Key

Lock” (page 40)).

• Control switches are locked when the main window of ColorNavigator 6 or ColorNavigator NX is displayed. Exit the software.

• Check whether the USB cable is connected correctly (see “8-4.

Making Use of the USB Hub Function” (page 51)

• If a peripheral device is connected to the the "USB CHARGE Port" setting (see “USB CHARGE Port” (page

36)). If it is set to "Charging Only", the peripheral device will not

work.

• Try changing to a different USB port on the external device.

• Try changing to a different USB port on the monitor.

• Reboot the external device.

• If the peripheral devices work correctly when the external device and

peripheral devices are connected directly, contact your local EIZO

representative.

• Check whether the external device and OS are USB compliant.

(For USB compliance of the respective devices, consult their manufacturers.)

• Depending on the USB 3.0 host controller that you are using, connected USB devices may not be recognized correctly. Update to the latest USB 3.0 driver provided by each manufacturer, or connect

the monitor to the USB 2.0 port.

• Check the external device's BIOS setting for USB when using

Windows. (Refer to the User's Manual of the external device for details.)

port, try checking

Chapter 7

Troubleshooting

Chapter 8 Reference

8-1. Attaching the Optional Arm

An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the corresponding optional arm (or optional stand). http://www.eizoglobal.com

Attention

• When attaching an arm or stand, follow the instructions of their User's Manual.

• When using another manufacturer’s arm or stand, conrm the following in advance and select one conforming

to the VESA standard. Use the VESA mounting screws supplied with this product when attaching the arm or

stand.

- Clearance between screw holes: 100 mm × 100 mm

- Plate thickness: 2.6 mm

- Must be strong enough to support weight of the monitor unit (excluding the stand) and attachments such as

cables.

• When using an arm or stand, attach it to meet the following tilt angles of the monitor.

- Up 45˚, down 45˚

• Connect the cables after attaching an arm or stand.

• Do not move the removed stand up and down. Doing so may result in injury or equipment damage.

• The monitor, arm, and stand are heavy. Dropping them may result in injury or equipment damage.

• When installing the monitor in portrait mode, turn the monitor screen 90˚ in clockwise direction.

Attaching the Optional Arm (or Optional Stand)

To prevent damaging the panel surface, lay the monitor with its panel surface

facing down on a soft cloth spread on a stable surface.

Remove the stand.

As shown below, keep the lock button pressed down (1) and slide the stand towards the stand base until it touches (2). Then, lift the stand up (3).

(3)

(2)

(1)(1)

Attach the arm or stand to the monitor.

Use the VESA mounting screws supplied with this product when attaching the arm or stand.

Chapter 8

Reference

Attaching the Original Stand

Removethexingscrewsontheoptionalarm(oroptionalstand),anddetach

the optional arm (or optional stand).

To prevent damaging the panel surface, lay the monitor with its panel surface

facing down on a soft cloth spread on a stable surface.

Attach the original stand.

As shown below, insert the four tabs on the stand into the square holes on the back panel (1) and slide the stand towards the upper portion of the monitor until it makes a clicking sound (2).

(1)

(2)

Chapter 8

Reference

8-2. Attaching/Detaching the Cable Holder

A cable holder is supplied with this product. Use the cable holder to organize the cables connected to the

monitor.

Attachment procedure

Pass the cables through the cable holder.

Close the cable holder.

In this state, insert the cable holder into the stand.

Note

• The cable holder can be inserted either perpendicular or parallel to the stand. Change the orientation of the cable

holder in line with the direction of the cables.

Chapter 8

Reference

Detachment procedure

Close the cable holder.

In this state, pull the cable holder from the stand.

Chapter 8

Reference

8-3. Connecting Multiple External Devices

The product allows you to connect multiple external devices and switch between them for display.

Connection examples

HDMI HDMI

Signal cable HH200PR

HDMI connector

To external device 1

Signal cable

HH200PR

HDMI connector

To external device 2

DisplayPort

Signal cable

PP200

DisplayPort connector

To external device 3

DisplayPort

Signal cable

PM200

Mini DisplayPort /

Thunderbolt connector

To external device 4

Note

• The input signal changes each time the operation switch ( ) on the front of the monitor is touched. For more information, see "2-2. Switching Input Signals" (page 12).

• The connector through which signals are input is recognized automatically, and images are displayed on the screen accordingly. For more information, see "Auto Input Detection" (page 40).

Chapter 8

Reference

8-4. Making Use of the USB Hub Function

This monitor is equipped with a USB hub. It works as a USB hub when connected to a USB-compatible external device, allowing the connection of peripheral USB devices.

Connection Procedure

●

1. Connect the USB cable between the USB downstream port of the external device and USB

upstream port of the monitor.

See "USB CHARGE Port" (page 36)

USB upstream port

USB downstream port

2. Connect the peripheral USB device to the USB downstream port of the monitor.

Chapter 8

Reference

Attention

• This monitor may not work depending on the used external device, OS or peripheral devices. For USB compatibility of peripheral devices, contact their manufactures.

• When the monitor is in power saving mode, devices connected to the USB downstream port will still work.

Therefore, power consumption of the monitor varies depending on the connected devices, even in the power

saving mode.

• When the main power switch of the monitor is off, a device connected to the USB downstream port will not operate.

• When the "USB CHARGE Port" setting in "Preferences" is set to "Charging Only", a peripheral device will not

work if connected to the

• Ensure that communication between all peripheral devices connected to the monitor and the ended before switching the "USB CHARGE Port" setting. When the setting is switched, all communication will be

temporarily interrupted.

Note

• This product supports USB 3.0. When connecting peripheral devices that support USB 3.0, high-speed data communication is possible (however, only when the USB cable used to connect the external device and peripheral device is USB 3.0 compliant).

• The

tablet in a short period of time. (See "USB CHARGE Port" (page 36))

USB downstream port also supports quick charging. This allows you to recharge your smartphone or

port.

external device

Chapter 8

Reference

8-5. Specications

LCD Panel Type IPS (Anti-Glare)

Backlight Wide color gamut LED

Size 78.9 cm (31.1 inch) (78.9 cm diagonal)

Resolution 4096 dots × 2160 lines

Display Size (H × V) 698.0 mm × 368.1 mm

Pixel Pitch 0.170mm × 0.170mm

Pixel Density 149ppi

Display Colors Approx. 1073.74 million colors (for 10 bit input)

Viewing Angle (H × V, typical) 178˚ / 178˚

Contrast Ratio (typical) 1500:1 (When "DUE priority" setting is "Brightness")

Response Time (typical) Black → White → Black: 20 ms

Gray-to-gray: 9ms

Color Gamut Display (typical) Adobe

Video Signals Input Terminals

Horizontal scan frequency DisplayPort: 25 kHz to 137 kHz

Vertical scan frequency DisplayPort: 23 Hz to 61 Hz (For 720 x 400: 69 Hz to 71 Hz)

Frame Synchronization mode 23.75 Hz to 30.25 Hz, 47.5 Hz to 60.5 Hz

Dot clock (Max.) DisplayPort: 598.3 MHz

USB Port

Standard USB Specication Rev. 3.0

Communication Speed

Supply Current Downstream: Max. 900 mA per port

Power Input 100-240 VAC ±10 %, 50/60 Hz 1.45 A-0.65 A

Maximum Power Consumption 140 W or less

Power Save Mode 1.2 W or less (When "Compatibility Mode" is set to "Off", no

Standby Mode 1.2 W or less (When "Compatibility Mode" is set to "Off",

DisplayPort 1.2 (HDCP 1.3 compatible) × 2, HDMI (HDCP 2.2/1.4, Deep Color compatible) *1 Not compatible with HDMI CEC function (mutual control function).

HDMI: 15 kHz to 136 kHz

HDMI: 23 Hz to 61 Hz (For 720 x 400: 69 Hz to 71 Hz)

HDMI: 600MHz

Upstream port × 1 Downstream port × 3 (

charging.)

USB Battery Charging Specication Rev.1.2

5 Gbps (super), 480 Mbps (high), 12 Mbps (full), 1.5 Mbps (low)

Downstream ( Normal: Max. 1.5 A per port, Charging Only: Max. 2.1 A per port

USB device is connected, "Auto Input Detection" is set to "Off", and no USB upstream port is connected)

no USB device is connected, and no USB upstream port is

connected)

RGB coverage: 99 %, DCI-P3 coverage: 98 %

The port supports quick

port):

× 2

Chapter 8

Reference

Physical

Specications

Operating Environment Requirements

Transportation/ Storage Environment Requirements

Outside

Dimensions

Outside Dimensions (Without Stand)

Net. weight Approx. 12.4 kg

Net Weight (Without Stand) Approx. 8.3 kg

Height adjustment 154 mm (at tilt of 0°) / 155 mm (at tilt of 35°)

Tilt Up 35˚, down 5˚

Swivel 344°

Temperature 0˚C to 35˚C (landscape orientation) / 0˚C to 30˚C (portrait

Humidity 20 % to 80 % R.H. (no condensation)

Air Pressure 540 hPa to 1060 hPa

Temperature -20 ˚C to 60 ˚C

Humidity 10 % to 90 % R.H. (no condensation)

Air Pressure 200 hPa to 1060 hPa

Minimum Height

Maximum

Height

735 mm × 434.0 mm × 290 mm (W × H × D) (Tilt: 0˚)

735 mm × 595.9 mm × 307 mm (W × H × D) (Tilt: 35˚)

735 mm × 423 mm × 71.5 mm (W × H × D)

orientation *2 When using the monitor in the portrait orientation, you

must replace the supplied stand with an arm or similar equipment.

)

Accessories

●

Signal cable PP200 (DisplayPort - DisplayPort)

PM200 (Mini DisplayPort - DisplayPort) HH200PR (HDMI - HDMI)

For the latest information about the accessories, refer to our web site. http://www.eizoglobal.com

Chapter 8

Reference

Appendix

Trademark

The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

The DisplayPort Compliance Logo and VESA are registered trademarks of the Video Electronics Standards Association.

The SuperSpeed USB Trident Logo is a registered trademark of USB Implementers Forum, Inc.

DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards

publications relating to digital communications of medical information.

Kensington and Microsaver are registered trademarks of ACCO Brands Corporation.

Thunderbolt is a trademark of Intel Corporation in the United States and/or other countries.

Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and

other countries.

Adobe is a registered trademark of Adobe Systems Incorporated in the United States and other

countries.

Apple, macOS, Mac OS, OS X, Macintosh and ColorSync are registered trademarks of Apple Inc.

EIZO, the EIZO Logo, ColorEdge, CuratOR, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor and ScreenManager are registered trademarks of EIZO Corporation in Japan and other

countries.

ColorEdge Tablet Controller, ColorNavigator, EcoView NET, EIZO EasyPIX, EIZO Monitor Congurator, EIZO ScreenSlicer, G-Ignition, i•Sound, Quick Color Match, RadiLight, Re/Vue, Screen Administrator, Screen InStyle and UniColor Pro are trademarks of EIZO Corporation.

All other company and product names are trademarks or registered trademarks of their respective owners.

License

The bitmap font used for this product is designed by Ricoh Industrial Solutions Inc.

Appendix

FCC Declaration of Conformity

For U.S.A., Canada Only

FCC Declaration of Conformity

We, the Responsible Party EIZO Inc.

5710 Warland Drive, Cypress, CA 90630

Phone: (562) 431-5011

declare that the product Trade name: EIZO

Model: ColorEdge CG319X

is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help.

Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note

Use the attached specied cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device.

- AC Cord

- Shielded Signal Cable (enclosed)

Canadian Notice

This Class B information technology equipment complies with Canadian ICES-003. Cet équipement informatique de classe B est conforme à la norme NMB-003 du Canada.

Appendix

03V27330A1 UM-CG319X

1st Edition-April, 2018

Eizo ColorEdge CG319X User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

User’s Manual

Notice for This Monitor

Cleaning

To Use the Monitor Comfortably

Contents

Chapter 1 Introduction

1-1. Features

Support for HDR (High Dynamic Range) video

SelfCalibration function

1-2. Controls and Functions

Front

Rear

1-3. Setting the Resolution

Windows 10

Windows 8.1 / Windows 7

OS X Mavericks (10.9) or higher

Chapter 2 Basic Adjustments/Settings

2-1. Switch Operation Method

Operation Guide Icons

2-2. Switching Input Signals

2-3. Switching the Display Mode (color mode)

Display Modes

Color Mode Setting Values

Chapter 3 SelfCalibration

SelfCalibration functions

3-1. Setting targets

3-2. Executing

Executing regardless of a schedule

Executing by setting a schedule

Activating SelfCalibration in Standard Mode

Activating SelfCalibration in Calibration Mode (CAL mode)

3-3. Checking results

Chapter 4 Custom Key Settings

4-1. Basic Operation of the Custom Keys

4-2. Assigning a Function to a Custom Key

Functions that can be Assigned to Custom Keys

Chapter 5 Advanced Adjustments/Settings

5-1. Basic Operation of the Setting Menu

5-2. Setting Menu Functions

Signal

Color

SelfCalibration

Screen

Preferences

Languages

Information

Chapter 6 Administrator Settings

6-2. "Administrator Settings" Menu Functions

Chapter 7 Troubleshooting

7-1. No Picture

7-2. Imaging Problems

7-3. SelfCalibration Problems

7- 4. Other Problems

Chapter 8 Reference

8-1. Attaching the Optional Arm

8-2. Attaching/Detaching the Cable Holder

8-3. Connecting Multiple External Devices

8-4. Making Use of the USB Hub Function

Connection Procedure

Accessories

Appendix

Trademark

License

FCC Declaration of Conformity
