UMX™ Timber
™
Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
Page 2
EN
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion
of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the
support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential
harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage,
collateral damage, and serious injury OR create a high probability of supercial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property
damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage
AND little or no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the
product before operating. Failure to operate the product correctly can result in damage to the product,
personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires
some basic mechanical ability. Failure to operate this product in a safe and responsible manner could
result in injury or damage to the product or other property. This product is not intended for use by
children without direct adult supervision. Do not use with incompatible components or alter this product
in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions
for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings
in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious
injury.
Age Recommendation: Not for children under 14
years. This is not a toy.
Safety Precautions and Warnings
• Always keep a safe distance in all directions
around your model to avoid collisions or injury.
This model is controlled by a radio signal subject
to interference from many sources outside your
control. Interference can cause momentary loss
of control.
• Always operate your model in open spaces away
from full-size vehicles, trafc and people.
• Always carefully follow the directions and
warnings for this and any optional support equipment (chargers, rechargeable battery packs,
etc.).
• Always keep all chemicals, small parts and
anything electrical out of the reach of children.
• Always avoid water exposure to all equipment
not specically designed and protected for this
purpose. Moisture causes damage to electronics.
2
• Never place any portion of the model in your
mouth as it could cause serious injury or even
death.
• Never operate your model with low transmitter
batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep the transmitter powered on while
aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before
ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
Page 3

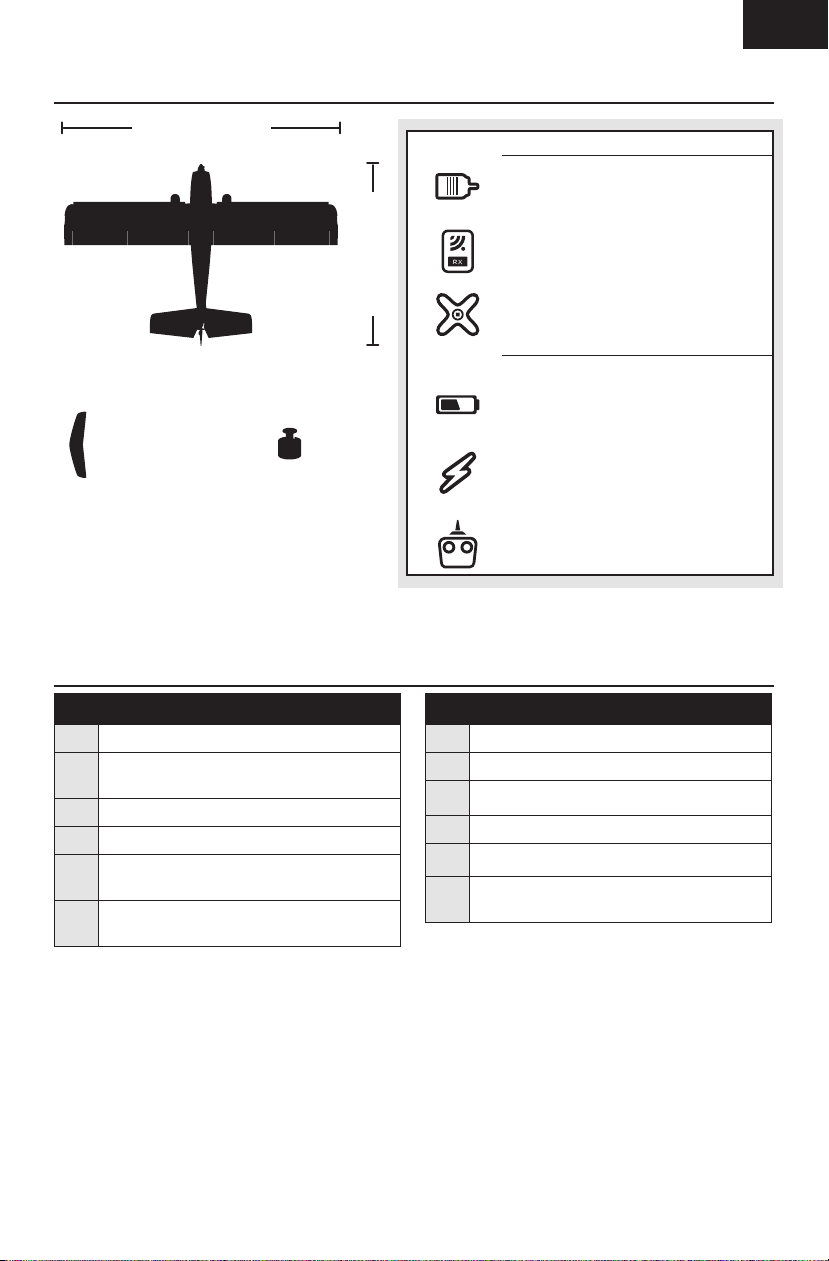

Specifications
EN
27.6 in (700mm)
Wing Area: 119.0 sq In
(7.7 sq Dm)
Preflight Checklist
4.3oz
(121g)
18.4 in (467mm)
Installed
Motor: BL180 Brushless Outrunner
3,000Kv (EFLUM180BLB)
Receiver : DSM2® 6 Ch. UM AS3X® RX
BL-ESC (EFLU4864)
(2) 2.3-Gram Performance Linear Long
Throw Offset Servo (SPMSA2030LO)
Required to Complete
Battery: 280mAh 2S 7.4V 30C Li-Po,
(EFLB2802S30)
Battery Charger:
Celectra™ 2S 7.4V DC Li-Po Charger
(EFLUC1007)
Recommended Transmitter:
Full range Spektrum™ DSM2®/DSMX®
with dual-rates (DXe and up)
1. Charge ight battery.
2. Install ight battery in aircraft (once it
has been fully charged).
3. Bind aircraft to transmitter.
4. Make sure linkages move freely.
5. Perform Control Direction Test with
transmitter.
6. Perform AS3X control Direction Test with
aircraft.
To register your product online, go to www.e-iterc.com
7. Set dual rates.
8. Adjust center of gravity.
9. Perform a radio system Range Check.
10. Find a safe and open area.
11. Plan ight for ying eld conditions.
12. Set ght timer for 5 minutes for rst
ight.
3
Page 4
EN
Transmitter and Receiver Binding
Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identier)
code of a single specic transmitter. You need to ‘bind’ your chosen Spektrum
equipped aircraft transmitter to the receiver for proper operation.
Any full range Spektrum DSM2/DSMX transmitter can bind to the DSM2/DSMX receiver. Please visit www.
bindny.com for a complete list of compatible transmitters.
Binding Procedure
CAUTION: When using a Futaba transmitter with a Spektrum DSM® module, you must reverse the
throttle channel and rebind. Refer to your Spektrum module manual for binding and failsafe instructions.
Refer to your Futaba transmitter manual for instructions on reversing the throttle channel.
1. Refer to your transmitter’s unique instructions for binding to a receiver (location of transmitter’s
Bind control).
2. Make sure the ight battery is disconnected from the aircraft.
3. Power off your transmitter.
4. Set the aircraft upright on its wheels and connect the flight battery in the aircraft. The receiver
LED will begin to flash rapidly (typically after 5 seconds)
5. Make sure the transmitter controls are neutral and the throttle and throttle trim are in low position.
6. Put your transmitter into bind mode. Refer to your transmitter’s manual for binding button or
switch instructions.
7. After 5 to 10 seconds, the receiver status LED will turn solid, indicating that the receiver is bound
to the transmitter. If the LED does not turn solid, refer to the Troubleshooting Guide at the back of
the manual.
™
DSM2/DSMX technology
For subsequent ights, power ON the transmitter for 5 seconds before connecting the ight battery.
SAFE® Select Technology
The evolutionary SAFE® Select technology can offer an extra level of protection so you can perform the
rst ight with condence. No complex transmitter programming is required. Just simply flip your GEAR
switch to position 1 (Channel 5) to make the SAFE Select system active. Flip the Gear switch back to
turn OFF SAFE Select and y with just the assistance of AS3X.
When activated, bank and pitch limitations keep you from over-controlling and automatic self-leveling
makes recovery from risky or confusing attitudes as simple as releasing the sticks. In fact, with the aileron,
elevator and rudder sticks in the neutral position, SAFE Select will automatically keep the airplane in a
straight and level attitude.
4
Page 5
Transmitter Setup
EN
To obtain the best ight performance,
we recommend using a DSM2®/DSMX®
transmitter capable of Dual Rates. Before
binding, ensure that you are starting with a
blank acro model in your transmitter.
IMPORTANT: After you set up your model,
always rebind the transmitter and receiver
to set the desired failsafe positions.
Program Your Transmitter
1. Start with a new ACRO Model.
2. Set Aircraft Type: Wing >1Ail 1Flap
: Tail > Normal
3. Leave all settings at their default
values.
The Gear Switch (ch 5) will control the Safe
mode function.
• Switch position 0 = SAFE Mode
• Switch position 1 = AS3X Mode
Computerized Transmitter Setup
(DX6e, DX6 G2, DX7 G2, DX8 G2, DX9, DX18 and DX20)
Start all transmitter programming with a blank ACRO model
(do a model reset), then name the model.
Set Servo Travel to: 100%
F-Mode Setup
Switch 1 Inhibit
Switch 2 Inhibit
Channel Assign
Channel Input Cong
1 Throttle
2 Aileron
3 Elevator
4 Rudder
5 Gear SAFE/AS3X
6 Aux 1
Frame Rate
22mz
DSMX
Funtion List
Timer
Mode Count Down
Time 6:00
Start Throttle Out
Over 25%
One Time Inhibit
Dual Rates and Expos
The suggested settings shown here are the
recommended starting settings. Adjust according to
the individual preferences after the initial ight.
NOTICE: Do not set your transmitter travel adjust
over 100%. If the TRAVEL ADJUST is set over
100%, it will not result in more control movement, it
will overdrive the servo and cause damage.
It is normal for linear servos to make signicant
noise. The noise is not an indication of a faulty
servo.
Tip: For the rst ight, y the model in low rate.
Dual Rates
Low High
Aileron 70% 100%
Elevator 70% 100%
Rudder 70% 100%
5
Page 6
EN
1-2-3-4-5 Sec.
1
3
4
2

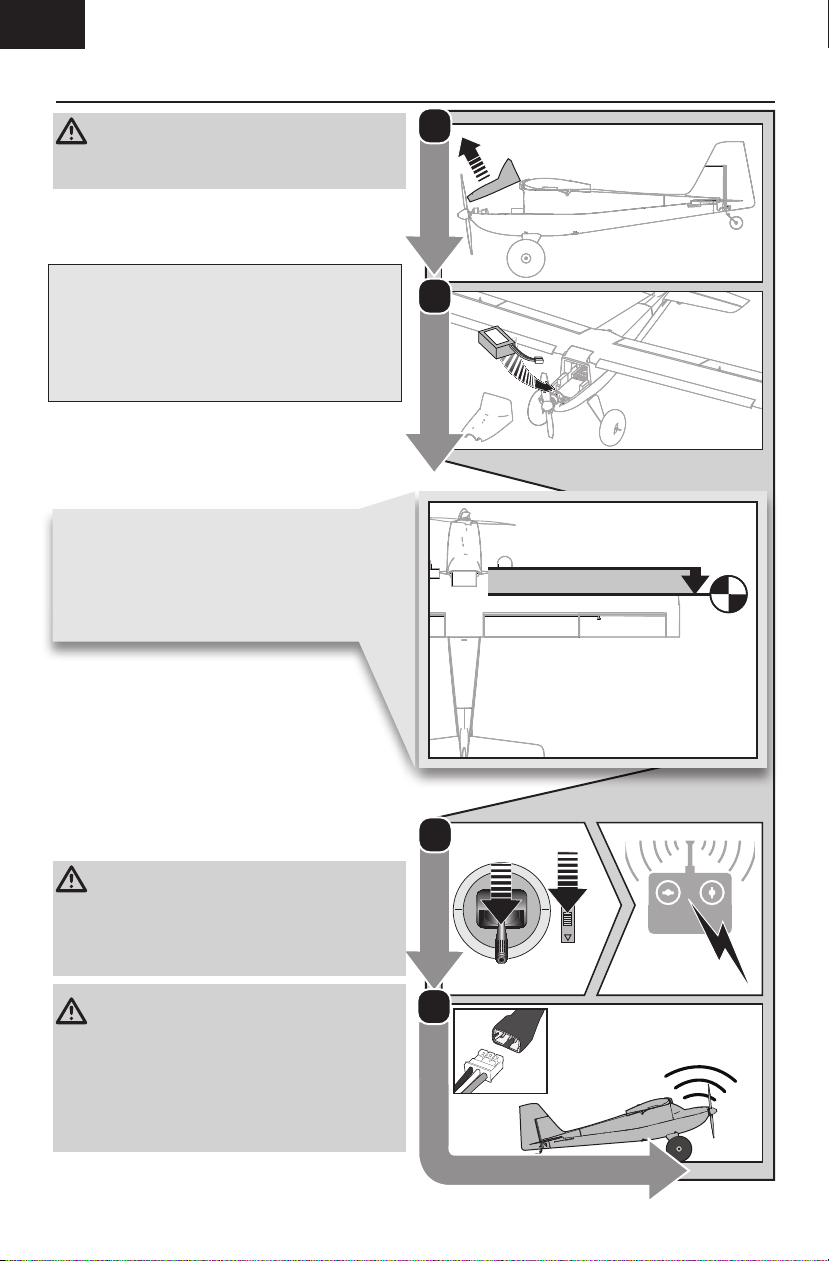

ESC/Receiver Arming, Battery Installation and Center of Gravity
CAUTION: Always keep hands away from the
propeller. When armed, the motor will turn the
propeller in response to any throttle movement.
Arming the ESC/receiver also occurs after binding
as previously described, but subsequent connection
of a ight battery requires the following steps.
AS3X
The AS3X® system will not activate until the throttle
stick or trim is increased for the rst time. Once
active, the control surfaces may move rapidly
and noisily on the aircraft. This is normal. AS3X
technology will remain active until the battery is
disconnected.
1. Remove the battery hatch from the fuselage.
2. Install the flight battery in the center of battery
tray. Ensure the battery is secured by the hook
and loop strip.
Center of Gravity (CG)
Measure back 28mm from the leading edge of the
top wing, where the wing meets the fuselage and
place a mark. Balance the airplane on this CG mark.
The easiest way to achieve CG is to balance the
aircraft upright.
3. Lower the throttle and throttle trim to the
lowest settings on your transmitter. Power
on your transmitter, then wait 5 seconds.
4. Connect the battery to the ESC, noting proper
polarity. Keep the aircraft upright (on its gear)
and immobile and away from wind for 5
seconds to allow the AS3X system to initialize. A
series of tones and a continuous LED indicates
a successful connection.
CAUTION: Always disconnect the Li-Po
battery from the ESC when not ying to eliminate
power supplied to the motor. The ESC does not have
an arming switch and will respond to any
transmitter input when a signal is present.
CAUTION: Always disconnect the Li-Po
battery from the ESC when not ying to avoid
over-discharging the battery. Batteries discharged
to a voltage lower than the lowest approved voltage
may become damaged, resulting in loss of
performance and potential re when batteries
are charged.
6
28mm
Page 7
Control Direction Tests
Traditional Control Direction Test
You should bind your aircraft and transmitter before doing these tests. Move the controls on the transmitter
to make sure the aircraft control surfaces move correctly and in the proper direction. Make sure the tail
linkages move freely and that paint or decals are not adhered to them.
AS3X® Control Direction Test
This test ensures that the AS3X® control system is functioning properly.
EN
1. Advance the throttle above
25% to activate the AS3X
system.
2. Fully lower the throttle.

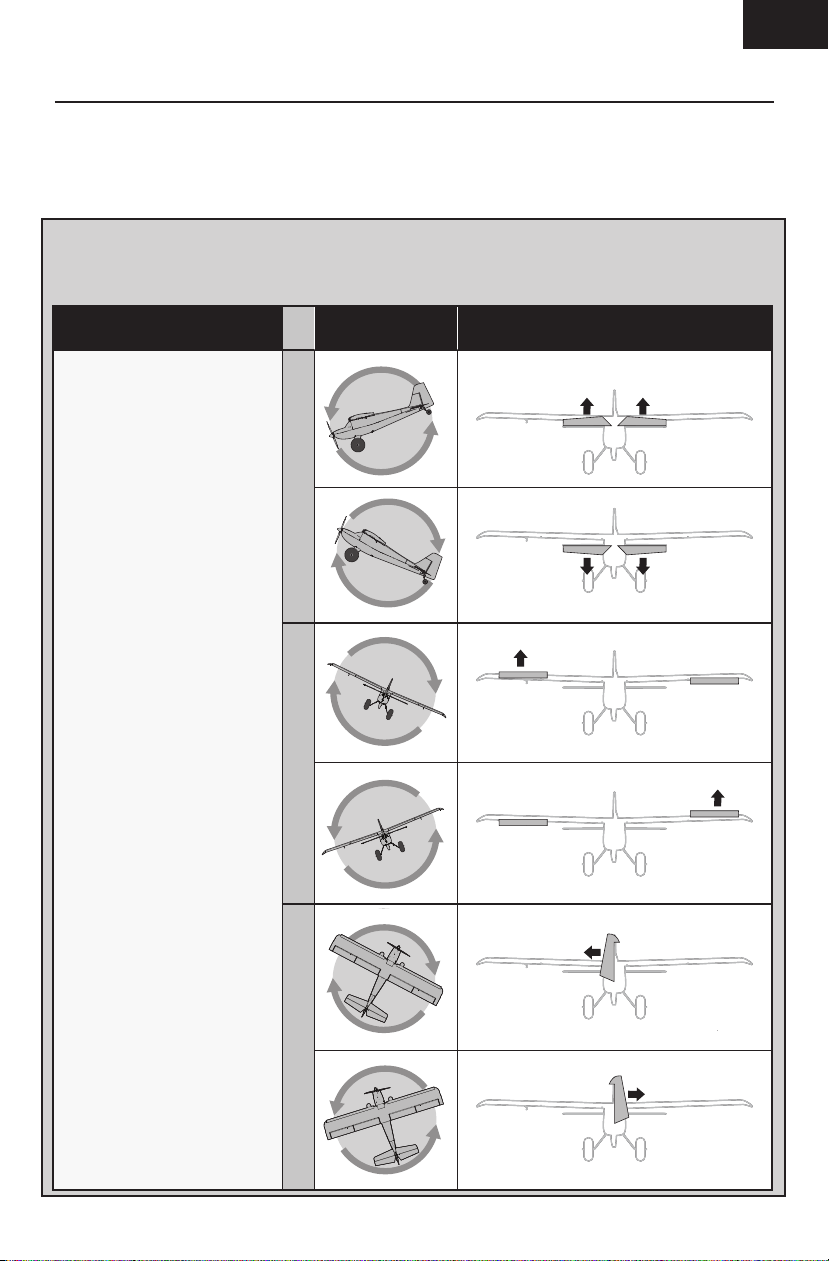

3. Move the entire aircraft
as shown and ensure the
control surfaces move in
the direction indicated in
the graphic. If the control
surfaces do not respond
as shown, do not fly
the aircraft. Refer to the
receiver manual for more
information.
Once the AS3X system is active,
control surfaces may move
rapidly. This is normal. AS3X
is active until the battery is
disconnected.
Aircraft
movement
ElevatorAileronRudder
AS3X Reaction
7
Page 8
EN
Control Centering
Before your first flight make sure the aircraft’s
control surfaces are centered.
1. Power on the transmitter and then the aircraft.
2. Set all transmitter trims and sub-trims to zero.
3. Check the control surfaces to make sure they
are centered.

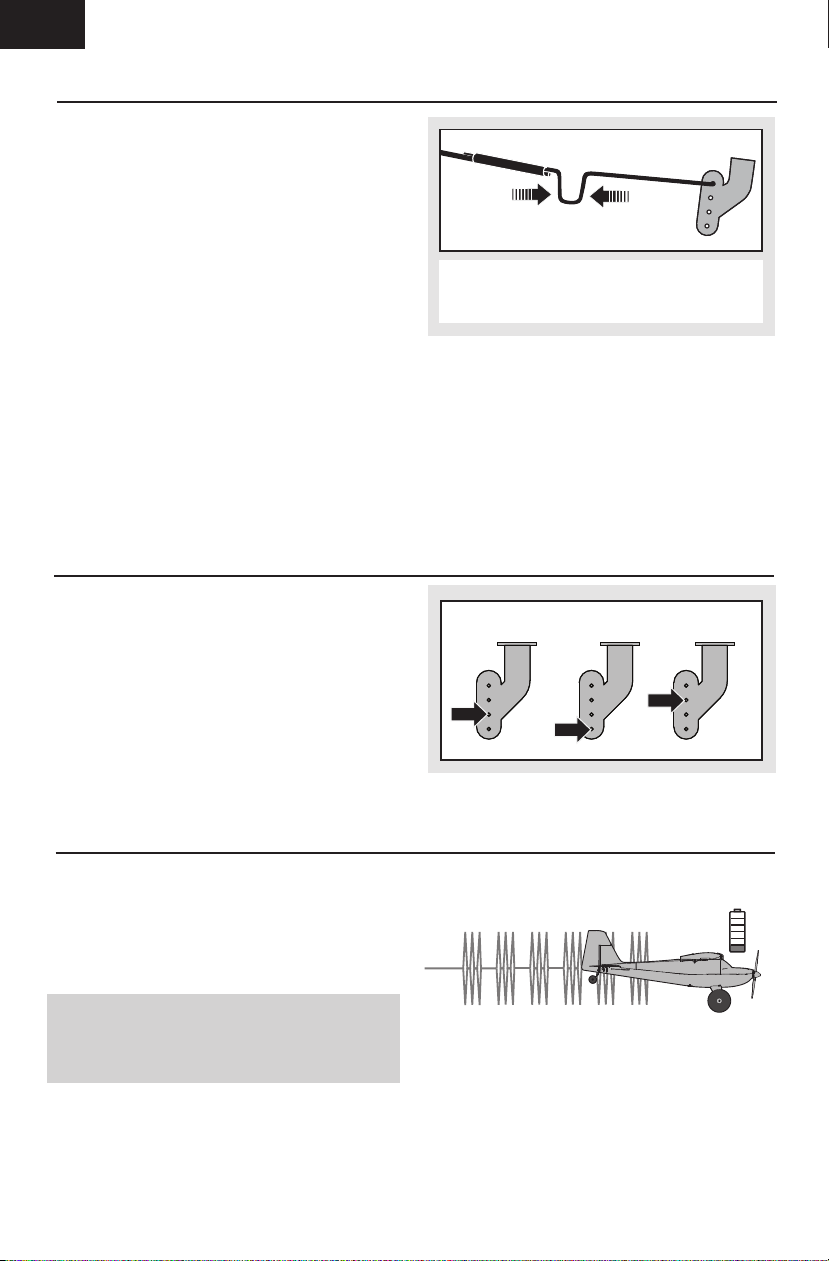

4. If centering is required, use a pair of pliers to
carefully bend the metal linkage
(see illustration).
In flight trimming may be required
During your rst ight, the aircraft should y
straight and level. Use your transmitter trims to
ne-tune the aircraft’s ight path until it has been
corrected. Any transmitter trim that requires 4
or more clicks of trim (per channel), should be
mechanically centered. Note the control surface’s
postion and return the transmitter trim to zero.
Adjust the linkages mechanically so that the control
surfaces are in the ight trimmed position.
Control Horn Settings
Make the U-shape narrower to make the
connector shorter. Make the U-shape wider to
make the linkage longer.
The illustration shows linkage positions chosen for
the best aerobatic response. Linkage connections
on the control horns directly affect aircraft response.
Low Voltage CutOff
LVC is a feature built into your ESC to protect the
battery from over-discharge. When the battery
charge becomes too low, LVC limits power supplied
to the motor. When you hear the motor power pulse,
land the aircraft immediately and recharge the ight
battery.
NOTICE: Do not rely on LVC to determine when
to land your aircraft. Set a ight timer to the
recommended ight time. Repeated ying to LVC
will damage the battery.
Aileron
RudderElevator
8
Page 9
Flying Tips and Repairs

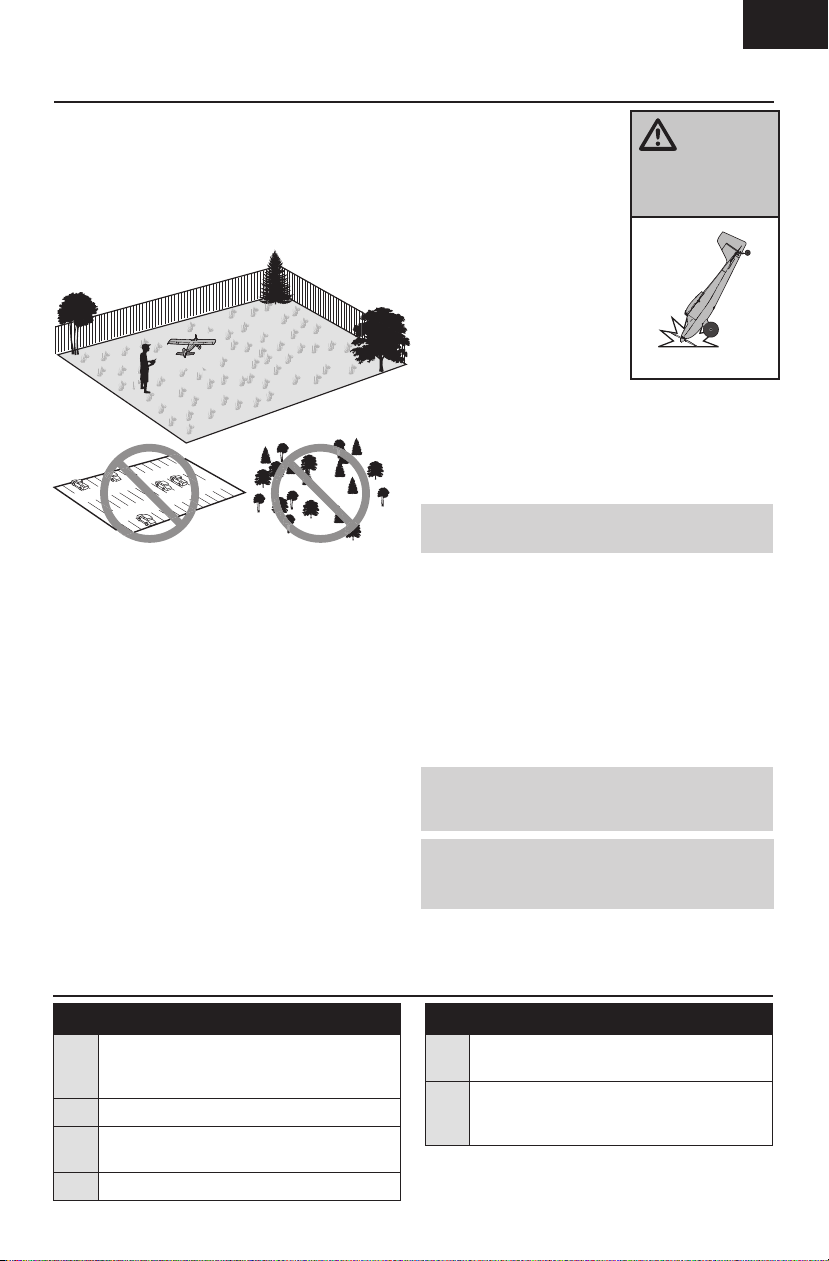

We recommend ying your aircraft outside in calm
conditions. Always avoid ying near houses, trees,
wires and buildings. You should also be careful to
avoid ying in areas where there are many people,
such as busy parks, schoolyards or soccer elds.
Consult local laws and ordinances before choosing
a location to y your aircraft.
Failure to lower the throttle
stick and trim to the lowest
possible positions during a
crash could result in damage
to the ESC in the receiver
unit, which may require
replacement.
Over Current Protection
(OCP)
This aircraft is equipped with
Over Current Protection (OCP).
This feature protects the
ESC from overheating. OCP
stops the motor when the
transmitter throttle is set too high and the propeller
cannot turn. The OCP will only activate when the
throttle stick is positioned just above 1/2 throttle.
After the ESC stops the motor, fully lower the
throttle to re-arm the ESC.
NOTICE: Crash damage is not covered under the
warranty.
CAUTION:
Always decrease
throttle at propeller
strike.
EN
Takeoff
Place the aircraft in position for takeoff (facing into
the wind if ying outdoors). Set dual rates to low
position and gradually increase the throttle to ¾ to
full and steer with the rudder. Pull back gently on
the elevator and climb to check trim. Once the trim
is adjusted, begin exploring the ight envelope of
the aircraft.
Landing
Land into the wind. This is very important for this
model. Fly the aircraft to approximately 6 inches
(15cm) or less above the runway, using a small
amount of throttle for the entire descent. Keep the
throttle on until the aircraft is ready to are.
During are, keep the wings level and the airplane
pointed into the wind. Gently lower the throttle while
pulling back on the elevator to bring the aircraft
down on all three wheels.
Post Flight Checklist
1. Disconnect the flight battery from the
ESC (Required for safety and battery
life).
2. Power OFF the transmitter.
3. Remove the flight battery from the
aircraft.
4. Recharge the flight battery.
Repairs
Repair the aircraft using foam-compatible CA
(cyanoacrylate adhesive) or clear tape. Only use
foam-compatible CA, as other types of glue can
damage the foam. When parts are not repairable,
see the Replacement Parts List for ordering by
item number.
For a listing of all replacement and optional parts,
refer to the list at the end of this manual.
NOTICE: Use of foam-compatible CA accelerant on
your aircraft can damage paint. DO NOT handle the
aircraft until the accelerant fully dries.
NOTICE: When you are nished ying, never leave
the aircraft in direct sunlight or in a hot, enclosed
area such as a car. Doing so can damage the foam.
5. Store the flight battery apart from the
aircraft and monitor the battery charge.
6. Make note of the flight conditions and
flight plan results, planning for future
flights.
9
Page 10
EN
Power Components Service
Disassembly
CAUTION: DO NOT handle the propeller
while the ight battery is connected to the ESC.
Personal injury could result.
Propeller

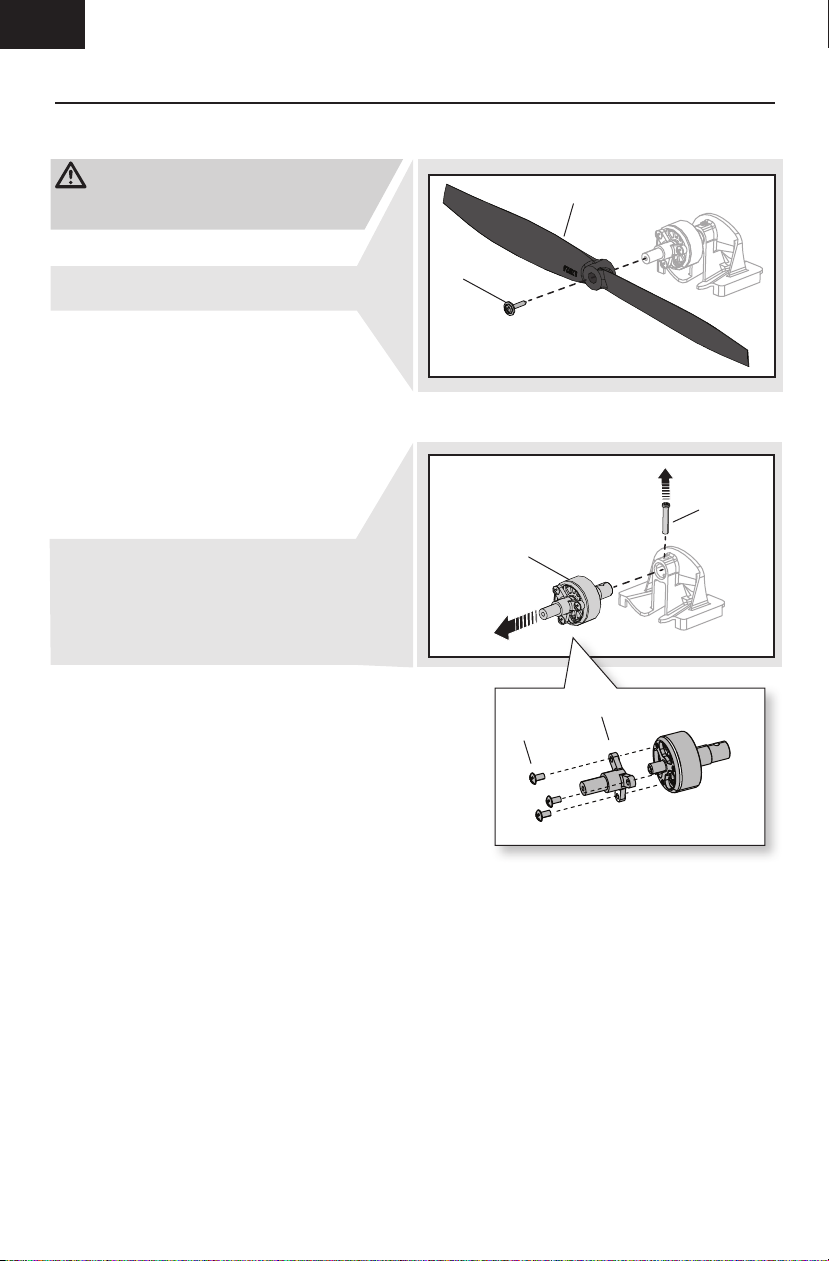

1. Carefully remove the screw (A) and propeller
(B) from the motor shaft.
Motor
1. Remove the battery hatch by gripping the front
of the hatch, then pulling it up and away from
the fuselage.
2. Disconnect the motor wire connector from
the ESC/receiver connector.
3. Remove the screw (C) and motor (D) from
the motor mount.
4. Remove 3 screws (E) and the prop adapter (F)
from the motor. The motor magnet may attract
screws to the motor.
B
A
C
D
F
E
Assembly
Assemble in reverse order.
• Connect the motor wire connector to the ESC/
receiver.
• The propeller size numbers (5.75x2.5) must
face out from the motor for correct propeller
operation.
• Ensure the propeller adapter and motor mount
are fully connected to the motor.
10
Page 11
Slat Installation (Optional)
Required Adhesives:
Foam Safe CA
1. Apply a small drop of foam safe CA to each
mount.
2. Carefully mount the slat onto the wing with
the rounded edge facing forward.
Float installation (Optional)
Landing Gear Removal

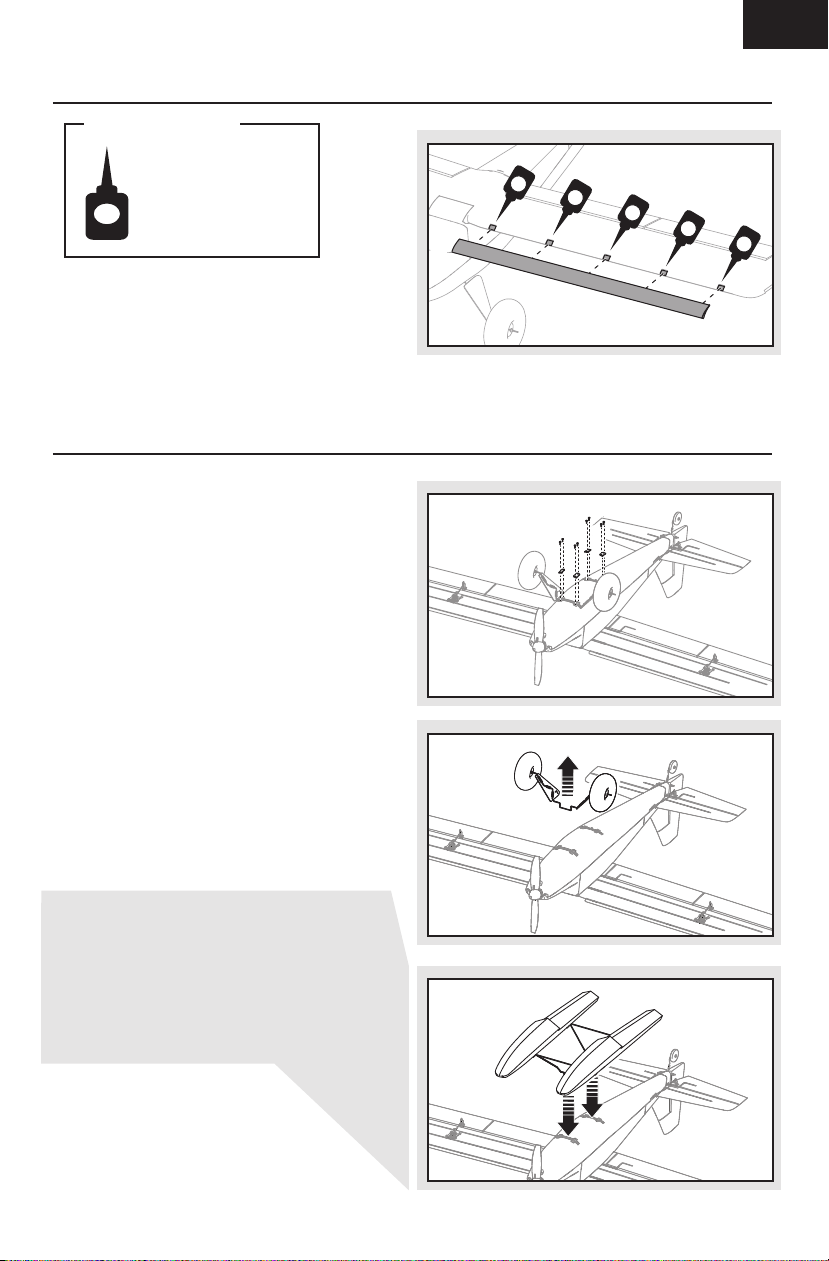

1. Carefully place the aircraft on its back.
2. Remove the 4 screws and 2 plates securing
the landing gear.
3. Remove the other 4 screws and 2 plates for
the rear float mount. Save all screws and
plates for the float installlation.
4. Remove the landing gear.
EN
Float Installation
1. Install the included rear float wire onto the
floats.
2. Install the floats as shown.
3. Install the 6 screws and 4 plates removed
above.
11
Page 12
EN
Troubleshooting Guide
AS3X
Problem Possible Cause Solution
Control surfaces not at
neutral position when
transmitter controls are
at neutral
Model ies
inconsistently from
ight to ight
Controls oscillate in
ight, (model rapidly
jumps or moves)
Problem Possible Cause Solution
Aircraft will not respond
to throttle but responds
to other controls
Extra propeller noise or
extra vibration
Reduced ight time or
aircraft underpowered
LED on receiver ashes
and aircraft will not bind
to transmitter (during
binding)
Control surfaces may not have been
mechanically centered from factory
Aircraft was not kept immobile for 5
seconds after battery was plugged in
Aircraft was not kept immobile for 5
seconds after battery was plugged in
Trims are moved too far from neutral
position
Propeller, spinner or motor is unbalanced,
causing excessive vibration
Nut on prop shaft is too loose, causing
excessive vibration
Throttle stick and/or throttle trim too high Reset controls with throttle stick and throttle
Throttle channel is reversed Reverse throttle channel on transmitter
Motor disconnected from receiver Open fuselage and make sure motor is
Propeller, spinner or motor is unbalanced,
causing excessive vibration
Prop screw is too loose Tighten the prop screw
Flight battery charge is low Completely recharge ight battery
Propeller installed backwards Install propeller with numbers facing forward
Flight battery damaged or old. Replace ight battery and follow ight battery
Flight conditions may be too cold Make sure battery is warm before use
Battery capacity too low for ight conditions Replace battery or use a larger capacity
Transmitter too near aircraft during binding
process
Bind switch or button not held long enough
during bind process
Aircraft or transmitter is too close to large
metal object, wireless source or another
transmitter
Center control surfaces mechanically by
adjusting the U-bends on control linkages
Keep the aircraft immobile for 5 seconds after
plugging in the battery
Keep the aircraft immobile for 5 seconds after
plugging in the battery
Neutralize trims and mechanically adjust
linkages to center control surfaces
Balance parts or replace it if damaged
Tighten the prop shaft nut 1/2 turn
trim at lowest setting
connected to the receiver
Balance parts or replace it if damaged
instructions
battery
Power off transmitter, move transmitter a
larger distance from aircraft, disconnect and
reconnect ight battery to aircraft and follow
binding instructions
Power off transmitter and repeat bind
process. Hold transmitter bind button or
switch until receiver is bound
Move aircraft and transmitter to another
location and attempt binding again
12
Page 13
Troubleshooting Guide (Continued)
Problem Possible Cause Solution
LED on receiver ashes
rapidly and aircraft
will not respond to
transmitter (after
binding)
Control surface does
not move
Controls reversed Transmitter settings reversed Adjust controls on transmitter appropriately
Motor loses power Damage to motor or power components Do a check of motor and power components
Motor power quickly
decreases and
increases then motor
loses power
Motor/ESC is not armed
after landing
Servo locks or freezes
at full travel
Less than a 5-second wait between rst
powering on transmitter and connecting
ight battery to aircraft
Aircraft bound to different model memory
(ModelMatch
Flight battery/transmitter battery charge is
too low
Transmitter may not be compatible with
Spektrum DSM2/DSMX technology
Aircraft or transmitter is too close to large
metal object, wireless source or another
transmitter
Control surface, control horn, linkage or
servo damage
Wires damaged or connections loose Do a check of wires and connections,
Flight battery charge is low Fully recharge ight battery
Control linkage does not move freely Make sure control linkage moves freely
Battery power is down to the point of
receiver/ESC Low Voltage Cutoff (LVC)
Over Current Protection (OCP) stops the
motor when the transmitter throttle is set
high and the propeller cannot turn
Travel adjust value is set above 100%,
overdriving the servo
™
radios only)
Leaving transmitter on, disconnect and
reconnect ight battery to aircraft
Select correct model memory on transmitter
and disconnect and reconnect ight battery
to aircraft
Replace/recharge batteries
Use a genuine Spektrum DSM2/DSMX
transmitter
Move aircraft and transmitter to
anotherlocation and attempt linking again
Replace or repair damaged parts and adjust
controls
connect or replace as needed
for damage (replace as needed)
Recharge ight battery or replace battery that
is no longer performing
Fully lower throttle and throttle trim to arm
ESC
Set Travel adjust to 100% or less and/or
set sub-trims to Zero and adjust linkages
mechanically
EN
Limited Warranty
What this Warranty Covers
Horizon Hobby, LLC, (Horizon) warrants to the
original purchaser that the product purchased (the
“Product”) will be free from defects in materials and
workmanship at the date of purchase.
What is Not Covered
This warranty is not transferable and does
not cover (i) cosmetic damage, (ii) damage
due to acts of God, accident, misuse, abuse,
negligence, commercial use, or due to improper
use, installation, operation or maintenance, (iii)
modication of or to any part of the Product, (iv)
attempted service by anyone other than a Horizon
Hobby authorized service center, (v) Product not
purchased from an authorized Horizon dealer, or
(vi) Product not compliant with applicable technical
regulations, or (vii) use that violates any applicable
laws, rules, or regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE,
HORIZON MAKES NO OTHER WARRANTY OR
REPRESENTATION, AND HEREBY DISCLAIMS ANY
AND ALL IMPLIED WARRANTIES, INCLUDING,
WITHOUT LIMITATION, THE IMPLIED WARRANTIES
OF NON-INFRINGEMENT, MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. THE
PURCHASER ACKNOWLEDGES THAT THEY ALONE
HAVE DETERMINED THAT THE PRODUCT WILL
SUITABLY MEET THE REQUIREMENTS OF THE
PURCHASER’S INTENDED USE.
Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and
exclusive remedy shall be that Horizon will, at its
option, either (i) service, or (ii) replace, any Product
determined by Horizon to be defective.
13
Page 14
EN
Horizon reserves the right to inspect any and all
Product(s) involved in a warranty claim. Service or
replacement decisions are at the sole discretion
of Horizon. Proof of purchase is required for all
warranty claims. SERVICE OR REPLACEMENT
AS PROVIDED UNDER THIS WARRANTY IS THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY.
Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL,
INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFITS OR PRODUCTION OR
COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF
WHETHER SUCH CLAIM IS BASED IN CONTRACT,
WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY
OR ANY OTHER THEORY OF LIABILITY, EVEN IF
HORIZON HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES. Further, in no event shall
the liability of Horizon exceed the individual price
of the Product on which liability is asserted. As
Horizon has no control over use, setup, nal
assembly, modication or misuse, no liability
shall be assumed nor accepted for any resulting
damage or injury. By the act of use, setup or
assembly, the user accepts all resulting liability. If
you as the purchaser or user are not prepared to
accept the liability associated with the use of the
Product, purchaser is advised to return the Product
immediately in new and unused condition to the
place of purchase.
Law
These terms are governed by Illinois law (without
regard to conict of law principals). This warranty
gives you specic legal rights, and you may also
have other rights which vary from state to state.
Horizon reserves the right to change or modify this
warranty at any time without notice.
WARRANTY SERVICES
Questions, Assistance, and Services
Your local hobby store and/or place of purchase
cannot provide warranty support or service. Once
assembly, setup or use of the Product has been
started, you must contact your local distributor or
Horizon directly. This will enable Horizon to better
answer your questions and service you in the event
that you may need any assistance. For questions
or assistance, please visit our website at www.
horizonhobby.com, submit a Product Support
Inquiry, or call the toll free telephone number
referenced in the Warranty and Service Contact
Information section to speak with a Product Support
representative.
Inspection or Services
If this Product needs to be inspected or serviced
and is compliant in the country you live and use
the Product in, please use the Horizon Online
Service Request submission process found on
our website or call Horizon to obtain a Return
Merchandise Authorization (RMA) number. Pack the
Product securely using a shipping carton. Please
note that original boxes may be included, but are
not designed to withstand the rigors of shipping
14
without additional protection. Ship via a carrier
that provides tracking and insurance for lost or
damaged parcels, as Horizon is not responsible for
merchandise until it arrives and is accepted at our
facility. An Online Service Request is available at
http://www.horizonhobby.com/content/_servicecenter_render-service-center. If you do not have
internet access, please contact Horizon Product
Support to obtain a RMA number along with
instructions for submitting your product for service.
When calling Horizon, you will be asked to provide
your complete name, street address, email address
and phone number where you can be reached
during business hours. When sending product into
Horizon, please include your RMA number, a list
of the included items, and a brief summary of the
problem. A copy of your original sales receipt must
be included for warranty consideration. Be sure
your name, address, and RMA number are clearly
written on the outside of the shipping carton.
NOTICE: Do not ship LiPo batteries to Horizon.
If you have any issue with a LiPo battery,
please contact the appropriate Horizon Product
Support office.
Warranty Requirements
For Warranty consideration, you must include
your original sales receipt verifying the proofof-purchase date. Provided warranty conditions
have been met, your Product will be serviced or
replaced free of charge. Service or replacement
decisions are at the sole discretion of Horizon.
Non-Warranty Service
Should your service not be covered by warranty,
service will be completed and payment will be
required without notification or estimate of the
expense unless the expense exceeds 50% of the
retail purchase cost. By submitting the item for
service you are agreeing to payment of the service
without notication. Service estimates are available
upon request. You must include this request with
your item submitted for service. Non-warranty
service estimates will be billed a minimum of ½
hour of labor. In addition you will be billed for return
freight. Horizon accepts money orders and cashier’s
checks, as well as Visa, MasterCard, American
Express, and Discover cards. By submitting any
item to Horizon for service, you are agreeing to
Horizon’s Terms and Conditions found on our
website http://www.horizonhobby.com/content/_
service-center_render-service-center.
ATTENTION: Horizon service is limited to
Product compliant in the country of use and
ownership. If received, a non-compliant Product
will not be serviced. Further, the sender will be
responsible for arranging return shipment of the
un-serviced Product, through a carrier of the
sender’s choice and at the sender’s expense.
Horizon will hold non-compliant Product for a
period of 60 days from notification, after which
it will be discarded.
10/15
Page 15
Warranty and Service Contact Information
Country of Purchase Horizon Hobby Contact Information Address
EN
United States of America
EU
Horizon Service Center
(Repairs and Repair Requests)
Horizon Product Support
(Product Technical Assistance)
Sales
Horizon Technischer Service service@horizonhobby.eu
Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100
servicecenter.horizonhobby.com/RequestForm/
productsupport@horizonhobby.com.
877-504-0233
websales@horizonhobby.com
800-338-4639
4105 Fieldstone Rd
Champaign, Illinois, 61822 USA
Hanskampring 9
D 22885 Barsbüttel, Germany
IC Information
IC: 6157A-EFLA6420BL
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or
lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than
that necessary for successful communication.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.”
FCC Information
FCC ID: BRWEFLA6420BL
This equipment has been tested and found to comply with the limits for Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmenttoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
15
Page 16
EN
Compliance Information for the European Union
EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the
essential requirements and other relevant provisions of the RED Directive.
A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/
support-render-compliance.
Instructions for disposal of WEEE by users in the European Union
This product must not be disposed of with other waste. Instead, it is the user’s responsibility
to dispose of their waste equipment by handing it over to a designated collections point for the
recycling of waste electrical and electronic equipment. The separate collection and recycling
of your waste equipment at the time of disposal will help to conserve natural resources and
ensure that it is recycled in a manner that protects human health and the environment. For
more information about where you can drop off your waste equipment for recycling, please
contact your local city ofce, your household waste disposal service or where you purchased
the product.
16
Page 17
Replacement Parts – Ersatzteile –
– Pièces de rechange – Recapiti per i ricambi –
Part # • Nummer
Numéro • Codice
EFLU3950
EFLU3951
EFLU3952
EFLU3953
EFLU3954
EFLU3955 BATTERY HATCH BATTERY HATCH BATTERY HATCH BATTERY HATCH
EFLU3956 LED SET LED SET LED SET LED SET
EFLU3957 DECAL SET DECAL SET DECAL SET DECAL SET
EFLU3958 SPINNER SPINNER SPINNER SPINNER
EFLU3960
EFLU3961 PUSHRODS SET PUSHRODS SET PUSHRODS SET PUSHRODS SET
EFLUM180BLB
SPMSA2030LO
Description Beschreibung Description Descrizione
UMX TIMBER BNF
BASIC
FUSE W/
PUSHRODS:
WING W/
HARDWARE
TAIL SET WITH
HORNS
LANDING GEAR
SET
LEADING EDGE
SLATS
BL180 Brushless
Outrunner 3,000Kv
2.3g linear long
throw offset servo
UMX TIMBER BNF
BASIC
FUSE W/PUSHRODS: FUSE W/PUSHRODS: FUSE W/PUSHRODS:
WING W/HARDWARE WING W/HARDWARE WING W/HARDWARE
TAIL SET WITH
HORNS
LANDING GEAR SET LANDING GEAR SET LANDING GEAR SET
LEADING EDGE
SLATS
BL180 Brushless
Outrunner 3,000Kv
2.3g linear long
throw offset servo
UMX TIMBER BNF
BASIC
TAIL SET WITH HORNS TAIL SET WITH
LEADING EDGE SLATS LEADING EDGE SLATS
BL180 Brushless
Outrunner 3,000Kv
2.3g linear long throw
offset servo
UMX TIMBER BNF
BASIC
HORNS
BL180 Brushless Outrunner 3,000Kv
2.3g linear long throw
offset servo
Page 18
– Optional Parts and Accessories –
– Optionale Bauteile und Zubehörteile –
– Pièces optionnelles et accessoires –
– Parti opzionali e accessori –
Part # • Nummer
Numéro • Codice
PKZ1039
SPMA3060
EFLUC1007
EFLC1105A
EFLUC1008
EFLB2002S30
EFLB2802S30
EFLA700UM
EFLA7001UM
EFLC4000/UK/
AU/EU
EFLA111
Description Beschreibung Description Descrizione
Hook and Loop Set
(5): Ultra Micros
USB-Interface: UM
AS3X Programmer
Celectra 2S 7.4V
DC Li-Po Charger
1S-2S AC/DC Li-Po
Balancing Charger
DC Power Cord for
EFLUC1007
200mAh 2s 7.4V DC
Li–Po, 26AWG
280mAh 2s 7.4V DC
Li–Po, 26AWG
Charger Plug Adapter:
EFL
Charger Plug Adapter:
Thunder Power
AC to 12V DC,1.5 Amp
Power Supply (Based
upon your sales
Region)
Li-Po Cell Voltage
Checker
DXe DSMX 6-Channel
Transmitter
DX6e DSMX
6-Channel Transmitter
DX6 Gen 2 DSMX
6-Channel Transmitter
DX7 Gen 2 DSMX
7-Channel Transmitter
DX8 Gen 2 DSMX
7-Channel Transmitter
DX9 DSMX
9-Channel Transmitter
DX18/18QQ DSMX
Transmitter
DX20 DSMX
Transmitter
Klettband (5): Ultra
Micros
UM AS3X
Programmiergerät
Celectra 2S 7.4V DC
Li-Po Ladegerät
E-ite Ultra Micro-4,
4x9W, AC/DC
Akkuladegerät, EU
Anschlußstecker mit
Krokodilklemmen für
EFLUC1007
200mAh 2S 7.4V
30C Li-Po Akku
280mAh 2S 7.4V
30C Li-Po Akku
Ladekabel Adapter
EFL
Ladekabel Adapter
Thunder Power
Netzteil 12V 1,5 A
(Basierend nach
Vertriebsregion)
E-ite Li-Po Cell Volt
Checker
DXe DSMX 6-Kanal
Sender
DX6e DSMX 6-Kanal
Sender
DX6 Gen 2 DSMX
6-Kanal Sender
Spektrum DX7 Gen 2
7 Kanal Sender
Spektrum DX7 Gen 2
8 Kanal Sender
Spektrum DX9
9 Kanal Sender
Spektrum DX18/18QQ
nur Sender
Spektrum DX20 nur
Sender
Bande autoagrippante (5)
Interface USB pour
module AS6410NBL
Chargeur Celectra
Li-Po 2S 7,4V
Chargeur/équilibreur
Li-Po 1 ou 2S AC/DC
Câble d’alimentation
pour EFLUC1007
Batterie Li-Po 2S
7,4V 200mA 30C,
26AWG
Batterie Li-Po 2S
7,4V 280mA 30C,
26AWG
Adaptateur pour prise
chargeur - EFL
Adaptateur pour prise
chargeur - Thunder
Power
Alimentation CA vers
12V CC, 1,5 A (En
fonction de votre
région)
Contrôleur de tension
des éléments Li-Po
Emetteur DXe DSMX
6 voies
Emetteur DX6e DSMX
6 voies
Emetteur DX6 Gen 2
DSMX 6 voies
Emetteur DX7 Gen 2
DSMX 7 voies
Emetteur DX8 Gen 2
DSMX 8 voies
Emetteur DX9 DSMX
9 voies
Emetteur DX18/18QQ
DSMX
Emetteur DX20 DSMX DX20DSMX Solo
Set fascette ssaggio
(5): Ultra Micros
Celectra 2S 7.4V DC
Li-Po Caricabatterie
1S-2S AC/DC Li-Po
Caricatore con
bilanciamento
Cavo alimentazione
per EFLUC1007
200mAh 2S 7.4V 30C
Li-Po, 26AWG
280mAh 2S 7.4V 30C
Li-Po, 26AWG
Adattatore connettore
caricabatterie: EFL
Adattatore connettore
caricabatterie:
Thunder Power
Alimentatore CA
- 12V CC da 1,5 A
(in base al Paese di
vendita)
Strumento per misura
tensione celle LiPo
DXe DSMX
Trasmettitore 6 canali
DX6e DSMX
Trasmettitore 6 canali
DX6 Gen 2 DSMX
Trasmettitore 6 canali
DX7 Gen 2 DSMX
Trasmettitore 7 canali
DX8 Gen 2 DSMX
Trasmettitore 8 canali
DX9 DSMX
Trasmettitore 9 canali
DX18/18QQ DSMX
Solo trasmettitore
trasmettitore
Page 19
UMX™ Timber
™
© 2017 Horizon Hobby, LLC.
E-ite, Timber, AS3X, UMX, DSM, DSM2, DSMX, ModelMatch, Bind-N-Fly, BNF, Celectra
and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC.
The Spektrum trademark is used with permission of Bachmann Industries, Inc.
Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha
All other trademarks, service marks and logos are property of their respective owners.
US 7,898,130. US D578,146. PRC ZL 200720069025. PRC ZL 2007001249. US 8,672,726.
Corporation of Japan.
Other patents pending.
www.e-iterc.com
Created 07/17 54424EFLU3950
Loading...
