E-flite UMX Sbach 342 3D BNF Basic User Manual

UMX™

Sbach® 342 3D

Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superﬁ cial injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not attempt disassembly, use with incompatible components or augment product in any way without the approval of Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Age Recommendation: Not for children under 14 years. This is not a toy.

2EN2

Thank you for purchasing the E-ﬂ ite® UMX™ Sbach® 342 3D. Designed by world-class competition pilot and designer Mike McConville, this 4-channel, scale aerobatic monoplane is going to thrill you, especially if your interest is ﬂ ying extreme precision aerobatics and 3D maneuvers in a park or a large backyard. Its 2S Li-Po, 2500Kv brushless power system is one of the most powerful ever developed for an aircraft this small. And although its phenomenal power-to-weight ratio is a big reason the UMX Sbach 342 3D ﬂ ies better than a typical ultra micro, what will truly be amazing is how much the UMX Sbach 342 3D performs like an expertly tuned giant-scale airplane. Thanks to its AS3X ﬂ ying precision aerobatic and 3D maneuvers with a greatly ampliﬁ ed sense of authority and stability, even in moderately windy conditions.

The exceptional capabilities of the UMX Sbach 342 3D may require a little more ﬁ rst-ﬂ ight preparation than you may be used to with other Bind-N-Fly carefully so that you are equipped to successfully enjoy all the beneﬁ ts this outstanding ultra micro model has to offer.

electronic enhancement system, you will be capable of

ultra micro aircraft. Please be sure to read through this manual

Table of Contents

Speciﬁ cations .......................................................3

AS3X Stabilization Delivers Breakthrough

Performance .........................................................4

Preﬂ ight Checklist .................................................4

Low Voltage Cutoff (LVC) .......................................4

Transmitter and Receiver Binding ..........................5

Installing the Flight Battery ...................................5

Arming the ESC ....................................................6

Control Direction Test ............................................6

Control Centering .................................................6

Settings for Control Horns .....................................7

Dual Rates ............................................................7

Adjusting Center of Gravity (CG) ............................7

Optional – Installation of Side Force

Generators (SFGs) .................................................8

Flying Tips and Repairs .........................................8

Additional Safety Precautions and Warnings ..........9

Post Flight Checklist .............................................9

Service of Power Components ............................10

Troubleshooting Guide ........................................11

Limited Warranty ................................................12

Warranty and Service Information .......................14

Compliance Information for the European Union ..14

Replacement Parts ..............................................54

Optional Parts and Accessories ...........................55

Parts Contact Information ...................................55

Speciﬁ cations

17 in (432mm)

Installed

DSM2 6Ch Ultra Micro AS3X Spektrum Receiver (SPMAS6410NBL)

BL180 Brushless Outrunner Motor, 2500Kv (EFLUM180BL2)

(4) 2.3 g Performance Linear Long Throw Servo (SPMSA2030L)

16.4 in (417mm)

1.9 oz (55 g)

To register your product online, go to www.e-ﬂ iterc.com

Needed to Complete

Battery: 180mAh 2S 20C Li-Po

(EFLUB1802S20)

Battery Charger: 2S 7.4V Li-Po (EFLUC1007)

Recommended Transmitter:

Spektrum™ DSM2®/DSMX® full range with dual-rates (DX4e and up)

3EN3

AS3X Stabilization Delivers Breakthrough Performance

Horizon Hobby has always made RC sport, scale and unique aircraft with the kind of performance experts appreciate. Now the exclusive Artificial Stability – 3 aXis (AS3X) system helps take performance expectations in ultra micro aircraft a quantum leap higher.

Based on the successful use of MEMS sensor technology within the AS3X Stabilization System essential to Blade helicopters, the specifically tuned AS3X System for airplanes helps invisibly correct for turbulence, torque and tip stalls when encountered.

ultra micro flybarless

Furthermore, the outstanding control agility delivers an ultra smooth, locked-in feel that obeys your every command with performance that’s natural feeling. It’s so gratifying, in fact, that it’s as though you’re the RC pilot of an expertly tuned, giant-scale aircraft.

AS3X will change the way you’ll want to fly now and in the future. To see what we mean, go to www.E-fliteRC.com/AS3X.

Preﬂ ight Checklist



1. Charge ﬂ ight battery.

2. Install ﬂ ight battery in the aircraft (once it has been fully charged).

3. Bind aircraft to your transmitter.

4. Make sure linkages move freely.

5. Perform Control Direction Test with the transmitter.

Low Voltage Cutoff (LVC)

When a Li-Po battery is discharged below 3V per cell, it will not hold a charge. The aircraft’s ESC protects the ﬂ ight battery from over-discharge using Low Voltage Cutoff (LVC). Before the battery charge decreases too much, LVC removes power supplied to the motor. Power to the motor quickly decreases and increases, showing that some battery power is reserved for ﬂ ight control and safe landing.

When the motor power pulses, land the aircraft immediately and recharge the ﬂ ight battery.

Disconnect and remove the Li-Po battery from the aircraft after use to prevent trickle discharge. Fully charge your Li-Po battery before storing it. During



6. Set dual rates

7. Adjust center of gravity.

8. Perform a radio system Range Check.

9. Find a safe and open area.

10. Plan ﬂ ight for ﬂ ying ﬁ eld conditions.

storage, make sure battery charge does not fall below 3V per cell.

Tip: Due to the quiet nature of the aircraft, you may not hear the pulsing of the motor.

For your ﬁ rst ﬂ ights, set your transmitter timer or a stopwatch to 5 minutes. Adjust your timer for longer or shorter ﬂ ights once you have ﬂ own the aircraft.

Flights of 6 minutes or more are achievable if using proper throttle management.

NOTICE: Repeated ﬂ ying to LVC will damage the battery.

Transmitter and Receiver Binding

Binding is the process of programming the receiver of the control unit to recognize the GUID (Globally Unique Identiﬁ er) code of a single speciﬁ c transmitter. You need to ‘bind’ your chosen SpektrumTM DSM2

DSMX

technology equipped aircraft transmitter to the receiver for proper operation.

Any JR® or Spektrum DSM2/DSMX transmitter can bind to the SPMAS6410NBL receiver. Due to the aerobatic capabilities of the UMX Sbach 3D, it is highly recommended that you use a transmitter with dual rates. Please visit www.bindnﬂ y.com for a complete list of compatible transmitters.

CAUTION: When using a Futaba transmitter with a Spektrum DSM module, you must reverse the

throttle channel and rebind. Refer to your Spektrum module manual for binding and failsafe instructions. Refer to your Futaba transmitter manual for instructions on reversing the throttle channel.

Binding Procedure



1. Refer to your transmitter’s unique instructions for binding to a receiver.

2. Make sure the ﬂ ight battery is disconnected from the aircraft.

3. Power off your transmitter.

4. Connect the ﬂ ight battery in the aircraft. The receiver LED will begin to ﬂ ash rapidly (typically after 5 seconds).

5. Make sure transmitter controls are neutral and throttle and throttle trim are in low position.

6. Put your transmitter into bind mode. Refer to your transmitter’s manual for binding button or switch instructions.

7. After 5 to 10 seconds, the receiver status LED will become solid, indicating that the receiver is bound to the transmitter. If the LED does not turn solid, refer to the Troubleshooting Guide at the back of the manual.

For subsequent ﬂ ights, power on the transmitter for 5 seconds before connecting the ﬂ ight battery.

Installing the Flight Battery

1. Remove the battery hatch from the nose of the aircraft and power on your transmitter.

2. Attach the flight battery to the hook and loop strip (A) on the battery tray. See the Adjusting the Center of Gravity instructions to determine the battery position for your desired flying style.

3. Place the aircraft on the ground out of the wind and connect a fully charged flight battery. Ensure the aircraft is immobile for 5 seconds so the AS3X system initializes correctly. See the Arming the ESC instructions for correct connection of the battery to the ESC.

4. Install the battery hatch.

NOTICE: If using a different battery than the recommended 2-Cell 7.4V 180mAh 20C Li-Po, you will need to apply a circle of hook and loop fastener to the back of the battery, opposite the side with the label, in order to hold the battery in place.

CAUTION: Always disconnect the Li-Po battery from the aircraft receiver when not ﬂ ying to avoid over-discharging the battery. Batteries discharged to a voltage lower than the lowest approved voltage may become damaged, resulting in loss of performance and potential ﬁ re when batteries are charged.

Arming the ESC

Arming the ESC also occurs after binding as previously described, but subsequent connection of a ﬂ ight battery requires the steps below.

1 2

Lower throttle and throttle trim to lowest settings.

Power on the Transmitter, then wait 5 seconds.

If you accidentally connect the battery while the throttle is fully raised, the ESC will enter programming mode. Disconnect the battery immediately.

The AS3X system will not activate until the throttle stick or trim is increased for the ﬁ rst time. Once the AS3X is active, the control surfaces may move rapidly on the aircraft. This is normal.

AS3X will remain active until the battery is disconnected.

CAUTION: Always keep hands away from the propeller. When armed, the motor will turn the propeller

in response to any throttle movement.

Install the ﬂ ight battery and connect it to the ESC.

Keep the aircraft immobile on its wheels away from wind for ﬁ ve seconds. Series of tones

Continuous LED

Control Direction Test

You should bind your aircraft and transmitter before doing these tests. Move the controls on the transmitter to make sure the aircraft control surfaces move correctly and in the proper direction.

Make sure all linkages move freely and that paint or decals are not adhered to them.

Control Centering

Before the ﬁ rst ﬂ ights, or in the event of an accident, make sure the ﬂ ight control surfaces are centered. Adjust the linkages mechanically if

the control surfaces are not centered. Use of the transmitter sub-trims may not correctly center the aircraft control surfaces due to the mechanical limits of linear servos.

1. Make sure the control surfaces are neutral when the transmitter controls and trims are centered. The transmitter sub-trim must always be set to zero.

2. When needed, use a pair of pliers to carefully bend the metal linkage (see illustration).

3. Make the U-shape narrower to make the connector shorter. Make the U-shape wider to make the linkage longer.

Centering Controls After First Flights For best performance with AS3X, it is important

that excessive trim is not used. If the aircraft re-

quires excessive transmitter trim (4 or more clicks of trim per channel), return the transmitter trim to zero and adjust the linkages mechanically so that the control surfaces are in the ﬂ ight trimmed position.

Settings for Control Horns

The illustration shows linkage positions chosen for the most balanced aerobatic response. Linkage connections on the control horns directly affect aircraft response.

CAUTION: When these are incorrectly connected for the pilot’s skill level, unexpected aircraft response to controls can result. This can cause damage to the aircraft and personal injury.

Dual Rates

To obtain the best ﬂ ight performance, we recommend using a DSM2/DSMX radio capable of Dual Rates. The suggested settings shown here are the recommended starting settings. Adjust according to the individual preferences after the initial ﬂ ight.

NOTICE: Do not set your transmitter travel adjust over 100%. If the TRAVEL ADJUST is set over

100%, it will not result in more control movement, it will overdrive the servo and cause damage.

Adjusting Center of Gravity (CG)

The CG location is measured from the leading edge of the wing at the root. This CG location has been determined with the 2S 180mAh 7.4V Li-Po battery installed.

Start by placing the front edge of the battery aligned with or slightly forward of the rear edge of the cowl. The Li-Po battery can be positioned to accommodate your desired ﬂ ying style by using the battery positioning chart as shown.

Aileron Elevator Rudder

High Rate Low Rate

Aileron 100% 70% Elevator 100% 70% Rudder 100% 70%

It is normal for linear servos to make signiﬁ cant noise. The noise is not an indication of a faulty servo.

Flying Type CG Battery position

Align the front of the

Precision Flying 33mm

Extreme 3D Flying 38mm

battery 20mm forward from the rear edge of the cowl.

Align the front of the battery with the rear edge of the cowl.

38mm

(Extreme 3D Flying)

(Precision Flying)

33mm

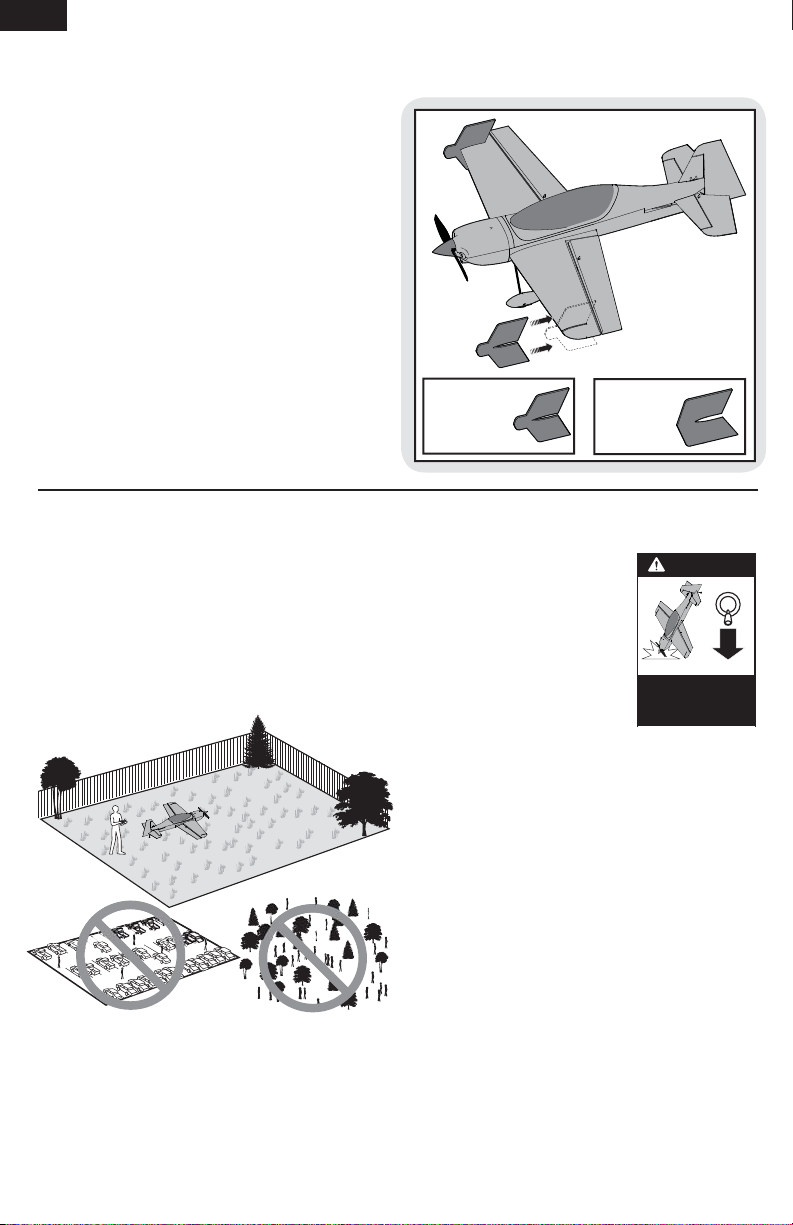

Optional – Installation of Side Force Generators (SFGs)

Side Force Generators™ add side force in all ﬂ ight attitudes, increase rudder authority and make a variety of acrobatics possible.

The two SFG sets included with the aircraft provide different amounts of increased rudder control. We recommend ﬁ rst ﬂ ying the aircraft without the SFGs, then with each set of SFGs to determine what is best for your ﬂ ying style. SFGs shown in Option

1 provide enhanced rudder authority, while SFGs in Option 2 provide extreme rudder authority.

Slide the SFG on to the leading edge of the wing. Apply a few drops of foam-safe CA to stabilize the SFGs on the wings and to prevent them from moving in ﬂ ight.

Flying Tips and Repairs

Flying

We recommend ﬂ ying your aircraft outside in no greater than moderate winds, or indoors in a large gymnasium. Always avoid ﬂ ying near houses, trees, wires and buildings. You should also be careful to avoid ﬂ ying in areas where there are many people, such as busy parks, schoolyards or soccer ﬁ elds. Consult local laws and ordinances before choosing a location to ﬂ y your aircraft.

Takeoff

Place the aircraft in position for takeoff (facing into the wind if ﬂ ying outdoors). Set dual rates to low position and gradually increase the throttle to ¾ to full and steer with the rudder. Pull back gently on the elevator and climb to check trim. Once the trim is adjusted, begin exploring the ﬂ ight envelope of the aircraft.

Option 1

Failure to lower the throttle stick and trim to the lowest possible positions during a crash could result in damage to the ESC in the receiver unit, which may require replacement.

The Sbach 3D is equipped with Over Current Protection (OCP). This feature protects the ESC from overheating. OCP stops the motor when the transmitter throttle is set too high and the propeller cannot turn. The OCP will only activate when the throttle stick is positioned just above 1/2 throttle. After the ESC stops the motor, fully lower the throttle to re-arm the ESC.

NOTICE: Crash damage is not covered under the warranty.

Repairs

Repair the aircraft using foam-compatible CA (cyanoacrylate adhesive) or clear tape. Only use foam-compatible CA, as other types of glue can damage the foam. When parts are not repairable, see the Replacement Parts List for ordering by item number.

For a listing of all replacement and optional parts, refer to the list at the end of this manual.

NOTICE: Use of foam-compatible CA accelerant on your aircraft can damage paint. DO NOT handle aircraft until accelerant fully dries.

Option 2

decrease throttle at

propeller strike.

CAUTION

Always

Additional Safety Precautions and Warnings

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the property of others.

• Always keep a safe distance in all direction around your model to avoid collisions or injury.

• This model is controlled by a radio signal subject to interference from many sources outside your control. Interference can cause momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles, trafﬁ c and people.

• Always carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed and protected for this purpose. Moisture causes damage to electronics.

Post Flight Checklist



1. Disconnect ﬂ ight battery from ESC (Required for Safety and battery life).

2. Power off transmitter.

3. Remove ﬂ ight battery from aircraft.

4. Recharge ﬂ ight battery.

• Never place any portion of the model in your mouth as it could cause serious injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂ ying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.



5. Store ﬂ ight battery apart from aircraft and monitor the battery charge.

6. Make note of ﬂ ight conditions and ﬂ ight plan results, planning for future ﬂ ights.

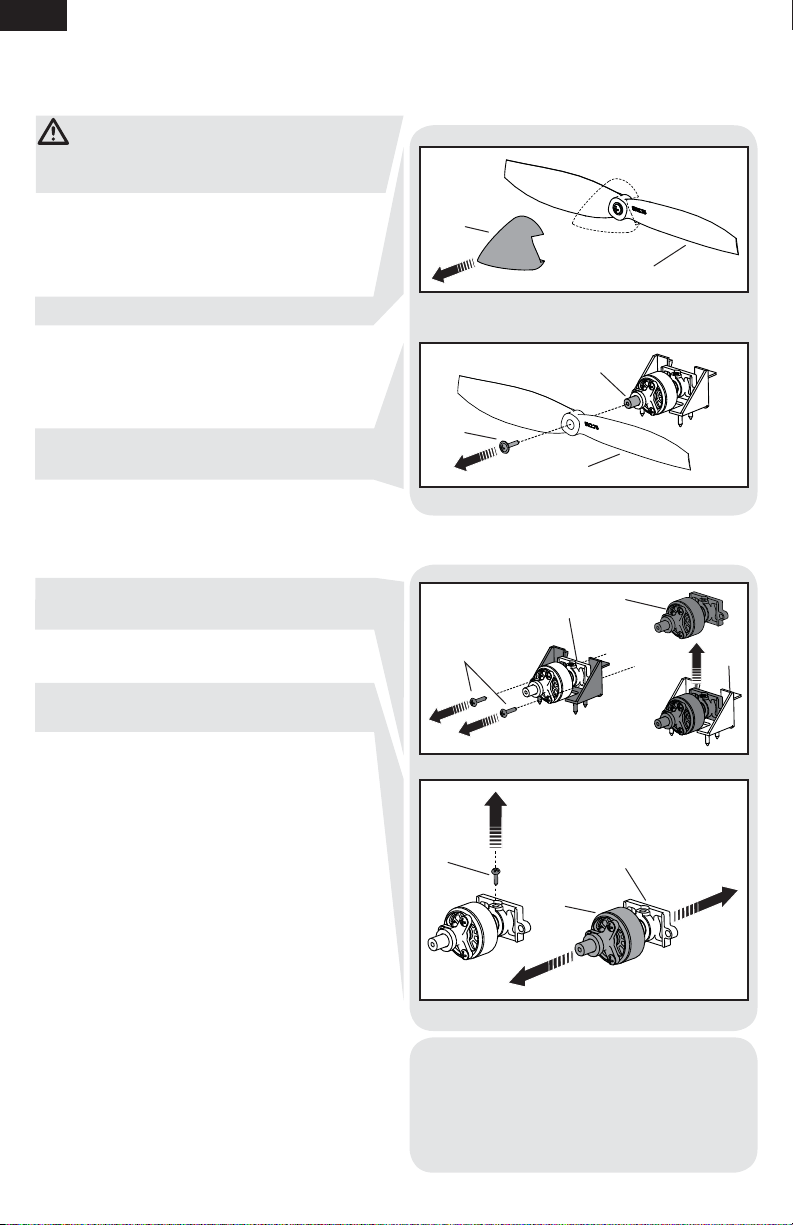

Service of Power Components

Disassembly

CAUTION: DO NOT handle propeller parts

while the ﬂ ight battery is connected. Personal injury could result.

Propeller

1. Remove the battery hatch by gripping the front of the hatch, then pulling it up and away from the fuselage.

2. Remove the spinner (A) from the propeller (B).

Since the propeller and spinner are glued together, glue residue will need to be cleaned from the spinner or propeller when these parts are used again.

3. Carefully remove the screw (C) and propeller (B) from the motor shaft (D).

A propeller spacer is installed on the motor shaft.

Take care to not lose the spacer; it is needed to correctly install the propeller.

Motor and Firewall

1. Remove 2 screws (E), the firewall (F) and motor (G) from the fuselage motor mount (H).

2. Remove the top screw (I) from the firewall (F) and motor (G).

3. Disconnect the motor wire connector from the ESC/receiver connector.

Assembly

Motor and Firewall

1. Connect the motor wire connector to the ESC/ receiver connector so the wire colors align.

2. Install the motor in the firewall using a screw in the top of the firewall.

3. Attach the firewall to the fuselage motor mount using 2 screws.

Propeller

1. Install the propeller on the motor shaft using a screw. The numbers on the propeller must face out from the fuselage for correct propeller operation.

2. Center and install the spinner on the propeller using foam-compatible CA.

3. Put the foam battery hatch on the fuselage and slide it back to fully engage the fuselage.

10EN10

When the fuselage must be opened for access to servos or receiver, cut the tape or decals to open the canopy hatch.

Removing tape or decals may remove paint from the fuselage.

Troubleshooting Guide

AS3X

Problem Possible Cause Solution

Control surfaces not at neutral position when transmitter controls are at neutral

Model ﬂ ies inconsistently from ﬂ ight to ﬂ ight

Controls oscillate in ﬂ ight, (model rapidly jumps or moves)

Problem Possible Cause Solution

Aircraft will not respond to throttle but responds to other controls

Extra propeller noise or extra vibration

Reduced ﬂ ight time or aircraft underpowered

LED on receiver ﬂ ashes and aircraft will not bind to transmitter (during binding)

Control surfaces may not have been mechanically centered from factory

Aircraft was moved after the ﬂ ight battery was connected and before sensors initialized

Trims are moved too far from neutral position

Propeller is unbalanced, causing excessive vibration

Prop screw is too loose, causing vibration Tighten the prop screw

Throttle stick and/or throttle trim too high Reset controls with throttle stick and throttle

Throttle channel is reversed Reverse throttle channel on transmitter Motor disconnected from receiver Open fuselage and make sure motor is

Damaged propeller, spinner or motor Replace damaged parts Prop screw is too loose Tighten the prop screw Prop is out of balance Remove and balance propeller, or replace

Flight battery charge is low Completely recharge ﬂ ight battery Propeller installed backwards Install propeller with numbers facing forward Flight battery damaged Replace ﬂ ight battery and follow ﬂ ight battery

Flight conditions may be too cold Make sure battery is warm before use Battery capacity too low for ﬂ ight conditions Replace battery or use a larger capacity

Transmitter too near aircraft during binding process

Bind switch or button not held long enough during bind process

Aircraft or transmitter is too close to large metal object, wireless source or another transmitter

Center control surfaces mechanically by adjusting the U-bends on control linkages

Disconnect and reconnect the ﬂ ight battery while keeping the aircraft still for 5 seconds

Neutralize trims and mechanically adjust linkages to center control surfaces

Remove propeller and rebalance or replace it if damaged

trim at lowest setting

connected to the receiver

with a balanced propeller.

instructions

battery Power off transmitter, move transmitter a

larger distance from aircraft, disconnect and reconnect ﬂ ight battery to aircraft and follow binding instructions

Power off transmitter and repeat bind process. Hold transmitter bind button or switch until receiver is bound

Move aircraft and transmitter to another location and attempt binding again

Troubleshooting Guide (Continued)

Problem Possible Cause Solution

LED on receiver ﬂ ashes rapidly and aircraft will not respond to transmitter (after binding)

Control surface does not move

Controls reversed Transmitter settings reversed Adjust controls on transmitter appropriately Motor loses power Damage to motor or power components Do a check of motor and power components

Motor power quickly decreases and increases then motor loses power

Motor/ESC is not armed after landing

Servo locks or freezes at full travel

Less than a 5-second wait between ﬁ rst powering on transmitter and connecting ﬂ ight battery to aircraft

Aircraft bound to different model memory (ModelMatch

Flight battery/transmitter battery charge is too low

Transmitter may have been bound to a different model (or with a different DSM Protocol)

Aircraft or transmitter is too close to large metal object, wireless source or another transmitter

Control surface, control horn, linkage or servo damage

Wire damaged or connections loose Do a check of wires and connections, con-

Flight battery charge is low Fully recharge ﬂ ight battery Control linkage does not move freely Make sure control linkage moves freely

Battery power is down to the point of receiver/ESC Low Voltage Cutoff (LVC)

Over Current Protection (OCP) stops the motor when the transmitter throttle is set high and the propeller cannot turn

Travel adjust value is set above 100%, overdriving the servo

™

radios only)

Leaving transmitter on, disconnect and reconnect ﬂ ight battery to aircraft

Select correct model memory on transmitter and disconnect and reconnect ﬂ ight battery to aircraft

Replace/recharge batteries

Select the right transmitter or bind to the new one

Move aircraft and transmitter to another location and attempt linking again

Replace or repair damaged parts and adjust controls

nect or replace as needed

for damage (replace as needed) Recharge ﬂ ight battery or replace battery that

is no longer performing

Fully lower throttle and throttle trim to arm ESC

Set Travel adjust to 100% or less and/or set sub-trims to Zero and adjust linkages mechanically

Limited Warranty

What this Warranty Covers

Horizon Hobby, Inc. (“Horizon”) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modiﬁ cation of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable technical regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.

Purchaser’s Remedy

Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s)

involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, ﬁ nal assembly, modiﬁ cation or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conﬂ ict of law principals). This warranty gives you speciﬁ c legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES

Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www. horizonhobby.com, submit a Product Support Inquiry, or call 877.504.0233 toll free to speak to a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides

tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www. horizonhobby.com/content/_service-center_renderservice-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support ofﬁ ce.

Warranty Requirements

For Warranty consideration, you must include your original sales receipt verifying the proof-ofpurchase date. Provided warranty conditions have

been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service

Should your service not be covered by warranty, service will be completed and payment will be required without notiﬁ cation or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for

service you are agreeing to payment of the service without notiﬁ cation. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of ½ hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier’s checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon’s Terms and Conditions found on our website http:// www.horizonhobby.com/content/_service-center_ render-service-center.

NOTICE: Horizon service is limited to Product compliant in the country of use and ownership. If non-compliant product is received by Horizon for service, it will be returned unserviced at the sole expense of the purchaser.

Warranty and Service Information

Country of

Purchase

United States of America

United Kingdom Horizon Hobby Limited

Germany

France Horizon Hobby SAS

China Horizon Hobby – China

Horizon Hobby Address Phone Number/Email Address

Horizon Service Center (Electronics and engines)

Horizon Product Support (All other products)

Horizon Technischer Service

4105 Fieldstone Rd Champaign, Illinois 61822 USA

Units 1-4 Ployters Rd Staple Tye Harlow, Essex CM18 7NS United Kingdom

Christian-Junge-Straße 1 25337 Elmshorn Germany

14 Rue Gustave Eiffel Zone d’Activité du Réveil Matin 91230 Montgeron

Room 506, No. 97 Changshou Rd. Shanghai, China, 200060

877-504-0233 Online Repair Request visit: www.horizonhobby.com/service

877-504-0233 productsupport@horizonhobby.com

+44 (0) 1279 641 097 sales@horizonhobby.co.uk

+49 (0) 4121 2655 100 service@horizonhobby.de

+33 (0) 1 60 47 44 70 infofrance@horizonhobby.com

+86 (021) 5180 9868 info@horizonhobby.com.cn

Compliance Information for the European Union

Declaration of Conformity

(in accordance with ISO/IEC 17050-1) No. HH2012060901

Product(s): EFL UMX Sbach 3D Item Number(s): EFLU4950 Equipment class: 1

The object of declaration described above is in conformity with the requirements of the speciﬁ cations listed below, following the provisions of the European R&TTE directive 1999/5/EC:

EN 301 489-1 V1.7.1: 2006 EN 301 489-17 V1.3.2: 2008

Steven A. Hall

Vice President Signed for and on behalf of: Horizon Hobby, Inc. Champaign, IL USA

International Operations and Risk Management

Horizon Hobby, Inc.

June 09, 2012

Instructions for disposal of WEEE by users in the European Union

This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural

environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city ofﬁ ce, your household waste disposal service or where you purchased the product.

resources and ensure that it is recycled in a manner that protects human health and the

– Replacement Parts –

– Ersatzteile –

– Pièces de rechange –

– Pezzi di ricambio –

Part # • Nummer Numéro • Codice

EFLU4146

EFLU4951

EFLU4152

EFLU4954

EFLU4155

EFLU4958

EFLU4959

EFLU4960

EFLU4962

EFLU4963

EFLU4965

EFLUP050275

EFLU4167

EFLUM180BL2

SPMAS6410NBL

SPMSA2030L

SPM6836

EFLU4066

Description Beschreibung Description Descrizione

Pushrod Set: UMX Sbach 342

Spinner: UMX Sbach 342 3D

SFG Set: UMX Sbach 342

Wheel Pant Set: UMX Sbach 342 3D

Landing Gear with Wheels: UMX Sbach 342

Fuselage Set: UMX Sbach 342 3D

Wing: UMX Sbach 342 3D

Tail Set: UMX Sbach 342 3D

Battery Hatch: UMX Sbach 342 3D

Canopy: UMX Sbach 342 3D

Decal Set: UMX Sbach 342 3D

5 x 2.75 Electric Propeller: UMX Beast, Sbach 342

Prop Adapter: UMX Sbach

180 Brushless Outrunner Motor 2500KV

Spektrum 6 Ch AS3X Receiver w/ BL ESC

2.3-Gram Performance Linear Long Throw Servo

Replacement Servo Mechanics: Ultra Micro Long Throw

Firewall: Beast Brandschott: UMX

Schubstange: UMX Sbach 342

Spinner: UMX Sbach 342 3D

SFG Set: UMX Sbach 342

Radverkleidung: UMX Sbach 342 3D

Fahrwerk mit Rädern: UMX Sbach 342

Rumpf: UMX Sbach 342 3D

Tragﬂ äche: UMX Sbach 342 3D

Leitwerk: UMX Sbach 342 3D

Batteriefach: UMX Sbach 342 3D

Kabinenhaube: UMX Sbach 342 3D

Dekorbogen: UMX Sbach 342 3D

5 x 2,75: UMX Beast, Sbach 342

Eﬂ ite Propeller Adapter: UMX Sbach 342

BL180 Brushless Außenläufer Motor 2500 kv

Spektrum 6 Kanal AS3X Empfänger m. BL Regler

2,3 Gramm Hochleistungs Linear Servo mit langem Ruderweg

Austausch Servo Mechanik:Ultra Micro Long Throw

Beast

Set de tringleries: UMX Sbach 342

Cône: UMX Sbach 342 3D

Set de SFG: UMX Sbach 342

Set de chapeaux de roues: UMX Sbach 342 3D

Train avec roues: UMX Sbach 342

Set de fuselage: UMX Sbach 342 3D

Aile: UMX Sbach 342 3D

Set d’empennage: UMX Sbach 342 3D

Trappe de batterie: UMX Sbach 342 3D

Bulle: UMX Sbach 342 3D

Set de décoration: UMX Sbach 342 3D

5 x 2.75 Hélice électrique: UMX Beast, Sbach 342

Adaptateur d’hélice: UMX Sbach

Moteur brushless à cage tournante 180 2500kv

Module Spektrum 6 voies Rx/ESC/AS3X

Servo 2.3g linéaire longue course performant

Mécanique de remplacement pour servo: Ultra micro longue course

Support Moteur: UMX Beast

Astine comandi: UMX Sbach 342

Ogiva: UMX Sbach 342 3D

SFG Set: UMX Sbach 342

Set carenature ruote: UMX Sbach 342 3D

Carrello atterraggio con ruote: UMX Sbach 342

Set fusoliera: UMX Sbach 342 3D

Ala: UMX Sbach 342 3D

Set piani di coda: UMX Sbach 342 3D

Copertura vano batteria: UMX Sbach 342 3D

Cappottina: UMX Sbach 342 3D

Set adesivi: UMX Sbach 342 3D

Elica 5 x 2,75: UMX Beast, Sbach 342

Adattatore elica: UMX Sbach

180 Motore brushless cassa rotante 2500KV

Ricevitore Spektrum 6 CH AS3X con ESC BL

Ottimo servo lineare a corsa lunga da 2,3 Grammi

Meccanica ricambio per servo: Ultra Micro Long Throw

Ordinata: UMX Beast

– Optional Parts and Accessories –

– Optionale Bauteile und Zubehörteile –

– Pièces optionnelles et accessoires –

– Parti opzionali e accessori –

Part # • Nummer Numéro • Codice

EFLUB1802S20

EFLUC1007

EFLA700UM

EFLA7001UM

EFLU4068

SPM6825

EFLC4000/UK/ AU/EU

Description Beschreibung Description Descrizione

2S 7.4V 180mAh Li-Po Battery

Celectra 2S 7.4V DC Li-Po Charger

Charger Plug Adapter: EFL

Charger Plug Adapter: Thunder Power

Harness Adapter: UMX Beast

Ultra Micro Linear Servo Reverser

AC to 12V DC,1.5 Amp Power Supply (Based upon your sales Region)

DX5e DSMX 5-Channel Transmitter

DX6i DSMX 6-Channel Transmitter

DX7s DSMX 7-Channel Transmitter

DX8 DSMX Transmitter

2S 7.4V 180mAh Li-Po Akku

Celectra 2S 7.4V DC Li-Po Ladegerät

Ladekabel Adapter EFL

Ladekabel Adapter Thunder Power

E-ﬂ ite UMX Beast Y-Kabel

Spektrum Ultra Micro Linear Servo Reverser

Netzteil 12V 1,5 A (Basierend nach Vertriebsregion)

DX5e DSMX 5-Kanal Sender

DX6i DSMX 6-Kanal Sender

Spektrum DX7s 7 Kanal Sender

Spektrum DX8 nur Sender

Batterie Li-Po 7.4V 2S 180mA

Celectra Chargeur Li-Po 7.4V 2S

Prise d’adaptation chargeur: EFL

Prise d’adaptation chargeur: Thunder Power

Adaptateur de câblage: UMX Beast

Inverseur d’ultra micro servo linéaire

Alimentation CA vers 12V CC, 1,5 A (En fonction de votre région)

Emetteur DX5e DSMX 5 voies

Emetteur DX6i DSMX 6 voies

Emetteur DX7s DSMX 7 voies

Emetteur DX8 DSMX 8 voies

2S 7.4V 180mAh Li-Po Batteria

Celectra 2S 7.4V DC Li-Po Caricabatterie

Adattatore connettore caricabatterie: EFL

Adattatore connettore caricabatterie: Thunder Power

Adattatore collegamenti: UMX Beast

Invertitore per servi lineari ultra micro

Alimentatore CA

- 12V CC da 1,5 A (in base al Paese di vendita)

DX5e DSMX Trasmettitore 5 canali

DX6i DSMX Trasmettitore 6 canali

DX7s DSMX Trasmettitore 7 canali

DX8 DSMX Solo trasmettitore

– Parts Contact Information –

– Intaktinformationen für Ersatzteile –

– Coordonnées pour obtenir les pièces détachées –

– Recapiti per i pezzi di ricambio –

Country of Purchase Horizon Hobby Address Phone Number/Email Address

United States Sales

United Kingdom Horizon Hobby Limited

Germany Horizon Hobby GmbH

France Horizon Hobby SAS

China Horizon Hobby – China

4105 Fieldstone Rd Champaign, Illinois, 61822 USA

Units 1-4 Ployters Rd Staple Tye Harlow, Essex CM18 7NS, United Kingdom

Christian-Junge-Straße 1

25337 Elmshorn, Germany

14 Rue Gustave Eiffel Zone d’Activité du Réveil Matin 91230 Montgeron

Room 506, No. 97 Changshou Rd. Shanghai, China, 200060

800-338-4639 sales@horizonhobby.com

+44 (0) 1279 641 097 sales@horizonhobby.co.uk

+49 (0) 4121 2655 100 service@horizonhobby.de

+33 (0) 1 60 47 44 70 infofrance@horizonhobby.com

+86 (021) 5180 9868 info@horizonhobby.com.cn

trademarks or registered trademarks of Horizon Hobby, Inc. DSMX is a trademark of Horizon Hobby, Inc., registered in the U.S.. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha

Corporation of Japan. Sbach and its design are trademarks of STO Streicher GmbH & Co. KG registered in

Germany and used with permission. Sbach and its design are trademarks of XtremeAir GmbH registered in the U.S. and used

with permission.

US 7,898,130. US D578,146. PRC ZL 200720069025.2. Other patents pending. www.e-ﬂ iterc.com

EFLU4950

Created 06/12 34397.1

E-flite UMX Sbach 342 3D BNF Basic User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
