E-flite UMX Pitts S-1S BNF Basic User Manual

UMX™ Pitts® S-1S
Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni
EN
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi cial injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Age Recommendation: Not for children under 14 years. This is not a toy.
Safety Precautions and Warnings
• Always keep a safe distance in all directions around your model to avoid collisions or injury. This model is controlled by a radio signal subject to interference from many sources outside your control. Interference can cause momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles, traffi c and people.
• Always carefully follow the directions and warnings for this and any optional support equip­ment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the reach of children.
• Always avoid water exposure to all equipment not specifi cally designed and protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause serious injury or even death.
2
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep the transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
hank you for purchasing the E-fl ite® UMX™ Pitts® S-1S ultra micro airplane. Despite its size, this model
T
has been engineered to deliver a potent scale model that handles great. Molded lightweight foam construction makes it possible for the high-output brushless power system installed to provide quick acceleration and strong vertical climbs. Four performance linear long-throw servos provide precision control. But what truly makes this go-anywhere biplane special is the remarkable AS3X® system that’s been specially tuned to give you the feeling of fl ying a much larger model. AS3X stability works especially hard so even when wind conditions are moderate, you experience the kind of smooth fl ight that makes you want to fl y more often.
A thorough read of this manual will help assure that you’re well equipped to successfully enjoy all the benefi ts this outstanding ultra micro model has to offer.
Table of Contents
EN
Prefl ight Checklist ..................................................4
AS3X Stabilization Delivers Breakthrough
Performance ..........................................................4
Low Voltage Cutoff (LVC) ........................................4
Transmitter and Receiver Binding ...........................5
ESC/Receiver Arming, Battery Installation
and Center of Gravity .............................................6
Control Direction Test .............................................7
Control Centering ..................................................7
Control Horn Settings .............................................7
Dual Rates .............................................................7
Specifi cations
17.1 in (434mm)
15.5 in (393mm)
Flying Tips and Repairs ..........................................8
Post Flight Checklist ..............................................8
Power Components Service ...................................9
Troubleshooting Guide .........................................10
Troubleshooting Guide (Continued) .......................11
Limited Warranty .................................................11
Warranty and Service Information ........................13
Compliance Information for the European Union ...13
Replacement Parts ...............................................50
Optional Parts and Accessories ............................51
Installed
Motor: 180BL 3000Kv Brushless
Outrunner (EFLUM180BLB) Receiver : Spektrum
Receiver with BL ESC (SPMAS6410NBL) (4) 2.3-Gram Performance Linear Long
Throw Servo (SPMSA2030L)
6-Ch AS3X
®
Needed to Complete
Recommended Battery: 200mAh 2S
7.4V 25C Li-Po, 26AWG (EFLB2002S25)
Recommended Battery Charger: Celectra™ 2S 7.4V DC Li-Po Charger (EFLUC1007)
3.2 oz (90 g)
To register your product online, go to www.e-fl iterc.com
Recommended Transmitter: Spektrum™ DSM2®/DSMX® full range with dual-rates (DX4e and up)
3
EN
Prefl ight Checklist
1. Charge fl ight battery.
2. Install fl ight battery in aircraft (once it has been fully charged).
3. Bind aircraft to transmitter.
4. Make sure linkages move freely.
5. Perform Control Direction Test with transmitter.
6. Set dual rates and expos.
7. Adjust center of gravity.
8. Perform a radio system Range Check.
9. Find a safe and open area.
10. Plan fl ight for fl ying fi eld conditions.
AS3X Stabilization Delivers Breakthrough Performance
Horizon Hobby has always made RC sport, scale and unique aircraft with the kind of performance experts appreciate. Now the exclusive Artificial Stability – 3 aXis (AS3X) system helps take performance expectations in ultra micro aircraft a quantum leap higher.
Based on the successful use of MEMS sensor technology within the AS3X Stabilization System essential to Blade helicopters, the specifically tuned AS3X System for airplanes helps invisibly correct for turbulence, torque and tip stalls when encountered.
®
ultra micro flybarless
Furthermore, the outstanding control agility delivers an ultra smooth, locked-in feel that obeys your every command with performance that’s natural feeling. It’s so gratifying, in fact, that it’s as though you’re the RC pilot of an expertly tuned, giant-scale model.
AS3X will change the way you’ll want to fly now and in the future. To see what we mean, go to www.E-fliteRC.com/AS3X.
Low Voltage Cutoff (LVC)
When a Li-Po battery is discharged below 3V per cell, it will not hold a charge. The aircraft’s ESC protects the fl ight battery from over-discharge using Low Voltage Cutoff (LVC). Once the battery discharges to 3V per cell, the LVC will reduce the power to the motor in order to leave adequate power to the receiver and servos to land the airplane.
When the motor power decreases, land the aircraft immediately and replace or recharge the fl ight battery.
4
Always disconnect and remove the Li-Po battery from the aircraft after each fl ight. Charge your Li-Po battery to about half capacity before storage. Make sure the battery charge does not fall below 3V per cell. Failure to unplug a connected battery will result in trickle discharge.
For your fi rst fl ights, set your transmitter timer or a stopwatch to 5 minutes. Adjust your timer for longer or shorter fl ights once you have fl own the model.
NOTICE: Repeated fl ying to LVC will damage the battery.
Transmitter and Receiver Binding
Y
EN
Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifi er) code of a single specifi c transmitter. You need to ‘bind’ your chosen Spektrum equipped aircraft transmitter to the receiver for proper operation.
Any full range Spektrum DSM2/DSMX transmitter can bind to the DSM2/DSMX receiver. Please visit www. bindnfl y.com for a complete list of compatible transmitters.
Binding Procedure
CAUTION: When using a Futaba transmitter with a Spektrum DSM® module, you must reverse the throttle channel and rebind. Refer to your Spektrum module manual for binding and failsafe instructions. Refer to your Futaba transmitter manual for instructions on reversing the throttle channel.
1. Refer to your transmitter’s unique instructions for binding to a receiver (location of transmitter’s Bind control).
2. Make sure the fl ight battery is disconnected from the aircraft.
3. Power off your transmitter.
4. Connect the fl ight battery in the aircraft. The receiver LED will begin to fl ash rapidly (typically after 5 seconds).
5. Make sure the transmitter controls are neutral and the throttle and throttle trim are in low position.
6. Put your transmitter into bind mode. Refer to your transmitter’s manual for binding button or switch instructions.
7. After 5 to 10 seconds, the receiver status LED will turn solid, indicating that the receiver is bound
to the transmitter. If the LED does not turn solid, refer to the Troubleshooting Guide at the back of the manual.
DSM2/DSMX technology
5
EN
4
1-2-3-4-5 Sec.
1
2
3
ESC/Receiver Arming, Battery Installation and Center of Gravity
CAUTION: Always keep hands away from the
propeller. When armed, the motor will turn the propeller in response to any throttle movement.
Arming the ESC/receiver also occurs after binding as previously described, but subsequent connection of a fl ight battery requires the following steps.
AS3X
The AS3X throttle stick or trim is increased for the first time. Once active, the control surfaces may move rapidly and noisily on the aircraft. This is normal. AS3X technology will remain active until the battery is disconnected.
1. Remove the battery hatch from the fuselage.
2. Attach the battery to the hook and loop strip so
®
system will not activate until the
the battery is against the motor mount.
Center of Gravity (CG)
At the wing root, measure the CG location 32.5mm back from the forward-most leading edge of the top wing.
3. Lower the throttle and throttle trim to the lowest settings on your transmitter. Power on your transmitter, then wait 5 seconds.
4. Connect the battery to the ESC, noting proper polarity. Keep the plane immobile and away from wind for 5 seconds to allow the AS3X system to initialize. A series of tones and a continuous LED indicates a successful connection.
32.5mm
CAUTION: Always disconnect the Li-Po battery from the ESC when not fl ying to eliminate power supplied to the motor. The ESC does not have an arming switch and will respond to any transmitter input when a signal is present.
CAUTION: Always disconnect the Li-Po battery from the ESC when not fl ying to avoid over-discharging the battery. Batteries discharged to a voltage lower than the lowest approved voltage may become damaged, resulting in loss of performance and potential fi re when batteries are charged.
6
Control Direction Test
EN
You should bind your aircraft and transmitter before doing these tests. Move the controls on the trans­mitter to make sure the aircraft control surfaces move correctly and in the proper direction.
Control Centering
Before the fi rst fl ights, or in the event of an accident, make sure the fl ight control surfaces are centered. Adjust the linkages mechanically if
the control surfaces are not centered. Use of the transmitter sub-trims may not correctly center the aircraft control surfaces due to the mechanical limits of linear servos.
1. Make sure the control surfaces are neutral when the transmitter controls and trims are centered. The transmitter sub-trim must always be set to zero.
2. When needed, use a pair of pliers to carefully bend the metal linkage (see illustration).
3. Make the U-shape narrower to make the connector shorter. Make the U-shape wider to make the linkage longer.
Control Horn Settings
The table to the right shows the factory settings for the control horns. Fly the aircraft at factory settings before making changes.
After fl ying, you may choose to adjust the linkage positions for the desired control response.
Make sure the tail linkages move freely and that paint or decals are not adhered to them.
Centering Controls After First Flights For best performance with AS3X, it is important
that excessive trim is not used. If the aircraft re-
quires excessive transmitter trim (4 or more clicks of trim per channel), return the transmitter trim to zero and adjust the linkages mechanically so that the control surfaces are in the fl ight trimmed position.
Aileron Elevator Rudder
CAUTION: When these are incorrectly connected for the pilot’s skill level, unexpected aircraft response to controls can result. This can cause damage to the aircraft and personal injury.
Dual Rates
To obtain the best fl ight performance, we recommend using a DSM2/DSMX radio capable of adjustable Dual Rates. The suggested settings shown here are the recommended starting settings. Adjust according to the individual preferences after the initial fl ight.
NOTICE: Do not set your transmitter travel adjust over 100%. If the TRAVEL ADJUST is set over
100%, it will not result in more control movement, it will overdrive the servo and cause damage.
It is normal for linear servos to make signifi cant noise. The noise is not an indication of a faulty servo.
Dual Rate
High Low
Aileron 100% 70% Elevator 100% 70%
Rudder 100% 70%
Tip: For the fi rst fl ight, fl y the model in low rate.
7
EN

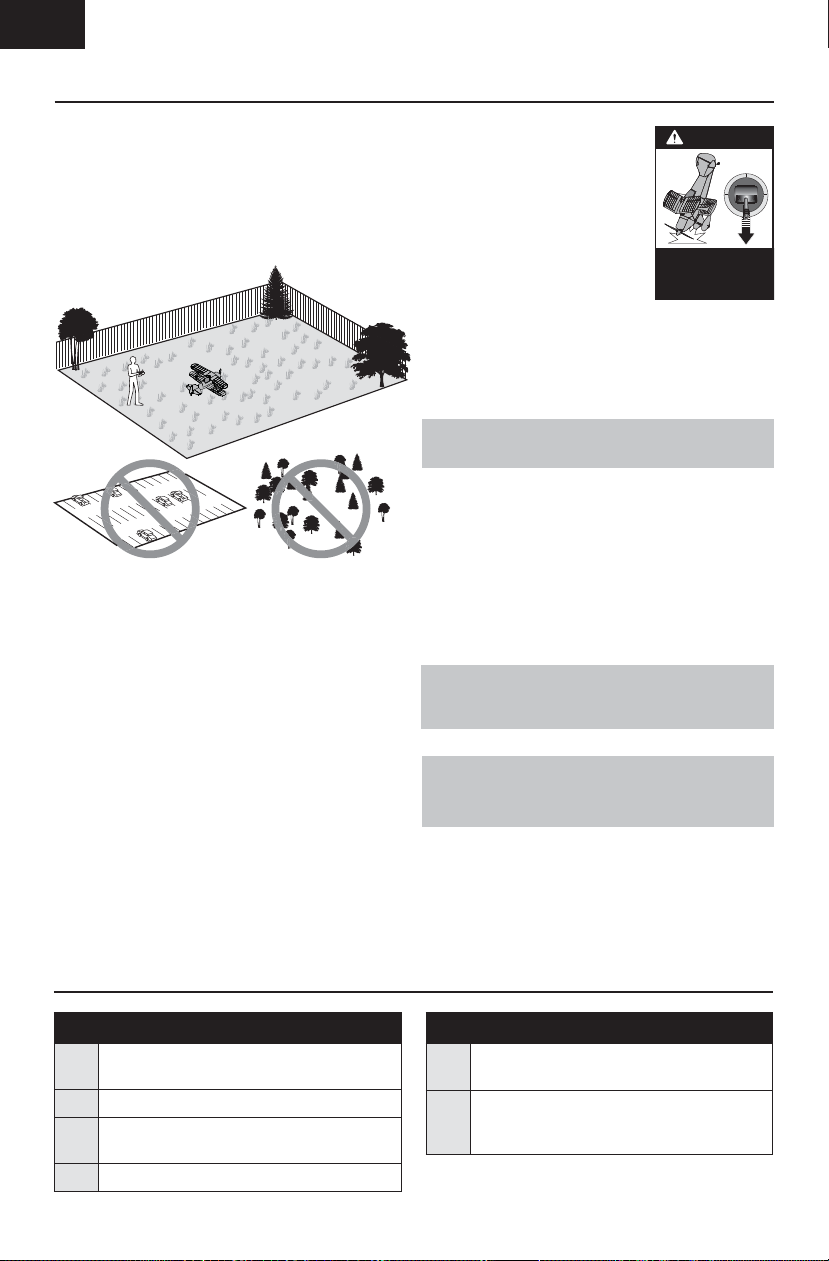

Flying Tips and Repairs
We recommend fl ying your aircraft outside in calm conditions. Always avoid fl ying near houses, trees, wires and buildings. You should also be careful to avoid fl ying in areas where there are many people, such as busy parks, schoolyards or soccer fi elds. Consult local laws and ordinances before choosing a location to fl y your aircraft.
Takeoff
Place the aircraft in position for takeoff (facing into the wind if fl ying outdoors). Set dual rates to low position and gradually increase the throttle to ¾ to full and steer with the rudder. Pull back gently on the elevator and climb to check trim. Once the trim is adjusted, begin exploring the fl ight envelope of the aircraft.
Landing
Land into the wind. This is very important for this model. Fly the aircraft to approximately 6 inches (15cm) or less above the runway, using a small amount of throttle for the entire descent. Keep the throttle on until the aircraft is ready to fl are. During fl are, keep the wings level and the airplane pointed into the wind. Gently lower the throttle while pulling back on the elevator to bring the aircraft down on all three wheels.
Failure to lower the throttle stick and trim to the lowest possible positions during a crash could result in damage to the ESC in the receiver unit, which may require replacement.
This aircraft is equipped with Over Current Protection (OCP). This feature protects the ESC from overheating. OCP stops the motor when the transmitter throttle is set too high and the propeller cannot turn. The OCP will only activate when the throttle stick is positioned just above 1/2 throttle. After the ESC stops the motor, fully lower the throttle to re-arm the ESC.
NOTICE: Crash damage is not covered under the warranty.
Repairs
Repair the aircraft using foam-compatible CA (cyanoacrylate adhesive) or clear tape. Only use foam-compatible CA, as other types of glue can damage the foam. When parts are not repairable, see the Replacement Parts List for ordering by item number.
For a listing of all replacement and optional parts, refer to the list at the end of this manual.
NOTICE: Use of foam-compatible CA accelerant on your aircraft can damage paint. DO NOT handle the aircraft until the accelerant fully dries.
NOTICE: When you are fi nished fl ying, never leave the aircraft in direct sunlight or in a hot, enclosed area such as a car. Doing so can damage the foam.
CAUTION
Always
decrease throttle at
propeller strike.
Post Flight Checklist
1. Disconnect the fl ight battery from the ESC
(Required for safety and battery life).
2. Power OFF the transmitter.
3. Remove the fl ight battery from the
aircraft.
4. Recharge the fl ight battery.
8
5. Store the fl ight battery apart from the
aircraft and monitor the battery charge.
6. Make note of the fl ight conditions and
fl ight plan results, planning for future fl ights.
Power Components Service
Disassembly
CAUTION: DO NOT handle the propeller
while the fl ight battery is connected to the ESC. Personal injury could result.
EN
Propeller
1. Remove the spinner (A) from the propeller. Since the propeller and spinner are glued
together, glue residue will need to be cleaned from the spinner or propeller when these parts are used again.
2. Carefully remove the screw (B) and propeller
(C) from the motor shaft.
Motor
1. Remove the battery hatch by gripping the front
of the hatch, then pulling it up and away from the fuselage.
2. Disconnect the motor wire connector from
the ESC/receiver connector.
3. Remove the screw (D) and motor (E) from the
motor mount.
4. Remove 3 screws (F) and the prop adapter (G)
from the motor. The motor magnet may attract screws to the motor.
A
C
B
D
E
Assembly
Assemble in reverse order.
• Connect the motor wire connector to the ESC/
receiver.
• The propeller size numbers (5.75x2.25) must
face out from the motor for correct propeller operation.
• Ensure the propeller adapter and motor mount
are fully connected to the motor.
G
F
9
EN
Troubleshooting Guide
AS3X
Problem Possible Cause Solution
Control surfaces not at neutral position when transmitter controls are at neutral
Model fl ies inconsis­tently from fl ight to fl ight
Controls oscillate in fl ight, (model rapidly jumps or moves)
Problem Possible Cause Solution
Aircraft will not respond to throttle but responds to other controls
Extra propeller noise or extra vibration
Reduced fl ight time or aircraft underpowered
LED on receiver fl ashes and aircraft will not bind to transmitter (during binding)
Control surfaces may not have been mechanically centered from factory
Aircraft was moved after the fl ight battery was connected and before sensors initialized
Aircraft was not kept immobile for 5 seconds after battery was plugged in
Trims are moved too far from neutral position
Propeller is unbalanced, causing excessive vibration
Prop screw is too loose, causing vibration Tighten the prop screw
Throttle stick and/or throttle trim too high Reset controls with throttle stick and throttle
Throttle channel is reversed Reverse throttle channel on transmitter Motor disconnected from receiver Open fuselage and make sure motor is
Damaged propeller, spinner or motor Replace damaged parts Prop screw is too loose Tighten the prop screw Prop is out of balance Remove and balance propeller, or replace
Flight battery charge is low Completely recharge fl ight battery Propeller installed backwards Install propeller with numbers facing forward Flight battery damaged Replace fl ight battery and follow fl ight battery
Flight conditions may be too cold Make sure battery is warm before use Battery capacity too low for fl ight conditions Replace battery or use a larger capacity
Transmitter too near aircraft during binding process
Bind switch or button not held long enough during bind process
Aircraft or transmitter is too close to large metal object, wireless source or another transmitter
Center control surfaces mechanically by adjusting the U-bends on control linkages
Disconnect and reconnect the fl ight battery while keeping the aircraft still for 5 seconds
Keep the aircraft immobile for 5 seconds after plugging in the battery
Neutralize trims and mechanically adjust linkages to center control surfaces
Remove propeller and rebalance or replace it if damaged
trim at lowest setting
connected to the receiver
with a balanced propeller
instructions
battery Power off transmitter, move transmitter a
larger distance from aircraft, disconnect and reconnect fl ight battery to aircraft and follow binding instructions
Power off transmitter and repeat bind pro­cess. Hold transmitter bind button or switch until receiver is bound
Move aircraft and transmitter to another location and attempt binding again
10
Troubleshooting Guide (Continued)
Problem Possible Cause Solution
LED on receiver fl ashes rapidly and aircraft will not respond to transmit­ter (after binding)
Control surface does not move
Controls reversed Transmitter settings reversed Adjust controls on transmitter appropriately Motor loses power Damage to motor or power components Do a check of motor and power components
Motor power quickly decreases and in­creases then motor loses power
Motor/ESC is not armed after landing
Servo locks or freezes at full travel
Less than a 5-second wait between fi rst powering on transmitter and connecting fl ight battery to aircraft
Aircraft bound to different model memory (ModelMatch
Flight battery/transmitter battery charge is too low
Transmitter may have been bound to a different model (or with a different DSM Protocol)
Aircraft or transmitter is too close to large metal object, wireless source or another transmitter
Control surface, control horn, linkage or servo damage
Wire damaged or connections loose Do a check of wires and connections, con-
Flight battery charge is low Fully recharge fl ight battery Control linkage does not move freely Make sure control linkage moves freely
Battery power is down to the point of receiver/ESC Low Voltage Cutoff (LVC)
Over Current Protection (OCP) stops the motor when the transmitter throttle is set high and the propeller cannot turn
Travel adjust value is set above 100%, overdriving the servo
radios only)
Leaving transmitter on, disconnect and reconnect fl ight battery to aircraft
Select correct model memory on transmitter and disconnect and reconnect fl ight battery to aircraft
Replace/recharge batteries
Select the right transmitter or bind to the new one
Move aircraft and transmitter to another location and attempt linking again
Replace or repair damaged parts and adjust controls
nect or replace as needed
for damage (replace as needed) Recharge fl ight battery or replace battery that
is no longer performing
Fully lower throttle and throttle trim to arm ESC
Set Travel adjust to 100% or less and/or set sub-trims to Zero and adjust linkages mechanically
EN
Limited Warranty
What this Warranty Covers
Horizon Hobby, Inc. (“Horizon”) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase.
What is Not Covered
This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modifi cation of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable technical regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.
Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion
11
EN
of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.
Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, fi nal assembly, modifi cation or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.
Law
These terms are governed by Illinois law (without regard to confl ict of law principals). This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.
WARRANTY SERVICES
Questions, Assistance, and Services
Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www. horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.
Inspection or Services
If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/content/_ service-center_render-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem.
12
A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.
NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support offi ce.
Warranty Requirements
For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met,
your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.
Non-Warranty Service
Should your service not be covered by warranty, service will be completed and payment will be required without notifi cation or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are
agreeing to payment of the service without notifi cation. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of ½ hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier’s checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon’s Terms and Conditions found on our website http://www.horizonhobby. com/content/_service-center_render-service-center.
ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender’s choice and at the sender’s expense. Horizon will hold non-compliant Product for a period of 60 days from notifi cation, after which it will be discarded.
Warranty and Service Information
Country of Purchase Horizon Hobby Phone Number/Email Address Address
United States of
America
United Kingdom
Germany
France
China
Horizon Service Center
(Repairs and Repair Requests)
Horizon Product Support
(Product Technical Assistance)
Sales
Service/Parts/Sales:
Horizon Hobby Limited
Horizon Technischer Service service@horizonhobby.de Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100
Service/Parts/Sales:
Horizon Hobby SAS
Service/Parts/Sales:
Horizon Hobby – China
servicecenter.horizonhobby.
com/RequestForm/
www.quickbase.com/db/
bghj7ey8c?a=GenNewRecord
888-959-2305
sales@horizonhobby.com
888-959-2305
sales@horizonhobby.co.uk Units 1–4 , Ployters Rd,
+44 (0) 1279 641 097
infofrance@horizonhobby.com
+33 (0) 1 60 18 34 90
info@horizonhobby.com.cn Room 506,
+86 (021) 5180 9868
4105 Fieldstone Rd
Champaign, Illinois, 61822 USA
Staple Tye Harlow, Essex,
CM18 7NS, United Kingdom
Christian-Junge-Straße 1
25337 Elmshorn, Germany
11 Rue Georges Charpak
77127 Lieusaint, France
No. 97 Changshou Rd.
Shanghai, China 200060
Compliance Information for the European Union
Declaration of Conformity
(in accordance with ISO/IEC 17050-1) No. HH2014021501
EN
Product(s): EFL UMX S-1S Pitts BNF Item Number(s): EFLU5250 Equipment class: 1
The object of declaration described above is in conformity with the requirements of the specifi cations listed below, following the provisions of the European R&TTE Directive 1999/5/EC and EMC Directive 2004/108/EC and LVD Directive 2006/95/EC:
EN 301 489-1 V1.9.2: 2012 EN301 489-17 V2.1.1: 2009
EN60950-1:2006+A11:2009+A1:2010+A12: 2011
EN55022:2010 + AC:2011 EN55024:2010
Signed for and on behalf of: Horizon Hobby, Inc. Champaign, IL USA
Feb 15, 2014
Chief Financial Offi cer
Robert Peak
Horizon Hobby, Inc.
Instructions for disposal of WEEE by users in the European Union
This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and
information about where you can drop off your waste equipment for recycling, please contact your local city offi ce, your household waste disposal service or where you purchased the product.
ensure that it is recycled in a manner that protects human health and the environment. For more
13
Part # • Nummer Numéro • Codice
EFLU5265
EFLU5251
EFLU5255
EFLU5261
EFLU5259
EFLU5260
FLU5262
EFLU5246
EFLU5030
EFLU5258
EFLU5270
EFLUP575225
EFLU4067
EFLUM180BLB
SPMAS6410NBL
SPMSA2030L
SPM6836
Replacement Parts – Ersatzteile –
– Pièces de rechange – Pezzi di ricambio –
Description Beschreibung Description Descrizione
Decal Set: UMX Pitts S-1S
Spinner Set (3): UMX Pitts S-1S
Landing Gear Set w/ Wheel Pants: UMX Pitts S-1S
Interplane Strut Set: UMX Pitts S-1S
Wing Set: E-fl ite UMX Pitts S-1S
Tail Set w/ Accessories: UMX Pitts S-1S
Battery Hatch: UMX Pitts S-1S
Pushrod/Wing Brace Set: UMX Pitts S-1S
Motor Mount: UMX Yak 54 180
Fuselage w/Cabane and Hatch: UMX Pitts S-1S
Ultra Micro 1/14th Scale Aerobatic Pilot
5.75x2.25 Electric Propeller: UMX Yak 54
Prop Adapter: UMX Beast
180 Brushless Outrunner Motor 3000Kv
Spektrum 6 Ch AS3X Receiver w/ BL ESC
2.3-Gram Performance Linear Long Throw Servo
Replacement Servo Mechanics: 2.3­Gram 2030L
Dekorbogen: UMX Pitts S-1S
E-fl ite UMX Pitts S-1S: Spinner Set
E-fl ite UMX Pitts S-1S: Fahrwerk m. Radschuhe
E-fl ite UMX Pitts S-1S: Tragfl ächenstreben
E-fl ite UMX Pitts S-1S: Tragfl ächen
E-fl ite UMX Pitts S-1S: Leitwerk Set mit Zubehör
E-fl ite UMX Pitts S-1S: Akkuklappe
E-fl ite UMX Pitts S-1S: Gestänge / Tragfl ächenhalter
E-fl ite UMX Yak 54 180: Motorhalter
E-fl ite UMX Pitts S-1S: Rumpf m. Haube
Ultra Micro 1/14th Scale Aerobatik Pilot
5.75x2.25: UMX Yak 54
Efl ite Propeller Adap­ter: UMX Beast
BL180 Brushless Außenläufer Motor 3000 kv
Spektrum 6 Kanal AS3X Empfänger m. BL Regler
2,3 Gramm Hochleistungs ­Linear Servo mit langem Ruderweg
Ersatzservom­echanik 2,3 Gramm 2030L
Set de décoration: UMX Pitts S-1S
Cônes (3) : UMX Pitts S-1S
Train d’atterrissage avec carénages de roues : UMX Pitts S-1S
Set de haubans : UMX Pitts S-1S
UMX UMX Pitts S-1S
-Aile UMX Pitts S-1S -Set
d’empennage
Trappe à batterie : UMX Pitts S-1S
Set de tringleries : UMX Pitts S-1S
UMX Yak 54 180 ­Support moteur
Fuselage avec cabane et trappe : UMX Pitts S-1S
Pilote de voltige pour Ultra Micro 1/14
5.75x2.25 Hélice élec­trique: UMX Yak 54
Adaptateur d’hélice: UMX Beast
Moteur brushless à cage tournante 180 3000kv
Module Spektrum 6 voies Rx/ESC/AS3X
Servo 2.3g linéaire longue course performant
Pièces de rechange mécaniques servo: 2,3g 2030 L
Set adesivi: UMX Pitts S-1S
Set ogiva (3): UMX Pitts S-1S
Set carrello con carenature ruote: UMX Pitts S-1S
Set montanti alari: UMX Pitts S-1S
Ala: UMX Pitts S-1S
Set coda c/Acc: UMX Pitts S-1S
Portello batteria: UMX Pitts S-1S
Set aste/fi ssaggi ala: UMX Pitts S-1S
Supporto motore: UMX Yak 54 180
Fusoliera con cabana e portello: UMX Pitts S-1S
Ultra Micro Pilota Acrobatico in scala 1/14
Elica 5.75x2.25: UMX Yak 54
Adattatore elica: UMX Beast
180 Motore brushless cassa rotante 3000KV
Ricevitore Spektrum 6 CH AS3X con ESC BL
Ottimo servo lineare a corsa lunga da 2,3 Grammi
Componenti meccanici di ricambio del servo: 2030L da 2,3 grammi
50
– Optional Parts and Accessories –
– Optionale Bauteile und Zubehörteile –
– Pièces optionnelles et accessoires –
– Pezzi opzionali e accessori –
Part # • Nummer Numéro • Codice
PKZ1039
EEFLB2002S25
EEFLB2002S30
EEFLB1502S45
EFLUC1007
EFLUC1008
EFLA700UM
EFLA7001UM
EFLU4068
EFLC4000/UK/ AU/EU
Description Beschreibung Description Descrizione
Hook and Loop Set (5): Ultra Micros
2S 7.4V 200mAh 25C Li-Po Battery
2S 7.4V 200mAh 30C Li-Po Battery
2S 7.4V 150mAh 45C Li-Po Battery
Celectra 2S 7.4V DC Li-Po Charger
DC Power Cord: UMX Beast
Charger Plug Adapter: EFL
Charger Plug Adapter: Thunder Power
Harness Adapter: UMX Beast
AC to 12V DC,1.5 Amp Power Supply (Based upon your sales Region)
DX5e DSMX 5-Channel Transmitter
DX6i DSMX 6-Channel Transmitter
DX7s DSMX 7-Channel Transmitter
DX8 DSMX Transmitter
DX9 DSMX Transmitter
DX18 Transmitter Spektrum DX18 nur
Parkzone: Klettband Set Ultra Micros
2S 7.4V 200mAh 25C Li-Po Akku
2S 7.4V 200mAh 30C Li-Po Akku
2S 7.4V 150mAh 45C Li-Po Akku
Celectra 2S 7.4V DC Li-Po Ladegerät
DC Ladekabel UMX Beast
Ladekabel Adapter EFL
Ladekabel Adapter Thunder Power
E-fl ite UMX Beast Y-Kabel
Netzteil 12V 1,5 A (Basierend nach Vertriebsregion)
DX5e DSMX 5-Kanal Sender
DX6i DSMX 6-Kanal Sender
Spektrum DX7s 7 Kanal Sender
Spektrum DX8 nur Sender
Spektrum DX9 nur Sender
Sender
Ultras Micros - Bande auto-agrippante (5)
Batterie Li-Po 7.4V 2S 25C 200mA
Batterie Li-Po 7.4V 2S 30C 200mA
Batterie Li-Po 7.4V 2S 45C 150mA
Celectra Chargeur Li-Po 7.4V 2S
Alimentation DC DC Cavo alimenta-
Prise d’adaptation chargeur: EFL
Prise d’adaptation chargeur: Thunder Power
Adaptateur de câblage: UMX Beast
Alimentation CA vers 12V CC, 1,5 A (En fonction de votre région)
Emetteur DX5e DSMX 5 voies
Emetteur DX6i DSMX 6 voies
Emetteur DX7s DSMX 7 voies
Emetteur DX8 DSMX 8 voies
Emetteur DX9 DSMX 9 voies
Emetteur DX18 DSMX 9 voies
Set fascette a strappo (5): Ultra Micro
2S 7.4V 200mAh 25C Li-Po Batteria
2S 7.4V 200mAh 30C Li-Po Batteria
2S 7.4V 150mAh 45C Li-Po Batteria
Celectra 2S 7.4V DC Li-Po Caricabatterie
zione: UMX Beast Adattatore connettore
caricabatterie: EFL Adattatore connettore
caricabatterie: Thunder Power
Adattatore collegam­enti: UMX Beast
Alimentatore CA
- 12V CC da 1,5 A (in base al Paese di vendita)
DX5e DSMX Trasmettitore 5 canali
DX6i DSMX Trasmettitore 6 canali
DX7s DSMX Trasmettitore 7 canali
DX8 DSMX Solo trasmettitore
DX9 DSMX Solo trasmettitore
DX18 DSMX Solo trasmettitore
51
© 2014 Horizon Hobby, Inc.
E-fl ite, AS3X, Blade, Celectra, UMX, DSM, DSM2, DSMX, ModelMatch, Bind-N-Fly, the Bind-N-Fly logo
and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, Inc.
The Spektrum trademark is used with permission of Bachmann Industries, Inc.
Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha
Corporation of Japan.
®
Aviat
, Aviat Aircraft™ and Pitts® are trademarks or registered trademarks of Aviat Aircraft, Inc.
and is used under license by Horizon Hobby, Inc.
Patents pending.
www.e-fl iterc.com
EFLU5250
Created 1/14 38313
Loading...
