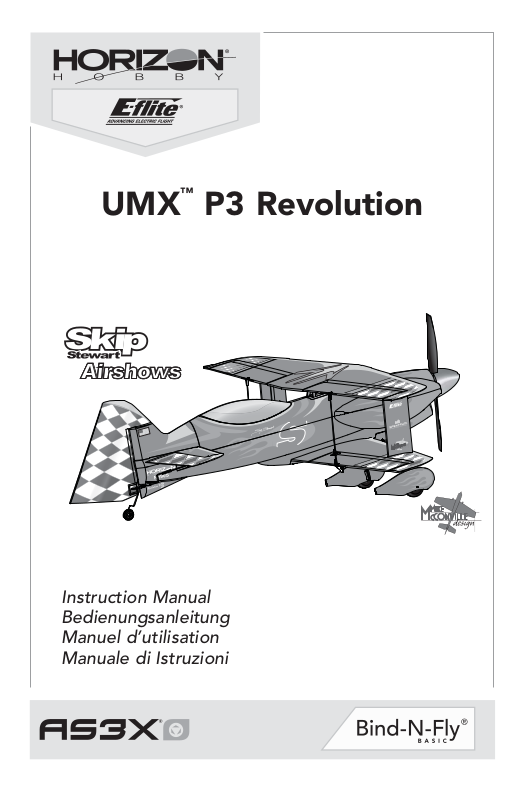

E-flite UMX™ P3 Revolution Instruction Manual

UMX™ P3 Revolution

Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superﬁ cial injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the

product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Age Recommendation: Not for children under 14 years. This is not a toy.

Safety Precautions and Warnings

• Always keep a safe distance in all directions around your model to avoid collisions or injury. This model is controlled by a radio signal subject to interference from many sources outside your control. Interference can cause momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles, trafﬁ c and people.

• Always carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed and protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep the transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂ ying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

Table of Contents

Transmitter and Receiver Binding ...........................4

Low Voltage Cutoff (LVC) ........................................4

ESC/Receiver Arming, Battery Installation and

Center of Gravity ....................................................5

Control Direction Tests ...........................................6

Control Centering ..................................................7

Control Horn Settings .............................................7

Dual Rates .............................................................7

DX4e and DX5e Expo Activation and Deactivation ..8

Flying Tips and Repairs ..........................................9

Speciﬁ cations

16 in (523mm)

18.8 in (400mm)

Post Flight Checklist ..............................................9

Power Components Service .................................10

Troubleshooting Guide .........................................11

Limited Warranty .................................................12

Warranty and Service Information ........................14

IC Information ......................................................14

FCC Information ...................................................14

Compliance Information for the European Union ...14

Replacement Parts ...............................................54

Optional Parts and Accessories ............................55

Installed

Motor: 180BL 3000Kv Brushless

Outrunner (EFLUM180BLB)

Receiver :

Receiver BL-ESC (SPMAS6410LBL)

(2) 2.3-Gram Performance Linear Long Throw Servo (SPMSA2030L)

DSM2 6 Ch Ultra Micro AS3X®

Needed to Complete

Recommended Battery: 200mAh 2S

7.4V 30C Li-Po, 26AWG (EFLB2002S30)

Wing Area: 85 sq. in. (547 sq. cm.)

Preﬂ ight Checklist

1. Charge ﬂ ight battery.

2. Install ﬂ ight battery in aircraft (once it has been fully charged).

3. Bind aircraft to transmitter.

4. Make sure linkages move freely.

5. Perform Control Direction Test with transmitter.

To register your product online, go to www.e-ﬂ iterc.com

3.03 oz (86 g)

Recommended Battery Charger: Celectra™ 2S 7.4V DC Li-Po Charger (EFLUC1007)

Recommended Transmitter: Spektrum™ DSM2®/DSMX® full range with dual-rates (DX4e and up)

6. Set dual rates and expos.

7. Adjust center of gravity.

8. Perform a radio system Range Check.

9. Find a safe and open area.

10. Plan ﬂ ight for ﬂ ying ﬁ eld conditions.

Transmitter and Receiver Binding

Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identiﬁ er) code of a single speciﬁ c transmitter. You need to ‘bind’ your chosen Spektrum equipped aircraft transmitter to the receiver for proper operation.

Any full range Spektrum DSM2/DSMX transmitter can bind to the DSM2/DSMX receiver. Please visit www. bindnﬂ y.com for a complete list of compatible transmitters.

Binding Procedure

CAUTION: When using a Futaba transmitter with a Spektrum DSM® module, you must reverse the

throttle channel and rebind. Refer to your Spektrum module manual for binding and failsafe instructions. Refer to your Futaba transmitter manual for instructions on reversing the throttle channel.

1. Refer to your transmitter’s unique instructions for binding to a receiver (location of transmitter’s Bind control).

2. Make sure the ﬂ ight battery is disconnected from the aircraft.

3. Power off your transmitter.

4. Connect the ﬂ ight battery in the aircraft. The receiver LED will begin to ﬂ ash rapidly (typically after 5 seconds).

5. Make sure the transmitter controls are neutral and the throttle and throttle trim are in low position.

6. Put your transmitter into bind mode. Refer to your transmitter’s manual for binding button or switch instructions.

7. After 5 to 10 seconds, the receiver status LED will turn solid, indicating that the receiver is bound

to the transmitter. If the LED does not turn solid, refer to the Troubleshooting Guide at the back of the manual.

™

DSM2/DSMX technology

For subsequent ﬂ ights, power ON the transmitter for 5 seconds before connecting the ﬂ ight battery.

Low Voltage Cutoff (LVC)

When a Li-Po battery is discharged below 3V per cell, it will not hold a charge. The aircraft’s ESC protects the ﬂ ight battery from over-discharge using Low Voltage Cutoff (LVC). Once the battery discharges to 3V per cell, the LVC will reduce the power to the motor in order to leave adequate power to the receiver and servos to land the airplane.

When the motor power decreases, land the aircraft immediately and replace or recharge the ﬂ ight battery.

Always disconnect and remove the Li-Po battery from the aircraft after each ﬂ ight. Charge your Li-Po battery to about half capacity before storage. Make sure the battery charge does not fall below 3V per cell. Failure to unplug a connected battery will result in trickle discharge.

For your ﬁ rst ﬂ ights, set your transmitter timer or a stopwatch to 5 minutes. Adjust your timer for longer or shorter ﬂ ights once you have ﬂ own the model.

NOTICE: Repeated ﬂ ying to LVC will damage the battery.

1-2-3-4-5 Sec.

ESC/Receiver Arming, Battery Installation and Center of Gravity

CAUTION: Always keep hands away from the

propeller. When armed, the motor will turn the propeller in response to any throttle movement.

Arming the ESC/receiver also occurs after binding as previously described, but subsequent connection of a ﬂ ight battery requires the following steps.

AS3X

The AS3X throttle stick or trim is increased for the first time. Once active, the control surfaces may move rapidly and noisily on the aircraft. This is normal. AS3X technology will remain active until the battery is disconnected.

1. Remove the battery hatch from the fuselage.

2. Install flight battery in the center of battery try.

system will not activate until the

Ensure the battery is secured by the hook and loop strip.

Center of Gravity (CG)

At the wing root of the bottom wing, measure back 19mm from the leading edge where the wing meets the fuselage. The easiest way to achieve CG is to balance the aircraft inverted.

3. Lower the throttle and throttle trim to the lowest settings on your transmitter. Power on your transmitter, then wait 5 seconds.

4. Connect the battery to the ESC, noting proper polarity. Keep the plane immobile and away from wind for 5 seconds to allow the AS3X system to initialize. A series of tones and a continuous LED indicates a successful connection.

19mm

CAUTION: Always disconnect the Li-Po

battery from the ESC when not ﬂ ying to eliminate power supplied to the motor. The ESC does not have an arming switch and will respond to any transmitter input when a signal is present.

CAUTION: Always disconnect the Li-Po

battery from the ESC when not ﬂ ying to avoid over-discharging the battery. Batteries discharged to a voltage lower than the lowest approved voltage may become damaged, resulting in loss of performance and potential ﬁ re when batteries are charged.

Control Direction Tests

Traditional Control Direction Test

You should bind your aircraft and transmitter before doing these tests. Move the controls on the transmitter to make sure the aircraft control surfaces move correctly and in the

proper direction. Make sure the tail linkages move freely and that paint or decals are not adhered to them.

AS3X® Control Direction Test

This test is meant to check that the AS3X® system is functioning properly.

1. Advance the throttle to 25% to activate the AS3X system.

2. Fully lower the throttle.

3. Move the entire aircraft as shown and ensure the control surfaces move in the direction indicated in the graphic. If the control surfaces do not respond as shown, do not fly the aircraft. Refer to the receiver manual

for more information.

Once the AS3X system is active, control surfaces may move rapidly. This is normal. AS3X is active until the battery is disconnected.

Aircraft

movement

ElevatorAileronRudder

AS3X Reaction

Control Centering

Before the ﬁ rst ﬂ ights, or in the event of an accident, make sure the ﬂ ight control surfaces are centered. Adjust the linkages mechanically if

the control surfaces are not centered. Use of the transmitter sub-trims may not correctly center the aircraft control surfaces due to the mechanical limits of linear servos.

1. Make sure the control surfaces are neutral when the transmitter controls and trims are centered. The transmitter sub-trim must always be set to zero.

2. When needed, use a pair of pliers to carefully bend the metal linkage (see illustration).

3. Make the U-shape narrower to make the connector shorter. Make the U-shape wider to make the linkage longer.

Control Horn Settings

The table to the right shows the factory settings for the control horns. Fly the aircraft at factory settings before making changes.

After ﬂ ying, you may choose to adjust the linkage positions for the desired control response.

Centering Controls After First Flights For best performance with AS3X, it is important

that excessive trim is not used. If the aircraft re-

quires excessive transmitter trim (4 or more clicks of trim per channel), return the transmitter trim to zero and adjust the linkages mechanically so that the control surfaces are in the ﬂ ight trimmed position.

Aileron Elevator Rudder

CAUTION: When these are incorrectly

connected for the pilot’s skill level, unexpected aircraft response to controls can result. This can cause damage to the aircraft and personal injury.

Dual Rates

To obtain the best ﬂ ight performance, we recommend using a DSM2/DSMX radio capable of adjustable Dual Rates. The suggested settings shown here are the recommended starting settings. Adjust according to the individual preferences after the initial ﬂ ight.

NOTICE: Do not set your transmitter travel adjust over 100%. If the TRAVEL ADJUST is set over

100%, it will not result in more control movement, it will overdrive the servo and cause damage.

It is normal for linear servos to make signiﬁ cant noise. The noise is not an indication of a faulty servo.

Dual Rate Expo

High Low High Low

Aileron 100% 70% 15% 10% Elevator 100% 60% 15% 5%

Rudder 100% 70% 0% 0%

Tip: For the ﬁ rst ﬂ ight, ﬂ y the model in low rate.

DX4e and DX5e Expo Activation and Deactivation

If you plan to ﬂ y your aircraft with a DX4e or DX5e, activate Expo for the best feel. Disconnect the battery from the aircraft before activating the Expo feature in your transmitter.

Once Expo is activated, it will remain activated for subsequent power cycles of the transmitter. Once Expo is deactivated, it will remain deactivated until it is activated again.

DX4e (Modes 1 and 2)

Activate and Deactivate Expo

1. Put the ACT switch in the down position (ON) and the Rate switch in the down position (LO).

2. Push and hold the trainer (bind) button and move and hold the two sticks (as shown here) for activation (A) or deactivation (B), while powering on the transmitter.

3. Release the trainer switch and the control sticks only after a series of tones sound (ascending tones for activation, descending tones for deactivation).

DX5e (Modes 1 and 2)

Activate and Deactivate Expo

1. Hold the aileron trim switch to the right for activation (C) or to the left for deactivation (D), while powering on the transmitter.

2. Release the aileron trim switch after a series of tones sound, (ascending tones for activation, descending tones for deactivation).

C D

Flying Tips and Repairs

We recommend ﬂ ying your aircraft outside in calm conditions. Always avoid ﬂ ying near houses, trees, wires and buildings. You should also be careful to avoid ﬂ ying in areas where there are many people, such as busy parks, schoolyards or soccer ﬁ elds. Consult local laws and ordinances before choosing a location to ﬂ y your aircraft.

Takeoff

Place the aircraft in position for takeoff (facing into the wind if ﬂ ying outdoors). Set dual rates to low position and gradually increase the throttle to ¾ to full and steer with the rudder. Pull back gently on the elevator and climb to check trim. Once the trim is adjusted, begin exploring the ﬂ ight envelope of the aircraft.

Landing

Land into the wind. This is very important for this model. Fly the aircraft to approximately 6 inches (15cm) or less above the runway, using a small amount of throttle for the entire descent. Keep the throttle on until the aircraft is ready to ﬂ are.

During ﬂ are, keep the wings level and the airplane pointed into the wind. Gently lower the throttle while pulling back on the elevator to bring the aircraft down on all three wheels.

Failure to lower the throttle stick and trim to the lowest possible positions during a crash could result in damage to the ESC in the receiver unit, which may require replacement.

Over Current Protection (OCP)

This aircraft is equipped with Over Current Protection (OCP). This feature protects the ESC from overheating. OCP stops the motor when the transmitter throttle is set too high and the propeller cannot turn. The OCP will only activate when the throttle stick is positioned just above 1/2 throttle. After the ESC stops the motor, fully lower the throttle to re-arm the ESC.

NOTICE: Crash damage is not covered under the warranty.

Repairs

Repair the aircraft using foam-compatible CA (cyanoacrylate adhesive) or clear tape. Only use foam-compatible CA, as other types of glue can damage the foam. When parts are not repairable, see the Replacement Parts List for ordering by item number.

For a listing of all replacement and optional parts, refer to the list at the end of this manual.

NOTICE: Use of foam-compatible CA accelerant on your aircraft can damage paint. DO NOT handle the aircraft until the accelerant fully dries.

NOTICE: When you are ﬁ nished ﬂ ying, never leave the aircraft in direct sunlight or in a hot, enclosed area such as a car. Doing so can damage the foam.

CAUTION:

Always decrease throttle at propeller strike.

Post Flight Checklist

1. Disconnect the flight battery from the ESC (Required for safety and battery life).

2. Power OFF the transmitter.

3. Remove the flight battery from the aircraft.

4. Recharge the flight battery.

5. Store the flight battery apart from the aircraft and monitor the battery charge.

6. Make note of the flight conditions and flight plan results, planning for future flights.

Power Components Service

Disassembly

CAUTION: DO NOT handle the propeller

while the ﬂ ight battery is connected to the ESC. Personal injury could result.

Propeller

1. Remove the spinner (A) from the propeller. Since the propeller and spinner are glued

together, glue residue will need to be cleaned from the spinner or propeller when these parts are used again.

2. Carefully remove the screw (B) and propeller (C) from the motor shaft.

Motor

1. Remove the battery hatch by gripping the front of the hatch, then pulling it up and away from the fuselage.

2. Disconnect the motor wire connector from the ESC/receiver connector.

3. Remove the screw (D) and motor (E) from the motor mount.

4. Remove 3 screws (F) and the prop adapter (G) from the motor. The motor magnet may attract screws to the motor.

Assembly

Assemble in reverse order.

• Connect the motor wire connector to the ESC/ receiver.

• The propeller size numbers (5.75x2.25) must face out from the motor for correct propeller operation.

• Ensure the propeller adapter and motor mount are fully connected to the motor.

Troubleshooting Guide

AS3X

Problem Possible Cause Solution

Control surfaces not at neutral position when transmitter controls are at neutral

Model ﬂ ies inconsistently from ﬂ ight to ﬂ ight

Controls oscillate in ﬂ ight, (model rapidly jumps or moves)

Problem Possible Cause Solution

Aircraft will not respond to throttle but responds to other controls

Extra propeller noise or extra vibration

Reduced ﬂ ight time or aircraft underpowered

LED on receiver ﬂ ashes and aircraft will not bind to transmitter (during binding)

Control surfaces may not have been mechanically centered from factory

Aircraft was moved after the ﬂ ight battery was connected and before sensors initialized

Aircraft was not kept immobile for 5 seconds after battery was plugged in

Trims are moved too far from neutral position

Propeller is unbalanced, causing excessive vibration

Prop screw is too loose, causing vibration Tighten the prop screw

Throttle stick and/or throttle trim too high Reset controls with throttle stick and throttle

Throttle channel is reversed Reverse throttle channel on transmitter Motor disconnected from receiver Open fuselage and make sure motor is

Damaged propeller, spinner or motor Replace damaged parts Prop screw is too loose Tighten the prop screw Prop is out of balance Remove and balance propeller, or replace

Flight battery charge is low Completely recharge ﬂ ight battery Propeller installed backwards Install propeller with numbers facing forward Flight battery damaged Replace ﬂ ight battery and follow ﬂ ight battery

Flight conditions may be too cold Make sure battery is warm before use Battery capacity too low for ﬂ ight conditions Replace battery or use a larger capacity

Transmitter too near aircraft during binding process

Bind switch or button not held long enough during bind process

Aircraft or transmitter is too close to large metal object, wireless source or another transmitter

Center control surfaces mechanically by adjusting the U-bends on control linkages

Disconnect and reconnect the ﬂ ight battery while keeping the aircraft still for 5 seconds

Keep the aircraft immobile for 5 seconds after plugging in the battery

Neutralize trims and mechanically adjust linkages to center control surfaces

Remove propeller and rebalance or replace it if damaged

trim at lowest setting

connected to the receiver

with a balanced propeller

instructions

battery Power off transmitter, move transmitter a

larger distance from aircraft, disconnect and reconnect ﬂ ight battery to aircraft and follow binding instructions

Power off transmitter and repeat bind process. Hold transmitter bind button or switch until receiver is bound

Move aircraft and transmitter to another location and attempt binding again

Troubleshooting Guide (Continued)

Problem Possible Cause Solution

LED on receiver ﬂ ashes rapidly and aircraft will not respond to transmitter (after binding)

Control surface does not move

Controls reversed Transmitter settings reversed Adjust controls on transmitter appropriately Motor loses power Damage to motor or power components Do a check of motor and power components

Motor power quickly decreases and increases then motor loses power

Motor/ESC is not armed after landing

Servo locks or freezes at full travel

Less than a 5-second wait between ﬁ rst powering on transmitter and connecting ﬂ ight battery to aircraft

Aircraft bound to different model memory (ModelMatch

Flight battery/transmitter battery charge is too low

Transmitter may have been bound to a different model (or with a different DSM Protocol)

Aircraft or transmitter is too close to large metal object, wireless source or another transmitter

Control surface, control horn, linkage or servo damage

Wire damaged or connections loose Do a check of wires and connections, con-

Flight battery charge is low Fully recharge ﬂ ight battery Control linkage does not move freely Make sure control linkage moves freely

Battery power is down to the point of receiver/ESC Low Voltage Cutoff (LVC)

Over Current Protection (OCP) stops the motor when the transmitter throttle is set high and the propeller cannot turn

Travel adjust value is set above 100%, overdriving the servo

™

radios only)

Leaving transmitter on, disconnect and reconnect ﬂ ight battery to aircraft

Select correct model memory on transmitter and disconnect and reconnect ﬂ ight battery to aircraft

Replace/recharge batteries

Select the right transmitter or bind to the new one

Move aircraft and transmitter to another location and attempt linking again

Replace or repair damaged parts and adjust controls

nect or replace as needed

for damage (replace as needed) Recharge ﬂ ight battery or replace battery that

is no longer performing

Fully lower throttle and throttle trim to arm ESC

Set Travel adjust to 100% or less and/or set sub-trims to Zero and adjust linkages mechanically

Limited Warranty

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modiﬁ cation of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable technical regulations, or (vii) use that violates any applicable laws, rules, or regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.

Purchaser’s Remedy

Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective.

Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, ﬁ nal assembly, modiﬁ cation or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conﬂ ict of law principals). This warranty gives you speciﬁ c legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www. horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping

without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/content/_servicecenter_render-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support ofﬁ ce.

Warranty Requirements For Warranty consideration, you must include your original sales receipt verifying the proofof-purchase date. Provided warranty conditions

have been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service Should your service not be covered by warranty,

service will be completed and payment will be required without notiﬁ cation or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for

service you are agreeing to payment of the service without notiﬁ cation. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of ½ hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier’s checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon’s Terms and Conditions found on our website http://www.horizonhobby.com/content/_ service-center_render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender’s choice and at the sender’s expense. Horizon will hold non-compliant Product for a period of 60 days from notiﬁ cation, after which it will be discarded.

Warranty and Service Information

Country of Purchase Horizon Hobby Phone Number/Email Address Address

United States of

America

United Kingdom

Germany

France

China

Horizon Service Center

(Repairs and Repair Requests)

Horizon Product Support

(Product Technical Assistance)

Sales

Service/Parts/Sales:

Horizon Hobby Limited

Horizon Technischer Service service@horizonhobby.de Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100

Service/Parts/Sales:

Horizon Hobby SAS

Service/Parts/Sales:

Horizon Hobby – China

servicecenter.horizonhobby.

com/RequestForm/

www.quickbase.com/db/

bghj7ey8c?a=GenNewRecord

888-959-2305

sales@horizonhobby.com

888-959-2305

sales@horizonhobby.co.uk Units 1–4 , Ployters Rd,

+44 (0) 1279 641 097

infofrance@horizonhobby.com

+33 (0) 1 60 18 34 90

info@horizonhobby.com.cn Room 506,

+86 (021) 5180 9868

4105 Fieldstone Rd

Champaign, Illinois, 61822 USA

Staple Tye Harlow, Essex,

CM18 7NS, United Kingdom

Christian-Junge-Straße 1

25337 Elmshorn, Germany

11 Rue Georges Charpak

77127 Lieusaint, France

No. 97 Changshou Rd.

Shanghai, China 200060

IC Information

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

FCC Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Compliance Information for the European Union

Instructions for disposal of WEEE by users in the European Union

EFL UMX P3 Revolution BNF Basic (EFLU5050) EU Compliance Statement: Horizon Hobby, LLC

hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the R&TTE and EMC Directive.

A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/ content/support-render-compliance.

the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city ofﬁ ce, your household waste disposal service or where you purchased the product.

This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collections point for

– Pièces de rechange – Recapiti per i ricambi –

Part # • Nummer Numéro • Codice

EFLU5051

EFLU5054

EFLU5058

EFLU5059

EFLU5060

EFLU5062

EFLU5065

EFLU5046

SPMSA2030L

EFLUP575225

EFLU4067

EFLUM180BLB

SPMAS6410LBL

Replacement Parts – Ersatzteile –

Description Beschreibung Description Descrizione

Spinner: UMX P3 Revolution

Landing Gr set w/ Pant: UMX P3

Fuselage Set: UMX P3 Revolution

Wing Set w/ Struts: UMX P3

Tail Set: UMX P3 Revolution

Battery Hatch: UMX P3 Revolution

Decal Set: UMX P3 Revolution

Pushrod Set: UMX P3 Revolution

2.3-Gram Performance Linear Long Throw Servo

5.75x2.25 Electric Propeller: UMX Yak 54

Prop Adapter: UMX Beast

180 Brushless Outrunner Motor 3000KV

DSM2 6 Ch Ultra Micro AS3X Receiver BL-ESC

Spinner: UMX P3 Revolution Fahrwerksset mit

Radschuhen:UMX P3

Rumpf: UMX P3 Revolution

Tragﬂ ächen mit Streben: UMX P3

Leitwerksset: UMX P3UMX P3 Revolution -

Akkuklappe: UMX P3 Revolution

Dekorbogen: UMX P3 Revolution

Gestängeset: UMX P3 Revolution

Spektrum 2,3-Gram Performance Linear Servo m. langem Ruderweg

5.75x2.25: UMX Yak 54

Eﬂ ite Propeller Adapter: UMX Beast

BL180 Brushless Außenläufer Motor 3000 kv

DSM2 6 Kanal Ultra Micro AS3X Empfänger BL-ESC

UMX P3 Revolution

- Cône

UMX P3 Revolution Train d'atterrissage avec habillage

UMX P3 Revolution Fuselage

UMX P3 Revolution

- Paire d'ailes avec haubans

Empennages UMX P3 Revolution -

Trappe de batterie

UMX P3 Revolution Planche de décoration

UMX P3 Revolution Set de tringleries

Servo linéaire 2.3g, course longue

5.75x2.25 Hélice électrique: UMX Yak 54

Adaptateur d’hélice: UMX Beast

Moteur brushless à cage tournante 180 3000kv

Ultra micro récepteur 6voies DSM2 AS3X a avec contrôleur brushless intégré

Ogiva: UMX P3 Revolution

Set Carrello con Copri ruota: UMX P3

Fusoliera: UMX P3 Revolution

Set ali con struttura: UMX P3

Set coda: UMX P3 Revolution

Naca copri vano batteria: UMX P3 Revolution

Decal Set: UMX P3 Revolution

Set rinvii: UMX P3 Revolution

2.3-grammi Servo lineare a corsa lunga

Elica 5.75x2.25: UMX Yak 54

Adattatore elica: UMX Beast

180 Motore brushless cassa rotante 3000KV

DSM2 6 Ch Ultra Micro AS3X Ricevitore BL-ESC

– Optional Parts and Accessories –

– Optionale Bauteile und Zubehörteile –

– Pièces optionnelles et accessoires –

– Parti opzionali e accessori –

Part # • Nummer Numéro • Codice

PKZ1039

EFLUC1007

EFLC1105

EFLUC1008

EFLB2002S30

EFLB2802S30

EFLA700UM

EFLA7001UM

EFLU4068

SPM6825

EFLC4000/UK/ AU/EU

EFLA111

Description Beschreibung Description Descrizione

Hook and Loop Set (5): Ultra Micros

Celectra 2S 7.4V DC Li-Po Charger

1S-2S AC/DC Li-Po Balancing Charger

Power Cord for EFLUC1007

200mAh 2s 7.4V DC Li–Po, 26AWG

280mAh 2s 7.4V DC Li–Po, 26AWG

Charger Plug Adapter: EFL

Charger Plug Adapter: Thunder Power

Harness Adapter: UMX Beast

Ultra Micro Linear Servo Reverser

AC to 12V DC,1.5 Amp Power Supply (Based upon your sales Region)

Li-Po Cell Voltage Checker

DX6 DSMX 6-Channel Transmitter

DX7 DSMX 7-Channel Transmitter

DX9 DSMX 9-Channel Transmitter

DX18/18QQ DSMX Transmitter

Klettband (5): Ultra Micros

Celectra 2S 7.4V DC Li-Po Ladegerät

E-ﬂ ite Ultra Micro-4, 4x9W, AC/DC Akkuladegerät, EU

Anschlußstecker mit Krokodilklemmen für EFLUC1007

200mAh 2S 7.4V 30C Li-Po Akku

280mAh 2S 7.4V 30C Li-Po Akku

Ladekabel Adapter EFL

Ladekabel Adapter Thunder Power

E-ﬂ ite UMX Beast Y-Kabel

Spektrum Ultra Micro Linear Servo Reverser

Netzteil 12V 1,5 A (Basierend nach Vertriebsregion)

E-ﬂ ite Li-Po Cell Volt Checker

DX6 DSMX 6-Kanal Sender

Spektrum DX7 7 Kanal Sender

Spektrum DX9 9 Kanal Sender

Spektrum DX18/18QQ nur Sender

Bande autoagrippante (5)

Celectra Chargeur Li-Po 7.4V 2S

Chargeur/équilibreur Li-Po 1 ou 2S AC/DC

Câble d’alimentation EFLUC1007

200mAh 2S 7.4V 30C Li-Po, 26AWG

280mAh 2S 7.4V 30C Li-Po, 26AWG

Prise d’adaptation chargeur: EFL

Prise d’adaptation chargeur: Thunder Power

Adaptateur de câblage: UMX Beast

Inverseur d’ultra micro servo linéaire

Alimentation CA vers 12V CC, 1,5 A (En fonction de votre région)

Contrôleur de tension des éléments Li-Po

Emetteur DX6 DSMX 6 voies

Emetteur DX7 DSMX 7 voies

Emetteur DX9 DSMX 9 voies

Emetteur DX18/18QQ DSMX

Set fascette ﬁ ssaggio (5): Ultra Micros

Celectra 2S 7.4V DC Li-Po Caricabatterie

1S-2S AC/DC Li-Po Caricatore con bilanciamento

Cavo alimentazione per EFLUC1007

200mAh 2S 7.4V 30C Li-Po, 26AWG

280mAh 2S 7.4V 30C Li-Po, 26AWG

Adattatore connettore caricabatterie: EFL

Adattatore connettore caricabatterie: Thunder Power

Adattatore collegamenti: UMX Beast

Invertitore per servi lineari ultra micro

Alimentatore CA

- 12V CC da 1,5 A (in base al Paese di vendita)

Strumento per misura tensione celle LiPo

DX6 DSMX Trasmettitore 6 canali

DX7 DSMX Trasmettitore 7 canali

DX9 DSMX Trasmettitore 9 canali

DX18/18QQ DSMX Solo trasmettitore

E-ﬂ ite, AS3X, UMX, DSM, DSM2, DSMX, ModelMatch, Bind-N-Fly, Celectra

and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC.

The Spektrum trademark is used with permission of Bachmann Industries, Inc.

P3 Revolution and associated logos and body designs are trademarks or registered trademarks of

Code Supplies, Inc., and are used under license by Horizon Hobby, LLC.

Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha

All other trademarks, service marks and logos are property of their respective owners.

US 7,898,130. US D578,146. PRC ZL 200720069025. PRC ZL 2007001249.

Corporation of Japan.

Other patents pending.

www.e-ﬂ iterc.com

Created 7/15 46376EFLU5050

E-flite UMX™ P3 Revolution Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
