Fiery X40 Color Server
COLOR GUIDE
Copyright © 2000 Electronics For Imaging. All rights reserved.
This publication is protected by copyright, and all rights are reserved. No part of it may be reproduced or transmitted in any form or by any means for any purpose
without express prior written consent from Electronics For Imaging, except as expressly permitted herein. Information in this document is subject to change
without notice and does not represent a commitment on the part of Electronics For Imaging.
The software described in this publication is furnished under license and may only be used or copied in accordance with the terms of such license.
Patents: 5,867,179; 5,835,788; 5,666,436; 5,553,200; 5,543,940; 5,537,516; 5,517,334; 5,506,946; 5,424,754; 5,343,311; 5,212,546; 4,941,038; 4,837,722;
4,500,919; D406,117
Trademarks
EFI, the EFI logo, Fiery , the F iery logo, F iery Driven, the F iery Driven logo, EFICOL OR, ColorWise, and Rip-While-P rint are trademar ks registered in the U.S.
Patent and Trademark Office. Fiery Z4, Fiery X4, Command WorkStation, AutoCal, Starr Compression, Memory Multiplier, NetWise, VisualCal, and Velocity
are trademarks of Electronics For Imaging, Inc.
All Xerox product names mentioned in this publication are trademarks of the XEROX CORPORATION.
Adobe, the Adobe logo, Adobe Illustrator , P ostScript, A dobe Photoshop, A dobe Separator , and A dobe P ageMaker are trademar ks of Adobe Systems I ncorporated,
registered in certain jurisdictions. EPS (Encapsulated PostScript) is a trademark of Altsys Corporation. A pple, the Apple logo, A ppleShar e, AppleTalk, EtherTalk,
LaserWriter, and Macintosh are registered trademarks, and MultiFinder is a trademark of Apple Computer, Inc. Microsoft, MS, MS-DOS, and Windows are
registered trademarks of Microsoft in the US and other countries. QuarkXPress is a registered trademark of Quark, Inc. Times, Helvetica, and Palatino are
trademarks of Linotype AG and/or its subsidiaries. ITC Avant Garde, ITC Bookman, ITC Zapf Chancery, and ITC Zapf Dingbats are registered trademarks of
International Typeface Corporation. Ethernet is a registered trademark of Xerox Corporation. NetWare and Novell are registered trademarks and Internetwork
Packet Exchange (IPX) is a trademark of Novell, Inc. UNIX is a registered trademark of UNIX System Laboratories, a wholly owned subsidiary of Novell, Inc.
PANTONE is a registered trademark of Pantone, Inc. Matchprint is a trademark of Imation Corp.
All other terms and product names may be trademarks or registered trademarks of their respective owners, and are hereby acknowledged.
Legal Notices
APPLE COMPUTER, INC. (“APPLE”) MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THE APPLE SOFTWARE.
APPLE DOES NOT WARRANT, GUARANTEE, OR MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE
OF THE APPLE SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY, CURRENTNESS, OR OTHER WISE. THE ENTIRE
RISK AS TO THE RESULTS AND PERFORMANCE OF THE APPLE SOFTWARE IS ASSUMED BY YOU. THE EXCLUSION OF IMPLIED
WARRANTIES IS NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.
IN NO EVENT WILL APPLE, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE TO YOU FOR ANY CONSEQUENTIAL,
INCIDENTAL OR INDIRECT DAMA GES (INCLUDING DAMA GES FOR LOSS OF BUSINESS PR OFITS, BUSINESS INTERRUPTION, L OSS OF
BUSINESS INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE THE APPLE SOFTWARE EVEN IF APPLE
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
Apple’s liability to you for actual damages from any cause whatsoever, and regardless of the form of the action (whether in contract, tort [including negligence],
product liability or otherwise), will be limited to $50.
Restricted Rights Legends
For defense agencies: Restricted Rights Legend. Use, reproduction, or disclosure is subject to restrictions set forth in subparagraph (c)(1)(ii) of the Rights in
Technical Data and Computer Software clause at 252.227.7013.
For civilian agencies: Restricted Rights Legend. Use, reproduction, or disclosure is subject to restrictions set forth in subparagraph (a) through (d) of the
commercial Computer Software Restricted Rights clause at 52.227-19 and the limitations set forth in Electronics F or Imaging’s standard commercial agreement
for this software. Unpublished rights reserved under the copyright laws of the United States.
Printed in the United States of America on recycled paper.
Part Number:
45016781
CE Mark
The CE marking applied to this product symbolises Rank Xerox’s declaration of conformity with the following applicable directives of the European Union as of
the dates indicated.
January 1, 1996—Council Directive 70/80/CCO amended by Council Directive 93/68/EEO. Approximation of the laws of the member states related to low
voltage equipment.
January 1, 1996—Council Directive 59/336/EEC. Approximation of the laws of the member states related to electromagnetic compatibility.
A full declaration defining the relevant directives and referenced standards can be obtained from your Rank Xerox representative.
W ARNING: I n order to allow this equipment to operate in pro ximity to industrial, scientific, and Medical (ISM) equipment, the exter nal radiation from
ISM equipment may have to be limited or special migration measures taken.
FCC Information
WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void
the user’s authority to operate this equipment.
Class A Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, and uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause interference in which case the user will be required to correct the interference
at his own expense.
Industry Canada Class A Notice
This Class A digital apparatus complies with Canadian ICES-003.
Avis de Conformation Classe A de l’Industrie Canada
Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada.
Certificate by Manufacturer/Importer
This is to certify that the FC07 is shielded against radio interference in accordance with the provisions of VFG 243/1991. The German Postal Services have been
advised that this device is being put on the market and that they have been given the right to inspect the series for compliance with the regulations.
Bescheinigung des Herstellers/Importeurs
Heirmit wird bescheinigt, dass der FC07 im Uebereinstimmung mit den Bestimmungen der VFG 243/1991 F unk-Entstort ist. Der Deutschen Bundespost wurde
das Inverkehrbringen dieses Geraetes angezeigt und die Berechtigung zur Ueberpruefung der Serie auf Einhaltung der Bestimmungen eingeraumt.
RFI Compliance Notice
This equipment has been tested concerning compliance with the relevant RFI protection requirements both individually and on system level (to simulate normal
operation conditions). However, it is possible that these RFI Requirements are not met under certain unfavorable conditions in other installations. It is the user
who is responsible for compliance of his particular installation.
Dieses Geraet wurde einzeln sowohl als auch in einer Anlage, die einen normalen Anwendungsfall nachbildet, auf die Einhaltung der Funk-entstoerbestimmungen
geprueft. Es ist jedoch moeglich, dass die Funk-enstoerbestimmungen unter unguenstigen Umstaenden bei anderen Geraetekombinationen nicht eingehalten
werden. Fuer die Einhaltung der Funk-entstoerbestimmungen seigner gesamten Anlage, in der dieses Geraet betrieben wird, ist der Betreiber verantwortlich.
Compliance with applicable regulations depends on the use of shielded cables. It is the user who is responsible for procuring the appropriate cables.
Einhaltung mit betreffenden Bestimmungen kommt darauf an, dass geschirmte Ausfuhrungen gebraucht werden. Fuer die beschaffung richtiger Ausfuhrungen
ist der Betreiber verantwortlich.
Software License Agreement
Before using the Software, please carefully read the following terms and conditions. BY USING THIS SOFTWARE, YOU SIGNIFY THAT YOU HAVE
ACCEPTED THE TERMS OF THIS AGREEMENT. If you cannot or do not accept these terms, you may r eturn the entire package within ten (10) days to the
Distributor or Dealer from which you obtained them for a full refund.
Electronics For Imaging grants to you a non-exclusiv e, non-transferable license to use the software and accompanying documentation (“Softwar e ”) included with
the Fiery X40 you have purchased, including without limitation the PostScript software provided by Adobe Systems Incorporated.
You may:
a. use the Software solely for your own customary business purposes and solely with Fiery X40;
b. use the digitally-encoded machine-readable outline and bitmap programs (“Font Programs”) provided with Fiery X40 in a special encrypted format (“Coded
Font Programs”) to reproduce and display designs, styles, weights, and versions of letters, numerals, characters and symbols (“Typefaces”) solely for your own
customary business purposes on the display window of the Fiery X40 or monitor used with Fiery X40;
c. use the trademarks used by Electronics For Imaging to identify the Coded Font Programs and Typefaces reproduced therefrom (“Trademarks”); and
d. assign your rights under this Agreement to a transferee of all of your right, title and interest in and to Fiery X40 provided the transferee agr ees to be bound b y
all of the terms and conditions of this Agreement.
You may not:
a. make use of the Software, directly or indirectly, to print bitmap images with print resolutions of 600 dots per inch or greater, or to generate fonts or typefaces
for use other than with Fiery X40;
b. make or have made, or permit to be made, any copies of the Software, Coded Font Programs, accompanying documentation or portions thereof, except as
necessary for use with the Fiery X40 unit purchased by you; provided, however , that under no cir cumstances may you make or have made, or permit to be made,
any copies of that certain portion of the Software which has been included on the Fiery X40 hard disk drive. You may not copy the documentation;
c. attempt to alter, disassemble, decrypt or reverse engineer the Software, Coded Font Programs or accompanying documentation.
d. rent or lease the Software.
Proprietary Rights
Y ou ackno wledge that the S oftware, Coded Font Programs, Typefaces, Trademarks and accompanying documentation are proprietary to Electronics For Imaging
and its suppliers and that title and other intellectual property rights therein remain with Electronics For Imaging and its suppliers. Except as stated above, this
Agreement does not grant you any right to patents, copyrights, trade secrets, trademarks (whether registered or unregistered), or any other rights, franchises or
licenses in respect of the Software, Coded Font Programs, Typefaces, Trademarks or accompanying documentation. You may not adapt or use any trademark or
trade name which is likely to be similar to or confusing with that of Electronics For Imaging or any of its suppliers or take any other action which impairs or
reduces the trademark rights of Electronics For Imaging or its suppliers. The trademarks may only be used to identify printed output produced by the Coded Font
Programs. At the reasonable request of Electronics For Imaging, you must supply samples of any Typeface identified with a trademark.
Confidentiality
Y ou agree to hold the Software and Coded F ont P rograms in confidence, disclosing the S oftware and Coded F ont Programs only to authoriz ed users having a need
to use the Software and Coded Font Programs as permitted by this Agreement and to take all reasonable precautions to prevent disclosure to other parties.
Remedies
Unauthorized use, copying or disclosure of the Software, Coded Font Programs, Typefaces, T rademar ks or accompanying documentation will result in automatic
termination of this license and will make available to Electronics For Imaging other legal remedies.
Limited Warranty And Disclaimer
Electronics For Imaging warrants that, for a period of ninety (90) days from the date of delivery to you, the Software under normal use will perform without
significant errors that make it unusable. Electronics For Imaging ’s entire liability and your exclusive remedy under this warranty (which is subject to you returning
Fiery X40 to Electronics For Imaging or an authorized dealer) will be, at Electronics For Imaging’s option, to use reasonable commercial efforts to attempt to
correct or work around errors, to replace the Software with functionally equivalent software, or to refund the pur chase price and terminate this Agreement. S ome
states do not allow limitations on duration of implied warranty, so the above limitation may not apply to you.
Except for the above express limited warranty, Electronics For Imaging makes and you receive no warranties or conditions on the Products, express, implied, or
statutory, and Electronics For Imaging specifically disclaims any implied warranty or condition of merchantability or fitness for a particular purpose.
For warranty service, please contact your authorized service/support center.
EXCEPT FOR THE ABOVE EXPRESS LIMITED WARRANTY, ELECTRONICS FOR IMAGING MAKES AND YOU RECEIVE NO WARRANTIES
OR CONDITIONS ON THE SOFTWARE OR CODED FONT PROGRAMS, EXPRESS, IMPLIED, STA TUT ORY, OR IN ANY OTHER PR O VISION
OF THIS AGREEMENT OR COMMUNICATION WITH YOU, AND ELECTRONICS FOR IMAGING SPECIFICALLY DISCLAIMS ANY IMPLIED
WARRANTY OR CONDITION OF MER CHANT ABILITY OR FITNESS FOR A PAR TICULAR PURPOSE. Electronics F or Imaging does not warrant that
the operation of the software will be uninterrupted or error free or that the Software will meet your specific requirements.
Limitation Of Liability
IN NO EVENT WILL ELECTRONICS FOR IMAGING OR IT S SUPPLIERS BE LIABLE FOR ANY DAMAGES, INCLUDING L OSS OF DA TA, LOST
PROFITS, COST OF COVER OR O THER SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES ARISING FROM THE USE OF
THE SOFTWARE, CODED FONT PROGRAMS OR ACCOMPANYING DOCUMENTATION, HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY. THIS LIMITATION WILL APPLY EVEN IF ELECTRONICS FOR IMAGING OR ANY AUTHORIZED DEALER HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGE. YOU A CKNO WLEDGE THA T THE PRICE OF THE UNIT REFLECT S THIS ALLOCA TION OF RISK.
BECAUSE SOME ST ATES/JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
Export Controls
Y ou agree that y ou will not export or re-export the Softwar e or Coded F ont Programs in any form without the appropriate United States and foreign government
licenses. Your failure to comply with this provision is a material breach of this Agreement.
Government Use
Use, duplication or disclosure of the Software by the United States Government is subject to restrictions as set forth in subdivision (c) (1) (ii) of the Rights in
Technical Data and Computer Software clause at DFARS 252.227-7013 or in subparagraphs (c) (1) and (2) of the Commercial Computer Software—Restricted
Right Clause at 48 CFR 52.227-19, as applicable.
Third Party Beneficiary
You are hereby notified that Adobe Systems Incorporated, a California corporation located at 345 Park Avenue, San Jose, CA 95110-2704 (“Adobe”) is a thirdparty beneficiary to this Agreement to the extent that this Agreement contains provisions which relate to your use of the Fonts, the Coded Font Programs, the
T ypefaces and the Trademarks licensed hereby . S uch provisions are made expressly for the benefit of A dobe and are enforceable by Adobe in addition to E lectronics
For Imaging.
General
This Agreement will be governed by the laws of the State of California.
This Agreement is the entire agreement held between us and supersedes any other communications or advertising with respect to the Software, Coded Font
Programs and accompanying documentation.
If any provision of this Agreement is held invalid, the remainder of this Agreement shall continue in full force and effect.
If you have any questions concerning this Agreement, please write to Electronics For Imaging, Attn: Licensing Dept. or see Electronics For Imaging’s w eb site at
www.efi.com.
Electronics For Imaging
303 Velocity W ay
Foster City, CA 94404
Contents
Introduction
About the documentation
Key features of ColorWise
Chapter 1: Fiery X40 Color Management
Managing color on the Fiery X40
Rendering styles 1-5
RGB Source Profile 1-6
RGB Separation 1-7
CMYK Simulation Profile 1-8
CMYK Simulation Method 1-9
Output Profile 1-9
Pure Black Text/Graphics 1-10
Black Overprint 1-11
Spot Color Matching 1-12
Printer Drivers and Print Options
What a printer driver does 1-13
PostScript printer driver for Windows 95/98, Windows NT 4.0, and Windows 2000 1-14
Adobe PostScript printer driver for Mac OS 1-19
xiii
xv
1-1
1-13
Chapter 2: Simple and Advanced Workflows
Workflow concepts
Short-run printing versus color proofing 2-1
RGB, CMYK, and PANTONE colors 2-2
Desktop versus Fiery X40 color management 2-3
Simple workflows
Select your colors wisely 2-4
Select a short workflow 2-5
2-1
2-4
viii Contents
Advanced workflows
Short-run printing examples 2-9
Color proofing examples 2-15
Chapter 3: Color Calibration
Introduction
Understanding calibration
How calibration works 3-2
Scheduling calibration 3-4
Checking calibration status 3-5
Using a densitometer
Setting up the densitometer 3-5
Calibrating the densitometer
Calibrating with ColorWise Pro Tools
Expert Mode 3-15
Chapter 4: ColorWise Pro Tools
2-9
3-1
3-2
3-5
3-8
3-9
Profile Manager
Setting the default profiles 4-3
Downloading profiles 4-5
Editing profiles 4-7
Managing profiles 4-7
Defining profiles 4-8
Color Editor
Editing Profiles 4-12
Undoing simulation edits 4-19
Checking edited profiles 4-21
Color Setup
Setting default ColorWise options 4-23
4-1
4-12
4-23
ix Contents
Chapter 5: Working with Color in Applications
Working with color
Color reference pages 5-2
Office applications
Choosing colors in office applications 5-4
PostScript applications
Choosing colors in PostScript applications 5-5
Default output profile 5-8
CMYK simulation 5-8
Chapter 6: Office Applications
Working with office applications
Defining colors 6-1
Working with imported files 6-1
Selecting options when printing 6-2
Output profiles 6-2
Chapter 7: Adobe Photoshop
5-1
5-3
5-5
6-1
Photoshop 5.x
Photoshop 5.x color settings 7-1
ColorSync defaults 7-6
Defining colors 7-7
Saving files for importing into other documents 7-7
Selecting options when printing 7-9
Printing tips for advanced users 7-11
Photoshop 4.x
Defining colors 7-13
Saving files for importing into other documents 7-13
Selecting options when printing 7-15
7-1
7-13
x Contents
Chapter 8: Page Layout Applications
Working with page layout applications
Defining colors 8-1
Importing images 8-2
CMYK simulation 8-3
Adobe PageMaker 6.5 for Mac OS and Windows
Importing images 8-4
Selecting options when printing 8-5
Optional Color Management from PageMaker 8-6
QuarkXPress 4.02 for Mac OS and Windows
Importing images 8-7
Selecting options when printing 8-8
Optional Color Management from QuarkXPress 8-9
QuarkXPress 3.32 for Mac OS and Windows
Importing images 8-9
Selecting options when printing 8-10
Chapter 9: Illustration Applications
8-1
8-4
8-7
8-9
Working with illustration applications
Defining colors 9-1
Importing images 9-2
CMYK simulation 9-2
Adobe Illustrator 8.x for Windows and Mac OS
Defining colors 9-3
Importing images 9-3
Optional Color Management in Illustrator 9-4
Selecting options when printing 9-4
Saving files for importing into other documents 9-5
9-1
9-3
xi Contents
Macromedia FreeHand 8.x for Windows and Mac OS
Defining colors 9-6
Importing images 9-6
Selecting options when printing from FreeHand 9-7
Saving files for importing into other documents 9-8
Optional Color Management in FreeHand 9-9
CorelDRAW for Windows and Mac OS
Defining colors 9-9
Importing images 9-9
Selecting options when printing 9-10
Saving files for importing into other documents 9-11
Optional Color Management in CorelDRAW 9-11
Appendix A: Desktop Color Primer
The properties of color
The physics of color A-1
CIE color model A-2
Hue, saturation, and brightness A-3
Additive and subtractive color systems A-3
9-6
9-9
A-1
Printing techniques
Halftone and continuous tone devices A-6
Using color effectively
A few rules of thumb A-7
Color wheel A-7
Color and text A-8
Raster images and vector images
Optimizing files for processing and printing
Resolution of raster images A-10
Scaling A-12
A-5
A-6
A-9
A-10
xii Contents
Appendix B: Color Management
Controlling printed color
Maintaining copier consistency B-2
Print device gamut B-2
Basics of color management
Color conversion B-4
Appendix C: Importing densitometer measurements
Simple ASCII Import File Format (SAIFF)
Example of 1D Status T density for EFI 34 patch page C-2
Example of 1D Status T density for EFI 21 patch page C-2
Example of 1D Status T density for an arbitrary page C-3
Glossary
Bibliography
Index
B-1
B-3
C-1
xiii About the documentation
Introduction
Welcome to the
Color Guide
. This manual introduces you to the concepts and issues
associated with printing to the Fiery X40 Color Server™. It outlines key workflow
scenarios, provides information on calibration and color profiles, and contains
application notes that explain how to print to the Fiery X40 Color Server from popular
Windows and Mac OS applications.
This manual is one book in a set of documentation that also includes manuals for users
and system administrators. All the other manuals should be available at your site—
refer to them for a complete description of your Fiery X40 Color Server.
N
:
OTE
The term “Fiery X40” is used in this manual to refer to the Fiery X40 Color
Server. The Fiery X40 supports the DocuColor 40 color copier. The term “copier” is
used in this manual to refer to this supported device.
About the documentation
The
Color Guide
color output of your Fiery X40. Chapter 1 discusses the Fiery X40’s print options and
how to get the best color results, and Chapter 2 describes several effective workflows.
ColorWise Pro Tools are discussed in the next two chapters. Chapter 3 covers
Calibrator and other methods used to calibrate the copier, and Chapter 4 takes you
through the features of Profile Manager, used to manage color profiles on the
Fiery X40, and Color Editor , which lets you customize simulation and output profiles.
Succeeding chapters offer tips for printing from business and graphics applications.
Finally, the appendixes offer information about color theory and color management.
is organized to supply you with key information about managing the
Words in bold, for example,
bibliography at the end of this manual provides sources for further investigation of
color printing issues.
Color terms and concepts such as “RGB data,” “color space,” “spot color,” “gamut,”
and “source profile” are used throughout this manual. If you are new to desktop color
or if any terms are unfamiliar, be sure to read Appendixes A and B or check the
glossary.
output profile
, are terms that appear in the glossary. The
xiv Introduction
This manual is part of a set of Fiery X40 documentation that also includes the
following manuals for users and system administrators:
• The
Configuration Guide
explains basic configuration and administration of the
Fiery X40 for the supported platforms and network environments. It also includes
guidelines for setting up UNIX, Windows NT, and NetWare servers to provide
PostScript printing services to clients.
•
Getting Started
describes how to install software to enable users to print to the
Fiery X40. Specifically, it describes installation of PostScript printer drivers, printer
description files, and other user software provided on the User Software CD. It also
explains how to connect each user to the network.
• The
Printing Guide
describes the printing features of the Fiery X40 for users who
send jobs via remote workstations on the network.
• The
Job Management Guide
explains the functions of the Fiery X40 client utilities,
including the Command WorkStation, and how they can be used to manage jobs.
This book is intended for an operator or administrator, or a user with the necessary
access privileges, who needs to monitor and manage job flow and troubleshoot
problems that may arise.
•
Release Notes
provide last-minute product information and workarounds for some of
the problems you may encounter.
xv Key features of ColorWise
Key features of ColorWise
ColorWise
designed to provide both casual and expert users the best color output for a variety of
purposes. The ColorWise default settings were specifically selected to provide great
out-of-box color from many applications and Windows and Mac OS platforms. This
means that casual users can get good quality output without knowing about or
changing any color settings on the Fiery X40.
To get consistent color you should be sure that the Fiery X40 is calibrated on a regular
basis. ColorWise Pro Tools include a simple-to-use calibrator, which allows you to
calibrate using optional densitometers (see Chapter 3).
There are a number of features that can be used to modify printing results. Depending
on your particular needs, you can:
• Set the behavior of CMYK printing to emulate DIC, Euroscale, and SWOP offset
press standards
• Match PANTONE colors for the best match when printed using four-color press
conditions or when printed using presses with extra, custom plates
• Select a
printing. CRDs allow for rich, saturated printing of presentation graphics; smooth,
accurate printing of photographs; and relative or absolute colorimetric rendering for
specialized needs
is the
color management system
color rendering dictionary
(CMS) built into the Fiery X40 and
(CRD), also called a rendering style, for RGB
• Define the source of incoming RGB color data for better screen matching, and you
can provide for better color conversion of RGB data with no source information
• Define whether RGB data is converted into the full gamut of the copier or whether
it is first converted into the gamut of another device, such as a press standard. This
feature is very helpful for making one device behave like another . It is also useful for
evaluating the appearance of the RGB file under different printing conditions
without having to reprocess the RGB data each time
xvi Introduction
ColorWise offers an open color architecture, letting users customize the Fiery X40 to
meet new printing needs as they arise. ColorWise supports ICC profiles, which are
industry standard color profiles that define the color behavior of a device. By downloading ICC profiles to the Fiery X40, it can simulate a custom press (or another
copier) as well as accurately print colors from a particular monitor or a particular scanner. In addition, you can create customized ICC profiles for the copier.
ColorWise also lets you use any Status T densitometer by importing data in a standard
file format (see Appendix C). In this case, it is important to note that the quality of the
instrument used will determine the quality of the calibration.
1-1 Managing color on the Fiery X40
1
Chapter 1:
Fiery X40 Color
Management
The first part of this chapter describes the options available from the ColorWise color
management system and explains how you can customize the color settings for your
particular needs. It provides descriptions of the preset default settings of ColorWise
and covers additional options for users who need to customize ColorWise.
Beginning on page 1-13 is a detailed explanation of what a PostScript Level 2 or
PostScript 3 printer driver does, as well as information on the capabilities of various
printer drivers and instructions for setting color options with the PostScript drivers for
Windows NT 4.0, Windows 2000, Windows 95/98, and Mac OS.
Managing color on the Fiery X40
There are three ways to modify the Fiery X40’s printing behavior:
• You can select ColorWise options for an individual print job using menus that
appear from the printer driver.
• You can select most ColorWise options as server defaults from the Color Setup
application in ColorWise Pro Tools (see page 4-23). Defaults can also be set from
Fiery X40 Setup or from the Control P anel, as described in the
These defaults will apply to all subsequent print jobs unless you override them.
Configuration Guide
.
• You can select some ColorWise options, particularly default
and calibration options, from ColorWise Pro Tools. These options include default
Simulation Profile (see page 1-8), Simulation Method (see page 1-9), Appear in
Driver as (see page 4-8), default Source Profile (see page 1-6), RGB Separation (see
page 1-7), and associated calibration set (see page 3-3).
Applications can generate color data for the Fiery X40 in many different
The most common type of color data produced from office applications is RGB, while
prepress applications generally produce CMYK data. Desktop applications can also
generate spot colors such as PANTONE colors. To complicate matters, a single page
may contain a mix of RGB, CMYK, and spot colors. The Fiery X40 lets users control
the printing of these mixed-color documents with features that apply specifically to
RGB, CMYK, or spot color data.
Fiery X40 color management generates CMYK data to be sent to the copier; additional
processing may then be performed before printing begins.
ICC profile
color spaces
settings
.
1-2 Fiery X40 Color Management
1

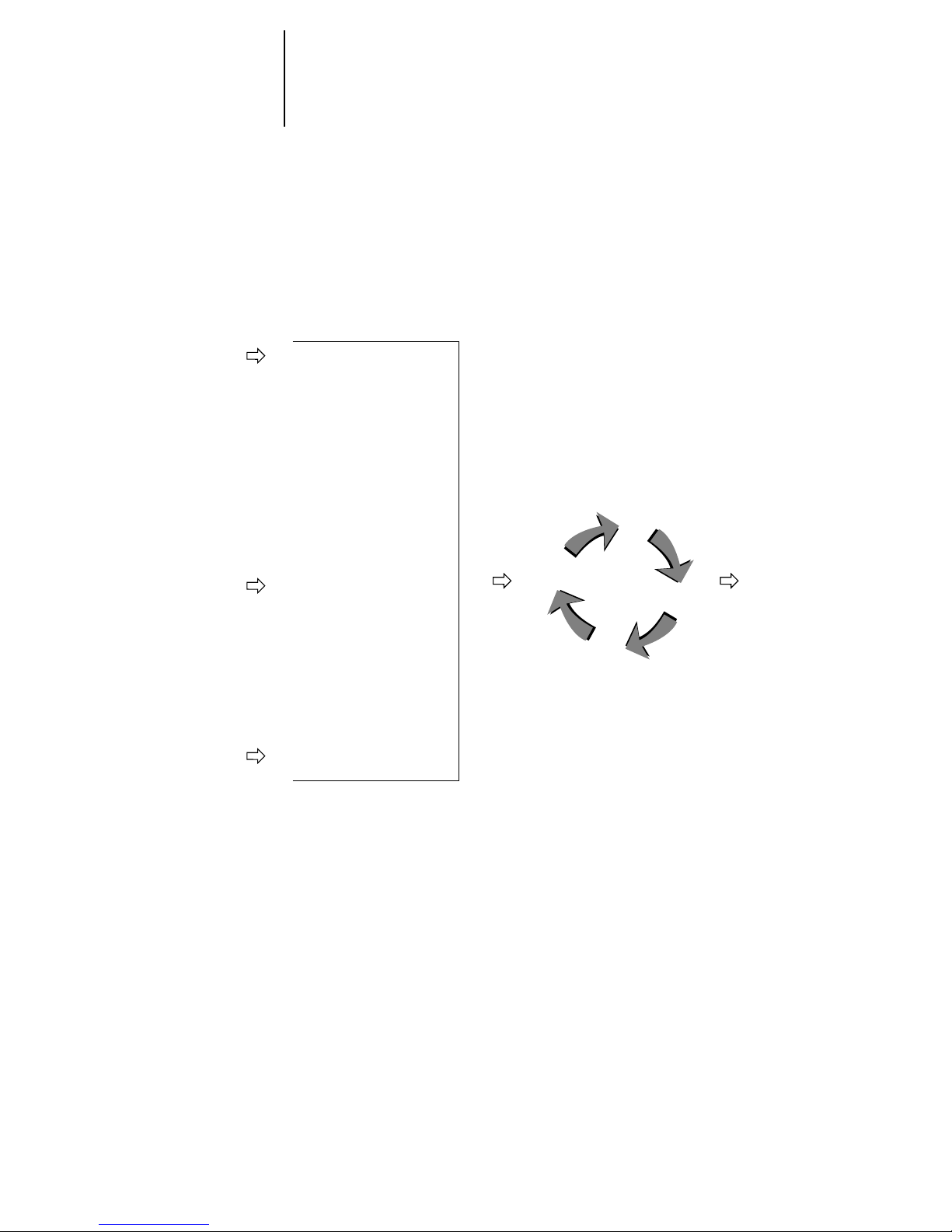

The diagram below illustrates the print options in the Fiery X40 color management
process that affect color data conversions. You access these print options when you
send a print job to the Fiery X40. Most of these options and settings are described in
subsequent sections of this chapter.
RGB data
CMYK data
Spot color data
RGB Source Profile
Gamma
Phosphors
White Point
Rendering Style (CRD)
Brightness
Pure Black Text/Graphics
Black Overprint
RGB Separation
Output profile
CMYK Simulation Profile
CMYK Simulation Method
Brightness
Pure Black Text/Graphics
Black Overprint
Combine Separations
Output profile
Spot Color Matching
Fiery X40
color
processor
Color data
sent to
copier
RGB Source Profile is the only color option that applies strictly to RGB color data.
The other options that affect RGB color also affect the more rarely used Lab , XYZ, and
other calibrated color spaces.
N
:
OTE
all CIEBasedABC color spaces (if the source space is RGB). Also, if you send CMYK
data to the Fiery X40 in CIEBasedDEFG format, for example, by choosing PostScript
Color Management in Adobe Photoshop, the Fiery X40’s Rendering Style selection—
which normally affects only RGB data—will also affect this CMYK data.
For users who are familiar with PostScript 3.0 color, RGB Source Profile affects
1-3 Managing color on the Fiery X40
1
Settings for the following options can be specified via print options when you send a
job to the Fiery X40. Some can also be set as defaults by the administrator during
Fiery X40 Setup. Settings specified via print options override the defaults.
Fiery X40 color print option: What it does:
Brightness
85% Lightest to 115% Darkest
Rendering Style
Photographic/Presentation/Relative
Colorimetric/Absolute Colorimetric
(Default set at Setup)
RGB Source Profile
EFIRGB/sRGB (PC)/Apple Standard/Other/
Source 1–10/None
(Default set at Setup or with
ColorWise Pro Tools)
(Other) Gamma
1.0/1.2/1.4/1.6/1.8/2.0/2.2/2.4/2.6/2.8/3.0
(Other) Phosphors
Hitachi EBU/Hitachi-Ikegami/NTSC/
Radius Pivot/SMPTE/Trinitron
(Other) White Point
5000 K (D50)/5500 K/6500 K (D65)/
7500 K/9300 K
Performs a color adjustment on all color channels to make the printed output
lighter or darker.
Applies a Fiery X40 color rendering style (CRD) to RGB data (see page 1-5),
or to any incoming data with a PostScript source color space definition,
including CMYK.
Applies an RGB source space definition to RGB data (see page 1-6). If you
choose the Other setting, you can specify particular settings for gamma,
phosphors, and white point. See the corresponding options in this table. This
option, along with Gamma, Phosphors, and White Point, are the only
ColorWise options that affect only DeviceRGB or calibrated R GB color spaces.
Applies the specified gamma value to the RGB source space definition (see
page 1-6). To use this print option, you must choose Other as the RGB Source
setting.
Applies the specified phosphor (monitor type) information to the RGB source
space definition (see page 1-6). To use this print option, you must choose
Other as the RGB Source setting.
Applies the specified white point value to the RGB source color space
definition (see page 1-6). To use this print option, you must choose Other as
the RGB Source setting.
RGB Separation
Output/Simulation
CMYK Simulation Profile
SWOP-Coated/DIC/Euroscale/Simulation
1–10/Match Copy/None
(Default set at Setup or in
ColorWise Pro Tools)
Determines which CMYK color space your original RGB data will be
separated into—CMYK for the copier (Output) or CMYK for a specified
simulation (Simulation) (see page 1-7). It is important to note that when RGB
Separation is set to Simulation, RGB colors ar e affected b y CMYK S imulation
Profile and CMYK Simulation Method.
Adjusts CMYK color data to simulate an offset press standard or a custom
color gamut defined at your site. The Match Copy setting bypasses Fiery X40
calibration to match a copy made from the copier glass. Choosing None
bypasses simulation (see page 1-8).
N
OTE: Some of the Simulation settings have slightly different names depending
on the model of copier.
1-4 Fiery X40 Color Management
1
Fiery X40 color print option: What it does:
CMYK Simulation Method
Quick/Full
(Default set at Setup or in
ColorWise Pro Tools)
Output Profile
default output profile/Output 1–10
(Default set at Setup or in
ColorWise Pro Tools)
Pure Black Text/Graphics
On/Off
(Default set at Setup)
Black Overprint
On/Off (Default set at Setup)
Spot Color Matching
On/Off
(Default set at Setup or with
ColorWise Pro Tools)
Detailed explanations of how these and other settings affect your print jobs are
provided in subsequent sections of this chapter.
Quick simulation applies one-dimensional transfer curves that adjust output
density only. Full simulation applies colorimetric transformations that adjust
hue as well as output density (see page 1-9).
The Output Profile is applied to all data in the print job (see page 1-9). Userdefined output profiles can be downloaded to the Fiery X40 with
ColorWise Pro Tools (see Chapter 4).
The On setting optimizes the quality of black text and line art output (see
page 1-10).
The On setting overprints black text placed on colored backgrounds; it
automatically activates the Pure Black Text/Graphics option (see page 1-11).
The On setting enables Fiery X40 matching of PANTONE colors; Off
instructs the Fiery X40 to match color output to a Pantone-specified CMYK
combination (see page 1-12).
1-5 Managing color on the Fiery X40
1
Rendering styles
The Rendering Style option specifies a CRD for color conversions. You can modify the
Rendering Style option to control the appearance of images, such as prints from office
applications or RGB photographs from Photoshop . The Fiery X40 lets you select from
the four rendering styles currently found in industry standard ICC profiles.
Equivalent
Fiery X40 rendering style: Best used for:
ICC rendering
style:
Photographic—Typically results in less
saturated output than presentation
rendering when printing out-of-gamut
colors. It preserves tonal relationships
in images.
Presentation
but does not match printed colors
precisely to displayed colors. In-gamut
colors such as flesh tones are rendered
well, similar to the Photographic
rendering style.
Relative Colorimetric
white-point transformation between
the source and destination white
points. For example, the bluish gray of
a monitor will map to neutral gray.
You may prefer this style to avoid
visible borders when not printing fullbleed.
Absolute Colorimetric
white point transformation between
the source and destination white
points. For example, the bluish gray of
a monitor will map to a bluish gray.
—Creates saturated colors
—Provides
—Provides no
Photographs, including scans and
images from stock photography CDs.
Artwork and graphs in presentations.
In many cases it can be used for mixed
pages that contain both presentation
graphics and photographs.
Advanced use when color matching is
important but you prefer white colors
in the document to print as paper
white. It may also be used with
PostScript color management to affect
CMYK data for simulation purposes.
Situations when exact colors are
needed and visible borders are not
distracting. It may also be used with
PostScript color management to affect
CMYK data for simulation purposes.
Image,
Contrast, and
Perceptual
Saturation,
Graphics
Same
Same
1-6 Fiery X40 Color Management
1
RGB Source Profile
The RGB Source Profile setting allows you to define the characteristics of the RGB
data in your document so that the appropriate color conversion can occur on the
Fiery X40. Commonly used monitor color spaces are available from the driver and
from the ColorWise Pro Tools Profile Manager. In addition, for special needs you can
use ColorWise Pro Tools to download custom monitor or scanner profiles.
When you specify a setting other than None for the R GB Source P r ofile, the F iery X40
overrides source color space definitions or profiles that other color management
systems may have specified. For example, if you specified a ColorSync System Profile
on your Mac OS computer , the RGB Source Profile setting overrides it. In cases where
you do not want this setting to ov erride another specified source color space, choose the
None setting.
When you specify a setting other than None for the RGB Source Profile—since the
color space definitions are overridden—the prints from the Fiery X40 will be
consistent across platforms. Below are the Fiery X40’s RGB Source Profile options.
• EFIRGB specifies an EFI-defined color space recommended for users who have no
detailed information about their RGB data.
• sRGB (PC) specifies the industry standard definition for a generic Windows PC
monitor.
• Apple Standard specifies the definition of all standard Mac OS computer monitors.
• Other allows you to specify custom RGB source settings. If you choose Other as the
RGB Source setting, y ou can choose settings for the Gamma, Phosphors, and White
Point options.
• Sources 1-10 specify the definitions you download as RGB source profiles. (For
more information about downloading RGB source profiles, see Chapter 4.)
If you are printing with the PostScript driver for Windows 95/98 and have two-way
communication enabled, the name of each downloaded profile is represented in the
RGB Source Profile setting pop-up menu. If you are printing with the AdobePS
driver from a Mac OS or Windows NT computer, or the Micr osoft P ostScript driver
from a Windows 2000 computer, downloaded profiles appear as Source-1 through
Source-10. For more information on two-way communication, see Getting Started.
1-7 Managing color on the Fiery X40
1
• None instructs the Fiery X40 to allow the RGB sources you defined elsewhere, such
as in the application, to be used. When you set RGB Source to None, the
appearance of colors will not be independent of the file type. For example, R GB EPS
files will look different from RGB TIFF files.
With RGB Source set to None, PostScript RGB data that contains a source color
space definition is converted using the CRD specified by the Rendering Style option
(see page 1-5). NonPostScript RGB data and PostScript RGB data that does not
contain a source color space definition is converted using a general undercolor
removal conversion method.
RGB Separation
The RGB Separation option determines how RGB colors (as well as Lab and XYZ
colors) are converted to CMYK. The name of this option is meant to be descriptive,
since the option defines the color spaces that will be used by the Fiery X40 to
“separate” the RGB data into CMYK values.
The two choices available for this option determine whether RGB data is converted
into the full gamut of the copier (Output) or whether it is first converted into the
gamut of another digital printer or a press standard (Simulation). This feature is
helpful for making one device behave like another for RGB data. For example, if a
high-quality ICC profile is available for another print device, the copier can simulate
the behavior of that device.
RGB Separation is also useful for prepress applications. For example, it lets you
experiment with the appearance of an RGB scan under different press printing
conditions without having to convert the RGB data to CMYK data for each printing
condition. When the desired printing condition is found, you can then convert the file
to CMYK, if desired, using the same CMYK simulation profile that was used during
the experimentation.
NOTE: The RGB Separation print option should be used in conjunction with the
Output Profile or CMYK Simulation Profile print options.
• Output converts all R GB colors into the CMYK color space of your copier (when the
Output Profile option is set to P rinter ’s default), or a customized CMYK color space
for your copier (when the Output Profile option is set to Output 1-10).
1-8 Fiery X40 Color Management
1
• Simulation converts all RGB colors into the CMYK color space for a specified
simulation (make sure to select the desired simulation with the CMYK Simulation
Profile print option).
CMYK Simulation Profile
The CMYK Simulation Profile print option allows you to print press proofs or
simulations. This setting specifies the offset press standard or other color printing
device that you want to simulate. This option affects CMYK data only.
With the Windows 95/98 printer driver, you can also view an unlimited number of
custom Quick and Full simulations created using ColorWise Pro Tools. On Windows
NT, Windows 2000, and Mac OS computers, you can view up to 10 Quick and 10
Full custom simulations. The number of custom simulations is limited by the disk
space on the Fiery X40.
If you are printing with the PostScript driver for Windows 95/98 and have two-way
communication enabled, the name of each downloaded or custom profile is
represented in the CMYK Simulation P rofile setting pop-up menu. I f you ar e printing
with the AdobePS driver from a Mac OS or Windo ws NT computer, or the Microsoft
PostScript driver from a Windows 2000 computer, downloaded or custom profiles
appear as Simulation-1 through Simulation-10. For more information on two-way
communication, see Getting Started.
The CMYK Simulation Profile setting you should specify depends on the press
standard for which the CMYK data was separated.
• For images that were separated using a custom separation (such as a separation
produced with an ICC profile), choose the corresponding profile on the Fiery X40
with the CMYK Simulation Profile setting.
• For images that were separated for SWOP, choose SWOP as the CMYK Simulation
Profile setting.
NOTE: To properly simulate a printed image that was separated through the use of an
ICC profile, the same profile must be present on the Fiery X40. F or mor e information
about downloading ICC profiles to the Fiery X40, see “Downloading profiles” on
page 4-5.
1-9 Managing color on the Fiery X40
1
• The Match Copy setting bypasses Fiery X40 calibration to simulate the color of a
copy produced by the copier. Use this setting when you print images scanned with
the Fiery Scan plug-in set to Match Copy.
CMYK Simulation Method
The CMYK Simulation Method setting specifies the quality of simulation to perform.
• Quick applies one-dimensional transfer curves that adjust output density only.
• Full provides a more complete and accurate simulation by applying colorimetric
transformations that adjust hue as well as output density. The Full Simulation
option also maintains the integrity of the black channel by adjusting it
independently. This is especially important for images separated using an optimized
black generation (UCR/GCR) setting either from a scan or from within an
application such as Photoshop.
Output Profile
The output profile is applied to all data in the print job, so make sure the selected
profile is right for your job. The default output profile consists of both a profile for
your copier, describing its color characteristics, and a calibration target that describes
the expected behavior of the copier.
In certain cases you may wish to customize the default output profile using
ColorWise Pro Tools’ Color Editor to achieve particular color effects (see page 4-12).
If so, the new customized output profile is applied to all data in the print job.
Changing only the output profile does not affect its associated calibration target (since
the target is based on a copier model). If you wish, you can edit D-Max values of the
calibration target separately (see page 4-7).
You can also use ColorWise Pro Tools’ Profile Manager to download your own output
profile to the Fiery X40 (see page 4-5). Downloaded output profiles are at first
associated with the calibration target that is tied to the default output profile. As
mentioned above, you can edit calibration target D-Max values separately.
If you are printing with the PostScript driver for Windows 95/98 and have two-way
communication enabled, the name of each downloaded or custom profile is
represented in the Output Profile setting pop-up menu. If you are printing with the
AdobePS driver from a Mac OS or Windows NT computer, or the Microsoft
1-10 Fiery X40 Color Management
1
PostScript driver from a Windows 2000 computer, downloaded or custom profiles
appear as Output-1 through Output-10. For more information on two-way
communication, see Getting Started.
Pure Black Text/Graphics
The Pure Black Text/Graphics option affects the printout for black text and vector
graphics on a page. Under most circumstances it is preferable to leave this option set to
the On position. When Pure Black Text/Graphics is on, black colors generated by
applications are printed using 100 percent black-only toner (for example,
RGB = 0, 0, 0; CMYK = 0%, 0%, 0%, 100%; or K = 100%). This means the black
text and line art will not exhibit halftone artifacts and will not be misregistered, since
there is only one toner used. In addition, this setting eliminates blasting. This option
is automatically set to On when the Black Overprint option is set to On.
For some jobs it is preferable to turn this option Off, for example, if the page includes
gradient fills that use black. The table below describes the behavior of the Pure Black
Text/Graphics option with black data defined in different color spaces.
NOTE: The Pure Black Text/Graphics option can be used only when printing
composites, not when printing separations.
Input
black color
RGB
CMYK
Spot
On Off
Prints 100% black
Pure Black Text/Graphics
With the default profile, prints a rich black
using all toners.
Prints only with black toner, because CMYK
simulations preserve the black channel. The
actual amount of toner used depends on the
current simulation and the calibration state of
the copier.
Prints only with black toner, because spot
color simulations preserve the black channel.
The actual amount of toner used depends on
the current simulation and the calibration state
of the copier.
1-11 Managing color on the Fiery X40
1
NOTE: PostScript applications, such as QuarkXPress, may convert elements defined as
RGB = 0, 0, 0 to four-color CMYK black before sending the job to the Fiery X40.
These elements are not affected by the Pure Black Text/Graphics option. See the
application notes for details. Also, black text and line art defined as RGB = 0, 0, 0 in
office applications (such as Microsoft Word) are converted to single-color black
(CMYK = 0%, 0%, 0%, 100%) by the Microsoft PostScript Level 2 driver for
Windows NT 4.0. To print this single-color black at the maximum toner density of the
copier, set the Pure Black Text/Graphics option to On.
Black Overprint
The Black Overprint option lets you specify whether or not black text, defined as
RGB = 0, 0, 0, or as CMYK = 0%, 0%, 0%, 100%, overprints colored backgrounds.
• On—Black text overprints colored backgrounds, eliminating white gaps and
reducing halo effects or misregistration of colors. Setting Black Overprint to On
automatically activates the Pure Black Text/Graphics option.
• Off—Black text knocks out colored backgrounds.
NOTE: PostScript applications may perform their own black overprint conversions
before sending the print job to the Fiery X40.
One example of how you might use this setting is with a page that contains some black
text on a light blue background. The background blue color is CMYK = 40%, 30%,
0%, 0% and the black text is CMYK = 0%, 0%, 0%, 100%.
• With Black Overprint On, the final text portions of the page are overprinted, or
combined with the underlying colors. This results in CMYK = 40%, 30%, 0%,
100% for the color used for the text. There is no transition in the cyan and magenta
toners, and the quality of the output is improved since it will not show artifacts near
the edges of the text. The option also works with text defined in the RGB color
space, that is RGB = 0, 0, 0.
• With Black Overprint Off, the border of the text is on an edge that has cyan and
magenta toners on one side (outside the text) and black toner on the other side
(inside the text). On many devices, this transition causes visible artifacts because of
the practical limitations of the copier.
1-12 Fiery X40 Color Management
1
Spot Color Matching
The Spot Color Matching option provides automatic matching of PANTONE colors
with their best CMYK equivalents.
• On—The Fiery X40 uses its built-in table to generate the closest CMYK matches of
PANTONE colors your copier can produce. (New tables are generated when you
add new output profiles.)
• Off—The Fiery X40 uses the CMYK equivalents defined by your application to
print PANTONE colors.
For jobs that include PANTONE spot colors, set Spot Color Matching to On unless
you are printing press simulations. In that case, set Spot Color Matching to Off and
choose the appropriate CMYK Simulation setting (see page 1-8).
NOTE: You can use the Spot Color Matching option only when printing composites,
not when printing separations.
Spot Color Matching and the PANTONE Coated Color Reference
The PANTONE Coated Color Reference (described on page 5-7) prints differently
depending on the Spot Color Matching setting.
• On—The Fiery X40 uses its built-in table to generate the best matches of the
PANTONE colors that your copier can produce. The PANTONE number is
printed below each swatch.
• Off—The Fiery X40 prints swatches using the CMYK values recommended by
Pantone (and used by applications that provide PANTONE color libraries). The
CMYK values used to generate the color, as well as the PANTONE number of the
color, are printed below each swatch. These CMYK values are printed through the
selected CMYK Simulation and Output Profile settings.
1-13 Printer Drivers and Print Options
1
Printer Drivers and Print Options
This section describes the role of the printer driver and explains how to use Windows
and Mac OS printer drivers for Fiery X40 printing.
NOTE: The term “PostScript” by itself is used to refer to Adobe PostScript Level 2 or
later.
What a printer driver does
To take full advantage of the features of the Fiery X40, your print jobs must be sent as
PostScript data. Since most applications cannot generate PostScript data directly, it is
the function of a printer driver to interpret instructions from the application and
convert them to PostScript data.
A PostScript printer driver also allows you to select print options specific to your
copier. To do this, the printer driver must be matched with a PostScript printer
description file (PPD) for your Fiery X40. The PPD contains information about the
particular features supported by the Fiery X40 and the copier. The PPD can be
thought of as the lines of PostScript code in the file that ar e device-specific. When you
print a job, the printer driver lets you choose among features by displaying print
options.
A few PostScript applications can send PostScript data directly to the copier and
present print options within the application interface. Even these applications,
however, require that you use a PostScript printer driver.
Your Fiery X40 user software includes Adobe PostScript printer drivers for
Windows 95/98, Windows NT 4.0, and Mac OS and the Microsoft PostScript printer
driver for Windows 2000. These are the recommended printer drivers for printing to
the Fiery X40. (See Getting Started for information on installing printer drivers.)
It is recommended that you set the print options initially in Fiery X40 Setup (see the
Configuration Guide). This provides you with a default configuration that is
appropriate for most Fiery X40 print jobs.
1-14 Fiery X40 Color Management
1
PostScript printer driver for Windows 95/98, Windows NT 4.0,
and Windows 2000
The printer driver options described in this section can be accessed by clicking
Start\Settings\Printers, right-clicking the appropriate PPD name, and selecting
Properties (Windows 95/98), Document Defaults (Windows NT), or Printing
Preferences (Windo ws 2000) from the pop-up menu. These settings are also accessible
from the Print Setup or Page Setup dialog boxes of most applications.
For W indow 95/98, the Fiery X40 driver interface enables you to save combinations of
settings that you can later access. Additionally, you can choose different settings for
individual jobs from the applications you use.
The printer driver writes a P ostScript file containing the instructions generated by your
application and the Fiery X40 print options you selected. The printer driver sends the
PostScript file to the Fiery X40. The Fiery X40 then performs PostScript processing
and color conversions and sends raster color data to the print device.
NOTE: The following illustrations and instructions do not apply to all applications.
Many applications, such as PageMaker, Photoshop, Illustrator, QuarkXPress, and
CorelDRAW, have other color management options in addition to those presented in
the printer driver. For information on specific applications, see Chapters 6 through 9.
