TPM-I15M
Industrial Touch Monitor/Display
User Manual
Version 1.0
Published November 2016
Copyright©2016 EFCO. All rights reserved.
Page 2
i
Industrial Touch Monitor/Display
TPM-I15M
Revision History
Revision
Date
Description
1.0
2016/11/18
First release
Page 3
ii
Industrial Touch Monitor/Display
TPM-I15M
Copyright Notice
This document is copyrighted, 2016. All rights are reserved. The original manufacturer
reserves the right to make improvements to the products described in this manual at
any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted in any
form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate and
reliable. However, the original manufacturer assumes no responsibility for its use, or
for any infringements upon the rights of third parties that may result from its use.
The material in this document is for product information only and is subject to change
without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, EFCO assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information contained herein.
EFCO reserves the right to make changes in the product design without notice to its
users.
About Manual
The information contained in this document is subject to change without notice.
This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be reproduced, translated
to another language or stored in a retrieval system, or transmitted by any
means, electronic, mechanical, photocopying, recording, or otherwise, without
prior written permission. Windows is a registered trademark of Microsoft, Inc.
Other brand or product names are trademarks of their respective holders.
Page 4
iii
Industrial Touch Monitor/Display
TPM-I15M
Users may refer to the http://www.efcotec.com for the latest version of this
document.
Warnings, Cautions and Notes
Warnings indicate conditions, which if not observed, can cause personal
injury!
Cautions are included to help you avoid damaging hardware or losing
data.
Notes provide optional additional information.
Manufacturer’s Declaration and Approval
General Authorization
This device complies with the requirements of the directive
2004/108/EC with regard to “Electromagnetic Compatibility” and
2006/95/EC "Low Voltage Directive".
Therefore, you will find the CE mark on the device or packaging.
FCC-Class A Declaration:
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
Page 5
iv
Industrial Touch Monitor/Display
TPM-I15M
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.
Modifications not authorized by the manufacturer may void user’s authority to
operate this device.
This class A digital apparatus complies with Canadian ICES-003.
1. When move the monitor, always switch off power and disconnect all cables to
avoid any danger.
2. Please use the power and signal cables correctly when install or bend it.
3. In case of notice any abnormal smell or noise, please stop operation and call the
nearest dealer or service center.
(1) A Unshielded-type power cord is required in order to meet FCC
emission limits and also to prevent interference to the nearby radio and
television reception. It is essential that only the supplied power cord by
used.
(2) Use only shielded cables to connect I/O devices to this equipment.
(3) Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Page 6
v
Industrial Touch Monitor/Display
TPM-I15M
Contents
Revision History ....................................................................................................................................... i
Copyright Notice .................................................................................................................................... ii
About Manual ........................................................................................................................................ ii
Warnings, Cautions and Notes .............................................................................................................. iii
Manufacturer’s Declaration and Approval ........................................................................................... iii
Contents ................................................................................................................................................. v
Chapter 1 ................................................................................................................................................ 1
1.1 Introduction ............................................................................................................................. 2
1.2 Product General Specification .................................................................................................. 2
1.3 Features .................................................................................................................................... 3
1.4 Unpacking the monitor ............................................................................................................ 3
Chapter 2 ................................................................................................................................................ 5
2.1 I/O Mechanical Dimension ....................................................................................................... 6
2.2 I/O placement .......................................................................................................................... 6
2.3 To PC Connect .......................................................................................................................... 7
Chapter 3 ................................................................................................................................................ 8
3.1 Control Buttons ........................................................................................................................ 9
3.2 Structure of OSD settings ......................................................................................................... 9
Page 7
1
Industrial Touch Monitor/Display
TPM-I15M
Chapter 1
Introduction
Page 8
2
Industrial Touch Monitor/Display
TPM-I15M
1.1 Introduction
TPM-I15M is color TFT LCD monitor, suitable for many types of application. Optional
ELO or TWN resistive touch, MSR and 2nd display, please contact our regional
distributor for further information.
1.2 Product General Specification
Model
TPM-I15M
TPM-I15M with stand
Cabinet color
Black
Display size
15.0"
Active Area
304 * 228 mm
Optimal Resolution
1024 * 768
Color Arrangement
RGB-stripe
Brightness
LCD PANEL
350 cd/m² (typ.)
Contrast Ratio
700:1
Response Time
8 ms (typ.)
Viewing Angle
170 degrees (H)
160 degrees (V)
Input Video Format
VGA/DVI
Input Video signal connector
D-Sub 15 pins + DVI-D
Power consumption
20W
Input Frequency
Horizontal: 31.5 kHz~60.2 kHz
Vertical : 56.3Hz~75Hz
Power supply
DC 12V +/- 10%
Temperature
Operating: 0℃~55℃
Storage: -20℃~65℃
Humidity
Operating: 10%~90%
Storage: 10%~90%
Weight
3.5kg(net)
4.6kg(net)
Approvals
CE, FCC
Wall Mount
VESA 75 * 75 mm
Page 9
3
Industrial Touch Monitor/Display
TPM-I15M
1.3 Features
• Optimal display resolution 1024 * 768
• VESA 75 * 75 mm wall mount standard
• Durable and sturdy base design
• Optional: 3 tracks Magnetic Strip Reader (MSR)
• Optional: varieties of 2
nd
displays (8”, 10.4”…)
• Adjustable viewing angel freely up to 90 degrees horizontally
• Low power consumption only 20W with LED backlight
1.4 Unpacking the monitor
- Put the monitor on a clean surface; make sure the box in upright position.
- Remove packing materials from inside of box.
Check accessory
Please make sure all the accessories are included:
Standard Items
a. b.
LCD Monitor VGA cable
c. d.
Power supply Power cord (available with different plugs)
Page 10
4
Industrial Touch Monitor/Display
TPM-I15M
Optional Items
e. f.
MSR 2nd display
Page 11
5
Industrial Touch Monitor/Display
TPM-I15M
Chapter 2
Installation
Page 12
6
Industrial Touch Monitor/Display
TPM-I15M
2.1 I/O Mechanical Dimension

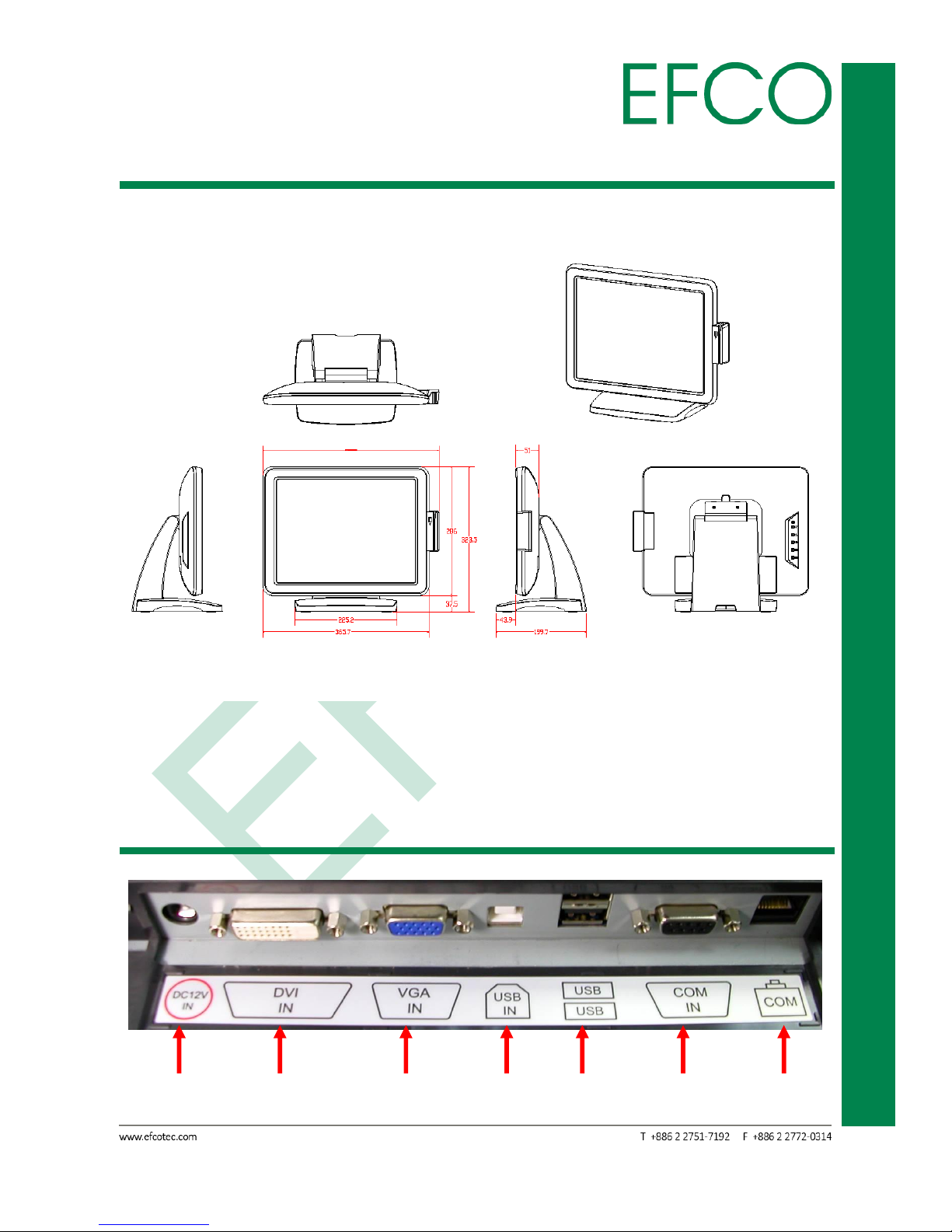

Photo_1 – Dimension
2.2 I/O placement
1 2 3 4 5 6 7
Page 13
7
Industrial Touch Monitor/Display
TPM-I15M
1 DC JACK
2 DVI
3 VGA
4 USB B Type
5 Dual USB A Type
6 RS232
7 RJ45
Photo_2 – I/O view
2.3 To PC Connect
1. Connect VGA cable from monitor to PC
2. Connect DC plug to monitor and the other side to wall outlet
Photo_3 – PC Connect
Page 14
8
Industrial Touch Monitor/Display
TPM-I15M
Chapter 3
User Control
Page 15
9
Industrial Touch Monitor/Display
TPM-I15M
3.1 Control Buttons
Photo_4 – Control button
Auto Adjusting
a.) Pressing to execute AUTO-Adjusting function. This function
will set the monitor display area to the optimal position.
b.) Sometimes this function can't achieve the optimal effects.
Please follow the manual adjusting procedure.
Menu
When the light bar move other item, the key are used to select
it, and read to adjust. Press the MENU key to activate the OnScreen Display (OSD). Press twice to turn off the OSD. After 30
sec idle time, the OSD screen will automatically turn off.
Power
Use the power switch to turn the power ON or OFF. We
recommend to turn your system power on first, then the LCD
monitor.
Up
a.) When OSD mode is activated (When “MENU” key is pressed).
The two keys are used to select the adjustment items.
b.) When adjustment item is selected, the two keys are defined
to decrease or increase the value of each selected item.
Down
Table_1 – Control button
3.2 Structure of OSD settings
Main
Menu
First Level
Second Level
Third
Level
Operating Procedure
Auto Adjust
Press “UP” or “DOWN” to adjust Hphase & H-position & V-position clock
automatically.
Page 16
10
Industrial Touch Monitor/Display
TPM-I15M
Luminance
Brightness
Contrast
Exit
Press “UP” key to increase brightness,
“DOWN” key to decrease brightness.
Press “UP” key to increase contrast,
“DOWN” key to decrease contrast.
Geometry
H. Position
V. Position
Clock
Phase
Exit
Press “UP” key to shift screen right,
“DOWN” key to shift screen left.
Press “UP” key to shift picture upward,
“DOWN” key to shift picture downward.
Adjust sampling clock of analog to
digital converter until clock is equal to
pixel frequency of video input.
By varying this “UP” “DOWN” control
the exact sampling time within the pixel
can be adjusted.
Color
9300K
6500K
5800K
Press “UP” or “DOWN” to choose three
types of color temperature 9300°k,
6500°k and user define.
User Preset
Red
Green
Blue
Exit
Exit
OSD
H. Position
V. Position
OSD Timeout
Exit
Adjust OSD frame horizontal location,
press “UP” key to shift frame right,
“DOWN” key to shift frame left ,
timeout and preset OSD.
Adjust OSD frame vertical location,
press “UP” key to shift frame upward,
“UP” key to shift frame downward ,
timeout and preset OSD.
Language
English
French
German
Italian
Spanish
Japanese
T. Chinese
S. Chinese
Press “UP” or “DOWN” to choose any
one of the following language, English,
French, Germany, Italy, Spain ,
Japanese, Traditional Chinese and
Simplified Chinese.
Page 17
11
Industrial Touch Monitor/Display
TPM-I15M
Recall
Color Recall
Recall All
Exit
Recall the default value.
Miscellaneous
Sharpness
Display
Information
Exit
Press “UP” key to increase sharpness,
“DOWN” key to decrease sharpness.
Exit
Table_2 – Structure of OSD setting
