Edsyn LONER 951SX-230, 971-230 Instruction Manual

951SX-230

LONER®

Temperature Controlled

Soldering Station

• COMPLIES WITH MIL-S-45743E, MIL-STD-2000-1B, WS6536E AND
ESD SPEC, DOD-STD-1686, DOD-HDBK-263

made

in

U S A

Instruction manual

Specications for Model 951SX-230

Power Requirements 230V, 50/60 Hz

Power Rating 15W - 220W

Heater Rating 230V, 95W

Temperature Range 400°F-800°F/205°C-427°C

Temperature Regulation ±6°F/±3°C

Tip-to-Ground Voltage
Leakage/Resistance < 2mV/< 2 ohms

Overall Dimension 4.1"W x 8.2"H x 10"D
104 mm x 208 mm x 254 mm

Weight 2.5 lbs/1.1 kg

Contents

951SX-230 includes 1 - LT375 Soldering Tip

PD528 Tool Pod

SH230 Sponge Holder

(Includes RS199 Cleaning Sponge,
RS243 Leveling Pad, LN230 Liner)

WP556 WIGAPRY Low Static Computer Aid

DISTINGUISHING FEATURES

For 951SX-230 For 951SX-230P

POWER CORD WIRING

BROWN to LINE
BLUE to NEUTRAL
GRN/YEL to GROUND

For 951SX-230B

13A Fuse inside

For 951SX-230I

Power Cord

WARNING:

DO NOT HIT OR TAP THE SOLDERING TOOL. THE HEATER ELEMENT WILL BREAK!!!

CAUTION:

Over-lling can cause thermal shock
to the tip or heating element during
tip cleaning.

• Replace RS199 Cleaning Sponge

1. Fill water only up to the top of the RS243

Leveling Pad.

2. Depress RS199 to moisten it completely.

• Replace SC581 Solder Collector

1. Hold the Housing rm and turn Cap

counter-clockwise and pull it away from the
Housing.

2. Remove used SC581 and replace with

a new one.

3. Reassemble Pod with TOP of the Cap in

proper position.

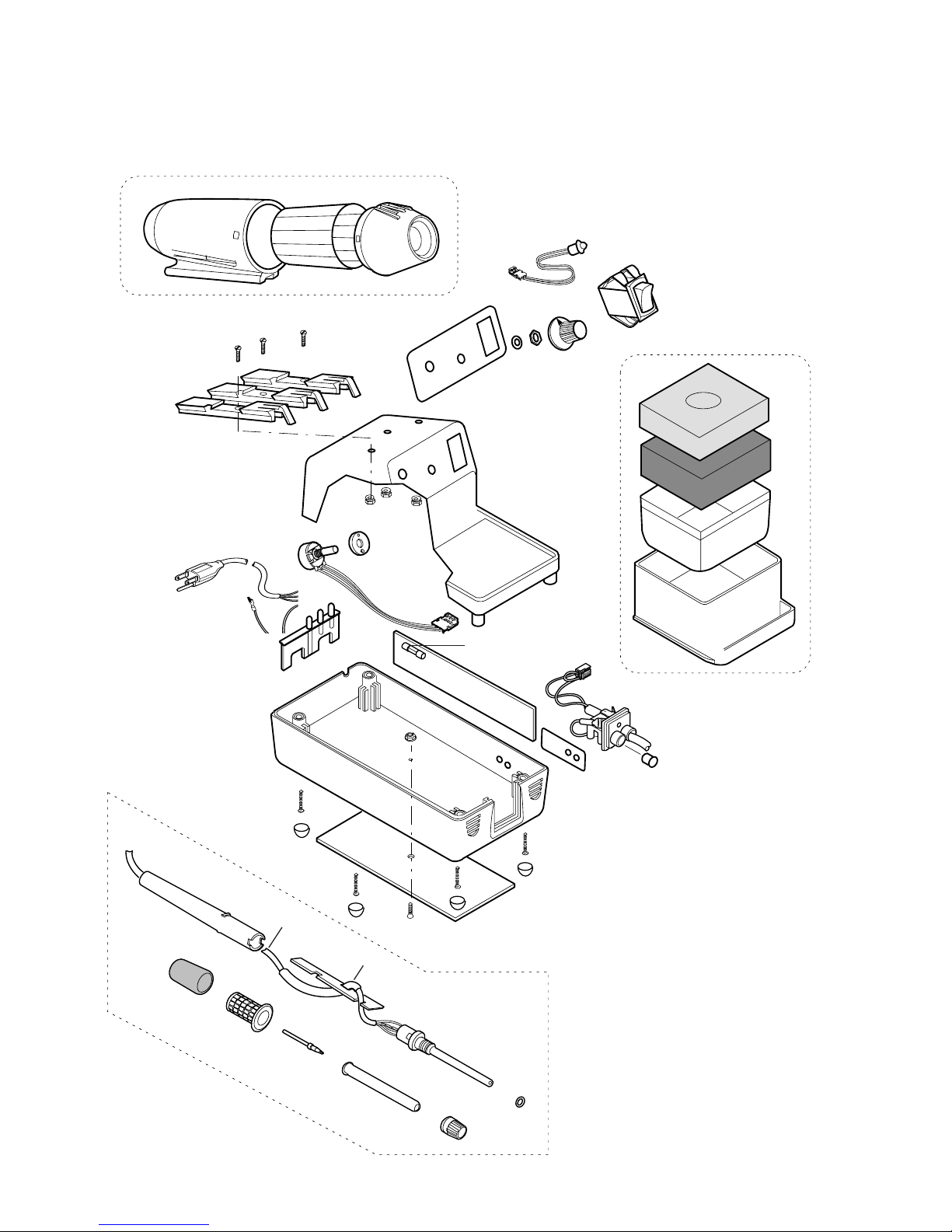

MAINTENANCE

Static Safe

Temp.
Regulation
Indicator

SH230

Sponge Holder

PD528 Tool

Pod

Power Switch

Calibration Pots for HI & LO Temp.

Hollow Threadless Heater

LN230

SH230-1

RS243

RS199

SC581

Solder Col-

lector

SR043

Front Hous-

ing

SR042

Thermal
Housing
