1. Introduction
Thank you for choosing the Internet Camera. This Camera sends live video through the
Internet to a web browser or camera viewer anywhere in the world! This compact,
self-contained unit lets you keep an eye on your home, your kids, and your
workplace—whatever’s important to you.
How does the Camera do all of this? Unlike standard “web cams” that require an attached PC,
the Internet Camera can connect directly to a network. The Motion JPEG video compression
produces a high quality, high-frame rate, 640 x 480 video stream.
The included Camera Viewer utility lets you record the video stream to your local hard drive,
“live” or on a predetermined schedule.
Use the instructions in this Guide to help you integrate the Camera into your network. These
instructions should be all you need to get the most out of the Internet Camera.
2. Package Content
One Internet Camera
One Power Adapter
One Camera Stand
One 100M Category 5 Ethernet Cable
One Quick Installation Guide
One CD (Including Manual/Utility/Driver)
If any of the above items are missing, please contact your supplier.
3. System Requirement
System requirement for PC, MAC or Notebook PC to access the Internet Camera are:
OS System: Windows 98SE, Me, NT, 2000, XP, Server 2003
CPU: Intel Pentium III 750MHz above or Intel Celeron 1GHz above
Memory Size: 128MB (256MB recommended)
VGA Card Resolution: 800 x 600 or above
3
4. Hardware Installation
4.1. LED and Focusing
The Camera head and its focus ring allow you to modify the aim and focus of the Camera.
To adjust the Camera’s focus, rotate the dark focus ring.
There are two LEDs indicating the camera status.
Monitoring: When someone is viewing the camera, the LED will light.
Ready: When the camera is power on and ready for access, the LED will light.
Focus ring
LED
Green: Monitoring
LED
Amber: Ready
4.2. Camera Ports
The Camera features two ports and a Reset button.
Power: The Power port is where you will connect the power adapter.
LAN: The LAN port is where you will connect the Ethernet network cable.
Reset: The Reset button is what you will press if you need to reset the Camera to factory
default settings. Insert a paper clip into the hole. Then press the button and hold it in for five
seconds.
4
LAN Port
Power Jack
4.3. Installation Procedure
1. Unpack the Internet Camera package and verify that all the items listed in the Chapter 2
are provided.
2. Connect the Internet Camera to your network by attached the network cable from the
switch/router to the UTP port of the Internet Camera.
3. Connect the power adapter to the Internet Camera and plug the power adapter to power
outlet. The Internet Camera will be powered on. When the Internet Camera is ready, the
Ready LED will show orange color.
Note: It is highly recommended to use the power adapter shipped with the Internet Camera,
do NOT use any other power adapter from any sources.
5. Software Installation
Follow the simple steps below to run the Install Wizard to guide you quickly through the
Installation process. The following installation is implemented in Windows XP. The installation
procedures in Windows 98SE/Me/2000/Server 2003 are similar.
1. Insert the CD shipped along with the Internet Camera into your CD-ROM drive. The
“Autorun.exe” program should be executed automatically. If not, run “Autorun.exe”
manually from “Autorun” folder in the CD.
5
2. The Install Wizard will show four selections, select the program you want to install or click
“Exit” to install the program later. The following installation steps are the demonstration of
“Install Administrator Utility & Camera Viewer”.
3. The system will start the installation procedures. Click “Next” to continue installation.
6
4. If you wish to install the software program in an alternate location, click “Change”;
otherwise click “Next” to move on to the next step.
5. Click “Install” to start installing the program.
7
6. The system will install the program automatically.
7. Click “Finish” to complete the software installation.
8
8. When the installation is completed. The system will auto run ”Administrator Utility“. On the
Internet Camera first page, the cameras found in the network are listed in the left window.
Choose the one you want to configure and click “Setting Wizard” to proceed.
“N” means the
camera is new and
not configured.
9. Please enter the default password “1234” and click “OK” to login to the IP setup page.
9
10. Internet Camera is working through the network (TCP/IP Protocol). The IP address setting
must be correct, or you cannot access to the camera. The wizard program will detect the
IP address status of your network automatically and suggest a free IP address for the
Camera. You can accept the suggested value or enter the value manually. If you enter the
value manually, please be aware that the “Subnet Mask” must be the same for both the
camera and the PC. Click “Finish” to apply the configuration.
11. This wizard will pop up a window to ask you if you want to run the “Camera Viewer” and
see the video of the Camera immediately. Select “OK” to run “Camera Viewer”.
10
12. The “Camera Viewer” will show the video automatically. Congratulations, you can use the
camera through the network to view the video from now on.
6. Using the Administrator Utility
The Administrator Utility allows users to search and setup the cameras located within the
Intranet or on the Internet. From the utility, users can view all the information of the selected
camera; furthermore, it provides a setting wizard, which can guide users to add the camera to
the network easily and promptly.
There are two ways to run the Administrator Utility as follows.
1. Click “Start”, select “Programs\IP Camera\Admin Utility” to run the utility.
2. Click the “IP Camera Admin” icon
to run the utility.
11
Once the utility is started, it will search all the cameras within the network. To do more settings,
please refer to the description in the following sections.
12
6.1. General Setting
LAN
Auto Discover
Camera List
Internet
Add Click “Add” will appear a window for you to enter the IP Address
Click the button will search the camera within the network
automatically.
The list shows the camera name and the setup status of the
camera.
It means the camera is in the default setting.
It means the camera is configured before.
of the camera on the Internet.
Delete Click “Delete” to delete the camera from the list.
Internet
13
Camera List The list shows the camera name and the connect status of the
camera.
It means the camera is disconnected or not in the
Internet.
It means the camera is connected.
Information of Camera
Camera Information It displays all information of the selected camera. The information
includes firmware version, network information, IP Address,
UPnP setting, DDNS setting, Resolution and E-mail setting, etc.
Camera Setting

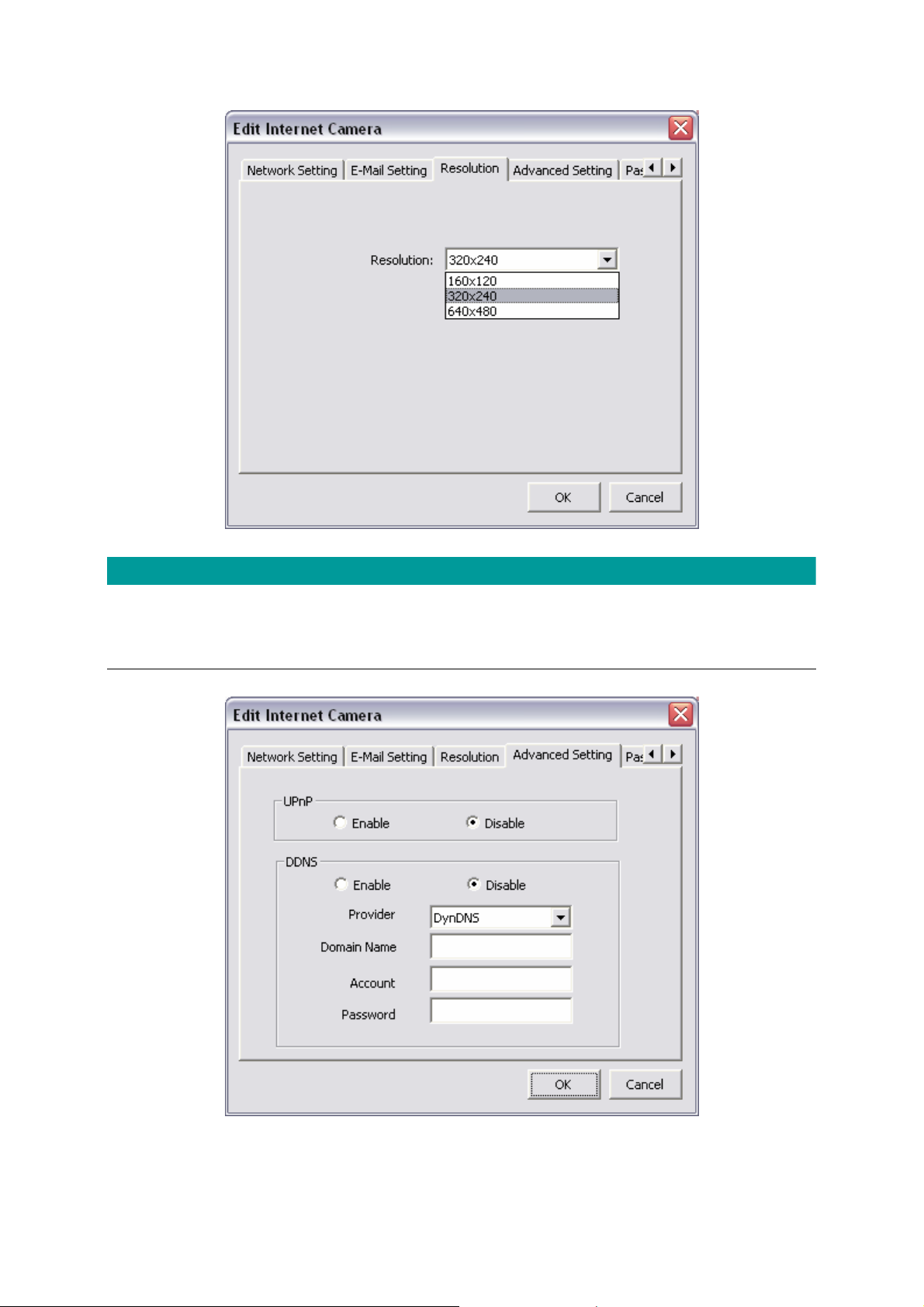

Detail Setting Click “Detail Setting” to do more setting of the camera such as IP
address, Resolution, password and firmware upgrade, etc.
Setting Wizard Click “Setting Wizard” to setup the necessary setting for the
camera.
14
6.2. Detail Setting
When you click the “Detail Setting”, a screen will pop up for you to enter the “Administrator
Name” and “Password”. The default value is as follows.
Name: “Admin”
Password: “1234”
If the name and password you enter are correct, you can start to setup the camera.
15
Network Setting
Internet Camera Name The default camera name is “IPCamera_MJPEG”. It is
recommended to name a meaningful name for the camera.
IP Address Enter an unused IP Address within the IP address range used on
your LAN. If the IP Address of your LAN is from the 192.168.2.1
to 192.168.2.254, you can set an unused IP Address from the
range for the camera, for example: 192.168.2.250.
Subnet Mask The Subnet Mask field must match the subnet setting on your
LAN. For example: 255.255.255.0.
Gateway The Gateway is used to forward frames to destinations in a
different subnet on the Internet. The Gateway setting must be the
same with the gateway used by the PCs on your LAN.
DNS Server DNS Server (Domain Name Server) that translates names to IP
addresses. Set the same DNS Server as the PCs on your LAN.
16 17
