EdgeStar AP4 Install Guide

Installation

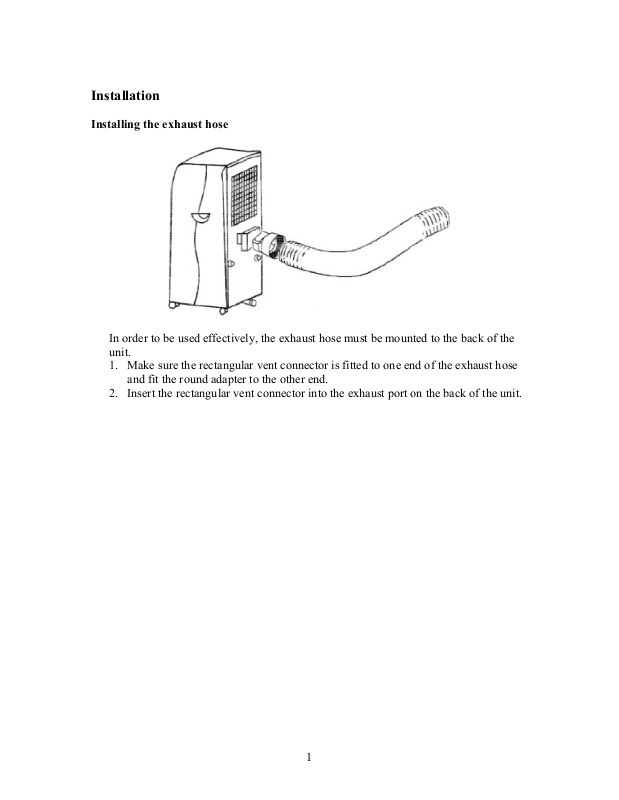

Installing the exhaust hose

In order to be used effectively, the exhaust hose must be mounted to the back of the
unit.

1. Make sure the rectangular vent connector is fitted to one end of the exhaust hose

and fit the round adapter to the other end.

2. Insert the rectangular vent connector into the exhaust port on the back of the unit.

1

Window installation

This portable air conditioner ships with a foam window kit for temporary mounting in
standard windows.

1. Punch the circular cut-out out of the foam window kit. Insert the round adaptor

into the cut-out. Open the window and place the foam window kit in it, with the
circle cut-out near where you are going to place the portable air conditioner.
If the window is oriented horizontally, place the foam window kit horizontally. If
the window is oriented vertically, place the foam window kit vertically. Gauge the
size of the window. The foam window kit can be cut to fit into the window if the
kit is too long.

2. Once you have properly sized the window kit for the window, close the window

tightly onto the window kit. If necessary, use the included adhesive tape to help
keep the window kit in the proper position.

3. Position the portable air conditioner near the window, extend the exhaust hose as

far as you need to, and place the end of the exhaust hose into the round adapter.

2
