EdgeStar AP10002BL User Manual

0 (0)

Portable Air Conditioner

Owner’s Manual

AP10002BL

For more information on other great EdgeStar products on the web, go to http://www.edgestar.com

Important Safety Information

Improper handling can cause serious damage to the appliance and/or to the user. Please read the following safety information.

Electrical Safety

This unit is designed for indoor use only.

Do not use the unit in extremely humid or wet environments.

Do not spray water and wet the housing or control panel.

Do not pull the unit by the cord.

Always turn the unit off and unplug it from the outlet when cleaning.

Unplug the unit if it is not going to be used for a long period of time.

Do not operate the unit with a damaged plug or a loose socket.

Use only the correct power supply with appropriate amperage.

If the power cord is damaged, it must be replaced by the manufacturer, a service agent, or qualified technician.

Do not remove any part of the casing unless instructed by an authorized technician.

General Safety

This portable air conditioner is not intended to be used by children.

Children should be supervised to ensure that they do not play with this product.

Do not allow children to play with the controls or drop any objects into the air outlets or vents.

Do not place objects or let any person sit on top of the unit.

Only use in the upright position on a flat, level surface and provide at least 20 inches of clearance from any walls or objects.

Route the power cord carefully to avoid a tripping hazard.

This unit is intended for domestic use only. Do not use the portable air conditioner for industrial or commercial use. Any other use may invalidate the warranty.

RESET

TEST

Your portable air conditioner is supplied with a Leakage-Current Detection and Interruption (LCDI) safety plug. This device provides protection to reduce the risk of fire due to arcing faults in the power supply cord. Before using your portable air conditioner, follow the instructions below to ensure that the LCDI plug is working properly:

1.Plug the power cord to a grounded outlet.

2.Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact EdgeStar support.

DO NOT USE YOUR PORTABLE AIR CONDITIONER IF THE TEST FAILS.

Press the RESET button to start using your air conditioner.

Do not use the TEST and RESET buttons as an ON/OFF switch.

Electrical products should not be disposed of with household waste. Please contact your local recycling center for more information on how to recycle electronic waste.

i

Table of Contents



IMPORTANT SAFETY INFORMATION.................................................................

I

INTRODUCTION ...................................................................................................

1

PARTS IDENTIFICATION.....................................................................................

2

FRONT VIEW........................................................................................................

2

BACK VIEW..........................................................................................................

2

PARTS INCLUDED ...............................................................................................

3

PREPARATIONS FOR INSTALLING THE WINDOW KIT ...................................

3

WINDOW KIT INSTALLATION INSTRUCTIONS.................................................

4

INSTALLATION OF THE EXHAUST HOSE.........................................................

6

NOTES ABOUT THE EXHAUST HOSE .......................................................................

7

INSTALLATION OF THE DRAIN HOSE...............................................................

8

DRAINING THE UNIT............................................................................................

9

INSTALLING THE FILTER..................................................................................

10

OPERATING INSTRUCTIONS............................................................................

11

CONTROL PANEL OVERVIEW ..............................................................................

11

DIRECTIONAL LOUVERS ......................................................................................

12

REMOTE CONTROL OVERVIEW ...........................................................................

12

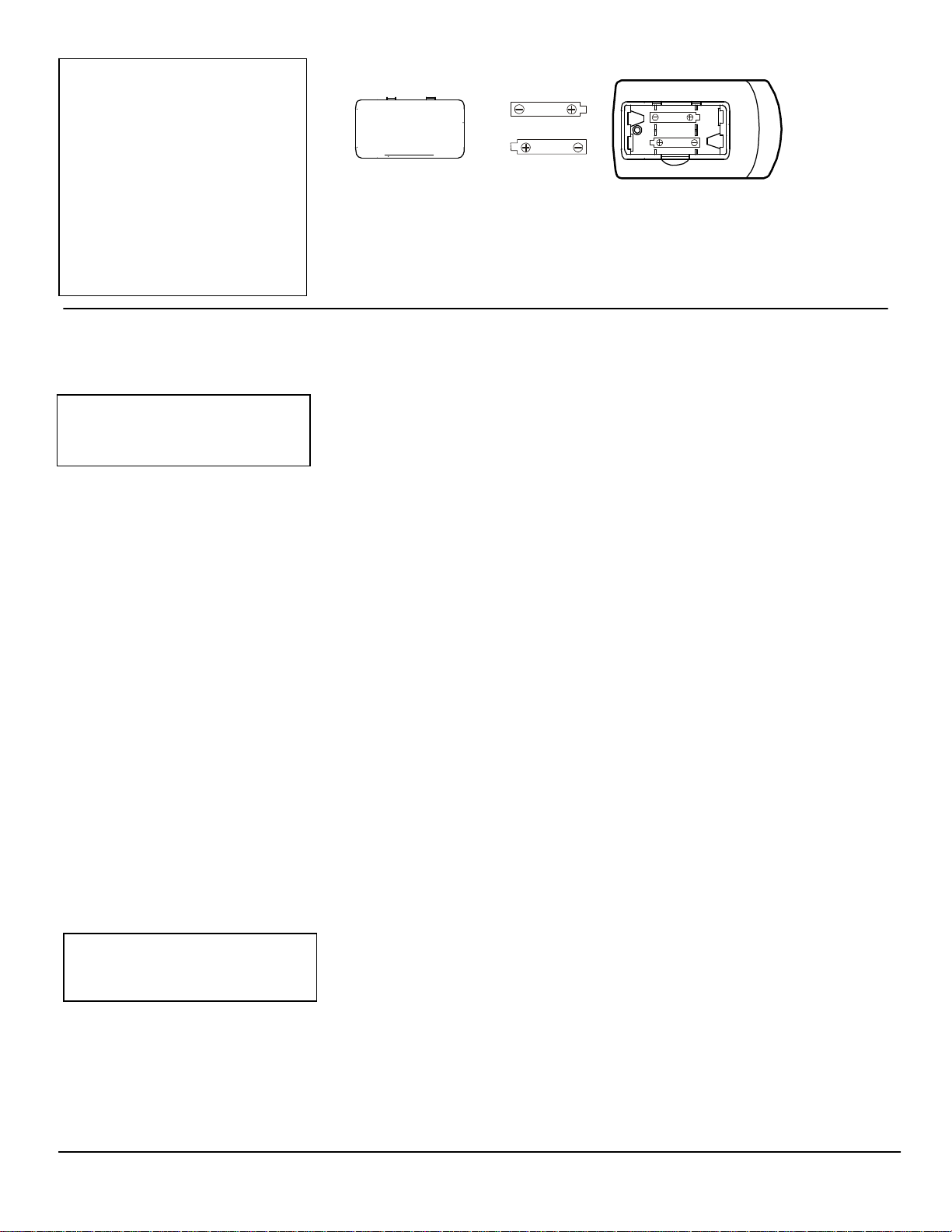

REPLACING THE BATTERIES ................................................................................

13

ENERGY SAVING GUIDE...................................................................................

14

MAINTENANCE ..................................................................................................

15

CLEANING THE UNIT ...........................................................................................

15

CLEANING THE PRE-FILTER .................................................................................

15

PREPARATION FOR STORAGE .............................................................................

16

TROUBLESHOOTING ........................................................................................

17

SPECIFICATIONS...............................................................................................

20

EDGESTAR LIMITED WARRANTY ...................................................................

21

Edgestar Portable Air Conditioner

ii

Introduction

Thank you for purchasing this EdgeStar portable air conditioner. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship.

This manual contains important information regarding the proper installation, use and maintenance of your portable air conditioner. Following this manual will ensure that your product will work at its peak performance and efficiency.

Please save the original product packaging in case you need to safely transport your portable air conditioner.

For Your Records:

Please write down the model number and serial number below for future reference. Both numbers are located on the ratings label on the back of your unit and are needed to obtain warranty service. You may also want to staple your receipt to this manual as it is the proof of your purchase, and is also needed for service under your warranty.

Model Number:

Serial Number:

Date of Purchase:

To better serve you, please do the following before contacting customer service:

If you received a damaged product, immediately contact the dealer that sold you the product.

Read and follow this instruction manual carefully to help you install, use and maintain your portable air conditioner.

Read the troubleshooting section of this manual as it will help you diagnose and solve common issues.

Visit us on the web at http://www.edgestar.com to register your product, download product guides, additional troubleshooting resources and up-to-date information.

If you need warranty service, our friendly customer service representatives are available via email at service@edgestar.com or by telephone at 1 (866) 319-5473.

1

EdgeStar AP10002BL User Manual

Front View

4

5

Back View

8

9

10

11

Parts Identification

1

2

3

6

7

Parts Key:

1.Control Panel

2.Handle

3.Remote Control Holder

4.Air Vent

5.Louvers (Vertical & Horizontal)

6.Castors (4)

7.Air Inlet

8.Filter Grill

9.Air Outlet

10.Power Cord Hook

11.Power Cord

Edgestar Portable Air Conditioner

2

Parts Included

Suggested ToolsPhillips Screw Driver (Medium sized), Tape Measure/Ruler, Scissors,

Saw (In the event that your window panel needs to be cut down in size for installation).

NOTE: You may need to contact your electrician if your room’s circuit is not able to power your unit.

Preparations for installing the window kit

You must vent your portable air conditioner when running in it cooling mode. Your unit includes a window exhaust kit that can be used to vent the unit out a window.

Before you begin, make sure you have all the parts necessary for installation.

If you have multiple windows, choose one that is near an electrical outlet that will be able to provide sufficient power to your unit. See the power requirements listed on the product label printed on the side, or on the back of your portable air conditioner.

3

Your window kit can be installed on a horizontal or vertical sliding window as shown in the pictures below.

Please follow the installation instructions carefully to avoid personal injury or damage.

Window Kit Installation Instructions

Cut the foam seal B to the proper

1 length and attach it to the windowsill.

Attach the window exhaust

2 adapter C to the window panel inside opening.

3

Attach the protective screen to the

outside of the window exhaust



adapter with two screws.

4

Install the rain deflector to the

outside of the window panel. Line

up the holes on the rain deflector and the window panel. Use 4 bolts, 4 washers, 4 split-ring washers and 4 nuts to attach the rain deflector onto window panel.

Edgestar Portable Air Conditioner

4

3

Attach the window panel to the

window panel

a)If the inner width of the window is less than 28” (718 mm) wide:

1)Remove the adjustment panel from the window panel, and cut the window panel to the same width as the panel.

2)Open the window sash and place the window panel on the windowsill.

3)Secure the window panel to the windowsill.

If the inner width of the window is b) between 28” (718mm) and 36.5”

(927mm) inclusive:

1) Open the window sash and place the adjustable window panel on the windowsill.

2) Slide the adjustment panel to fit the window frame width.

3) Secure the panel to the windowsill with four large wood screws and four slider brackets.

If the inner width of the window is c) between 36.5” (927mm) and 64”

(1625mm) inclusive:

1) Open the window wash and place the extra window panel provided on the windowsill.

2) Slide the adjustment panel to fit the window frame width.

3) Secure the window panel to the windowsill with four large wood screws and four slider brackets.

5
