Edge Lighting Reflection User Manual

1718 W. Fullerton Ave

Chicago, IL 60614

Tel: [phone]

Fax: [phone]

www.edgelighting.com

© 2012 Edge Lighting. All Rights Reserved.

[e-mail]

Installation Instructions for Reflection

IMPORTANT INFORMATION

- This product is ETL listed for indoor dry locations.

- This product is wall mounted only.

- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.

- This instruction shows a typical installation

- This product is not dimmable.

SAVE THESE INSTRUCTIONS!

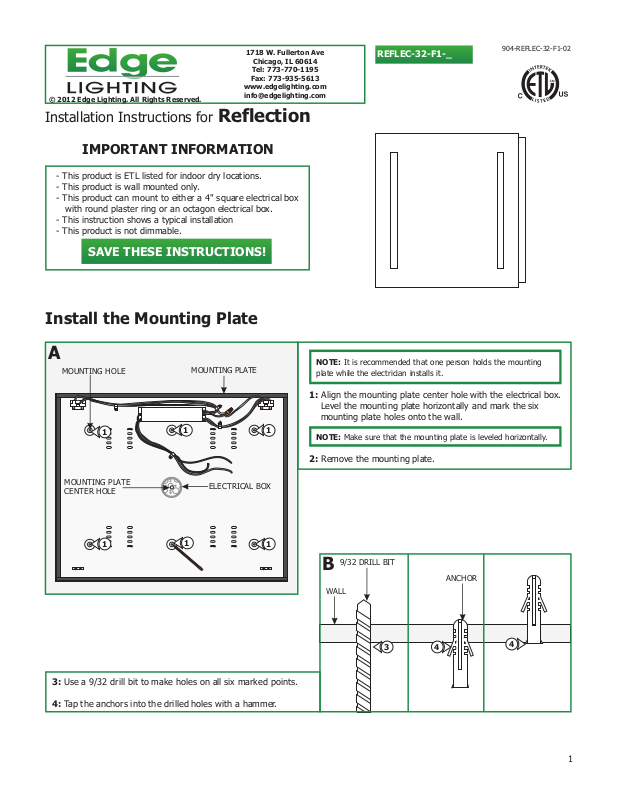

Install the Mounting Plate

REFLEC-32-F1-_

904-REFLEC-32-F1-02

A

MOUNTING HOLE

MOUNTING PLATE
CENTER HOLE

MOUNTING PLATE

1

1

1

ELECTRICAL BOX

1

1

1

NOTE: It is recommended that one person holds the mounting

plate while the electrician installs it.

1: Align the mounting plate center hole with the electrical box.
Level the mounting plate horizontally and mark the six
mounting plate holes onto the wall.

NOTE: Make sure that the mounting plate is leveled horizontally.

2: Remove the mounting plate.

9/32 DRILL BIT

B

ANCHOR

WALL

3

4

4

3: Use a 9/32 drill bit to make holes on all six marked points.

4: Tap the anchors into the drilled holes with a hammer.

1

C

6 6

7

9

5

MOUNTING PLATE
CENTER HOLE

8

POWER
LINE

5: Feed the power wires through the mounting plate center
hole.

6: Line up the mounting plate holes with the anchors and
secure it to the anchors with the six #8-32 screws provided.

6

7: Make sure that the mounting plate is grounded in

accordance with local electrical codes.

8: Connect the white fixture wire to the neutral power wire
with a wire nut.

9: Connect the black fixture wire to the hot power wire with a
wire nut.

6

66

CAUTION: To reduce risk of a burn or electrical shock during

lamping, disconnect the power to the fixture.

Install the Lamp & Mirror

D

1

SOCKET

LAMP

SPRING CLIP

MIRROR

MOUNTING PLATE

1

Use MAX 55 Watt Type 2G11 Base
Compact Fluorescent Lamp For Each Socket.

1: Push the lamp pins completely into the socket holes and
secure by snapping into the spring clips. Repeat this step
for the remaining sockets.

2: Place the mirror housing into the mounting plate and secure
it in place by tightening the two thumb screws on the top
and bottom of the mounting plate into the mirror housing.

NOTE: NEMA fluorescent lamp manufacturers recommend to

reduce possible flicker or instability when new dimming systems
are comissioned, lamps should be operated at the ballast's
maximum light output setting overnight (approximately
12 hours).

2

2

THUMB
SCREW

2
