Edge Lighting Mint Round User Manual

1718 W. Fullerton Ave

Chicago, IL 60614

Tel: [phone]

Fax: [phone]

www.edgelighting.com

© 2010 Edge Lighting. All Rights Reserved.

[e-mail]

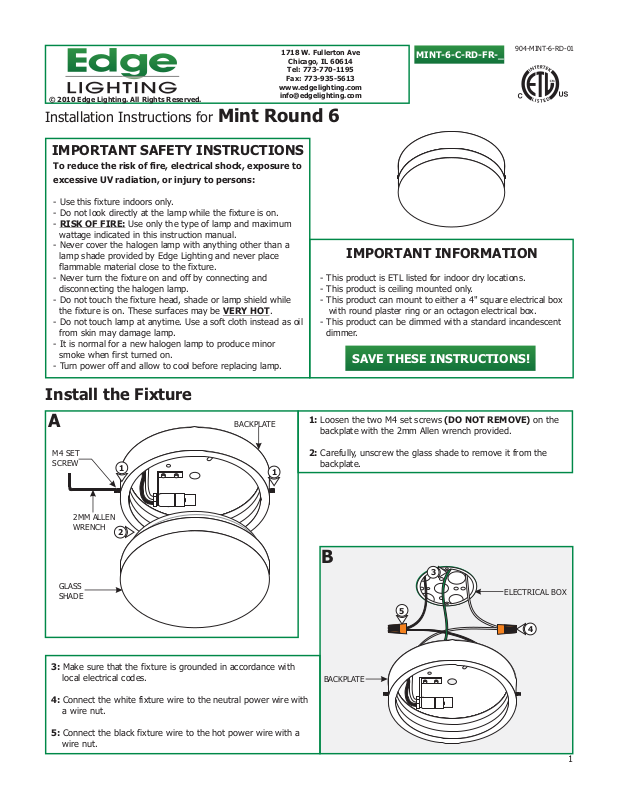

Installation Instructions for Mint Round 6

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock, exposure to
excessive UV radiation, or injury to persons:

- Use this fixture indoors only.

- Do not look directly at the lamp while the fixture is on.

- RISK OF FIRE: Use only the type of lamp and maximum
wattage indicated in this instruction manual.

- Never cover the halogen lamp with anything other than a
lamp shade provided by Edge Lighting and never place
flammable material close to the fixture.

- Never turn the fixture on and off by connecting and
disconnecting the halogen lamp.

- Do not touch the fixture head, shade or lamp shield while
the fixture is on. These surfaces may be VERY HOT.

- Do not touch lamp at anytime. Use a soft cloth instead as oil
from skin may damage lamp.

- It is normal for a new halogen lamp to produce minor
smoke when first turned on.

- Turn power off and allow to cool before replacing lamp.

- This product is ETL listed for indoor dry locations.

- This product is ceiling mounted only.

- This product can mount to either a 4" square electrical box
with round plaster ring or an octagon electrical box.

- This product can be dimmed with a standard incandescent
dimmer.

MINT-6-C-RD-FR-_

904-MINT-6-RD-01

IMPORTANT INFORMATION

SAVE THESE INSTRUCTIONS!

Install the Fixture

A

M4 SET
SCREW

2MM ALLEN
WRENCH

GLASS
SHADE

3: Make sure that the fixture is grounded in accordance with
local electrical codes.

1

2

BACKPLATE

1

1: Loosen the two M4 set screws on the

backplate with the 2mm Allen wrench provided.

2: Carefully, unscrew the glass shade to remove it from the
backplate.

(DO NOT REMOVE)

B

3

ELECTRICAL BOX

5

4

BACKPLATE

4: Connect the white fixture wire to the neutral power wire with
a wire nut.

5: Connect the black fixture wire to the hot power wire with a
wire nut.

1

6: Place all wires and wire nut connections inside the electrical
box.

7: Mount the backplate to the electrical box holes with the two
#8-32 screws and washers provided.

C

BACKPLATE

ELECTRICAL
BOX

6

Install the Lamp & Glass Shade

D

BACKPLATE

LAMP

1

SOCKET

7

CAUTION: To reduce risk of a burn or electrical shock during

lamping, disconnect the power to the fixture.

NOTE: The G9 lamp has an internal glass envelope and is safe to

be used without a lamp shield.

NOTE: Use only fingers and a soft cloth to install the lamp.

Use MAX 40 Watt Type T4, G9 Base, Bi-Pin
Halogen Lamp.

1: Push the lamp completely into the socket.

E

ELECTRICAL
BOX

7

WASHER

#8-32 SCREW

BACKPLA

TE

2:

Replace and screw the glass shade into the backplate until it

locks in place.

3: Tighten the two M4 set screws with the 2mm Allen wrench.

M4 SET
SCREW

2MM ALLEN
WRENCH

3

3

3

2

GLASS SHADE

2
