Thank you for choosing Eden.
We hope that this product provides you with not only years of faithful service, but also the inspiration and capability to take your music and express yourself in your own way.
At Eden we realize that having the right gear can mean the difference between having the confidence and ability to perform or not, so we strive to provide you with the tools that you need, whether at home, in the studio or
in a stadium.
Your new bass chorus pedal is designed to provide you with great tone and performance and the ability to truly take your tone anywhere.
This quick start guide is designed to provide you with the information you need to use your new pedal right out of the box. Remember every instrument is different so to ensure you get the best performance you should try various settings to ensure you get the most out of your bass chorus pedal.
HI FIDELITY FOR LOW FREQUENCY | 5
EDEN | BASS CHORUS PEDAL | NAVIGATION - 4

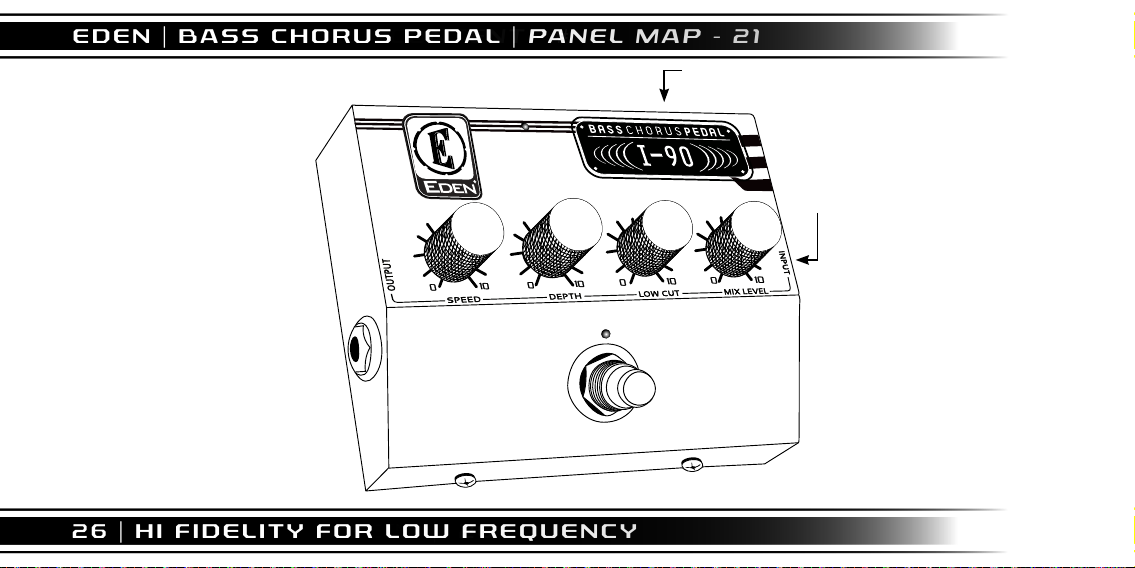

Bass Chorus Panel Navigation:
1.Output; Connect to your desk or other outboard equipment here.
2.Speed Control; Control the speed of the chorus effect here.
3.Depth Control; Control how depth of the chorus effect here.
4.Low Cut; Control the amount of low frequencies chorused by the effect, turning the control to the right increases the amount of bass frequency chorused.
5.Mix Level; Control the overall amount of chorus applied to your tone, increasing the mix level reduces
the amount of clean signal and increases the amount of chorused signal in the mix.
6.On / Off switch; Switch the chorus pedal on or off here. When the effect is active the light above the switch will illuminate.
7.Input; ¼” Jack Socket, Insert your instrument input here.
8.Power Input; Plug your supplied 15V Power Adapter in here.
6 | HI FIDELITY FOR LOW FREQUENCY
EDEN | BASS CHORUS PEDAL | PRODUCT SUPPORT - 5
Your Eden equipment has been designed to provide you with years of faithful service however should you ever need help with one of our products we have dedicated support teams all over the world. Visit your local Eden dealer or contact your regional distributor for more details. Alternately visit our website to see if you can find a solution www.edenamps.com
Simple rules to remember when using your unit:
DO: Keep your unit clean and free from dust and obstructions to ensure adequate cooling and maximum performance. DO: Ensure you use the best quality cables and connections when using your unit for peak performance.
DON'T: Use this unit with any power supply that was not supplied by Eden. This unit requires a 15v dc supply and should not be used with multi-way power supplies.
DON'T: Store liquids on or near the unit during use, or store in an overly humid environment.
DON'T: Modify or attempt to modify your unit, there are no user serviceable components inside. Any modification or repair by an unauthorized technician will void any warranty offered in your region and can pose a serious risk of electrocution or death.
DON'T: Use your unit for any purpose other than for which it was intended.
REMEMBER: Follow all the warnings and instructions which are provided in this handbook, always keep this handbook for future reference.
Eden has tested or had the unit tested and approved for sale in your region. Any markings of approval and or warning labels on an Eden product are provided to ensure you as a user are aware of the efforts Eden goes through so your product is suitable for use in your country. If you have any concerns about anything relating to your product then please contact
Eden immediately.
Please check your individual unit for the relevant markings and symbols which may apply.
HI FIDELITY FOR LOW FREQUENCY | 7
EDEN | BASS CHORUS PEDAL | INTRODUCCIÓN - 6
Gracias por elegir Eden.
Esperamos que este producto te proporcione no sólo años de servicio incondicional sino también la inspiración y capacidad de crear música y expresarte a tu manera.
En Eden somos conscientes que tener el equipo ideal puede significar la diferencia entre tener la confianza y aptitud de interpretar tu música o no, así que nos esforzamos para proporcionarte las herramientas que necesitas, ya sea en casa, en el estudio o en los escenarios. Tu nuevo pedal I90 Chorus se ha diseñado para proporcionarte grandes dosis de tono e interpretación y la habilidad para llevar tu sonido a cualquier parte.
Esta guía de inicio rápido te proporcionará la información necesaria para usar el pedal nada más sacarlo de la caja. Recuerda que cada instrumento es diferente, por lo que para conseguir los mejores resultados debes probar varios ajustes para asegurarte que sacas lo mejor de tu I90.
8 | HI FIDELITY FOR LOW FREQUENCY
EDEN | BASS CHORUS PEDAL | NAVEGACIÓN - 7
Bass Chorus Panneau de Navigation:
1.Salida; Para conectar a la mesa o cualquier otro equipo externo.
2.Control de Velocidad; Controla aquí la velocidad del efecto de chorus.
3.Control de Profundidad; Controla aquí la profundidad del efecto de chorus.
4.Corte de Graves; Controla la cantidad de frecuencias graves que afectan al chorus, girando el control hacia la
derecha incrementas la cantidad de frecuencias graves en el chorus.
5.Nivel de Mezcla; Controla la cantidad total de efecto de chorus en tu tono, incrementado el nivel de mezcla se reduce la cantidad de señal sin procesar y se incrementa la cantidad de señal con efecto de chorus en la mezcla.
6.Interruptor Encendido/Apagado (On/Off); Activa o desactiva el pedal aquí. Cuando el efecto está activo se
iluminará el piloto encima del interruptor.
7.Entrada con conector Jack de ¼”; Conecta tu instrumento aquí.
8.Entrada de corriente; Conecta aquí el alimentador de 15V suministrado.
