Echo X7722271404, X772000164 User Manual

Specifications, descriptions and illustrative material in this literature are as accurate as known at the time of publication, but are subject to change without notice. Illustrations may include optional equipment and accessories, and may not include all standard equipment.

X7722271404 / X772000164

SHC-266

Shaft Hedge Trimmer

Operator’s Manual

Burn Hazard

The muffler or catalytic muffler and surrounding cover may become extremely hot. Always keep clear of exhaust and muffler area, otherwise serious personal injury may occur.

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Users of this equipment risk injury to themselves and others if the unit is used improperly and/or safety precautions are not followed. ECHO provides an operator’s manual and a safety manual. Both must be read and understood for proper and safe operation. Failure to do so could result in serious injury.

X7502026704

TABLE OF CONTENTS SHC-266

TABLE OF CONTENTS

Table of contents ............................................................................................................................... 2

Introduction ........................................................................................................................................ 3

The Operator’s Manual ................................................................................................................ 3

The Safety Manual....................................................................................................................... 3

Servicing information ......................................................................................................................... 3

Parts/Serial Number..................................................................................................................... 3

Service......................................................................................................................................... 3

Echo Consumer Product Support ................................................................................................ 3

Product Registration .................................................................................................................... 3

Additional or Replacement Manuals ............................................................................................ 4

Safety................................................................................................................................................. 4

Manual Safety Symbols and Important Information..................................................................... 4

International Symbols .................................................................................................................. 5

Personal Condition and Safety Equipment .................................................................................. 6

Equipment.................................................................................................................................... 9

Emission Control (Exhaust & Evaporative)...................................................................................... 10

EPA 2010 and Later and/or C.A.R.B. TIER III ........................................................................... 10

Description....................................................................................................................................... 11

Contents .......................................................................................................................................... 13

Assembly ......................................................................................................................................... 14

Gear Housing Assembly / Drive Shaft ...................................................................................... 14

Operation ......................................................................................................................................... 14

Fuel............................................................................................................................................ 14

Starting Cold Engine.................................................................................................................. 16

Starting Warm Engine................................................................................................................ 17

Stopping Engine......................................................................................................................... 18

Hedge Trimming ........................................................................................................................ 18

Maintenance .................................................................................................................................... 20

Skill Levels................................................................................................................................. 20

Maintenance Intervals................................................................................................................ 20

Air Filter...................................................................................................................................... 21

Fuel Filter................................................................................................................................... 21

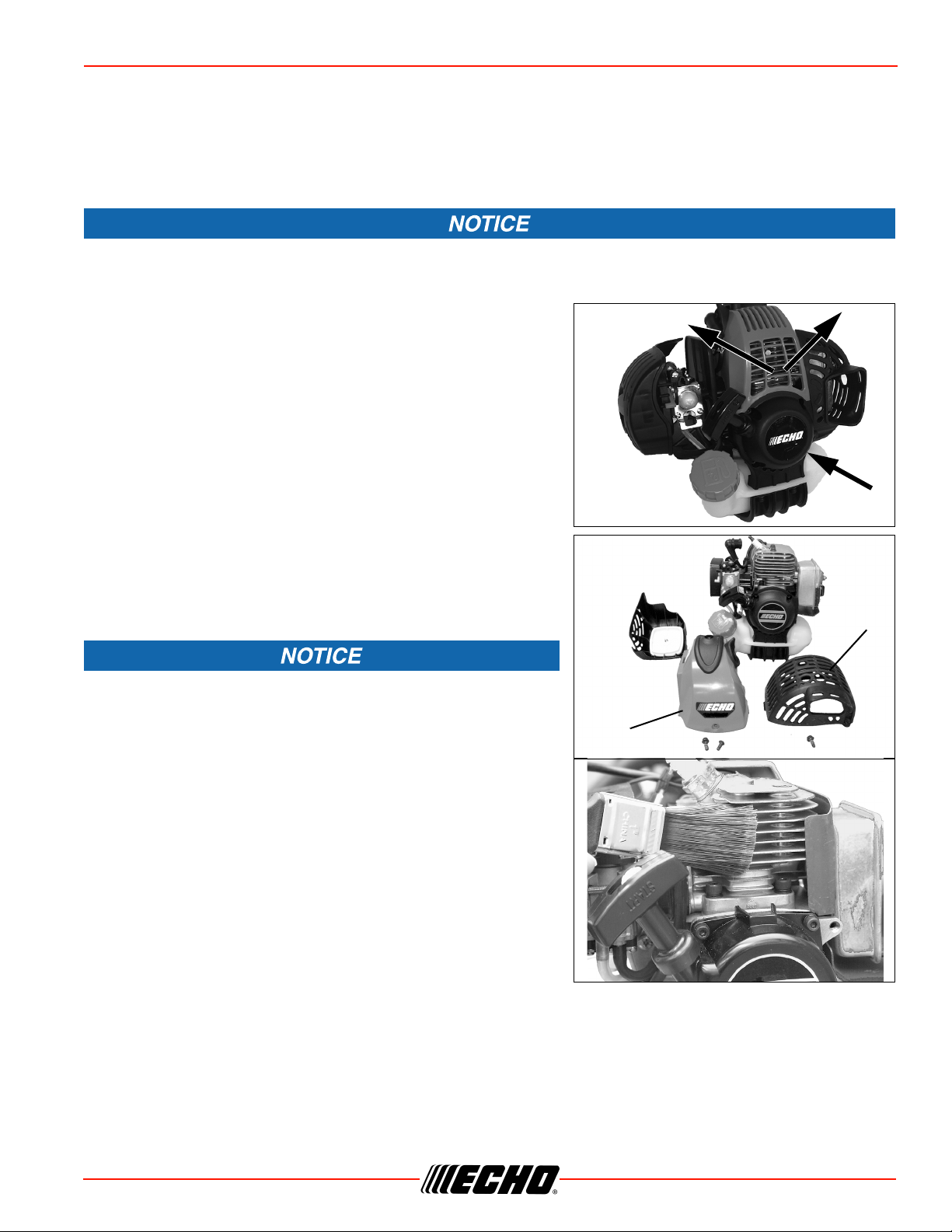

Cooling System.......................................................................................................................... 22

Exhaust System......................................................................................................................... 23

Carburetor Adjustment............................................................................................................... 24

Lubrication ................................................................................................................................. 25

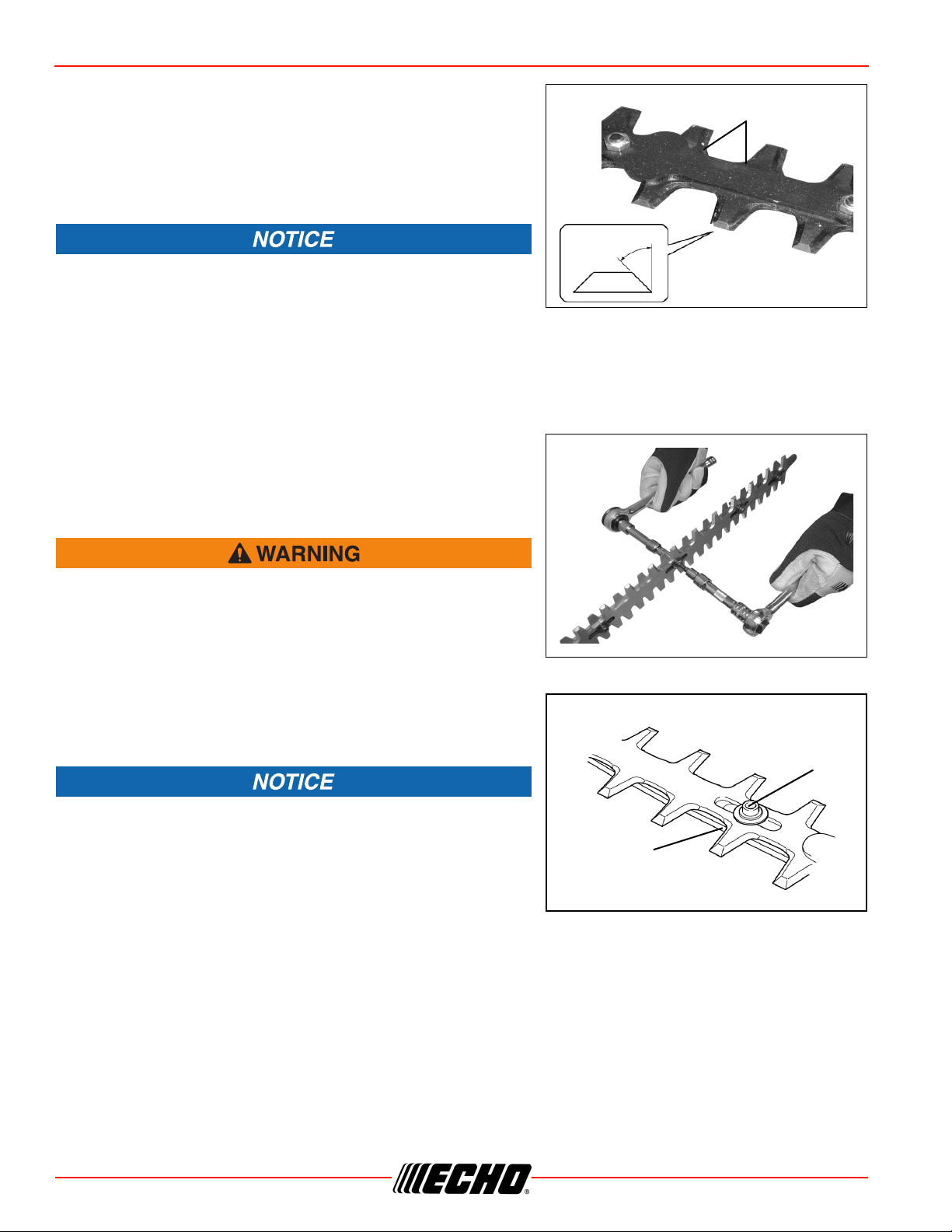

Blades........................................................................................................................................ 27

Troubleshooting ............................................................................................................................... 29

Storage ............................................................................................................................................ 30

Long Term Storage (Over 30 Days)........................................................................................... 30

Specifications................................................................................................................................... 31

Warranty Statements ....................................................................................................................... 32

Notes ............................................................................................................................................... 34

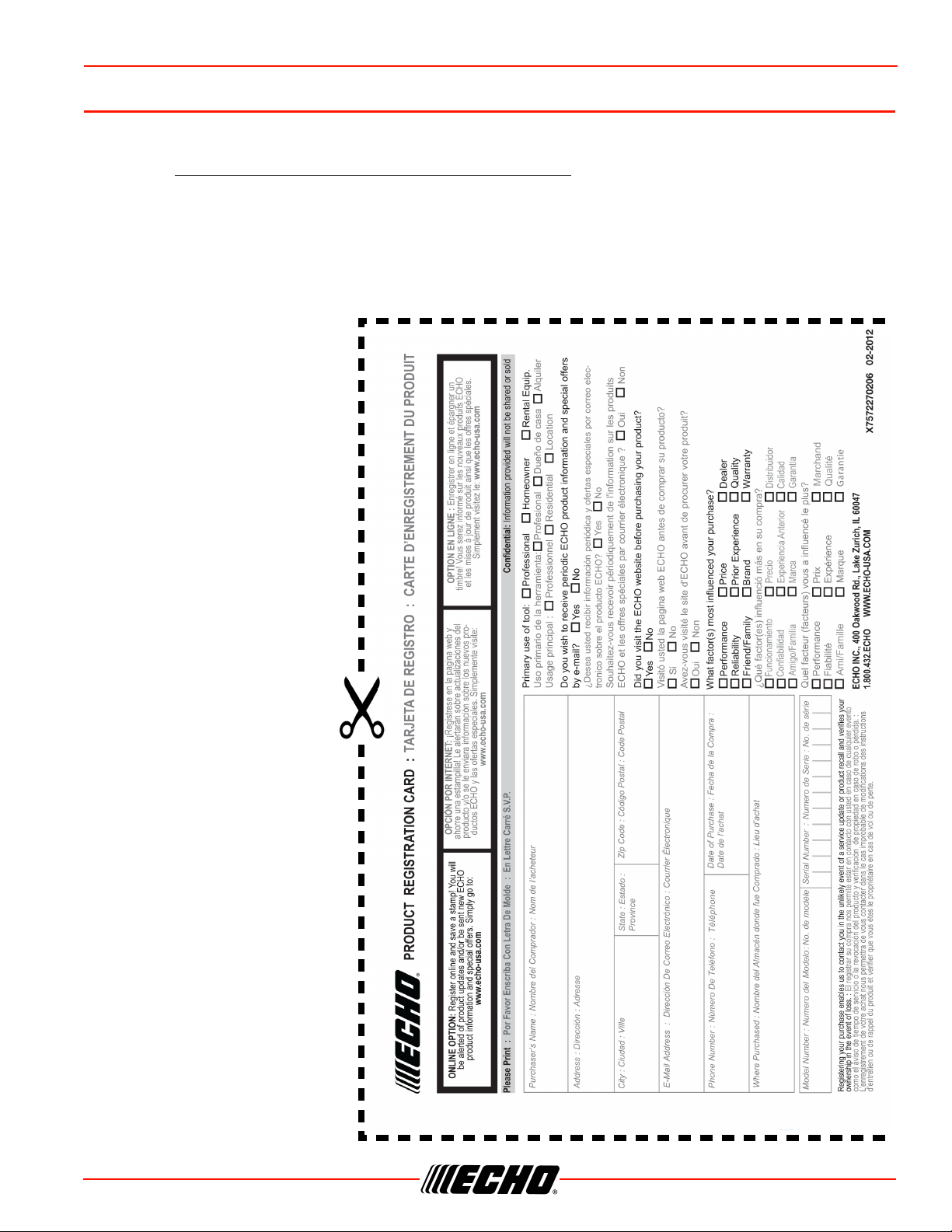

Product Registration ........................................................................................................................ 35

Notes ............................................................................................................................................... 36

2 X7502026704

SHC-266 INTRODUCTION

INTRODUCTION

Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-job dependability. Read and understand this manual and the SAFETY MANUAL. You will find both easy to use and full of helpful operating tips and SAFETY messages.

The Operator’s Manual

Keep it in a safe place for future reference. Contains specifications and information for safety, operation, maintenance, storage and assembly specific to this product.

The Safety Manual

Keep it in a safe place for future reference. Explains possible hazards and the measures you should take to insure safe operation.

SERVICING INFORMATION

Parts/Serial Number

Genuine ECHO Parts and ECHO REPOWER™ Parts and Assemblies for your ECHO products are available only from an Authorized ECHO Dealer. When you do need to buy parts always have the Model Number and Serial Number of the unit with you. You can find these numbers on the engine housing. For future reference, write them in the space provided below.

Model No. _________________ SN. ___________________

Service

Service of this product during the warranty period must be performed by an Authorized ECHO Service Dealer. For the name and address of the Authorized ECHO Service Dealer nearest you, ask your retailer or call: 1-800-432-ECHO (3246). Dealer information is also available on our Web Site. When presenting your unit for Warranty service/repairs, proof of purchase is required.

Echo Consumer Product Support

If you require assistance or have questions concerning the application, operation or maintenance of this product you may call the ECHO Consumer Product Support Department at 1-800-673-1558 from 8:00 am to 5:00 pm (Central Standard Time) Monday through Friday. Before calling, please know the model and serial number of your unit.

Product Registration

To ensure trouble free warranty coverage it is important that you register your ECHO equipment on-line at www.echo-usa.com product confirms your warranty coverage and provides a direct link between you and ECHO if we find it necessary to contact you.

X7502026704 3

or by filling out the product registration sheet included in this manual. Registering your

SAFETY SHC-266

For more information scan this QR code.

Additional or Replacement Manuals

Replacement Operator, Safety Manuals, and Parts Catalogs

are available from your ECHO dealer or at www.echo-usa.com or by contacting ECHO Inc., 400 Oakwood Road, Lake Zurich, IL 60047 (800-673-1558). Always check the ECHO Web Site for updated information.

Safety Videos are available from your Echo dealer. A $5.00 shipping charge will be required for each video.

SAFETY

Manual Safety Symbols and Important Information

Throughout this manual and on the product itself, you will find safety alerts and helpful, informational messages preceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean to you.

The safety alert symbol accompanied by the word “DANGER” calls attention to an act or condition which WILL lead to serious personal injury or death if not avoided.

The safety alert symbol accompanied by the word “WARNING” calls attention to an act or condition which CAN lead to serious personal injury or death if not avoided.

The safety alert symbol accompanied by the word “CAUTION” calls attention to an act or condition which may lead to minor or moderate personal injury if not avoided.

The enclosed message provides information necessary for the protection of the unit.

Note: This enclosed message provides tips for use, care and maintenance of the unit.

CIRCLE AND SLASH SYMBOL This symbol means the specific action shown is prohibited. Ignoring these prohibitions can result in serious or fatal injury.

4 X7502026704

SHC-266 SAFETY

International Symbols

Symbol Description Symbol Description Symbol Description Symbol Description

Read and

understand

owners manual.

Wear eye, ear

and head

protection

Emergency Stop Hot Surface

Wear hand and

foot protection.

Use two handed

Choke Control

“COLD START”

Position (Choke

Closed)

Choke Control

“RUN” Position

(Choke Open)

Fuel and oil

mixture

Finger severing Safety/Alert

DO NOT smoke

near fuel

Ignition

ON / OFF

Do not operate

closer than 15 M

(50 ft.) from

electrical hazards.

Carburetor

Adjustment - Low

speed mixture

Avoid all power

lines. This unit is

not insulated

against electrical

current.

Plan retreat path

from falling

objects

DO NOT allow

flames or sparks

near fuel

Keep bystanders

at least

4.5 meters (15 ft.) away.

Carburetor

Adjustment - High

speed mixture

Carburetor

Adjustment - Idle

speed

Do not operate

closer than 15 M

(50 ft.) from

electrical hazard.

Primer Bulb

Wear slip

resistant footwear

Chain Lubrication.

X7502026704 5

SAFETY SHC-266

Personal Condition and Safety Equipment

Users of this product risk injury to themselves and others if the unit is used improperly and/or safety precautions are not followed. Proper clothing and safety gear must be worn when operating unit.

Physical Condition

Your judgment and physical dexterity may not be good:

• If you are tired or sick.

• If you are taking medication.

• If you have taken alcohol or drugs.

Operate unit only if you are physically and mentally well.

Eye Protection

• Eye protection that meets ANSI Z87.1 or CE requirements must be worn whenever you operate the

unit.

• For additional safety, a full-face shield may be worn over safety glasses or goggles to provide

protection from sharp branches or flying debris.

Hand Protection

Wear sturdy, no-slip, rubber work gloves to improve your grip on the handles. Gloves also provide protection against cuts and scratches, cold environments, and reduce the transmission of machine vibration to your hands.

Hearing/Ear Protection

ECHO recommends wearing hearing protection whenever unit is used.

Breathing Protection

Operators who are sensitive to dust or other common airborne allergens may need to wear a dust mask to prevent inhaling these materials while operating unit. Dust masks can provide protection against dust, plant debris, and other plant matter such as pollen. Make sure the mask does not impair your vision, and replace the mask as needed to prevent air restrictions.

Proper Clothing

Wear snug-fitting, durable clothing:

• Pants should have long legs, shirts should have long sleeves.

• DO NOT WEAR SHORTS.

• DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose or hanging items that could become entangled in moving parts or surrounding growth.

• Keep clothing buttoned or zipped, and keep shirt tails tucked in.

Wear sturdy work shoes with nonskid rubber soles:

• DO NOT WEAR OPEN TOED SHOES.

6 X7502026704

SHC-266 SAFETY

• DO NOT OPERATE UNIT BAREFOOTED.

Keep long hair away from engine and air intake. Retain hair with cap or net.

Heavy protective clothing can increase operator fatigue, which may lead to heat stroke. Schedule heavy work for early morning or late afternoon hours when temperatures are cooler.

The components of this machine generate an electromagnetic field during operation, which may interfere with some pacemakers.To reduce the risk of serious or fatal injury, persons with pacemakers should consult with their physician and the pacemaker manufacturer before operating this machine.In the absence of such information, ECHO does not recommend the use of ECHO products by anyone who has a pacemaker.

Extended Operation / Extreme Conditions

Prolonged exposure to cold and/or vibration may result in injury. Read and follow all safety and operation instructions to minimize risk of injury. Failure to follow instructions may result in painful wrist/hand/arm injuries.

It is believed that a condition called Raynaud’s Phenomenon, which affects the fingers of certain individuals, may be brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling and burning sensations, followed by loss of color and numbness in the fingers. The following precautions are strongly recommended, because the minimum exposure, which might trigger the ailment, is unknown.

• Keep your body warm, especially the head, neck, feet, ankles, hands, and wrists.

• Maintain good blood circulation by performing vigorous arm exercises during frequent work breaks, and also by not smoking.

• Limit the hours of operation. Try to fill each day with jobs where operating the unit or other hand-held power equipment is not required.

• If you experience discomfort, redness, and swelling of the fingers followed by whitening and loss of feeling, consult your physician before further exposing yourself to cold and vibration.

X7502026704 7

SAFETY SHC-266

Repetitive Stress Injuries (RSI)

It is believed that overusing the muscles and tendons of the fingers, hands, arms, and shoulders may cause soreness, swelling, numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high risk for developing a Repetitive Stress Injury (RSI). An extreme RSI condition is Carpal Tunnel Syndrome (CTS), which could occur when your wrist swells and squeezes a vital nerve that runs through the area. Some believe that prolonged exposure to vibration may contribute to CTS. CTS can cause severe pain for months or even years.

To reduce the risk of RSI/CTS, do the following:

• Avoid using your wrist in a bent, extended, or twisted position. Instead try to maintain a straight wrist position. Also, when grasping, use your whole hand, not just the thumb and index finger.

• Take periodic breaks to minimize repetition and rest your hands.

• Reduce the speed and force with which you do the repetitive movement.

• Do exercise to strengthen the hand and arm muscles.

• Immediately stop using all power equipment and consult a doctor if you feel tingling, numbness, or pain in the fingers, hands, wrists, or arms. The sooner RSI/CTS is diagnosed, the more likely permanent nerve and muscle damage can be prevented.

All over head electrical conductors and communications wires can have electricity flow with high voltages. This unit is not insulated against electrical current. Never touch wires directly or indirectly, otherwise serious injury or death may result.

Do not operate this product indoors or in inadequately ventilated areas. Engine exhaust contains poisonous emissions and can cause serious injury or death.

Read the Manuals

• Provide all users of this equipment with the Operator’s Manual and Safety Manual for instructions on Safe Operation.

Clear the Work Area

• Spectators and fellow workers must be warned, and children and animals prevented from coming nearer than 15 m (50 ft.) while the unit is in use.

Keep a Firm Grip

• Hold the support handle and throttle handle with thumbs and fingers encircling the grips.

8 X7502026704

SHC-266 SAFETY

For more information

scan this QR code.

Keep a Solid Stance

• Maintain footing and balance at all times. Do not stand on slippery, uneven or unstable surfaces. Do not work in odd positions or on ladders. Do not over reach.

Avoid Hot Surfaces

• During operation, the drive shaft housing and attachment bearing housing may become very hot, too hot to touch. Avoid contact during and immediately after operation.

Never perform blade maintenance procedures while engine is running.

Equipment

Use only ECHO attachments. Serious injury may result from the use of a non-approved attachment combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and safety manual.

• Check unit for loose/missing nuts, bolts, and screws. Tighten and/or replace as needed.

• Check that the cutting attachment is firmly attached and in safe operating condition. Dull, loose or damaged blades should not be used.

Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose objects away from all openings.

• ALWAYS stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before removing obstructions, clearing debris, or servicing unit.

• DO NOT start or operate unit unless all guards and protective covers are properly assembled to unit.

• NEVER reach into any opening while the engine is running. Moving parts may not be visible through openings.

Check fuel system for leaks due to fuel tank damage, especially if the unit is dropped. If damage or leaks are found, do not use unit, otherwise serious personal injury or property damage may occur. Have unit repaired by an authorized servicing dealer before using.

X7502026704 9

EMISSION CONTROL (EXHAUST & EVAPORATIVE) SHC-266

EMISSION CONTROL (EXHAUST & EVAPORATIVE)

EPA 2010 and Later and/or C.A.R.B. TIER III

The emission control system for the engine is EM (engine modification) and, if the second to last character of the Engine Family on the Emission Control Information label (sample below) is “C”, “K”, or “T”, the emission control system is EM and TWC (3-way catalyst). The fuel tank/fuel line emission control system is EVAP (evaporative emissions). Evaporative emissions for California models are only applicable to fuel tanks.

An Emission Control Label is located on the engine. (This is an EXAMPLE ONLY, information on label varies by engine FAMILY).

Product Emission Durability (Emission Compliance Period)

The 50 or 300 hour emission compliance period is the time span selected by the manufacturer certifying the engine emissions output meets applicable emissions regulations, provided that approved maintenance procedures are followed as listed in the Maintenance Section of this manual.

10 X7502026704

SHC-266 DESCRIPTION

Hot Label

Shaft Label

DESCRIPTION

Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific information.

X7502026704 11

DESCRIPTION SHC-266

1. POWER HEAD - Includes the Engine, Clutch, Fuel System, Ignition System and Recoil Starter.

2. THROTTLE HANDLE - FOR RIGHT HAND - Contains Stop Switch, Throttle Lockout, and Throttle Trigger.

3. THROTTLE TRIGGER LOCKOUT - This lever must be held during starting. Operation of the throttle trigger is prevented unless throttle trigger lockout lever is engaged.

4. STOP SWITCH - “SLIDE SWITCH” mounted on top of the throttle handle. Move switch FORWARD to RUN, BACK to STOP.

5. SUPPORT HANDLE - FOR LEFT HAND - Grip for Left Hand.

6. DRIVE SHAFT ASSEMBLY - Includes the flex drive shaft, throttle handle, support handle, and safety decals.

7. BLADES - Double reciprocating blades mounted to a blade support bar. Double sided blades, are capable of cutting on either side.

8. GEAR HOUSING ASSEMBLY - Gear housing assembly fixed straight extension.

9. THROTTLE TRIGGER - Spring loaded to return to idle when released. During acceleration, depress gradually for best operating technique.

10. BLADE COVER - Used to cover blade during transport and storage. Remove blade cover before using unit.

11. SPARK PLUG - Provides spark to ignite fuel mixture.

12. TOP GUARD - Protects arm from the hot engine.

13. SPARK ARRESTOR MUFFLER OR SPARK ARRESTOR MUFFLER WITH CATALYST - The muffler or catalytic muffler controls exhaust noise and emission. The spark arrestor screen prevents hot, glowing particles of carbon from leaving the muffler. Keep exhaust area clear of flammable debris.

14. FUEL TANK - Contains fuel and fuel filter.

15. RECOIL STARTER HANDLE - Pull handle slowly until starter engages, then quickly and firmly. When engine starts, return handle slowly. DO NOT let handle snap back or damage to unit will occur.

16. FUEL TANK CAP - Covers and seals fuel tank opening.

17. PURGE BULB - Pumping purge bulb before starting engine draws fresh fuel from the fuel tank, purging air from the carburetor. Pump purge bulb until fuel is visible and flows freely in the clear fuel tank return line. Pump purge bulb an additional 4 or 5 times.

18. AIR CLEANER - Contains replaceable filter element.

19. CHOKE CONTROL - Located on the air cleaner housing. Move choke lever to COLD START ( ) to close choke for cold start. Move choke lever to “RUN” ( ) position to open choke.

12 X7502026704

SHC-266 CONTENTS

CONTENTS

After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts.

____ Power Head/Drive Shaft Assembly

____ Gear Case Assembly

____ Operator's Manual

____ Emission Control Warranty Statement

____ Safety Manual

____ Blade Cover

____ Assembly Tool(s)

X7502026704 13

ASSEMBLY SHC-266

ASSEMBLY

Gear Housing Assembly / Drive Shaft

Note: Hedge Trimmer Blades are very sharp. Wear gloves to

protect hands.

1. Remove locating bolt (A) and loosen clamping bolt (B).

2. Remove vinyl cap from drive shaft.

3. Slide Gear Housing Assembly onto Drive Shaft. Be certain the Flex Drive Shaft engages the hole in Driver Gear.

Flat edge of washer (C) must be against drive shaft.

4. Align locating hole in gear housing with locator hole in drive shaft.

5. Install locating bolt (A). Tighten clamping bolt (B).

OPERATION

Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose objects away from all openings. Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before removing obstructions, clearing debris, or servicing unit.

Operation of this equipment may create sparks that can start fires. This unit is equipped with a spark arrestor to prevent discharge of hot particles from the engine. Metal cutters can create sparks if the cutter strikes rocks, metal, or other hard objects. Contact local fire authorities for laws or regulations regarding fire prevention requirements.

Fuel

Alternative fuels, such as E-15 (15% ethanol), E-85 (85% ethanol) or any fuels not meeting ECHO requirements are NOT approved for use in ECHO 2-stroke gasoline engines. Use of alternative fuels may cause performance problems, loss of power, overheating, fuel vapor lock, and unintended machine operation, including, but not limited to, improper clutch engagement. Alternative fuels may also cause premature deterioration of fuel lines, gaskets, carburetors and other engine components.

Fuel Requirements

Gasoline - Use 89 Octane [R+M/2] (mid grade or higher) gasoline known to be good quality. Gasoline may

contain up to 10% Ethanol (grain alcohol) or 15% MTBE (methyl tertiary-butyl ether). Gasoline containing methanol (wood alcohol) is NOT approved. ECHO brand Power Fuel premixed with ECHO Red Armor extend engine life in all air-cooled 2-stroke and 2/4-stroke hybrid engines.

14 X7502026704

™

engine oil at 50:1 ratio. Use of ECHO Power Fuel™ is recommended to

is 93 octane, ethanol-free fuel

SHC-266 OPERATION

For more information scan this QR code.

Two Stroke Oil - A two-stroke engine oil meeting ISO-L-EGD (ISO/CD 13738) and J.A.S.O. FD Standards must be used. Echo brand premium Power Blend X

™

Universal 2-Stroke Oil meets these standards. Engine problems due to inadequate lubrication caused by failure to use an ISO-L-EGD (ISO/CD 13738) and J.A.S.O. FD

certified oil, such as Echo premium Power Blend X™, will void the two-stroke engine warranty.

Echo premium Power Blend X™ Universal 2-Stroke Oil may be mixed at 50:1 ratio for application in all Echo engines sold in the past regardless of ratio specified in those manuals.

Handling Fuel

Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury may result.

• Use an approved fuel container.

• DO NOT smoke near fuel.

• DO NOT allow flames or sparks near fuel.

• Fuel tanks/cans may be under pressure. Always loosen fuel caps slowly allowing pressure to

equalize.

• NEVER refuel a unit when the engine is HOT or RUNNING!

• DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks outdoors over bare ground.

• DO NOT overfill fuel tank. Wipe up spills immediately.

• Securely tighten fuel tank cap and close fuel container after refueling.

• Inspect for fuel leakage. If fuel leakage is found, do not start or operate unit until leakage is

repaired.

• Move at least 3m (10 ft.) from refueling location before starting the engine.

Mixing Instructions

1. Fill an approved fuel container with half of the required

amount of gasoline.

2. Add the proper amount of 2-stroke oil to gasoline.

3. Close container and shake to mix oil with gasoline.

4. Add remaining gasoline, close fuel container, and remix.

Spilled fuel is a leading cause of hydrocarbon emissions. Some states may require the use of automatic fuel shut-off containers to reduce fuel spillage.

After use

• DO NOT store a unit with fuel in its tank. Leaks can occur.

Return unused fuel to an approved fuel storage container.

X7502026704 15

OPERATION SHC-266

Storage - Fuel storage laws vary by locality. Contact your local government for the laws affecting your area. As a precaution, store fuel in an approved, airtight container. Store in a well-ventilated, unoccupied building, away from sparks and flames.

Stored fuel ages. Do not mix more fuel than you expect to use in thirty (30) days, ninety (90) days when a fuel stabilizer is added.

Stored two-stroke fuel may separate. ALWAYS shake fuel container thoroughly before each use.

Starting Cold Engine

Hedge Trimmer blades are very sharp. Touching them may lead to severe personal injury. Avoid touching blades whenever possible, and always wear gloves to protect hands.

Note: The blade cover is used for transportation and storage. Remove blade cover before using the unit.

The attachment will operate immediately when the engine starts, and could result in possible serious injury. Keep movable parts of the attachment away from objects that could become entangled or thrown, and surfaces that could cause loss of control.

1. Stop Switch

Move stop switch (A) away from the STOP position.

2. Choke Move choke (B) to COLD START ( ) (closed) position.

3. Purge Bulb Pump purge bulb (C) until fuel is visible and flows freely in the

clear fuel tank return line. Pump bulb an additional 4 or 5 times.

16 X7502026704

SHC-266 OPERATION

4. Recoil Starter

Lay the unit on a flat area and keep movable attachment parts clear of all obstacles. Firmly grasp throttle handle and throttle trigger lockout with left hand and fully depress throttle trigger to wide open position. Rapidly pull recoil starter handle/rope (D) until engine fires (or maximum five [5] pulls).

5. Choke

After engine fires (or 5 pulls), move choke (B) to the RUN ( ) (open) position. Firmly grasp throttle handle and throttle trigger lockout with left hand and fully depress throttle trigger to wide open position. Pull starter handle/rope until engine starts and runs. Release throttle trigger and allow unit to warm up at idle for several minutes.

Note: If engine does not start with choke in “RUN” position after 5 pulls, repeat instructions 2 - 5.

The blades must not move at idle, otherwise serious personal injury may result. Periodic carburetor adjustment may be necessary to assure blades do not move at idle. If blades move, readjust carburetor according to “Carburetor Adjustment” instructions in this manual or see your ECHO Dealer.

6. Throttle Trigger

After engine warm-up, grip throttle handle and support handle. Depress the throttle trigger lockout, and gradually depress throttle trigger to increase engine RPM to operating speed.

Starting Warm Engine

The starting procedure is the same as Cold Start except DO NOT close the choke, and do not depress throttle trigger to wide open position.

1. Stop Switch

Move stop switch (A) away from the STOP position.

2. Purge Bulb

Pump purge bulb (C) until fuel is visible and flows freely in the clear fuel tank return line. Pump bulb an additional 4 or 5 times.

X7502026704 17

OPERATION SHC-266

3. Recoil Starter Lay the unit on a flat area and keep movable attachment parts

clear of all obstacles. Firmly grip throttle handle and throttle trigger lockout with left hand. Rapidly pull recoil starter handle/rope (D) until engine fires.

Note: If engine does not start after 5 pulls, use Cold Start

Procedure.

Stopping Engine

1. Throttle Release throttle trigger and allow engine to return to idle

before shutting off engine.

2. Stop Switch Move stop switch (A) to STOP position.

If engine does not stop when stop switch is moved to STOP position, close choke - COLD START position - to stall engine. Have your ECHO dealer repair stop switch before using unit again.

Hedge Trimming

Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a poison gas. Breathing CO can cause unconsciousness, serious injury, or death. Exhaust can cause serious burns. ALWAYS position unit so that exhaust is directed away from your face and body.

Hedge Trimmer blades are very sharp. Touching them may lead to severe personal injury. Avoid touching blades whenever possible, and always wear gloves to protect hands.

1. Always grip throttle handle with right hand and support handle with left hand.

2. Hold trimmer firmly and squeeze throttle trigger to accelerate engine.

3. Tilt trimmer so cutting teeth are angled slightly toward the hedge or shrub and proceed to cut.

18 X7502026704

SHC-266 OPERATION

Never remove hands from unit when blades are moving.

The engine continues running even when the blades have stopped due to an obstruction. If this occurs, stop the engine, disconnect ignition cable and remove the obstruction.

X7502026704 19

MAINTENANCE SHC-266

MAINTENANCE

Your ECHO unit is designed to provide many hours of trouble free service. Regular scheduled maintenance will help your unit achieve that goal. If you are unsure or are not equipped with the necessary tools, you may want to take your unit to an ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded. If the task is not listed, see your ECHO Dealer for repairs.

Skill Levels

Level 1 = Easy to do. Common tools may be required. Level 2 = Moderate difficulty. Some specialized tools may be required.

ECHO offers REPOWER

Maintenance Kits and Parts to make your maintenance job easier.

Maintenance Intervals

COMPONENT/SYSTEM

Air Filter Inspect/Clean 1I / C * R *

Choke Shutter Inspect/Clean 1 I / C

Fuel Filter Inspect/Replace 1I * I / R *

Fuel Cap Gasket Inspect/Replace 1I * R *

Fuel System Inspect/Replace 1I (3) * I (3) *

Spark Plug Inspect/Clean/Replace 1 I / C / R *

Cooling System Inspect/Clean 2 I / C

Muffler Spark Arrestor Inspect/Clean/Replace 2 I / C / R *

Cylinder Exhaust Port Inspect/Clean/Decarbon 2I / C

Drive Shaft (flex cable models)

Gear Housing Grease 2I (1)

Blades Inspect/Clean 1 I / C (2)

Recoil Starter Rope Inspect/Clean 1I / C *

Screws/Nuts/Bolts Inspect/Tighten/Replace 1I *

MAINTENANCE

PROCEDURE

Grease 2I (1)

REQ’D

SKILL

LEVEL

DAILY

BEFORE

USE

EVERY

REFUEL3 MONTHS

YEARLY

MAINTENANCE PROCEDURE LETTER CODES: I = INSPECT, R = REPLACE, C = CLEAN IMPORTANT NOTE - Time intervals shown are maximum. Actual use and your experience will determine the

frequency of required maintenance.

MAINTENANCE PROCEDURE NOTES:

1. Apply lithium-based grease every 25 hours of use.

2. Inspect blade, and clean and sharpen as needed. Lubricate blades periodically during use

20 X7502026704

SHC-266 MAINTENANCE

3. Low evaporative fuel tanks DO NOT require regular maintenance to maintain emission integrity.

* Replacement is recommended based on the finding of damage or wear during inspection.

Air Filter

Level 1

Parts Required:

REPOWER

AIR & FUEL FILTER KIT.

1. Close choke (COLD START [ ] position). This prevents

dirt from entering the carburetor throat when the air filter is removed. Brush accumulated dirt from air cleaner area.

2. Remove air filter cover and air filter retainer from inside

cover. Brush dirt from inside cover.

3. Replace filter if it is damaged, very dirty, or the rubber sealing edges are deformed.

4. Remove foam pre-filter and air filter and clean as indicated

below:

Foam Pre-filter

• Clean foam filter in water/detergent solution and rinse with clean water.

• Wrap the filter in a clean, dry cloth and squeeze (do not wring) dry. Allow to dry completely before reuse. Do not oil.

Dual Layer Air Filter

• Lightly brush debris from filter.

• Soak heavily soiled filters in water/detergent solution to loosen dirt, then brush lightly.

• Rinse with clean water and allow to dry completely before reuse.

5. Place foam pre-filter over raised center and inside outer lip of air filter. Install air filter in air filter case.

6. Install air filter retainer on post in air filter cover, flat side up.

7. Install air filter cover and tighten cover knob securely.

X7502026704 21

MAINTENANCE SHC-266

0.65 mm (0.026 in.)

Fuel Filter

Level 1

Parts Required:

REPOWER

AIR & FUEL FILTER KIT.

Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury may result.

1. Use a clean rag to remove loose dirt from around fuel cap and empty fuel tank.

2. Use a hook to pull the fuel line and filter from the tank.

3. Remove the filter from the line and install the new filter.

Note: Federal EPA regulations require all model year 2012 and later gasoline powered engines produced for

sale in the United States to be equipped with a special low permeation fuel supply hose between the carburetor and fuel tank. When servicing model year 2012 and later equipment, only fuel supply hoses certified by EPA can be used to replace the original equipment supply hose. Fines up to $37,500 may be enforced for using an un-certified replacement part.

Spark Plug

Level 2

Parts Required:

REPOWER

Tune-Up Kit

Use only NGK BPM-8Y spark plug (BPMR-8Y in Canada) otherwise severe engine damage may occur.

1. Remove spark plug and check for fouling, worn and rounded center electrode.

2. Clean the plug or replace with a new one. DO NOT sand blast to clean. Remaining sand will damage engine.

3. Adjust spark plug gap by bending outer electrode.

4. Tighten spark plug to 150–170 kgf • cm (130–150 in • lbf).

22 X7502026704

SHC-266 MAINTENANCE

Cooling System

Level 2

Parts Required: None if you are careful.

To maintain proper engine operating temperatures, cooling air must pass freely through the cylinder fin area. This flow of air carries combustion heat away from the engine.

Overheating and engine seizure can occur when:

• Air intakes are blocked, preventing cooling air from reaching

the cylinder.

• Dust and grass build up on the outside of the cylinder. This

build up insulates the engine and prevents the heat from leaving.

Removal of cooling passage blockages or cleaning of cooling fins is considered “Normal Maintenance.” Any failure attributed to lack of maintenance is not warranted.

1. Remove spark plug lead.

2. Remove air cleaner cover.

3. Remove muffler cover (A).

4. Remove engine cover (B).

DO NOT use a metal scraper to remove dirt from the cylinder fins.

5. Use brush to remove dirt from the cylinder fins.

6. Remove grass and leaves from the grid between the recoil

starter and fuel tank.

7. Assemble components in reverse order.

X7502026704 23

MAINTENANCE SHC-266

Exhaust System

Spark Arrestor Screen

Level 2

Parts Required: Spark Arrestor Screen, Gasket

1. Remove spark plug lead.

2. Remove muffler cover (A).

3. Place piston at Top Dead Center (TDC) to prevent carbon/dirt from entering cylinder.

4. Remove spark arrestor screen (D), gasket (C) and exhaust guide (B) from muffler body.

5. Clean carbon deposits from muffler components.

Note: When cleaning carbon deposits, be careful not to damage the catalytic element inside muffler.

6. Replace screen if it is cracked, plugged, or has holes burned through.

7. Assemble components in reverse order.

Exhaust Port Cleaning

Level 2

Parts Required: As needed; Heat Shield

1. Remove spark plug lead from spark plug, and remove engine cover.

2. Place piston at top dead center. Remove muffler (A) and heat shield (B).

3. Use a wood or plastic scraping tool to clean deposits from cylinder exhaust port.

Never use a metal tool to scrape carbon from the exhaust port. Do not scratch the cylinder or piston when cleaning the exhaust port. Do not allow carbon particles to enter the cylinder.

4. Inspect heat shield, and replace if damaged.

5. Install heat shield and muffler.

6. Tighten muffler mounting bolts (or nuts) to 90–110 kgf • cm (80–95 in • lbf).

7. Install engine cover and attach spark plug lead.

8. Start engine, and warm to operating temperature.

9. Stop engine, and re-tighten mounting bolts (or nuts) to specifications.

24 X7502026704

SHC-266 MAINTENANCE

Carburetor Adjustment

Level 2

Engine Break-In

New engines must be operated a minimum duration of two tanks of fuel break-in before carburetor adjustments can be made. During the break-in period your engine performance will increase and exhaust emissions will stabilize. Idle speed can be adjusted as required.

High Altitude Operation

This engine has been factory adjusted to maintain satisfactory starting, emission, and durability performance up to 1,100 feet above sea level (ASL) (96.0 kPa). To maintain proper engine operation and emission compliance above 1,100 feet ASL the carburetor may service dealer.

If the engine is adjusted for operation above 1,100 feet ASL, the carburetor must be re-adjusted when operating the engine below 1,100 feet ASL, otherwise severe engine damage may result.

need to be adjusted by an authorized ECHO

Parts Required:

Note: Every unit is run at the factory and the carburetor is set in compliance with emission regulations.

Carburetor adjustments, other than idle speed, must be performed by an authorized ECHO dealer.

1. Check idle speed and reset if necessary. If a tachometer is

available, idle speed screw (A) should be set to the specifications found on “Specifications” page of this manual. Turn idle screw (A) clockwise to increase idle speed; counterclockwise to decrease idle speed.

When carburetor adjustment is completed, the cutting attachment should not move at idle, otherwise serious personal injury may result.

None

Lubrication

Blades

Level 1.

Parts Required: 20W Engine Oil (blade lubrication), 50-50

mixture of kerosene and 20W oil (blade cleaning)

Hedge Trimmer blades are very sharp. Touching them may lead to severe personal injury. Avoid touching blades whenever possible, and always wear gloves to protect hands.

X7502026704 25

MAINTENANCE SHC-266

1. Brush loose debris from blade and coat both sides of blade with the 50-50 cleaning mixture.

2. Allow cleaning mixture to soften the remaining gummy residue then wipe it from the blade.

3. Apply clean oil to the entire length of the blade. Be certain the blade bolts are lubricated.

4. Wipe excess oil from the blade before putting the unit back in service.

Gear Case

Level 1.

Parts Required: Lithium Based Grease.

1. Clean dirt from the grease fitting (A).

2. Carefully pump grease into fitting (A). DO NOT force grease. Too much pressure will force grease past seals and cause damage. Apply 1 - 2 pumps of grease every 15 - 25 hours of operation.

3. Wipe excess grease from around grease fitting.

Drive Shaft Assembly

Level 1.

Parts Required: Lithium Based Grease.

Hedge Trimmer blades are very sharp. Touching them may lead to severe personal injury. Avoid touching blades whenever possible, and always wear gloves to protect hands.

1. Remove gear housing locating screw (A) and loosen clamping screw (B). Remove the gear housing assembly from the drive shaft housing.

26 X7502026704

SHC-266 MAINTENANCE

2. Pull the drive shaft (C) from the housing, wipe clean and

re-coat with a thin coating [15 ml (1/2 oz.)] of grease.

3. Slide the drive shaft back in the drive housing being careful

not to get dirt on the flex shaft.

4. Install the gear housing assembly.

Flat edge of washers (D) must be against drive shaft.

Blades

Blades should only be removed and reinstalled by an Authorized ECHO Servicing Dealer, otherwise premature wear or internal damage may occur.

Sharpening

Level 2.

Parts Required: none

Hedge Trimmer blades are very sharp. Touching them may lead to severe personal injury. Avoid touching blades whenever possible, and always wear gloves to protect hands.

1. Move stop switch to STOP position.

2. Disconnect spark plug wire.

X7502026704 27

MAINTENANCE SHC-266

6 mm (.25 in.) radius

3. Remove blade guard, if installed (see “Blade Guard Remove/Install instructions”).

4. Slide blades to allow file clearance using slots (A) on bottom of blade. Do not pry against cutting edges.

5. File each edge carefully. Follow the original shape of the blade.

If a power grinder is used DO NOT allow blade to over heat.

6. Install blade guard, if necessary (see “Blade Guard Remove/Install instructions”).

7. Lubricate blades (see “Lubrication”).

8. Connect spark plug wire.

Adjustment

Level 2.

Parts Required: none

Hedge Trimmer blades are very sharp. Touching them may lead to severe personal injury. Use long hex wrenches and sockets with extensions when tightening blade screws and blade lock nuts to keep hands at a safe distance from sharp blades.

1. Tighten blade screws (A) securely.

2. Hold blade screws (A) to prevent turning, and tighten lock nuts (B).

Locking ability of Hedge Trimmer blade lock nuts will diminish each time they are removed. Replace if turning resistance is not felt when installing lock nuts.

28 X7502026704

SHC-266 TROUBLESHOOTING

TROUBLESHOOTING

ENGINE PROBLEM TROUBLESHOOTING CHART

Problem Check Status Cause Remedy

Engine cranks starts hard/ doesn’t start

Engine runs, but dies or does not accelerate properly

Engine does not crank

Fuel strainer clogged

Fuel at carburetor No fuel at carburetor

No fuel at cylinder Carburetor See your Echo dealer

Fuel at cylinder

Spark at end of plug wire

Spark at plug No spark

Air filter Air filter dirty Normal wear Clean or replace

Fuel filter Fuel filter dirty

Fuel vent Fuel vent plugged

Spark Plug Plug dirty/worn Normal wear Clean and adjust or replace

Carburetor Improper adjustment Vibration Adjust

Cooling System

Spark Arrestor Screen

N/A N/A Internal engine problem See your Echo dealer

Muffler wet with fuel Fuel Mixture too rich

No spark

Cooling system dirty/plugged

Spark arrestor screen plugged

Fuel line clogged Carburetor

Stop switch OFF Electrical problem Interlock switch

Spark gap incorrect

Covered with carbon Fouled with fuel Plug defective

Contaminants/residues in fuel

Extended operation in dirty/dusty locations

Normal wear Replace

Clean or replace Clean or replace See your Echo dealer

Open choke Clean/replace air filter Adjust carburetor See your Echo dealer

Turn switch to ON See your Echo dealer See your Echo dealer

Adjust to 0.65mm (0.026 in.) Clean or replace Clean or replace Replace plug

Replace

Clean or replace

Clean

Fuel vapors are extremely flammable and may cause fire and/or explosion. Never test for ignition spark by grounding spark plug near cylinder plug hole, otherwise serious personal injury may result.

X7502026704 29

STORAGE SHC-266

STORAGE

The muffler and surrounding cover become hot during operation. Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may result.

Long Term Storage (Over 30 Days)

Do not store your unit for a prolonged period of time (30 days or longer) without performing protective storage maintenance which includes the following:

1. Store unit in a dry, dust free place, out of the reach of children.

Hedge Trimmer blades are very sharp. Touching them may lead to severe personal injury. Avoid touching blades whenever possible, and always wear gloves to protect hands.

Do not store in enclosure where fuel fumes may accumulate or reach an open flame or spark, otherwise serious personal injury may result.

2. Place the stop switch in the “STOP” position.

3. Remove accumulation of grease, oil, dirt and debris from exterior of unit.

4. Perform all periodic lubrication and services that are required.

5. Apply clean oil to the entire length of the blade. Be certain the blade bolts are lubricated.

6. Install blade cover on blades.

7. Tighten all the screws and nuts.

8. Drain fuel tank completely. Press purge bulb 6 -7 times to remove remaining fuel from carburetor then drain the tank again. Close choke, start and run the engine until it stops due to lack of fuel.

9. Allow the engine to cool, then emove the spark plug and pour 7 cc (1/4 oz.) of fresh, clean, two-stroke engine oil into the cylinder through the spark plug hole.

a. Place a clean cloth over the spark plug hole.

b. Pull the recoil starter handle 2-3 times to distribute the oil inside the engine. c. Observe the piston location through the spark plug hole. Pull the recoil handle slowly until the piston

reaches the top of its travel and leave it there.

10. Install the spark plug (do not connect ignition cable).

Always store and transport hedge trimmers in a stable, horizontal position. Support gear case and cutting blades to prevent excessive flexing, which may cause damage to these components. Always install blade cover when transporting or storing unit.

30 X7502026704

SHC-266 SPECIFICATIONS

SPECIFICATIONS

MODEL SHC-266

Length 2170 mm (85.4 in.)

Width 250 mm (9.85 in.)

Height 254 mm (10.0 in.)

Weight (dry) 6.58 kg (14.5 lb.)

Engine Type Air cooled, two-stroke, single cylinder gasoline engine

Bore 34.0 mm (1.34 in.)

Stroke 28.0 mm (1.10 in.)

Displacement 25.4 cc (1.55 cu. in.)

Exhaust Spark arrestor muffler or spark arrestor muffler with catalyst

Carburetor Diaphragm w/purge pump

Ignition System Flywheel magneto, capacitor discharge ignition type

Spark Plug NGK BPM-8Y (Gap 0.65 mm (0.026 in.)

Fuel Mixed (Gasoline and Two-stroke Oil)

Fuel/Oil Ratio

Gasoline

Oil Power Blend X

Fuel Tank Capacity 0.48 L (16.4 US fl. oz.)

Starter System Automatic Recoil Starter

Clutch Centrifugal Type

Gear Case Ratio 4.27:1

Cutter Double Reciprocating Blade, Double Edge

Length 480 mm (18.9 in.)

Pitch 35 mm (1.38 in.)

Maximum Diameter Cut:

Soft Material 25.4 mm (1 in.)

Woody Material 13 mm (1/2 in.)

Idle Speed 2,900 RPM

Clutch Engagement Speed 3,900 RPM

Wide Open Throttle Speed (W.O.T.) 10,900 RPM

50 : 1 Power Blend X M345- FD, two-stroke, air-cooled engine oil.

Use 89 Octane unleaded. Do not use fuel containing methyl alcohol, more than 10% ethyl alcohol or 15% MTBE. Do not use alternative fuels such as E-15 or E-85.

or ECHO Red Armor® ISO-L-EGD (ISO/CD 13738) and J.A.S.O.

or ECHO Red Armor® Premium Universal 2-Stroke Oil

X7502026704 31

WARRANTY STATEMENTS SHC-266

ECHO LIMITED WARRANTY STATEMENT FOR

PRODUCT SOLD IN USA AND CANADA BEGINNING 01/01/2010

ECHO'S RESPONSIBILITY

ECHO Incorporated’s Limited Warranty, provides to the original purchaser that this ECHO product is free from defects in material and workmanship. Under normal use and maintenance from date of purchase, ECHO agrees to repair or replace at ECHO’s discretion, any defective product free of charge at any authorized ECHO servicing dealer within listed below application time periods, limitations and exclusions. THIS LIMITED

WARRANTY IS ONLY APPLICABLE TO ECHO PRODUCTS SOLD BY AUTHORIZED ECHO DEALERS. IT IS EXTENDED TO THE ORIGINAL PURCHASER ONLY, AND IS NOT TRANSFERABLE TO SUBSEQUENT OWNERS EXCEPT FOR EMISSION RELATED PARTS. Repair

parts and accessories replaced under this warranty are warranted only for the balance of the original unit or accessory warranty period. Any damage caused by improper installation or improper maintenance is not covered by this warranty. All parts or products replaced under warranty become the property of ECHO, Inc. This warranty is separate from the Emission control warranty statement supplied with your new product. Please consult the Emission Control Warranty Statement for details regarding emission related parts. For a list of Authorized ECHO Dealers refer to WWW.ECHO-USA.COM or call 1-800-432-ECHO.

OWNER’S RESPONSIBILITY

To ensure trouble free warranty coverage it is important that you register your ECHO equipment on-line at WWW.ECHO-USA.COMRUE\¿OOLQJRXWWKHZDUUDQW\UHJLVWUDWLRQFDUGVXSSOLHGZLWK\RXUXQLW5HJLVWHULQJ\RXUSURGXFWFRQ¿UPV\RXUZDUUDQW\FRYHUDJHDQGSURYLGHVDGLUHFW OLQNLIZH¿QGLWQHFHVVDU\WRFRQWDFW\RX

The owner shall demonstrate reasonable care and use, and follow preventative maintenance, storage, fuel and oil usage as prescribed in the

RSHUDWRU¶VPDQXDO6KRXOGDSURGXFWGLI¿FXOW\RFFXU\RXPXVWDW\RXUH[SHQVHGHOLYHURUVKLS\RXU(&+2XQLWWRDQDXWKRUL]HG(&+2VHUYLFLQJ

dealer for warranty repairs (within the applicable warranty period), and arrange for pick-up or return of your unit after the repairs have been made. For your nearest authorized ECHO servicing dealer, call ECHO’s Dealer Referral Center, at 1-800-432-ECHO or you can locate an ECHO servicing dealer at WWW.ECHO-USA.COM. Should you require assistance or have questions concerning ECHO’s Warranty Statement, you can contact our Consumer Product Support Department at 1-800-673-1558 or contact us through the web at WWW.ECHO-USA.COM.

PRODUCT WARRANTY PERIOD

HOMEOWNER APPLICATION

• 5 YEAR WARRANTY - All units for homeowner, or non-income producing use will be covered by this limited warranty for ¿YH \HDUV from

date of purchase.

EXCEPTIONS:

 )RUWZRVWURNHHQJLQHSRZHUHG SURGXFWVWKHHOHFWURQLFLJQLWLRQPRGXOHÀH[LEOHGULYH FDEOHV650VROLGGULYHVKDIWVDQG7&WLQHV

are warranted for the OLIH of the product on parts only.

• Cutting attachments such as, but not limited to, bars, chains, sprockets, blades, and nylon trimmer heads for homeowner or non-

income producing use will be covered for failures due to defects in material or workmanship for a period of GD\V from original product purchase date. Any misuse from contact with concrete, rocks, or other structures is not covered by this warranty.

• ECHO’s Rapid Loader String Head carries a lifetime warranty on the line locking system, parts only; no labor. Refer to your operator’s manual for string head installation and maintenance instructions.

• All SB-Series and PRO ATTACHMENT SERIES Split Shaft attachments carry the same warranty duration as the units they are

GHVLJQHGWR¿W

COMMERCIAL APPLICATION

• 1 YEAR WARRANTY - All Chain Saws, QuikVent Saws, and Cut-Off Saws for commercial, institutional, agricultural, industrial, or income

producing use will be covered by this limited warranty for one \HDU from the date of purchase.

• 2 YEAR WARRANTY - All other units for commercial, institutional, agricultural, industrial, or income producing use will be covered by this

limited warranty for two \HDUV from the date of purchase.

EXCEPTIONS:

 )RUWZRVWURNHHQJLQHSRZHUHG SURGXFWVWKHHOHFWURQLFLJQLWLRQPRGXOHÀH[LEOHGULYH FDEOHV650VROLGGULYHVKDIWVDQG7&WLQHV

are warranted for the OLIH of the product on parts only.

• Cutting attachments such as, but not limited to, bars, chains, sprockets, blades, and nylon trimmer heads for commercial, institutional, agricultural, industrial, rental, or income producing will be covered for failures due to defects in material or workmanship for a period of GD\V from original product purchase date. Any misuse from contact with concrete, rocks, or other structures is not covered by this warranty.

• ECHO’s Rapid Loader String Head carries a lifetime warranty on the line locking system, parts only; no labor. Refer to your

operator’s

manual for string head installation and maintenance instructions.

• All SB-Series and PRO ATTACHMENT SERIES Split Shaft attachments carry the same warranty duration as the units they are

GHVLJQHGWR¿W

RENTAL APPLICATION - 90 DAYS WARRANTY

• Units for rental use will be covered against defects in material and workmanship for a period of 90 days from the date of purchase.

 (&+2¶VOLDELOLW\XQGHUWKH³/LIHWLPH´FRYHUDJHLVOLPLWHGWRIXUQLVKLQJSDUWVVSHFL¿HGXQGHUWKHPRODUCT WARRANTY PERIOD section of

this warranty statement for ³/LIH´IUHHRIFKDUJHIRUDSHULRGRIWHQ\HDUVDIWHUWKHGDWHRIWKHFRPSOHWHXQLW¶V¿QDOSURGXFWLRQ

WARRANTY STATEMENTS

32 X7502026704

SHC-266 WARRANTY STATEMENTS

ECHO does not offer an over the counter exchange program. Any ECHO product re-built other than by ECHO or sold through an unauthorized dealer, or an unauthorized outlet store, is sold without ECHO’s limited warranty coverage. The ECHO Limited Warranty coverage is extended to the original purchaser only, and is not transferable except for emission related parts. Repair parts and accessories replaced under this warranty are warranted only for the balance of the original unit or accessory warranty period. Any damage caused by improper installation or improper maintenance is not covered by this warranty. All parts or products replaced under warranty become the property of ECHO.

PURCHASED REPAIR PARTS, SHORT BLOCKS AND ACCESSORIES

• 90-day homeowner, or non-income producing warranty

• 30-day commercial, institutional, agricultural, industrial, income producing, or rental application warranty

ATTENTION TWO-STROKE ENGINE POWER PRODUCT OWNERS

This ECHO two-stroke engine power product is a quality-engineered unit which has been manufactured to exact tolerances to provide superior performance. To help ensure the performance of the unit, it is required to use two-stroke oil which meets the ISO-L-EGD Standard per ISO/CD 13738 and JASO M345FD Standards. (&+23RZHU%OHQG7ZR6WURNH2LO LVDSUHPLXPWZRVWURNHRLOVSHFL¿FDOO\IRUPXODWHGWRPHHW,62 L-EGD (ISO/CD 13738) and JASO M345FD Standards. The use of two-stroke oils designed for other applications, such as for outboard motors or lawnmowers can result in severe engine damage, and will void your two-stroke engine limited warranty.

THIS WARRANTY DOES NOT COVER DAMAGE CAUSED BY:

• Lack of lubrication or engine failure, due to the use of two-stroke oils that do not meet the ISO-L-EGD (ISO/CD 13738) and JASO M345FD Standards. Engine problems due to inadequate lubrication caused by failure to use an ISO-L-EGD compliant and JASO M345FD registered oil, will void the two-stroke engine limited warranty. ECHO Power Blend™ Two-Stroke Oil meets the ISO-L-EGD and JASO M345FD Standard. Emission related parts are covered for 5 years homeowner use or 2 years commercial use regardless of two-stroke oil used, per the statement listed in the EPA or California Emission Defect Warranty Explanation.

• Damage caused by use of gasohol, containing methanol (wood alcohol), or gasoline containing less than 89 octane. Only use gasoline which contains 89 octane or higher. Gasohol which contains a PD[LPXP 10% ethanol (grain alcohol) or 15% MTBE (methyl/tertiary/butyl/ether) is also approved. The prescribed mixing ratio of gasoline to oil is listed on the ECHO oil label and covered in your operator’s manual.

 (QJLQHGDPDJHFDXVHGE\XVHRIHWKHURUDQ\VWDUWLQJÀXLGV  'DPDJHFDXVHGE\WDPSHULQJZLWKHQJLQHVSHHGJRYHUQRURUHPLVVLRQFRPSRQHQWVRUUXQQLQJHQJLQHVDERYHVSHFL¿HGDQGUHFRPPHQGHG

engine speeds as listed in your operator’s manual.

 2SHUDWLRQRIWKHXQLWZLWKLPSURSHUO\PDLQWDLQHGUHPRYHGFXWWLQJVKLHOGRUUHPRYHGGDPDJHGDLU¿OWHU

• Damage caused by dirt, pressure or steam cleaning the unit, salt water, corrosion, rust, varnish, abrasives, and moisture.

 'HIHFWVPDOIXQFWLRQVRUIDLOXUHVUHVXOWLQJIURPDEXVHPLVXVHQHJOHFWPRGL¿FDWLRQVDOWHUDWLRQVQRUPDOZHDULPSURSHUVHUYLFLQJRUXVH

of unauthorized attachments.

• Incorrect storage procedures, stale fuel, including failure to provide or perform required maintenance services as prescribed in the operator's manual. Preventative maintenance as outlined in the operators manual is the customer’s responsibility.

• Failures due to improper set-up, pre-delivery service or repair service by anyone other than authorized ECHO servicing dealer during the warranty period.

• Certain parts and other items are not warranted, including but not limited to: lubricants, starter cords, and engine tune-ups.

• Use of spark plugs other than those meeting performance and durability requirements of the OEM spark plug listed in the Operator's Manuals.

• Overheating or carbon scoring failures due to restricted, clogged exhaust port or combustion chamber, including damage to spark arrester screen.

 $GMXVWPHQWVDIWHUWKH¿UVWWKLUW\GD\VDQGEH\RQGVXFKDVFDUEXUHWRUDGMXVWPHQWDQGWKURWWOHFDEOHDGMXVWPHQW

• Damage to gears or gear cases caused by contaminated grease or oil, use of incorrect type or viscosity of lubricants, and/or failure to comply with recommended grease or oil change intervals.

• Damage caused by loading SHRED 'N' VAC

beyond recommended capacity.

 'DPDJHFDXVHGE\SXPSRUVSUD\HUUXQQLQJGU\SXPSLQJRUVSUD\LQJFDXVWLFRUÀDPPDEOHPDWHULDOVRUODFNRIRUEURNHQVWUDLQHUV

• Additional damage to parts or components due to continued use after operational problem or failure occurs. Should operational problem or failure occur, the product should not be used, but delivered as is to an authorized ECHO servicing dealer.

It is a dealer’s and/or customer’s responsibility to complete and return the warranty registration card supplied with your ECHO product or by visiting WWW.ECHO-USA.COM. Your receipt of purchase including date, model and serial number must be maintained and presented to an authorized ECHO servicing dealer for warranty service. Proof of purchase rests solely with the customer. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Some states do not allow the exclusion or limitation of incidental or

FRQVHTXHQWLDOGDPDJHVVR\RXPD\DOVRKDYHRWKHUVSHFL¿FOHJDOULJKWVZKLFKYDU\IURPVWDWHWRVWDWH7KLVOLPLWHGZDUUDQW\LVJLYHQE\(&+2

Incorporated, 400 Oakwood Rd., Lake Zurich, IL 60047.

DISCLAIMER OF IMPLIED WARRANTIES

This limited warranty is in lieu of all other expressed or implied warranties, including any warranty of FITNESS FOR A PARTICULAR PURPOSE OR USE and any implied warranty of MERCHANTABILITYRWKHUZLVHDSSOLFDEOHWRWKLVSURGXFW(&+2DQGLWVDI¿OLDWHGFRPSDQLHVVKDOOQRWEH

OLDEOHIRUDQ\VSHFLDOLQFLGHQWDORUFRQVHTXHQWLDOGDPDJHLQFOXGLQJORVWSUR¿WV7KHUHDUHQRZDUUDQWLHVH[WHQGHGRWKHUWKDQDVSURYLGHGKHUHLQ 7KLVOLPLWHGZDUUDQW\PD\EHPRGL¿HGRQO\E\(&+2

99922201032 11/18/2011

X7502026704 33

NOTES SHC-266

NOTES

34 X7502026704

SHC-266 PRODUCT REGISTRATION

PRODUCT REGISTRATION

Thank you for choosing ECHO Power Equipment

Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product on-line. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.

If you do not have access to the Internet, you can complete the form below and mail to:

ECHO Inc., Product Registration, PO Box 1139, Lake Zurich IL 60047.

X7502026704 35
