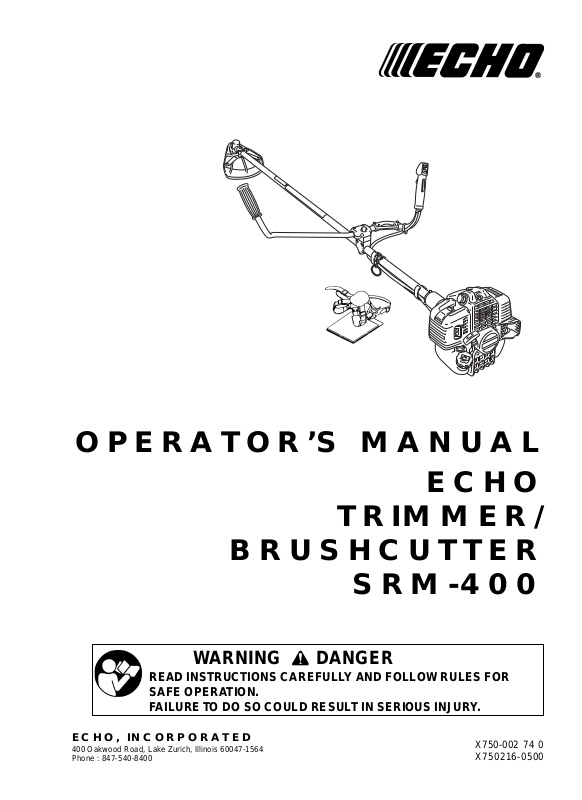

OPERATOR’S MANUAL
ECHO
TRIMMER/
BRUSHCUTTER
SRM-400
WARNING DANGER
READ INSTRUCTIONS CAREFULLY AND FOLLOW RULES FOR
SAFE OPERATION.
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY.
ECHO, INCORPORATED
400 Oakwood Road, Lake Zurich, Illinois 60047-1564
Phone : 847-540-8400
X750-002 74 0
X750216-0500
INTRODUCTION
The ECHO Trimmer/Brushcutter, model SRM-400
is lightweight, high performance gasoline powered
rotary trimmer which is designed for brushcutting,
weed control and grass trimming in areas which are
difficult to control by any other means. The trimmer
is equipped with a safety shoulder harness, and the
excellent balance characteristics plus the available
power, ensures comfortable operation.
This manual provides the information necessary for
assembly, adjustment, operation and maintenance
of your unit.
CONTENTS
RULES FOR SAFE OPERATION .......................................................................................................... 3
NOMENCLATURE HAVE PAR TS .......................................................................................................... 4
TECHNICAL DATA................................................................................................................. ................ 4
ASSEMBLING ....................................................................................................................................... 5
OPERA TION.......................................................................................................................................... 7
MAINTENANCE AND CARE ................................................................................................................. 16
TROUBLE SHOOTING.......................................................................................................................... 18
LONG TERM STORAGE ....................................................................................................................... 20
WARNING
The engine exhaust from this
product contains chemicals known
to the State of California to cause
cancer, birth defects or other
reproductive harm.
2
RULES FOR SAFE OPERATION
SAFETY INSTRUCTIONS
1. Do Not operate the unit when you are
fatigued.
2. Do Not operate if other people or animals
are in the work area.
3. Do Not operate the unit without the shield
correctly in position.
4. Do Not operate in a confined area. Carbon
monoxide exhaust gas is highly poisonous.
5. Do Not operate the unit while you are
smoking.
6. Always wear eye protection goggles when
operating the unit.
7. Always hold the unit firmly with both hands
and with fingers and thumbs encircling the
handles.
8. Always obey local ordinances regulating the
use of internal combustion engines in your
area.
9. Always use the cutting attachments as
approved and supplied by ECHO Inc. for
your unit.
10. Always remain alert when operating the unit
to avoid possible injury to yourself and other
people.
11. Always wear the shoulder harness when
operating the unit.
12. Do not operate the unit while under the
influences of drugs or alcohol.
WARNING DANGER
1. Do Not smoke while handling gasoline.
2. Do Not refuel a hot engine. Wait unit it cools.
3. Do Not overfill the tank. Spiled fuel must be
wiped up.
4. Always stop the engine when refueling.
5. Always remove the fuel cap slowly in order to
relieve any pressure build up in the tank.
6. Always restart the engine at least 3 m
(10 feet) away from the refueling posint.
7. Always store gasoline in an approved
container.
ATTENTION
For your protection when operating this unit,
comly with all Safety Rules as listed in the
Operator’s Manual. (Replacement manuals are
available from your ECHO dealer.)
1. Do not operate unless the debris shield and
safety harness are in good condition and
properly installed.
2. Do not operate if other persons or animals
are in the work area.
3. Do not operate without eye protection
goggles available from your ECHO dealer.
WARNING DANGER
SERIOUS INJURY MAY RESULT FROM THE
IMPROPER USE OF STEEL BLADES.
COMPLY WITH ALL SAFETY INSTRUCTIONS
LISTED IN THE OPERATOR’S MANUAL AND
SUPPLIED WITH THE BLADES.
1. THE ECHO SAW TOOTH BLADE IS
DESIGNED TO CUT BRUSH AND SMALL
TREES.
2. THE ECHO 8 TOOTH ROTARY KNIFE
BLADE IS DESIGNED TO CUT HEAVY
WEEDS AND GRASS. TO AVOID INJURY
DUE TO KICK BACK OR BLADE
FRACTURE, DO NOT USE THIS BLADE TO
CUT BRUSH OR TREES.
3. ECHO INC. WILL NOT BE RESPONSIBLE
FOR THE FAILURE OF CUTTING DEVICES
WHICH HAVE NOT BEEN TESTED AND
APPROVED BY ECHO FOR USE WITH
THIS UNIT.
3
NOMENCLATURE HAVE PARTS
Spark plug
Choke lever
Air cleaner cover
Decompression device
Muffler
Starter handle
Fuel tank
TECHNICAL D A TA
Gear housing
Shield
Grip
Drive shaft assembly
Ignition switch
Throttle trigger
Shoulder harness
SRM-400
Dimension L × W × H cm 186 × 70 × 43 (73.2 in × 27.6 in × 16.9 in)
Masses kg 9.9 (21.8 lb): without shoulder harness and cutter head
Engine Type Air cooled two stroke single cylinder
Displacement mL (cm³) 42.7 (2.6 cu in)
Max revolution r/min 10,000
Carburetor Walbro diaphragm type WYK
Ignition Flywheel magneto : CDI (Capacitor Discharge Ignition)
system
Spark plug CHAMPION CJ-6Y
Starter Recoil starter
Clutch Automatic centrifugal clutch
Fuel Mixing ratio Mixture of gasoline (Unleaded, 89 octane minimum) and
specially blended 50 : 1 ECHO two cycle engine oil.
Tank capacity L 1.0 (33.8 US fl oz)
Drive shaft Cutter (Option) Nylon line cutter head
assembly Cutter Circular saw, 25 cm (10 in)
Cutter (Option) 8 cutter blade, 20 cm (8 in)
Gear housing 60 degree bevel gears, ratio 1 : 1.33 (Counter-clockwise)
Lubrication Shell Delpena or good quality lithium grease
Drive shaft High tensile solid steel, 5 bearings
Shield Metal shield mounted on the gear housing for nylon line
and metal blade applications.
Technical data subject to change without notice.
4
Slot
ASSEMBLING
Bolts
Right hand grip assembly
Right hand U-handle
DRIVE SHAFT
• Stand engine uprignt on a level floor.
• Loosen bolts at drive shaft end of the engine.
• Fit drive shaft assembly ensuring that the drive
shaft is correctly engaged.
• Tignten bolts to fasten drive shaft assembly.
WARNING DANGER
NEVER START ENGINE WITHOUT
DRIVESHAFT ASSEMBLY INSTALLED.
THIS COULD RESULT IN SERIOUS INJURY.
HANDLE
Insert right hand grip assembly into right hand Uhandle and fit it to the slot for rotation prevention of
right hand U-handle.
Grip assembling bolt
Handle assembling bolt (8 mm)
Bolt retainer tube
Handle assembling bracket (upper)
Handle assembling bolt (8 mm)
Left handle
Fit grip assembling bolt and secure the grip firmly.
Remove bolt retainer tube from end of handle
assembling bolt (8 mm).
Install handle assembling bracket (upper) in handle
assembling bracket (lower) and fix handle by tightening
handle assembling bolt (8 mm) lightly.
Handle assembling bracket (lower)
To engine
5
Right handle assembling bolt
Right handle assembling bracket
Right hand U-handle
Loosen 4 right handle assembling bolts and insert
right hand U-handle into right handle assembling
bracket. (toward direction of arrow )
Fix the right hand U-handle by tightening 4 right
handle assembling bolts lightly.
To engine
Adjustment of right handle inclination (left/right)
Adjustment of right handle inclination
(forward/ backward)
Adjustment of left handle inclination
(forward/ backward)
To engine
Adjust each inclination of right and left handles to
adequate position (easy to operate) and tighten firmly
handle assembling bolt (8 mm) and 4 right handle
assembling bolts.
Determine “Easy to operate” position.
4
Shoulder strap assembly
Waist pad
2
6
7
3
5
Quick release latch
1
SHIELD
Fit the shield on the gear housing and tighten
screws with washers (Seven points) as shown.
SHOULDER HARNESS
• Fit the shoulder starp to the swivel hook, and
adjust the length of starp and or the locaion
clamps to maintain the cutter head parallel to
the ground.
6
OPERATION
GENERAL CHECK
Oil 1
Gasoline
Fuel mix chart
(50 : 1)
US METRIC
GAS OIL GAS OIL
GAL FL OZ L mL
1 2.6 4 80
2 5.1 8 160
5 12.8 20 400
50
• Eneure that all nuts, screws and bolts installed
are properly tightened.
FUEL STATEMENT
GASOLINE : Use 89 octane ( ) gasoline or
gasohol known to be good quality. Gasohol may
contain maximum 10% ethyl (grain) alcohol or 15%
MTBE (methyl tertiary-butyl ether). Gasohol
containing methyl (wood) alcohol is not approved.
OIL : ECHO brand premium two-stroke 50:1 oil is
reguirred.
Mix oil and gasoline /gasohol according to
insturctions on the oil container label.
MIXING : Follow directions on the oil container.
R+M
2
IMPORTANT
Stored fuel ages. Do not mix more fuel than
you expect to use in thirty (30) days, ninety
(90) days when a fuel stabilizer is added.
Stored two-stroke fuel may separata.
ALWAYS shake fuel container thoroughly
before each use.
Throttle trigger
Ignition switch
Throttle control lockout
COLD START (Close)
RUN (Open)
STARTING COLD ENGINE
• Slide switch to START/RUN position as shown.
• Push purge bulb 3 or 4 times (or until constant
flow of fuel is visible in fuel return line.)
• Move choke lever to COLD START (Close)
position.
• Press the decompression device.
• Pull recoil starter until the engine fires. Now,
move choke lever to RUN (open) position, and
if necessary, restart the engine again and allow
to warm up for a few minutes before using.
• After idling, gradually open throttle and cutter
blade will start to operate as the engine attains
clutch engagement speed of 3,500 r/min
approximately.
NOTE
Recoil starter : Use short pulls - only 1/2 - 2/3 of
starter rope for starting. Do not let starter rope
snap back in .
Always hold the unit firmly.
Purge bulb Fuel return line
Choke lever
7
Decompression device
HOLD THE UNIT FIRMLY.
STARTING WARM ENGINE
• When engine is warm, start it by pulling recoil
starter rope with switch positioned at START/
RUN.
(Keep choke lever in RUN (open) position)
• Press the decompression device.
• If engine does not start in a few tries, follow
same procedures as starting a cold.
STOPPING ENGINE
• Release throttle trigger and allow to run at an
idle speed.
• Side ignition switch to “STOP” position.
OPERATING THE TRIMMER
• Adjust handle to a convenient position for
cutting as instructed on page 6.
• Allow the engine to warm up at a fast idle for a
few minutes.
• Increase engine speed as necessary.
• When mowing shrubs, weeds, or grass, swing
the cutter head from right to left as you move
forward.
- Avoid striking any obstruction such as rocks,
stones or tree stumps which can damage the
cutter head.
Do not cut into the ground.
- To avoid damage to the engine, do not run the
engine unloaded at full throttle.
• In the event that the cutter strikes an
obstruction or is otherwise prevented from
rotating in normal operation, the clutch will slip
to prevent possible engine damage. In this
case, stop the engine, free the cutter and then
start the operation again.
8
WARNING DANGER
DO NOT ALLOW EITHER PEOPLE OR
ANIMALS INTO THE WORK AREA.
ALWAYS WEAR SAFETY GOGGLES WHEN
CUTTING.
DRESS PROPERLY - AVOID LOOSE
CLOTHING.
WHEN GRASS OR WEEDS HAVE CLOGGED
THE CUTTER HEAD AFFECTING NORMAL
OPERATION, FIRST, STOP THE ENGINE AND
THEN REMOVE THE DEBRIS.
WARNING DANGER
• BEFORE STARTING UP THE ENGINE,
MAKE SURE THAT THE CUTTER BLADE IS
NOT CONTACTING ANYTHING.
• WHEN TWO OR MORE OPERATORS ARE
WORKING TOGETHER, ENSURE THAT A
SAFE DISTANCE IS KEPT BETWEEN
THEM.
OPERATING INSTRUCTIONS (METAL
BLADES and OPTIONAL NYLON LINE)
Your brushcutter/trimmer, has been designed and
constructed to give you years of trouble-free
service and relieve you of the many back-aching
tasks normally associated with grass trimming,
weed control and brushcutting. Nevertheless, in
common with all other power operated tools, the
Owner and/or Operator has a definite responsibility
to maintain the safe working condition of the unit as
provided by the manufacturer , and to ensure also
the safe operating procedures as prescribed by
common sense and this manual. Please, therefore,
read and understand the instructions as listed
hereunder, and on Page 3, in order to prevent
accidents and possible injury.
WARNING DANGER
GRASS/WEED TRIMMERS CAN THROW
GRAVEL, STONE, WOOD CHIPS, GLASS,
AND PLASTIC OR METAL OBJECTS. THE
DEBRIS SHIELD BEHIND THE TRIMMER
HEAD STOPS MUCH OF THE DEBRIS, BUT
CANNOT PREVENT THE OPERATOR FROM
BEING STRUCK BY SOME DEBRIS. READ
THE RULES FOR SAFE OPERATION IN THE
OPERATOR’S MANUAL THAT YOU
RECEIVED WITH YOUR ECHO TRIMMER.
AISO, FOLLOW AII INSTRUCTIONS IN THIS
INSTRUCTION SHEET.
ECHO 2-LINE MANUAL TRIMMER
HEAD (OPTION)
1. Read the Operator’s Manual carefully.
Be throughly familiar with the controls and
proper use of the trimmer.
Know how to stop the unit and disengage the
controls.
2. Never allow children to operate the trimmer.
3. Never allow adults to use the trimmer unless
they have received prpper instructions. Be sure
the operator is properly attired and wears the
type of foot, leg, head, eye and ear protection
recommended both in your ECHO Operator’s
Manual and by your ECHO Servicing Dealer.
4. Always wear eye protection that conforms to
ANSI Z 87. 1-2000.
9
1B
SPOOL
1C
1D
15 cm (6 in)
1. REPLACING LINE
A. Remove spool by turning knob clockwise,
“right”, and separating parts.
B. Thread a 6 m (20 feet) length of 2.4 mm (0.095
in) or 2.7 mm (0.105 in) ECHO line through
hole in spool so that ends are the same length.
C. Wind both ends of line tightly and evenly
clockwise (see arrows on spool), and wind from
side to side without twisting the lines.
D. Secure ends of line temporarily with about 15
cm (6 in) extending out.
2A
HOUSING
Locking tool
2B
Upper fixing plate
BOLT
SPRING
KNOB
Cutting head
2.REPLACING SPOOL
NOTE
Keep line tight on spool.
A. Snap spool into housing while pulling line
through eyelets with about 15 cm (6 in)
extending out.
CAUTION
Knob tightens counterclockwise, “left”.
B. Fasten spool to housing with shaft bolt, spring,
and knob.
INSTALLATION OF NYLON LINE
HEAD(OPTION)
Set the nylon line head to the drive shaft and
tighten by turning as shown.
TIGHTEN
CUTTING PROCEDURES
OPERATING INSTRUCTIONS NYLON
LINE
1. Always use the end of the line for cutting.
Forcing the cutter head too close to the work
will result in reduced efficiency and broken line.
2. Maintain the line at the recommended length of
12.5 to 15 cm ( 5 to 6 in).
A longer line will reduce engine speed, a
shorter line may result in engine damage.
3. The trimmer head rotates counterclockwise.
Always cut with the head tilted to the right to
deflect debris away from the operator.
4. Always observe the SAFETY RULES on Page
3 when using the unit.
10
PULL
SHOULDER HARNESS
• Install the harness over the both shoulders and
adjust shoulder straps so that the quick release
latch rests low on the right hand side.
• Attach the trimmer/brushcutter to the harness
by means of the quick release latch.
Quick
release
latch
• Make some practice sweeps as with a trimmer
and readjust the harness as necessary for
comfort and to maintain the cutter parallel to the
ground.
WARNING DANGER
IN CASE OF EMERGENCY, PULL THE QUICK
RELEASE LATCH TO DISCONNECT THE
TRIMMER FROM THE HARNESS.
TRIMMING
The nylon line will allow you to trim along walls and
fence lines. Always try to trim from right to left,
walking behind the unit and parallel to the wall or
fence, thus deflecting debris away from the
operator.
EDGING
1. The nylon line is intended only to cut grass and
should not be used to cut a normal edging
trench along stone or concrete driveway etc.
2. Tilt the unit vertically as illsutrated and use only
the line tip to remove unwanted growth.
11
TREE
MOWING
• The nylon line will effectively mow large areas
of heavy grass and/or weeds. Use the standard
12.5 to 15 cm ( 5 to 6 in) of line and operate at
full throttle.
• When mowing cultivated areas such as lawns
hold the cutter head pararell to the gound to
avoid scalping.
SCALPING
1. The cleaning of weeds and grass right down to
the earth can be accomplished very easily with
the nylon line.
2. Scalping around trees and brushes is
particularly effective, but care should be
exercised not to bruise the bark of young and
sensitive growth.
3. In flower beds, always remenber that the nylon
line will cut in a complete circle to avoid cutting
flowers instead of weeds.
SWEEPING
1. Sweeping grass and other debris from a hard
surface can be done very quickly.
STEEL BLADE OPERATIONS
Your ECHO Trimmer/Brushcutter is designed for
fast, efficient weed and brush control in areas
which are otherwise inaccessable to power
equipment. Standard configuration includes a
handle bar and nylon line head for light trimming
and weed clearing. Two special steel blades are
available as options and recommended for use in
extended heavy weed and brush clearing
operations : -
1.Blade:weed and grass 8 tooth 20 cm (8 in)
diameter
2.Blade:brush 80 tooth 25 cm (10 in) diameter
WARNING DANGER
1. SERIOUS INJURY MAY RESULT FROM
THE IMPROPER USE OF STEEL BLADES.
READ AND COMPLY WITH SAFETY
INSTRUCTIONS LISTED IN THIS MANUAL.
2. THE EIGHT TOOTH BLADE IS DESIGNED
SPECIALLY TO CUT WEED AND GRASS.
TO AVOID INJURY DUE TO KICKBACK OR
BLADE FRACTURE, DO NOT USE THIS
BLADE TO CUT BRUSH OR TREES.
3. ECHO INC. WILL NOT BE RESPONSIBLE
FOR THE FAILURE OF CUTTING DEVICES
WHICH HAVE NOT BEEN TESTED AND
APPROVED BY ECHO FOR USE WITH
THIS UNIT.
12
WARNING DANGER
SAFETY PRECAUTIONS
1. ALWAYS USE THE CORRECT BLADE FOR
THE JOB AS RECOMMENDED.
2. BE CAREFUL NOT TO HIT ROCKS,
STONES, TREE STUMPS OR ANY
FOREIGN OBJECT WHICH MAY DAMAGE
THE BLADE.
3. DO NOT CUT INTO THE GROUND TO
AVOID DULLING THE BLADE.
4. ALWAYS STOP THE ENGINE AND
EXAMINE THE BLADE AFTER STRIKING
AN OBSTRUCTION.
DO NOT OPERATE WITH A BLADE WHICH
IS BLUNT, BENT, FRACTURED, OR
DISCOLORED DUE TO OVERHEAT.
5. IN THE EVENT, THAT THE BLADE
STRIKES AN OBSTRUCTION, OR IS
OTHERWISE PREVENTED FROM
ROTATING IN NORMAL OPERATION, THE
CENTRIFUGAL CLUTCH WILL SLIP TO
PREVENT ENGINE DAMAGE.
IN THIS CASE, STOP THE ENGINE, FREE
AND EXAMINE THE BLADE AND IF IN
GOOD ORDER, RESUME OPERATION.
6. SHOULD THE BRUSHCUTTER BE
OPERATED FOR AN EXTENDED PERIOD
OF HIGH TEMPERATURES, THE GEAR
BOX MAY BECOME VERY HOT.
IF TOO HOT TO TOUCH, ALLOW THE UNIT
TO COOL DOWN, CHECK THE
LUBRICATION AS PER ‘MAINTENANCE’
AND CONTINUE TO OPERATE IF IN
ORDER.
7. TO AVOID ENGINE DAMAGE, DO NOT
RUN ON FULL THROTTLE WITHOUT
LOAD.
8. DO NOT OPERATE THE BRUSHCUTTER
WITHOUT THE HARNESS AND DEBRIS
SHIELD CORRECTLY FITTED.
9. ALWAYS INSPECT THE WORK AREA AND
REMOVE ANY FOREIGN OBJECTS.
Quick
release
latch
PULL
SHOULDER HARNESS
• Install the harness over the both shoulders and
adjust shoulder straps so that the quick release
latch rests low on the right hand side.
• Attach the trimmer/brushcutter to the harness
by means of the quick release latch.
• Make some practice sweeps as with a scythe
and readjust the harness as necessary for
comfort and to maintain the cutter parallel to the
ground.
WARNING DANGER
IN CASE OF EMERGENCY, PULL THE QUICK
RELEASE LATCH TO DISCONNECT THE
TRIMMER FROM THE HARNESS.
SHIELD
When using a metal blade. Use same as Nylon
line.
13
INSTALLING THE BLADE
1. The installation of the 8 tooth weed/grass blade
(option) and the 80 tooth brush is exactly the
same.
Brush Blade
(80 tooth)
TIGHTEN
Weed/Grass Blade
(8 tooth)
Upper fixing plate
Locking tool
Box wrench
2. Rotate the drive shaft until the holes in the
upper fixing plate and the gear box are aligned.
Insert the locking tool.
3. Remove the nylon line line head, if fitted, by
turning in a clockwise direction.
4. Install the blade ensuring that it is centered
correctly on the fixing plate.
5. Fit the lower fixing plate and tighten the locking
nut using the box wrench supplied in the tool
kit.
Locking tool
Assemble cutter blade properly
Gear housing
Adapter plate
(Upeer)
Nut
Lower fixing plate
Split pin
Locking
tool
Adapter plate (Lower)
Split pin
6. Fit a new split pin as supplied in the tool kit to
secure the locking nut.
NOTE
• The drive shaft is fitted with left hand threads,
therefore turn counterclockwise to tighten as
illustrated.
• Always use a new split pin to secure the
locking nut.
Split pin 2 × 22 mm
Part No. 898502-01130.
14
HEAVY WEED CUTTING
• Install the 8 tooth 20 cm (8 in) blade. (option)
• Observing all precautions as listed in this
manual, start the engine and using full throttle,
swing the blade in an arc as you move forward
slowly. The cutter rotates counter-clockwise
and the debris will be pushed backwards so the
work area will always be visible.
BRUSHCUTTING
• Install the 80 tooth blade.
• Proceed exactly as for weed and grass cutting.
SMALL TREES
• The unit will effectively cut small trees up to 7.5
cm (3 in) diameter using the 80 tooth 25 cm
(10 in) diameter new blade.
• Before attempting to cut, ensure that the falling
tree will fall away from you, and if necessary,
tie a rope to the tree and have an assistant pull
it in a safe direction.
• Do not attempt to “plunge cut”, i.e. using the
brushcutter like an axe. It is not necessary and
may cause serious damage to the brushcutter.
• Brace your feet firmly on the ground and cut
with the left hand side of the blade.
CAUTION
1. Always cut on full throttle.
2. Never try cutting with a blunt blade.
15
MAINTENANCE AND CARE
- ALWAYS KEEP THE UNIT CLEAN -
Air filter
Air cleaner cover
Latch
AIR FILTER
• Clean before using the unit.
- Close choke. Disengage latch and remove air
cleaner cover.
- Remove air filter.
- Brush off dust lightly or clean with
compressed air.
- Reinstall cover and engage latch.
FUEL STRAINER
• Check periodically.
- Do not allow dust to enter into fuel tank.
- Clogged strainer will cause difficulty in starting
engine or abnormalities in engine
performances.
- Pick up fuel strainer through fuel inlet port with
a piece of steel wire or the like.
Fuel strainer
Muffler cover
Lid
Screen
Cylinder fins
- When strainer is dirty, wash it in suitable
cleaning fluid or replace it.
MUFFLER AND EXHAUST PORT (SAM)
• Clean as necessary.
• Carbon deposits in cylinder exhaust port and
muffler will reduce engine output.
- Muffler can be removed by taking off muffler
cover.
- Be careful not to scratch cylinder or piston
when cleaning cylinder exhaust port.
Use non-ferrous plastic or wood.
• Check loose nuts and screws on the muffler
part before every use.
Retighten them firmly if necessary.
CYLINDER FINS
• Check periodically.
Air intake
• Clogged fins will result in poor engine cooling.
• Remove dirt and dust from between fins to let
cooling air pass easily.
16
0.6 - 0.7 mm (.024 - .028 in)
SPARK PLUG
• Check periodically.
• Standard spark plug gap is 0.6 to 0.7 mm
(0.024 to 0.028 in).
• Replace if either electrode is worn or if the
insulator is fouled by oil or other deposits.
• TORQUE = 14.2 to 15.2 N•m (125 to 135 in lb)
CAUTION
Do not over torque.
Gear housing
Bolt
Idle speed adjustment screw (T)
GEAR HOUSING
• Remove the bolt every 50 hours and check.
• Replenish as necessary, but do not overfill.
- Shell delpena or good quality lithium multi
grease is recommendable.
CARBURETOR ADJUSTMENT
Every unit is run at the factory and the carburetor is
set in compliance with California Emission Regulations, in addition.
1. Before adjusting carburetor clean or replace air
filter and muffler, “Spark Arrestor Screen”.
2. Make sure the cutting attachment such as
hedge clipper blades or circular saw are
properly adjusted. Trimmer line should be
extended to cut-off knife.
3. Start engine and run several minutes to bring to
operating temperature. Flash choke twice
during warm-up to clear any air from the fuel
system.
4. Idle Speed Adjustment
• Start engine, turn “idle” speed adjustment
screw CW until the cutting attachment begins
to turn, then turn screw out CCW until
attachment stops turning. Turn screw out,
CCW, an addtional 1/4 turn.
WARNING DANGER
CUTTING ATTACHMENT MUST NOT TURN
OR MOVE WHEN UNIT IS IDLING.
CAUTION
When strarting, idling adjustment speed
should be adjusted not to rotate the cutting
attachment. Correct idle speed is adjusted
2,900 to 3,100 r/min. Or 1/4 turn counter
clockwise from the point the cutting
attachment stops moving. When there is
some trouble with the carburetor, refer to
your distributor or dealer.
17
30°
Cutter edge
2R
EIGHT CUTTER BLADE
• Use only the blade designated by the
manufacturer for this model.
• When crack is noticed on the blade, never use
it, but replace with a new one.
Not sharpened
2mm
Tooth bottom
• Round the teeth bottom for 1- 2 mm radius in
order to avoid the crack using a round file.
- Rounded part is not to be sharpened.
- Sharpen each cutter equally so as to retain
the balance of the blade.
- In sharpening the edge by use of a grinder, do
not cool the cutter abruptly by immersing it in
water.
MAGNETO
The unit is incorporated with a CDI (Capactior
Discharge Ignition) system, which does not require
adjustment of ignition timing and the contact
breaker point gap. Ensure wire connections and
couplers assembling.
TROUBLE SHOO TING
Poor performance of the engine and/or trimming mechanism can normally be prevented by carefully
following instructions.
Poor performances can easily be corrected even by a beginner.
When the engine does not function properly check the following three (3) points first.
• Is engine compression adequate?
• Is fuel system in good condition and is enough fuel being supplied?
• Is electrical system in good condition and is spark plug operating normally?
When there is serious trouble with the unit, do not try to repair it yourself but have your distributor or dealer
do it for you. For detailed TROUBLE SHOOTING refer to tables 1 and 2. Locate the problem on the
following charts and repair as necessary.
18
Table 1
Engine cranks
There is fuel in the tank
Engine does not start (or, is difficult to start)
Fuei is reaching cylinder
Fuel is reaching carburetor
There is spark at high
tension cord end
There is spark at plug
Fuel is not
reaching
carburetor
Fuel is not
reaching
cylinder
No spark at high
tension cord end
No spark at plug
Fuel does
not keep
running
Acceleration and
low speed
function
defective
Starting procedures
correct
Carburetor
overflow
Engine does
not crank
Fuel strainer clogged Clean.
Fuel pipe clogged Clean.
Suction insufficient Make sufficient.
Strainer clogged Clean.
Carburetor out of order Disassemble and check.
C.D.I. module defective Remove and replace.
Ignition coil defective Remove and replace.
Wire connection defective Reconnect.
High-tension cord connection Repair as necessary.
defective
Switch is grounded Switch on.
Insulator cracked Replace plug.
Spark gap incorrect Adjust.
Covered with carbon Clean or replace.
Fouled with fuel Clean or replace.
Starting procedures incorrect Start correctly.
Low and high speed needle Readjust.
setting too lean
Metering lever spring too strong Readjust
Fuel pump diaphram defective Replace.
Fuel passage clogged with dust Disassemble and clean.
Fuel leaking from fixing Retighten all screws.
surfaces of carburetor
Air valve, fuel tank cap Replace or clean.
does not work normally
Fuel pump does not operate Check impulse drilling.
Fuel inlet needle valve Clean.
clogged with dust
Metering lever spring not placed Correct.
in dent of lever
Muffler sticky Start the engine several
with fuel times with choke shutter
Bearing damaged Disassemble and replace.
Piston and/or cylinder seized Disassemble and replace.
Crankshaft worn Disassemble and replace.
Crankshaft contacting Disassemble and replace.
crankcase
This is because fuel
mixture is too rich.
fully open and run at fast
idle until engine does not
smoke.
19
Table 2
Engine overheated
Firing function defective
Carburetor defective
Engine speed insufficient
Other troubles
Improper fuel used Use fuel with correct mixing ratio.
Never use gasoline of poor quality.
Spark plug defective (burnt) Replace.
As cooling fins clogged, air Clean fins.
does not pass well
Excessive deposits in Disassemble and remove carbon.
combustion chamber
Plug damaged or fouled Replace or clean.
Combustion poor due to Check wiring.
defective wiring
High-speed needle Readjust.
setting incorrect
Carburetor overflow Refer to Table 1.
Air cleaner clogged Clean as necessary.
Compression insufficient Disassemble, check and replace
(piston ring stuck or worn if necessary.
out)
Cylinder chromium plating Replace cylinder.
peeled or worn out
Exhaust port clogged with Clean as necessary.
carbon
Machine does not trim properly
Blade does not cut well
Blade does not rotate
Eengine runs normally
Throttle is not fully open Readjust.
Improper setting Set properly.
Height of cutter uneven Correct properly.
Overloaded Adjust load.
Clutch shoe worn out Replace.
LONG TERM STORAGE
• Inspect and adjust every part of the unit.
- Completely clean every part, and repair, if
necessary.
- Apply thin coating of oil on metal parts to
prevent rust.
- Remove the cutter head, apply sufficient oil
coating and wrap up in plastic.
• Drain fuel tank, pull starter handle slowly a few
times to drain fuel from carburetor.
• Pour a small amount of clean motor oil into
spark plug hole, pull starter handle and then
crank the engine until TOP DEAD CENTER.
• Store in a dry area, free from dust.
20
Loading...
