Echo SRM-211, SRM-211U User Manual

Grass T rimmer/Brush Cutter

Operator's Manual

MODEL SRM-211

SRM-211U

Serial Number 002001001 - 02999999

X7702272400

W ARNING DANGER

Read rules for safe operation and instructions carefully. ECHO provides an Operator's
Manual and a Safety Manual. Both must be read and understood for proper and safe
operation.

X770000180
06/00

GRASS TRIMMER/BRUSH CUTTER

OPERATOR'S MANUAL

MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION

Throughout this manual and on the product itself, you will find safety
alerts and helpful, information messages preceded by symbols or key
words. The following is an explanation of those symbols and key
words and what they mean to you.

This symbol accompanied by the words WARNING and
DANGER calls attention to an act or condition that can lead to
serious personal injury to operator and bystanders.

The circle with the slash symbol means whatever is shown
within the circle is prohibited.

IMPORTANT The enclosed message
provides information necessary for the
protection of the unit.

NOTE This enclosed message provides tips for
use, care and maintenance of the unit.

3

SAFETY

DECALS

Locate these safety decals on your unit. The complete unit illustration,
found in the "DESCRIPTION" section, will help you locate them. Make
sure the decals are legible and that you understand and follow the
instructions on them. If a decal cannot be read, a new one can be
ordered from your ECHO dealer. See PARTS ORDERING instructions
for specific information.

Shaft Decal
Spanish Decal

ADVERTENCIA PELIGRO

89022809560

Esta unidad puede ser peligrosa y producir lesiones
personales graves si no se usa en forma adecuada.
Para reducir el riesgo de lesionarse, los operadores,
los ayudantes y los espectadores deben leer y
comprender el Manual Del Operador y los Manuales
De Seguridad que se entregan escritos en español.

DEBRIS SHIELD DECAL
P/N 89016841031

Metal Debris

Shield

English Translation

WARNING DANGER

This unit can be dangerous and cause
serious injury if improperly used. to
reduce injury risk to operator, helpers
and bystanders, read and understand
the Operator's and Safety Manuals,
which are provided in Spanish.

4

Shaft Decal

W ARNING DANGER

• This unit can be dangerous and cause serious injury if improperly
used. To reduce injury risk to operator, helpers and bystanders, read
and understand the Operator's and Safety manuals.

• Blindness can occur from objects that are thrown or ricocheted even
with shield in place. Operators, helpers and bystanders must wear
ANSI Z87.1 approved eye protection.

• Always wear hearing protection when operating unit.

• Prevent accidental contact with unit and any cutting attachment.
Maintain a 50 ft. (15M) radius, DANGER ZONE surrounding the
operator. ONLY the operator, dressed in proper protective clothing
should be in the DANGER ZONE.

• Beware of KICKOUT (blade thrust) when using blades. Special
precautions are necessary for blade operation, see your Operator's
and Safety Manuals. ONLY install ECHO approved blades on Brush
Cutters (SRM) models equipped with proper blade shield, U-handles,
harness, blade collar, nut and cotter pin.

• Blade/Cutting attachment does not stop immediately after releasing
throttle. Keep hands and feet clear of blade/cutting attachment unless
engine is shut off and cutting attachment is not moving.

• INSPECT BLADES BEFORE USE.

• DO NOT USE DAMAGED, CRACKED, BENT, DULL OR
IMPROPERLY SHARPENED BLADES.

• Do not remove shields, modify the unit or install attachments or parts
not approved by ECHO. Approved attachment information and
replacement Operator's and Safety Manuals are available from your
ECHO dealer or by writing: ECHO, INCORPORATED,

400 OAKWOOD RD., LAKE ZURICH, IL 60047.

P/N 89016054130

INTERNA TIONAL SYMBOLS

Symbol form/shape

Symbol

description/application

"WARNING, SEE

OPERATOR'S

MANUAL

Wear eyes, ears and

head protection

Wear hand and

foot protection

Safety/Alert

Symbol form/shape

Keep bystanders and helpers

away 15 m (50 ft.).

Symbol

description/application

Hot

Surface

Finger Severing

DO NOT allow

flames or sparks

near fuel.

DO NOT smoke

near fuel.

Symbol form/shape

Symbol

description/application

Emergency stop

Carburetor adjustment

- High speed mixture

Carburetor adjustment

- Idle speed

Carburetor adjustment

- Low speed mixture

Symbol form/shape

Symbol

description/application

Fuel and oil mixture

Primer Bulb

Ignition
ON/OFF

Engine choke

control.

GRASS TRIMMER/BRUSH CUTTER

EQUIPMENT

Before operation a complete check of the unit must be performed;

• Check unit for loose/missing nuts, bolts and screws. Tighten and/or
replace as needed.

• Inspect fuel lines, tank and area around carburetor for fuel leaks. DO
NOT operate unit if leaks are found.

• Inspect shield for damage and ensure that the cut-off knife is securely
in place. Replace if either is damaged or missing.

• Check that the cutting attachment is firmly attached and in safe
operating condition.

OPERATOR'S MANUAL

5

• Check that front (loop) handle and optional shoulder strap/ or
shoulder/waist harness are adjusted for safe, comfortable operation.
See Assembly for proper adjustment.

• Have repairs done only by an authorized ECHO Service Dealer.

• Do not use any attachment, accessory or replacement part unless it is
recommended in the Operator's Manual.

Spark Arrestor - Catalytic Muffler / Muffler

• The muffler or catalytic muffler controls the exhaust noise and
emissions. The spark arrestor screen prevents hot, glowing particles
of carbon from leaving the muffler. Make sure the spark arrestor
screen is in good repair and properly seated in the muffler. Keep
exhaust area clear of flammable debris. Avoid contact during and
immediately after operation.

6

FUEL

W ARNING DANGER

Fuel is VERY flammable. Use extreme care when mixing, storing or
handling, or serious personal injury may result

• Use an approved fuel container.

• DO NOT smoke near fuel.

• DO NOT allow flames or sparks near fuel.

• Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.

• NEVER refuel a unit when the engine is HOT!

• NEVER refuel a unit with the engine running.

• DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks outdoors
over bare ground.

• Securely tighten fuel cap after refueling.

• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.

IMPORTANT

Spilled fuel is a leading cause of hydrocarbon emissions. Some
states may require the use of automatic fuel shut-off containers to
reduce fuel spillage. Contact your ECHO dealer for ordering
information.

After Refueling;

• Wipe any spilled fuel from the unit.

• Move at least 3 m (10 ft.) from refueling location before starting.

After Use;

• DO NOT store a unit with fuel in its tank. Leaks can occur. Return
unused fuel to an approved fuel storage container.

(10 FT.) MINIMUM

3 M

PERSONAL CONDITION AND SAFETY EQUIPMENT

W ARNING DANGER

Trimmer/Brush Cutter users risk injury to themselves and others if the trimmer/brush cutter is used improperly
and or safety precautions are not followed. Proper clothing and safety gear must be worn when operating a
trimmer.

Physical Condition --

Your judgment and physical dexterity may not be good:

- if you are tired or sick,

- if you are taking medication,

- if you have taken alcohol or drugs.

Operate unit only if you are physically and mentally well.

GRASS TRIMMER/BRUSH CUTTER

Eye Protection --

Wear eye protection that meets ANSI Z87.1 or CE requirements
whenever you operate the trimmer.

Hand Protection --

Wear no-slip, heavy duty work gloves to improve your grip on the
Trimmer/Brush Cutter handles. Gloves also reduce the transmission of
machine vibration to your hands.

Hearing Protection --

ECHO recommends wearing hearing protection whenever unit is used.

OPERATOR'S MANUAL

7

Proper Clothing --

Wear snug fitting, durable clothing;

- Pants should have long legs, shirts with long sleeves.

- DO NOT WEAR SHORTS,

- DO NOT WEAR TIES, SCARVES, JEWELRY.

Wear sturdy work shoes with non-skid soles;

- DO NOT WEAR OPEN TOED SHOES,

- DO NOT OPERATE UNIT BAREFOOTED.

Hot Humid Weather --

Heavy protective clothing can increase operator fatigue which may lead
to heat stroke. Schedule heavy work for early morning or late afternoon
hours when temperatures are cooler.

8

SAFE OPERATION

Determine Operation Area

• Provide all operators of this equipment with the operator's manual and
instructions for safe operation.

• Review the area to be trimmed. Look for hazards that could
contribute to unsafe conditions.

• Spectators and fellow workers must be warned, and children and
animals prevented from coming nearer than 15M (50 ft.) while
the trimmer is in use.

Operation

Use Proper Clothing & Equipment

• Before starting the unit, equip yourself and any other person working
within the 15M (50 ft.) Safety Zone with the required Protective
Equipment and clothing.

W ARNING DANGER

Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions and can cause
serious injury or death.

15M

(50 ft.)

Avoid Hot Surfaces

• During operation, the drive shaft housing and the bearing housing,
and the muffler or catalytic muffler cover area may become very hot.
Avoid contact during and immediately after operation. Always keep
exhaust area clear of flammable debris

Keep A Firm Grip

• Hold the front and rear handles with both hands with thumbs and
fingers encircling the handles

Keep A Solid Stance

• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on
ladders. Do not over reach.

GRASS TRIMMER/BRUSH CUTTER

EXTENDED OPERATION/EXTREME CONDITIONS

Vibration and Cold --

It is believed that a condition called Raynaud’s Phenomenon, which
affects the fingers of certain individuals may be brought about by
exposure to vibration and cold. Exposure to vibration and cold may
cause tingling and burning sensations followed by loss of color and
numbness in the fingers. The following precautions are strongly
recommended because the minimum exposure which might trigger the
ailment is unknown.

• Keep your body warm, especially the head, neck, feet, ankles,
hands and wrists.

• Maintain good blood circulation by performing vigorous arm
exercises during frequent work breaks and also by not smoking.

• Limit the hours of operation. Try to fill each day with jobs where
operating the trimmer or other hand-held power equipment is not
required.

• If you experience discomfort, redness and swelling of the fingers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.

OPERATOR'S MANUAL

9

Repetitive Stress Injuries --

It is believed that overusing the muscles and tendons of the fingers,

hands, arms and shoulders may cause soreness, swelling, numbness,
weakness and extreme pain in those areas. Certain repetitive hand
activities may put you at a high risk for developing a Repetitive Stress
Injury (RSI). An extreme RSI condition is Carpal Tunnel Syndrome
(CTS), which could occur when your wrist swells and squeezes a vital
nerve that runs through the area. Some believe that prolonged
exposure to vibration may contribute to CTS. CTS can cause severe
pain for months or even years. To reduce the risk of RSI/CTS, do the
following:

• Avoid using your wrist in a bent, extended or twisted position.
Instead try to maintain a straight wrist position. Also, when grasping,
use your whole hand, not just the thumb and index finger.

• Take periodic breaks to minimize repetition and rest your hands.

• Reduce the speed and force with which you do the repetitive
movement.

• Do exercises to strengthen the hand and arm muscles.

• Immediately stop using all power equipment and consult a doctor if
you feel tingling, numbness or pain in the fingers, hands, wrists or
arms. The sooner RSI/CTS is diagnosed, the more likely permanent
nerve and muscle damage can be prevented.

10

DESCRIPTION

The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions,
shield installation and other assembly may be necessary.

After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.

CONTENTS

SRM-211/211U

1 - Power Head / Drive Shaft Assembly
1 - Plastic Bag (co-pack)

- 1, Operator's Manual

- 1, Safety Manual

- 1, Warranty Registration Card

- 1, Limited Warranty Statement

- 1, Plastic shield

- 1, Plastic Bag

--1, shield plate

--3, 5mm x 15mm screws (shield mtg.)

- 1, Tool Bag

--1, 8mm x 10mm wrench

--1, scrench

--1, locking tool

- 1, Nylon Trimmer Head

- 1, Safety Glasses

- 1, 2-Stroke Oil Sample, 2.6 oz.

SRM-211U Additional Co-Pack

- 1, U-Handle w/throttle

- 1, Plastic Bag

--1, metal shield

--1, shield bracket

--1, plastic bag

---1, 8mm x 55mm screw (handle mtg.)

---1, washer, circular

---2, cable clips

- 1, Plastic Bag

-- 3, 5mm x 15mm screws (shield mount)

-- 2, 5mm x 8mm screws (bracket to shield)

-- 4, 5mm nuts

-- 4, 5mm lockwashers

--1, 3mm Hex Wrench

- 1, Shoulder Harness w/hip pad

- -1, harness clamp

GRASS TRIMMER/BRUSH CUTTER

OPERATOR'S MANUAL

BLADE TERMS & DEFINITIONS --

Blade Convertible

Model (SRM-211) can be converted to utilize blades. Plastic/nylon blades require a, "Blade Conversion Kit", which
includes a shoulder harness, and steel shield with necessary attaching hardware. Steel/metal blades also require the,
"Blade Conversion Kit", plus a "U-Handle Kit", or a Combo Kit, must be installed.

Dedicated Blade Capable

Model (SRM-211U) include both the "Blade Conversion Kit", and "U-Handle Kit".

11

EMISSION CONTROL

California Tier 2

The emission control system for these engines are
EM (Engine Modification).

An Emission Control Label is located on the engine. (This is an
EXAMPLE ONLY, information on label varies by engine FAMILY).

AIR INDEX TAG
The Air Index Tag indicates, for purposes of consumer aware­ness, how this product's emissions compare to the standards
enacted by the California Air Resources Board.

IMPORTANT ENGINE INFORMATION

ENGINE FAMILY: YEHXS.0214CA
DISPLACEMENT: 21.2 CC
THIS ENGINE MEETS U.S. EPA PH1 AND 2000 AND
LATER CALIFORNIA EMISSION REGULATIONS FOR
S.O.R.E. REFER TO OWNER'S MANUAL FOR
MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.

PRODUCT EMISSION DURABILITY
The 300 hour emission durability period is the time span selected by the manufacturer certifying the engine
emissions output meets applicable California emissions regulations, provided that approved maintenance proce­dures are followed as listed in the Maintenance Section of this manual.

12

26

1

8

2

17

25

24

23

22

7

6

21

5

18

19

20

3

4

12

13

9

10

11

5

11

7

3

14

15

16

GRASS TRIMMER/BRUSH CUTTER

OPERATOR'S MANUAL

1. OPERATOR'S MANUAL - Included in plastic bag (co-pack). Read before operation and keep in a safe place for future

reference, i.e., operation, maintenance, storage and specifications.

2. SAFETY MANUAL - Included in plastic bag (co-pack). Read before operation and keep in a safe place for future

reference to learn proper, safe operating techniques.

3. POWER HEAD - Includes the Engine, Clutch, Fuel System, Ignition System and Recoil Starter.

4. GRIP - Rear (right hand) handle.

5. STOP SWITCH - "SLIDE SWITCH" mounted on top of the Throttle Trigger Housing. Move switch FORWARD to

RUN, BACK to STOP.

6. FRONT HANDLE - The Front (loop) handle is loosely assembled to the Drive Shaft assembly and must be positioned

for proper cutting attitude and operator comfort.

7. DRIVE SHAFT ASSEMBLY - Includes the Gear Housing assembly, flex drive cable and Safety Decal.

8. NYLON CUTTER HEAD - Contains replaceable nylon trimming line that advances when the trimmer head is tapped

against the ground while the head is turning at normal operating speed.

9. CUT-OFF KNIFE - Automatically trims line to the correct length: 5" after head is tapped on the ground. If trimmer is

operated without a cut-off knife the line will become too long, the engine will overheat and engine damage may occur.

10. PLASTIC DEBRIS SHIELD ASSEMBLY - Included in plastic bag (co-pack). MUST be installed on unit before use,

see Assembly Instructions. Shield assembly includes the Cut-Off Knife. Mounts on the Gear Housing Assembly just
above the cutting attachment. Helps protect the operator by deflecting debris produced during the trimming operation.
This shield must be replaced with the steel shield for blade use.

11. THROTTLE TRIGGER - Spring loaded to return to idle when released. During acceleration, press trigger gradually for

best operating technique.

12. BLADE - Circular blade for grass, weed or brush cutting applications. Harness, metal shield & U-handles required for

blade operation.

13. METAL BLADE SHIELD - Required when unit is equipped with blades. Do not operate unit without shield.

14. U-HANDLE - Required for metal blade operation.

15. HIP PAD - Used to protect hip/leg and clothing when using U-handle equipped unit.

16. SHOULDER HARNESS- An adjustable strap that suspends the unit from the operator. Using the strap reduces

operator fatigue.

17. SPARK PLUG - Provides spark to ignite fuel mixture.

18. ARM REST - Provides arm rest during operation and protects arm from the hot engine.

19. SPARK ARRESTOR - CATALYTIC MUFFLER / MUFFLER -The muffler or catalytic muffler controls exhaust noise

and emission. The spark arrestor screen prevents hot, glowing particles of carbon from leaving the muffler. Keep
exhaust area clear of flammable debris.

20. FUEL TANK - Contains fuel and fuel filter.

21. RECOIL STARTER HANDLE - Pull handle slowly until starter engages, then quickly and firmly. When engine starts,

return handle slowly. DO NOT let handle snap back or damage to unit will occur.

22. FUEL TANK CAP - Covers and seals fuel tank opening.

23. PRIMER BULB - Pumping primer bulb before starting engine draws fresh fuel from the fuel tank priming the carburetor

for starting. Pump primer bulb until fuel is visible and flows freely in the clear fuel tank return line. Pump bulb an
additional 4 or 5 times.

24. AIR CLEANER - Contains replaceable filter element.

25. CHOKE - The choke control is located on the top of the air filter case. Move choke lever to "Cold Start" to close

choke for cold start. Move choke lever to "Run" position to open choke.

26. SAFETY VIDEO - (Not included with unit) P/N 99922202540 English version only is available at a cost of $5.00 from

ECHO, INC. or any authorized ECHO dealer. The video overviews safety precautions and proper operating techniques
and is supplemental to the Safety Manual. Read and understand the Safety Manual for complete information on safe
operation.

13

14

MODEL

SRM-211

SRM-211U

Length

1770 mm (69.7 in.)

Width

245 mm (9.65 in.)

680 mm (26.8 in.)

Height

225 mm (8.86 in.)

415 mm (16.3 in.)

Weight (dry) w/cutter head

5.3 kg (11.6 lb.)

5.75 kg (12.7 lb.)

Engine Type

Air cooled, two-stroke, single cylinder gasoline engine

Bore

32.2 mm (1.268 in.)

Stroke

26.0 mm (1.02 in.)

Displacement

21.2 cc (1.29 cu. in.)

Exhaust

Spark Arrestor Muffle r w/catalyst

Carburetor

Zama diaphragm model C1U w/primer

Ign itio n S ystem

Flywheel magneto, capacitor discharge ignition type

Spark Plug

NGK BPM-7A Gap 0.65 mm (0.026 in.)

Fuel

Mixed (Gasoline and Two-stroke Oil)

F ue l/Oi l R a tio

50:1 ECHO High Performance, two-stroke air cooled engine oil

Gasoline

89 Octane unleaded. DO NOT use fuel containing methyl alcohol,

more than 10% ethyl alcohol or 15% MTBE.

Oil

50:1 ECHO High Performance, two-stroke air cooled engine oil

Fuel Tank Capacity

0.45 lit. (15.8 US fl. oz.)

Recoil Starter System

Autom a ti c R e c o i l S ta rte r

Clutch

Centrifugal Type

Drive Shaft

1/4" Flex Shaft

Ro ta ti ng Di re c ti o n

Counter-Clockwise viewed from top

Cutter Head

Nylon line head (2-line) with .095 C rossfire™ Line capacity 13m (40 ft.) Optional:

U-Handle Kit, 8 cutter blade (8 in.); 22-tooth blade (8 in.); Circular saw (8 in.)

MAXI-CUT, TRI-CUT, UNIVERSAL HEAD S, Rapid Loader Head, Sprink Klean

Handle*

Front - Loop and Right Rear Handle

w/rubber grips

U-Handle

Shoulder Harness

Optional

Standard

Idle Speed RPM

2800 - 3200

Wide Open Throttle Speed (W.O.T.) RPM

8000 - 9000

9500 - 11000

SPECIFICATIONS

* Install and use U-Handle when operating any model with blade.

GRASS TRIMMER/BRUSH CUTTER

OPERATOR'S MANUAL

ASSEMBLY

W ARNING DANGER

Use only ECHO approved attachments for these models. Serious injury may result from the use of non approved
attachment combinations. Read and comply with all safety instructions listed in this manual and attachment manual.

ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been
tested and approved by ECHO for use with these units.

PLASTIC SHIELD INSTALLA TION

(for Nylon Line Operation)

Tools Required: Screwdriver.

Parts Required: Plastic Shield, Shield Plate, three (3) 5mm x 15mm

screws.

15

NOTE

The plastic shield is for use with the Nylon Line Head only.
Install Metal Shield when using plastic or metal blades.

1 . (SRM-211U) Remove split pin, blade nut, lower and upper plate from

PTO shaft.

1 . (SRM-211) Remove plastic sleeve and upper plate (A) from PTO

shaft.

2. Install the shield on the bottom of the bearing housing flange.
3 . Place shield plate (B) on shield, align holes and install three (3)

5x15 mm screws.

4 . Install upper plate (A).

NYLON LINE HEAD INSTALLATION

Tools Required: Head Locking Tool, 17x19mm Scrench
Parts Required: Nylon Line Head.

1 . (SRM-211) Align hole in upper plate with notch in edge of gear

housing and insert head locking tool (C). Remove plastic sleeve

from PTO shaft.
2 . (SRM-211U) Remove split pin from hole in PTO shaft.
3 . (SRM-211U) Remove 10mm nut by turning it clockwise (as viewed

from underside of grass shield) with 17x19mm scrench.
4 . (SRM-211U) Remove lower plate. Retain lower plate, 10mm nut and

split pin for future use.
5 . Be sure upper plate (A) remains on PTO shaft.
6 . Thread line head onto PTO shaft by turning it counter clockwise

until head is tight against upper plate.
7 . Remove locking tool (C).

B

C

A

16

BLADE INSTALLATION

All Models.

IMPORTANT

If non-standard monofilament head, METAL/PLASTIC blade or cultivator etc. is used, THE CARBURETOR MUST
BE RE-SET or serious engine damage may occur. See "Carburetor Adjustment" pages 32 - 33 and "Specifications"
page 14 of this manual.

W ARNING DANGER

You must install a U-Handle Kit and Blade Conversion kit before operating this unit using metal blades, otherwise
serious injury may result.

Install Metal Shield

Tools Required: 8mm x 10mm Open End Wrench, Screwdriver, Scrench.

Parts Required: Metal Shield, Bracket, 3- 5mm x 15mm screws w/

captivated flat and lockwasher (metal shield to gear housing), 2- 5mm x
8mm screws, 4- 5mm nuts, 4- 5mm lockwashers (bracket to shield and
bracket to gear housing).
1 . If necessary, remove nylon line head and plastic shield.

2 . Loosely attach bracket (A) to shield (B) and attach to bottom of

gear housing (C) with screws and nuts provided. Tighten all
attaching hardware.

Install Blade

Tools Required: Locking Tool, scrench.

Parts Required: Upper Plate w/ 20mm pilot, Lower Plate, 10mm Nut w/

LH threads, 2mm x 25mm Split Pin (cotter pin).

3 . Install upper plate (D) on splined PTO shaft. Blade installation

requires use of Upper Plate (D) with 20mm pilot. Upper plate
with 37mm pilot of the SRM-211 should be retained for use with
nylon line head.

BLADE UPPER PLATE

D

NYLON HEAD

UPPER PLATE

4 . Place Blade (E) over upper plate pilot, install the Lower Plate (F)

and 10mm LH nut (G). Tri-Cut Blade (H) is installed with Glide
Cup (J).

5 . Insert Locking Tool (K) through hole in upper plate and notch in

gear housing to prevent splined PTO shaft from turning. Tighten
nut and secure with Split Pin (L).

GRASS TRIMMER/BRUSH CUTTER

Install Harness Clamp

NOTE

Some models require installation of Harness Clamp. If your unit
does not have a clamp, follow these directions.

Tools Required: Screwdriver, 8mm x 10mm Open End Wrench.

Parts Required: Clamp, 4mm x 18mm Hexagon Head, Bolt, Link.

6. Remove shield and gear housing as an assembly.

a. Loosen two (2) screws that clamp the gear housing to the

drive shaft housing.

b. Remove locating screw found at the top of the gear housing.

Pull shield and gear housing assembly from the drive shaft
assembly.

OPERATOR'S MANUAL

17

IMPORTANT

Prevent flexible drive cable from sliding from drive shaft housing. If
cable does slide free, clean dirt from cable and lubricate with lithium
based grease prior to re-assembly.

7 . Remove front handle.

a. Remove four (4) screws and nuts and handle support from

front handle.

b. Remove front handle.

8 . Install clamp.

• Slightly spread clamp and slide up shaft.

• Install single link using spacer, DO NOT tighten at this time.

9 . Install gearbox, shield and front handle.

10 . Balance unit.

a. Put on harness and attach unit to harness.
b. Slide clamp up or down until unit balances with head

approximately 2 - 3 in. from the ground.

c. Tighten clamp screw.

18

FRONT HANDLE INSTALLATION (SRM-211)

Tools Required: Screwdriver.

1 . Position front handle for comfortable operation and secure screws.

U-HANDLE INSTALLATION

Tools Required: 8mm x 10mm Open End Wrench, Slotted Screwdriver,
(3mm Hex Wrench SRM-211 only.)

Parts Required: U-Handle Kit. (SRM-211) P/N 35130454130

NOTE

On model SRM-211U use Steps 9, 10, 12 - 15 only.

1 . Disconnect ignition stop leads (E).

2 . Remove inner throttle linkage from carburetor swivel (B).

3 . Loosen nut (A) and remove throttle linkage from bracket.

4 . Loosen two (2) bolts (G) and pull drive shaft assembly from clutch

case.

5 . Loosen two (2) rear handle screws (H) and pull rear handle (I) from

the drive shaft assembly.

6 . Loosen four (4) screws (J) and remove front handle.

B

E

A

E

G

I

J

H

GRASS TRIMMER/BRUSH CUTTER

7 . Position Lower U-Handle Bracket (K) 400mm (15-3/4 in.) from

engine end of drive shaft. Secure with three (3) 5mm x 30mm

bolts.

OPERATOR'S MANUAL

400 mm (15-3/4 in.)

19

8 . Install harness hook (included with Blade Conversion Kit) for blade

use. Position 220 mm (8-5/8 in.) from engine end of drive shaft

assembly. DO NOT tighten at this time.

9 . Install upper U-Handle and bracket on lower bracket and secure with

one (1) 8mm x 55mm bolt (L) and large circular washer.

10. Secure throttle linkage and leads to drive shaft with cable clips

supplied.

11. Install power head and align gear box, power head and U-handles.

Tighten all screws.

ENGINE

END

K

L

220 mm

(8-5/8 in.)

12. Place throttle linkage in slot in bracket with one nut (A) on each side

of bracket. Finger tighten both nuts (A).

13. Attach inner throttle cable to swivel (B). Check throttle for freedom

of movement and that wide open throttle / low idle extremes are

adjusted properly. If adjustment cannot be achieved by adjusting

nuts (A), consult with your Echo Dealer for correct adjustment

procedure.

14. Attach ignition leads (E).

15 . Balance unit.

a. Put on harness and attach unit to harness.

b. Slide clamp (M) up or down drive shaft housing until unit

balances with cutting attachment approximately 2 - 3" from
ground.

c. Tighten harness clamp screw.

B

E

M

A

E

20

PRE - OPERATION

OPERATION

Preparing the Trimmer/Brush Cutter for Blade Use

WITH BLADES

W ARNING DANGER

Blade use DEMANDS specific Brush Cutter configuration. Operation without specified shield and harness can
result in serious personal injury.

Plastic and Nylon Blades Require "Blade Conversion Kit," P/N 99944200415
(metal shield and shoulder harness).

Steel/Metal Blades Require "Blade Conversion Kit" PLUS a "U-Handle Kit." P/N 35130454130 or Combination Blade Kit
and "U-Handle Kit" P/N 99944200451.

Choosing the Correct Blade

W ARNING DANGER

The type of Blade used MUST be matched to the type and size of material cut. An improper or dull blade can
cause serious personal injury. Blades MUST be sharp. Dull blades increase the chance of kick out and injury
to yourself and bystanders.

GRASS TRIMMER/BRUSH CUTTER

Plastic/Nylon Blades may be used where ever the nylon line head

is used. DO NOT use this blade for heavy weeds or brush!

8 Tooth Weed/Grass Blade P/N 69600120331 is designed for grass,
garden debris and thick weeds. DO NOT use this blade for brush or
heavy woody growth, 3/4" in. (19 mm) diameter or larger.

OPERATOR'S MANUAL

21

Brush/Clearing Blade P/N 69500120331 is designed for cutting brush
and woody growth up to 76 mm (3 in.) diameter.

Use Shoulder/Waist Harness P/N 99944200200 Use of the Shoulder/
Waist Harness is recommended for ALL Trimmer/Brush Cutter use, not
just Blade operation. The Shoulder/Waist Harness when used in a
trimming operation with nylon line head suspends the trimmer from the
operator's shoulder and reduces operator fatigue.

During blade operation, the same fatigue reduction is achieved. Safety
to the operator is also enhanced by preventing blade contact with the
operators hands and feet by restricting trimmer movement.

NOTE

In case of Emergency, pull up on the Quick Release Collar to
disconnect the trimmer from the harness.

22

FUEL

Fuel Requirements

Gasoline - Use 89 Octane [ ] gasoline or gasohol known to be good
quality. Gasohol may contain up to 10% Ethyl (grain) alcohol or 15%
MTBE (methyl tertiary-butyl ether). Gasohol containing methyl (wood)
alcohol is NOT approved.

Two Stroke Oil - A two-stroke engine oil meeting ISO-L-EGD (ISO/CD

13738) and J.A.S.O FC Standards, must be used. Echo brand Premium
50:1 oil meets these standards. Engine problems due to inadequate
lubrication caused by failure to use an ISO-L-EGD and J.A.S.O FC
cerified oil, such as Echo Premium 50:1 Two-stroke Oil, will void the two­stroke engine warranty. (Emission related parts only are covered for
two years, regardless of two-stroke oil used, per the statement listed in
the California Emission Defect Warranty Explanation.)

Mixing - Follow directions on the oil container.

R + M

2

Handling Fuel

W ARNING DANGER

Fuel is VERY flammable. Use extreme care when mixing, storing or
handling, or serious personal injury may result.

• Use an approved fuel container.

• DO NOT smoke near fuel.

• DO NOT allow flames or sparks near fuel.

• Fuel tanks/cans may be under pressure. Always loosen fuel
caps slowly allowing pressure to equalize.

• NEVER refuel a unit when the engine is HOT!

• NEVER refuel a unit with the engine running.

• DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks

outdoors over bare ground.

• Securely tighten fuel cap after refueling.

• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.

IMPORTANT

Spilled fuel is a leading cause of hydrocarbon emissions. Some
states may require the use of automatic fuel shut-off containers to
reduce fuel spillage. Contact your ECHO dealer for ordering
information.

After refueling;

• Wipe any spilled fuel from the unit.

• Move at least 3 m (10 ft.) from refueling location before starting
the engine.

After use;

• DO NOT store a unit with fuel in its tank. Leaks can occur.
Return unused fuel to an approved fuel storage container.

3 M

(10 FT.) MINIMUM

GRASS TRIMMER/BRUSH CUTTER

OPERATOR'S MANUAL

23

Storage -

Fuel storage laws vary by locality. Contact your local government for
the laws affecting your area. As a precaution, store fuel in an approved,
air tight container. Store in a well ventilated, unoccupied building, away
from sparks and flames. Do not store fuel longer than 30 days.

IMPORTANT

Stored fuel ages. Do not mix more fuel than you expect to use in
thirty (30) days, ninety (90) days when a fuel stabilizer is added.

IMPORTANT

Stored two-stroke fuel may separate. ALWAYS shake fuel
container thoroughly before each use.

EQUIPMENT CHECK

Before operation a complete check of the unit must be performed;

• Check unit for loose/missing nuts, bolts and screws. Tighten and/or
replace as needed.

SMTWTF S

1234567

8 9 10 1112 13 14
1516 17 1819 20 21
2223 24 2526 27 28
2930 31

• Inspect fuel lines, tank and area around carburetor for fuel leaks. DO
NOT operate unit if leaks are found.

• Inspect shield for damage and ensure that the cut-off knife issecurely
in place. Replace if either is damaged or missing.

• Check that the cutting attachment is firmly attached and in safe
operating condition.

• Check that front handle and shoulder strap/ or shoulder/waist
harness are adjusted for safe, comfortable operation. See Assembly
section for proper adjustment.

24

DETERMINE OPERA TION AREA

• Review the area to be trimmed. Look for hazards that could
contribute to unsafe conditions.

• Spectators and fellow workers must be warned, and children and
animals prevented from coming nearer than 15 m (50 ft.) while the
trimmer is in use.

OPERATION

• Provide all operators of this equipment with the Operator's Manual,
and instructions for safe operation.

• Refer to the Safety Manual provided with the unit for proper
trimming and brush cutting techniques.

15M

(50 ft.)

• During operation, the drive shaft housing and the bearing housing,
and the muffler or catalytic muffler cover area may become very hot.
Avoid contact during and immediately after operation. Always keep
exhaust area clear of flammable debris.

GRASS TRIMMER/BRUSH CUTTER

STARTING COLD ENGINE

W ARNING DANGER

The cutting attachment should not rotate at idle. If attachment
rotates, readjust carburetor according to "Carburetor Adjustment"
instructions in this manual or see your ECHO Dealer, otherwise
serious personal injury may result.

OPERATOR'S MANUAL

25

1 . Stop Switch - Start/Run.

Move stop switch button (A) forward away from the STOP posi­tion.

2 . Choke Lever - Cold Start.

Move choke (B) to “Cold Start” Position.

3. Primer Bulb -Purge.
Pump primer bulb until fuel is visible and flows freely in the clear fuel
tank return line. Pump bulb an additional 4 or 5 times.

W ARNING DANGER

Inspect starting area for hazards such as rocks, glass, debris etc.
which could be contacted by the cutting attachment when starting.
Keep helpers and bystanders at least 15 M (50 ft.) from starting
area, otherwise serious personal injury may result.

4 . Lay the trimmer on a flat clear area. Firmly grasp throttle grip with

left hand and fully depress throttle trigger to wide open position.
Rapidly pull starter handle/rope (D) until engine fires (maximum five
[5] pulls).

A

B

C

5 . After engine fires or five (5) pulls, move choke lever (B) back to

“Run” position. Hold throttle trigger fully depressed and pull starter
handle/rope until engine starts and runs. Release throttle trigger and
allow unit to warm up at idle for several minutes.

NOTE

If engine does not start with choke in “Run” position after 5 pulls,
repeat instructions.

6 . After engine warm up, gradually depress throttle trigger to increase

engine RPM to operating speed.

D

26

STARTING WARM ENGINE

The starting procedure is the same as Cold Start except DO NOT close
the choke.

W ARNING DANGER

The cutting attachment should not rotate at idle. If attachment
rotates, readjust carburetor according to "Carburetor Adjustment"
instructions in this manual or see your ECHO Dealer, otherwise
serious personal injury may result.

1 . Stop Switch - Start/Run. Move Stop Switch button (A) away from

the STOP position.

2. Primer - Pump Bulb. Pump primer bulb (C) until fuel is visible

in the "Clear" fuel return line. Pump bulb an additional 4 or 5 times.

3 . Start - Pull Rope. Lay the trimmer on a flat clear area and pull

the recoil starter handle (D) until the engine fires.

NOTE

If engine does not start after 5 pulls, use Cold Start Procedure.

A

C

D

STOPPING ENGINE

GRASS TRIMMER/BRUSH CUTTER

OPERATOR'S MANUAL

27

1 . Release Throttle. Allow engine to idle for a minute.

2. Stop Switch - Stop. Move stop switch button (A) backward to
STOP position.

W ARNING DANGER

If engine does not stop when stop switch is moved to STOP
position, close choke - COLD START position - to stall engine.
Have your ECHO dealer repair stop switch before using trimmer
again.

NOTE

Refer to Grass Trimmer/Brush Cutter Safety Manual for proper and
safe trimming techniques.

A

MAINTENANCE

Your ECHO trimmer is designed to provide many hours of trouble free service. Regular scheduled maintenance will help
your trimmer achieve that goal. If you are unsure or are not equipped with the necessary tools, you may want to take
your unit to an ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or
have the ECHO Dealer do it, each maintenance task has been graded. If the task is not listed, see you Echo Dealer for
repairs.

W ARNING DANGER

Always stop engine and disconnect spark plug lead before performing maintenance procedures, otherwise serious
personal injury may result.

SKILL LEVELS

Level 1 = Easy to do. Most required tools come with unit.
Level 2 = Moderate difficulty. Some specialized tools may be required.
Level 3 = Experience required. Specialized tools are required. ECHO recommends that

ECHO offers REPOWERTM Maintenance Kits and Parts to make your maintenance job easier. Below each task heading
are listed the various part numbers required for that task. See your ECHO dealer for these parts.

the unit be returned to your ECHO dealer for servicing.

28

MAINTENANCE INTERV ALS

/TNENOPMOC

METSYS

ECNANETNIAM

ERUDECORP

D'QER
LLIKS

LEVEL

ROYLIAD

EROFEB

ESU

YREVE

LEUFER

3

SHTNOM

09RO

SRUOH

6

SHTNOM
072RO
SRUOH

YLRAEY

006

SRUOH

serudecorPecnanetniaMrelaeDohcEdednemmoceR

troPtsuahxErednilyCnobraceD/naelC/tcepsnI 3 C/I

etniaMflesruoY-tI-oD

serudecorPecnan

retliFriAecalpeR/naelC/tcepsnI 1 C/I*R

ekohCnaelC/tcepsnI 2 C/I

retliFleuFecalpeR/tcepsnI 1 I*

R/I

skael,metsySleuFecalpeR/tcepsnI 1 *III

metsySgnilooCnaelC/tcepsnI 2 C/I

rotserrAkrapSrelffuMecalpeR/tcepsnI 2 *

xelF(tfahSevirD

esaerG 2 )1(I

R/I

)sledoMelbaC

gnisuoHraeGesaerG 2 )2(I

epoRretratSlioceRnaelC/tcepsnI 1 *C/I

gulPk

rapSnaelC/tcepsnI 2 C/I*R

stloB/stuN/swercSecalpeR/nethgiT/tcepsnI 1 *R/I

* ..noitcepsnignirudraewroegamadfognidnifehtnodesaberaecalperotsnoitadnemmocerllA

)1( OHCEylppA
)2( OHCEylppA

-ETONTNATROPMI deriuqerfoycneuqerfehtenimretedlliwecneirepxeruoydnaesulaut

.ecnanetniam

MT

EBUL

®

MT

EBUL

®

:SETONERUDECORPECNANETNIAM

SEDOCRETTELERUDECORPECNANETNIAM NAELC=C,ECALPER=R,TCEPSNI=I:

.esufosruoh52yreve
.esufosruoh05yreve

cA.mumixameranwohsslavretniemiT

GRASS TRIMMER/BRUSH CUTTER

AIR FILTER

Level 1.

Tools required: 25 - 50 mm (1 - 2 in.) Cleaning Brush

Parts required: 90008 REPOWERTM AIR & FUEL FILTER KIT.

1 . Close choke (Cold Start Position). This prevents dirt from

entering the carburetor throat when the air filter is removed.
Brush accumulated dirt from the air cleaner area.

2 . Remove the air cleaner cover. Clean and inspect the element for

damage. If element is fuel soaked and very dirty, replace.

OPERATOR'S MANUAL

29

3 . If element can be cleaned and reused, be certain it:

•still fits the cavity in the air cleaner cover.

•is installed with the original side out.

NOTE

Carburetor adjustment may be needed after air filter cleaning/
replacement.

FUEL FILTER

Level 1.

Tools required: 203 - 254 mm (8 - 10 in.) length of wire with one end
bent into a hook, Clean rag, funnel, and an approved fuel container
Parts required: 90008 REPOWERTM AIR & FUEL FILTER KIT.

W ARNING DANGER

Fuel is VERY flammable. Use extreme care when mixing, storing or
handling, or serious personal injury may result.

1. Use a clean rag to remove loose dirt from around fuel cap and
empty fuel tank.

2. Use the “fuel line hook” to pull the fuel line and filter from the
tank.

3 . Remove the filter from the line and install the new filter.

30

W ARNING DANGER

Catalytic mufflers operate at extremely high temperatures. Muffler
area must be kept clean. Do not perform maintenance on the muffler
until engine and muffler are completely cool, otherwise serious
personal injury may occur.

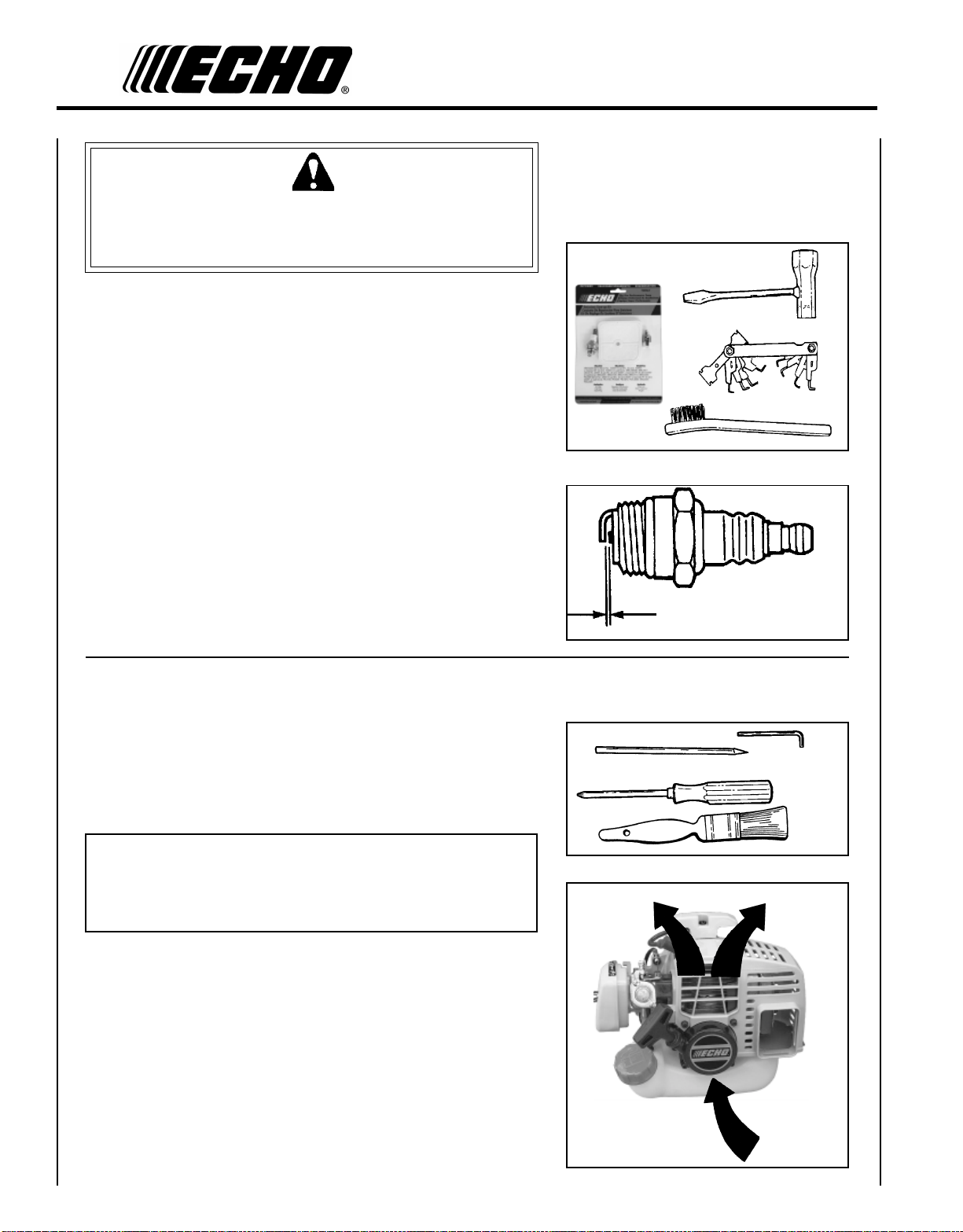

SPARK PLUG

Level 2.

Tools required: Scrench (combination socket wrench and screw driver
supplied with unit), Feeler gauge (preferably a wire gauge), Soft metal
brush
Parts Required: 90064 REPOWERTM TUNE-UP KIT

1. Remove spark plug and check for fouling, worn and rounded
center electrode.

2. Clean the plug or replace with a new one. DO NOT sand blast to
clean. Remaining sand will damage engine.

3. Adjust spark plug gap by bending outer electrode.

4 . Tighten spark plug to 145 - 155 kg/cm (125 - 135 in. lb.).

COOLING SYSTEMS CLEANING

Level 2.

Tools required: Cross-head screwdriver, 3 mm hex wrench, pointed
wood stick, 25 - 50mm (1 - 2 in.) medium bristle paint brush.
Parts Required: None if you are careful.

IMPORTANT

To maintain proper engine operating temperatures, cooling air
must pass freely through the cylinder fin area. This flow of air
carries combustion heat away from the engine.

Overheating and engine seizure can occur when:

• Air intakes are blocked, preventing cooling air from reaching the

cylinder.

• Dust and grass build up on the outside of the cylinder. This build up

insulates the engine and prevents the heat from leaving.

0.65 mm

(0.026 in.)

Removal of cooling passage blockages or cleaning of cooling fins is
considered “Normal Maintenance”. Any failure attributed to lack of
maintenance is not warranted.

GRASS TRIMMER/BRUSH CUTTER

OPERATOR'S MANUAL

31

1 . Remove spark plug lead

2 . Loosen outer throttle cable nut (A) and remove cable from engine

housing bracket slot.

3 . Remove two (2) engine cover screws at top of starter.

4 . Remove screw and arm rest (B). Lift cover (C) from engine.

5 . Use the wooden stick or brush to remove dirt form cylinder fins.

6 . Remove grass and leaves from the grid between the recoil starter and

fuel tank.

C

A

B

7. Assemble components in reverse order.

NOTE

When installing the cover, be certain the tab of the metal deflector
shield is in the slot of the engine cover.

32

EXHAUST SYSTEM

Spark Arrestor Screen

Level 2.

Tools required: Cross-head screwdriver, soft metal brush.
Parts Required: Screen P/N 14586240630

1 . Remove engine cover. See “Cleaning Cooling System” pages

30 & 31 for step by step instructions.

2 . Remove spark arrestor screen cover (A), gasket (B), screen holder

(C) and screen (D) from muffler body.

3 . Clean carbon deposits from screen and muffler components.

NOTE

When cleaning carbon deposit, be careful not to damage the
catalylic body.

4 . Replace screen if it is cracked, plugged or has holes burnedthrough.

5. Assemble components in reverse order.

NOTE

When installing the engine cover, be certain the tab of the metal
deflector shield is in the slot of the engine cover.

IMPORTANT

The cylinder exhaust port must be inspected and cleaned of excess
carbon every 3 months or 90 hours of operation in order to maintain
this engine within the emissions durability period. ECHO strongly
recommends that you return your unit to your ECHO dealer for this

important maintenance service.

CARBURETOR ADJUSTMENT

Engine Break-In

New engines must be operated a minimum duration of two tanks of fuel
break-in before carburetor adjustments can be made. During the break-in
period your engine performance will increase and exhaust emissions will
stabilize. Idle speed can be adjusted as required.

D

C

B

A

High Altitude Adjustment

High altitude adjustment is not required for proper operation of this
engine.

Level 2.

Tools required: Slotted Screwdriver w/2 mm blade width, Tachometer
(ECHO P/N 99051130017)

Parts required: None.

GRASS TRIMMER/BRUSH CUTTER

NOTE

Every unit is run at the factory and the carburetor is set in compli­ance and California Emission Regulations. In addition, the carbure­tor is equipped with a HI needle adjustment limiter that prevents
settings outside acceptable limits.

1 . Before adjusting the carburetor, clean or replace the air filter and

spark arrester screen.

2 . Trimmer line must be extended to the cut-off knife.

3 . Start engine and run for several minutes to reach operating tempera-

ture.

OPERATOR'S MANUAL

33

4 . Stop engine. Turn HI speed needle (A) CCW (counter clockwise) to

stop.

5 . Idle Speed Adjustment.

• Start engine and turn “idle” speed adjustment screw (B) CW
until the blades begin to turn, then turn the screw CCW until
blades stop turning. Turn screw CCW an additional 1/4 turn.

6 . Accelerate to full throttle for 2-3 seconds to clear excess fuel from

engine then return to idle. Accelerate to full throttle to check for
smooth transition from idle to full throttle. If engine stops or stalls
after full warm up return the unit to your authorized ECHO dealer for
repair.

7 . Check HI speed RPM at W.O.T. (Wide Open Throttle). HI speed

RPM should be set to specifications found on page 14 "Specifica­tions" of this manual.

8 . Check idle speed and reset if necessary. If a tachometer is available,

idle speed should be set to the specification found on page 14
"Specifications" of this manual.

A

B

W ARNING DANGER

When carburetor adjustment is completed, the cutting attachment
should not turn at idle, otherwise serious personal injury may
result.

34

LUBRICA TION

Level 1.

Tools required: 8 mm Open End Wrench, Cross Head Screwdriver,
Clean rag

Parts Required: Echo LubeTM 8 oz. (P/N 91014) or Lithium Base Grease.

Gear Housing

1 . Clean all loose debris from gear box.

2 . Remove plug (A) and check level of grease.

A

A

3 . Add grease if necessary, DO NOT over fill.

Drive Shaft

1 . Loosen two (2) screws (B) and remove center locating screw (C).

Pull gear box and shield from drive shaft housing.

2 . Pull flexible cable from the drive shaft housing, wipe clean and

recoat with a thin coating of [15 ml (1/2 oz.)] of grease.

3 . Slide the flexible cable back in the drive housing. DO NOT get

dirt on the flex cable.

4. Install the gear housing and shield assembly.

C

B

B

GRASS TRIMMER/BRUSH CUTTER

NYLON LINE REPLACEMENT

Level 1.

Tools required: Head locking tool (if head is to be removed)

Parts Required: ECHO 0.095" Nylon Trimmer Line 12m (40 ft.) long.

1 . Hold drum (A) and turn spool (B) CW (clockwise) until it stops.

Pull spool from drum. DO NOT push in on spool when turning.

OPERATOR'S MANUAL

35

2 . Use one piece of new nylon line (C) 12m (40 ft.) long and thread

through the molded loop (D) on the spool. Pull line tight and
adjust so one end is 15 cm (6 in.) longer than the other.

36

3 . Hold the spool, opening toward you. Place index finger between

the two strands and wind line, tightly and evenly, in direction of
arrow marked "CC".

4 . Stop when approximately 15-20 cm (6-8 in.) line (C) remains and

place ends of line in notches (E) in spool (B).

5. Feed ends of line through housing eyelets (F) and place spool (B)
over drive (G). Align pegs (H) on drive with notches in spool and
push spool into drum.

6 . Pull on both lines until they come free from notches (E) in spool.

7 . Hold drum (A) firmly and turn spool (B) CCW (counterclockwise)

until it stops. DO NOT push in on spool when turning.

8 . Pull both lines out and trim to cut-off knife length.

GRASS TRIMMER/BRUSH CUTTER

SHARPENING METAL BLADES

Three styles of metal blades are approved for use on the ECHO Brush
Cutter. The 8-tooth blade can be sharpened during normal mainte­nance. The clearing blade and 80 tooth blade require professional
service.

Before sharpening, CLOSELY inspect blade for cracks (look at the
bottom of each tooth and the center mounting hole closely), missing
teeth and bending. If ANY of these problems are discovered, replace
the blade.

When sharpening a blade, always remove the same amount of materials
from each tooth to maintain balance. A blade that is not balanced will
cause unsafe handling due to vibration and can result in blade failure.

8-tooth Blade

OPERATOR'S MANUAL

37

Tools required: Flat file (preferred), Electric grinder if special care is
used, Round (rat tail) file for gullet (radius).

1 . File each tooth at a 30 degree angle a specific number of times,

eg. 4 strokes per tooth. Work your way around the blade until
all teeth are sharp.

2 . DO NOT file the 'gullet' (radius) of the tooth with the flat file.

The radius must remain. A sharp corner will lead to a crack and
blade failure.

IMPORTANT

If an electric grinder is used, use care not to overheat teeth, do not
allow tips/tooth to glow red or turn blue. DO NOT place blade in
cooling water. This will change the temper of the blade and could
result in blade failure.

3. After sharpening teeth, check each tooth radius for evidence of a
square (sharp) corner. Use the round (rat tail) file to renew the
radius.

38

Problem

Eng i ne -- s ta rts ha rd

Engine -- does no t start

Cause

Remedy

Engine

Cranks

Fuel at

carburetor

No fuel at

carburetor

Fuel strainer clogged

Fuel line clogged

Carburetor

Clean

Clean

See your ECHO dealer

Fuel at

cylinder

No fuel at

cylinder

Carburetor

See your ECHO dealer

Muffler wet

with fuel

Fuel Mixture is too rich

Open choke

Clean/replace air filter

Adjust carburetor

See your ECHO dealer

Spark at end

of plug wire

No sp ark

at end of

plug wire

Stop switch off

Electrical problem

Interlock switch

Turn switch on

See your ECHO dealer

See your ECHO dealer

Spark at plug

No sp ark

at plug

Spark gap incorrect

C o vere d wi th ca rb on

Fouled with fuel

Spark plug defective

Adjust 0.65mm (0.026in.)

Clean or replace

Clean or replace

Replace plug

Engine

does not

crank

Internal engine problem

See your ECHO dealer

Engine

runs

Dies or accelerates poorly

Air filter dirty

Fuel filter dirty

F uel vent plugge d

Spark plug

Carburetor

Cooling system plugged

Spark arrestor screen

plugged

Clean or replace

Replace

Replace

Clean and adjust/replace

Adjust

Clean

Clean

TROUBLESHOOTING

Fuel vapors are extremely flammable and may cause fire and/or explosion. Never test for ignition spark near an open
spark plug opening, otherwise serious personal injury may result.

W ARNING DANGER

STORAGE

Long Term Storage (over 30 days)

GRASS TRIMMER/BRUSH CUTTER

OPERATOR'S MANUAL

39

W ARNING

During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear
of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may
result.

Do not store your unit for a prolonged period of time (30 days or
longer) without performing protective storage
maintenance which includes the following:

1 . Store unit in a dry, dust free place, out of the reach of children.

DANGER

W ARNING DANGER

Do not store in enclosure where fuel fumes may accumulate or reach
an open flame or spark.

2. Place the stop switch (A) in the "OFF" position.

3 . Remove accumulation of grease, oil, dirt and debris from exterior of

unit.

4 . Perform all periodic lubrication and services that are required.

A

5. Tighten all the screws and nuts.

6. Drain the fuel tank completely and pull the recoil starter handle

several times to remove fuel from the carburetor.

7 . Remove the spark plug and pour 7 cc (1/4 oz.) (1/2 tablespoon) of

fresh, clean, two-stroke engine oil into the cylinder through the
spark plug hole.

A. Place a clean cloth over the spark plug hole.
B . Pull the recoil starter handle 2-3 times to distribute the oil

inside the engine.

C. Observe the piston location through the spark plug hole.

Pull the recoil starter handle slowly until the piston reaches
the top of its travel and leave it there.

8. Install the spark plug (do not connect ignition cable).

SERVICING INFORMATION

P ARTS

Genuine ECHO Parts and ECHO REPOWERTM Parts and Assemblies for
your ECHO products are available only from an Authorized ECHO
Dealer. When you do need to buy parts always have the Model
Number and Serial Number of the unit with you. You can find these
numbers on the engine housing. For future reference, write them in the
space provided below.

Model No. _____________ SN. _____________

SERVICE

Service of this product during the warranty period must be performed
by an Authorized ECHO Service Dealer. For the name and address of
the Authorized ECHO Service Dealer nearest you, ask your retailer or
call: 1-800-432-ECHO. When presenting your unit for Warranty
service/repairs, proof of purchase is required.

ECHO CONSUMER PRODUCT SUPPORT

If you require assistance or have questions concerning the application,
operation or maintenance of this product you may call the ECHO
Consumer Product Support Department at 1-800-673-1558 from 8:00 am
to 5:00 pm (Central Standard Time) Monday through Friday. Before
calling, please know the model and serial number of your unit to help
your Consumer Product Support Representative.

W ARRANTY CARD

This card is our means of registering all original owners of ECHO
equipment. The card plus proof of purchase provides you the assur­ance that authorized warranty work will be done. It also provides a
direct link between you and ECHO if we find it necessary to contact
you.

ADDITIONAL OR REPLACEMENT MANUALS

Safety Manuals are available, free of charge, from your ECHO dealer

or by contacting Echo Incorporated, 400 Oakwood Road, Lake Zurich,
IL 60047

Operator's and Parts Manuals are available for purchase from

your ECHO dealer or directly from ECHO. [See ordering instructions at
the end of this manual.]

Safety Video is available from your dealer. A $5.00 shipping charge

will be required.

ORDERING INSTRUCTIONS

To obtain a Parts Catalog or Operator's Manual send a check or money
order for $2.00 per Parts Catalog or $1.50 per Operator's Manual made
payable to ECHO, INCORPORATED. State on a sheet of paper model
number and serial number of the ECHO unit you have, part number of
the manual (if known), your name and address and mail to address
above.

DEALER?

Call

1-800-432-ECHO

1-800-432-3246

CONSUMER PRODUCT

SUPPORT

1-800-673-1558

8 - 5 Mon - Fri C.S.T.

ECHO Incorporated

400 Oakwood Road

Lake Zurich, IL 60047

Technical Publications Orders

Available Parts Lists

SRM-211/211U S/N 002001001 & UP

PART NUMBER 99922203252

ECHO, INCORPORATED

400 OAKWOOD ROAD

LAKE ZURICH, IL 60047

SUPPLEMENT TO OPERATOR'S

MANUAL

* Some Echo units may be factory pre-assembled. The nylon line head, plastic debris shield, and mounting hardware shown in the

contents list are pre-assembled to the unit. No assembly tools are needed. The front handle may need to be re-positioned for
comfortable operation.

GT CONTENT LIST

*_ - Rapid Loader

TM

2-line Head

*_ - Shield Assembly
*_ - Line Head Mount Hardware
*_ - 1, 3/8-24 Locknut
*_ - 1, Small Washer
*_ - 1, Large Washer
*_ - 12, 8 in. x .080 Pre-cut Nylon Line
*_ - 1, Locking Tools, P/N 89751801131

SRM CONTENT LIST

* ___ - 1, Nylon Trimmer Head
* ___ - 1, wrench 17x19, P/N 89541008030
* ___ - 1, locking tool, P/N 89751801131
* ___ --1, Plastic shield
* ___ --1, shield plate
* ___ --3, 5mm x 15mm screws (shield mtg.)

SUPLEMENTO DEL MANUAL DEL OPERADOR

* Algunas unidades pueden venir ya montadas de fábrica. La cabeza del hilo de nilón, proyector de plástico contra residuos y la

tornilleria de montaje, mostrados en la lista del contenido, vienen ya montados en la unidad. No se necesita ninguna herramienta de
montaje. Tal vez sea necesario volver a ubicar solamente la empuñadura delantera para facilitar la operación.

LISTA DE CONTENIDO DE GT

*_ - Cabeza Rapid Loader
*_ - Conjunto de protector
*_ - Tornilleria de montaje de la cabeza de línea
*_ - 1, tuerca de traba de 3/8-24
*_ - 1, arandela pequeña
*_ - 1, arandela grande
*_ - 12, hilo de nilón precortado de 8 pulg. x 0,080
*_ - 1, herramientas de traba, P/N 89751801131

TM

de 1 hilo

LISTA DE CONTENIDO DE SRM

* ___ - 1, cabeza recortadora de nilón
* ___ - 1, llave 17x19, N/P 89541008030
* ___ - 1, herramienta de traba, N/P 89751801131
* ___ —1, protector de plástico
* ___ —1, placa protectora
* ___ —3 ,tornillos de 5 mm x 15 mm (de montaje del protector)

SUPPLÉMENT AU MANUEL DE L’OPÉRATEUR

* Certains modèles sont assembles en usine. La tête de coupe à ligne nylon, le pare-débris en plastique et la boulonnerie de montage

illustrée dans la liste des pièces sont installés sur l’outil. Aucun outil d’assemblage n’est requis. Il peut toutefois être nécessaire
d’ajuster la poignée avant pour assurer le confort d’utilisation.

LISTE DU CONTENU - GT

*__ - Tête 2 lignes Rapid Loader
*__ - Pare-débris
*__ - Boulonnerie de montage de la tête à ligne
*__ - Écrou de blocage de 3/8-24
*__ - 1 petite rondelle
*__ - 1 grosse rondelle
*__ - 12 lignes nylon précoupées de 8 x 0,080 po
*__ - 1, outils de blocage réf. 89751801131

SUP22203624

TM

LISTE DU CONTENU - SRM

* ___ - 1 tête de coupe à ligne nylon
* ___ - (1) joints, réf. 89541008030
* ___ - 1 outil de blocage, réf. 89751801131
* ___ —1 pare-débris en plastique
* ___ —1 plaque de pare-débris
* ___ — 3 vis 5 mm x 15 mm (pare-débris)

99922203624
09/02

SUPPLEMENT TO OPERATOR'S MANUAL
PART NUMBER X7702272400 (X770000180)
FOR MODELS: SRM-211/U S/N 02001101 & UP

SUPLEMENTO DEL MANUAL DEL OPERADOR

NUMERO DE PIEZA 7702272400 (X770000180)

PARA LOS MODELO: SRM-211/U S/N 02001101&UP

The updated emissions information for your unit is:

EMISSION CONTROL

California Tier 2

The emission control system for these engines are EM/TWC
(Engine Modification with Catalyst).

NOTE

Every unit is run at the factory and the carburetor is set in
compliance with current Emission Regulations.

ENGINE FAMILY: 2EHXS.0214KA DISPLACEMENT: 21.2 CC

IMPORTANT ENGINE INFORMATION

EMISSION COMPLIANCE PERIOD : 300 HRS.

THIS ENGINE MEETS U.S. EPA PH 2 AND 2000 AND LATER CALIFORNIA

EMISSION REGULATIONS FOR S.O.R.E. REFER TO OWNER'S MANUAL FOR

MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.

(This is an EXAMPLE ONLY, information on label
varies by engine family).

La información correcta de las emisiones para su unidad es:

CONTROL DE EMISIONES

California Tier 2

El sistema de control de emisiones para este motor es EM/TWC
(modificación y catalizador del motor).

NOTA

Todas las unidades se hacen funcionar en fábrica y el
carburador se ajusta en cumplimiento con las regulaciones de
emisiones.

FAMILIA DE MOTORES: 2EHXS.0214KA CILINDRADA: 21.2

PERIODO DE LA CONFORMIDAD PARA LA EMISIONES : 300 HORAS.

ESTE MOTOR CUMPLE CON LAS NORMAS DE LA FASE 2 DE LA

EPA DE EE.UU. Y REGULACIONES DE EMISIONES DE CALIFORNIA POSTERIORES

(Éste es un EJEMPLO SOLAMENTE, la información
de la etiqueta varía por FAMILIA de motores).

INFORMACIÓN IMPORTANTE SOBRE EL MOTOR

PARA S.O.R.E. CONSULTE EN EL MANUAL DEL

PROPIETARIO LAS ESPECIFICACIONES Y AJUSTES DE

MANTENIMIENTO.

CC

SUP22203541

99922203541
01/02
