PAS 80 TooTh BlAde Trimmer ATTAchmenT
oPerATor'S mAnuAl
PAS 80 Tooth Blade Brushcutter
Attachment
99944200600
Operator's Manual
1
FOR MODELS:
SRM-2100SB TYPE 1/1E
SRM-2400SB TYPE 1/1E
SRM-210SB/211SB/225SB
SRM-260SB/261SB
PAS-2100 TYPE 1E
PAS-2400 TYPE 1E
PAS-2601 TYPE 1E
PAS-210/211/225
PAS-230/231
PAS-260/261/265
X7702273303
WARNING
Read rules for safe operation and instructions carefully. ECHO provides an Operator's Manual with this attachment and a separate Operator's Manual and Safety
Manual (if available) with the Power Head. All manuals must be read and understood for proper and safe operation. Failure to do so could result in serious injury.
X770000353
01/11
2
IntroductIon
Welcome to the ECHO family. This ECHO product was designed and manufactured to provide
long life and on-the-job dependability. Read and understand this manual included with your attachment. You will nd this manual easy to use and full of helpful operations tips and SAFETY messages.
the operator's manual
Contains specications and information for operation, starting,
stopping, maintenance, storage, and assembly specic to this product.
the safety manual
Explains possible hazards involved with the use of Grass Trimmers and
Brush Cutters and the measures you should take to insure safe operation.
table of contents
Introduction ..........................................................................2
- The Operator's Manual .................................................2
- The Safety Manual .......................................................2
Safety ...................................................................................3
- Manual Safety Symbols and Important Information ...3
- International Symbols ..................................................3
- Personal Condition and Safety Equipment ..................4
- Equipment ....................................................................6
Description ...........................................................................6
Contents ...............................................................................7
Assembly..............................................................................8
- Power Head Shaft/Attachment Lower Shaft
Assembly ......................................................................8
- Install Handle/Barrier Bar ............................................9
- Blade Installation .........................................................9
- Balance Unit ...............................................................10
Operation ............................................................................10
CopyRight© 2011 By Echo, Incorporated
All Rights Reserved.
Maintenance .......................................................................10
- Skill Levels ................................................................11
- Maintenance Intervals ................................................11
- Lubrication .................................................................11
Storage ...............................................................................12
Specications .....................................................................12
Servicing Information ........................................................16
- Parts/Serial Number ...................................................16
- Service ........................................................................16
- ECHO Consumer Product Support ............................16
- Warranty Card ............................................................16
- Additional or Replacement Manuals .........................16
Specications, descriptions and illustrative material in
this literature are as accurate as known at the time of
publication, but are subject to change without notice.
Illustrations may include optional equipment and accessories, and may not include all standard equipment.
safety
PAS 80 TooTh BlAde Trimmer ATTAchmenT
oPerATor'S mAnuAl
3
manual
safety symbols and Important InformatIon
Throughout this manual and on the product itself, you will nd safety alerts and helpful, informational messages preceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean
to you.
DANGER
The safety alert symbol accompanied by the word
“DANGER” calls attention to an act or condition
which WILL lead to serious personal injury or
CIRCLE AND SLASH SYMBOL
This symbol means the specic action
shown is prohibited. Ignoring these prohibitions can result in serious or fatal injury.
death if not avoided.
WARNING
The safety alert symbol accompanied by the word
“WARNING” calls attention to an act or condition which CAN lead to serious personal injury or
death if not avoided.
NOTE
This enclosed message provides tips for use, care and
maintenance of the unit.
IMPORTANT
The enclosed message provides information necessary for the protection of the unit.
CAUTION
The safety alert symbol accompanied by the word
“CAUTION” calls attention to an act or condition
which may lead to minor or moderate personal
injury if not avoided.
InternatIonal symbols
Symbol form/shape
Symbol
description/application
Read and understand
Operator's Manual.
Wear eyes, ears and
head protection
Hot
Surface
Safety/Alert
Avoid all power
lines. This unit
is not insulated
against electrical
current.
Keep bystanders
at least 15 meters
(50 feet) away.
Symbol form/shape
Symbol
description/application
Fuel and oil mixture
Finger Severing
Wear hand
protection. Use
two handed.
DO NOT smoke
near fuel.
Do not operate
closer than 15 M
(50 ft.) from elec-
trical haz-
ards.
Plan retreat
path from falling
objects.
Symbol form/shape
Symbol
description/application
DO NOT allow
ames or sparks
near fuel.
Engine choke
control.
Emergency stop
Chain lubrication
Carburetor adjustment
- Low speed mixture
Symbol form/shape
Keep bystanders and helpers
away 15 m (50 ft.).
Symbol
description/application
Wear slip resis-
tant foot wear.
Ignition
ON/OFF
Primer bulb
Carburetor adjustment
- High speed mixture
Carburetor adjustment
- Idle speed
4
personal condItIon and safety equIpment
WARNING
Users of this product risk injury to themselves and others if the unit is used improperly and/or safety precautions are
not followed. Proper clothing and safety gear must be worn when operating unit.
Physical Condition
Your judgment and physical dexterity may not be good:
• if you are tired or sick,
• if you are taking medication,
• if you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection
Wear eye protection that meets ANSI Z87.1 or CE requirements whenever you operate the unit.
Hand Protection
Wear no-slip, heavy-duty work gloves to improve your
grip on the handle. Gloves also reduce the transmission
of machine vibration to your hands.
Hearing Protection
ECHO recommends wearing hearing protection whenever
unit is used.
Proper Clothing
Wear snug tting, durable clothing;
• Pants should have long legs, shirts with long sleeves.
• DO NOT WEAR SHORTS,
• DO NOT WEAR TIES, SCARVES, JEWELRY, or
clothing with loose or hanging items that could become
entangled in moving parts or surrounding growth.
Wear protective hair covering to contain long hair.
Wear sturdy work shoes with nonskid soles;
• DO NOT WEAR OPEN TOED SHOES,
• DO NOT OPERATE UNIT BAREFOOTED.
Keep long hair away from engine and air intake. Retain
hair with cap or net.
Hot Humid Weather
Heavy protective clothing can increase operator fatigue
which may lead to heat stroke. Schedule heavy work for
early morning or late afternoon hours when temperatures
are cooler.
Extended Operation/Extreme Conditions
It is believed that a condition called Raynaud’s Phenomenon, which affects the ngers of certain individuals, may be
brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling and burning sensa-
tions, followed by loss of color and numbness in the ngers. The following precautions are strongly recommended,
because the minimum exposure, which might trigger the ailment, is unknown.
• Keep your body warm, especially the head, neck, feet, ankles, hands,
and wrists.
• Maintain good blood circulation by performing vigorous arm exercises during frequent work breaks, and also by not smoking.
• Limit the hours of operation. Try to ll each day with jobs where operating the unit or other hand-held power equipment is not required.
• If you experience discomfort, redness, and swelling of the ngers followed by whitening and loss of feeling, consult your physician before
further exposing yourself to cold and vibration.
PAS 80 TooTh BlAde Trimmer ATTAchmenT
oPerATor'S mAnuAl
Repetitive Stress Injuries
It is believed that overusing the muscles and tendons of the ngers, hands, arms, and shoulders may cause soreness,
swelling, numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high
risk for developing a Repetitive Stress Injury (RSI). An extreme RSI condition is Carpal Tunnel Syndrome (CTS), which
could occur when your wrist swells and squeezes a vital nerve that runs through the area. Some believe that prolonged
exposure to vibration may contribute to CTS. CTS can cause severe pain for months or even years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended, or twisted position.
Instead try to maintain a straight wrist position. Also, when grasping,
use your whole hand, not just the thumb and index nger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive move-
ment.
• Do exercise to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if
you feel tingling, numbness, or pain in the ngers, hands, wrists, or
arms. The sooner RSI/CTS is diagnosed, the more likely permanent
nerve and muscle damage can be prevented.
5
DANGER
Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions and can cause
serious injury or death.
Read the Manuals
• Provide all users of this equipment with the Operator’s Manual and
Safety Manual for instructions on Safe Operation.
Clear the Work Area
• Spectators and fellow workers must be warned, and children and
animals prevented from coming nearer than 15 m (50 ft.) while the
unit is in use.
Keep a Firm Grip
• Hold the front and rear handles with both hands, with thumbs and
ngers encircling the handles.
Keep a Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on ladders. Do not over reach.
Avoid Hot Surfaces
• Keep exhaust area clear of ammable debris. Avoid contact during
and immediately after operation.
6
equIpment
WARNING
Use this attachment with ECHO approved models only. Serious injury may result from the use of this attachment
combined with a non approved ECHO product.
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts and screws. Tighten and/or replace as needed.
• Inspect shield for damage and make sure it is securely in place. Replace if shield is damaged or missing.
• Check that the cutting attachment is rmly attached and in safe operating condition.
• Do not use trimmer if any part is missing or damaged.
• Have repairs done only by an authorized ECHO Service dealer.
IMPORTANT
80-Tooth blade requires professional sharpening.
WARNING
Moving parts can amputate ngers or cause severe injuries. Keep hands, clothing and loose objects away from all
openings.
• ALWAYS stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop
before removing obstructions, clearing debris, or servicing unit.
• DO NOT start or operate unit unless all guards and protective covers are properly assembled to unit.
• NEVER reach into any opening while the engine is running. Moving parts may not be visible through openings.
descrIptIon
Locate these safety decals on your unit. Make sure the decals are legible and that you understand and follow the instructions on them. If a decal cannot be read, a new one can be ordered from your ECHO Dealer. See PARTS ORDERING
instructions for specic information.
2
1
4
3
PAS 80 TooTh BlAde Trimmer ATTAchmenT
oPerATor'S mAnuAl
Debris Shield Decal
Shaft Decals
P/N X505002500
P/N 89016841031
1. LOWER DRIVE SHAFT ASSEMBLY - Includes the Debris Shield Assembly, Gear Housing assembly, Flexible
Drive Cable, Metal Blade and Safety Decals.
2. FLEXIBLE DRIVE CABLE - Cable end ts into upper drive shaft coupler. Lubricate drive cable every 25 hours
with ECHO® LUBETM grease.
3. METAL BLADE SHIELD - Required when unit is equipped with blades. Do not operate unit without shield.
4. BLADE - Circular blade for brush cutting applications. Harness, metal shield and U-handles required for blade
operation.
7
contents
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
___ 1 - Pro Attachment SeriesTM Brushcutter Attachment
___ 1 - Operator's Manual
___ 1 - Safety Manual
___ 1 - Warranty Registration Card
___ - Assembly Tool (s)
___ 1 - 80 Tooth Metal Blade
___ 1 - Metal shield
___ 1 - Shield bracket
___ 1 - 4-Hole Barrier Bar
___ 1 - 2-Hole Barrier Bar
___ 3 - 5mm x 10mm screws (shield mounting)
___ 2 - 5mm x 8mm screws (bracket mounting)
___ 4 - 5mm nuts (bracket mounting)
___ 4 - 5mm lockwashers (bracket mounting)
___ 4 - 5mm x 35mm bolts (barrier bar)
___ 4 - 5mm nuts (barrier bar)
___ 9 - Split pins
___ 1 - Storage Hook Assembly
___ 1 - Shoulder Harness w/Quick-release Hook
8
assembly
WARNING
Do not perform maintenance or assembly procedures with engine running.
Parts Required: Power Head Shaft, Attachment Lower Shaft
Assembly, Metal Shield, Bracket, Barrier Bar
power head shaft/attachment lower shaft assembly
1. Set Power Head/Shaft Assembly on a level surface.
2. Pull locator pin (A) and rotate counter clockwise 1/4 turn to lock
out position.
3. Remove vinyl cap from attachment drive shaft.
4. Remove cardboard spacer, if necessary.
5. Carefully t attachment lower drive shaft assembly into coupler
(B) to decal assembly line (C), making sure that the inner lower
drive shaft engages into the upper drive shaft mount.
NOTE
Earlier model Power Heads may have shorter couplings. Short
couplings t ush to decal point (E). New couplings are 4-3/4 in.
long, and t ush to line (C).
NOTE
Lower bearing housing and head assembly must be in line with the
engine.
B
D
A
B
D
A
D
C
6. Rotate locator pin (A) 1/4 turn clockwise to engage lower shaft
hole. Insure locator pin is fully engaged by gently twisting
lower drive shaft. Locator pin (A) should snap ush in coupler.
Full engagement will prevent further shaft rotation.
7. Secure lower shaft assembly to coupler by tightening clamping
knob (D).
A
E
PAS 80 TooTh BlAde Trimmer ATTAchmenT
Install handle/barrIer bar
NOTE
The Barrier Bar is required when using grass or weed blades. Units
equipped with U-Handles do not require installation of the Barrier
Bar.
1. Remove screws and nuts and back plate from handle.
4-screw front handles
2. Position front handle on shaft and install Barrier Bar using four (4)
5x35 mm screws and (4) new nuts included with kit. Handle must
be at least 10 inches (250 mm) from center of rear handle grip.
3. Adjust handle position for comfortable operation, and tighten
screws securely.
2-screw front handles
2. Position front handle on shaft and install Barrier Bar using two
(2) 5x35 mm screws provided in kit. Handle must be at least 10
inches (250 mm) from center of rear handle grip.
3. Adjust handle position for comfortable operation, and tighten
screws securely.
oPerATor'S mAnuAl
9
NOTE
The Barrier Bar is not a handle.
blade InstallatIon
Install Metal Shield
1. Loosely attach bracket (A) to shield (B) and attach to bottom of
gear housing (C) with screws and nuts provided. Tighten all
attaching hardware.
Install Blade
2. Install upper plate (D) on splined PTO shaft. Blade installation
requires use of Upper Plate (D) with 20mm pilot.
3. Place Blade (E) over upper plate pilot, install the Lower Plate (F)
and 10mm LH nut (G).
4. Insert Locking Tool (K) through hole in upper plate and notch in
gear housing to prevent PTO shaft from turning. Tighten nut
and secure with Split Pin (L).
BLADE UPPER PLATE
D
10
balance unIt
1. Put on harness and attach unit to harness.
2. Slide harness clamp up and down until unit balances with head approximately 2 - 3 in. from the ground.
3. Tighten clamp screw.
2 - 3"
NOTE
In case of Emergency, the trimmer/brushcutter can be released from
the the harness by pulling up on the quick-release collar.
operatIon
NOTE
Refer to your Split Boom\Pro Attachment SeriesTM Operator's Manual for correct engine fueling, starting and stopping instructions.
maIntenance
WARNING
Moving parts can amputate ngers or cause severe injuries. Keep hands, clothing and loose objects away from all
openings. Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete
stop before removing obstructions, clearing debris, or servicing unit. Allow unit to cool before performing service.
Wear gloves to protect hands from sharp edges and hot surfaces.
Your ECHO trimmer is designed to provide many hours of trouble free service. Regular scheduled maintenance will help
your trimmer achieve that goal. If you are unsure or are not equipped with the necessary tools, you may want to take your
unit to an ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have
the ECHO Dealer do it, each maintenance task has been graded. If the task is not listed see your ECHO dealer for repairs.
PAS 80 TooTh BlAde Trimmer ATTAchmenT
oPerATor'S mAnuAl
skIll levels
Level 1 = Easy to do. Common tools may be required.
Level 2 = Moderate difculty. Some specialized tools may be required.
maIntenance Intervals
Component Maintenance Procedure Skill Level Interval
Drive Shaft Grease 1 Every 25 hours of use
Gear Housing Grease 1 Every 50 hours of use
Screws/Nuts/Bolts Inspect/Tighten/Replace 1 Before Each Use
IMPORTANT - Time intervals shown are maximum. Actual use and your experience will
determine the frequency of required maintenance.
lubrIcatIon
Level 1.
11
Parts Required: POWER BLENDXTM 8 oz. (P/N 91014) or Lithium
Base Grease.
Gear Housing
1. Clean all loose debris from gear box.
2. Remove plug (A) and check level of grease.
3. Fill gear case with grease.
4. Install plug (A).
Drive Shaft (Lower)
IMPORTANT
Lower and upper drive shaft must be lubricated with POWER
BLENDXTM grease every 25 hours of operation, otherwise
drive shaft assembly overheating and failure can result.
1. Loosen two (2) 8 mm upper gear housing bolts (B) and locator
screw (C). Remove gear case assembly.
2. Remove ex cable, wipe clean and apply a thin coating, 15 ml,
of grease.
3. Install ex cable. Make sure cable end engages upper drive shaft
adaptor.
4. Install gear case assembly onto drive shaft aligning locator screw
with hole in drive shaft.
5. Tighten two 8 mm bolts (B) and locator screw (C).
A
C
B
D
IMPORTANT
Flat edge of washers (D) must be against drive shaft.
12
storage

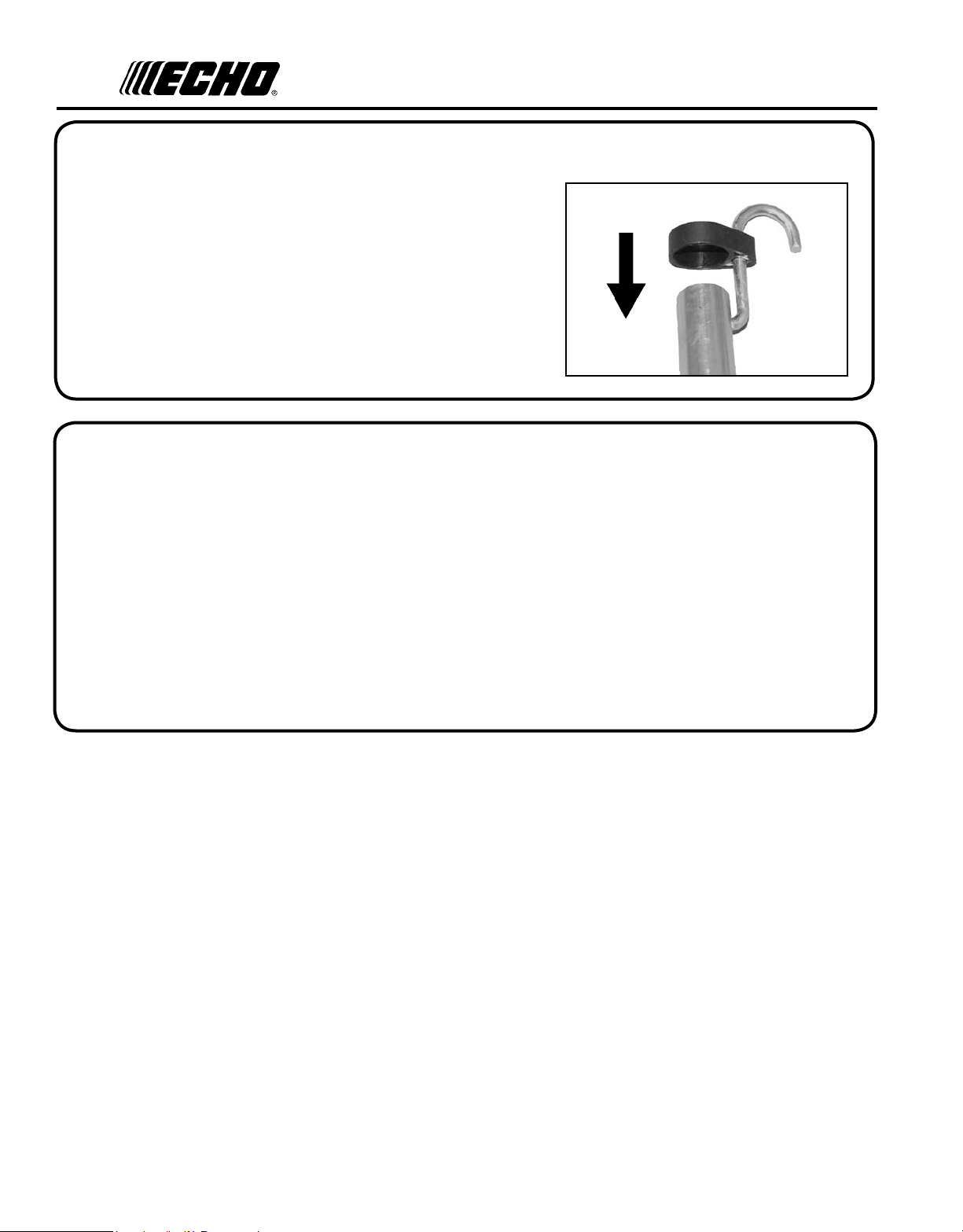

Storage Hook Installation
1. Insert small end of hook into locating hole on attachment shaft.
2. Slide plastic cap onto end of attachment shaft.
specIfIcatIons
PAS 80 Tooth Blade Attachment
Shaft Length ------------------------------------------------ 870 mm (34.3 in.)
Attachment Width ----------------------------------------- 280 mm (11 in.)
Attchment Height ------------------------------------------ 255 mm (10 in.)
Weight (dry) w/blade -------------------------------------- 1.5 kg. (3.32 lb.)
Drive Shaft -------------------------------------------------- 6.35 mm (1/4 in.) Flex Shaft
Rotating Direction ----------------------------------------- Counter-clockwise viewed from the top
Cutter Attachment ----------------------------------------- 80 Tooth, 203 mm (8 in.) Metal Brush Blade
PAS 80 TooTh BlAde Trimmer ATTAchmenT
oPerATor'S mAnuAl
notes
13
14
notes
PAS 80 TooTh BlAde Trimmer ATTAchmenT
oPerATor'S mAnuAl
notes
15
servIcIng InformatIon
parts
Genuine ECHO Parts and ECHO REPOWER™ Parts and Assemblies for your ECHO products are available only from an Authorized
ECHO Dealer. When you do need to buy parts always have the Model
Number and Serial Number of the unit with you. You can nd these
numbers on the engine housing. For future reference, write them in the
space provided below.
Model No. _____________ SN. ____________
/serIal number
servIce
Service of this product during the warranty period must be performed
by an Authorized ECHO Service Dealer. For the name and address of
the Authorized ECHO Service Dealer nearest you, ask your retailer or
call: 1-800-432-ECHO (3246). Dealer information is also available on
our Web Site. When presenting your unit for Warranty service/repairs,
proof of purchase is required.
echo consumer product support
If you require assistance or have questions concerning the application, operation or maintenance of this product you may call the ECHO
Consumer Product Support Department at 1-800-673-1558 from 8:30
am to 4:30 pm (Central Standard Time) Monday through Friday. Before
calling, please know the model and serial number of your unit to help
your Consumer Product Support Representative.
DEALER?
Call
1-800-432-ECHO
or
www.echo-usa.com
CONSUMER PRODUCT
SUPPORT
1-800-673-1558
8:30 - 4:30 Mon - Fri C.S.T.
warranty regIstratIon
You may register your Echo equipment using the warranty registration
card or register on-line at www.echo-usa.com. Registering provides a
direct link between you and ECHO if we nd it necessary to contact
you.
addItIonal or replacement manuals
Replacement Operator, Safety Manuals, and Parts Catalogs are available from your ECHO dealer or at www.echousa.com or by contacting ECHO Inc., 400 Oakwood Road, Lake Zurich, IL 60047 (800-673-1558).
Safety Videos are available from your Echo dealer. A $5.00 shipping charge will be required for each video.
ECHO, INCORPORATED
400 OakwOOd ROad
Lake ZuRich, iL 60047
www.echo-usa.com
S33600001001/S33600999999
Loading...
