PARTS CATALOG
HEDGE TRIMMER
HC-1500(24)
24000001
-
P014-003990-10Gb
1. CYLINDER, CRANKCASE, PISTON
NOTE2
BOLT, H.S. 5*28
BEARING BALL
GASKET, CRANKCASE
PIN, DOWEL
CRANKSHAFT
PISTON KIT
BEARING, NEEDLE
SPACER, PISTON PIN
CIRCLIP, PISTON PIN
PIN, PISTON
RING,PISTON
WASHER,CIRCULAR 8
CYLINDER
BOLT, H.S. 5*22
COVER, CYLINDER
BOLT, H.S. 4*20
GASKET, CYL. BASE
HC-1500(24)
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
KEY
4 100204-05361 1
5 + 100212-42031 2
6 + 900162-05028 3
7 + 94035-36201 2
8 + 100242-42030 1
9 + 100215-03930 2
10 100100-06564 1
11 P021-001113 1
12 + 100113-05930 1
13 + 100014-08960 2
15 + 100015-04630 2
16 + 100013-11520 1
17 + A101-000000 2
18 + V306-000150 1
19 101011-06562 1
20 900162-05022 2
25 101514-05361 1
26 900162-04020 2
27 101010-44332 1
CRANKCASE KIT
OILSEAL
ISCD 12*22*4.5
5*28 W,SW
6201X3JR2C3
8*12*8
8.2*13*0.8
5*22 W,SW
4*20 W,SW
- 1 -
2. STARTER, MAGNETO, CLUTCH
NOTE2
LABEL,ECHO
STARTER ASSEMBLY
SPRING, REWIND
DRUM, STARTER
SCREW
ROPE, STARTER
GUIDE, ROPE
GRIP, STARTER
WASHER, SPRING 8
PAWL ASM., STARTER
PAWL, STARTER
SPRING, PAWL
ROTOR, MAGNETO
BOLT, H.S. 4*22
COIL,IGNITION
LEAD
GROMMET
PLUG, SPARK (RCJ-8Y)
COIL, SPARK PLUG
CAP, SPARK PLUG
BUSHING
LABEL,MODEL
TUBE
WASHER, CLUTCH
HC-1500(24)
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
KEY
5 900162-04016 4
6 X502-000330 1
7 177200-05363 1
9 + 177220-42030 1
10 + 177215-44430 1
12 + 177236-44330 1
13 + P022-006800 1
14 + 177227-42030 1
15 + 177228-06530 1
17 900605-00008 1
18 177202-44331 1
19 + 177218-44330 1
20 + 177234-12220 1
23 156801-05360 1
24 900162-04022 2
25 A411-000080 1
26 162021-52830 1
27 156114-04920 1
28 159017-12330 1
29 159011-03432 1
30 159012-03433 1
31 156110-04920 1
32 X543-000920 1
33 V475-001900 1
40 175014-05360 1
BOLT, H.S. 4*16
4*16 W,SW
ECHO
3.0*880
8
BLACK
4*22 W,SW
275L
RCJ-8Y
HC-1500
7*8.6*30
8.2*19*3.2
- 2 -
2. STARTER, MAGNETO, CLUTCH
NOTE2
CLUTCH ASSY
SPRING, CLUTCH
SHOE, CLUTCH
HUB, CLUTCH
HOUSING, CLUTCH
BOLT, H.S. 4*16
HC-1500(24)
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
KEY
41 175019-04920 1
42 175000-06560 1
43 + 175018-05960 2
44 + 175009-05131 2
45 + 175016-04920 1
47 175055-05360 1
48 900162-04016 2
PLATE, CLUTCH
4*16 W,SW
- 3 -
3. AIR CLEANER, MUFFLER
NOTE2
NUT 5
INSULATOR, INTAKE
SCREW 5*20
GASKET, INTAKE
CARBURETOR
CASE,CLEANER ASY
SCREW 5*65
PLATE, PREVENT
ELEMENT,AIR FILTER
LID, AIR CLEANER
BOLT, WING
LABEL, METERING
COVER, MUFFLER
MUFFLER ASY (SAM)
GASKET,EXHAUST
GASKET, MUFFLER LID
LID, MUFFLER (B)
GUIDE,EXH
SCREW 4*10
BOLT, H.S. 5*50
WASHER 5
HC-1500(24)
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
KEY
5 130010-42032 1
6 900500-00005 2
7 130017-42031 1
8 900238-05020 2
9 130016-42031 1
10 125200-05964 1
14 P021-010350 1
17 + 900242-05065 2
16 129011-52730 1
18 A226-001410 1
19 130313-05863 1
20 210417-52730 1
21 890121-05360 1
29 145871-05360 1
28 145802-05361 1
30 + V104-000160 2
32 + 145866-42031 1
33 + 145876-42030 1
34 + A313-000010 1
35 + 900242-04010 3
36 900105-05050 2
37 900600-00005 2
GASKET,INTAKE
5
5*20
C1U-K51
5*65
5*20
ID#4000
4*10
5*50
5
- 4 -
4. FUEL TANK
NOTE2
SCREW 5*16
VALVE, CHECK
PIPE
PIPE
GROMMET, FUEL
CLIP
STRAINER, FUEL
PIPE 3* 6*110
CAP ASSY, FUEL
GASKET, FUEL CAP
CONNECTOR, CAP
HC-1500(24)
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
KEY
5 A350-000272 1
6 900239-05016 2
9 131300-56430 1
11 V471-001200 1
12 V470-000580 1
13 132115-46730 1
14 132013-09820 1
15 131205-07320 1
16 132010-06460 1
17 131004-08960 1
18 + 131016-55830 1
19 + 131051-52430 1
TANK,FUEL
5*16
3*5*70 NBR
3*5*195
6MM
3*6*110 YL
80L
- 5 -
5. HANDLE
NOTE2
HANDLE, FRONT
HANDLE SET, REAR
WASHER 5
NUT, LOCK 5
LEAD, GROUND
LEAD, GROUND
SWITCH, IGNITION
WIRE, THROTTLE
NUT 6 (3N)
CONTROL, THROTTLE
SCREW 5*50
SCREW 4*16
PIN, SPRING 5*25
LOCKOUT, T. CONTROL
SPRING, THR. RETURN
WASHER 6
LABEL,ECHO
LABEL,CAUTION
HC-1500(24)
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
KEY
6 351611-05360 1
7 351610-05360 1
10 351100-06560 1
11 900600-00005 2
12 900560-00005 3
13 162010-05360 1
14 162014-05360 1
15 163400-03460 1
16 178001-05360 1
17 900502-00006 2
18 178010-06560 1
19 900242-05050 2
20 900255-04016 5
22 900342-50025 1
23 178090-06560 1
24 178043-15130 1
25 900600-00006 2
26 X502-000430 1
28 X505-002030 1
WASHER
5
5
3N6
5*50
4*16
5*25
6
37*35
- 6 -

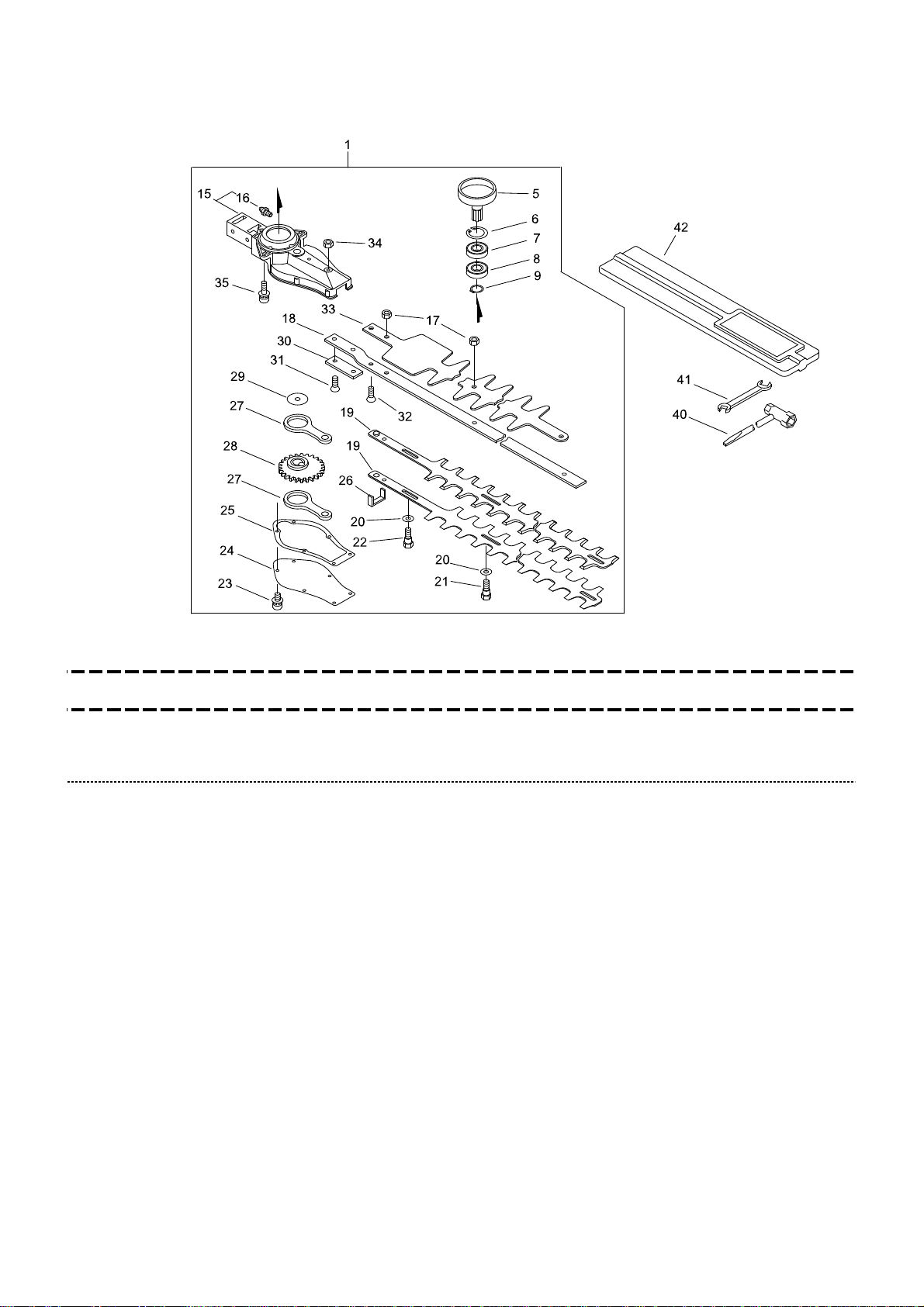

6. GEAR CASE, CUTTER
NOTE2
DRUM, CLUTCH
CIRCLIP 35
BEARING, BALL 6202
BEARING, BALL 6202
CIRCLIP 14
CASE, GEAR
NIPPLE, GREASE
NUT
BAR, FRAME
CUTTER
WASHER
BOLT 6
BOLT
BOLT, H.S. 4*10
LID, GEARCASE
GASKET, GEAR HOUSING
SEAL
ROD, CONNECTING
GEAR
WASHER
HOLDER, FRAME
SCREW 6*25
SCREW (5*30*P0.8)
BLUNT
HC-1500(24)
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
KEY
1 P021-009370 1
5 + 175005-04560 1
6 + 900702-00035 1
7 + 900813-36202 1
8 + 900810-36202 1
9 + 900701-00014 1
15 + 610407-05361 1
16 ++ 880110-10860 1
17 + 433022-06460 4
18 + 699110-06960 1
19 + X411-000280 2
20 + 699118-04560 4
21 + 699115-04660 3
22 + 699115-05360 1
23 + 900162-04010 6
24 + 610411-05361 1
25 + 610414-05360 1
26 + 610425-04560 1
27 + C532-000120 2
28 + 610312-04560 1
29 + 610350-04560 1
30 + 610440-04560 1
31 + 900212-06025 2
32 + 900212-05030 1
33 + 699125-06560 1
HOUSING ASSY,GEAR
CRｰ35
6202Z/C3
6202/C3
CS-14
6*18L
4*10 W,SW
+SF6*25
+SF5*30
539L
- 7 -
6. GEAR CASE, CUTTER
NOTE2
BOLT, H.S. 5*20
WRENCH, W/S. DRIVER
SPANNER 8*10
SCABBARD,BLADE
HC-1500(24)
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
KEY
34 + 900500-00006 2
35 + 900162-05020 3
40 895410-03930 1
41 895112-00330 1
42 X495-000051 1
NUT 6
6
5*20 W,SW
- 8 -

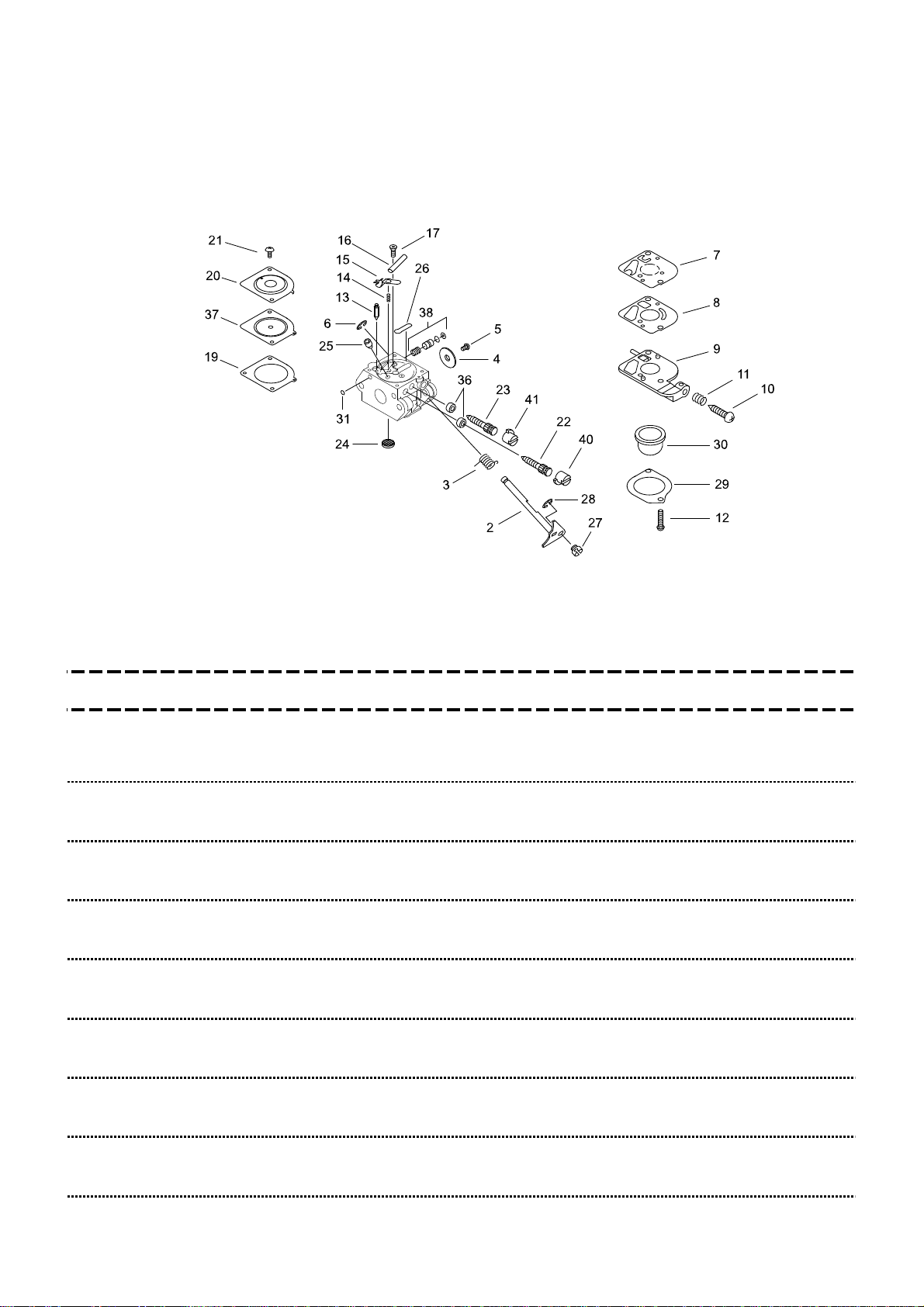

7. CARBURETOR
NOTE2
SHAFT, THROTTLE
SPRING, THRT. RETURN
VALVE, THROTTLE
SCREW
CLIP
DIAPHRAGM, FUEL PUMP
GASKET, PUMP
BASE,ASY PRIMER
SCREW,THROTTLEADJUST
SPRING,IDLE ADJUSTER
SCREW
VALVE,INLET NEEDLE
SPRING, COIL
LEVER, METERING
PIN, METERING ARM
SCREW
GASKET, DIAPHRAGM
COVER, DIAPHRAGM
SCREW
NEEDLE, HIGH SPEED
SCREW, IDLE NEEDLE
STRAINER
NOZZLE, CHECK VALVE
PLUG, WELCH
HC-1500(24)
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
KEY
125200-05964 1
2 + 125317-13310 1
3 + 125313-42030 1
4 + 125316-49030 1
5 + 125314-13930 1
6 + 125327-15130 1
7 + 125312-12820 1
8 + 125325-13310 1
9 + P005-000590 1
10 + 125334-06960 1
11 + 125333-06960 1
12 + 125310-11610 2
13 + 125337-06960 1
14 + 125322-42030 1
15 + 125323-42030 1
16 + 125338-13930 1
17 + 125339-42030 1
19 + 125340-51030 1
20 + 125342-52130 1
21 + 125344-52130 2
22 + 125320-13310 1
23 + 125318-13120 1
24 + 125326-42030 1
25 + P005-002210 1
26 + 125345-15130 1
CARBURETOR
C1U-K51
3*4
- 9 -
7. CARBURETOR
NOTE2
CLIP
RING
PUMP, PRIMING
PLUG, WELCH
RETAINER
DIAPHRAGM
PUMP KIT, ACC
LIMITER, MIXTURE
LIMITER, MIXTURE
HC-1500(24)
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
KEY
27 + 125372-42030 1
28 + 125327-13930 1
29 + 125363-11610 1
30 + 125381-08660 1
31 + 125345-13310 1
36 + 125363-12820 2
37 + 125341-49030 1
38 + P005-002020 1
40 + 125329-39030 1
41 + 125329-09860 1
SWIVEL
- 10 -
Index
Patrs Number Key No. Patrs Number Key No. Patrs Number Key No.
100013-11520 1 - 16 130313-05863 3 - 19 610312-04560 6 - 28
100014-08960 1 - 13 131004-08960 4 - 17 610350-04560 6 - 29
100015-04630 1 - 15 131016-55830 4 - 18 610407-05361 6 - 15
100100-06564 1 - 10 131051-52430 4 - 19 610411-05361 6 - 24
100113-05930 1 - 12 131205-07320 4 - 15 610414-05360 6 - 25
100204-05361 1 - 4 131300-56430 4 - 9 610425-04560 6 - 26
100212-42031 1 - 5 132010-06460 4 - 16 610440-04560 6 - 30
100215-03930 1 - 9 132013-09820 4 - 14 699110-06960 6 - 18
100242-42030 1 - 8 132115-46730 4 - 13 699115-04660 6 - 21
101010-44332 1 - 27 145802-05361 3 - 28 699115-05360 6 - 22
101011-06562 1 - 19 145866-42031 3 - 32 699118-04560 6 - 20
101514-05361 1 - 25 145871-05360 3 - 29 699125-06560 6 - 33
125200-05964 3 - 10 145876-42030 3 - 33 880110-10860 6 - 16
125200-05964 7 - 156110-04920 2 - 31 890121-05360 3 - 21
125310-11610 7 - 12 156114-04920 2 - 27 895112-00330 6 - 41
125312-12820 7 - 7 156801-05360 2 - 23 895410-03930 6 - 40
125313-42030 7 - 3 159011-03432 2 - 29 900105-05050 3 - 36
125314-13930 7 - 5 159012-03433 2 - 30 900162-04010 6 - 23
125316-49030 7 - 4 159017-12330 2 - 28 900162-04016 2 - 5
125317-13310 7 - 2 162010-05360 5 - 13 900162-04016 2 - 48
125318-13120 7 - 23 162014-05360 5 - 14 900162-04020 1 - 26
125320-13310 7 - 22 162021-52830 2 - 26 900162-04022 2 - 24
125322-42030 7 - 14 163400-03460 5 - 15 900162-05020 6 - 35
125323-42030 7 - 15 175000-06560 2 - 42 900162-05022 1 - 20
125325-13310 7 - 8 175005-04560 6 - 5 900162-05028 1 - 6
125326-42030 7 - 24 175009-05131 2 - 44 900212-05030 6 - 32
125327-13930 7 - 28 175014-05360 2 - 40 900212-06025 6 - 31
125327-15130 7 - 6 175016-04920 2 - 45 900238-05020 3 - 8
125329-09860 7 - 41 175018-05960 2 - 43 900239-05016 4 - 6
125329-39030 7 - 40 175019-04920 2 - 41 900242-04010 3 - 35
125333-06960 7 - 11 175055-05360 2 - 47 900242-05050 5 - 19
125334-06960 7 - 10 177200-05363 2 - 7 900242-05065 3 - 17
125337-06960 7 - 13 177202-44331 2 - 18 900255-04016 5 - 20
125338-13930 7 - 16 177215-44430 2 - 10 900342-50025 5 - 22
125339-42030 7 - 17 177218-44330 2 - 19 900500-00005 3 - 6
125340-51030 7 - 19 177220-42030 2 - 9 900500-00006 6 - 34
125341-49030 7 - 37 177227-42030 2 - 14 900502-00006 5 - 17
125342-52130 7 - 20 177228-06530 2 - 15 900560-00005 5 - 12
125344-52130 7 - 21 177234-12220 2 - 20 900600-00005 3 - 37
125345-13310 7 - 31 177236-44330 2 - 12 900600-00005 5 - 11
125345-15130 7 - 26 178001-05360 5 - 16 900600-00006 5 - 25
125363-11610 7 - 29 178010-06560 5 - 18 900605-00008 2 - 17
125363-12820 7 - 36 178043-15130 5 - 24 900701-00014 6 - 9
125372-42030 7 - 27 178090-06560 5 - 23 900702-00035 6 - 6
125381-08660 7 - 30 210417-52730 3 - 20 900810-36202 6 - 8
129011-52730 3 - 16 351100-06560 5 - 10 900813-36202 6 - 7
130010-42032 3 - 5 351610-05360 5 - 7 94035-36201 1 - 7
130016-42031 3 - 9 351611-05360 5 - 6 A101-000000 1 - 17
130017-42031 3 - 7 433022-06460 6 - 17 A226-001410 3 - 18
- 11 -
Index
Patrs Number Key No. Patrs Number Key No. Patrs Number Key No.
A313-000010 3 - 34
A350-000272 4 - 5
A411-000080 2 - 25
C532-000120 6 - 27
P005-000590 7 - 9
P005-002020 7 - 38
P005-002210 7 - 25
P021-001113 1 - 11
P021-009370 6 - 1
P021-010350 3 - 14
P022-006800 2 - 13
V104-000160 3 - 30
V306-000150 1 - 18
V470-000580 4 - 12
V471-001200 4 - 11
V475-001900 2 - 33
X411-000280 6 - 19
X495-000051 6 - 42
X502-000330 2 - 6
X502-000430 5 - 26
X505-002030 5 - 28
X543-000920 2 - 32
- 12 -
©2014
10Gb
No. 67-369
Loading...
