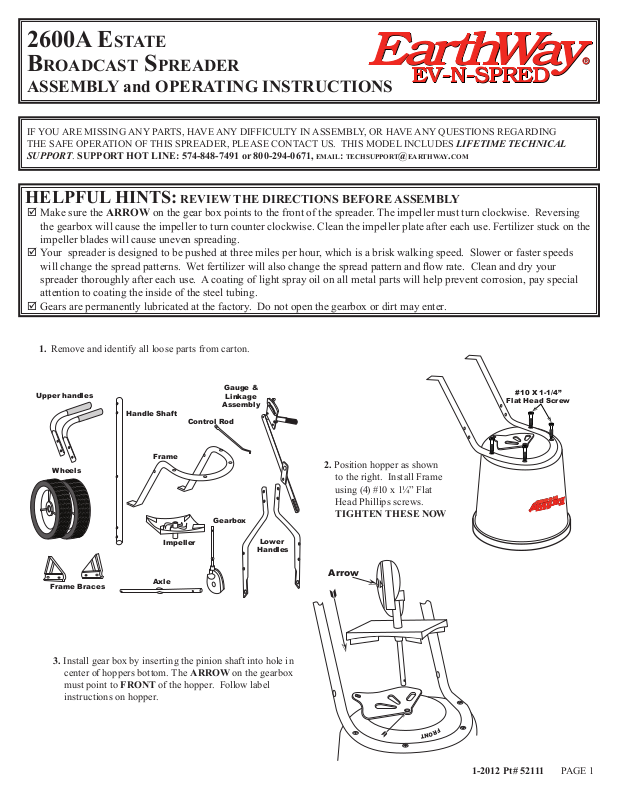

Earthway 2600A User Manual
2600A EstAtE
BroAdcAst sprEAdEr
ASSEMBLY and OPERATING INSTRUCTIONS
IF YOU ARE MISSING ANY PARTS, HAVE ANY DIFFICULTY IN ASSEMBLY, OR HAVE ANY QUESTIONS REGARDING
THE SAFE OPERATION OF THIS SPREADER, PLEASE CONTACT US. THIS MODEL INCLUDES LIFETIME TECHNICAL
SUPPORT. SUPPORT HOT LINE: 574-848-7491 or 800-294-0671, EmAil: tEchsupport@EArthwAy.com
HELPFUL HINTS: REVIEW THE DIRECTIONS BEFORE ASSEMBLY
; Make sure the ARROW on the gear box points to the front of the spreader. The impeller must turn clockwise. Reversing
the gearbox will cause the impeller to turn counter clockwise. Clean the impeller plate after each use. Fertilizer stuck on the
impeller blades will cause uneven spreading.
; Your spreader is designed to be pushed at three miles per hour, which is a brisk walking speed. Slower or faster speeds
will change the spread patterns. Wet fertilizer will also change the spread pattern and ow rate. Clean and dry your
spreader thoroughly after each use. A coating of light spray oil on all metal parts will help prevent corrosion, pay special
attention to coating the inside of the steel tubing.
; Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.
1. Remove and identify all loose parts from carton.
Upper handles
Wheels
Frame Braces
Handle Shaft
Control Rod
Frame
Impeller
Axle
Gauge &
Linkage
Assembly
Gearbox
#10 X 1-1/4”
Flat Head Screw
2. Position hopper as shown
to the right. Install Frame
using (4) #10 x 1¼” Flat
Head Phillips screws.
TIGHTEN THESE NOW
Lower
Handles
Arrow
3. Install gear box by inserting the pinion shaft into hole in
center of hoppers bottom. The A R ROW on the gearbox
must point to FRONT of the hopper. Follow label
instructions on hopper.
F
R
O
N
T
1-2012 Pt# 52111 PAGE 1
S
l
i
d
e
4. Install lower handles onto Frame and secure with ¼-20 x 2¼” bolt
through hole in Frame Braces and through the hole in frame install
locknut.
Next, Slide the axle (CoaSt Wheel Side firSt) through the right
side lower handle and into the gearbox (with the arrow facing the
FRONT), you will need to rotate the axle to engage with the gearbox,
then through the left side lower handle.
Axle Bearing
Notch
Slide Axle Through as shown
Right
Side
1/4-20 x 2-1/4”
Bolt
Left
Side
1/4-20 x 2-1/4”
Bolt
Flat
Side
33106
1/8" X 3/4" Cotter Pin
Slide wheels on axle as shown
CoastDrive
33106
1/8" X 3/4" Cotter Pin
5. Install the bearings over the axle and press
into the notches of the lower handle as
shown above.
NOW GO BACK AND TIGHTEN ALL NUTS
AND BOLTS, DO NOT OVER TIGHTEN.
34103
1" OD. Washer
Right
Side
DRIVE WHEEL
Left
Side
COAST WHEEL
34103
1" OD. Washer
6. Install drive wheel to axle align over the drive coin on
the axle as shown. Add at washer and then insert ¾”
Cotter pin through the axle. Bend with pliers to prevent
~~~IMPORTANT~~~
pin from falling out.
7. Install coast wheel to axle using outside pin hole. As shown, add the at washer, and insert ¾” Cotter pin through axle (not thru the
wheel). Bend with pliers to prevent pin from falling out.
TURN SPREADER UPRIGHT ON TO WHEELS.
8. Install Handle Shaft as shown below using (2)
1/4-20 x 1½” Hex Bolt and (2) 1/4-20 Locknuts
1/4 - 20 Lock-nut
Handle Shaft
1/4 - 20 x 1-1/2” Bolt
PAGE 2
9. Insert (2) 1/4-20 x 1½” Hex
Bolt through Gauge and
Linkage Assembly, then
through the Upper Handle,
Handle Shaft, Upper Handle
and secure with (2) 1/4-20
Locknuts as shown at the right.
Upper Handle
1/4 - 20 Lock-nut
1/4 - 20 x 1-1/2” Bolt
