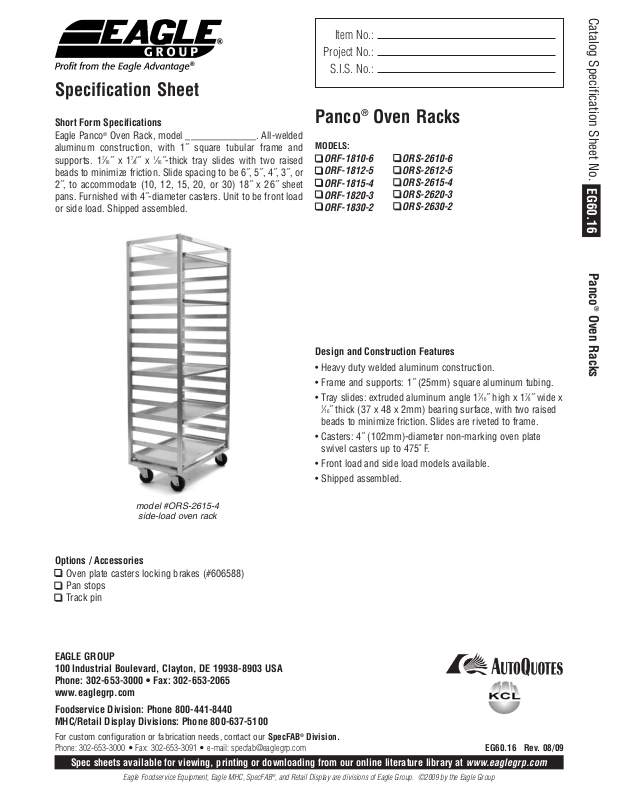

Eagle ORF-1810-6 User Manual
Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
Eagle Panco®Oven Rack, model ______________. All-welded
aluminum construction, with 1˝ square tubular frame and
supports. 1
beads to minimize friction. Slide spacing to be 6˝, 5˝, 4˝, 3˝, or
2˝, to accommodate (10, 12, 15, 20, or 30) 18˝ x 26˝ sheet
pans. Furnished with 4˝-diameter casters. Unit to be front load
or side load. Shipped assembled.
7
⁄16˝ x 17⁄8˝ x1⁄16˝-thick tray slides with two raised
Panco®Oven Racks
MODELS:
ORF-1810-6
ORF-1812-5
ORF-1815-4
ORF-1820-3
ORF-1830-2
Design and Construction Features
• Heavy duty welded aluminum construction.
• Frame and supports: 1˝ (25mm) square aluminum tubing.
• Tray slides: extruded aluminum angle 1
1
⁄16˝ thick (37 x 48 x 2mm) bearing surface, with two raised
beads to minimize friction. Slides are riveted to frame.
• Casters: 4˝ (102mm)-diameter non-marking oven plate
swivel casters up to 475˚ F.
• Front load and side load models available.
• Shipped assembled.
ORS-2610-6
ORS-2612-5
ORS-2615-4
ORS-2620-3
ORS-2630-2
7
⁄16˝ high x 17⁄8˝ wide x
EG60.16
Panco
®
Oven Racks
model #ORS-2615-4
side-load oven rack
Options / Accessories
Oven plate casters locking brakes (#606588)
Pan stops
Track pin
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2009 by the Eagle Group
EG60.16 Rev. 08/09
EG60.16
Panco®Oven Racks
Item No.:
Project No.:
S.I.S. No.:
Catalog Specification Sheet No.
Oven Racks
®
Panco
Front load models
TOP VIEW
Side load models
TOP VIEW
FRONT VIEW SIDE VIEW
(ORF-1820-3 shown) (ORS-2620-3 shown)
overall dimensions sliding
width depth height space pan weight
model # description in. mm in. mm in. mm in. mm capacity lbs. kg
ORF-1810-6 front load 20
ORF-1812-5 front load 201⁄2˝ 521 26˝ 660 69˝ 1753 5˝ 127 12 29 13.2
ORF-1815-4 front load 20
ORF-1820-3 front load 201⁄2˝ 521 26˝ 660 69˝ 1753 3˝ 76 20 33 15.0
ORF-1830-2 front load 201⁄2˝ 521 26˝ 660 69˝ 1753 2˝ 51 30 41 18.6
ORS-2610-6 side load 19˝ 483 281⁄2˝ 724 69˝ 1753 6˝ 152 10 28 12.7
ORS-2612-5 side load 19˝ 483 28
ORS-2615-4 side load 19˝ 483 281⁄2˝ 724 69˝ 1753 4˝ 102 15 31 14.1
ORS-2620-3 side load 19˝ 483 281⁄2˝ 724 69˝ 1753 3˝ 76 20 33 15.0
ORS-2630-2 side load 19˝ 483 28
1
⁄2˝ 521 26˝ 660 69˝ 1753 6˝ 152 10 28 12.7
1
⁄2˝ 521 26˝ 660 69˝ 1753 4˝ 102 15 31 14.1
1
⁄2˝ 724 69˝ 1753 5˝ 127 12 29 13.2
1
⁄2˝ 724 69˝ 1753 2˝ 51 30 37 16.8
FRONT VIEW SIDE VIEW
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
©2009 by Eagle Group
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
Printed in U.S.A.
Rev. 08/09
