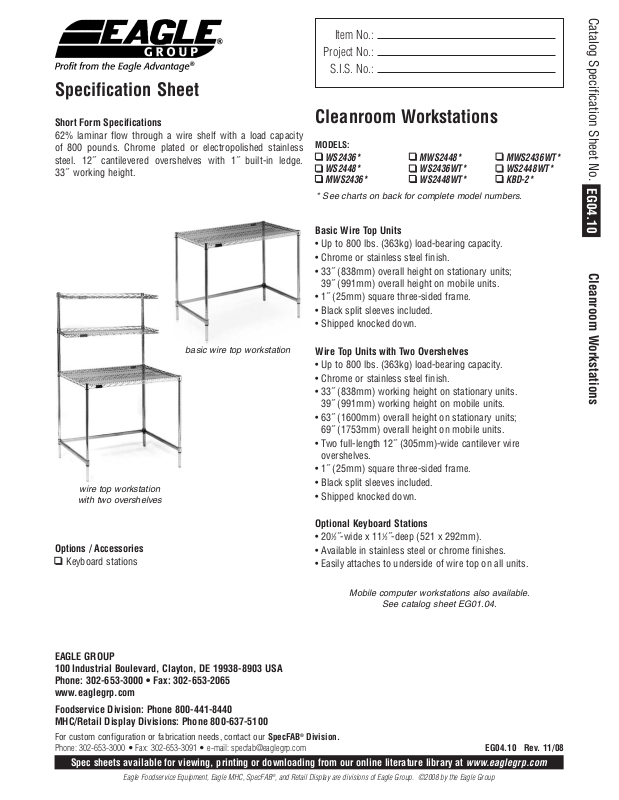

Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
62% laminar flow through a wire shelf with a load capacity
of 800 pounds. Chrome plated or electropolished stainless
steel. 12˝ cantilevered overshelves with 1˝ built-in ledge.
33˝ working height.
basic wire top workstation
wire top workstation
with two overshelves
Cleanroom Workstations
MODELS:
WS2436*
WS2448*
MWS2436*
* See charts on back for complete model numbers.
Basic Wire Top Units
• Up to 800 lbs. (363kg) load-bearing capacity.
• Chrome or stainless steel finish.
• 33˝ (838mm) overall height on stationary units;
39˝ (991mm) overall height on mobile units.
• 1˝ (25mm) square three-sided frame.
• Black split sleeves included.
• Shipped knocked down.
Wire Top Units with Two Overshelves
• Up to 800 lbs. (363kg) load-bearing capacity.
• Chrome or stainless steel finish.
• 33˝ (838mm) working height on stationary units.
39˝ (991mm) working height on mobile units.
• 63˝ (1600mm) overall height on stationary units;
69˝ (1753mm) overall height on mobile units.
• Two full-length 12˝ (305mm)-wide cantilever wire
overshelves.
• 1˝ (25mm) square three-sided frame.
• Black split sleeves included.
• Shipped knocked down.
MWS2448*
WS2436WT*
WS2448WT*
MWS2436WT*
WS2448WT*
KBD-2*
EG04.10
Cleanroom Workstations
Optional Keyboard Stations
1
⁄2˝-wide x 111⁄2˝-deep (521 x 292mm).
• 20
Options / Accessories
Keyboard stations
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2008 by the Eagle Group
• Available in stainless steel or chrome finishes.
• Easily attaches to underside of wire top on all units.
Mobile computer workstations also available.
See catalog sheet EG01.04.
EG04.10 Rev. 11/08
EG04.10
Cleanroom Workstations
Basic Wire Top Units
Stationary Units
chrome stainless steel weight width* length*
model # model # lbs. kg in. mm in. mm
WS2436C WS2436S 21 9.5 24˝ 610 36˝ 914
WS2448C WS2448S 28 12.7 24˝ 610 48˝ 1219
Catalog Specification Sheet No.
Mobile Units
chrome stainless steel weight width* length*
model # model # lbs. kg in. mm in. mm
WS2436C WS2436S 21 9.5 24˝ 610 36˝ 914
WS2448C WS2448S 28 12.7 24˝ 610 48˝ 1219
* Offered in any width or length of standard wire shelf (see catalog sheet #EG01.00).
Call Customer Service for details.
Item No.:
Project No.:
S.I.S. No.:
FRONT VIEW SIDE VIEW
Note: stationary unit shown
Wire Top Units with Two Overshelves
Stationary Units
chrome stainless steel weight width* length*
Cleanroom Workstations
model # model # lbs. kg in. mm in. mm
WS2436WT WS2436WT-S 34 15.4 24˝ 610 36˝ 914
WS2448WT WS2448WT-S 41 18.6 24˝ 610 48˝ 1219
Mobile Units
chrome stainless steel weight width* length*
model # model # lbs. kg in. mm in. mm
MWS2436WT MWS2436WT-S 42 19.1 24˝ 610 36˝ 914
MWS2448WT MWS2448WT-S 56 25.4 24˝ 610 48˝ 1219
* Offered in any width or length of standard wire shelf (see catalog sheet #EG01.00).
Call Customer Service for details.
Optional Keyboard Stations
chrome stainless steel weight
model # model # lbs. kg
KBD-2 KBD-2/SS 6.0 2.7
FRONT VIEW SIDE VIEW
Note: stationary unit shown
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
©2008 by Eagle Group
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
Printed in U.S.A.
Rev. 11/08
