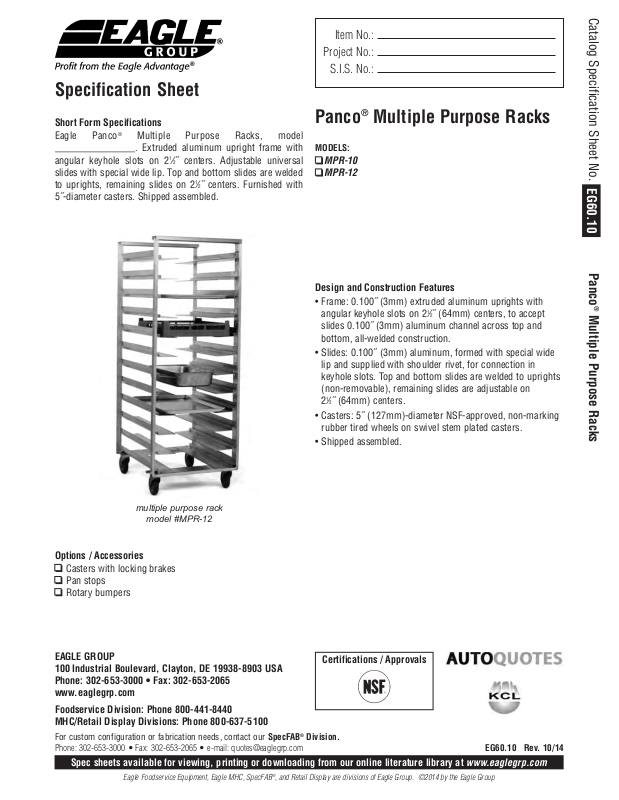

Specification Sheet

Catalog Specification Sheet No.

Item No.:

Project No.:

S.I.S. No.:

Short Form Specifications

Eagle Panco®Multiple Purpose Racks, model
________________. Extruded aluminum upright frame with
angular keyhole slots on 2
slides with special wide lip. Top and bottom slides are welded
to uprights, remaining slides on 2
5˝-diameter casters. Shipped assembled.

1

⁄2˝ centers. Adjustable universal

1

⁄2˝ centers. Furnished with

Panco®Multiple Purpose Racks

MODELS:

MPR-10
MPR-12

Design and Construction Features

• Frame: 0.100˝ (3mm) extruded aluminum uprights with
angular keyhole slots on 2
slides 0.100˝ (3mm) aluminum channel across top and
bottom, all-welded construction.

• Slides: 0.100˝ (3mm) aluminum, formed with special wide
lip and supplied with shoulder rivet, for connection in
keyhole slots. Top and bottom slides are welded to uprights
(non-removable), remaining slides are adjustable on

1

⁄2˝ (64mm) centers.

2

• Casters: 5˝ (127mm)-diameter NSF-approved, non-marking
rubber tired wheels on swivel stem plated casters.

• Shipped assembled.

1

⁄2˝ (64mm) centers, to accept

EG60.10

Panco

®

Multiple Purpose Racks

multiple purpose rack

model #MPR-12

Options / Accessories

Casters with locking brakes
Pan stops
Rotary bumpers

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]
MHC/Retail Display Divisions: Phone [phone]

For custom configuration or fabrication needs, contact our SpecFAB®Division.

Phone: [phone] • Fax: [phone] • e-mail: [e-mail]

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2014 by the Eagle Group

Certifications / Approvals

EG60.10 Rev. 10/14

EG60.10

Panco®Multiple Purpose Racks

Catalog Specification Sheet No.

TOP VIEW

Item No.:

Project No.:

S.I.S. No.:

Multiple Purpose Racks

®

Panco

FRONT VIEW

(model #MPR-12 shown)

overall dimensions universal

width depth height weight slides

model # in. mm in. mm in. mm lbs. kg supplied

3

MPR-10 25
MPR-12 253⁄16˝ 640 28˝ 711 693⁄8˝ 1762 81 36.7 12 sets

⁄16˝ 640 28˝ 711 693⁄8˝ 1762 71 32.2 10 sets

SIDE VIEW

Pan/Tray Sizes for Multiple Purpose Racks

width x depth

in. mm

107⁄8˝ x 276 193⁄4˝ x 502

7

⁄8˝ x 20˝ 302 x 508

11
12˝ x 20˝ 305 x 508
12˝ x 18˝ 305 x 457
14˝ x 18˝ 305 x 457
15˝ x 20˝ 381 x 508

width x depth

in. mm

20˝ x 20˝ 508 x 508

1

⁄2˝ x 201⁄2˝ 571 x 521

22
20˝ x 22˝ 508 x 559
18˝ x 26˝ 457 x 660
18˝ x 13˝ 457 x 330

EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: [phone] • Fax: [phone]
www.eaglegrp.com

Foodservice Division: Phone [phone]

©2014 by Eagle Group

MHC/Retail Display Divisions: Phone [phone]

Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com

Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for

typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
