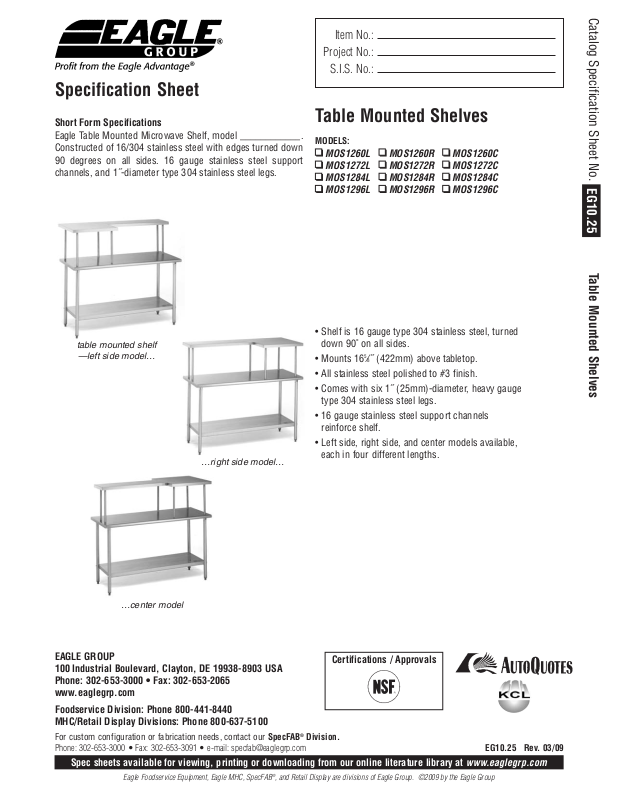

Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
Eagle Table Mounted Microwave Shelf, model ____________.
Constructed of 16/304 stainless steel with edges turned down
90 degrees on all sides. 16 gauge stainless steel support
channels, and 1˝-diameter type 304 stainless steel legs.
table mounted shelf
—left side model…
…right side model…
Table Mounted Shelves
MODELS:
MOS1260L
MOS1272L
MOS1284L
MOS1296L
• Shelf is 16 gauge type 304 stainless steel, turned
down 90˚ on all sides.
• Mounts 16
• All stainless steel polished to #3 finish.
• Comes with six 1˝ (25mm)-diameter, heavy gauge
type 304 stainless steel legs.
• 16 gauge stainless steel support channels
reinforce shelf.
• Left side, right side, and center models available,
each in four different lengths.
MOS1260R
MOS1272R
MOS1284R
MOS1296R
5
⁄8˝ (422mm) above tabletop.
MOS1260C
MOS1272C
MOS1284C
MOS1296C
EG10.25
Table Mounted Shelves
…center model
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2009 by the Eagle Group
Certifications / Approvals
EG10.25 Rev. 03/09
EG10.25
Table Mounted Shelves
TOP VIEW
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
LEFT SIDE MODELS
width length weight
model # in. mm in. mm lbs. kg
MOS1260L 12˝ 305 60˝ 1524 30 13.6
MOS1272L 12˝ 305 72˝ 1829 35 15.9
MOS1284L 12˝ 305 84˝ 2133 40 18.1
MOS1296L 12˝ 305 96˝ 2438 45 20.4
Table Mounted Shelves
FRONT VIEW
Note: 60˝ (1524mm) Left Side model shown.
For Right Side model, reverse the layout.
TOP VIEW
FRONT VIEW
SIDE VIEW
SIDE VIEW
RIGHT SIDE MODELS
width length weight
model # in. mm in. mm lbs. kg
MOS1260R 12˝ 305 60˝ 1524 30 13.6
MOS1272R 12˝ 305 72˝ 1829 35 15.9
MOS1284R 12˝ 305 84˝ 2133 40 18.1
MOS1296R 12˝ 305 96˝ 2438 45 20.4
CENTER MODELS
width length weight
model # in. mm in. mm lbs. kg
MOS1260C 12˝ 305 60˝ 1524 32 14.5
MOS1272C 12˝ 305 72˝ 1829 38 17.2
MOS1284C 12˝ 305 84˝ 2133 43 19.5
MOS1296C 12˝ 305 96˝ 2438 48 21.8
Note: 60˝ (1524mm) Center model shown
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
©2009 by Eagle Group
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
Printed in U.S.A.
Rev. 03/09
