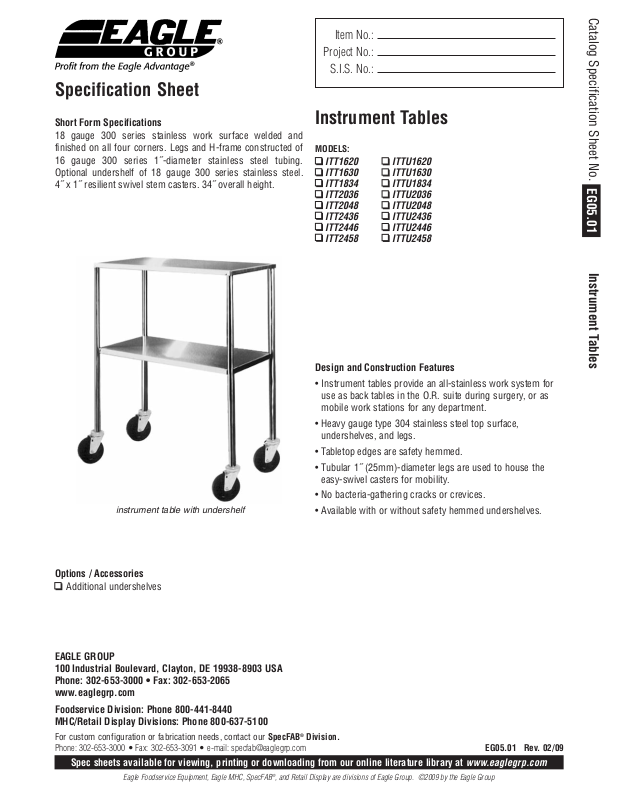

Specification Sheet
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
Short Form Specifications
18 gauge 300 series stainless work surface welded and
finished on all four corners. Legs and H-frame constructed of
16 gauge 300 series 1˝-diameter stainless steel tubing.
Optional undershelf of 18 gauge 300 series stainless steel.
4˝ x 1˝ resilient swivel stem casters. 34˝ overall height.
instrument table with undershelf
Instrument Tables
MODELS:
ITT1620
ITT1630
ITT1834
ITT2036
ITT2048
ITT2436
ITT2446
ITT2458
Design and Construction Features
• Instrument tables provide an all-stainless work system for
use as back tables in the O.R. suite during surgery, or as
mobile work stations for any department.
• Heavy gauge type 304 stainless steel top surface,
undershelves, and legs.
• Tabletop edges are safety hemmed.
• Tubular 1˝ (25mm)-diameter legs are used to house the
easy-swivel casters for mobility.
• No bacteria-gathering cracks or crevices.
• Available with or without safety hemmed undershelves.
ITTU1620
ITTU1630
ITTU1834
ITTU2036
ITTU2048
ITTU2436
ITTU2446
ITTU2458
EG05.01
Instrument Tables
Options / Accessories
Additional undershelves
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
For custom configuration or fabrication needs, contact our SpecFAB®Division.
Phone: 302-653-3000 • Fax: 302-653-3091 • e-mail: specfab@eaglegrp.com
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Eagle Foodservice Equipment, Eagle MHC, SpecFAB®, and Retail Display are divisions of Eagle Group. ©2009 by the Eagle Group
EG05.01 Rev. 02/09
EG05.01
Instrument Tables
Catalog Specification Sheet No.
Item No.:
Project No.:
S.I.S. No.:
TOP VIEW
Instrument Tables
SIDE VIEWFRONT VIEW
TABLES WITH TABLES WITH overall overall overall
H-BRACE UNDERSHELF width length height weight
model # model # in. mm in. mm in. mm lbs. kg
ITT1620 ITU1620 16˝ 406 20˝ 508 34˝ 864 25 11.3
ITT1630 ITU1630 16˝ 406 30˝ 762 34˝ 864 30 13.6
ITT1834 ITU1834 18˝ 457 34˝ 864 34˝ 864 33 15.0
ITT2036 ITU2036 20˝ 508 36˝ 914 34˝ 864 36 16.3
ITT2048 ITU2048 20˝ 508 48˝ 1219 34˝ 864 47 21.3
ITT2436 ITU2436 24˝ 610 36˝ 914 34˝ 864 39 17.7
ITT2446 ITU2446 24˝ 610 46˝ 1168 34˝ 864 50 22.7
ITT2458 ITU2458 24˝ 610 58˝ 1473 34˝ 864 59 26.8
EAGLE GROUP
100 Industrial Boulevard, Clayton, DE 19938-8903 USA
Phone: 302-653-3000 • Fax: 302-653-2065
www.eaglegrp.com
Foodservice Division: Phone 800-441-8440
MHC/Retail Display Divisions: Phone 800-637-5100
Spec sheets available for viewing, printing or downloading from our online literature library at www.eaglegrp.com
Although every attempt has been made to ensure the accuracy of the information provided, we cannot be held responsible for
typographical or printing errors. Information and specifications are subject to change without notice. Please confirm at time of order.
©2009 by Eagle Group
Printed in U.S.A.
Rev. 02/09
