Dynex DX-15L150A11 User Manual

Download

15", 19", 22" LCD TV

DX-15L150A11 DX-19L150A11 DX-22L150A11

USER GUIDE

Dynex 15", 19", and 22" LCD TVs

Contents

CHILD SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installing and removing the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installing the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Installing a wall-mount bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

TV components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Using the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installing remote control batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Aiming the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Programming a universal remote control to work with your TV . . . . . . . . . .8

Making connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Selecting a location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Connecting the power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Connecting an HDMI device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Connecting a component video device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Connecting an antenna, cable TV, or satellite TV box via coax . . . . . . . . . 10

Connecting a VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting a camcorder or game console . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Connecting a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Connecting a home theater system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Turning on your TV for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Understanding the basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Turning your TV on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Selecting the video input source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Selecting a channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Displaying program information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

On-screen menu overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Navigating the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Adjusting basic settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adjusting the picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Adjusting the TV picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adjusting the computer image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Setting the component image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Adjusting the sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Adjusting the sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Playing TV audio only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Changing channel settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Automatically scanning for channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Hiding and adding channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Setting up a favorite channel list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Displaying the TV Channels List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Adding or changing a channel label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Checking digital TV signal strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Setting parental controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Setting or changing the password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Setting parental control levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using closed captioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Turning closed captioning on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Selecting the closed captioning mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Customizing digital TV closed captioning styles . . . . . . . . . . . . . . . . . . . . . . . 24

Adjusting time settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Setting the sleep timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Adjusting menu settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Selecting the menu language and transparency . . . . . . . . . . . . . . . . . . . . . . 26

Labeling an input source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Restoring default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Video and audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

iii

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Cleaning the TV cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Cleaning the TV screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Legal notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

One-year limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

US and Canada Markets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Mexico Market . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

The issue

The home theater entertainment experience is a growing trend, and larger TVs are popular purchases. However, TVs are not always supported on the proper stands or installed according to the manufacturer’s recommendations. We and the consumer electronics industry are committed to making home entertainment enjoyable and safe.

TVs that are inappropriately placed on dressers, bookcases, shelves, desks, speakers, chests, or carts may fall over and cause injury.

DX-15L150A11/DX19L150A11/DX-22L150A11

CHILD SAFETY

It makes a difference how and where you use

your flat panel display

As you enjoy your new product, keep these

safety tips in mind

Tune into safety

• One size of TV stand does not fit all. Use only a TV stand

rated for the weight of your TV.

• Carefully read and understand all enclosed instructions for

proper use of this product.

• Don’t let children climb on or play with entertainment system

furniture and TVs.

• Don’t place TVs on furniture that can easily be used as

steps, such as a crate or chest of drawers.

• Remember that children can become excited while watching

a program, especially on a “larger-than-life” TV. Make sure that you place or install the TV where it cannot be pushed, pulled over, or knocked down.

• Make sure that you route all cords and cables so that they

cannot be pulled or grabbed by curious children.

Wall mounting

If you decide to wall mount your TV, always remember:

• One size of wall mount does not fit all. Use only a w all mount rated for the weight of your

TV and that has been recommended by this TV manufacturer, listed in this manual, or otherwise listed by an independent laboratory as suitable for your TV.

• Follow all instructions supplied by the TV and wall mount manufacturers.

• If you have any doubts about your ability to safely wall mount your TV, get help from a

professional installer.

• Make sure that the wall where you are mounting the TV is

appropriate. Some wall mounts are not designed to be mounted to walls backed with steel studs or cinder blocks. If you are unsure, ask a professional installer.

• TVs can be heavy. At least two people are required for safe wall mount installation.

Important safety instructionsDX-15L150A11/DX19L150A11/DX-22L150A11

Important safety instructions

CAUTION RISK OF ELECTRIC

SHOCK DO NOT OPEN

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your TV. This label is located on the back of your TV.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your TV.

1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with a dry cloth. 7 Do not block any ventilation openings. Install in accordance with

the manufacturer's instructions.

8 Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the manufacturer. 12 Use only with a cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when unused

for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15 The wall plug is the disconnecting device. The plug must remain

readily operable.

16 An apparatus with a three-prong, grounding-type plug is a Class I

apparatus, which needs to be grounded to prevent possible electric shock. Make sure that you connect this Class I television to a grounding-type, three-prong outlet.

17 Remote control batteries should not be exposed to excessive heat

such as sunshine, fire, or the like.

3125A

18 The apparatus should not be exposed to dripping or splashing,

and no objects filled with liquids, such as vases, should be placed on the apparatus.

Warnings

Electric shock hazard

To reduce the risk of fire or electric shock, do not remove any cover or expose the device to rain or moisture. No user-serviceable parts are inside. Refer servicing to qualified service technicians.

Lightning

For added protection for your device receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect any antenna or cable system. This helps prevent property damage and personal injury from lightning and power line surges.

Power lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Handling the LCD panel

• Your TV’s screen is made of glass. Do not drop your TV or hit, jolt, or press hard against the LCD panel. If the screen breaks, be careful of broken glass.

• If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation.

• If the liquid gets in your mouth, immediately gargle, rinse, and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.

Replacement parts

When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.

Safety check

After completing any service or repair to this device, ask the service technician to per form routine safety checks to determine that your TV is in correct operating condition.

Power source

Operate your TV only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult an electrician or your local power company.

Cautions

Damage requiring service

Unplug this TV from the power outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged or frayed.

• If liquid has been spilled or objects have fallen into your TV.

• If your TV has been exposed to rain or water.

Important safety instructions

DX-15L150A11/DX19L150A11/DX-22L150A11

• If your TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions because incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore your TV to its normal operation.

• If your TV has been dropped or damaged in any way.

• When your TV exhibits a distinct change in performance.

Outdoor antenna grounding

If an outside antenna or cable system is connected to your TV, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to correct grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of the antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

1 2

3 4

End of life directives

Your TV contains tin-lead solder and a fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated for environmental reasons. Your TV also contains material that can be recycled and reused. For disposal or recycling information, contact your local authorities or the Electronic Industries Alliance at www.eia.org to find a recycler in your area.

Non-active pixels

The LCD panel contains almost 3 million thin film transistors, which provide exceptionally sharp video quality. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green, or red point. These non-active pixels do not adversely affect the performance of your TV, and are not considered defects.

Antenna lead-in wire

Grounding clamp

Antenna discharge unit

Grounding conductors

Ground clamps

Power service grounding electrode

system

Electric service equipment

Note to CATV system installer

Article 820 of the National Electrical Code, ANSI/NFPA No. 40 provides guidance for correct grounding. Specifically, it states that the cable ground must be connected to the grounding system of the building as close to the point of cable entry as practical.

Condensation

Moisture will form on the TV if the TV is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, the TV's performance may be impaired. To prevent this, let the TV stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.

Condensation may also form during the summer if the TV is exposed to the breeze from an air conditioner. In such cases, change the location of the TV.

Mobile telephone warning

To avoid interference with your TV picture and sound, operating problems, or even damage, keep your cordless and cellular telephones away from the TV.

Installing and removing the standDX-15L150A11/DX19L150A11/DX-22L150A11

Installing and removing the stand

You must install your TV into the stand in order for it to stand upright on a cabinet or other flat surface. If you intend to mount your TV on a wall or other vertical surface, you must remove the stand column.

Cautions

• Read these instructions carefully before you try to assemble the stand or remove the stand column.

• Make sure that you handle the TV carefully when attempting to assemble or remove the stand. If you are not sure of your ability to do this, contact a professional installer or service technician. Dynex is not responsible for any damages or injuries that occur because of mishandling or incorrect assembly.

• Use a soft cushion or covering to prevent scratching or damage to the TV screen or cabinet.

• Before assembly or removal of the stand, unplug the power cord.

Installing the stand

Note: Your TV may differ from the illustrations shown.

To install the stand:

1 Lay the TV on a flat, cushioned surface. 2 Align the stand with the TV, as shown in the following

illustration.

Installing a wall-mount bracket

Warn ing: These instructions are for use by qualified service personnel

only. To reduce the risk of hazards, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

To install a wall-mount bracket:

1 Lay your TV on a flat, cushioned surface. 2 Remove the three screws holding the stand column to the TV,

then remove the stand column.

3 Carefully align and insert the base into the stand until the locking

mechanism clicks into place.

3 Insert and lock the standoff screws (provided) into the four holes

on the back of your TV, as shown in the following illustration.

TV components

DX-15L150A11/DX19L150A11/DX-22L150A11

4 Sec ure th e wall -mount br acket to the back of yo ur TV by screwing

four M4 screws (not provided) into the standoff screws you just installed.

For 15” TV only

For 19” and 22” TVs only

75 mm

100 mm

M4 screws

75 mm

M4 screws

100 mm

TV components

Accessories

Make sure the following accessories are included in the box with your TV:

• Remote control

• Component video cable and audio cable L and R

•AC power cord

• AAA batteries (2)

•Stand

• Quick Start Guide

• Standoff screws (4) for wall mounting

Front

Item Name Description

In TV mode, press to increase the volume.

VOL +

VOL -

INPUT

(power)

In menu mode, press to move right or to adjust menu settings.

In TV mode, press to decrease the volume. In menu mode, press to move left or to adjust

menu settings.

In TV mode, press to select the next channel. In menu mode, press to move up.

In TV mode, press to select the previous channel.

In menu mode, press to move down.

Press to open the on-screen menu.

Press to open the INPUT SOURCE menu. For more information, see “Selecting the video input source” on page 13.

Press to turn on th e TV or put the T V in standby mode.

Caution: The TV continues to receive power even in standby mode. Unplug the power cord to disconnect power.

1 2

5 6

Back Side

4 5

TV componentsDX-15L150A11/DX19L150A11/DX-22L150A11

1 2

ANT/CABLE IN

Item Name Description

AV IN 1 S-VI DEO

jack

SPDIF

ANT/CABLE IN

jack

PC IN VGA

connection

HDMI jack

PC/DVI AUDIO IN

jack

AV1 IN VIDEO

jack

AV1 IN AUDIO L

and R jacks

COMPONENT

AUDIO IN jacks

COMPONENT Y/Pb/Pr jacks

Connect an S-Video device to this jack. For more information, see “Connecting a VCR” on page 10 for an example of the connection.

Connect a digital optical cable to this connector, then to a digital sound system. For more information, see “Connecting using digital audio cable” on page 12.

Connect an antenna or cable TV to this jack. For more information, see “Connecting an antenna, cable TV, or satellite TV box via coax” on page 10.

Connect a computer to this connector. For more information, see “Connecting a computer” on page 11.

Connect an HDMI device to this jack. For more information, see “Connecting a computer” on page 11.

Connect the audio output from a computer to this jack. For more information, see “Connecting a computer” on page 11.

Connect the video from a standard AV device, such as a camcorder or game console, to this jack. For more information, see “Connecting a camcorder or game console” on page 11.

Connect the audio from a standard AV device, such as a camcorder or game console, to these jacks. For more information, see “Connecting a camcorder or game console” on page 11.

Connect the audio from a component video device to these jacks. For more information, see “Connecting a component video device” on page 9.

Connect the video from a component video device to these jacks. For more information, see “Connecting a component video device” on page 9.

6 7

Item Name Description

SERVICE PORT

AV2 IN VIDEO

jack

AV2 IN AUDIO L and R jacks

(headphone)

jack

For software updates only. Do not use.

Connect the video from a standard AV device, such as a camcorder or game console, to this jack. For more information, see “Connecting a camcorder or game console” on page 11.

Connect the audio from a standard AV device, such as a camcorder or game console, to these jacks. For more information, see “Connecting a camcorder or game console” on page 11.

Plug headphones into this jack. For more information, see “Connecting headphones” on page 12.

TV components

DX-15L150A11/DX19L150A11/DX-22L150A11

Remote control

5 6

7 8

10 11

12 13

Item Name Description

Press to turn on the TV or put the TV in standby mode.

POWER

INPUT

Numbers/-

INFO

Caution: The TV continues to receive power even in standby mode. Unplug the power cord to disconnect power.

Press to open the INPUT SOURCE menu. For more information, see “Selecting the video input source” on page 13.

Press the number buttons to enter channel numbers or the parental control password.

Press “-” to enter a digital sub-channel number. For moreinformation, see “Selecting a channel” on page 13.

Press to display the information banner. For more information, see “Displaying program information” on page 14.

20 21

Item Name Description

Press or to move up or down in on-screen

ENTER

MUTE

VOL+ / VOL–

COMP/HDMI/ VIDEO/TV/

VGA

SLEEP

ZOOM


RECALL

GUIDE

EXIT

CH / CH

FAVO RI TE

MTS/SAP

CH-LIST

CCD

AUDIO

menus.

Press or to move left or right in on-screen menus or to adjust menu settings.

Press to confirm selections in on-screen menus or to open sub-menus.

Press to open the on-screen menu.

Press to mute the sound. Press again to restore the sound.

Press to increase or decrease the volume.

Press to select the input source:

• Press COMP to select component input.

• Press HDMI repeatedly to cycle between the HDMI input.

• Press VIDEO repeatedly to cycle between the AV and S-Video inputs.

• Press TV to switch to TV mode.

• Press VGA to view a computer connected to the TV.

Press to set the sleep timer. For more information, see “Setting the sleep timer” on page 26.

Press to select the screen aspect ratio. You can select Auto, Normal, Zoom, Wide, and Cinema. For more information, see “Adjusting the TV picture” on page 15.

Press to select the picture mode. You can select

Vivid, Standard, Theater, Sports, Energy Saving, and Custom. For more information, see

“Adjusting the TV picture” on page 15.

Press to go to the last viewed channel. For more information, see “Selecting a channel” on page 13.

Press to open the DTV program guide (if available). For more information, see “Displaying program information” on page 14.

Press to close the on-screen menu.

Press to go to the next or previous channel in the channel list. For more information, see “Automatically scanning for channels” on page 18 and “Selecting a channel” on page 13.

Press to open the favorite channel list. For more information, see “Setting up a favorite channel list” on page 19.

In analog TV mode, press to select STEREO, SAP (secondary audio language), or MONO.

In digital TV mode, press to select the audio track (language). For more information, see “Adjusting the sound” on page 17.

Press to open the channel list. For more information see “Selecting a channel” on page 13.

Press to turn closed captioning on or off. For more information, see “Turning closed captioning on or off” on page 24.

Press to select the audio mode. You can select Standard, Theater, Music, News, or Custom when the Equalizer option is turned On more information, see "Adjusting the sound" on page 17.

. For

Using the remote controlDX-15L150A11/DX19L150A11/DX-22L150A11

Using the remote control

Installing remote control batteries

To install remote control batteries:

1 Press down on the battery compartment cover lock, then remove

the remote control cover.

2 Insert two AAA batteries into the battery compartment. Make

sure that the + and – symbols on the batteries match the + and – symbols in the battery compartment.

3 Replace the cover. Make sure that the lock snaps into place.

Battery precautions:

• Dispose of batteries as hazardous waste.

• Do not mix batteries of different types.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and can cause old batteries to leak.

• Remove batteries as soon as they become inoperable. Chemicals that can leak from the batteries can cause a rash. If the batteries leak, clean the battery compartment with a cloth.

• If the remote control is not used for an extended period of time, remove the batteries.

• Do not expose batteries to excessive heat such as sunshine, fire, or other heat sources.

Aiming the remote control

To aim the remote control:

• Point the remote control towards the remote sensor on the front of your TV.

Notes:

• Do not expose the remote control to shock or liquids.

• Do not use the remote control in an area with high humidity.

• D o not place the remote control in direct su nlight.

• Do not place objects, such as furniture, between the remote control and the remote sensor.

• The remote control may not work if direct sunlight or bright light shine s on the rem ote sensor. Eit her move you r TV or ch ange the a ngle at which you use the remote control.

Programming a universal remote control to work with your TV

You can program a universal remote to control your TV.

To program your existing universal remote control:

1 To program your existing remote control to work with you r Dynex

TV, see the table below for common codes. If you have problems programming your remote, or need a different remote control code, visit www.dynexproducts.com for the latest remote control code information.

Dynex TV codes for universal remote controls (for all Dynex TVs manufactured after Jan. 1, 2007)

Universal remote control manufacturer and model

Philips PHDVD5, PH5DSS, PMDVR8, PDVR8

115 135 0464 8043

Set-top box manufac turer and model

Comcast M1057

0463 720 0463 0091 10463

RCA RCU807

Dish Network

VIP508, VIP622

Codes for other remote controls are available online at: http://www.dynexproducts.com/universalcontrolcodes.aspx

Tips:

• The brand name is often visible on the front of the universal remote control, and the model number is often visible on the back.

• The codes shown above are common codes, but are subject to change. Please refer to Dynexproducts.com for the most up to date codes.

• If your universal remote control isn’t listed on the chart, refer to your universal remote control’s instructions and try codes for the brands Orion, Emerson, Memorex, Sansui, Sylvania, or Zenith. You may need to try several codes before finding a match.

2 Follow your universal remote control’s instructions to enter the

code you found in Step 1.

Tips:

• If your universal remote control has a code search feature, run a code search to identify a code that matches your TV. See your universal remote control’s instructions for details.

• If your universal remote control has a “learn” feature, you can manually program it using your TV remote to “teach” the commands one at a time. See your universal remote control’s instructions for details.

3 If all else fails, you must use a different universal remote control

that can operate both your set-top box and your TV. Five such remotes are listed on the chart, but many other compatible models are available in the market.

For more help, call technical support for your universal remote control or set-top box manufacturer, or call the Dynex Customer Care Center in the US & Canada at 1-800-305-2204, and in Mexico at 01-800-926-3020.

One for All URC-6690

Motorola DRC800

Sony RM-VL600

TIVO Series 3, HD

DirectTV RC23

Making connections

DX-15L150A11/DX19L150A11/DX-22L150A11

Making connections

Before you make any connections:

• Check the plugs on the ends of cables to make sure that they are the correct type before you try plugging them into jacks on the TV.

• Make sure that all plugs are securely inserted into the jacks. Loose connections can result in image or color problems.

• When connecting devices to the TV, make sure that the TV and the device are turned off and that the power cords are unplugged.

Selecting a location

You should select a location for the TV:

• Where direct light does not reflect on the screen

• That has indirect and soft lighting

• Where the TV has access to an antenna or cable TV connection

• Where the TV has access to a power outlet

Note: Watching TV in total darkness or with a reflection on the screen

may cause eye strain.

Connecting the power

To connect the power cord:

• Connect the power cable to the AC IN jack on the back of the TV, then connect the other end to a power outlet.

Power o utlet

Power cord

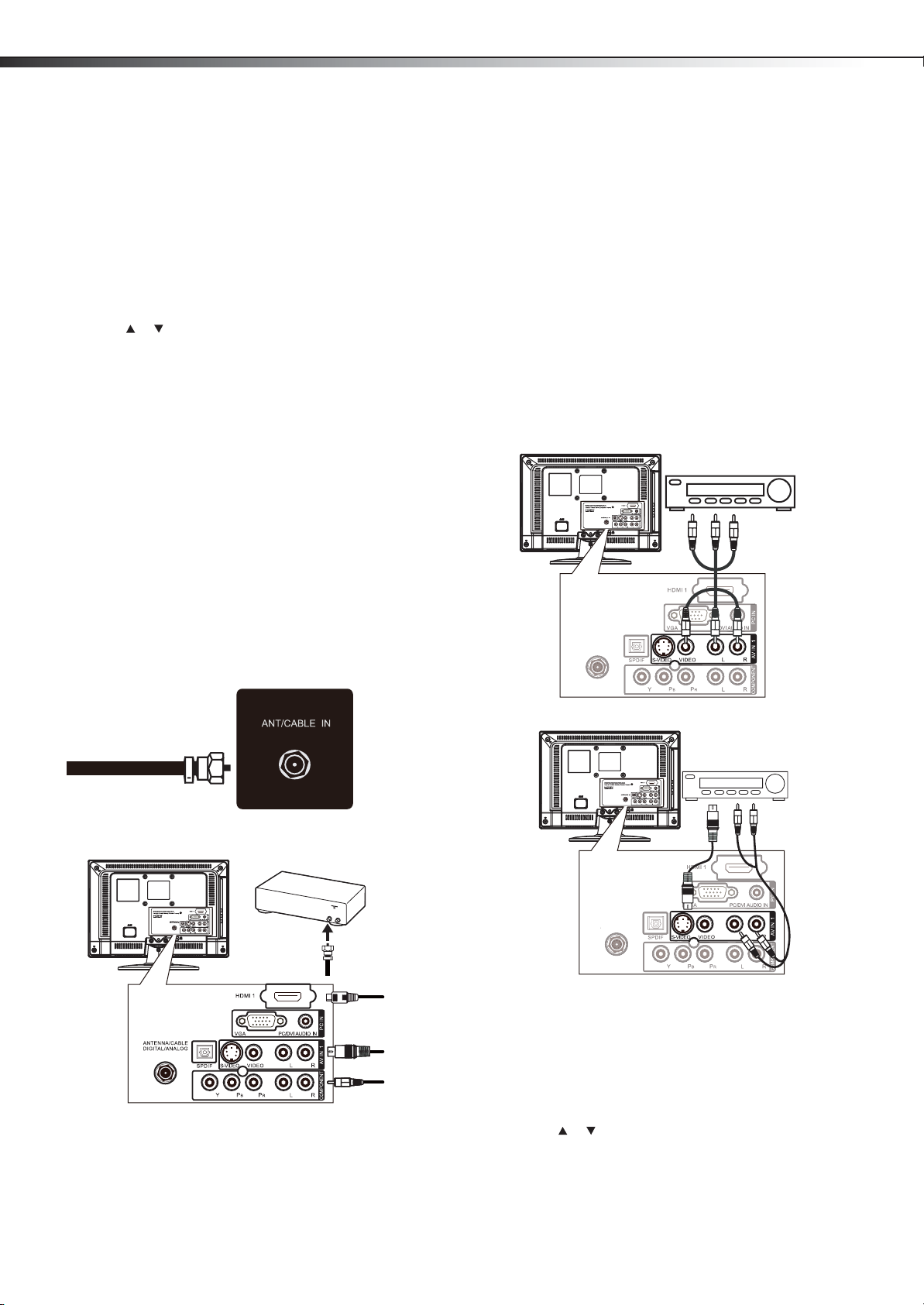

Connecting an HDMI device

Note: If your device has an HD MI connec tion, we reco mmend you u se that

to get the best quality possible.

To connect an HDMI device:

• Connect one end of an HDMI cable (not included) to the HDMI jack on the back of your TV, then connect the other end of the cable to the HDMI OUT jack on the HDMI device.

Back of TV

ANT/CABLE INANT/CABLE I

Note: To connect a DVI device, use a DVI to HDMI adapter cable to connect

to the HDMI jack on the TV, then connect an audio cable to the PC/DVI AUDIO IN jack on the back of the TV.

To play from the HDMI device:

1 Turn on the TV, then press INPUT. The INPUT SOURCE menu

opens.

2 Press or to select HDMI, then press ENTER.

Note: You can also press HDMI once to select HDMI.

HDMI device

HDMI cable

Notes:

• The AC plug on the TV may be different from the one shown.

• Make sure that you only use the type of power source indicated on the marking label.

• Always unplug the power cord when not using the TV for a long period of time.

3 Turn on the HDMI device, then set it to the correct mode. Refer to

the instructions that came with the HDMI device.

Connecting a component video device

Component cables often have red, green, and blue color-coded video connectors and red and white audio connectors. Match the colors when making connections.

To connect a component video device:

1 Make sure that your TV’s power cord is unplugged and the

component video device is turned off.

2 Connect a component video cable to the COMPONENT OUT jacks

on the component video device.

Back of TV

Component video device

Component video cable

ANT/CABLE INANT/CABLE I

Audio cab le

Making connectionsDX-15L150A11/DX19L150A11/DX-22L150A11

3 Connect the other end of the component video cable to the

COMPONENT Y/Pb/Pr jacks on the back of your TV.

4 Connect an audio cable to the AUDIO OUT jacks (L/R) on the

component device.

5 Connect the other end of the audio cable to the

COMPONENT AUDIO-R and AUDIO-L jacks on the back of

your TV.

To play from the component video device:

1 Turn on the TV, then press INPUT. The INPUT SOURCE menu

opens.

2 Press or to select Component, then press ENTER.

Note: You can also press COMP to select Component.

3 Turn on the component video device and start playback. Refer to

the instructions that came with the component video device.

Connecting an antenna, cable TV, or satellite TV box via coax

• If you are connecting a satellite TV or cable box, you can use one of the following (if available):

• Best - HDMI cable

• Better - Video component cables

• Better - S-Video cable

• Good - Video composite cable

• Acceptable - 75-ohm coaxial cable.

To connect an antenna, cable TV, or satellite TV box:

• Connect one end of a 75-Ohm, coaxial cable to the RF jack on the back of the TV, then connect the other end of the cable to the antenna or cable TV wall jack.

Back of TV

Connecting a VCR

Note: If the VCR has an HDMI jack (best), component jacks (better), or an

S-Video jack (good), connect the VCR using the best available connection.

To connect a VCR:

1 Make sure that your TV’s power cord is unplugged and the VCR is

turned off.

2 Connect one end of a standard AV cable (not included) into the

AV IN 1 VIDEO jack on the back of the TV, then connect the other

end of the cable to the AV OUT VIDEO jack on the VCR.

-ORFor a better picture, you can connect an S-Video cable to the

S-VIDEO OUT jack on the VCR and the S-VIDEO jack on your TV.

Note: Cables are often color-coded to connectors. Connect yellow to yellow, red to red, and white to white.

Back of TV

ANT/CABLE INANT/CABLE I

Video cab le

VCR

Audio cable

To wall jack

75-Ohm coaxial cable

Back of TV

Cable box or satellite receiver

75-Ohm coaxial cable

ANTENNA

OUT

HDMI

Video or S-Video

Component

Notes:

• We recommend using a 75-Ohm, coaxial cable to reduce interference and noise that may be caused by radio wave transmissions.

• Do not bundle the coaxial cable with the power cord or any other cables.

• If you are using an antenna and reception is not good, contact a service technician to adjust the antenna.

Back of TV

VCR

S-Video cable

ANT/CABLE INANT/CABLE I

Audio cab le

3 Connect the audio connectors of the AV cable (the red and white

connectors) to the AV OUT AUDIO jacks of the VCR, then connect them to the AV IN 1 AUDIO-L and AUDIO-R jacks on the back of your TV.

To play the VCR:

1 Turn on the TV, then press INPUT. The INPUT SOURCE menu

opens.

2 Press or to select AV1 or S-Video, then press ENTER.

Note: You can also press VIDEO once to select AV1 or three times for

S-Video.

3 Turn on the VCR, insert a videotape, then press PLAY on the VCR.

Making connections

DX-15L150A11/DX19L150A11/DX-22L150A11

Connecting a camcorder or game console

Note: If your game console has an HDMI connection, you will get better

quality using the HDMI connection instead of the AV connection.

To connect a camcorder or game console:

1 Make sure that your TV’s power cord is unplugged and the

camcorder or game console is turned off.

2 Connect one end of a standard AV cable (not included) into the

AV I N 2 VIDEO jack on the side of your TV, then connect the other

end of the cable to the AV OUT VIDEO jack on the camcorder or game console.

Game console

Side of TV

Camcorder

Connecting a computer

Note: If your computer has an HDMI connection, you will get better

quality using the HDMI connection instead of the PC IN VGA connec tion.

To connect a computer:

1 Make sure that your TV’s power cord is unplugged and the

computer is turned off.

2 Connect one end of a VGA cable (not included) to the PC IN VGA

jack on the back of the TV, then connect the other end of the cable to the VGA jack on the computer.

Back of TV

ANT/CABLE INANT/CABLE I

AV ca ble

Note: Cable connectors and jacks are of ten color-coded. Match the colors

when you connect the AV cable.

3 Connect the audio connectors of the AV cable (the red and white

connectors) to the AV OUT AUDIO jacks of the camcorder or game console, then connect them to the AV IN 2 AUDIO-L and

AUDIO-R jacks on the side of your TV.

To playback the camcorder or play the game console:

1 Turn on the TV, then press INPUT. The INPUT SOURCE menu

opens.

2 Press or to select AV2, then press ENTER.

Note: You can also press VIDEO twice to select AV2.

3 Turn on the camcorder or game console, then follow the

instructions that came with the device to play from the camcorder or game console.

VGA cable

Audio cab le

3 Connect one end of an audio cable (not included) to the

PC/DVI AUDIO IN jack on the back of the TV, then connect the other end of the cable to the AUDIO OUT jack on the computer.

Note: The audio cable should have a stereo mini-plug.

To play video from the computer:

1 Turn on the TV, then press INPUT. The INPUT SOURCE menu

opens.

2 Press or to select VGA, then press ENTER.

Tip: You can also press the VGA button on the remote for VGA.

3 Turn on the computer, then adjust the computer display

properties as needed.

Note: When the computer enters standby mode, your TV turns off. If your

TV does not turn on when you “wake” your computer, press (power) on your TV or remote control.

Computer

Turning on your TV for the first timeDX-15L150A11/DX19L150A11/DX-22L150A11

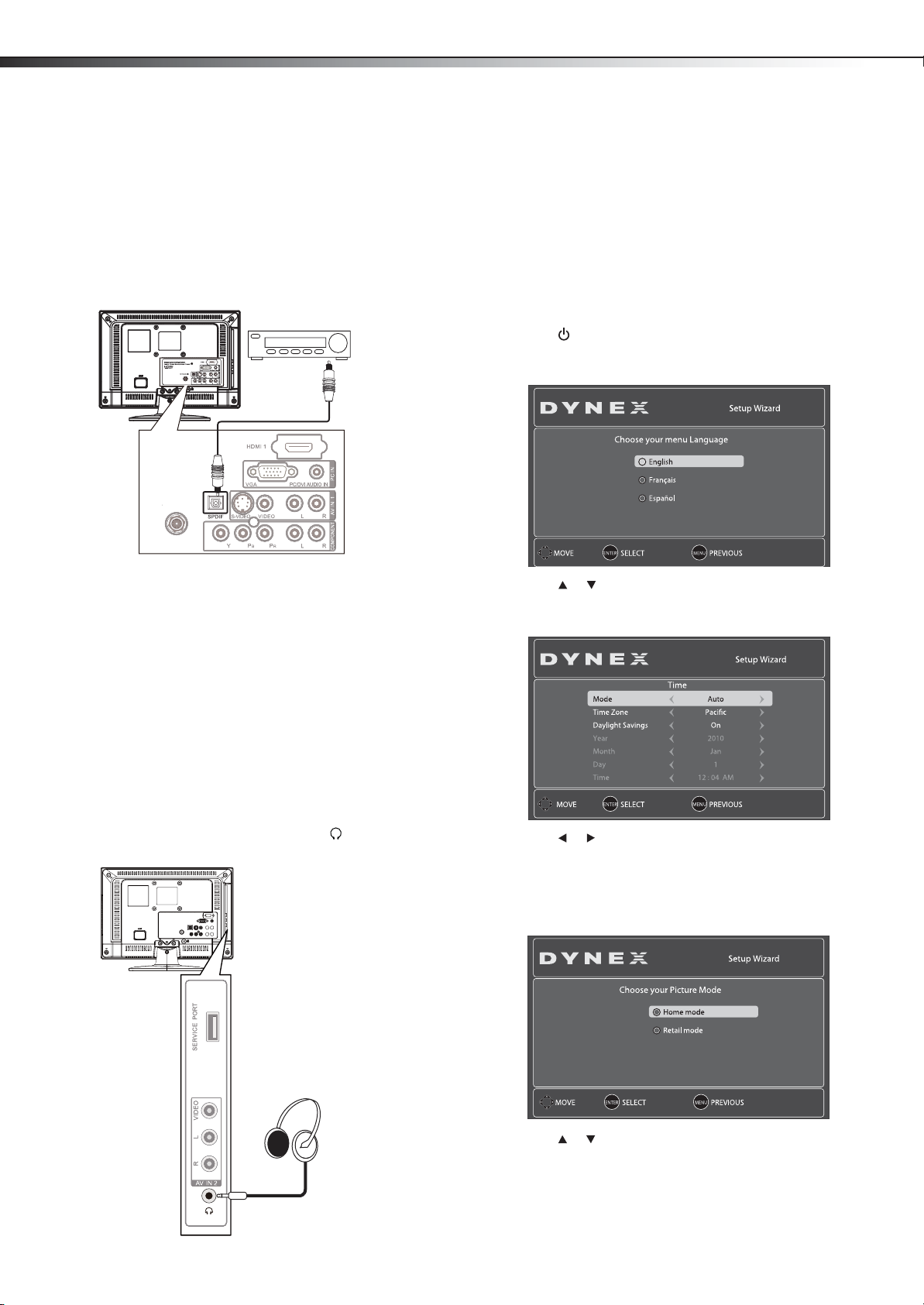

Connecting a home theater system

Connecting using digital audio cable

To connect using digital audio cable:

1 Make sure that your TV’s power cord is unplugged and the home

theater system is turned off.

2 Connect one end of a digital optical audio cable (not included) to

the DIGITAL OUTPUT jack on the back of the TV.

Back of TV

Audio amplifier

Digital audio cable

ANT/CABLE INANT/CABLE I

3 Connect the other end of the audio cable to the digital audio in

jack on the home theater system.

Note: The DIGITAL OUTPUT jack only works with digital TV channels.

Turning on your TV for the first time

The first time you turn on your TV, the Setup Wizard opens. The Setup Wizard guides you through setting up basic settings including the menu language, time mode, picture mode, and TV signal source.

To configure your TV:

1 Make sure that you have inserted the batteries in the remote

control, connected your devices to the TV, and connected the AC power.

2 Press (Power), then wait several seconds. The initial Setup

Wizard opens (only the first time you turn on your TV) to the Choose your menu language screen.

3 Press or to select English, French, or Spanish, then press

ENTER to confirm. The Ti me screen opens with Mode

highlighted.

To play TV sound through a home theater system:

1 Turn on the TV and select a program to watch. 2 Turn on the home theater system and select the TV sound source,

then adjust the volume to a comfortable level.

Connecting headphones

Warn ing: When using headphones, adjust the headphone volume to

avoid excessively loud volume which can damage your hearing.

To connect headphones:

• Plug the headphones (not included) into the (headphone) jack on the side of the TV.

4 Press or to highlight Auto or Manual time mode, then

press ENTER. The Choose your Picture Mode screen opens.

Note: If the time mode is set to Auto, the date and time are set based on a

time signal received from a DTV channel and the only options you can adjust are Time Z one and Daylight Savings.

5 Press or to select Home mode or Retail mode, then press

ENTER to confirm. If you chose Home mode (default - has the same settings as the

Energy Savings picture mode), the Choose your TV source screen opens. If you chose Retail mode (has the same settings as the Vivid picture mode), you will be asked whether you really want

this mode, because no energy savings will be realized with your TV in this mode.

Understanding the basics

6 Press or to select Antenna, Cable, or Cable/Satellite

Box, depending on the type of connection you have.

• If you are using an antenna for a standard or HD TV signal, select Antenna.

• If your cable is connected directly to the TV (without a tuner box), select Cable.

• If your cable is connected to your TV through a tuner box, select Cable/Satellite Box.

If you selected Antenna or Cable, your TV automatically scans for available channels in your area and stores the channel information in the channel list. This may take several minutes. While scanning, the TV displays a progress report.

– OR – If you selected Cable/Satellite Box, the auto scan is not

necessary and will not appear.

Note: During auto scan, digital programs will be scanned first, then

analog programs. When all available digital programs have been searched, the screen will ask you to “Press EXIT if you don’t need analog channel scan.” At this point you can press EXIT to exit the analog channel scan, or just ignore it and the TV will go on scanning.

You c an p ress EXIT at any time to stop the auto scan, but you will need to

run the auto scan again to create a channel list.

7 Select the corresponding video input source through the INPUT

SOURCE menu.

Note: You can change the menu language or scan for channels at a later

date. For more information, see “Selecting the menu language and transparency” on page 26 or “Automatically scanning for channels” on page 18.

DX-15L150A11/DX19L150A11/DX-22L150A11

Selecting the video input source

To select the video input source:

1 Turn on your TV, then press the INPUT key on the remote, or the

INPUT button on the TV. The INPUT SOURCE list opens.

2 Press or to highlight the video source, then press ENTER.

You can also select the input source using the following remote control buttons:

• TV—Press to switch to TV mode.

• VIDEO—Press to toggle between AV 1 (or S-Video) and AV 2 inputs.

• COMP—Press to select the Component input.

• HDMI–Press to select the HDMI input.

• VGA—Press to view a computer connected to the TV.

Selecting a channel

To select a channel:

• Press CH or CH to go to the next or previous channel.

• Press the number buttons to enter the channel number you want, then wait for the channel to change, or press ENTER to change the channel immediately.

• To select a digital channel, press the number buttons to select the main digital channel, then press the hyphen (-) button, then the number buttons again to select the sub-channel. Wait for the channel to change or press ENTER to change the channel immediately. For example, enter 13, then - (hyphen), then 1 to go to channel 13.1.

Note: Button presses must be within three seconds of each other.

Understanding the basics

Turning your TV on or off

To turn your TV on or off:

1 Plug the power cord into an AC power outlet. 2 Press (power). Your TV turns on and the power indicator LED

turns blue.

3 Press again to turn off your TV. When you turn off your TV, it

goes into standby mode and the power indicator LED turns red.

Warn ing: When your TV is in standby mode, it is still receiving power. To

completely disconnect power, unplug the power cord.

Note: If your TV does not receive an input signal for 15 minutes, it

automatically goes into standby mode.

• Press RECALL to go to the last channel viewed.

• Press FAVO RITE to display a list of your saved favorite channels, press or to select the channel you want from the list, then press ENTER to go to that channel.

Note: If the list has more than one page, press or to scroll through

the pages.

Adjusting the volume

To a djust the vo lum e:

• Press VOL+ or VOL– to increase or decrease the volume.

• Press MUTE to temporarily turn off speaker sound. Press MUTE again to restore the sound.

Understanding the basicsDX-15L150A11/DX19L150A11/DX-22L150A11

Displaying program information

To display program information:

• Press INFO to show an information banner. The information banner shows current program information such as channel number, video input source, and resolution.

• Digital signal information—Displays channel number, station name, channel label (if present), broadcast program name, TV rating, signal type, audio information, resolution, CC mode, current time, and current program start and end times when watching a digital channel.

• Analog signal information—Displays channel number, channel label (if preset), signal type, audio information, and resolution when watching an analog channel.

• Press GUIDE to show the digital program guide, which may show a list of available programs, program times, and program summaries, depending on the information provided by the broadcaster.

Settings menu

Channel menu

On-screen menu overview

Picture menu

Audio menu

Notes:

Depending on the signal source selected, you may see different options on

your screen. The above menus are shown in TV mode.

Menu items that are not selectable are grayed out. Menus in this manual

are described in TV mode, unless otherwise indicated.

The illustrations and screens shown in the manual are for explanation

purposes and may vary from the actual screens on your TV.

Navigating the menus

Press to display the Main menu.

Press to select menus, to adjust selected items, or move on-screen cursor left or right.

Press to select the menu items.

Press to confirm your selection or enter a sub-menu.

Press to return to the previous screen.

Press to close the menu.

Adjusting the picture

DX-15L150A11/DX19L150A11/DX-22L150A11

Adjusting basic settings

To adjust basic settings:

1 Press MENU. The PICTURE menu opens.

2 Press or to highlight SETTINGS. The Settings menu opens.

3 Press or to highlight an option, then press ENTER to enter

the sub-menu. You can select:

• Parental Controls—Control which programs/movies your children can watch, based on industry ratings.

• Closed Caption—Turn closed captioning on or off. Also lets you set closed caption options.

• Time—Set the clock and sleep timer.

• Menu Settings—Set menu language and menu transparency.

• Input Labels—Create a unique name for a device connected to your TV’s input jacks.

• Computer Settings—Adjust picture settings to optimize a computer display. (This menu becomes available only when a computer display is connected to the television.)

• Component Settings—Adjust picture phase (to minimize horizontal distortion and reset component settings to factory default.

4 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Adjusting the picture

Adjusting the TV picture

To adjust the picture:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight an option, then press or to adjust

the option. You can select:

• Mode—Selects the picture mode. You can select:

• Vivid (a bright and vivid picture)

• Standard (a standard picture)

• Theater (a finely detailed picture)

• Sports (a dynamic picture)

• Energy Saving (the backlight brightness is decreased)

• Custom (customized picture). Note: You can also press PICTURE on the remote control to select the picture mode.

• Brightness—Adjusts the brightness.

• Contrast—Adjusts the contrast.

• Color—Adjusts the color saturation.

• Tint—Adjusts the image tint.

• Sharpness—Adjusts the sharpness.

3 Press or to highlight Advanced Video, then press or

to adjust the option. You can select:

• Aspect Ratio— Selects the aspect ratio of the picture. You can select:

• Auto (selects the correct aspect ratio automatically in TV mode only).

• Normal (selects the correct aspect ratio to match the source image).

• Zoom (enlarges the picture but may crop the top and bottom).

• Wide (shows a full-screen picture).

• Cinema (stretches the picture at the edges, but maintains a good aspect ratio at the center of the screen).

Note: The above aspect ratios are all available only when Overscan is

turned ON when watching a digital program.

• Overscan—Turn this On to adjust the picture’s reproduction rate in Component, HDMI/DVI, or DTV mode.

• Color Te mpe rat ure —Selects the color temperature. You can select Warm (to enhance the reds), Cool (to enhance the blues), or Normal.

• Noise Reduction—Selects the noise reduction mode to reduce picture noise (snow). You can select Low, Middle, High, or Off.

• Backlight—Controls the overall brilliance of the screen.

Adjusting the pictureDX-15L150A11/DX19L150A11/DX-22L150A11

• Advanced Contrast—Opens the Advanced Contrast submenu. Turn this On to optimize the picture display for a more vivid image. You can also set the Dynamic Contrast Ratio to On to automatically adjust the contrast between the light and dark areas of the picture.

4 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Adjusting the computer image

Note: These settings are only available when the input source is VGA and

your TV is receiving a computer signal.

To adjust the computer image:

1 Make sure that your TV is in VGA mode. Fo r more information, see

“Selecting the video input source” on page 13.

2 Press MENU. The on-screen menu opens.

• Phase—Adjusts the focus of stable images

• Reset Computer Settings—Resets the computer settings to factory default.

6 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Setting the component image

Note: These settings are only available when the input source is

Component and your TV is receiving a signal.

To set the component image:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight SETTINGS. The SETTINGS menu opens.

3 Press or to highlight SETTINGS. The SETTINGS menu opens.

4 Press or to highlight Computer Settings, then press

ENTER. The Computer settings menu opens.

5 Press or to highlight an option, then press or to adjust

the option. You can adjust:

• Auto Adjust—Automatically adjusts the image settings such as position and phase

• H-Position—Moves the image right or left

• V-Position—Moves the image up or down

• Clock—Adjusts the sample frequency

3 Press or to highlight Component Settings, then press

ENTER. The Component Settings menu opens.

4 Press or to highlight an option, then press or to adjust

the option. You can adjust:

• Phase—To minimize horizontal distortion (0~100)

• Reset Component Settings—Resets the component settings to factory default.

5 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Adjusting the sound

DX-15L150A11/DX19L150A11/DX-22L150A11

Adjusting the sound

To adjust the sound:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight AUDIO. The AUDI O menu opens.

Mode

Time Zone

Daylight Savings

Year

Month Jan

MOVE SELECT PREVIOUS

ENTER MENU

Time

12 : 04 AMTime

• Stereo—Produces dynamic stereo sound for sporting events and concerts.

• SAP—Selects a second language, weather, or added commentary, if available.

• Audio Language—(digital channels only) Selects an alternate audio language, if available.

• Reset Audio Settings— Resets all audio settings to factory defaults. When you select this option, a confirmation box opens. Press or to select Yes or No, then press

ENTER to confirm.

4 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Playing TV audio only

You can turn off the picture on your TV and listen to only the program audio.

To play only the TV audio:

1 Press MENU. The on-screen menu opens.

Setup Wizard

Auto

Pacic

2010

1Day

3 Press or to highlight an option, then press or to adjust

the option. With the Equalizer Off you can select:

• Bass—Adjusts the low sounds.

• Treble —Adjusts the high sounds.

With the Equalizer On you can select:

• Equalizer Mode—Selects the sound mode. You can select:

• Standard (for normal programs)

• Theater (for movies)

• Music (for musical programs)

• News (for news programs)

• Custom (for a customized sound mode). Note: You can also press AUDIO one or more times to select the Equalizer mode.

• Equalizer Setting—Selects the equalizer frequency. You can select 120 Hz, 500 Hz, 1.5 kHz, 5 kHz, or 10 kHz. Press or to switch between columns, then press or

to adjust the setting. Press MENU to confirm. You can adjust the following options regardless of the Equalizer settings:

• Balance—Adjusts the balance between the left and right audio channels.

• Auto Volume—Automatically adjust the volume to be consistent across programs and channels.

• Digital Audio/SPDIF—(digital channels only) Selects the digital audio output mode. You can select RAW (outputs audio in its original format) or PCM (outputs the audio in PCM mode, if available).

• MTS/SAP—Selects the sound mode (analog channels only).

• Mono—Produces a clearer sound if stereo sound is difficult to hear.

2 Press or to highlight CHANNELS. The CHANNELS menu

opens.

3 Press or to highlight Audio Only, then press or to

select On.

4 Press EXIT to close the menu. After pressing EXIT, the picture will

turn off in approximately three seconds.

Notes:

Audi o Only works o nly whe n the i nput s ource is TV and your T V is rec eiving

a broadcast signal.

To exit Audio Only mode, press any button. When you exit Audio Only

mode, the Audio Only option is automatically reset to Off.

Changing channel settingsDX-15L150A11/DX19L150A11/DX-22L150A11

Changing channel settings

Automatically scanning for channels

When you scan for channels, your TV searches for channels with signals and stores the channel information in the channel list. When you press CH or CH , your TV goes to the next or previous channel in the channel list and skips the channels that do not have signals.

If the TV signal source changes, for example if you change from an outdoor antenna to cable TV (no box), you need to scan for channels.

To auto scan for channels:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight CHANNELS. The CHANNELS menu

opens.

If you don’t need analog channels after auto searching for digital

channels, you can press EXIT or MENU within ten seconds of the prompt.

You don't need to scan for channels if you are using a cable or satellite box

because the available channels are provided by the box. Press EXIT to close the menu.

5 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Hiding and adding channels

You can delete channels from the channel list so that your TV skips the channels when you press CH /CH . You can still tune to the hidden channel by using the number buttons. You can also add channels to the list.

To hide or add a channel:

1 Press MENU. The on-screen menu opens.

3 Press or to highlight Auto Channel Search, then press

ENTER. The Auto Channel Search screen opens.

4 Press or to select Antenna or Cable, then press ENTER to

start the scan. You can see the progress of the search and the number of

channels found in the on-screen menu. After the scan is complete, the menu closes and your TV tunes to the first channel on the list.

Notes:

You can press EXIT to stop the search at any time.

2 Press or to highlight CHANNELS. The CHANNELS menu

opens.

3 Press or to highlight Add/Skip Channels, then press

ENTER or . The Channel List screen opens.

4 Press , , or to highlight the channel you want to hide or

add (the default is to show the channel), then press ENTER to remove the check mark from the channel. You can also add a channel by selecting it, then pressing ENTER to place a check mark next to it.

Changing channel settings

DX-15L150A11/DX19L150A11/DX-22L150A11

Note: If the list has more than one page, press or to scro ll through

the pages.

5 Repeat Step 4 to hide or add additional channels. 6 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Setting up a favorite channel list

You can create a favorite channel list so you can quickly browse through your favorite channels by pressing FAVOR ITE, then selecting a channel from the favorite channel list.

To set up the favorite channel list:

1 Press MENU. The on-screen menu opens.

6 Press MENU to return to the previous menu, or press EXIT to

close the menu.

7 To select a channel in the favorite channel list, press FAVOR ITE ,

press or to highlight the channel, then press ENTER.

Displaying the TV Channels List

To display the TV Channels list:

1 Press CH-LIST. The Channels List opens.

2 Press , , or to highlight the channel you want to watch,

then press ENTER. Your TV tunes to that channel.

2 Press or to highlight CHANNELS. The CHANNELS menu

opens.

3 Press or to highlight Favorites, then press ENTER or .

The Favorite Channel list opens.

Adding or changing a channel label

If a channel is not already labeled, you can label the channel to make it easier to identify. You can also relabel a channel that is already labeled.

To label a channel:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight CHANNEL. The CHANNEL menu opens.

4 Press , , or to highlight the channel you want to add to

the Favo rite s list, then press ENTER to mark the channel. A check mark appears if the channel is added to the list. The check mark disappears if you delete the channel from the list.

Note: If the list has more than one page, press or to scro ll through

the pages.

5 Repeat Step 4 to add additional channels to your Favorites list.

Setting parental controlsDX-15L150A11/DX19L150A11/DX-22L150A11

3 Press or to highlight Channel Labels, then press ENTER.

The Channel Label screen opens.

4 Press or to select the channel for which you want to add or

change the label, the press to move the cursor to the label selection field.

5 Press or to select a character, then press or to move to

the next position. Repeat to add more characters (you can add as many as 11 characters).

6 Press ENTER to confirm the label. 7 Press or to select Ye s or No, then press ENTER to confirm. 8 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Checking digital TV signal strength

Setting parental controls

Parental controls let you prevent your children from watching inappropriate material on TV. When set, parental controls read the rating of the program (with some exceptions, such as news and sports) and deny access to programs that exceed the ratings level you select. To watch programs that exceed the selected rating, you must enter a password.

Setting or changing the password

To set the parental password:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight SETTINGS. The SETTINGS menu opens.

You can check the signal strength of digital channels to determine if you need to adjust your antenna or digital cable input. The higher the signal strength, the less likely you are to experience picture degradation.

To check signal strength:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight CHANNELS. The CHANNELS menu

opens. The signal strength is shown on the menu if you are receiving a digital TV signal.

3 Press or to highlight Parental Controls, then press ENTER

or . The Enter Password screen opens.

3 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Note: If you are tuned to a digital TV channel, you can press INFO to see

the digital signal strength.

Setting parental controls

DX-15L150A11/DX19L150A11/DX-22L150A11

4 Press the number buttons to enter the four-digit password. The

default password is 0000. The Parental Controls menu opens.

5 Press or to highlight Change Password, then press ENTER

or . The Enter New Password screen opens.

2 Press or to highlight SETTINGS. The SETTINGS menu opens.

3 Press or to highlight Parental Controls, then press ENTER

or . The Enter Password screen opens.

6 Press the number buttons to enter the new password. On the

next line, enter the new password again to confirm it. The Parental Controls menu reopens.

Note: If you forget your password, enter 9999.

7 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Setting parental control levels

You can set parental controls for the U.S. and Canada. The following procedure shows how to set controls for U.S. TV ratings. You use similar steps for controlling U.S. movie and Canadian TV ratings.

To set parental controls:

1 Press MENU. The on-screen menu opens.

4 Press the number buttons to enter your four-digit password. The

Parental Control s menu opens.

5 Press or to highlight USA Parental Locks or Canadian

Parental Locks, then press ENTER or . The USA Parental Locks

or Canadian Parental Locks screen opens.

Setting parental controlsDX-15L150A11/DX19L150A11/DX-22L150A11

Canadian English ratings

E Exempt programming.

C Suitable for all children.

C8+ Suitable for children 8 and older.

G General audiences.

PG Parental guidance suggested.

14+ Suitable for children 14 and older.

18+ Adults only.

6 Press or to highlight the rating you want to block,

then press ENTER.

Notes:

When you first set parental controls, they take effect immediately.

If you have set parental controls then tune to a blocked channel or

program, you are prompted to enter the password. After you enter the password, p arental contro ls are tuned off.

To turn parental controls back on, you need to turn off your TV. When you

turn it back on, parental controls are turned back on.

7 Press MENU to return to the previous menu, or press EXIT to

close the menu.

U.S. TV ratings (age-based)

NONE Not rated.

TV-Y All children.

TV-Y7 Suitable for children 7 and older.

TV-G General audiences.

TV-PG Parental guidance suggested.

TV-14 Parental guidance strongly suggested.

TV-MA Mature audiences only.

U. S. TV ratings (content-based)

FV Fantasy violence.

VViolence.

S Sexual situations.

LStrong language.

DSuggestive dialog.

Canadian French ratings

E Exempt programming.

G General audiences.

8ans+ Suitable for children 8 and older.

13ans+ Suitable for children 13 and older.

16ans+ Suitable for children 16 and older.

18ans+ Adults only.

Blocking unrated TV

To block unrated TV:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight SETTINGS. The SETTINGS menu opens.

U.S. movie (MPAA) ratings

G General audiences.

PG Parental guidance suggested.

PG-13 Suitable for children 13 and older.

R Parental guidance suggested for children

under 17.

NC-17 Not suitable for children under 17.

XAdults only.

N/A Movie is not rated.

3 Press or to highlight Parental Controls, then press ENTER

or . The Enter Password screen opens.

Setting parental controls

DX-15L150A11/DX19L150A11/DX-22L150A11

4 Press the number buttons to enter your four-digit password. The

Parental Controls menu opens.

5 Press or to highlight Block Unrated TV, then press or

to select On.

6 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Downloading rating information

You can download rating information to use when setting parental controls.

To download rating information:

1 Press MENU. The on-screen menu opens.

4 Press the number buttons to enter your four-digit password. The

Parental Control s menu opens.

5 Press or to highlight RRT5, then press ENTER or . The

RRT5 menu opens.

6 Press or to select a rating.

Notes:

If the program is broadcast with RRT5 rating information, the information

is downloaded automatically and can be used for parental controls.

If the program is not broadcast with RRT5 rating information, no

information is downloaded.

7 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Locking control buttons

2 Press or to highlight SETTINGS. The SETTINGS menu opens.

3 Press or to highlight Parental Controls, then press ENTER

or . The Enter Password screen opens.

You can lock the control buttons on the TV. When the buttons are locked, you can only operate the TV using the remote control.

To lock control buttons:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight SETTINGS. The SETTINGS menu opens.

Using closed captioningDX-15L150A11/DX19L150A11/DX-22L150A11

3 Press or to highlight Parental Controls, then press ENTER

or . The Enter Password screen opens.

4 Press the number buttons to enter your four-digit password. The

Parental Controls menu opens.

2 Press or to highlight SETTINGS. The SETTINGS menu opens.

3 Press or to highlight Closed Caption, then press or

ENTER. The Closed Caption menu opens.

5 Press or to highlight Button Lock, then press or to

select On (to lock the buttons), or Off (to unlock the buttons).

6 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Using closed captioning

Turning closed captioning on or off

To turn closed captioning on or off:

1 Press CCD on the remote control to cycle through the closed

captioning options. You can select CC On (turns on closed captioning), CC on When Mute (turns on closed captioning when the sound is muted), or CC Off (turns off closed captioning).

Selecting the closed captioning mode

To select the closed captioning mode:

1 Press MENU. The on-screen menu opens.

4 Press or to highlight Analog Caption or Digital Caption. 5 Press or to select a closed captioning mode. You can select:

• CC1 through CC4—Closed captioning appears in a small banner across the bottom of the screen. CC1 is usually the “printed” version of the audio. CC2 through CC4 display content provided by the broadcaster.

• Tex t1 through Text 4—Closed captioning that covers half or all of the screen. Tex t1 through Text 4 display content provided by the broadcaster.

6 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Customizing digital TV closed captioning styles

To customize DTV closed captioning:

1 Press MENU. The on-screen menu opens.

Adjusting time settings

DX-15L150A11/DX19L150A11/DX-22L150A11

2 Press or to highlight SETTINGS. The SETTINGS menu opens.

3 Press or to highlight Closed Caption, then press or

ENTER. The Closed Caption menu opens.

Adjusting time settings

Setting the clock

To set the clock:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight SETTINGS. The SETTINGS menu opens.

4 Press or to highlight Digital CC Settings, then press

ENTER or . The Digital CC Settings menu opens.

5 Press or to highlight a style, then press or to adjust

the style. You can select:

• Style—To select a style for the words.

• Size—To select a edge style for the words.

• Font —To select the font type.

• Text Color—To select a color for the text.

• Text O pacit y—To select the opacity for the text.

• Background Color—To select a color for the background.

• Background Opacity—To select the opacity for the background.

• Edge Effect—To select edge effect.

• Edge Color—To select a color for the edges.

6 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Note: The default Digital CC Setting is Automatic. All other settings will

be available only when Style is set to Custom.

3 Press or to highlight Time, then press ENTER or . The

Tim e menu opens.

4 Press or to highlight the option you want to adjust, then

press or to adjust the setting.

5 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Adjusting menu settingsDX-15L150A11/DX19L150A11/DX-22L150A11

Setting the sleep timer

You can specify the amount of time before your TV automatically turns off.

To set the sleep timer:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight SETTINGS. The SETTINGS menu opens.

Adjusting menu settings

Selecting the menu language and transparency

To select the on-screen menu language and menu transparency:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight SETTINGS. The SETTINGS menu opens.

3 Press or to highlight Time, then press ENTER or . The

Time menu opens.

4 Press or to highlight Sleep Timer, then press or to

select the amount of time you want your TV to wait before it automatically turns off.

Note: To turn off the sleep timer, select Off.

5 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Note: You can also press SLEEP on the remote control to set the sleep

timer.

3 Press or to highlight Menu Settings, then press ENTER or

. The Menu Settings menu opens.

4 Press or to highlight Language, then press or to

select the menu language you want. Options include English,

French, and Spanish.

5 Press or to select Transparency, then press or to

select the menu transparency you want.

6 Press MENU to return to the previous menu, or press EXIT to

close the menu.

Adjusting menu settings

DX-15L150A11/DX19L150A11/DX-22L150A11

Labeling an input source

You can add a label to an input source to make it easier to identify.

To label an input source:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight SETTINGS. The SETTINGS menu opens.

Restoring default settings

Caution: When you restore default settings, all the settings (except the

password and parental rating) you have customized are reset.

To restore default settings:

1 Press MENU. The on-screen menu opens.

2 Press or to highlight SETTINGS. The SETTINGS menu opens.

3 Press or to highlight Input Labels, then press ENTER or

. The Input Labels screen opens.

4 Press or to select the input for which you want to change

the label, then press to move to the label selection field.

5 Press or to select the label you want, then press ENTER to

confirm the change.

6 Press or to select Ye s or No, then press ENTER to confirm. 7 To change another label, press to move to the label selection

field, then repeat Steps 4 through 6.

8 Press MENU to return to the previous menu, or press EXIT to

close the menu. The next time you press the INPUT button on the remote control, you will see your new label in the INPUT SOURCE menu.

3 Press or to highlight Reset to Default (you may need to

scroll down to find it), then press ENTER. A confirmation box opens.

4 Press or to select Yes, then press ENTER to confirm. 5 Press MENU to return to the previous menu, or press EXIT to

close the menu.

TroubleshootingDX-15L150A11/DX19L150A11/DX-22L150A11

Troubleshooting

Before calling for service, check the following information for possible solutions to problems you may experience. If none of these solutions work, turn off the TV, then turn it on again.

Caution: Do not try to repair the TV yourself. Refer all servicing to

qualified repair personnel.

Video and audio

Problem Solution

No power. • Make sure that the power cord is

No picture. • Make sure that the Audio Only

No picture (screen is not lit) and no sound.

Dark, poor, or no picture (screen is lit), but sound is good.

No color, dark picture, or color is not correct.

Only snow (noise) appears on the screen.

correctly connected to your TV and a power outlet.

• Unplug the power cord, wait 60 seconds, then plug the cord back in and turn on your TV.

option is set to Off. For more information, see “Playing TV audio only” on page 17.

• Make sure that the video cables are connected securely to the back of your TV.

• Adjust the contrast and brightness.

• Make sure that the correct video mode is selected.

• Make sure that the incoming signal is compatible.

• Make sure the antenna is connected correctly.

• Check the closed caption settings. Some TEXT modes can block the screen.

• Make sure that the power cord is plugged in.

• Press POWER on the TV or the remote control.

• Make sure that the correct video input source is selected. For more information, see “Selecting the video input source” on page 13.

• Try another channel. The station may be experiencing problems.

•Adjust the brightness. For more information, see “Adjusting the TV picture” on page 15.

• Make sure that the correct picture mode is selected. For more information, see “Adjusting the TV picture” on page 15.

• Make sure that the antenna or cable TV is connected correctly and securely. For more information, see “Connecting an antenna, cable TV, or satellite TV box via coax” on page 10.

• Adjust the color saturation. For more information, see “Adjusting the TV picture” on page 15.

• Try another channel. The station may be experiencing problems.

• Make sure that the antenna or cable TV is connected correctly and securely. For more information, see “Connecting an antenna, cable TV, or satellite TV box via coax” on page 10.

• Check the signal strength of the channel. See “Checking digital TV signal strength” on page 20.

Problem Solution

Dotted lines or stripes appear on the screen.

“Ghost” or double images. • Use a highly directional outdoor

The picture has a few bright or dark spots.

Good picture, but no sound.

Audio noise. • Make sure that there is no

VGA picture is not stable or synchronized.

No output from one speaker.

After images appear. • Do not display a still image, such

• Adjust the antenna.

• Move the TV away from noise sources such as cars, neon signs, or hair dryers.

antenna or cable TV.

• A few bright or dark spots on an LCD screen is normal. It does not affect the operation of this TV.

• Increase the volume.

• Make sure that the sound is not muted.

• Make sure that the sound mode is set to Stereo or Mono. For more information, see “Playing TV audio only” on page 17.

interference with infrared equipment such as a cordless telephone or headphones. Move the infrared equipment away from the TV to eliminate the noise.

• Make sure that you have selected the correct VGA mode on your computer.

• Adjust the balance on the Audio menu.

as a logo, game, or computer image, for an extended period of time. This can cause a permanent after-image to be burned into the screen. This type of damage is not covered by your warranty.

Remote control

Problem Solution

Remote control does not work.

Trouble programming your existing universal remote control.

• Make sure that the power cord is plugged in.

• Make sure that there are no obstructions between the remote control and the remote control sensor on the front of the TV.

• Make sure that the batteries are installed correctly. For more information, see “Installing remote control batteries” on page 8.

• Replace the batteries. For more information, see “Installing remote control batteries” on page 8.

• See instructions and a table of common codes in “Programming a universal remote control to work with your TV” on page 8.

• Codes are subject to change. For up to date codes, go to www.dynexproducts.com.

• Replace the batteries. For more information, see “Installing remote control batteries” on page 8.

Maintenance

DX-15L150A11/DX19L150A11/DX-22L150A11

General

Problem Solution

One or more channels do not display.

Password is lost. • Enter 9999 to access the parental

Some settings cannot be accessed.

TV cabinet creaks. • When the TV is in use, the

Control buttons on the TV do not work.

Note: If the problem is not solved by using these troubleshooting

instructions, try turning off your TV, then turning it on again.

• Make sure that the channels are not blocked. For more information, see “Setting parental control levels” on page 21.

• Make sure that the channels are not hidden. For more information, see “Hiding and adding channels” on page 18.

• The channel may have been deleted from the channel list. You can tune to the channel by pressing the number buttons or you can add the channel back to the channel list. For more information, see “Changing channel settings” on page 18.

controls, then set a new password. For more information, see “Setting parental controls” on page 20.

• If a setting is grayed, the setting is not available in the current video input mode.

temperature rises naturally and may cause the cabinet to expand or contract which can cause a creaking noise. This is not a malfunction.

• Disconnect the power cord, wait a few seconds, then reconnect the power cord and turn on the TV.

• Make sure that the Button Lock option is set to Off. For more information, see “Locking control buttons” on page 23.

Specifications

Specifications subject to change without notice. Weight and dimensions shown are approximate.

Analog standard

Digital standard

Screen

Channel coverage

Power source

Power consumption

Audio power

S-Video input

Video/audio input

Component input

HDMI input

VGA input

NTSC

ATS C, 8- VSB , Cle ar- QAM

DX-15L150A11 - 15” DX-19L150A11 - 19” DX-22L150A11 - 22”

VHF: 2 - 13 UHF: 14 - 69 CATV: Mid band - A8~A-1,A~I Super band - J~W Hyper band - AA~ZZ, AAA, BBB Ultra band: 65~94, 100~135

AC 120 V ~ 60 Hz

15” - 42 W with TV on 19” - 45 W with TV on 22” - 62 W with TV on <1 W in standby mode

3 W + 3 W internal speaker

Y: 1 V (p-p), 75 ohm, negative sync C: 0.286 V (p-p) (burst signal), 75 ohm

Video: 1 V (p-p), 75 ohm, negative sync Audio 500mV (rms)

Y: 1 V (p-p), 75 ohm, including sync PR/CR: ±0.35 V (p-p), 75 ohm PB/CB: ±0.35 V (p-p), 75 ohm Audio: 500 mV (rms) Suggested resolutions: 1080i, 720p, 480p, 480i

1 HDMI input jack HDCP compliant E-EDID compliant Suggested scan rates: 1080p,1080i, 720p, 480p, 480i

E-EDID compliant Suggested scan rates: 640x480/60 Hz, 800x600/60 Hz, 1024x768/60 Hz, 1360x768/60 Hz Audio input: Mini-jack for stereo

Maintenance

• Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.

• Storage temperatures are 32° to 122°F (0° to 50°C).

• Working temperatures are 41° to 104°F (5° to 40°C).

• Do not place your TV in direct sunlight or near a heat source.

Cleaning the TV cabinet

Clean the cabinet with a soft, lint-free cloth. If the cabinet is especially dirty, moisten a soft, lint-free cloth in a weak detergent solution, squeeze the excess moisture from the cloth, then wipe the screen or cabinet with the cloth. Use a clean cloth to dry the screen or cabinet.

Cleaning the TV screen

Clean the screen with a soft, lint-free cloth.

Legal notices

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

FCC warning

Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user’s authority to operate this equipment.

Cables

Connections to this device must be made with shielded cables with metallic RF/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canada ICES-003 statement

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la norme NMB-003

du Canada. Standard Television Receiving Apparatus — Appareil de réception télévision ordinaire, Canada BETS-7 / NTMR-7

Dolby License Notice and Trademark Acknowledgement

Legal noticesDX-15L150A11/DX19L150A11/DX-22L150A11

Manufacturered under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HDMI

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LCC.

Energy Star

Please keep the factory default settings as shipped, in which the product can meet Energy Star requirements

Legal notices

DX-15L150A11/DX19L150A11/DX-22L150A11

One-year limited warranty

US and Canada Markets

Definitions:

Dynex Products ("Dynex") warrants to you, the original purchaser of this new Dynex-branded television ("Product"), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period"). For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy or Future Shop authorized dealer of Dynex brand products only that are packaged with this warranty statement.

How long does the coverage last?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Dynex repair center or store personnel, Dynex will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) repl ace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Dynex and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Dynex Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a Best Buy or Future Shop retail store location and your television Product has a screen size of less than 37 inches, please take your original receipt and the Product to any Best Buy or Future Shop store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from a Best Buy or Future Shop online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. To obtain in-home warranty service for a television with a screen 37 inches or larger, in the United States call 1-888-BESTBUY, Canada call 1-866-BESTBUY for Future Shop call 1-800-663-2275. Call agents will diagnose and correct the issue over the phone or will have a Dynex-approved repair technician dispatched to your home.

Where is the warranty valid?

This warranty is valid only to the original purchaser of the product in the United States and Canada at Best Buy or Future Shop branded retail stores or websites.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction/education

•Installation

• Set up adjustments

• Cosmetic damage

• Damage due to acts of God, such as power surges

•Accident(s)

•Misuse

•Abuse

•Negligence

• Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of other than a private home.

• Modification of any part of the Product, including the antenna

• Plasma display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

• Damage due to incorrect operation or maintenance

• Connection to an incorrect voltage or power supply

• Attempted repair by any person not authorized by Dynex to service the Product

• Products sold "as is" or "with all faults"

• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)

• Products where the factory applied serial number has been altered or removed

• Loss or Theft of this product or any part of the product

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. DYNEX SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. DYNEX PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE. Contac t Dynex: For customer service please call 1-800-305-2204 www.Dynexproducts.com Distributed by Best Buy Purchasing, LLC 7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645 © 2009 BBY Solutions, Inc. All rights reserved. DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.

Mexico Market

{RETAILER SEAL}

PLACE STICKER OF PRODUCT MAKE & MODEL HERE

DATE OF PURCHASE:____________________________

Definitions:

Dynex Products ("Dynex") warrants to you, the original purchaser of this new Dynex-branded television ("Product"), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period"). For this warranty to apply, your Product must be purchased in Mexico from a Best Buy authorized dealer of Dynex brand products only that are packaged with this warranty statement.

How long does the coverage last?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Dynex repair center or store personnel, Dynex will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the propert y of Dynex and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Dynex Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a Best Buy retail store location and your television Product has a screen size of less than 37 inches, please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from a Best Buy online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. To obtain in-home warranty service for a television with a screen 37 inches or larger, in Mexico call 01 800-433-5778. Call agents will diagnose and correct the issue over the phone or will have a Dynex-approved repair technician dispatched to your home.

Where is the warranty valid?

This warranty is valid only to the original purchaser of the product in Mexico at a Best Buy branded retail stores or website.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction/education

• Installation

•Set up adjustments

• Cosmetic damage

• Damage due to acts of God, such as power surges

•Accident(s)

•Misuse

•Abuse

•Negligence

• Modification of any part of the Product, including the antenna

• Plasma display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

• Damage due to incorrect operation or maintenance

• Connection to an incorrect voltage or power supply

• Attempted repair by any person not authorized by Dynex to service the Product

• Products sold "as is" or "with all faults"

• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)

• Products where the factor y applied serial number has been altered or removed

• Loss or Theft of this product or any part of the product

Legal noticesDX-15L150A11/DX19L150A11/DX-22L150A11

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. DYNEX SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. DYNEX PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE. Contact Dynex: For service, please call 01 800-926-3020 www.dynexproducts.com Distributed by Best Buy Imports, S. de R.L. de C.V. Av. Santa Fe 485, Segundo Piso, Colonia Cruz Manca, Programa Parcial de Desarrollo Santa Fe, Delegación Cuajimalpa, Distrito Federal, México 05349 RFC#BBI0802114Q2 © 2009 BBY Solutions, Inc. All rights reserved. DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.

If the power cord has been damaged, it should be replaced by the manufacturer, your service

provider or qualified personnel to avoid risks.

Si el cordón de alimentación es dañado, este debe ser remplazado por el fabricante o su agente de

servicio o por personal calificado para evitar el riesgo.

www.dynexproducts.com

US and Canada Market - (800) 305-2204

Mexico Market - 01 800-926-3020

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave. South, Richfield, MN 55423 U.S.A.

DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and

brand names are trademarks of their respective owners.

Best Buy Imports, S. de R.L. de C.V. Av. Santa Fe 485, Segundo Piso, Colonia Cruz Manca, Programa

Parcial de Desarrollo Santa Fe, Delegación Cuajimalpa, Distrito Federal, México 05349

RFC#BBI0802114Q2

Se incluye el manual. Favor de leer este manual antes de usar el producto.

Para el Soporte técnico de Dynex en México,

favor llame al:01 800-926-3020 http://www.dynexproducts.com

09-1036 ENGLISH

Dynex DX-15L150A11 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important safety instructions

Warnings

Electric shock hazard

Lightning

Power lines

Handling the LCD panel

Replacement parts

Safety check

Power source

Cautions

Damage requiring service

Outdoor antenna grounding

Note to CATV system installer

Condensation

Mobile telephone warning

Installing and removing the stand

Cautions

Installing the stand

Installing a wall-mount bracket

TV components

Accessories

Front

Back Side

Remote control

Using the remote control

Installing remote control batteries

Aiming the remote control

Programming a universal remote control to work with your TV

Making connections

Selecting a location

Connecting the power

Connecting an HDMI device

Connecting a component video device

Connecting an antenna, cable TV, or satellite TV box via coax

Connecting a VCR

Connecting a camcorder or game console

Connecting a computer

Connecting a home theater system

Connecting using digital audio cable

Turning on your TV for the first time

Connecting headphones

Understanding the basics

Selecting the video input source

Selecting a channel

Turning your TV on or off

Adjusting the volume

Displaying program information

On-screen menu overview

Navigating the menus

Adjusting the picture

Adjusting basic settings

Adjusting the TV picture

Adjusting the computer image

Setting the component image

Adjusting the sound

Adjusting the sound

Playing TV audio only

Changing channel settings

Automatically scanning for channels

Hiding and adding channels

Setting up a favorite channel list

Displaying the TV Channels List

Adding or changing a channel label

Checking digital TV signal strength

Setting parental controls

Setting or changing the password

Setting parental control levels

Blocking unrated TV

Downloading rating information

Locking control buttons

Using closed captioning

Turning closed captioning on or off

Selecting the closed captioning mode

Customizing digital TV closed captioning styles

Adjusting time settings

Setting the clock
