Tach Tape
Provide speed and frequencymeasurements
without large split gears, slotted shafts, holes
drilled in flywheels, or other clumsy make-do
arrangements, even on a smooth shaft or
wheel. Saves time and expense.
2-Year
Instrumentation & Controls
Warranty
FEATURES
TT-100™ Dynalco Tach Tape is a strip of
flexible magnetic polymer backed with a
pressure sensitive adhesive. This adhesive
adheres to a wide variety of surfaces,
including most plastics and metals.
Because of its unique magnetization and
arrangement of slots, a series of alternate
magnetic poles is generated along the length
of the tape. A Dynalco magnetic pickup
becomes activated when placed perpendicular to the moving tape surface.

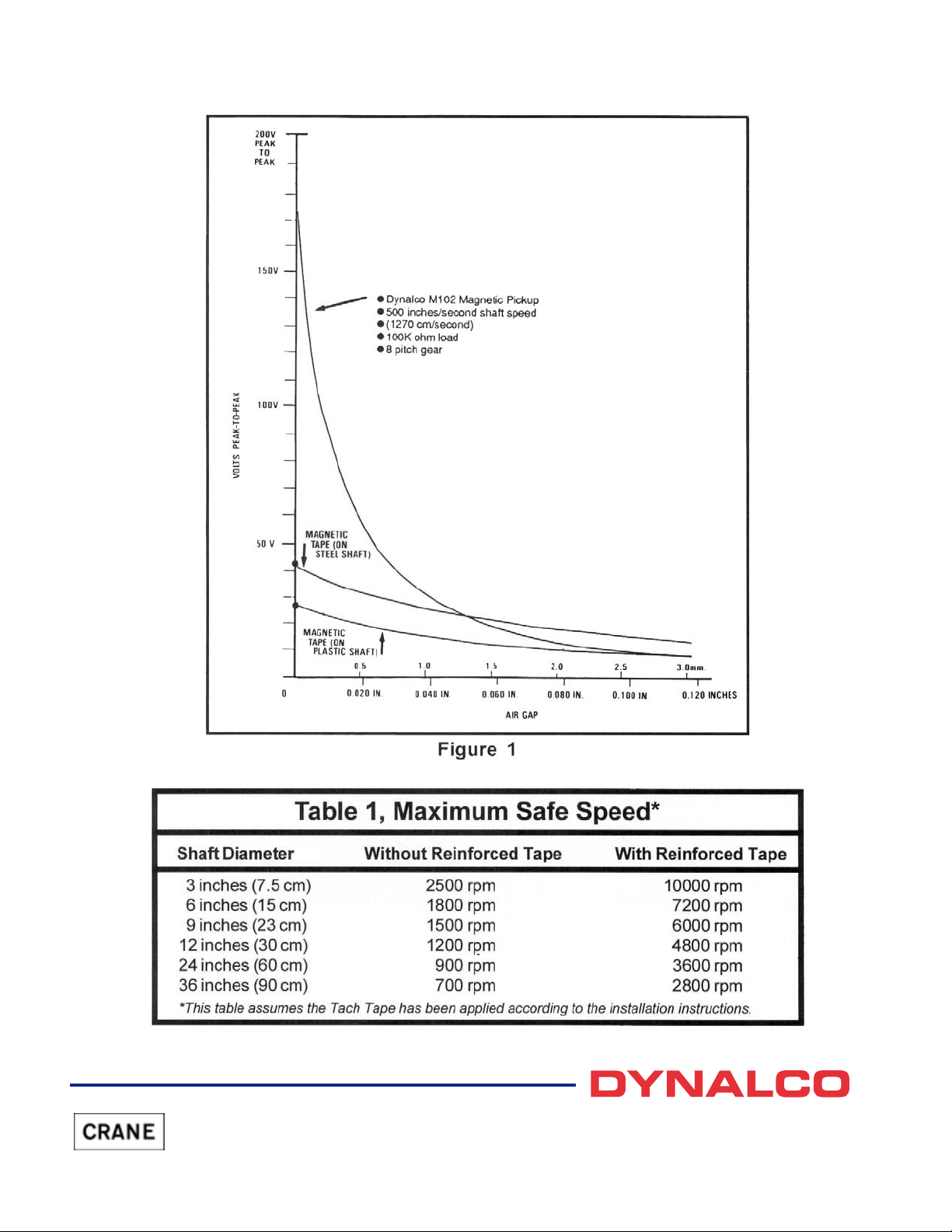

Figure 1 (next page) demonstrates that the
Tach Tape performance is better than an
8-pitch gear when the air gap is larger than
0.050 inch (0.127 cm). This is especially
welcome in cases where a small air gap is
difficult to maintain, or space is too restricted
to install split gears.
SPECIFICATIONS
Temperature range: –30oF to +160oF
(
–34oC to +71oC).
Gear pitch equivalent: Approximately
7 diametrical pitch.
Maximum continuous length: 100 feet
(
30 meters).
Minimum usable length: 2 in. (5.1 cm
Tape dimensions: 1 inch wide X 1/
inch thick (2.5 cm X 0.16 cm).
)
16
Tach Tape Performance
