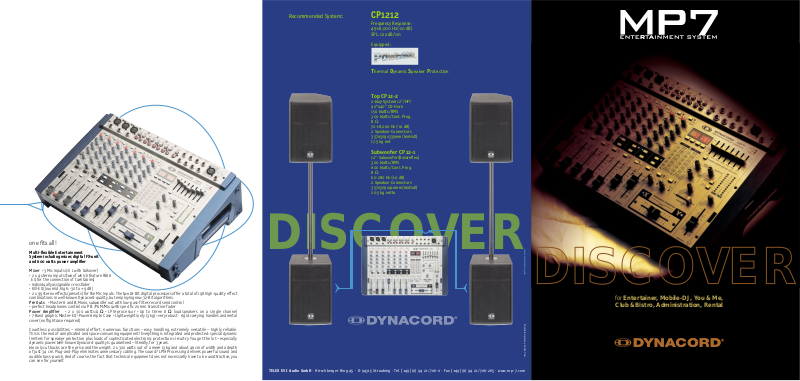

Dynacord MP7 User Manual

Recommended

DISCOVER

System:

CP1212

Frequency Response: 45-18,000 Hz (-10 dB) SPL: 122 dB/1m

Equipped:

Thermal Dynamic Speaker Protection

Top CP 12-2

2-Way-System 12”/HFT 90°x40° CD-Horn 150 Watts/RMS 300 Watts/Cont. Prog.

8 Ω

70-18,000 Hz (-10 dB) 2 Speakon-Connectors 357x509x335mm (WxHxD)

17.5 kg net

one fits all!

Multi-flexible Entertainment System including mixer, digital FX-unit and 600 watts power amplifier

Mixer • 3 Mic inputs (ch 1 with talkover)

• 2 x 4 stereo inputs (two of which feature RIAA EQ for the connection of turntables)

• individually assignable crossfader

• Kill-EQ (low, mid, high: -30 to +9 dB)

• 2 x 99 stereo effects (presets) for the Mic inputs. The two 18-Bit digital processors offer a total of 198 high-quality effect combinations in well-known Dynacord-quality, but employing new 32-Bit algorithms. Pre Outs • Master A and B, Mono, subwoofer out with low-pass-filter, record send control

• perfect headphones control via PFL/PGM/Mix (with specific 20 mm transition-fader

Power Amplifier • 2 x 300 watts/4 Ω • LPN-processor • Up to three 8 Ω loudspeakers on a single channel

• 7-Band graphic Master-EQ • Power Amp In Case • Lightweight (only 13 kg) • very robust · rigid carrying handles and metal cover (no flightcase required)

Countless possibilities – minimal effort, numerous functions – easy handling, extremely versatile – highly reliable. This is the end of complicated and space-consuming equipment! Everything is integrated and protected: special dynamic limiters for speaker protection plus loads of sophisticated electronic protection-circuitry. You get the lot – especially dynamic power. Well-known Dynacord-quality is guaranteed – literally, for 3 years. We only cut backs are the price and the weight. 2 x 300 watts out of a mere 13 kg and about 46 cm of width and a depth of just 34 cm. Plug-and-Play eliminates unnecessary cabling. The sound? LPN-Processing delivers powerful sound and audible bass-punch. And of course, the fact that technical equipment does not necessarily have to be unattractive, you can see for yourself.

Subwoofer CP 12-1

12“-Subwoofer (Bassreflex) 300 Watts/RMS 600 Watts/Cont. Prog.

8 Ω

60-280 Hz (-10 dB) 2 Speakon-Connectors 357x509x410mm (WxHxD)

20.5 kg netto

DISCOVER

www.edelweiss-ag.de

for Entertainer, Mobile-DJ, You & Me, Club

Printed in Germany. 162037 AU

Bistro, Administration, Rental

TELEX EVI Audio GmbH · Hirschberger Ring 45 · D-94315 Straubing · Tel. [+49] (0) 94 21/706-0 · Fax [+49] (0) 94 21/706-265 · www.mp-7.com

ADMINIS

RDISCOVER

DISCOVER

TRATION

visit us at web: www.mp-7.com and win

RENTAL

Features & Specs Mixer-Section

TechSpec

Power Amplifier

thing. Third, it is a truly mobile system, which, nevertheless, can also be employed in fixed installations, 19” rack or wall-mounted. And last but not least it is a genuine Dynacord product furnished with the best components from Alps and Neutrik. Professional equipment for cost-conscious planning.

The MP7 represents the new compact solution that meets all corporate requirements at events like: conventions, performances, lectures – as a mobile appliance or in a fixed installation – for schools, council and administration, and unions. Just about everywhere, where the combination of several highquality units in a single enclosure is needed, providing mobility and clearly structured layout. The included devices are: audio mixer, effects unit, EQ, and a 600 watts power amplifier with processor and limiter. The mixer provides 4 double-assignable stereo inputs for connecting CD-Players, Tape Decks, DAT-Recorders, turntables, keyboards, etc. Additionally, the mixer offers an assignable crossfader, which allows reversible mixing of two audio signal sources.

Having just invested in new equipment, your entire gear is leased-out? Annoyed, that recouping your investment takes at least five years? Nerved, that most customers have sky-high expectations and requirements, little or no experience and knowledge and even less bucks to afford all of that? The “all-in-one” MP7 puts your misery to an end! Being the most easily to operate solution, it is almost indestructible, extremely mobile and truly professional.

The MP7 will be every customer ’s choice from your inventory, and when it is returned from a gig, you can tell by the look on the customer’s face that he is really thrilled. As solid as a rock and equipped like the “Enterprise”, plus that it will repay your investment even faster than you will be able to read this page. So, why waste time?

1. No Cabling

• Mixer (3 Mic, 2 x 4 Line with 2 Phono)

• Power Amplifier (2 x 300 W/4 Ω RMS)

• Conference and Promotional Shows

• 2 Digital Effect-Processors

with LPN-Processor

• Master-EQ

• Master-Pre-Out

2. Usage

• Live Performances

• DJ-applications

3 Mic/Line-Inputs

• Microphone inputs provide continuous phantom power (24 VDC) and are carried out via XLR-type connectors

• Electronically balanced Line-level inputs via phono-type connectors

• Switchable Lo-Cut filter (80 Hz/18 dB)

• Gain-Control range (+10 to +60 dB)

• 3-Band-EQ (±15 dB HI/LO shelving, ±12 dB MID peaking)

• FX-Send Controls

• Pan Controls

• Mute-Switches with LED’s

• Talkover-Pushbutton with 20 dB of Attenuation (Input 1)

• PFL-Switches with LED’s

• Signal-Present-LED’s and Peak-LED’s

• High-quality ALPS-Faders and ALPS-Rotary Controls

• Equivalent Input Noise <-130 dBu (A-weighted, 150 Ω)

• Fader-Attenuation @ 1kHz >95 dB

4 Stereo Inputs

• Screwed RCA-type Connectors

• Double-Assignable allows connecting CD-Player, MD, Tape Deck, Turntable (switchable, with Status-LED)

• Channels 4 and 5 offer RIAA Phono Equalization

• Gain-Control range (+20 dB/-10 dB)

• 3-Band-Kill-EQ (-30dB/+9 dB, HI/LO shelving, MID peaking)

• FX-Send Controls

2 x 340 W (1 kHz/THD 1%) into 4 Ω 2 x 200 W (1 kHz/THD 1%) into 8 Ω 2 x 300 W (20-20 kHz/THD 0.2%) into 4 Ω 2 x 150 W (20-20 kHz/THD 0.2%) into 8 Ω

• Up to three 8 Ω loudspeakers can be connected to a single channel (min load impedance 2.7 Ω)

• Comprehensive power supply unit provides expanded headroom

• Dynamic Limiters

• Speakon-type Outputs

• THD @ 1kHz < 0.08 %

• DIM 30 < 0.03 %

• S/N-Ratio (A-weighted) 105 dB

Protection Circuitry

• Back-EMF

• Short-Circuit

• HF

• D C- O f f s et

• Thermal Overload

• Initial Current Inrush Limiter

• Power-On Delay with Output Relay

• Multi-stage, Low-Noise Fan

Discover the new possibilities of the all-new MP7 Entertain-

ment System

MIXER · EFFECTS · POWER

In a single appliance. Compact, easy to operate, filled with effects, and extremely powerful. And because of the MP7’s tremendous versatility, you will find a list of advantages according to associated applications and an overview of all features and special functions is provided on the sleeve-inside. Have fun...

modern technology, and it’s price is on a level that coincides with the budgets of today’s cost conscious customer. A litlight is available as an Option. The MP7 uncompromisingly replaces a number of single products, is exceptionally reliable and also extremely

compact. 11 channels, 2 x 300W/4 Ω power amplifier,

2 x 99 digital effects, crossfader, Subwoofer-Out, processor, limiter, and protection system. The supplied transport cover saves you from expensive, bulky and heavy custom-made flightcases.

3. Handling

• Plug-and-Play

The MP7 represents the new compact solution for rental services. Audio-Mixer, FX-unit and a 600 watts power amplifier with processor are integrated into a single unit. The mixer offers inputs for the connection of turntables, CD-Players, Tape Decks, DAT-Recorders, Drum Machines, etc. and allows – by means of an assignable crossfader – reversible mixing of the selected audio signal sources. The two 18-Bit digital processors offer 198 natural or artificial sounding effect combinations, which can be assigned to the three microphone inputs.

The MP7 closes the gap in your all-round rental business.

Countless possibilities – minimal effort, numerous functions – easy handling, extremely versatile – highly reliable. This is the end of carrying around dozens of products, stumbling over cables everywhere and bulky flightcases! Everything is integrated – including protectioncircuitry and special dynamic limiters for loudspeaker protection. You get the lot – especially dynamic power. 2 x 300 watts, Pre-Outs, Master-B, Sub-Out, 2 x 99 digital effects, crossfader, limiter, protections, Alps-fader and Alps-rotary controls.

• Light Weight, Rugged, Safe

4. Professionally

• Dynamic Limiters

• 19”-rack compatible

• Optional litlight

Equipped

• Neutrik/Alps

• Replaceable Crossfader

• Transport Protection

• Amplifier Protection

Circuitry

VERLEIHFIRMEN

DISCOVE

• Balance Controls

• Transition (Crossfader), switchable, with “active”-indication

• Transition X or Y selectable with assign-LED’s

• PFL-Switches with LED

• Signal-Present-LED’s and Peak-LED’s

• High-quality ALPS-Faders and ALPS-Rotary Controls

• THD @ 1kHz (MBW=80 kHz) 0.006 %

• Fader-Attenuation @ 1kHz > 95 dB

Master Section

• Replaceable, high-quality ALPS-Crossfader with 60dB Fader-Attenuation and active-/assign-LED’s

• Stereo Master-Fader

• Master-A Pre-Out Connectors

• Master-B Pre-Out, mono/stereo and pre/post, switchable

• Controllable Sub-Out with Subwoofer Filter

• Controllable Mono/Light-Out

• Record-Out via RCA-type connectors

• On/Off-switchable 7-Band Graphic-EQ offering a control range of ±10 dB

• All Line-Outs are Impedance-Balanced

32-Bit algorithms) offering 198 high-quality effects

• Controllable headphones output via 2 phones sockets

and low-impedance output stage

• PFL/FGM-fader

• Comprehensive VU-LED-chains with PFL/Master-split function

• Master-Inserts

• On/Off-selectable, separate FX-Return controls with peak-LED’s

• XLR-type litlight socket (+12 V)

• 2 ergonomically shaped carrying handles

• Rugged transport-cover with snap-In locks

• Low weight: 13 kg

• Compact dimensions (WxHxD): approx. 456 mm x 176 mm x 341 mm

Wall mounting-kit optionally available (NRS 90242) 19” rack-mount-kit optionally available (NRS 90259) Gooseneck-light (2.4 W) optionally available

Special Features

• 2 Dual-Stereo Digital-Processors (employing
