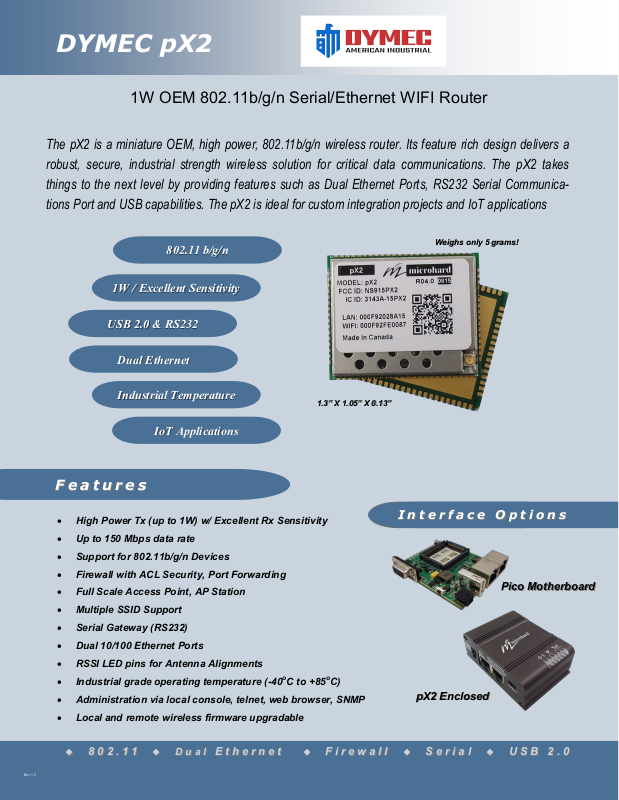

Dymec pX2 Specifications
DYMEC pX2
1W OEM 802.11b/g/n Serial/Ethernet WIFI Router
The pX2 is a miniature OEM, high power, 802.11b/g/n wireless router. Its feature rich design delivers a
robust, secure, industrial strength wireless solution for critical data communications. The pX2 takes
things to the next level by providing features such as Dual Ethernet Ports, RS232 Serial Communications Port and USB capabilities. The pX2 is ideal for custom integration projects and IoT applications
Weighs only 5 grams!
802.11 b/g/n
802.11 b/g/n
1W / Excellent Sensitivity
1W / Excellent Sensitivity
USB 2.0 & RS232
USB 2.0 & RS232
Weighs only 5 grams!
Dual Ethernet
Dual Ethernet
Industrial Temperature
Industrial Temperature
IoT Applications
IoT Applications
F e a t u r e s
F e a t u r e s
High Power Tx (up to 1W) w/ Excellent Rx Sensitivity
Up to 150 Mbps data rate
Support for 802.11b/g/n Devices
Firewall with ACL Security, Port Forwarding
Full Scale Access Point, AP Station
Multiple SSID Support
Serial Gateway (RS232)
Dual 10/100 Ethernet Ports
1.3” X 1.05” X 0.13”
1.3” X 1.05” X 0.13”
I n t e r f a c e O p t i o n s
I n t e r f a c e O p t i o n s
Pico Motherboard
Pico Motherboard
Rev 1.2
RSSI LED pins for Antenna Alignments
Industrial grade operating temperature (-40oC to +85oC)
Administration via local console, telnet, web browser, SNMP
Local and remote wireless firmware upgradable
8 0 2 . 1 1
8 0 2 . 1 1
D u a l
D u a l
E t h e r n e t
E t h e r n e t
F i r e w a l l
F i r e w a l l
pX2 Enclosed
pX2 Enclosed
S e r i a l
S e r i a l
U S B 2 . 0
U S B 2 . 0
pX2
pX2
S p e c i f i c a t i o nss
S p e c i f i c a t i o n
Frequency
Radio Operation
Link Rate
Error Detection/Control
Encryption
Range
Output Power
Ports
Operating Modes
Management
Network Advanced
Protocols
Diagnostics
Rejection
Input Voltage
Connectors:
Environmental
Weight
Dimensions
Approvals
Serial Data/Console
Motherboard/ENC
Motherboard/ENC
LAN Ethernet
USB
OEM
OEM
OEM
Motherboard
Enclosed
OEM
Motherboard
Enclosed
2.4000 - 2.4835 GHz
IEEE 802.11 b/g/n
Up to 150 Mbps
FEC/ARQ
WEP,WPA(PSK), WPA2(PSK), WPA+WPA2(PSK), WPA
Enterprise (RADIUS), WPA2 Enterprise, WPA + WPA2
Enterprise
> 10 miles (16 km)
(Antenna Dependant)
Up to 30dBm (1W)
RS232 (Tx, RX, RTS, CTS, DTR, DSR)
300bps to 921kbps
Dual 10/100BaseT IEEE802.3
2.0
Full Scale Access Point, AP Station
Local Serial Port Console, Telnet, WebUI, SNMP, FTP
Upgrade, TFTP, CLI (Command Line Interface)
TCP, UDP, TCP/IP, ARP, ICMP, DHCP, HTTP, SNMP,
FTP, Serial over IP
IP Routing - static Routing, IP/RIPv1, IP/RIPv2, CIDR,
ICMP, ARP NAT and Port Forwarding (Routing mode
only).
Full 802.1Q VLAN Support, Access Control Lists (MAC &
IP), MAC/IP Binding, Multiple SSID Support
Remote Diagnostics, Monitor Utilities (Ping, ARP table,
DHCP active leases, CCQ), Link Test
Excellent strong signal interference & rejection characteristics
Vcc: 3.3VDC (+/-0.3V) / Vpa: 3.3 to 5.0 VDC
7-30 VDC
Antenna: UFL (Main)
Data: 80 Pin SMT
Antenna (Enclosed): RP-SMA Female
Data: RJ-45 x2 (Ethernet)
Female DB9 (Serial)
USB Type A
Micro-AB USB (Console)
4 PIN Interlock (Vin, I/O)
-40oF to 185oF (-40oC to +85oC)
5-95% humidity, non-condensing
Approx. 5 grams
Approx. 50 grams
Approx, 165 grams
Approx. 1.05” x 1.3” x .15”
(27mm x 33mm x 4mm)
Approx. 2.5” x 3.0” x 0.70”
(64mm x 76mm x 18mm)
Approx. 3.05” x 2.2” x 1.1”
(77mm x 55mm x 28mm)
FCC Part 15.247
IC RSS210
Performance Specifications
Rate Mode Tx Power Recieve
1 Mbps 802.11b 30 dBm -97 dBm ±1 dB
2 Mbps 802.11b 30 dBm -96 dBm ±1 dB
5.5 Mbps 802.11b 30 dBm -95 dBm ±1 dB
11 Mbps 802.11b 30 dBm -92 dBm ±1 dB
6 Mbps 802.11g 30 dBm -94 dBm ±1 dB
9 Mbps 802.11g 30 dBm -93 dBm ±1 dB
12 Mbps 802.11g 30 dBm -91 dBm ±1 dB
18 Mbps 802.11g 30 dBm -90 dBm ±1 dB
24 Mbps 802.11g 28 dBm -86 dBm ±1 dB
36 Mbps 802.11g 28 dBm -83 dBm ±1 dB
48 Mbps 802.11g 26 dBm -77 dBm ±1 dB
54 Mbps 802.11g 26 dBm -75 dBm ±1 dB
MCS0 802.11n (HT20) 30 dBm -96 dBm ±1 dB
MCS1 802.11n (HT20) 30 dBm -95 dBm ±1 dB
MCS2 802.11n (HT20) 30 dBm -92 dBm ±1 dB
MCS3 802.11n (HT20) 28 dBm -90 dBm ±1 dB
MCS4 802.11n (HT20) 28 dBm -86 dBm ±1 dB
MCS5 802.11n (HT20) 26 dBm -83 dBm ±1 dB
MCS6 802.11n (HT20) 26 dBm -77 dBm ±1 dB
MCS7 802.11n (HT20) 26 dBm -75 dBm ±1 dB
MCS0 802.11n (HT40) 30 dBm -94 dBm ±1 dB
MCS1 802.11n (HT40) 30 dBm -93 dBm ±1 dB
MCS2 802.11n (HT40) 30 dBm -90 dBm ±1 dB
MCS3 802.11n (HT40) 28 dBm -89 dBm ±1 dB
MCS4 802.11n (HT40) 28 dBm -84 dBm ±1 dB
MCS5 802.11n (HT40) 26 dBm -81 dBm ±1 dB
MCS6 802.11n (HT40) 26 dBm -75 dBm ±1 dB
MCS7 802.11n (HT40) 26 dBm -73 dBm ±1 dB
O r d e r O p t i o nss
O r d e r O p t i o n
KY-MHK185230- KIT
pX2 Enclosed 1W 802.11b/g/n WIFI Router Kit
(includes antenna & power supply)
C o n t a c t I n f o r m a t i o n
C o n t a c t I n f o r m a t i o n
Rev 1.2
Copyright 2017 DYMEC - All Rights Reserved
Specifications subject to change without notice.
