Dymec Industrial Series Catalog

Page 1

Network Security for the 21st Century

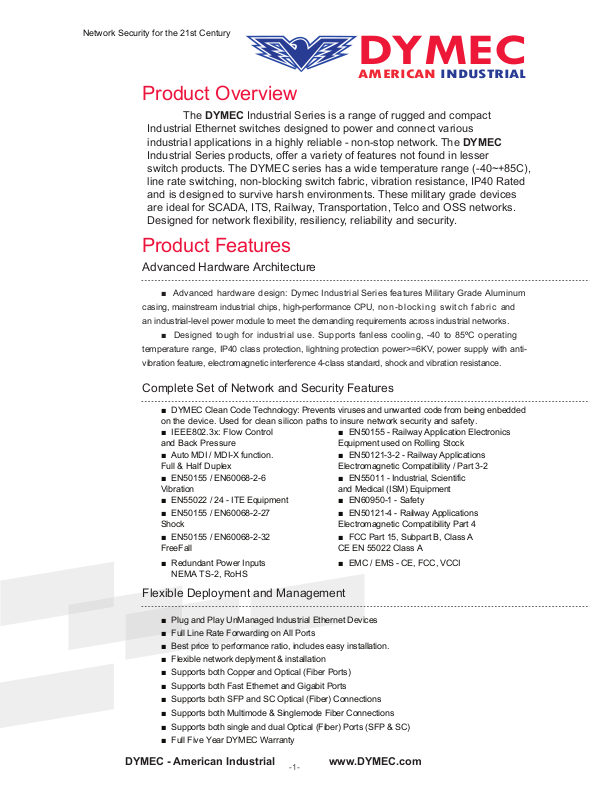

Product Overview

The DYMEC Industrial Series is a range of rugged and compact Industrial Ethernet switches designed to power and connect various industrial applications in a highly reliable - non-stop network. The DYMEC Industrial Series products, offer a variety of features not found in lesser switch products. The DYMEC series has a wide temperature range (-40~+85C), line rate switching, non-blocking switch fabric, vibration resistance, IP40 Rated and is designed to survive harsh environments. These military grade devices are ideal for SCADA, ITS, Railway, Transportation, Telco and OSS networks. Designed for network flexibility, resiliency, reliability and security.

Product Features

Advanced Hardware Architecture

■ Advanced hardware design: Dymec Industrial Series features Military Grade Aluminum

casing, mainstream industrial chips, high-performance CPU, non-blocking switch f abri c and

an industrial-level power module to meet the demanding requirements across industrial networks.

■ Designed tough for industrial use. Supports fanless cooling, -40 to 85ºC operating

temperature range, IP40 class protection, lightning protection power>=6KV, power supply with anti-

vibration feature, electromagnetic interference 4-class standard, shock and vibration resistance.

DYMEC

AMERICAN INDUSTRIAL

Complete Set of Network and Security Features

■ DYMEC Clean Code Technology: Prevents viruses and unwanted code from being enbedded on the device. Used for clean silicon paths to insure network security and safety.

■ IEEE802.3x: Flow Control and Back Pressure

■ Auto MDI / MDI-X function. Full & Half Duplex

■ EN50155 / EN60068-2-6 Vibration

■ EN55022 / 24 - ITE Equipment

■ EN50155 / EN60068-2-27

Shock

■ EN50155 / EN60068-2-32 FreeFall

■ Redundant Power Inputs NEMA TS-2, RoHS

■ EN50155 - Railway Application Electronics Equipment used on Rolling Stock

■ EN50121-3-2 - Railway Applications Electromagnetic Compatibility / Part 3-2

■ EN55011 - Industrial, Scientific and Medical (ISM) Equipment

■ EN60950-1 - Safety

■ EN50121-4 - Railway Applications

Electromagnetic Compatibility Part 4

■ FCC Part 15, Subpart B, Class A CE EN 55022 Class A

■ EMC / EMS - CE, FCC, VCCI

Flexible Deployment and Management

■ Plug and Play UnManaged Industrial Ethernet Devices

■ Full Line Rate Forwarding on All Ports

■ Best price to performance ratio, includes easy installation.

■ Flexible network deplyment & installation

■ Supports both Copper and Optical (Fiber Ports)

■ Supports both Fast Ethernet and Gigabit Ports

■ Supports both SFP and SC Optical (Fiber) Connections

■ Supports both Multimode & Singlemode Fiber Connections

■ Supports both single and dual Optical (Fiber) Ports (SFP & SC)

■ Full Five Year DYMEC Warranty

Page 2

Network Security for the 21st Century

Technical Speciﬁcations

Model Description

Fixed Ports

Data Processing Store & Forward

Switching Capacity 16 Gbps / Non-Blocking / includes 9K Jumbo Frame Support

Forwarding Rate 14.3.Mpps

MAC Address Table 1048 Entries

5 x 10/100/1000 BaseT(X) RJ-45

(Military Grade / Temperature Hardened)

Operating temperature: -40 to 85°C

Environment

Electromagnetic

Interference

L2 Protocols

MTBF & Housing

Operating Humidity: 5 to 97% RH

Protection Class: IP40

MTBF: >30 years

ESD (IEC 61000-4-2) Level 4 (8K/15K)

RS (IEC 61000-4-3) Level 3 (10V/m)

EFT (IEC 61000-4-4) Level 3 (1V/2V)

CS (IEC 61000-4-6) Level 3 (10V/m)

PFMF (IEC 61000-4-8) Level4 (30A/m)

Surge (IEC 61000-4-5) Level 4+ (6KV/2KV)

DIP (IEC 61000-4-11) Level3 (10V)

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x,

Cl e a n C o d e T e c h n o l o g y , A m e r i c an C e r t i f i e d E t h e r n e t

Mean Time Between Failure - Calculated by (MIL-HDBK-217F) Calculation Temperature of +25C MTBF Hours - 510,304

Military Grade Aluminum with Structural Reinforcement Dimensions: 103.5 mm x 81.5 mm x 32 mm (L x W x D)

Cooling Diffusion Technology via Housing (Patent Pending) Removable Terminal block

UL/cUL Class1, Div 2, CE

IPv6

Security Features

Pass-through Support fo r IPv6.

Priority queue: 8

Clean Code Technology

American Certified Ethernet

Filter rogue code pass through

Carrier Detect LED

Dual Power Inputs

Parity Check

Supports ARP

Support for speed limitation on packet transmission

Supports broadcast storm suppression

Small form factor

Clean Code Technology / Secure Video Technology Jumbo Frame Support 9KB

-2-

Page 3

Network Security for the 21st Century

Model Description

Switch Architecture

Non-blo cking S witc h Fabric - 16 Gbps Store and Forward

MAC Address Table Packet Buffer Size

Power Relay Contact

Hardware

Architecture

Power

Power Consumption ≤6W (Full forwarding Rate)

Convection Cooling Fanless design with high efﬁciency internal cooling ﬁns

2096 Entries 1 MB

6 Pin Molex Connector for PWR1, PWR2, and Alarm Relay Contact

Military Grade Aluminum Housing

Installation Mode: DIN rail-mount, wall-mount, or shelf mount

DC Input:

Rated voltage range: 9 ~ 56 Volts DC // 18 ~36 Volts AC

Dual Power Inputs / Polarity Protected Alarm Relay contact: 1A @ 24 Volts DC

Rated current: 0.5A / Overload Protected

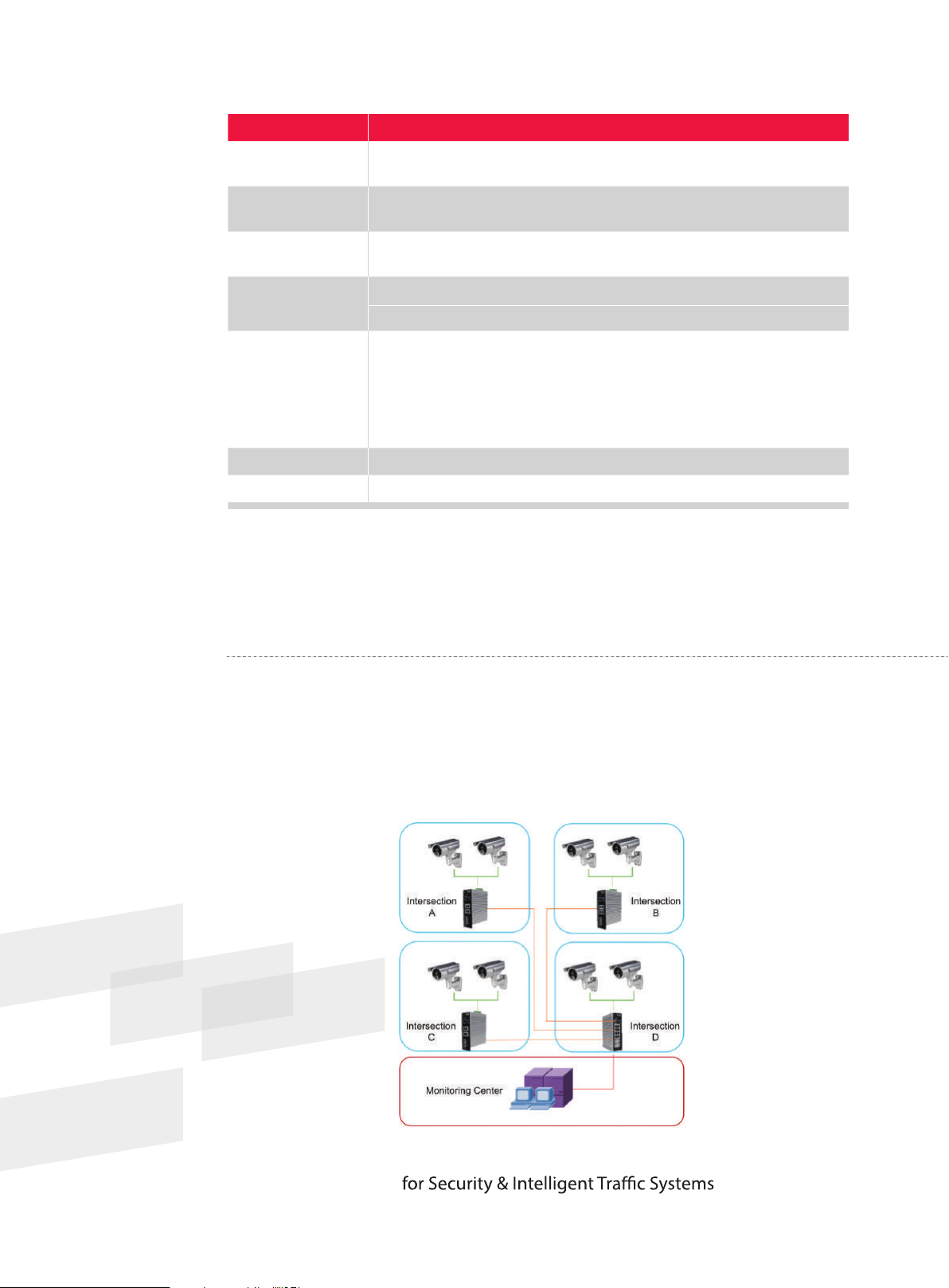

Typical Application

Intelligent Layer 2 Flat IP Network Surveillance System

Each intersection is deployed with four PZT cameras (each respectively pointing north,

south, east and west). Three DYMEC switches supply channels with images and videos to three

HDTV monitors. Video a n d Data is reliably transmitted over the network to the intersection

via Gigabit optical ﬁber. The DYMEC switch aggregates and transmits trafﬁc lights control details,

environmental monitoring data and video data to the control branch through optical ﬁber. Such data

are ﬁnally sent to the traffic control and maintenance center via the core network.

Use DYMEC Switches or DYMEC Traffic Switches

Intelligent IP Surveillance System

-3-

Page 4

Network Security for the 21st Century

Switch Ordering Information

Model Number Product Description

DY-6041SC

DY-6041SC-30

DY-6041T

DY-6042SC

DYMEC

AMERICAN INDUSTRIAL

5-port Industrial - 4 x 10/100 BaseT(X) RJ-45

& 1 x 100 Mbps SC, MM, 2Km

5-port Industrial - 4 x 10/100 BaseT(X) RJ-45 & 1 x 100 Mbps SC, SM, 30Km

5-port Industrial - 5 x 10/100 BaseT(X) RJ-45 (Military Grade)

6-port Industrial - 4 x 10/100 BaseT(X) RJ-45 & 2 x 100 Mbps SC, MM, 2Km

DY-6042SC-30

DY-D8050 (Gig)

DY-D8080 (Gig)

6-port Industrial - 4 x 10/100 BaseT(X) RJ-45 & 2 x 100 Mbps SC, SM, 30Km

5-port Industrial - 5 x 10/100/1000 BaseT(X) RJ-45

8-port Industrial - 8 x 10/100/1000 BaseT(X) RJ-45 (Military Grade)

Power Supply, Surge Protection & SFP Ordering Information

Model Description

KY-PS48-120W

(Din Rail / PoE)

KY-PS48-240W

(Din Rail / PoE)

KY-SPD-GRJ45PoE

SPD

48 Volts DC - 120 Watt Power Supply, 110/220 VAC 50/60Hz (PoE / Temperature Hardened / Military Grade)

Mini, Gigabit, RJr5, Heavy Duty, Industrial, Fast Clamping SPD (PoE / Temperature Hardened / Military Grade)

KY-PS24-18W 24 Volts DC - 18 Watt Power Supply, 110/220 VAC

KY-CGSFP-TXRJ 1000BASE-TX, SFP Transceiver (100m) (Supports CAT5-7)

KY-MGSFP-550M 1000BASE, SFP Transceiver, MM (850nm, 550m, LC)

KY-MGSFP-LR2KM 1000BASE, SFP Transceiver, MM (1310nm, 2Km, LC)

KY-SGSFP-LX10K 1000BASE, SFP Transceiver, SM (1310nm, 10Km, LC)

KY-SGSFP-LX20K 1000BASE, SFP Transceiver, SM (1310nm, 20Km, LC)

KY-SGSFP-LX40K 1000BASE, SFP Transceiver, SM (1310nm, 40Km, LC)

KY-SGSFP-ZX80K 1000BASE, SFP Transceiver, SM (1550nm, 80Km, LC)

SFP with Diagnostics (SM Only)
