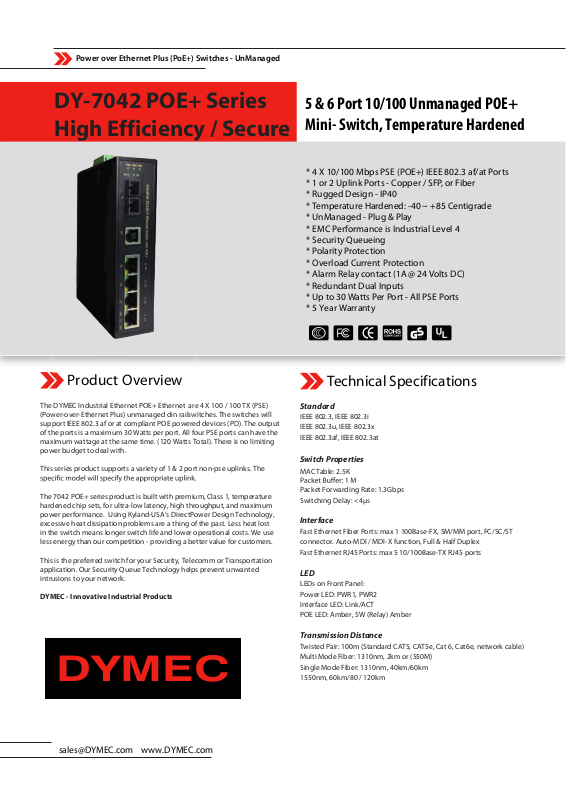

Page 1
Power over Ethernet Plus (PoE+) Switches - UnManaged
DY-7042 POE+ Series
High Efficiency / Secure
5 & 6 Port 10/100 Unmanaged POE+
Mini- Switch, Temperature Hardened
* 4 X 10/100 Mbps PSE (POE+) IEEE 802.3 af/at Ports
* 1 or 2 Uplink Ports - Copper / SFP, or Fiber
* Rugged Design - IP40
* Temperature Hardened: -40 ~ +85 Centigrade
* UnManaged - Plug & Play
* EMC Performance is Industrial Level 4
* Security Queueing
* Polarity Protection
* Overload Current Protection
* Alarm Relay contact (1A @ 24 Volts DC)
* Redundant Dual Inputs
* Up to 30 Watts Per Port - All PSE Ports
* 5 Year Warranty
Product Overview
The DYMEC Industrial Ethernet POE+ Ethernet are 4 X 100 / 100 TX (PSE)
(Power-over-Ethernet Plus) unmanaged din railswitches. The switches will
support IEEE 802.3 af or at compliant POE powered devices (PD). The output
of the ports is a maximum 30 Watts per port. All four PSE ports can have the
maximum wattage at the same time. (120 Watts Total). There is no limiting
power budget to deal with.
This series product supports a variety of 1 & 2 port non-pse uplinks. The
The 7042 POE+ series product is built with premium, Class 1, temperature
hardened chip sets, for ultra-low latency, high throughput, and maximum
power performance. Using Kyland-USA’s DirectPower Design Technology,
excessive heat dissipation problems are a thing of the past. Less heat lost
in the switch means longer switch life and lower operational costs. We use
less energy than our competition - providing a better value for customers.
This is the preferred switch for your Security, Telecomm or Transportation
application. Our Security Queue Technology helps prevent unwanted
intrusions to your network.
DYMEC - Innovative Industrial Products
DYMEC
Technical Specifications
Standard
IEEE 802.3, IEEE 802.3i
IEEE 802.3u, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at
Switch Properties
MAC Table: 2.5K
Packet Forwarding Rate: 1.3Gbps
Switching Delay: <4μs
Interface
Fast Ethernet Fiber Ports: max 1 100Base-FX, SM/MM port, FC/SC/ST
connector. Auto-MDI / MDI-X function, Full & Half Duplex
Fast Ethernet RJ45 Ports: max 5 10/100Base-TX RJ45 ports
LED
LEDs on Front Panel:
Power LED: PWR1, PWR2
Interface LED: Link/ACT
POE LED: Amber, SW (Relay) Amber
Transmission Distance
Twisted Pair: 100m (Standard CAT5, CAT5e, Cat 6, Cat6e, network cable)
Multi Mode Fiber: 1310nm, 2km or (550M)
Single Mode Fiber: 1310nm, 40km/60km
1550nm, 60km/80 / 120km
[email protected] www.DYMEC.com
Page 2
Power Requirements
Power Input: POE+
48 volts DC POE (44-56Volts DC)
Power Consumption:
<2W (no PD), <123W (full load PD)
Overload Protection: Supported
Reverse Connection Protection: Supported
Physical Characteristics
Housing: Metal, fanless (convection cooled)
Protection Class: IP40
Dimensions (L×W×D): 142 × 36.1 × 105 mm
Weight: 0.55kg
Mounting: DIN-Rail or Wall / Panel mounting
DYMEC
Warranty
5 years
Approvals
UL, CE, FCC, VCC
Industrial Standard
EMI:
FCC Part 15 Subpart B, (Class A), EN55022/CISPR22, Class A
EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
POE+
Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 97% (non-condensing)
MTBF
511,310 hours (MIL-HDBK-217F) at 25 Degrees Centigrade
Machinery:
IEC60068-2-6 (Vibration),
IEC60068-2-27 (Shock),
IEC60068-2-32 (Free Fall)
Industry: IEC61000-6-2
Railway: EN50155, EN50121-4
Certificates
EN 55022 / 24 ITE Equipment
EN 50155 Railway / Railcar Applications, Electronic Equipment used on rolling stock
EN 50121-3-2 Railway Applications, Electromagnetic Compatibility - Part 3-2: Rolling Stock - Apparatus
EN 50121-4 Railway Applications - Electromagnetic Compatibility - Part 4: Emissions & Immunity of the
Signaling and Telecommunications Apparatus
Safety IEC EN60950-1
EMC / EMS CE, FCC, VCCI
EMI FCC Part 15, Subpart B, Class A : CE EN 55022 Class A
EN 50155 / EN 60068-2-6 Vibration
EN 50155 / EN 60068-2-27 Shock
EN 50155 / EN 60068-2-32 Free Fall
IEEE1613 Power Utility / Substation
EnergyStar
[email protected] www.DYMEC.com
Page 3
DYMEC

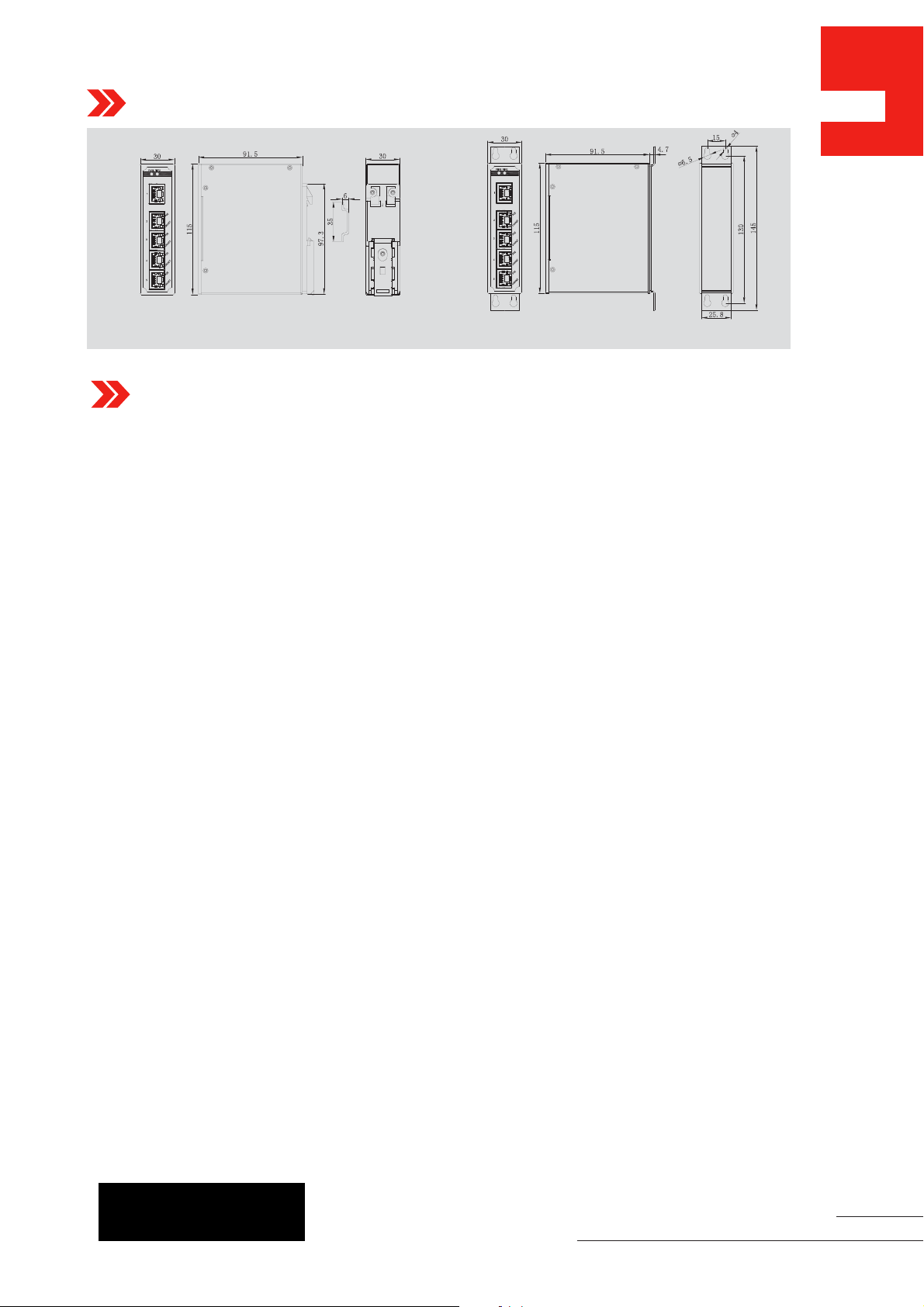

Mechanical Drawing
noitallatsnI gnitnuoM lenaPnoitallatsnI liaR niD
Fiber Connector Types:
Product Ordering Information
DYMEC 7042 Series: UnManaged 10/100 POE+
Available Models:
DY-7041T: 5 Port 10/100 Mbps POE+ Industrial Ethernet Switch (UnManaged)
4 X 10/100BaseT(X) / RJ45 PSE (POE+), & 1 X 10/100BaseT(X) / RJ45
Dual Redundant DC power inputs with Alarm Relay (1A @ 24 Volts DC)
SC = SC Connector
ST = ST Connector
FC = FC Connector
POE+
DY-7042T: 6 Port 10/100 Mbps POE+ Industrial Ethernet Switch (UnManaged)
4 X 10/100T(X) / RJ45 PSE (POE+), & 2 X 10/100BaseT(X) / RJ45
Dual Redundant DC power inputs with Alarm Relay (1A @ 24 Volts DC)
DY-7041SC: 5 Port 10/100 Mbps POE+ Industrial Ethernet Switch (UnManaged)
4 X 10/100BaseT(X) / RJ45 PSE (POE+), & 1 X 100Mbps SC / MM (2 KM)
Dual Redundant DC power inputs with Alarm Relay (1A @ 24 Volts DC)
DY-7042SC: 6 Port 10/100 Mbps POE+ Industrial Ethernet Switch (UnManaged)
4 X 10/100BaseT(X) / RJ45 PSE (POE+), & 2 X 100Mbps SC / MM (2 KM)
Dual Redundant DC power inputs with Alarm Relay (1A @ 24 Volts DC)
DY-7041SC-30: 5 Port 10/100 Mbps POE+ Industrial Ethernet Switch (UnManaged)
4 X 10/100BaseT(X) / RJ45 PSE (POE+), & 1 X 100Mbps SC / SM (30 KM)
Dual Redundant DC power inputs with Alarm Relay (1A @ 24 Volts DC)
DY-7042SC-30: 6 Port 10/100 Mbps POE+ Industrial Ethernet Switch (UnManaged)
4 X 10/100BaseT(X) / RJ45 PSE (POE+), & 2 X 100Mbps SC / SM (30 KM)
Dual Redundant DC power inputs with Alarm Relay (1A @ 24 Volts DC)
DY-7042TSC: 6 Port 10/100 Mbps POE+ Industrial Ethernet Switch (UnManaged)
4 X 10/100BaseT(X) / RJ45 PSE (POE+), & 1 X 100Mbps SC / MM (2 KM) &
1 X 10/100BaseT(X) / RJ45
Dual Redundant DC power inputs with Alarm Relay (1A @ 24 Volts DC)
DY-7042TSC-30: 6 Port 10/100 Mbps POE+ Industrial Ethernet Switch (UnManaged)
4 X 10/100BaseT(X) / RJ45 PSE (POE+), & 1 X 100 Mbps SC / SM (30 KM) &
1 X 10/100BaseT(X) / RJ45
Dual Redundant DC power inputs with Alarm Relay (1A @ 24 Volts DC)
DYMEC
[email protected] / www.DYMEC.com
Page 4
DYMEC

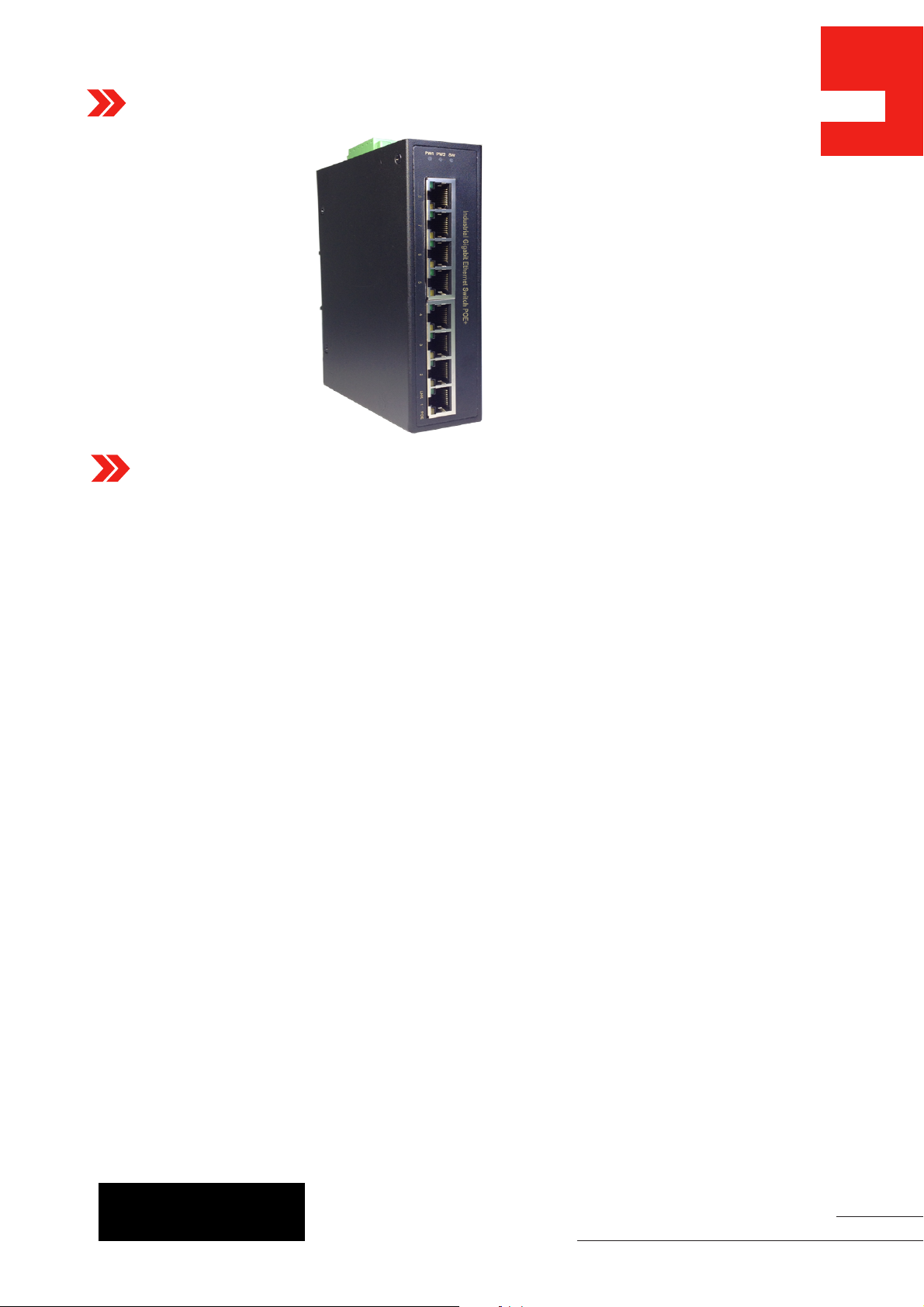

Additional DY-9080A Series: 8 Port with & without POE+
Product Ordering Information
DYMEC 9080A Series: UnManaged 8 Port 10/100 with POE+ / non-POE
Available Models:
POE+
DY-9080A: 8 Port 10/100 Mbps POE+ Industrial Ethernet Switch (UnManaged)
8 X 10/100BaseT(X) / RJ45 PSE (POE+)
Dual Redundant DC power inputs with Alarm Relay (1A @ 24 Volts DC)
DY-9080A-4P: 8 Port 10/100 Mbps POE+ Industrial Ethernet Switch (UnManaged)
4 X 10/100T(X) / RJ45 PSE (POE+), & 4 X 10/100BaseT(X) / RJ45
Dual Redundant DC power inputs with Alarm Relay (1A @ 24 Volts DC)
DY-D9080A: 8 Port 10/100 Mbps Industrial Ethernet Switch (UnManaged)
8 X 10/100BaseT(X) / RJ45
Dual Redundant DC power inputs with Alarm Relay (1A @ 24 Volts DC)
DYMEC
[email protected] / www.DYMEC.com
