DWT ABS-12 TC-2 BMC User manual

*

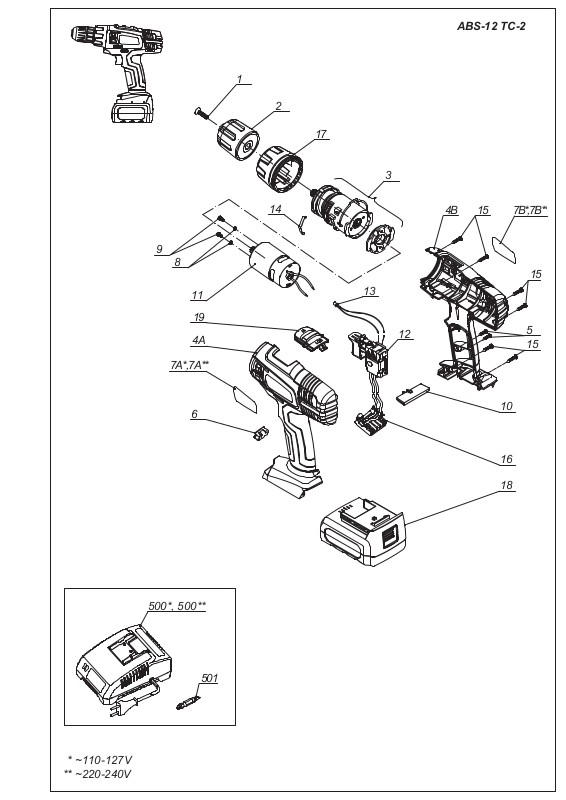

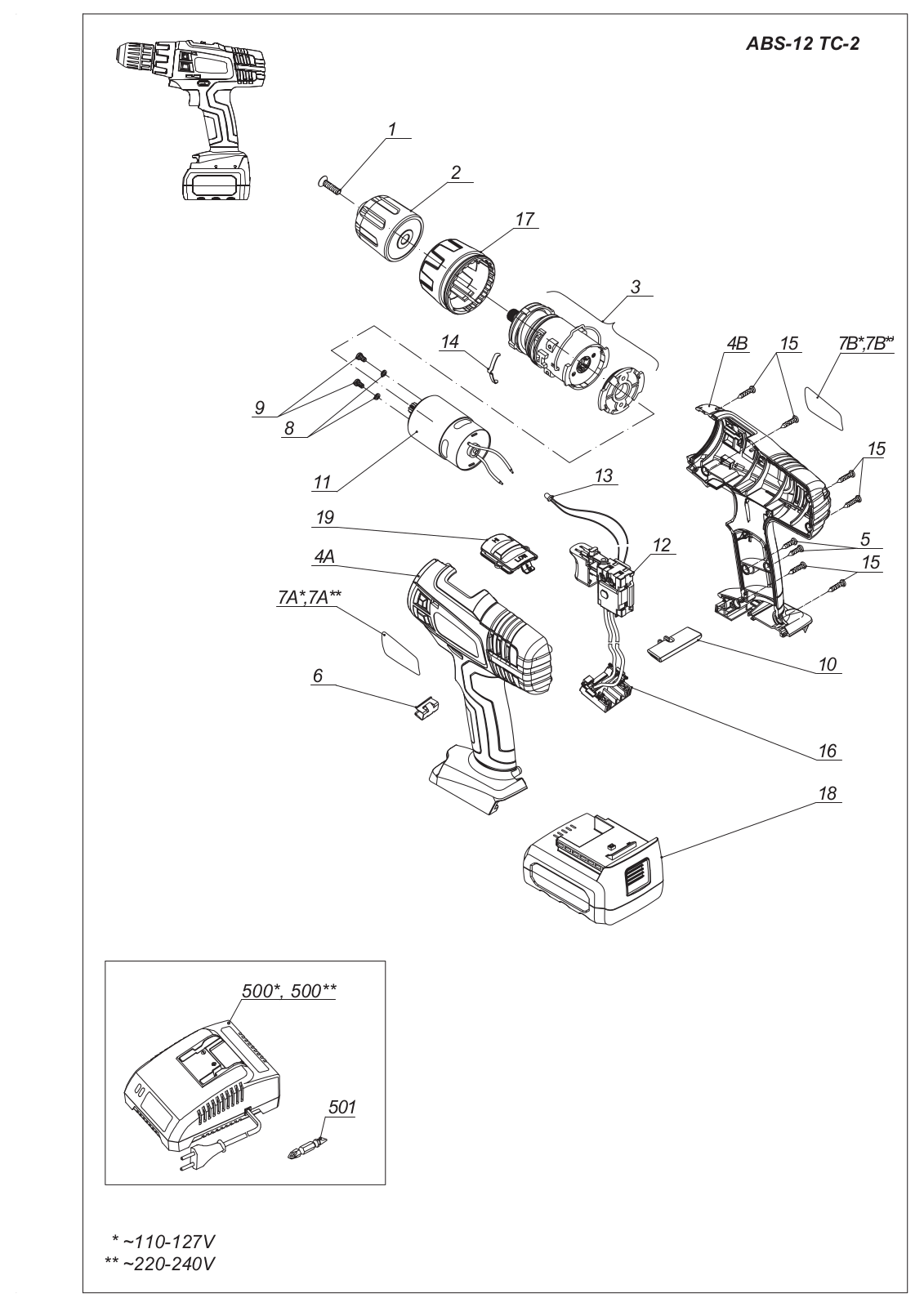

ABS-12 TC-2

1

2

17

3

9

7A*,7A**

14

8

11

19

4A

6

13

12

4B 7B*,7B*

15

15

5
15

10

16

* ~110-127V

** ~220-240V

18

500*, 500**

501

DWT

Jun 2012 2 Speed DRILL ABS-12 TC-2

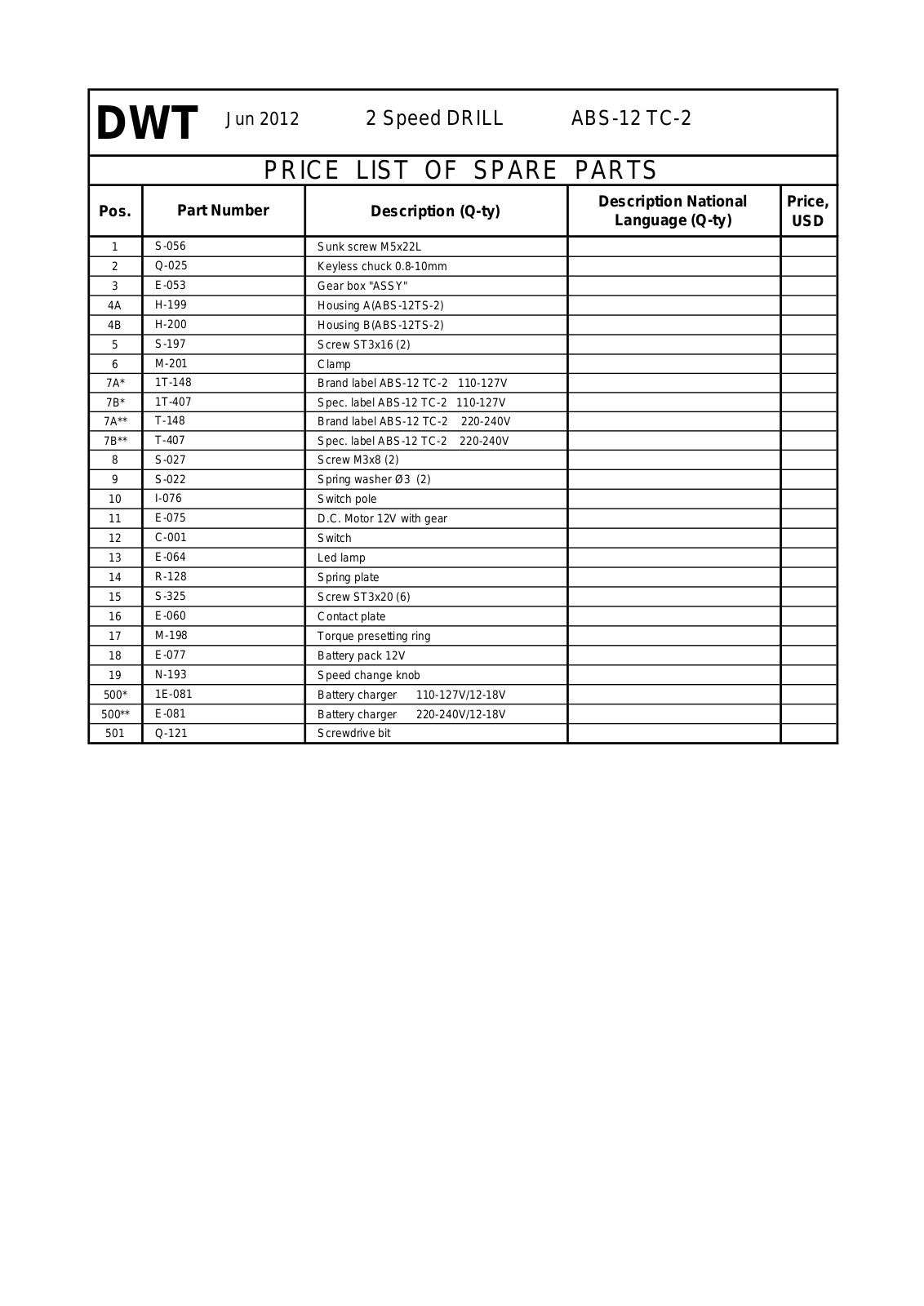

PRICE LIST OF SPARE PARTS

Pos. Description (Q-ty)

1 Sunk screw M5x22L
2 Keyless chuck 0.8-10mm

3 Gear box "ASSY"
4A Housing A(ABS-12TS-2)
4B Housing B(ABS-12TS-2)

5 Screw ST3x16 (2)

6 Clamp

7A* Brand label ABS-12 TC-2 110-127V

7B* Spec. label ABS-12 TC-2 110-127V
7A** Brand label ABS-12 TC-2 220-240V
7B** Spec. label ABS-12 TC-2 220-240V

8 Screw M3x8 (2)

9 Spring washer Ø3 (2)
10 Switch pole
11 D.C. Motor 12V with gear
12 Switch
13 Led lamp
14 Spring plate
15 Screw ST3x20 (6)
16 Contact plate
17 Torque presetting ring
18 Battery pack 12V
19 Speed change knob

500* Battery charger 110-127V/12-18V

500** Battery charger 220-240V/12-18V

501 Screwdrive bit

Part Number

S-056
Q-025
E-053
H-199
H-200
S-197
M-201
1T-148
1T-407
T-148
T-407
S-027
S-022
I-076
E-075
C-001
E-064
R-128
S-325
E-060
M-198
E-077
N-193
1E-081
E-081
Q-121

Description National

Language (Q-ty)

Price,

USD
