DV Mark DVM Compressore Owner`s Manual

v. 6.july.2010
owner’s manual
1. IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions;
2) Keep these instructions;
4) Follow all instructions;
5) Do not use this apparatus near water;
6) Clean only with dry cloth;
7) Install in accordance with the manufacturer’s instructions;
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatuses (including ampliers) that produce heat;
9) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus;
10) Only use attachments/accessories specied by the manufacturer;
11) Unplug this apparatus during lightning storms or when unused for long periods of time;
12) Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, or when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped;
13) “Warning: to reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture; and objects lled with liquids, such as vases, should not be placed on this apparatus”;
14) The socket outlet shall be installed near the equipment and shall be easily accessible;
15) The power cord must be unplugged prior to servicing.
1. PRÉCAUTIONS D’EMPLOI
1) Lire ces instructions;
2) Conserver ces instructions;
3) Suivre tous les conseils d’utilisations;
4) Suivre toutes les instructions;
5) Ne pas utiliser cet appareil au bord de l’eau;
6) Nettoyer uniquement avec un chion humide;
7) Ne pas bloquer le système de ventilation. Installer conformément aux instructions du fabricant;
8) Ne pas installer l’appareil près d’une source de chaleur tel qu’un radiateur, un fourneau, ou bien un autre appareil qui produit de la chaleur;
9) Protéger le cordon d’alimentation an qu’il ne soit pas piétiné ou écrasé tout particulièrement au niveau des ches, des prises de courant femelles, et des parties qui sortent de l’appareil;
10) Utiliser uniquement les accessoires recommendés par le fabricant;
11) Ne pas branché l’appareil en cas d’orage accompagné d’éclairs. Le débrancher en cas de non utilisation prolongée;
12) S’adresser à un service assistance agréé si l’appareil a subi des dommages, si le cordon d’alimentation ou la che a été endommagé, si un liquide a été renversé sur l’appareil ou bien si un object est tombé dans l’appareil, si ce dernier a été exposé à la pluie ou à l’humidité, s’il ne fonctionne pas correctement ou s’il est tombé;
13) “Avertissant: pour réduire le risque du feu ou de décharge électrique, n’exposez pas cet appareil à la pluie ou l’humidité et les objets remplis de liquides; tels que des vases, ne devraient pas être placés sur cet appareil”;
14) La prise de courant doit être installée près de l’appareil et doit être facilement accessible;
15) La che principale doit être débranchée avant toute opération d’entretien.
MORE INFORMATION For warranty and service information, please contact your local DV Mark distributor (contact information available at www.dvmark.it). For more technical information, please visit us at www.dvmark.it and ll out the form on the Contact Us page. We hope you enjoy your eect pedal and use it to make great music!
“The Lightning Flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product enclosure that may be of sucient magnitude to constitute a risk of shock to persons.”
02
“The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.”
2. CONTENTS

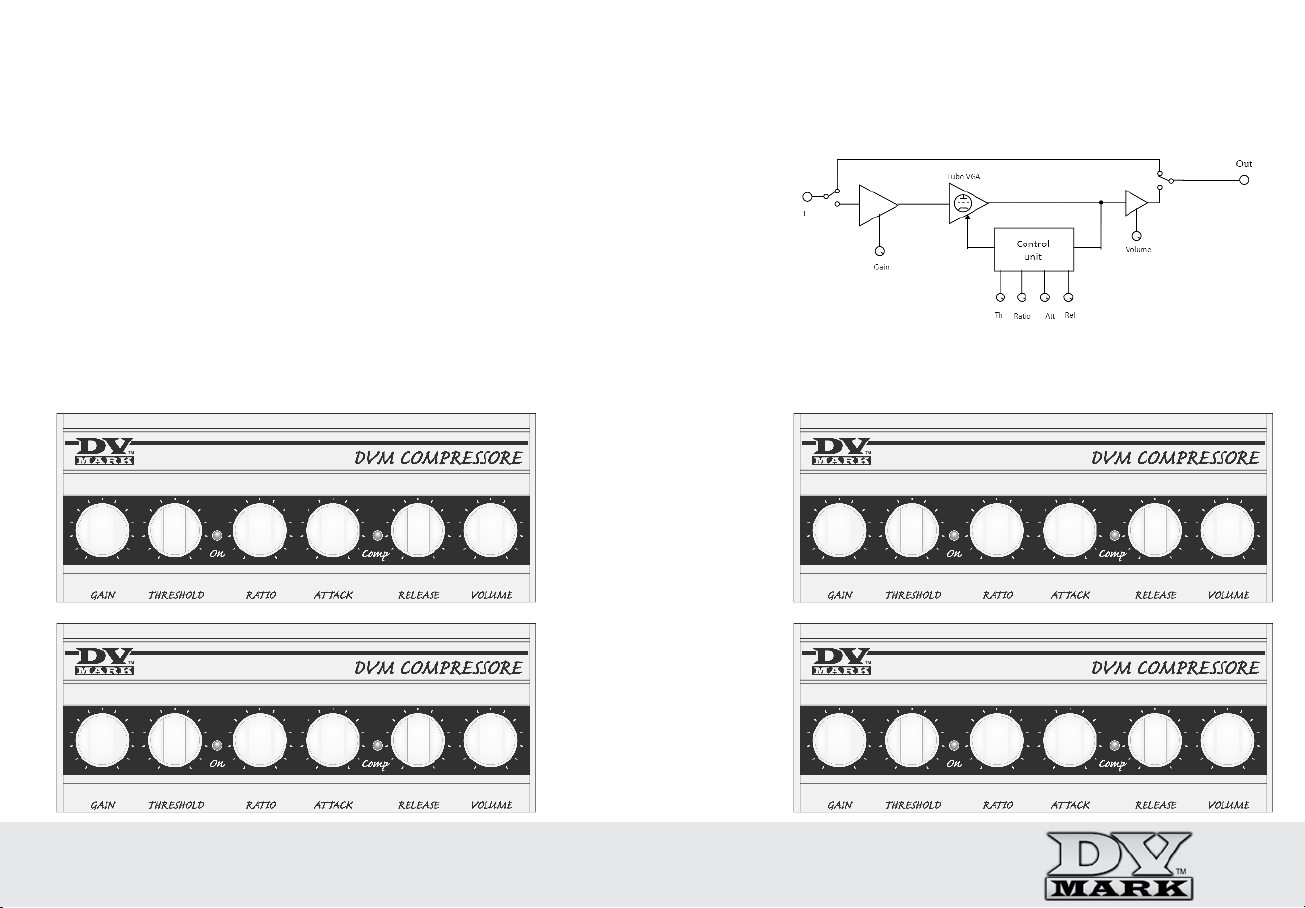

INTRODUCTION 3 FUNCTION OVERVIEW 4 CONNECTIONS 4 TECHNICAL SPECS 5 BLOCK DIAGRAM 5 USER SETTING CHART 5
Congratulations on your purchase of the DV Mark DVM COMPRESSORE!
DVM COMPRESSORE (we chose an Italian name to express how proud we are to manufacture all our products in Italy) is a high-quality tube compressor that features all the individual controls normally found on professional studio outboard compressors: gain, threshold, ratio, attack, release and volume. Not only designed for guitar, this pedal can also be used with basses or any acoustic or electric instruments, in either live or studio applications, thanks to its state-of-the-art component quality.
The pedal’s featured ECC81 tube compresses your signal, evening out the sharp peaks of your playing in a natural, transparent way. At the same time, it also adds warmth and harmonics to your sound. Like all our pedals, this unit features “true bypass”: that means that when the compressor is ‘o ’, your signal goes directly from the input jack to the output jack without any degradation of audio quality. This manual will help you get the most out of your DVM COMPRESSORE pedal. If you have any questions after reading it, please feel free to contact our Online Customer Service Department at info@dvmark.it. Thank you again, and enjoy your DVM COMPRESSORE!
3. INTRODUCTION
DVM COMPRESSORE is no mere stomp box… it’s a state-of-the-art compression tool. Not only is it very easy and practical to use, but it may also be the nest tube compressor pedal ever created! While some compressor pedals oer individual control of nearly all compression parameters, the controls on most comp boxes adjust two simultaneously, and some only have a single “compression” knob. DVM COMPRESSORE features all the individual controls you would normally nd on professional studio outboard compressors. This pedal gives you full control!
03
