Dv Mark Bad Boy 120 User Manual

SAFETY INSTRUCTIONS

1. IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions;

2) Keep these instructions;

3) Heed all warnings;

4) Follow all instructions;

5) Do not use this apparatus near water;

6) Clean only with a dry cloth;

7) Install in accordance with the manufacturer’s instructions;

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatuses (including amplifiers) that produce heat;

9) Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus;

10) Only use attachments/accessories specified by the manufacturer;

11) Unplug this apparatus during lightning storms or when unused for long periods of time;

12) Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as when the power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, or when the apparatus has
been exposed to rain or moisture, does not operate normally, or has been dropped;

13) “Warning: to reduce the risk of fire or electric shock, do not expose this apparatus to rain

or moisture; and objects filled with liquids, such as vases, should not be placed on this
apparatus”;

14) The socket outlet shall be installed near the equipment and shall be easily accessible;

15) The power cord must be unplugged prior to servicing

1. PRÉCAUTIONS D’EMPLOI

1) Lire ces instructions;

2) Conserver ces instructions;

3) Suivre tous les conseils d’utilisations;

4) Suivre toutes les instructions;

5) Ne pas utiliser cet appareil au bord de l’eau;

6) Nettoyer uniquement avec un chiffon humide;

7) Ne pas bloquer le système de ventilation. Installer conformément aux instructions du fabricant;

8) Ne pas installer l’appareil près d’une source de chaleur tel qu’un radiateur, un fourneau, ou bien
un autre appareil qui produit de la chaleur;

9) Protéger le cordon d’alimentation afin qu’il ne soit pas piétiné ou écrasé tout particulièrement au
niveau des fiches, des prises de courant femelles, et des parties qui sortent de l’appareil;

10) Utiliser uniquement les accessoires recommendés par le fabricant;

11) Ne pas branché l’appareil en cas d’orage accompagné d’éclairs. Le débrancher en cas de non

utilisation prolongée;

12) S’adresser à un service assistance agréé si l’appareil a subi des dommages, si le cordon

d’alimentation ou la fiche a été endommagé, si un liquide a été renversé sur l’appareil ou bien si
un object est tombé dans l’appareil, si ce dernier a été exposé à la pluie ou à l’humidité, s’il ne
fonctionne pas correctement ou s’il est tombé;

13) “Avertissant: pour réduire le risque du feu ou de décharge électrique, n’exposez pas cet appareil

à la pluie ou l’humidité et les objets remplis de liquides; tels que des vases, ne devraient pas
être placés sur cet appareil”;

14) La prise de courant doit être installée près de l’appareil et doit être facilement accessible;

15) La fiche principale doit être débranchée avant toute opération d’entretien

MORE INFORMATION

For warranty and service information, please contact your local DV Mark distributor (contact information available at www.dvmark.it). For more technical information, please visit us at www.dvmark.it
and fill out the form on the Contact Us page. We hope you enjoy your amplifier and use it to make great music!

“The Lightning Flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product enclosure that may be of
sufficient magnitude to constitute a risk of shock to persons.”

“The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the
product.”

2

MARK VISION

A Word from Marco De Virgiliis

Thank you for choosing DV Mark!

We are very excited to have you join us for an exciting new chapter in the history of guitar amplification. In less than 10 years, we have succeeded in making
Markbass the world’s leading bass amp brand, using technology to better serve the needs of bassists: great tone, reliability, versatility/flexibility, and light weight.
Now it’s time for guitarists to have their turn!

The classic tones guitarists have come to know and love over the last few decades are worthy of great respect. We have designed our amps with a great reverence
for these sounds. We’re not trying to start a revolution in guitar tone… because guitarists don’t want or need that.
However—there are some important areas where the classic amplifiers can be greatly improved upon, to better suit the needs of guitarists:

The first is reliability—and we are very proud of the high quality standard that we’re able to offer thanks to our 100% Made in Italy production, state-of the-art
testing and quality control facilities, top-quality components, and innovative technology that makes it easy to monitor the condition of your amp and its tubes. You
need to be able to always trust your amp… and we understand that!

The second is flexibility. One example of this is DV Mark’s patent pending Continuous Power Control feature (included on our 40W heads and combos), which
allows you to adjust the power incrementally, setting the power at anywhere between 1 and 40W. This means you can get the tone you want at the volume you need;
so you can use the same amp for everything, from larger gigs, to smaller gigs, right down to bedroom practicing—and never sacrifice your tone!

The third is light weight. Many of you have seen your bass players easily loading in and out of gigs with their lightweight Markbass gear, while you struggle
with a heavy 2x12 combo or 4x12 cabinet. It’s time you enjoyed the same benefits of lightweight gear! Especially if you play a lot, the weight of your gear is a real
factor. Once you learn that DV Mark allows you to get killer tone at a fraction of the weight… there’s no going back.

We hope you will enjoy your new guitar amp, and we invite you to contact us any time with your comments and questions, at [e-mail].

Thanks again, and good music!

Marco De Virgiliis

3

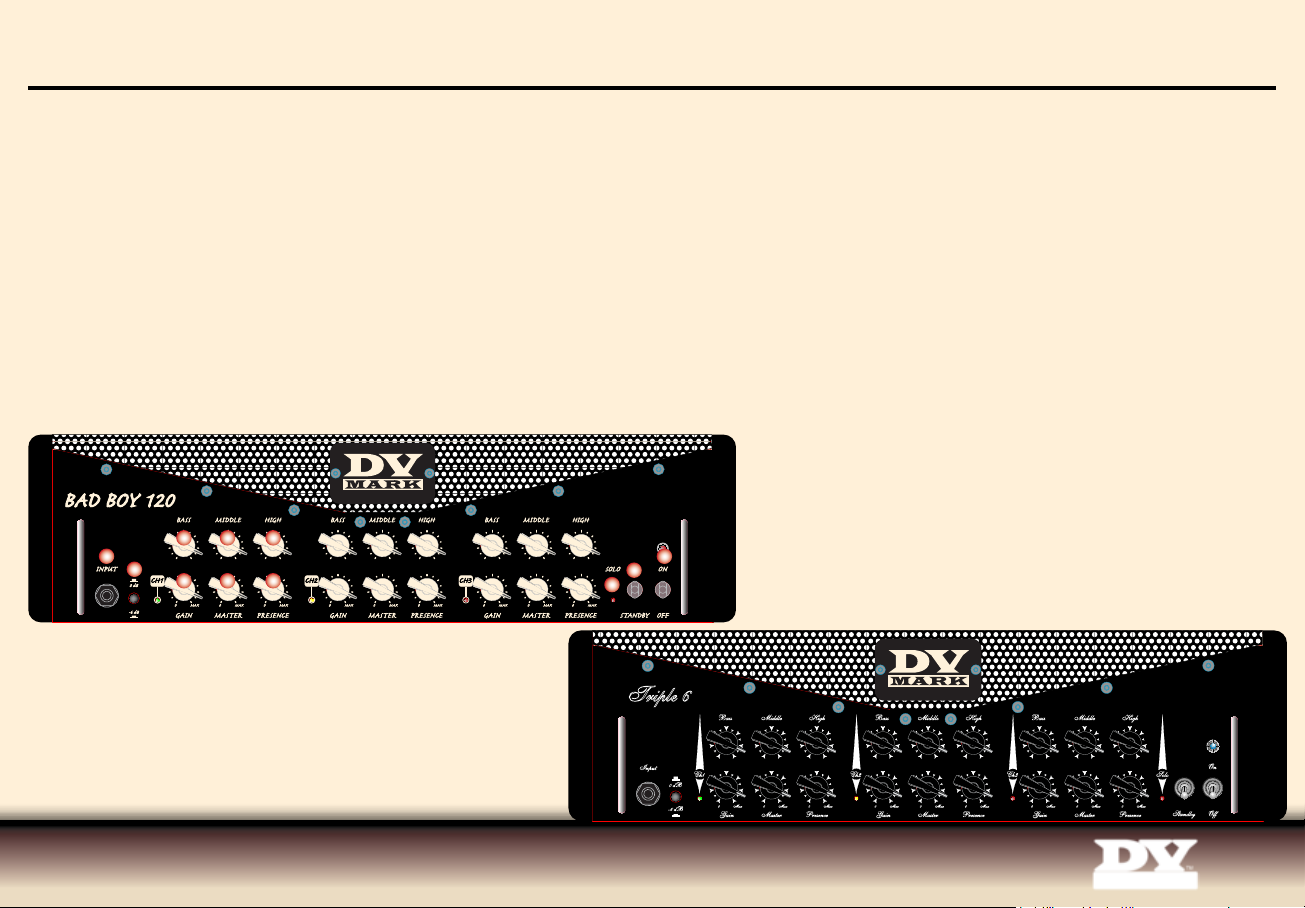

FRONT PANEL

1) INPUT Connect your guitar to this input using a standard ¼” shielded instrument cable.

2) 0/-6dB SWITCH This switch pads the input (1) from 0 dB to -6 dB to compensate for higher-output sources, such as guitars with high-

output pickups or active electronics.

3) GAIN This knob sets the gain level (on each channel), and is the preamp’s most powerful control. It not only determines the amount of drive
or saturation (for getting clean, crunch or overdriven sounds, or anywhere in between), but also plays an important role in tone shaping. The
Bad Boy 120 / Triple 6 actually houses three separate and unique preamplifiers in one head—so although each channel looks identical, each
GAIN control alters your sound differently.

4) MASTER This control is the master feed from the end of the preamp channel to the tube power stage. Each channel features its own
MASTER control, allowing you to perfectly balance the relative volumes of the three channels, which can have very different sound styles and
gain/drive levels. On each, the master control allows you to obtain a wide range of sounds/colours in relation to the gain setting—for example,
very low-gain sounds at high volumes, or high-gain sounds at low volumes.

5) PRESENCE The PRESENCE knob featured on each channel controls high frequencies, above those controlled by the High knob. It’s an
effective and useful part of the channel’s tone controls. Turning up the Presence knob gets you a crisp and sparkling clean sound in channel 1,
or crunchy rhythm sounds for aggressive riffs in channel 2. On channel 3, turning down the presence control gets you a darker, more rounded
tone for single-note lead playing.

6) BASS This knob controls the amount of low frequencies in your sound. The EQ curves of the bass controls are different on each channel.
When you’re starting to explore sounds on the amp, avoid boosting the lows too much as this can reduce your attack and muddy your sound.
And as the gain is turned up, it’s a good idea to lower the bass control somewhat for a more balanced sound (starting with the bass setting at
around 12 o’clock).

7) MIDDLE The Middle control regulates the midrange frequencies and is an important part of your tone shaping. The frequency range it
boosts or cuts has a big effect on the character of your sound. For a more scoopy tone, lower the mids. Turn the knob up for more focused
attack and better pitch definition.

8) HIGH The High knob controls the amount of high frequencies in your sound. It can produce unwanted noise (hiss) or pickup feedback when
really cranked, so it’s best to avoid extreme settings, especially on channels 2 and 3, due to their higher gain. On Channel 3 you may find that
