Teileliste und Naeheinrichtungen
Parts List and Sewing Equipment
888
Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Str. 190, D-33719 Bielefeld
Telefon +49 (0) 5 21/ 9 25-00 • Telefax +49 (0) 5 21/ 9 25 24 35 • www.duerkopp-adler.com
Ausgabe / Edition: Aenderungsindex Teile-Nr./Part.-No.:
01/2010 Rev. index: 04.0 Printed in Czech Republic 0791 888801
Alle Rechte vorbehalten.
Eigentum der Dürkopp Adler AG und urheberrechtlich geschützt. Jede, auch auszugsweise
Wiederverwendung dieser Inhalte ist ohne vorheriges schriftliches Einverständnis der Dürkopp Adler AG
verboten.
All rights reserved.
Property of Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any manner,
even in extracts, without prior written permission of Dürkopp Adler AG, is prohibited.
Copyright ©
Dürkopp Adler AG - 2010
Teileliste und Naeheinrichtungen
Parts List and Sewing Equipment
888
Inhaltsverzeichnis Tafel / Table Contents
Armwelle 1 Upper shaft
Antrieb Arm- und Unterwelle, 2 Upper and bottom shaft drive,
Rastkupplung Safety clutch
Fadenhebel, Nadelhalter 3 Thread lever, Needle holder
Fadenhebel-schaltbare 4 Thread lever-needle bar
nadelstangen rocking mechanism
Antrieb Nadeltransport 5 Needle feed drive
Rollfussantrieb, 6 Top roller driver,
Rollfussantrieb-Variator Top roller driver-variator
Variator 7 Variator
Transportgetrieb 8, 9 Wheel feed drive
Transportgetrieb-Variator Wheel feed drive-variator
Schubwelle 10 Feeding shaft
Transporteursaeule, Fuehrungsleiste, 11 Wheel feed, Feed carrier,
Deckel Einnadel, Deckel Zweinadel Cover 1 needle, Cover 2 needles
Fusslueftung Handhebel 12 Top roller lift hand lever
Fusslueftung Kniehebel 13 Top roller lift knee lever
Fusslueftung el.magn. 14 Top roller lift el.magn.
Fusslueftung pneu. 15 Top roller lift el.pneu.
Grosser Greifer mit Spule 16 Large hook with bobbin
Kleiner Greifer mit Spule 17 Small hook with bobbin
Greifersaeule rechts 18 Hook post right
Greifersaeule links, 19 Hook post left, Slide left
Stichplatteschieber links
Fadenabschneider 20 Thread trimmer
Unterschneider 21 Lower edge trimming
Spuler 22 Winder
Spannungsplatte Einnadel mech. 23 Tension plate 1 needle mech.
Spannungsplatte Einnadel el.magn. 24 Tension plate 1 needle el.magn.
Spannungsplatte Einnadel pneu. 25 Tension plate 1 needle pneu.
Spannungsplatte Zweinadel mech. 26 Tension plate 2 needles mech.

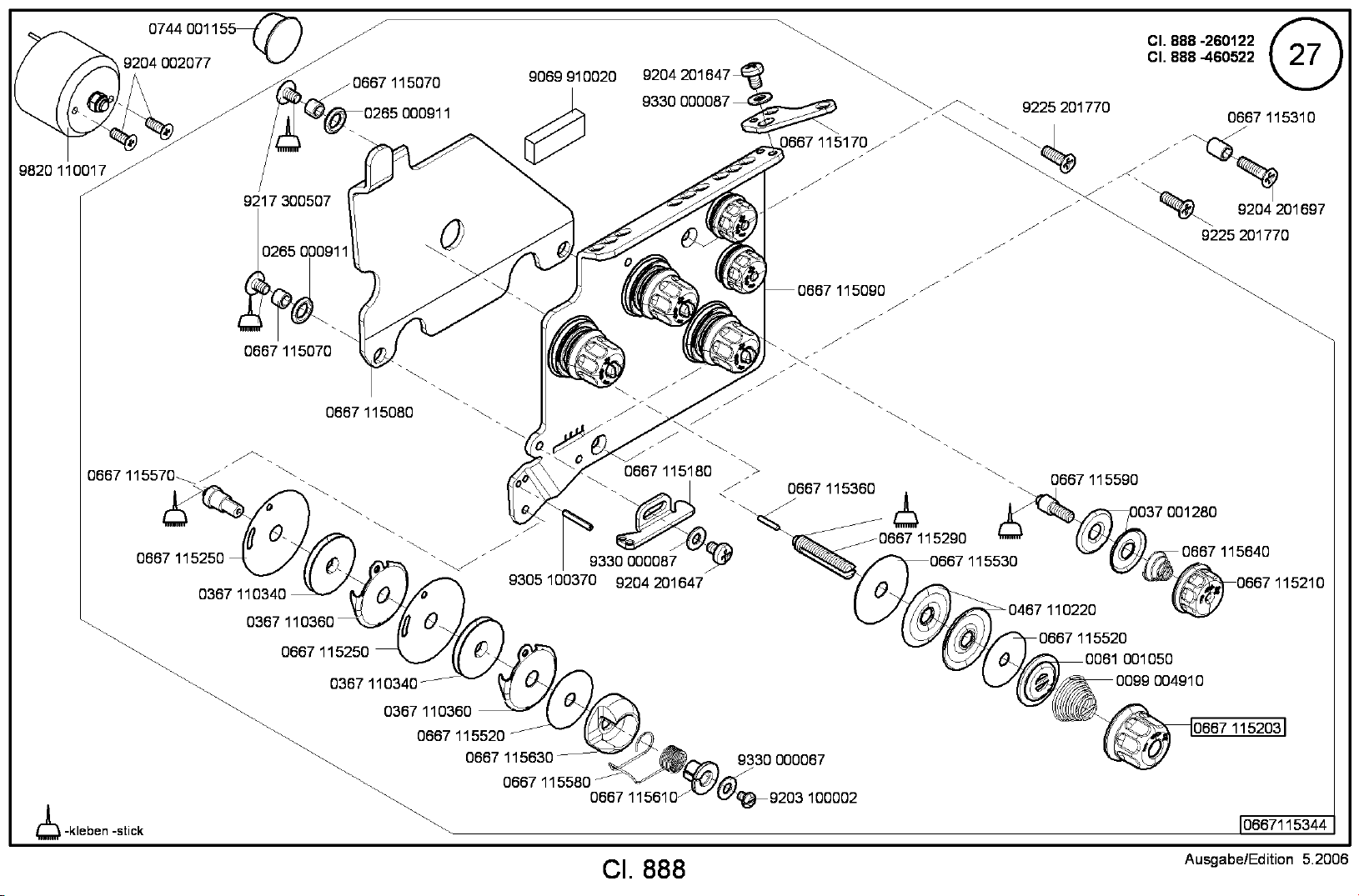

Spannungsplatte Zweinadel el.magn. 27 Tension plate 2 needle el.magn.
Spannungsplatte Zweinadel pneu. 28 Tension plate 2 needles pneu.
Stichverstellung 29 Stitch adjustment
Stichverstellung 2 Stichlaengen 30 Stitch adjustment 2 stitch lengths
Verriegelung mech., el.magn. 31 Backtacking mech., el.magn.
Verteilerplatte, Taster 32 Electrical distribution board,
Push-buttons
Magnetventileinheit 33 Solenoid valve unit
Zentralschmierung 34 Central lubrication
Fussandruck k onstant 35 Foot pressure constant
Arm, Fadenfuehrung 36 Arm, Thread guide
Arm, Magnetventileinheit-schaltbare 37 Arm, Solenoid valve unit-needle
Naehantrieb, Bedienfeld 40 Motor, Control panel
nadelstangen bar rocking mechanism
Grundplatte 38 Bed p late
Naehleuchte Diode 39 Sewing lamp diode
Teileliste und Naeheinrichtungen
Parts List and Sewing Equipment
888
Inhaltsverzeichnis Tafel / Table Contents
Teilesatz fuer FIR 1147-F554.3 und 41 Part set for FIR 1147-F554.3 and
Teilesatz fuer EFKA DC1550/DA321G 42 Part set for EFKA DC1550/
Teilesatz fuer EFKA DC1550/DA321G 43 Part set for EFKA DC1550/
FIR 1147-F752.3 FIR 1147-F752.3
USB Memory Stick DA321G, USB memory key
DA321G
Teilesatz 44, 45 Part set
Gestell 46 Stand
Wartungseinheit 47 Maintenance unit
Beipack 48, 49 Accessories
Bedienfeldwinkel 50 Angle for control panel
Teilstich-Einrichtung Reduced stitch device
Kniehebel Knee lever
Rollenanschlag Roller s top
Kantenanschlag Edge guide
abdruckarm Schiebrad Wheel feeder without impress
Anschiebetisch Slide-on table
Rollfuss Æ 25 51 Top roller Æ 25

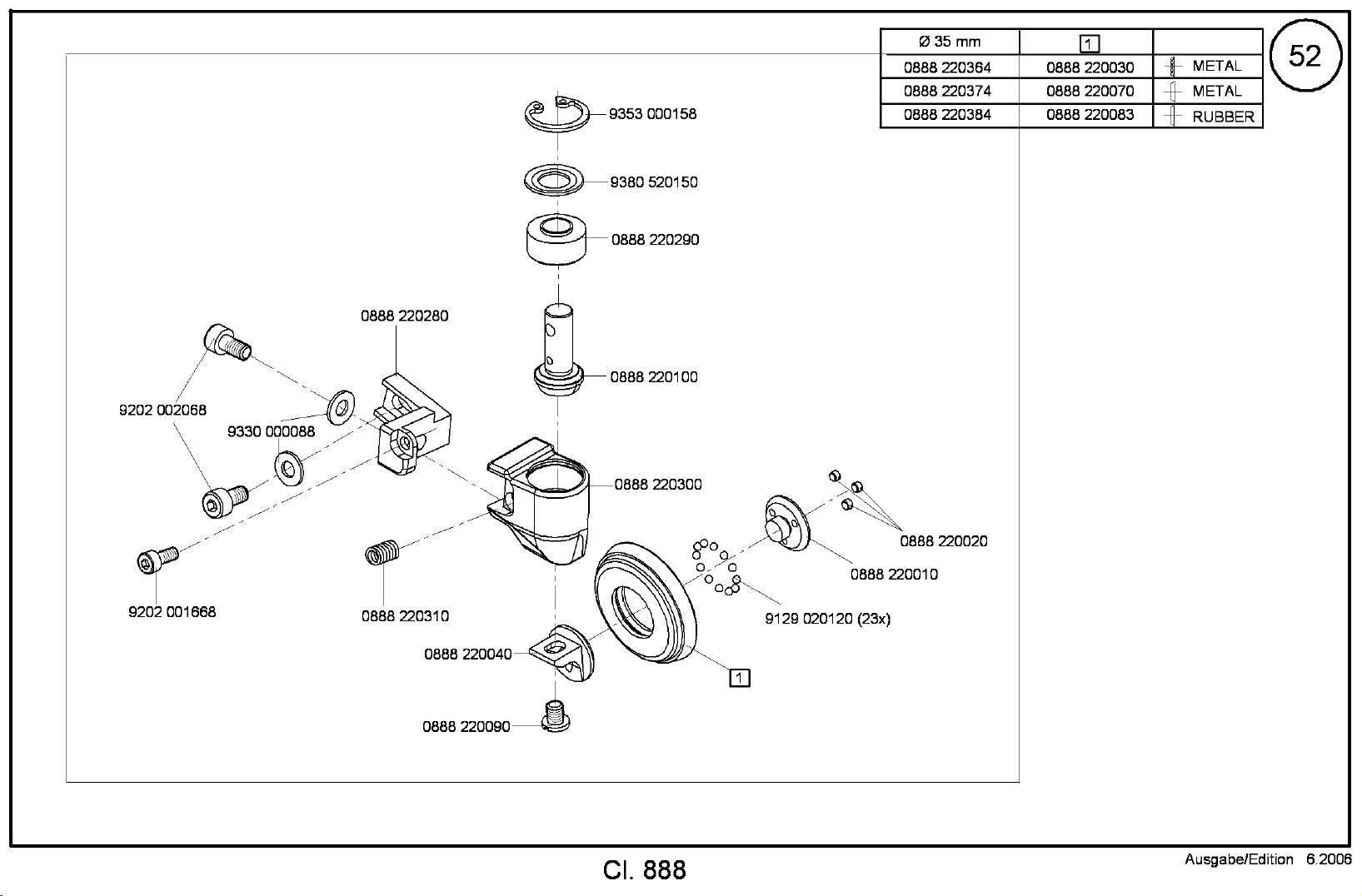

Rollfuss Æ 35 52 Top roller Æ 35
Rollfuss Æ 45 53 Top roller Æ 45
Stichplatte Throat plate
Index Index
Naeheinrichtungen Sewing equipment
Pneu. Geraeteplan Pneumatic circuit plan
Teileliste und Naeheinrichtungen
Parts List and Sewing Equipment
888
Einnadel-Maschine
single needle machine
Zweinadel-Maschine
two needle machine
mit Fadenabschneider
with thread trimmer
ohne Fadenabschneider
without thread trimmer
kleiner Greifer
small hook
grosser Greifer
large hook
Einnadel-Maschine/rechte Saeule
single needle machine/right column
Einnadel-Maschine/linke Saeule
single needle machine/left column
mit Kantenabschneider
with edge trimming
ohne Kantenabschneider
without edge trimming
Teileliste und Naeheinrichtungen
Parts List and Sewing Equipment
888
Schaltbare Nadelstangen
needle bar rocking mechanism
kleben/stick
N nicht einzeln lieferbar/not available as separate part
Klasse/Class: 888 Index Ausgabe/Edition: 12/2009
Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table
0037 001280 23,24,25,26,27,28
0052 000369 48
0053 000350 23,26
0061 001050 23,24,25,26,27,28
0077 110230 48
0099 004800 49
0099 004910 23,24,25,26,27,28
0104 250010 48
0211 000568 11
0211 000699 48
0216 000603 22
0223 000452 50
0223 000454 50
0223 000481 50
0223 000483 50
0244 000403 22
0244 000700 9,22
0245 001660 A 16
0246 000167 21
0265 000911 23,24,26,27
0271 000275 22
0271 001639 29,30
0291 000334 29,30
0291 000347 36,37
0367 100190 34
0367 105950 48
0367 110340 23,24,25,26,27,28
0367 110360 23,24,25,26,27,28
0367 120100 3
0367 135200 15
0367 145110 12
0367 150860 34
0367 165120 8
0367 315220 10
0367 495010 36,37
0394 111320 48
0467 110220 23,24,25,26,27,28
0467 150040 16
0467 150120 16
0467 150130 16,17
0467 150440 16
0491 030652 31
0556 000821 A 29,30
0556 001570 18,19
0558 000233 18,19
0570 001847 33,37
0667 100050 3,4
0667 105060 36,37
0667 105080 2
0667 105100 44
0667 105144 36
0667 105280 41,42,43,44,45
0667 115070 23,24,26,27
0667 115080 23,24,26,27
0667 115090 23,24,26,27
0667 115110 26
0667 115120 23,26
0667 115130 23,26
0667 115134 23,26
0667 115140 23,26
0667 115150 23,26
0667 115160 23,26
0667 115170 23,24,25,26,27,28
0667 115180 23,24,25,26,27,28
0667 115203 23,26,27,28
0667 115210 23,24,25,26,27,28
0667 115220 28
0667 115250 23,24,25,26,27,28
0667 115280 36
0667 115290 23,24,25,26,27,28
0667 115310 27
0667 115320 3
0667 115354 25
0667 115360 23,24,26,27
0667 115420 23,26
0667 115430 23,26
0667 115440 25
0667 115444 25
0667 115490 23
0667 115520 23,24,25,26,27,28
0667 115530 23,24,25,26,27,28
0667 115544 24
0667 115570 26,27,28
0667 115580 26,27,28
0667 115590 23,24,25,26,27,28
0667 115600 23,24,25
0667 115610 23,24,25,26,27,28
0667 115620 23,24,25
0667 115630 23,24,25,26,27,28
0667 115640 23,24,25,26,27,28
0667 115864 28
0667 115874 28
0667 125160 3
0667 125243 3
0667 135033 12
0667 135073 13
0667 135094 12
0667 135103 12
0667 135124 12
0667 135150 13
0667 135190 6
0667 135204 15
0667 145044 2
0667 145074 2
0667 145094 42,43,45
0667 145264 2
0667 145303 2
0667 145323 49
0667 145354 49
0667 145364 42,43,45
0667 145380 45
0667 145410 49
0667 145464 2
0667 155424 18,19
0667 155440 18
0667 155450 19
0667 155594 16
0667 155604 16
0667 155840 37
0667 155930 37
0667 155940 2
0667 155950 2
0667 156190 16
0667 156320 16,17
0667 156370 17
0667 156380 17
0667 156390 17
0667 156404 17
0667 156424 17
0667 156530 17
0667 156540 17
0667 156550 17
0667 156560 17
0667 160170 29,30
0667 160350 29,30
0667 160480 8
0667 165133 8
0667 165134 8
0667 165154 8
0667 165164 8
0667 165210 31
0667 165220 31
0667 165234 30
0667 165243 29,30
0667 165250 29,30
0667 165260 29,30
0667 165284 29,30
0667 165290 29,30
0667 165550 8
0667 165560 31
0667 165570 31
0667 170070 22
0667 170120 22
0667 175010 22
0667 175020 22
0667 175030 22
0667 175034 22
0667 175040 22
0667 175053 22
0667 175060 22
Klasse/Class: 888 Index Ausgabe/Edition:12/2009
Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table
0667 175083 22
0667 175104 22
0667 175160 22
0667 175174 22
0667 235010 3
0667 310563 6
0667 315203 5
0667 315243 5
0667 315253 5
0667 355150 20
0667 355173 20
0667 355174 20
0667 385013 8
0667 385033 34
0667 385143 34
0688 100033 36,37
0688 100050 42,43,45
0688 100060 42,45
0688 100070 1
0688 100080 41,44
0688 100090 36
0688 100154 41,44
0688 100164 42,43,45
0688 100173 1
0688 100190 44
0688 100200 48
0688 120060 3
0688 120083 3
0688 120094 3
0688 130100 14
0688 130110 14
0688 130120 14
0688 130130 14
0688 130140 14
0688 130243 12
0688 130250 13
0688 130260 13
0688 130280 12
0688 130363 50
0688 130384 50
0688 130390 12
0688 140010 18,19
0688 140020 38
0688 140050 48
0688 140060 42,43,45
0688 140070 42,43,45
0688 140080 48
0688 140140 18,19
0688 140160 18,19
0688 150010 18
0688 150024 2
0688 150053 18
0688 150090 18,19
0688 150130 18,19
0688 150140 19
0688 150163 18,19
0688 150250 18,19
0688 150263 18,19
0688 150280 18,19
0688 150290 18,19
0688 150300 18,19
0688 150333 19
0688 150360 2
0688 150370 11
0688 150383 18
0688 150393 19
0688 150420 18,19
0688 150430 18,19
0688 160010 9
0688 160020 9
0688 160033 9
0688 160050 31
0688 160113 9
0688 160123 9
0688 160130 9
0688 160150 9
0688 160153 9
0688 160214 9
0688 160243 9
0688 160280 8
0688 160310 9
0688 160320 9
0688 160333 9
0688 160344 9
0688 160350 9
0688 160370 10
0688 160400 9
0688 160463 29,30
0688 160474 29,30
0688 160490 9
0688 160514 8
0688 160610 10
0688 160620 9
0688 160630 9
0688 160640 9
0688 160650 9
0688 160683 9
0688 160724 9
0688 160730 9
0688 160753 11
0688 160760 8
0688 160770 9
0688 160804 30
0688 200010 53
0688 200020 53
0688 310034 10
0688 310050 5
0688 310063 5
0688 310064 5
0688 310134 10
0688 310140 10
0688 320020 11
0688 320070 11
0688 320110 11
0688 320120 9
0688 320134 6
0688 320200 6
0688 320204 6
0688 320230 6
0688 320240 6
0688 320250 6
0688 320260 6
0688 320270 6
0688 320280 6
0688 320290 6
0688 320300 6
0688 320320 6
0688 320333 6
0688 320380 6
0688 320423 6
0688 320430 11
0688 320470 6
0688 320490 6
0688 320510 6
0688 320550 11
0688 320564 11
0688 320583 11
0688 320593 11
0688 320613 11
0688 320620 11
0688 320630 11,21
0688 320644 11
0688 320660 11
0688 320670 11
0688 320680 11
0688 320690 6
0688 320700 6
0688 320710 6
0688 320740 53
0688 350013 20
0688 350020 20
0688 350073 20
0688 350080 20
0688 350084 20
0688 350090 20
0688 350094 20
0688 350100 20
0688 350110 20
0688 350120 20
0688 350130 18,19
Klasse/Class: 888 Index Ausgabe/Edition: 12/2009
Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table
0688 350150 20
0688 350154 19
0688 350160 11,11,20
0688 350180 20
0688 350190 20
0688 350200 20
0688 350210 20
0688 350214 20
0688 350220 20
0688 350230 20
0688 350254 20
0688 350264 20
0688 380014 18
0688 380020 36
0688 380040 34
0688 380050 34
0688 380104 34
0688 380120 49
0688 380130 34
0688 380140 49
0688 380163 3,4
0688 490020 39
0688 490030 33
0688 490040 33
0688 490060 33
0699 979104 13,18,19,34
0699 989250 36,37
0700 000043 46
0700 000044 46
0700 000045 46
0700 000050 46
0700 000090 48
0700 000091 48
0700 088802 46
0700 088804 46
0742 002096 47
0744 001155 24,25,27,28
0744 001793 A 47
0744 001793 B 47
0744 001796 47
0767 150590 16
0791 000007 48
0791 001081 48
0791 001094 48
0791 001096 48
0791 580100 48
0797 003031 47
0798 000677 41,42,43,44,45
0798 003292 42,43
0818 160210 8
0867 120043 4
0867 120070 4
0867 120080 4
0867 120090 4
0867 120100 4
0867 120110 4
0867 120120 4
0867 120130 4
0867 120140 4
0867 120160 4
0867 120170 4
0867 120220 37
0867 120233 37
0867 120250 37
0867 120270 37
0867 120280 4
0867 120294 37
0867 120300 4
0867 120320 37
0867 120340 4
0867 120350 4
0867 120360 4
0867 120370 4
0867 120380 4
0867 120390 37
0867 120410 4
0867 120420 4
0867 120423 4
0867 120440 4
0867 120520 37
0867 120574 37
0867 160620 8
0867 160630 8
0867 490010 50
0867 490084 37
0867 590640 37
0868 100040 43
0868 160240 8
0887 160040 8
0888 100010 45
0888 102148 7
0888 120013 3
0888 120024 3
0888 120044 4
0888 120060 4
0888 120080 37
0888 120110 4
0888 120120 37
0888 120143 4
0888 150010 18,19
0888 150020 18
0888 150143 18
0888 150153 19
0888 150163 18,19
0888 160012 50
0888 160014 50
0888 160020 50
0888 160030 50
0888 160040 50
0888 160053 50
0888 160060 50
0888 160074 29
0888 160080 50
0888 160094 50
0888 200070 53
0888 200084 53
0888 220010 51,52,53
0888 220020 51,52,53
0888220030 52
0888 220040 51,52,53
0888 220070 52
0888 220083 52
0888 220100 52
0888 220270 39
0888 220280 52
0888 220290 51,52
0888 220300 52
0888 220310 51,52,53
0888 220334 51
0888 220344 51
0888 220354 51
0888 220364 52
0888 220374 52
0888 220384 52
0888 220394 53
0888 220404 53
0888 220410 51
0888 220420 53
0888 220430 51
0888 220450 53
0888 220460 53
0888 220470 53
0888 220480 53
0888 220490 53
0888 220500 51
0888 220523 51
0888 220530 51
0888 220540 53
0888 220550 51
0888 220564 49
0888 220574 49
0888 220610 50
0888 220630 39
0888 220644 39
0888 220680 39
0888 220690 53
0888 230120 3
0888 230130 3
0888 230140 3
0888 230154 3
Klasse/Class: 888 Index Ausgabe/Edition:12/2009
Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table
0888 320010 7
0888 320014 7
0888 320040 7
0888 320050 7
0888 320060 7
0888 320070 7
0888 320080 7
0888 320090 7
0888 320100 7
0888 320114 7
0888 320132 7
0888 320142 7
0888 320143 7
0888 320150 7
0888 320160 7
0888 320170 7
0888 320180 7
0888 320210 7
0888 320220 7
0888 320243 7
0888 320250 11
0888 320440 35
0888 320480 35
0888 320490 35
0888 320500 35
0888 320510 35
0888 320520 35
0888 320530 35
0888 320543 35
0888 320690 50
0888 330033 21
0888 330050 21
0888 330070 21
0888 330080 21
0888 330090 21
0888 330100 21
0888 330130 21
0888 330154 21
0888 330163 21
0888 330173 21
0888 330183 21
0888 330230 21
0888 330253 21
0888 330270 21
0888 330284 21
0888 330320 21
0888 330340 21
0888 330350 21
0888 330360 21
0888 330383 21
0888 330440 21
0888 330454 21
0888 330460 21
0888 330470 21
0888 330500 21
0888 330523 21
0888 330553 21
0888 330560 21
0888 330580 21
0888 330593 21
0888 330610 21
0888 330620 21
0888 330630 21
0888 330640 50
0891 003342 33,37
0902 004102 4
0907 030484 41
0913 000731 48
0933 001544 34
0992 001020 34
0992 016580 16,17
0992 023560 16
0992 023577 16
0993 904247 48
0993 950818 21
0995 340617 48
0996 010968 9
0998 881610 31
0998 881630 10
0998 882510 18,19,21
0998 912110 18,19
0999 201114 38
0999 220752 34
0999 220851 37
0999 230573 9
0999 240302 35
0999 240305 35
0999 240376 34
1001 001162 36,37
9041 100015 8,9
9041 100025 3
9041 100035 34
9041 102030 11
9069 910020 24,27
9081 100203 48
9081 100251 48
9081 200250 48
9081 200253 48
9081 200303 48
9081 200500 48
9081 500010 48
9081 500051 48
9122 200090 6
9122 322200 5
9122 915280 9
9126 102520 8,29,30
9126 102540 8,29,30
9126 105120 18,19
9126 116180 10
9126 116200 10
9129 020120 6,51,52,53
9129 020140 21
9130 104350 41
9130 104400 41
9130 220260 6
9130 221140 42,43,45
9130 221160 42,45
9130 221180 2
9130 221260 43
9130 500010 41
9130 500050 41
9130 500080 41
9190 100113 49
9190 100226 18,19
9199 000004 32
9201 112893 21
9201 113277 50
9201 113317 42,43,45
9201 113677 50
9201 113777 41
9202 001658 4
9202 001667 37
9202 001668 21,51,52,53
9202 001678 3,22,50
9202 001697 6
9202 001708 21
9202 002057 3,8,31,34,37
9202 002058 5,21
9202 002063 14,21,34
9202 002068 20,51,52,53
9202 002077 18,19,33,37,39,
42,43,45,49,50
9202 002078 3,29,30
9202 002087 34,49
9202 002088 21
9202 002097 29,30,36,37,50
9202 002098 5,8,9,12,20,21,
29,30
9202 002107 20,50
9202 002127 21
9202 002488 31
9202 002497 21
9202 002498 31,33
9202 002507 11,42,43,45
9202 002877 50
9202 002878 9
9202 002888 29,30
9202 002898 18,19
9202 002927 12,47
9202 003738 36,37
Klasse/Class: 888 Index Ausgabe/Edition: 12/2009
Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table
9202 012077 21
9202 021667 18,19,20
9202 022497 11,21
9202 052107 39
9202 052117 39
9202 100328 7
9202 100527 9
9202 100537 2
9202 100558 21
9202 150347 11
9203 001807 4
9203 001827 4,11
9203 002410 11
9203 003037 9
9203 003087 21
9203 003137 37
9203 003167 37
9203 003637 21
9203 100002 23,24,25,26,27,
28,37
9203 211830 16,17
9203 311831 18,19,53
9203 361828 20
9203 361842 53
9204 000937 7
9204 001257 21
9204 002077 24,27,34
9204 002363 38
9204 200517 33,37
9204 200737 9,50
9204 201037 21,33
9204 201047 21
9204 201067 9,22
9204 201643 21
9204 201647 23,24,25,26,27,
28,33,38
9204 201667 3,4,22,31,32,34,
37,39,42,43,45
9204 201677 37
9204 201697 27
9204 201957 43
9204 201958 14,33
9204 202037 6
9204 211997 2,8,29,30,36,37,
41,42,43,44,45,49
9204 212057 36,37,41,42,43,
44,45
9204 301467 32,37
9204 301487 22
9204 302217 30
9204 431657 25,28
9205 023641 18,19
9205 101528 18,19,49
9205 101568 6,18,19
9205 101847 6
9205 101848 6,18,53
9205 101878 21
9205 101898 19
9205 102148 6
9205 102158 7
9205 102168 11,21
9205 102188 4
9205 102213 21
9205 102450 18,19,20,42,43,45
9205 102467 1,2,5,6,7,8,9,10,
11,12,13,18,19,
20,29,30
9205 102477 2,3,4,16,17,23,26,
29,30,42,44,45
9205 121558 18,19
9205 121868 20
9205 122488 7,18,19
9205 122498 11
9205 162597 13
9206 100637 35,39,49
9206 110227 22
9207 161237 48
9207 170227 37,39,41,42,43,
44,45,46
9207 170437 39
9207 170847 41
9207 170857 42,43,45,48
9207 171057 46
9217 300507 4,23,24,26,27,50
9217 300517 11,18,19,34,37
9217 300518 36
9225 201240 11
9225 201750 3
9225 201770 21,23,24,25,26,
27,28,36
9230 000067 2
9231 000347 21
9231 000387 12
9231 011137 50
9231 110035 6
9231 110037 22
9231 110057 9,45,50
9231 110108 14
9234 000067 21,29,30
9234 000077 21
9234 000087 14
9237 652017 18,19
9301 100941 4
9301 100991 4
9301 101001 4,21
9301 101011 18,19
9301 102203 6
9301 102531 31
9301 141520 18,19
9301 141900 7
9301 200660 18,19
9302 000100 34
9303 502990 42,43
9303 602198 21
9305 100350 23,24,25
9305 100370 26,27,28
9330 000027 4
9330 000067 6,23,24,25,26,
27,28
9330 000087 3,5,8,18,19,23,24,
25,26,27,28,29,
30,37,39,42,43,
45,49,50
9330 000088 21,39,51,52,53
9330 000097 2,21,33,42,43,45
9330 000107 42,43,45
9330 000127 13,46
9330 000177 48
9330 200087 18,19
9330 200097 21
9330 200107 11,21
9330 200117 9,18,19
9330 300027 41
9330 900093 50
9330 900117 46
9332 500110 21
9332 500137 23,26
9333 000090 38
9334 001630 3,13,22,29,30
9334 001640 4,5
9352 000050 20
9352 000060 6
9352 000120 21
9352 000163 10
9352 000250 8
9352 640050 49
9353 000130 6
9353 000158 51,52,53
9353 000350 2
9353 000420 2
9353 000470 1,2
9354 010090 6
9354 010150 42,43,45
9354 010210 2,42,45
9354 400800 4,34
9357 000050 7,20
9357 000060 9,14
9357 000070 13,15,22,29,30,37
9357 000080 23,26
9357 000100 29,30
9357 000129 8,29,30
9357 000140 12
Klasse/Class: 888 Index Ausgabe/Edition:12/2009
Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table Teile-Nr./Part-No. Tafel/Table
9380 520100 11
9380 520150 51,52,53
9380 521220 50
9400 000063 21
9400 100007 21
9700 100100 30
9700 100103 15
9710 061200 33,37
9710 900032 37
9710 900035 33
9710 920012 33,37
9710 982003 33,37
9731 001035 34
9731 002001 47
9731 005004 15,25,28,30,33,
35,37
9731 006004 35
9731 007021 9
9731 007035 3
9740 000320 21
9740 001215 9
9740 001220 35
9740 001525 19,35
9740 005810 9
9742 000130 9
9742 000180 9
9742 300195 15
9760 000001 35
9780 000108 47
9781 000006 35
9790 000490 34
9790 010010 28
9790 020010 35
9790 111001 35
9790 200000 33
9790 200001 35
9790 201000 33,35,37
9790 201001 35
9790 202000 37
9800 110001 A 40
9800 110002 A 40
9800 130104 R 42,43
9800 130105 42,43
9800 327005 42,43,45
9800 330009 40
9800 330010 40
9800 330012 42,43
9800 331104 42,43
9800 560001 21
9800 760001 21
9815 580001 41
9820 110017 24,27
9820 110018 14
9820 110019 31
9822 560000 39
9822 560001 39
9825 190400 41
9825 190502 41
9825 550001 32,33
9830 501010 33,37
9830 502014 34
9840 120001 41,42,43,44,45
9840 120003 39
9840 120026 34,35
9840 120027 19,21,35
9840 120028 34
9840 120031 36,37
9840 120051 42,43,44,45
9840 120052 39
9840 120060 41,42,43,44,45
9840 120104 34
9840 120105 34
9840 120158 18
9840 121001 34,37,39
9840 123003 39,41,42,43,44,45
9840 130007 34
9840 130008 34
9840 133012 39
9840 135012 39
9840 701058 45
9850 001083 39
9850 001089 39
9850 688001 32
9850 838000 33
9850 867001 34
9850 867006 37
9870 001003 41
9870 001004 41
9870 001113 48
9870 367003 33
9870 688001 42,44,45
9870 688002 32
9870 867000 43
9870 867010 37
9880 001001 42,43,44,45
9880 867101 32
9880 867113 37
9880 888100 39
9880 888101 39
MG43 000062 46
MG43 000410 41
MG43 000484 42,43
MG53 007511 46
MG53 007921 47
MG53 007922 47
MG55 000501 46
N800 075013 50
N800 080003 50
N800 080004 50
N800 080030 50
S080 190359 50
S080 271529 50
S080 271538 50
S080 271539 50
S309 912508 50
S405 112000 21
S425 311018 21
S980 090107 21
S980 094092 21
S980 094093 21
Z100 011022 21,38
Näheinrichtungen
Sewing equipment
888
Ausgabe
Edition
06.09
Ersetzt Ausgabe/
Replaced Edition
12.08
Blatt
1
Page
Fortsetzung Blatt
Continued page
2
E1
E2
E3
E17
E19
E23
E24
E25
E4/0,8
E5/1,0
E6/1,2
E7/1,5
E26/0,8
E27/1,0
E28/1,2
E29/1,5
E8/1,2
E9/1,6
E10/2,0
E11/1,6
E12/2,0
E13/2,4
E14/2,0
E15/2,4
E16/3,2
E18/1,6
E20/2,0
E21/2,4
E30/1,6
E50/3,6
= Änderung / Modification
Näheinrichtungen
Sewing equipment
888
Ausgabe
Edition
06.09
Blatt
2
Page
Fortsetzung Blatt
Continued page
3
E22
E31
E32
E33
E34
E35
E38
E39
E36/0,8
E37/1,0
E40/0,8
E41/1,0
E42
E43
= Änderung / Modification
E44/2,0
E45/2,0
E46/2,4
E47/2,4
E49/1,6
Näheinrichtungen
Sewing equipment
888
Ausgabe
Edition
06.09
Blatt
3
Page
Fortsetzung Blatt
Continued page
4
E48/3,2
= Änderung / Modification
Näheinrichtungen
Sewing equipment
Ausgabe
Edition
888
03.08
Ersetzt Ausgabe
Replaced edition
08.06
Blatt
4
Page
Fortsetzung Blatt
Continued page
5
E-Nr.
E-No.
Abb.-Nr.
Fig.No.
Für Unterklasse / For Subclass
Verwendungszweck / Use
E1 -160020; -160122; -160522; -160023
Näheinrichtung, Nadelstärke Nm 70-80,
Stichlänge max. 4 mm, für leichtes Nähgut.
Sewing equipment, needle size Nm 70-80,
stitch length max. 4 mm, for light weight material.
E2 -160020; -160122; -160522; -160023
Näheinrichtung, Nadelstärke Nm 90-110,
Stichlänge max. 5 mm, für mittelschweres
Nähgut.
Sewing equipment, needle size Nm 90-110,
stitch length max. 5 mm, for medium weight
material.
E3 -160020; -160122; -160522; -160023
Näheinrichtung, Nadelstärke Nm 120-160,
Stichlänge max. 7 mm, für schweres Nähgut.
Sewing equipment, needle size Nm 120-160,
stitch length max. 7 mm, for heavy weight
material.
E4/0,8 -356020; -356122
Näheinrichtung zum Futter Einsteppen und
Unterschneiden 0,8 mm von der Nadel,
Nadelstärke Nm 70-80, Stichlänge max. 4 mm,
für leichtes Nähgut.
Sewing equipment for stitching and trimming the
lining 0.8 mm, needle size Nm 70-80, stitch
length max. 4 mm, for light weight material.
Material No. / Material Nr.
Nadelzahl/Number of needles
1
0888 E00104
1
0888 E00205
1
0888 E00307
1
0888 E00404 08
Stichabstand/Seam distance
Nadelhalter/ Needle holder
Nadelabstand-Nadelhalter/Needles distance-needle holder
Nadelsystem / -dicke / Needle system / -size
134 LR - 80
134 LR - 90
134 LR - 120
134 LR - 80
angetriebene Rollfuß/Top roller driven
Durchmesser des Presserfußes/T op roller diameter
35
0888 220364
35
0888 220364
35
0888 220364
25
0888 220334
Greiferdeckring/Splice
Nadelführung, vorn/Needle guide front
Halter des Nadelführungs, vorn/Holder of needle guide front
Nadelführung, hinten/Needle guide rear
Nadelführung, hinten/Needle guide rear
Stichplatteneinsatz/Throat plate insert
Stichplatteneinsatz-Lochbreite/Insert hole width
1,4
0888 200040
1,8
0888 200050
2,4
0888 200060
1,2
0888 200260
Stichplatte/Throat plate
Schiebradtransporteur/Wheel feeder
0888 200084
0688 320520
0888 200084
0688 320520
0888 200084
0688 320530
0888 200240
0688 320520
Verzahnungsabstand des Transporteurs/Wheel feed tooth pitch
0,6
0,6
1,2
0,6
E5/1,0 -356020; -356122
Näheinrichtung zum Futter Einsteppen und
Unterschneiden 1,0 mm von der Nadel,
Nadelstärke Nm 90-110, Stichlänge max. 5 mm,
für leichtes Nähgut.
Sewing equipment for stitching and trimming the
lining 1.0 mm, needle size Nm 90-110, stitch
length max. 5 mm, for light weight material.
E6/1,2 -356020; -356122
Näheinrichtung zum Futter Einsteppen und
Unterschneiden 1,2 mm von der Nadel,
Nadelstärke Nm 120-160, Stichlänge max. 5 mm,
für mittelschweres Nähgut.
Sewing equipment for stitching and trimming the
lining 1.2 mm, needle size Nm 120-160, stitch
length max. 5 mm, for medium weight material.
= Änderung / Modification
0888 E00505 10
0888 E00605 12
1
134 LR - 90
1
134 LR - 120
25
0888 220334
25
0888 220334
1,6
0888 200270
1,8
0888 200280
0888 200240
0688 320520
0888 200240
0688 320520
0,6
0,6
Näheinrichtungen
Sewing equipment
Ausgabe
Edition
888
12.08
Ersetzt Ausgabe
Replaced edition
03.08
Blatt
5
Page
Fortsetzung Blatt
Continued page
6
E-Nr.
E-No.
Abb.-Nr.
Fig.No.
Für Unterklasse / For Subclass
Verwendungszweck / Use
E7/1,5 -356020; -356122
Näheinrichtung zum Futter Einsteppen und
Unterschneiden 1,5 mm von der Nadel,
Nadelstärke Nm 120-160, Stichlänge max. 5 mm,
für mittelschweres Nähgut.
Sewing equipment for stitching and trimming the
lining 1.5 mm, needle size Nm 120-160, stitch
length max. 5 mm, for medium weight material.
E17 -160020; -160122; -160522; -160023
Näheinrichtung, Nadelstärke Nm 90-110,
Stichlänge max. 5 mm, für mittelschweres
Nähgut.
Sewing equipment, needle size Nm 90-110,
stitch length max. 5 mm, for medium weight
material.
E19 -160020; -160122; -160522; -160023
Näheinrichtung, Nadelstärke Nm 90-110,
Stichlänge max. 5 mm, für mittelschweres
Nähgut.
Sewing equipment, needle size Nm 90-110,
stitch length max. 5 mm, for medium weight
material.
E22 -360122
Näheinrichtung, Nadelstärke Nm 90-110,
Stichlänge max. 5 mm, für mittelschweres
Nähgut, linke Säule.
Sewing equipment, needle size Nm 90-110,
stitch length max. 5 mm, for medium weight
material, left post.
Material No. / Material Nr.
Nadelzahl/Number of needles
1
0888 E00705 15
1
0888 E01705
1
0888 E01905
1
0888 E02205
Stichabstand/Seam distance
Nadelhalter/ Needle holder
Nadelabstand-Nadelhalter/Needles distance-needle holder
Nadelsystem / -dicke / Needle system / -size
134 LR - 120
134 LR - 90
134 LR - 90
134 LR - 90
angetriebene Rollfuß/Top roller driven
Durchmesser des Presserfußes/T op roller diameter
25
0888 220334
25
0888 220334
25
0888 220334
25
0888 220334
Greiferdeckring/Splice
Nadelführung, vorn/Needle guide front
Halter des Nadelführungs, vorn/Holder of needle guide front
Nadelführung, hinten/Needle guide rear
Nadelführung, hinten/Needle guide rear
Stichplatteneinsatz/Throat plate insert
Stichplatteneinsatz-Lochbreite/Insert hole width
2,0
0888 200350
1,8
0888 200050
1,8
0888 200050
1,6
0888 200370
Stichplatte/Throat plate
Schiebradtransporteur/Wheel feeder
0888 200240
0688 320520
0888 200084
0688 320530
0888 200084
0688 320520
0888 200240
0688 320520
Verzahnungsabstand des Transporteurs/Wheel feed tooth pitch
0,6
1,2
0,6
0,6
E23 -160152
Näheinrichtung, Nadelstärke Nm 70-80,
Stichlänge max. 4 mm, für leichtes Nähgut.
Sewing equipment, needle size Nm 70-80,
stitch length max. 4 mm, for light weight material.
E24 -160152
Näheinrichtung, Nadelstärke Nm 90-110,
Stichlänge max. 5 mm, für mittelschweres
Nähgut.
Sewing equipment, needle size Nm 90-110,
stitch length max. 5 mm, for medium weight
material.
= Änderung / Modification
1
0888 E02304
1
0888 E02405
134 LR - 80
134 LR - 90
35
0888 220364
35
0888 220364
1,4
0888 200040
1,8
0888 200050
0888 200324
0688 320520
0888 200324
0688 320520
0,6
0,6
Näheinrichtungen
Sewing equipment
Ausgabe
Edition
888
06.09
Ersetzt Ausgabe
Replaced edition
12.08
Blatt
6
Page
Fortsetzung Blatt
Continued page
7
E-Nr.
E-No.
Abb.-Nr.
Fig.No.
Für Unterklasse / For Subclass
Verwendungszweck / Use
E25 -160152
Näheinrichtung, Nadelstärke Nm 120-160,
Stichlänge max. 7 mm, für schweres Nähgut.
Sewing equipment, needle size Nm 120-160,
stitch length max. 7 mm, for weight material.
E26/0,8 -356152
Näheinrichtung zum Futter Einsteppen und
Unterschneiden 0,8 mm von der Nadel,
Nadelstärke Nm 70-80, Stichlänge max. 4 mm,
für leichtes Nähgut.
Sewing equipment for stitching and trimming the
lining 0.8 mm, needle size Nm 70-80, stitch
length max. 4 mm, for light weight material.
E27/1,0 -356152
Näheinrichtung zum Futter Einsteppen und
Unterschneiden 1,0 mm von der Nadel,
Nadelstärke Nm 90-110, Stichlänge max. 5 mm,
für mittelschweres Nähgut.
Sewing equipment for stitching and trimming the
lining 1.0 mm, needle size Nm 90-110, stitch
length max. 5 mm, for medium weight material.
E28/1,2 -356152
Näheinrichtung zum Futter Einsteppen und
Unterschneiden 1,2 mm von der Nadel,
Nadelstärke Nm 120-160, Stichlänge max. 5 mm,
für schweres Nähgut.
Sewing equipment for stitching and trimming the
lining 1.2 mm, needle size Nm 120-160, stitch
length max. 5 mm, for heavy weight material.
Material No. / Material Nr.
Nadelzahl/Number of needles
1
0888 E02507
1
0888 E02604 08
1
0888 E02705 10
1
0888 E02805 12
Stichabstand/Seam distance
Nadelhalter/ Needle holder
Nadelabstand-Nadelhalter/Needles distance-needle holder
Nadelsystem / -dicke / Needle system / -size
134 LR - 120
134 LR - 80
134LR - 90
134LR - 120
angetriebene Rollfuß/Top roller driven
Durchmesser des Presserfußes/T op roller diameter
35
0888 220364
25
0888 220334
25
0888 220334
25
0888 220334
Greiferdeckring/Splice
Nadelführung, vorn/Needle guide front
Halter des Nadelführungs, vorn/Holder of needle guide front
Nadelführung, hinten/Needle guide rear
Nadelführung, hinten/Needle guide rear
Stichplatteneinsatz/Throat plate insert
Stichplatteneinsatz-Lochbreite/Insert hole width
2,4
0888 200060
1,2
0888 200260
1,6
0888 200270
1,8
0888 200280
Stichplatte/Throat plate
Schiebradtransporteur/Wheel feeder
0888 200324
0688 320530
0888 200490
0688 320520
0888 200490
0688 320520
0888 200490
0688 320520
Verzahnungsabstand des Transporteurs/Wheel feed tooth pitch
1,2
0,6
0,6
0,6
E29/1,5 -356152
Näheinrichtung zum Futter Einsteppen und
Unterschneiden 1,5 mm von der Nadel,
Nadelstärke Nm 120-160, Stichlänge max. 5 mm,
für schweres Nähgut.
Sewing equipment for stitching and trimming the
lining 1.5 mm, needle size Nm 120-160, stitch
length max. 5 mm, for heavy weight material.
E31 -360122
Näheinrichtung, Nadelstärke Nm 70-80,
Stichlänge max. 4 mm, für leichtes Nähgut,
linke Säule.
Sewing equipment, needle size Nm 70-80,
stitch length max. 4 mm, for light weight material,
left post.
= Änderung / Modification
1
0888 E02905 15
1
0888 E03104
134LR - 120
134LR - 80
25
0888 220334
35
0888 220364
2,0
0888 200350
1,2
0888 200890
0888 200490
0688 320520
0888 200240
0688 320520
0,6
0,6
Näheinrichtungen
Sewing equipment
Ausgabe
Edition
888
06.09
Blatt
7
Page
Fortsetzung Blatt
Continued page
8
E-Nr.
E-No.
Abb.-Nr.
Fig.No.
Für Unterklasse / For Subclass
Verwendungszweck / Use
E32 -360122
Näheinrichtung, Nadelstärke Nm 90-110,
Stichlänge max. 5 mm, für mittelschweres
Nähgut, linke Säule.
Sewing equipment, needle size Nm 90-110,
stitch length max. 5 mm, for medium weight
material, left post.
E33 -360122
Näheinrichtung, Nadelstärke Nm 120-160,
Stichlänge max. 7 mm, für schweres Nähgut,
linke Säule.
Sewing equipment, needle size Nm 120-160,
stitch length max. 7 mm, for weight material,
left post.
E34 -160020, 160122, 160522; -160023
Näheinrichtung, Nadelstärke Nm 70-80,
Stichlänge max. 4 mm, für leichtes Nähgut,
mit abdruckarmem Schiebrad.
Sewing equipment, needle size Nm 70-80,
stitch length max. 4 mm, for light weight material,
wheel feeder without impress.
E35 -160020, 160122, 160522; -160023
Näheinrichtung, Nadelstärke Nm 90-110,
Stichlänge max. 5 mm, für mittelschweres
Nähgut, mit abdruckarmem Schiebrad.
Sewing equipment, needle size Nm 90-110,
stitch length max. 5 mm, for medium weight
material, wheel feeder without impress.
Material No. / Material Nr.
Nadelzahl/Number of needles
1
0888 E03205
1
0888 E03307
1
0888 E03404
1
0888 E03505
Stichabstand/Seam distance
Nadelhalter/ Needle holder
Nadelabstand-Nadelhalter/Needles distance-needle holder
Nadelsystem / -dicke / Needle system / -size
134 LR - 90
134 LR - 120
134LR - 80
134LR - 90
angetriebene Rollfuß/Top roller driven
Durchmesser des Presserfußes/T op roller diameter
35
0888 220364
35
0888 220364
35
0888 220364
35
0888 220364
Greiferdeckring/Splice
Nadelführung, vorn/Needle guide front
Halter des Nadelführungs, vorn/Holder of needle guide front
Nadelführung, hinten/Needle guide rear
Nadelführung, hinten/Needle guide rear
Stichplatteneinsatz/Throat plate insert
Stichplatteneinsatz-Lochbreite/Insert hole width
1,6
0888 200370
2,4
0888 200900
1,4
0888 200040
1,8
0888 200050
Stichplatte/Throat plate
Schiebradtransporteur/Wheel feeder
0888 200240
0688 320520
0888 200240
0688 320530
0888 200084
0888 320383
0888 200084
0888 320383
Verzahnungsabstand des Transporteurs/Wheel feed tooth pitch
0,6
1,2
E36/0,8 -356020, -356122
Näheinrichtung zum Futter Einsteppen und
Unterschneiden 0,8 mm von der Nadel,
Nadelstärke Nm 70-80, Stichlänge max. 4 mm,
für leichtes Nähgut, mit abdruckarmem
Schiebrad.
Sewing equipment for stitching and trimming the
lining 0.8 mm, needle size Nm 70-80, stitch
length max. 4 mm, for light weight material,
wheel feeder without impress.
E37/1,0 -356020, 356122
Näheinrichtung zum Futter Einsteppen und
Unterschneiden 1,0 mm von der Nadel,
Nadelstärke Nm 90-110, Stichlänge max. 5 mm,
für mittelschweres Nähgut, mit abdruckarmem
Schiebrad.
Sewing equipment for stitching and trimming the
lining 1.0 mm, needle size Nm 90-110, stitch
length max. 5 mm, for medium weight material,
wheel feeder without impress.
= Änderung / Modification
0888 E03604 08
0888 E03705 10
1
134LR - 80
1
134LR - 90
25
0888 220334
25
0888 220334
1,2
0888 200260
1,6
0888 200270
0888 200240
0888 320383
0888 200240
0888 320383
Näheinrichtungen
Sewing equipment
Ausgabe
Edition
888
06.09
Blatt
8
Page
Fortsetzung Blatt
Continued page
9
E-Nr.
E-No.
Abb.-Nr.
Fig.No.
Für Unterklasse / For Subclass
Verwendungszweck / Use
E38 -160152
Näheinrichtung, Nadelstärke Nm 70-80,
Stichlänge max. 4 mm, für leichtes Nähgut,
mit abdruckarmem Schiebrad.
Sewing equipment, needle size Nm 70-80,
stitch length max. 4 mm, for light weight material,
wheel feeder without impress.
E39 -160152
Näheinrichtung, Nadelstärke Nm 90-110,
Stichlänge max. 5 mm, für mittelschweres
Nähgut, mit abdruckarmem Schiebrad.
Sewing equipment, needle size Nm 90-110,
stitch length max. 5 mm, for medium weight
material, wheel feeder without impress.
E40/0,8 -356152
Näheinrichtung zum Futter Einsteppen und
Unterschneiden 0,8 mm von der Nadel,
Nadelstärke Nm 70-80, Stichlänge max. 4 mm,
für leichtes Nähgut, mit abdruckarmem
Schiebrad.
Sewing equipment for stitching and trimming the
lining 0.8 mm, needle size Nm 70-80, stitch
length max. 4 mm, for light weight material,
wheel feeder without impress.
Material No. / Material Nr.
Nadelzahl/Number of needles
1
0888 E03804
1
0888 E03905
1
0888 E04004 08
Stichabstand/Seam distance
Nadelhalter/ Needle holder
Nadelabstand-Nadelhalter/Needles distance-needle holder
Nadelsystem / -dicke / Needle system / -size
134 LR - 80
134 LR - 90
134LR - 80
angetriebene Rollfuß/Top roller driven
Durchmesser des Presserfußes/T op roller diameter
35
0888 220364
35
0888 220364
25
0888 220334
Greiferdeckring/Splice
Nadelführung, vorn/Needle guide front
Halter des Nadelführungs, vorn/Holder of needle guide front
Nadelführung, hinten/Needle guide rear
Nadelführung, hinten/Needle guide rear
Stichplatteneinsatz/Throat plate insert
Stichplatteneinsatz-Lochbreite/Insert hole width
1,4
0888 200040
1,8
0888 200050
1,2
0888 200260
Stichplatte/Throat plate
Schiebradtransporteur/Wheel feeder
0888 200324
0888 320383
0888 200324
0888 320383
0888 200490
0888 320383
Verzahnungsabstand des Transporteurs/Wheel feed tooth pitch
E41/1,0 -356152
Näheinrichtung, Nadelstärke Nm 90-110,
Näheinrichtung zum Futter Einsteppen und
Unterschneiden 1,0 mm von der Nadel,
Nadelstärke Nm 90-110, Stichlänge max. 5 mm,
für mittelschweres Nähgut, mit abdruckarmem
Schiebrad.
Sewing equipment for stitching and trimming the
lining 1.0 mm, needle size Nm 90-110, stitch
length max. 5 mm, for medium weight material,
wheel feeder without impress.
E42 -360122
Näheinrichtung, Nadelstärke Nm 70-80,
Stichlänge max. 4 mm, für leichtes Nähgut,
mit abdruckarmem Schiebrad.
Sewing equipment, needle size Nm 70-80,
stitch length max. 4 mm, for light weight material,
wheel feeder without impress.
= Änderung / Modification
1
0888 E04105 10
1
0888 E04204
134LR - 90
134LR - 80
25
0888 220334
35
0888 220364
1,6
0888 200270
1,4
0888 200890
0888 200490
0888 320383
0888 200240
0888 320383
Näheinrichtungen
Sewing equipment
Ausgabe
Edition
888
06.09
Blatt
9
Page
Fortsetzung Blatt
Continued page
10
E-Nr.
E-No.
Abb.-Nr.
Fig.No.
Für Unterklasse / For Subclass
Verwendungszweck / Use
E43 -360122
Näheinrichtung, Nadelstärke Nm 90-110,
Stichlänge max. 5 mm, für mittelschweres
Nähgut, mit abdruckarmem Schiebrad.
Sewing equipment, needle size Nm 90-110,
stitch length max. 5 mm, for medium weight
material, wheel feeder without impress.
Material No. / Material Nr.
Nadelzahl/Number of needles
1
0888 E04305
Stichabstand/Seam distance
Nadelhalter/ Needle holder
Nadelabstand-Nadelhalter/Needles distance-needle holder
Nadelsystem / -dicke / Needle system / -size
134 LR - 90
angetriebene Rollfuß/Top roller driven
Durchmesser des Presserfußes/T op roller diameter
35
0888 220364
Greiferdeckring/Splice
Nadelführung, vorn/Needle guide front
Halter des Nadelführungs, vorn/Holder of needle guide front
Nadelführung, hinten/Needle guide rear
Nadelführung, hinten/Needle guide rear
Stichplatteneinsatz/Throat plate insert
Stichplatteneinsatz-Lochbreite/Insert hole width
1,6
0888 200370
Stichplatte/Throat plate
Schiebradtransporteur/Wheel feeder
0888 200240
0888 320383
Verzahnungsabstand des Transporteurs/Wheel feed tooth pitch
= Änderung / Modification
Näheinrichtungen
Sewing equipment
Ausgabe
Blatt
10
Page
Fortsetzung Blatt
Continued page
888
Edition
02.07
Ersetzt Ausgabe
Replaced edition
08.06
11
E-Nr.
E-No.
Abb.-Nr.
Fig.No.
Für Unterklasse / For Subclass
Verwendungszweck / Use
E8/1,2 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 1,2 mm,
Nadelstärke Nm 70-80, Stichlänge max. 4 mm,
für leichtes Nähgut.
Sewing equipment, seam distance 1,2 mm,
needle size Nm 70-80, stitch length max. 4 mm,
for light weight material.
E9/1,6 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 1,6 mm,
Nadelstärke Nm 70-80, Stichlänge max. 4 mm,
für leichtes Nähgut.
Sewing equipment, seam distance 1,6 mm,
needle size Nm 70-80, stitch length max. 4 mm,
for light weight material.
E10/2,0 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 2,0 mm,
Nadelstärke Nm 70-80, Stichlänge max. 4 mm,
für leichtes Nähgut.
Sewing equipment, seam distance 2,0 mm,
needle size Nm 70-80, stitch length max. 4 mm,
for light weight material.
E11/1,6 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 1,6 mm,
Nadelstärke Nm 90-110, Stichlänge max. 4 mm,
für mittelschweres Nähgut.
Sewing equipment, seam distance 1,6 mm,
needle size Nm 90-110, stitch length max. 4 mm,
for medium weight material.
Material No. / Material Nr.
0888 E00804 12
0888 E00904 16
0888 E01004 20
0888 E01104 16
Nadelzahl/Number of needles
2
2
2
2
Stichabstand/Seam distance
Nadelhalter link/ Needle holder left
1,2
1,6
2,0
1,6
Nadelhalter recht/ Needle holder right
Nadelhalter/ Needle holder
Nadelabstand-Nadelhalter/Needles distance-needle holder
2,96
0888 230013
2,96
0888 230013
3,4
0888 230023
2,96
0888 230013
Nadelsystem / -dicke / Needle system / -size
angetriebene Rollfuß/Top roller driven
Durchmesser des Presserfußes/T op roller diameter
0888 220364350888 220170
134 KKLR - 80
0888 220364350888 220170
134 KKLR - 80
0888 220364350888 220170
134 KKLR - 80
0888 220364350888 220170
134 KKLR - 90
Nadelführung, vorn/Needle guide front
Halter des Nadelführungs, vorn/Holder of needle guide front
Nadelführung, hinten/Needle guide rear
0888 220240
0888 220180
0888 220240
0888 220190
0888 220240
0888 220200
0888 220240
0888 220190
Nadelführung, hinten/Needle guide rear
Stichplatteneinsatz/Throat plate insert
Stichplatteneinsatz-Lochbreite/Insert hole width
1,5
0888 200030
1,5
0888 200120
1,5
0888 200130
1,5
0888 200120
Stichplatte/Throat plate
Schiebradtransporteur/Wheel feeder
0888 200010
0688 320520
0888 200090
0688 320520
0888 200020
0688 320520
0888 200090
0688 320520
Verzahnungsabstand des Transporteurs/Wheel feed tooth pitch
0,6
0,6
0,6
0,6
E12/2,0 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 2,0 mm,
Nadelstärke Nm 90-110, Stichlänge max. 4 mm,
für mittelschweres Nähgut.
Sewing equipment, seam distance 2,0 mm,
needle size Nm 90-110, stitch length max. 4 mm,
for medium weight material.
E13/2,4 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 2,4 mm,
Nadelstärke Nm 90-110, Stichlänge max. 5 mm,
für mittelschweres Nähgut.
Sewing equipment, seam distance 2,0 mm,
needle size Nm 90-110, stitch length max. 5 mm,
for medium weight material.
= Änderung / Modification
0888 E01204 20
0888 E01305 24
2
2,0
2
2,4
3,4
0888 230023
3,4
0888 230023
0888 220364350888 220170
134 KKLR - 90
0888 220364350888 220170
134 KKLR - 90
0888 220240
0888 220200
0888 220240
0888 220210
1,5
0888 200130
1,5
0888 200140
0888 200020
0688 320520
0888 200200
0688 320520
0,6
0,6
Näheinrichtungen
Sewing equipment
Ausgabe
Blatt
11
Page
Fortsetzung Blatt
Continued page
888
Edition
12.08
Ersetzt Ausgabe
Replaced edition
03.08
12
E-Nr.
E-No.
Abb.-Nr.
Fig.No.
Für Unterklasse / For Subclass
Verwendungszweck / Use
E14/2,0 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 2,0 mm,
Nadelstärke Nm 120-160, Stichlänge max. 4 mm,
für schweres Nähgut.
Sewing equipment, seam distance 2,0 mm,
needle size Nm 120-160, stitch length
max. 4 mm, for heavy weight material.
E15/2,4 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 2,4 mm,
Nadelstärke Nm 120-160, Stichlänge max. 5 mm,
für schweres Nähgut.
Sewing equipment, seam distance 2,4 mm,
needle size Nm 120-160, stitch length
max. 5 mm, for heavy weight material.
E16/3,2 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 3,2 mm,
Nadelstärke Nm 120-160, Stichlänge max. 5 mm,
für schweres Nähgut.
Sewing equipment, seam distance 3,2 mm,
needle size Nm 120-160, stitch length
max. 5 mm, for heavy weight material.
E18/1,6 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 1,6 mm,
Nadelstärke Nm 90-110, Stichlänge max. 4 mm,
für mittelschweres Nähgut.
Sewing equipment, seam distance 1.6 mm,
needle size Nm 90-110, stitch length max. 4 mm,
for medium weight material.
Material No. / Material Nr.
0888 E01404 20
0888 E01505 24
0888 E01605 32
0888 E01804 16
Nadelzahl/Number of needles
2
2
2
2
Stichabstand/Seam distance
Nadelhalter link/ Needle holder left
2,0
2,4
3,2
1,6
Nadelhalter recht/ Needle holder right
Nadelhalter/ Needle holder
Nadelabstand-Nadelhalter/Needles distance-needle holder
3,4
0888 230023
3,4
0888 230023
3,2
0888 230033
2,96
0888 230013
Nadelsystem / -dicke / Needle system / -size
angetriebene Rollfuß/Top roller driven
Durchmesser des Presserfußes/T op roller diameter
134 LR -120
0888 220364350888 220170
134 LR - 120
0888 220364350888 220170
35
134 LR - 120
0888 220364
0888 220334250888 220170
134 KKLR - 90
Nadelführung, vorn/Needle guide front
Halter des Nadelführungs, vorn/Holder of needle guide front
Nadelführung, hinten/Needle guide rear
0888 220240
0888 220200
0888 220240
0888 220210
0888 220220
0888 220240
0888 220190
Nadelführung, hinten/Needle guide rear
Stichplatteneinsatz/Throat plate insert
0888 220230
0888 200170
0888 220230
0888 200180
0888 220230
0888 200480
0888 200120
Stichplatteneinsatz-Lochbreite/Insert hole width
2,3
2,3
2,3
1,5
Stichplatte/Throat plate
Schiebradtransporteur/Wheel feeder
0888 200020
0688 320530
0888 200200
0688 320530
0888 200210
0688 320530
0888 200090
0688 320530
Verzahnungsabstand des Transporteurs/Wheel feed tooth pitch
1,2
1,2
1,2
1,2
E20/2,0 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 2,0 mm,
Nadelstärke Nm 90-120, Stichlänge max. 5 mm,
für mittelschweres Nähgut.
Sewing equipment, seam distance 2,0 mm,
needle size Nm 90-120, stitch length
max. 5 mm, for medium weight material.
E21/2,4 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 2,4 mm,
Nadelstärke Nm 90-120, Stichlänge max. 5 mm,
für mittelschweres Nähgut.
Sewing equipment, seam distance 2,4 mm,
needle size Nm 90-120, stitch length
max. 5 mm, for medium weight material.
= Änderung / Modification
0888 02005 20
0888 02105 24
2
2,0
2
2,4
2,1
0888 230160
2,4
0888 230170
134 KKLR - 90
134 KKLR - 90
35
0888 220364
35
0888 220364
0888 220660
0888 220670
2,0
0888 200560
2,0
0888 200570
0888 200540
0688 320520
0888 200550
0888 320520
0,6
0,6
Näheinrichtungen
Sewing equipment
Ausgabe
Blatt
12
Page
Fortsetzung Blatt
Continued page
888
Edition
06.09
Ersetzt Ausgabe
Replaced edition
12.08
13
E-Nr.
E-No.
Abb.-Nr.
Fig.No.
Für Unterklasse / For Subclass
Verwendungszweck / Use
E30/1,6 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 1,6 mm,
Nadelstärke Nm 90-110, Stichlänge max. 4 mm,
für mittelschweres Nähgut.
Sewing equipment, seam distance 1.6 mm,
needle size Nm 90-110, stitch length max. 4 mm,
for medium weight material.
E44/2,0 -460522
Näheinrichtung, Stichabstand 2,0 mm,
schaltbare Nadelstangen, Nadelstärke Nm
70-80, Stichlänge max. 4 mm, für leichtes
Nähgut.
Sewing equipment, seam distance 2.0 mm,
needle bar rocking mechanism, needle size Nm
70-80, stitch length max. 4 mm, for light weight
material.
E45/2,0 -460522
Näheinrichtung, Stichabstand 2,0 mm,
schaltbare Nadelstangen, Nadelstärke Nm
90-120, Stichlänge max. 5 mm, für
mittelschweres Nähgut.
Sewing equipment, seam distance 2.0 mm,
needle bar rocking mechanism, needle size Nm
90-120, stitch length max. 5 mm, for medium
weight material.
Material No. / Material Nr.
0888 E03004 16
0888 E04404 20
0888 E04505 20
Nadelzahl/Number of needles
2
2
2
Stichabstand/Seam distance
Nadelhalter link/ Needle holder left
1,6
2,0
0888 230413
2,0
0888 230413
Nadelhalter recht/ Needle holder right
Nadelhalter/ Needle holder
0888 230013
0888 230403
0888 230403
Nadelabstand-Nadelhalter/Needles distance-needle holder
2,96
Nadelsystem / -dicke / Needle system / -size
angetriebene Rollfuß/Top roller driven
Durchmesser des Presserfußes/T op roller diameter
0888 220364350888 220170
134 KKLR - 90
35
0888 220364
134-35 LR - 80
35
0888 220364
134-35 LR - 90
Nadelführung, vorn/Needle guide front
Halter des Nadelführungs, vorn/Holder of needle guide front
Nadelführung, hinten/Needle guide rear
0888 220240
0888 220190
0888 220660
0888 220660
Nadelführung, hinten/Needle guide rear
Stichplatteneinsatz/Throat plate insert
Stichplatteneinsatz-Lochbreite/Insert hole width
1,5
0888 200120
2,0
0888 200560
2,0
0888 200560
Stichplatte/Throat plate
Schiebradtransporteur/Wheel feeder
0888 200090
0688 320530
0888 200540
0688 320520
0888 200540
0688 320520
Verzahnungsabstand des Transporteurs/Wheel feed tooth pitch
1,2
0,6
0,6
E46/2,4 -460522
Näheinrichtung, Stichabstand 2,4 mm,
schaltbare Nadelstangen, Nadelstärke Nm
90-120, Stichlänge max. 5 mm, für
mittelschweres Nähgut.
Sewing equipment, seam distance 2.4 mm,
needle bar rocking mechanism, needle size Nm
90-120, stitch length max. 5 mm, for medium
weight material.
E47/2,4 -460522
Näheinrichtung, Stichabstand 2,4 mm,
schaltbare Nadelstangen, Nadelstärke Nm
120-140, Stichlänge max. 5 mm, für
mittelschweres Nähgut.
Sewing equipment, seam distance 2.4 mm,
needle bar rocking mechanism, needle size Nm
120-140, stitch length max. 5 mm, for medium
weight material.
= Änderung / Modification
0888 E04605 24
0888 E4705 24
2
2,4
0888 230423
0888 230433
2
2,4
0888 230433
0888 230423
134-35 LR - 90
134-35 LR - 120
35
0888 220364
35
0888 220364
0888 220670
0888 220670
2,0
0888 200570
2,0
0888 200570
0888 200550
0688 320520
0888 200550
0688 320520
0,6
0,6
Näheinrichtungen
Sewing equipment
Ausgabe
Blatt
Page
13
888
Edition
06.09
Fortsetzung Blatt
Continued page
-
E-Nr.
E-No.
Abb.-Nr.
Fig.No.
Für Unterklasse / For Subclass
Verwendungszweck / Use
E48/3,2 -460522
Näheinrichtung, Stichabstand 3,2 mm,
schaltbare Nadelstangen, Nadelstärke Nm
120-160, Stichlänge max. 5 mm, für
mittelschweres Nähgut.
Sewing equipment, seam distance 3.2 mm,
needle bar rocking mechanism, needle size Nm
120-160, stitch length max. 5 mm, for medium
weight material.
E49/1,6 -460522
Näheinrichtung, Stichabstand 1,6 mm,
schaltbare Nadelstangen, Nadelstärke Nm
70-80, Stichlänge max. 4 mm, für leichtes
Nähgut.
Sewing equipment, seam distance 1.6 mm,
needle bar rocking mechanism, needle size Nm
70-80, stitch length max. 4 mm, for light weight
material.
E50/3,6 -260020; -260122; -260522; -260023
Näheinrichtung, Stichabstand 3,6 mm,
Nadelstärke Nm 120-160, Stichlänge max. 5 mm,
für mittelschweres Nähgut.
Sewing equipment, seam distance 3,6 mm,
needle size Nm 120-160, stitch length
max. 5 mm, for medium weight material.
Material No. / Material Nr.
0888 E04805 32
0888 E04904 16
0888 E05005 36
Nadelzahl/Number of needles
2
2
2
Stichabstand/Seam distance
Nadelhalter link/ Needle holder left
3,2
0888 230454
1,6
0888 230383
3,6
Nadelhalter recht/ Needle holder right
Nadelhalter/ Needle holder
0888 230444
0888 230373
0888 230203
Nadelabstand-Nadelhalter/Needles distance-needle holder
3,6
Nadelsystem / -dicke / Needle system / -size
angetriebene Rollfuß/Top roller driven
0888 220364
134-35 LR - 120
0867 120590
0888 220364
134 LR - 120
0888 220364
Durchmesser des Presserfußes/T op roller diameter
35
35
35
Nadelführung, vorn/Needle guide front
Halter des Nadelführungs, vorn/Holder of needle guide front
Nadelführung, hinten/Needle guide rear
Nadelführung, hinten/Needle guide rear
0888 220220
0888 220230
0888 220800
0888 220220
0888 220230
Stichplatteneinsatz/Throat plate insert
Stichplatteneinsatz-Lochbreite/Insert hole width
2,3
0888 200480
1,2
0888 200910
2,3
0888 200920
Stichplatte/Throat plate
Schiebradtransporteur/Wheel feeder
0888 200210
0688 320530
0888 200540
0688 200540
0888 200930
0688 320530
Verzahnungsabstand des Transporteurs/Wheel feed tooth pitch
1,2
0,6
1,2
= Änderung / Modification
