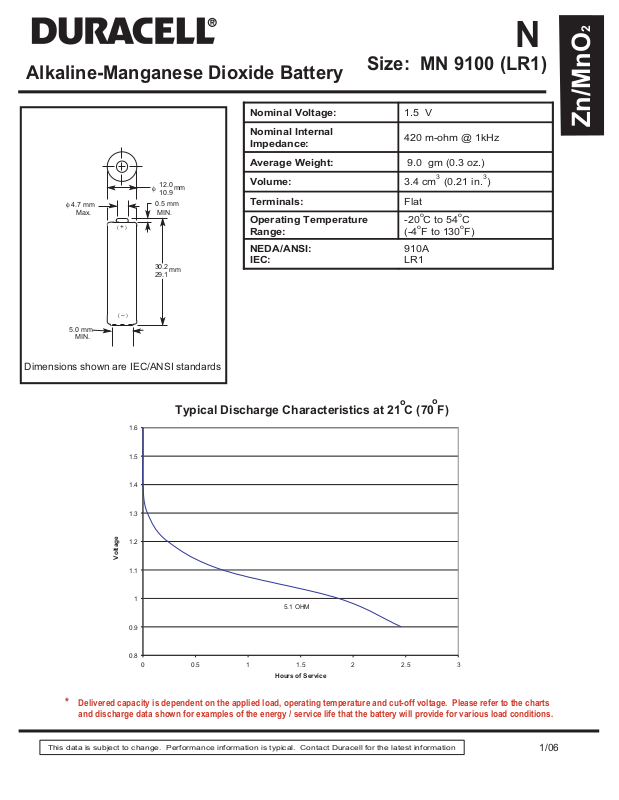

Duracell PC9100 Data Sheet
N
Alkaline-Manganese Dioxide Battery
Nominal Voltage: 1.5 V
Nominal Internal
Impedance:
Average Weight: 9.0 gm (0.3 oz.)
Volume: 3.4 cm
Terminals: Flat
Operating Temperature
Range:
NEDA/ANSI:
IEC:
φ 4.7 mm
Max.
5.0 mm
MIN.
( + )
( – )
12.0
φ
10.9
0.5 mm
MIN.
30.2
29.1
mm
mm
Size: MN 9100 (LR1)
420 m-ohm @ 1kHz
3
(0.21 in.3)
o
C to 54oC
-20
o
F to 130oF)
(-4
910A
LR1
Zn/MnO2
Dimensions shown are IEC/ANSI standards
Typical Discharge Characteristics at 21 C (70 F)
1.6
1.5
1.4
1.3
1.2
Voltage
1.1
1
0.9
0.8
0 0.5 1 1.5 2 2.5 3
5.1 OHM
Hours of Service
o
o
Delivered capacity is dependent on the applied load, operating temperature and cut-off voltage. Please refer to the charts
**
and discharge data shown for examples of the energy / service life that the battery will provide for various load conditions.
This data is subject to change. Performance information is typical. Contact Duracell for the latest information
1/06
N
Alkaline-Manganese Dioxide Battery
Typical Discharge Characteristics
1.6
1.5
1.4
1.3
1.2
Voltage
1.1
1
0.9
0.8
0 50 100 150 200 250
300 OHM
Hours of Service
Typical Discharge Characteristics
1.6
1.5
300 OHM
1.6
1.5
1.4
1.3
1.2
Voltage
1.1
0.9
0.8
Size: MN 9100 (LR1)
Zn/MnO2
Typical Discharge Characteristics
100 OHM
1
0 1020304050607080
0
- 20 C 0 C
Hours of Service
0
0
20 C
1.4
1.3
1.2
Voltage
1.1
1
0.9
0.8
0 50 100 150 200 250
0
- 20 C
Hours of Service
0
0 C
Berkshire Corporate ParkBerkshire Corporate Park
Bethel, CT 06801 U.S.A.Bethel, CT 06801 U.S.A.
Telephone: Toll-free 1-800-544-5454Telephone: Toll-free 1-800-
Internet: www.duracell .com
Delivered capacity is dependent on the applied load, operating temperature and cut-off voltage. Please refer to the charts
**
and discharge data shown for examples of the energy / service life that the battery will provide for various load conditions.
0
20 C
Typical Discharge Characteristics
1.6
1.5
1.4
1.3
1.2
Voltage
1.1
1
0.9
0.8
0 100 200 300 400 500 600 700 800 900
1000 OHM
0
- 20 C 0 C
Hours of Service
0
0
20 C
This data is subject to change. Performance information is typical. Contact Duracell for the latest information
1/06
