Dune HD Connect Quick Start Guide

Table of Contents

Table of Contents

3

English

4 16

Quick Start Guide

• Introduction

• Key Features

• Extra Functions

• Package Contents

• Exterior

• Remote Control

• Getting Started

• Quick Setting of Video Output Mode

• Connecting USB Drives

• Accessing Network Drives

• Formatting HDD

• Switching the Player On and Off

• NAS (Network Attached Storage)

• Wi-Fi

• Limitations

• Updating Your Player and Getting More Information

Русский

Краткое руководство

• Введение

• Основные особенности

• Дополнительные функции

• Содержимое коробки

• Внешний вид

• Пульт управления

• Начало работы

• Быстрое изменение видеорежима

• Подключение USB-накопителей

• Доступ к сетевым дискам

• Форматирование жесткого диска

• Включение и выключение проигрывателя

• NAS (Network Attached Storage)

• Wi-Fi

• Ограничения

• Обновление плеера и доп. информация

4

Dune HD Connect Quick Start Guide

Introduction

Dune HD Connect is an all-in-one solution for up to Full HD (1080p) video playback.

Key Features

● The newest Sigma Designs SMP867x media processor: enjoy excellent playback and performance of interactive

features.

● Network player: connect the player to a local network and play content directly from PC or NAS (UPnP, SMB, NFS).

● MKV player: play HD and SD video in a popular MKV format and other modern video file formats, including top

quality HD video with very high bitrate.

● USB port: conveniently connect HDDs, USB flash drives, USB card readers and other USB storage devices.

● HDMI port: ensure the best possible quality of HD video and HD audio.

● Video output flexibility: output video in any resolution and format (from SD to 1080p, 24p/PAL/NTSC).

● Upscaling: high quality upscaling of DVD and any other SD video content to Full HD (1080p) or other HD resolution.

● File browser: convenient file browser with powerful file management (copy, move, delete, rename, organize, sort).

English

Extra Functions

● High-quality music playback: play very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC,

Monkey’s Audio APE, WAV/PCM, etc).

● Playlists: build playlists from your folders, use your own playlists, use repeat and shuffle functions.

● NAS function: access files on storage devices (HDD, optical drive, etc) attached to the player from the local

network (using SMB or FTP).

● Customizable user interface: work with media collections using cover art and icon browsing (with Full HD graphics).

● Internet radio: playback and record various Internet radio stations (HTTP/MP3 and other formats).

● Digital TV: playback and record Digital TV channels (OTT/IPTV).

5

6

Dune HD Connect Quick Start Guide

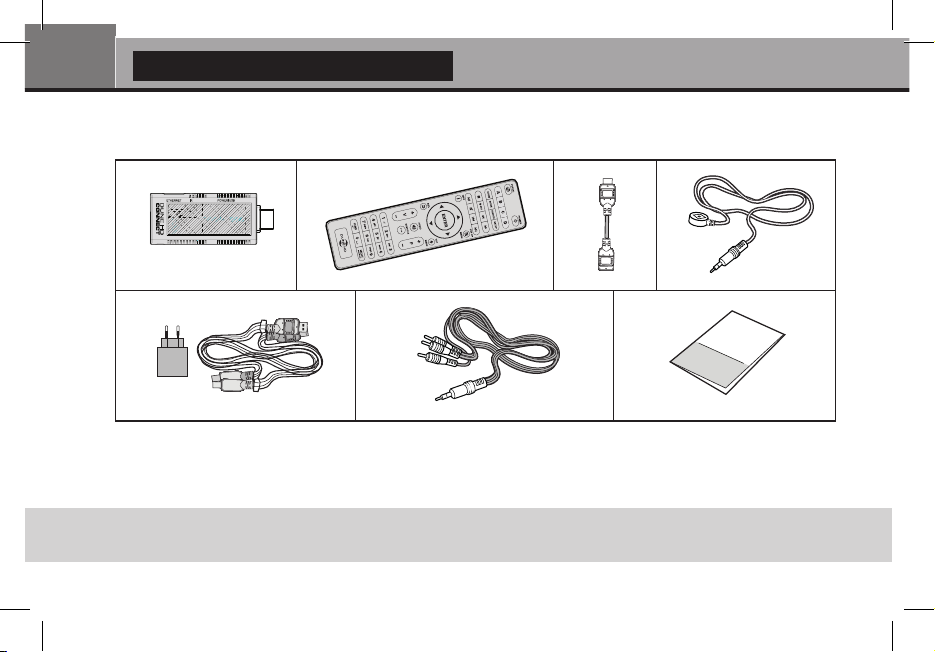

Package Contents

1

5

1. Dune HD Connect media player

2. Remote control (batteries may not

be included)

NOTE: Additional items (optional) may be included into the package, depending on player configuration, region, and
distributor.

3. HDMI Extender

4. IR extender

5. Power Supply with USB cable

2

3

6. AV cable (3xRCA)

7. Quick start guide

4

76

English

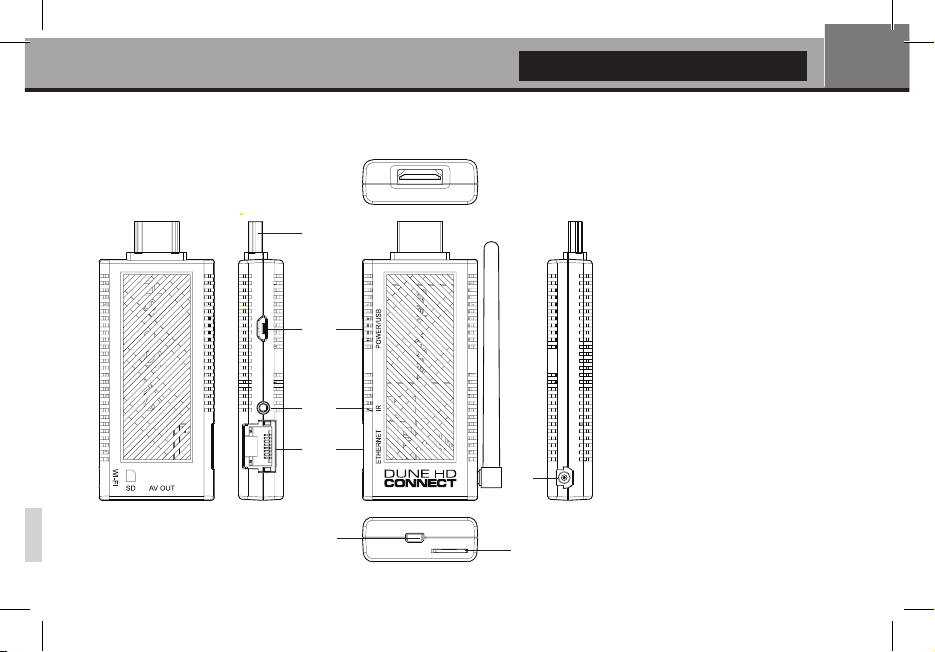

Exterior

7

1

1. HDMI connector

2. Power/USB port

3. IR Extender port

2

3

4

5

4. LAN port (10/100 mbps)

5. Wi-Fi antenna port*

6. SD Card slot

7. AV Out port

* - depends on configuration

7

6

8

Dune HD Connect Quick Start Guide

Remote Control

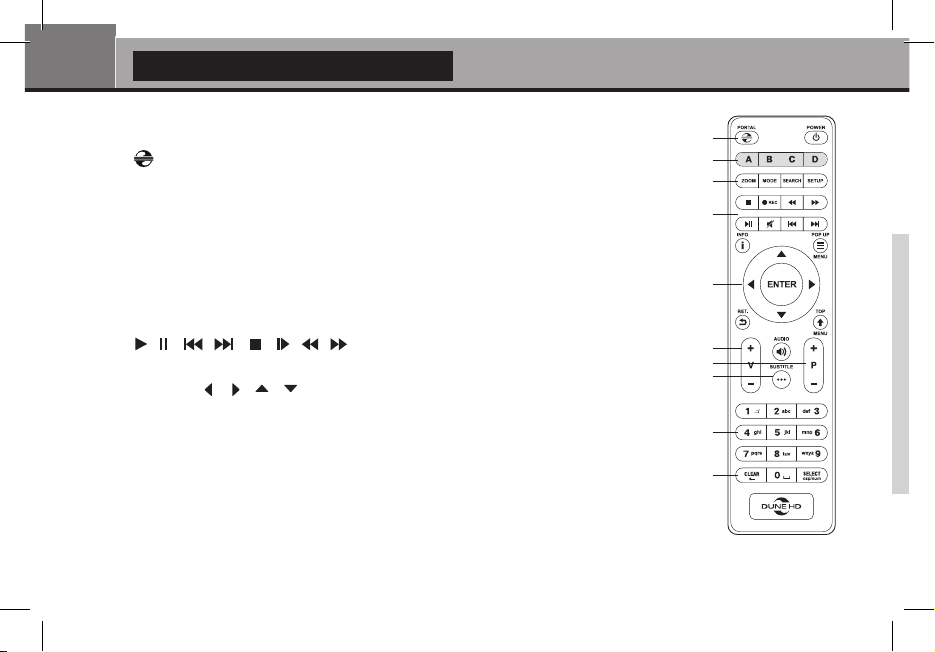

1. — launch Dune HD Portal, POWER — toggle the standby mode.

2. A (Red), B (Green), C (Yellow), D (Blue) — control some player functions.

3. ZOOM — change the zoom factor for the video content being played. MODE — switch
the video output mode; control some other player functions. SEARCH — jump to a

specied playback position. SETUP — enter/leave the setup menu; adjust playback
settings during playback. REC — start/stop TV channel recording.

4.

on/off.

5. Arrows

, ENTER, RETURN, TOP MENU, POP UP MENU,

INFO — main buttons for controlling the player (navigate across the items on the screen,

open/use the currently selected item, go back to the previous screen, go to main menu,
show popup menu with actions, show information, control some other player functions).

6. V+/V- (volume up / volume down) — adjust the volume.

7. P+/P- (page up / page down) — scroll up and down in various lists; control some other

player functions.

8.

SUBTITLE, AUDIO — choose an audio track or subtitles during playback (if presented)

— control the playback. MUTE — turn the sound

1

2

3

4

5

6
7
8

9

10

English

9. 0–9 — enter numbers and text; control some other player functions.

10.

CLEAR, SELECT — control some player functions.

NOTES:

● Use alkaline AAA batteries.

● Observe polarity when inserting batteries.

● Direct the remote control to the player. There must be no obstacles between the RC and the player.

● If RC functions only at short distances or stops functioning, make sure to replace the batteries.

● Some RC buttons may have several functions depending on the current player mode.

● Some RC buttons may be available only in certain player modes or only during playback of a certain content.

9
