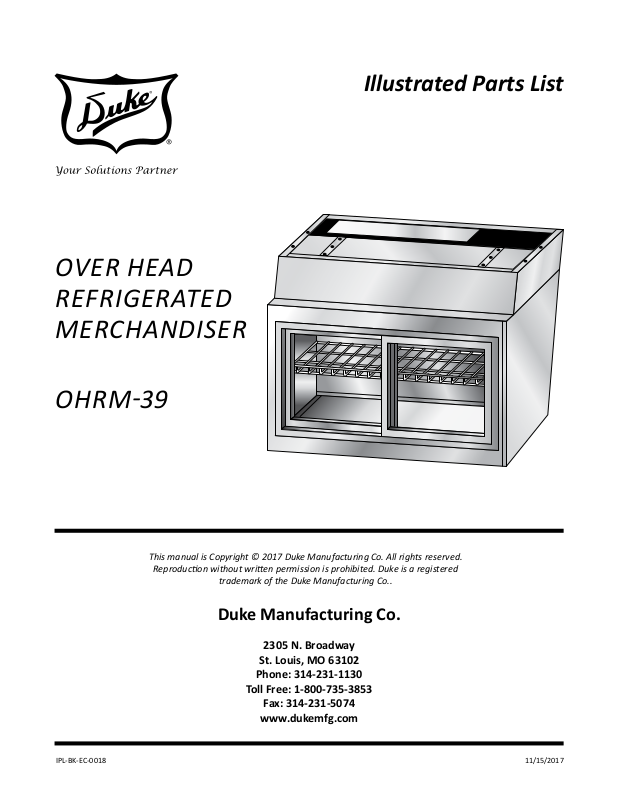

Duke OHRM-39 Parts List
OVER HEAD
REFRIGERATED
MERCHANDISER
Illustrated Parts List
OHRM-39
This manual is Copyright © 2017 Duke Manufacturing Co. All rights reserved.
Reproducon without wrien permission is prohibited. Duke is a registered
trademark of the Duke Manufacturing Co..
Duke Manufacturing Co.
2305 N. Broadway
St. Louis, MO 63102
Phone: 314-231-1130
Toll Free: 1-800-735-3853
Fax: 314-231-5074
www.dukemfg.com
11/15/2017IPL-BK-EC-0018
Illustrated Parts Lists for Overhead Refrigerated Merchandiser OHRM-39
How to Determine Manufacture Date from
Duke Equipment Serial Numbers
All units currently manufactured in St. Louis and Sedalia, Missouri (After 2/1/2013):
08 03 0202
Month Manufactured Sequential Number
Year Manufactured
(Example: 08030202 = Indicates the unit was manufactured in August of 2003)
Units Manufactured in St. Louis, Missouri (Before 2/1/2013):
30 IF AA 0123
Unit Identification Sequential Number
10 = 5/9
20 = 6/13 & E-Series
30 = 6/18 & 3/9
90 = FBB Month of Manufacture
94 = FWM JA = January
95 = IRHU JB = February
99 = Dry Channel JC = March
JD = April
Year of Manufacture JE = May
A = 1 JF = June
B = 2 JG = July
C = 3 JH = August
D = 4 (Examples) JI = September
E = 5 (JJ = 2000) AJ = October
F = 6 (JA = 2001) AA = November
G = 7 (JB = 2002) AB = December
H = 8
I = 9
J = 0
11/15/2017
2
IPL-BK-EC-0018
Illustrated Parts Lists for Overhead Refrigerated Merchandiser OHRM-39
TABLE OF CONTENTS
FINAL ASSEMBLY ................................................................................................................................................................... 4
Table: PL-1 Final Assembly ........................................................................................................................................ 4
Figure: PL-1 Final Assembly ....................................................................................................................................... 5
INNER LINER ..................................................................................................................................................................... 6
Table: PL-2 Inner Liner ............................................................................................................................................... 6
Figure: PL-2 Inner Liner ............................................................................................................................................. 6
EVAPORATOR ASSEMBLY ...................................................................................................................................................... 7
Table: PL-3 Evaporator Assembly .............................................................................................................................. 7
Figure: PL-3 Evaporator Assembly ............................................................................................................................. 7
EVAPORATOR FAN................................................................................................................................................................. 7
Table: PL-4 Evaporator Fan ........................................................................................................................................ 7
Figure: PL-4 Evaporator Fan ...................................................................................................................................... 7
CONDENSER ASSEMBLY ........................................................................................................................................................ 8
Table: PL-5 Condenser Assembly .............................................................................................................................. 8
Figure: PL-5 Condenser Assembly ............................................................................................................................. 9
OHRM WIRING DIAGRAM .................................................................................................................................................. 10
IPL-BK-EC-0018 3 11/15/2017
Illustrated Parts Lists for Overhead Refrigerated Merchandiser OHRM-39
FINAL ASSEMBLY
ITEM PART NUMBER DESCRIPTION QT Y.
1 213957 GROMMET, ROUND 1-7/8" BLACK 3
2 216575 THERMOMETER, REGRIG 1
3 T993906 SALAD ANGLE HOLDER 2
4 225851 LIGHT, LED 12" CW 2.4W 2
5 225852 LIGHT, LED 8" CW 1.6W 1
6 225861 CORD, LED SINGLE 98" 4
7 E020583 RETAINER LED RECESSED 3
8 225745 Assembly, Sliding Door, 18" x 36" 1
Not Shown 600491 Kit, ORRM Door Replacement Gaskets 1
9 225840 LIGHT, LED 12" CW 2.4W 6500K 6
10 225842 LIGHT, LED 8" CW 1.6W 6500K 3
11 225737 RACK WIRE SHELF 1
12 T993907 ANGLE PIE HOLDER 1
13 225460 PUSHER, BEVTRAC (16/20 OZ) 8
Not shown
Not shown
225855 DRIVER, LED, 24VDC 30W 1
228700 SPRING, BK DOORS, YELLOW 11.5" 1
Table: PL-1 Final Assembly
11/15/2017
4
IPL-BK-EC-0018
