DSC PG4975, PG8975, PG9975 Bulletin

Date: February 8, 2017

To: Global Distributors and Dealers

PGx975 PowerG Wireless
Vanishing Door/Window
Contact

Overview

It has come to our attention that due to improper re-assembly of the plastic portion of the
PGx975 PowerG Wireless Vanishing Door/Window Contact, there is a possibility that the
tamper switch of the device could become damaged, to the point where it may not properly
detect a tamper condition when the case is opened, or constantly show a tamper condition
even when the device is assembled.

Re-Assembly Instructions

To ensure that the PGx975 plastic is properly re-assembled at the time of installation or when
the battery is replaced, please follow the instructions below. The re-assembely instructions
will also be updated in the Installation Manual.

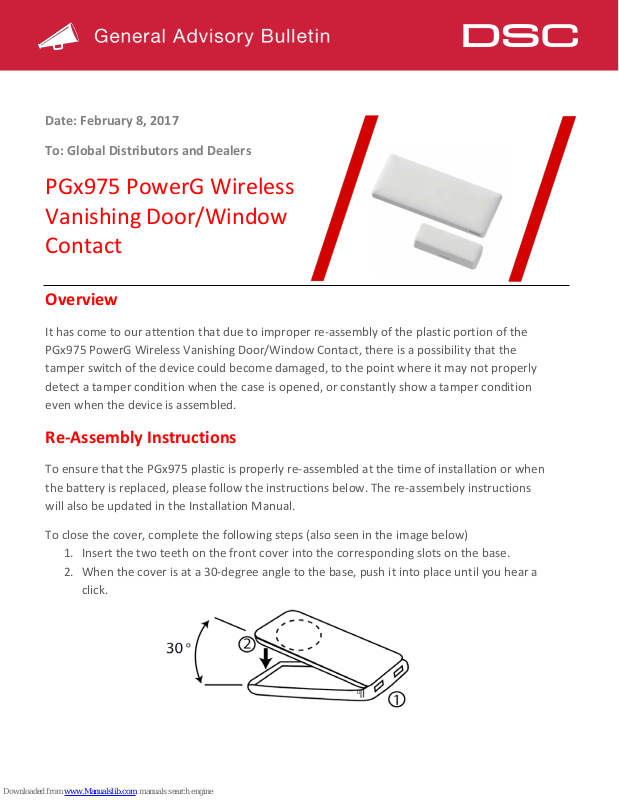

To close the cover, complete the following steps (also seen in the image below)

1. Insert the two teeth on the front cover into the corresponding slots on the base.

2. When the cover is at a 30-degree angle to the base, push it into place until you hear a

click.

Model

Description

PG4975

PowerG 433MHz Wireless Vanishing Contact

PG8975

PowerG 868MHz Wireless Vanishing Contact

PG9975

PowerG 915MHz Wireless Vanishing Contact

Order Entry Contact

Sales Contact

Technical Support Contact

1-888-888-7838

For additional

email [e-mail]

North America: [phone]

Affected Part Numbers

information please
contact your local sales
representative or

Latin America: [phone]
EMEA & AsiaPac: Toll Free 800­22558926
