DSC FM-3000 User Manual

DSC Position Polling with

FM-3000 and NavNet VX2

When any NavNet VX2 display is connected to the FM-3000 VHF radio, DSC
position reports can be received from another DSC capable VHF transceiver, then
shown on VX2's plotter as a waypoint. This capability allows two or more vessels
to transmit their position to each other via VHF, then record that position
information as a waypoint on the VX2's plotter.

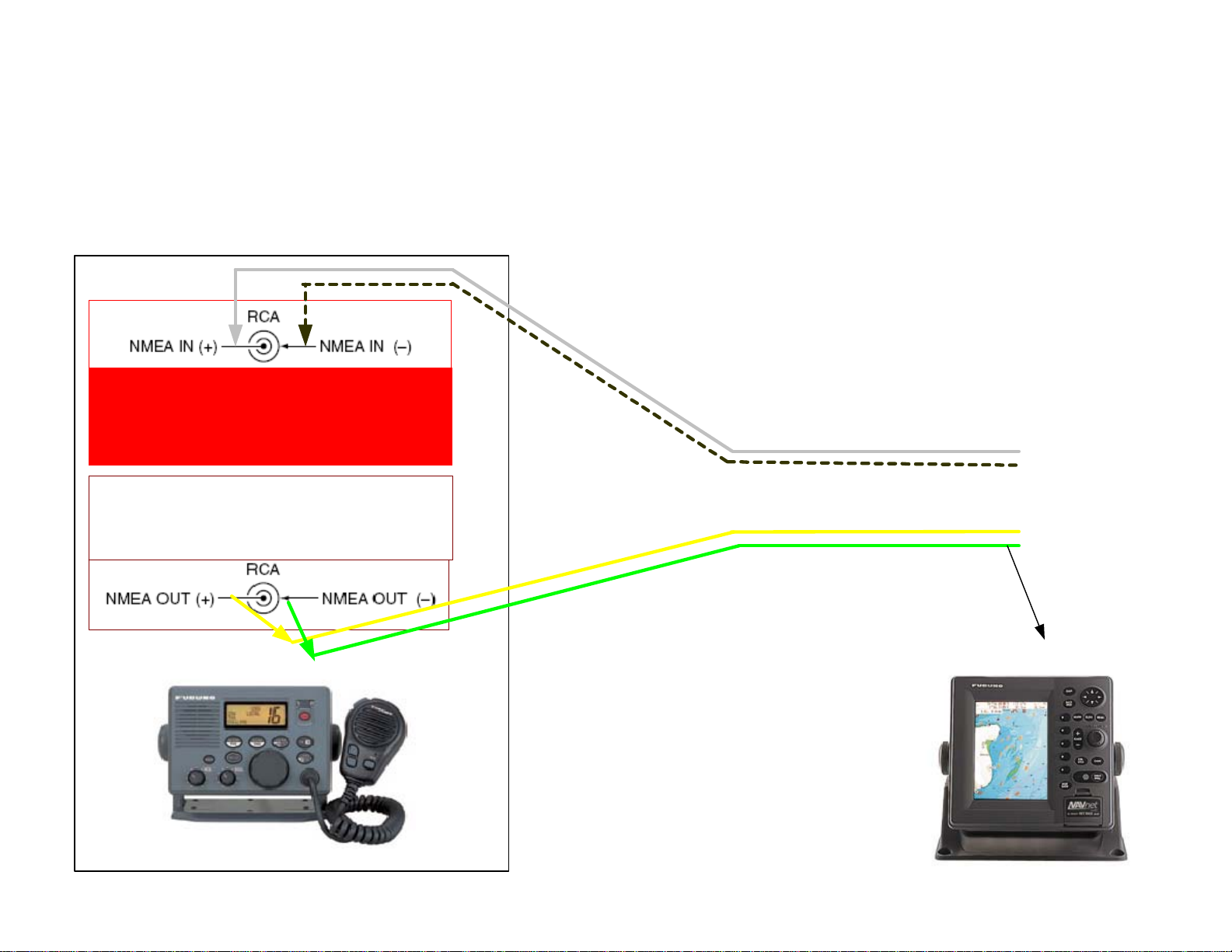

Connection Diagram, 10.4" VX2

RED NMEA In RCA Jack - White wire from Plotter

to Center Conductor (+) and Black wire from

plotter to Outer (-)

White NMEA OUT RCA Jack - Yellow wire from

Plotter to Center Conductor (+) and Green wire

from plotter to outer (-)

Use Optional 000-117-603 Cable to connect the VX2 to

the RCA type connectors on the back of the FM-3000.

Set the VX2's NMEA port to output RMC and GGA.

WHT

BLACK

YELLOW

GREEN

000-117-603 Cable to

NMEA Port 2
