AMP-701NP
GND
TAM
IN ALM
COM
Black
Red
Black
Yellow
Blue
Green
Serial Number
TBL
Addressable Contact Input Module
Installation Instructions
The AMP-701NP contact uses a 2-wire connection for power and to communicate with
the control panel. This simplifies wiring and reduces installation cost. The low current
draw of AMP-701NP also maximizes the number of devices that can be attached to an
addressable loop.
The AMP-701NP has three alarm input wires to which an external device can be connected. The wires monitor alarm, tamper and trouble states. Use only devices with NC
dry contact outputs. The use of any other type of device will impair the operation of the
AMP-701NP.
Specifications
• Current Rating: 0.8mA
• Operating Environment:
0°C - 49°C (32°F - 120°F)
5% - 95% RH, non-condensing
Control Panel Compatibility
• 4020 v3.x
• PC5010/5015 v2.x with PC5100 interface module
• PC5020 V3.2+ with PC5100 interface module

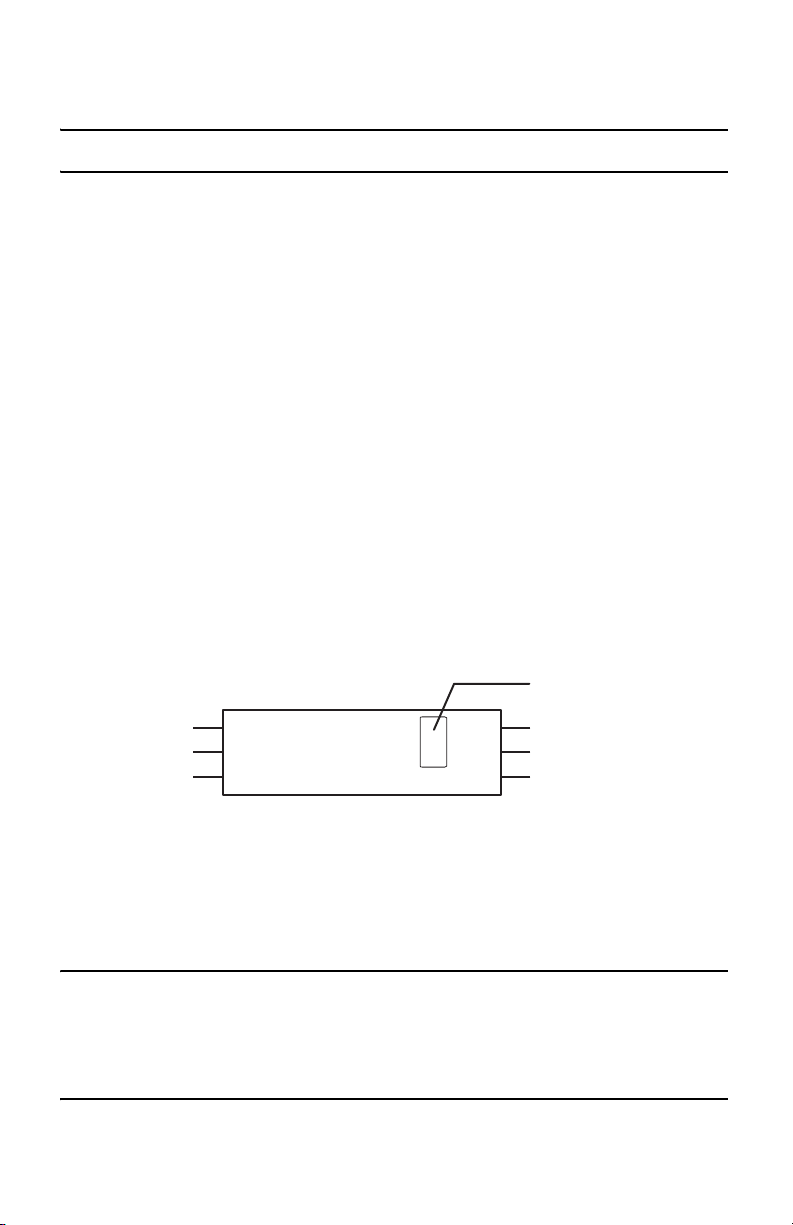

Connection Diagram
Device Enrollment
The serial number located on the front of the device must be enrolled into the alarm
control panel via Installer’s Programming ([*] [8] [Installer’s Code]). This procedure is
outlined for the PC4020 in the control panel Installation Manual and for the Power
panels in the PC5100 Installation Manual.
• WARNING •
Connect only DSC Addressable Series devices to the addressable loop
connections. Connection of ANY other type of device will impair opera-
tion. Any devices other than Addressable Series devices which require
power to operate must be powered separately.
This manual shall be used in conjunction with the Installation Manual of the alarm con-
trol panel. All the instructions specified within that manual must be observed.
29007149R005
