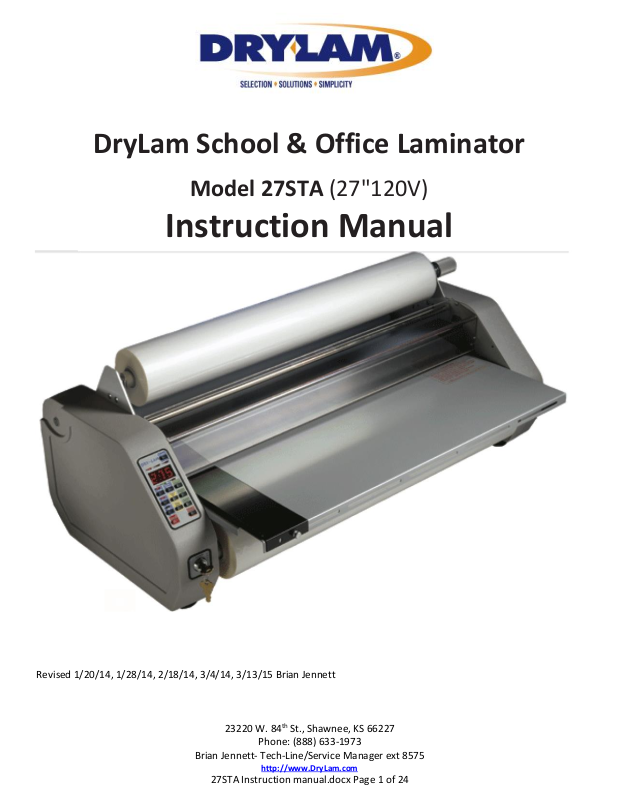

Drylam 27STA User Manual
DryLam School & Office Laminator
Model 27STA (27"120V)
Instruction Manual
Revised 1/20/14, 1/28/14, 2/18/14, 3/4/14, 3/13/15 Brian Jennett
23220 W. 84th St., Shawnee, KS 66227
Phone: (888) 633-1973
Brian Jennett- Tech-Line/Service Manager ext 8575
http://www.DryLam.com
27STA Instruction manual.docx Page 1 of 24
Contents
27STA SPECIFICATIONS ........................................................................................................................................................... 3
IMPORTANT INFORMATION ................................................................................................................................................... 3
INTRODUCTION ....................................................................................................................................................................... 7
UNPACKING AND SETUP ......................................................................................................................................................... 9
INFORMATION ABOUT LAMINATING FILM ............................................................................................................................. 9
OPERATING ............................................................................................................................................................................. 9
Control Panel ....................................................................................................................................................................... 9
ADDITIONAL FEATURES ......................................................................................................................................................... 11
Key switch ......................................................................................................................................................................... 11
Hand Held Cutter .............................................................................................................................................................. 11

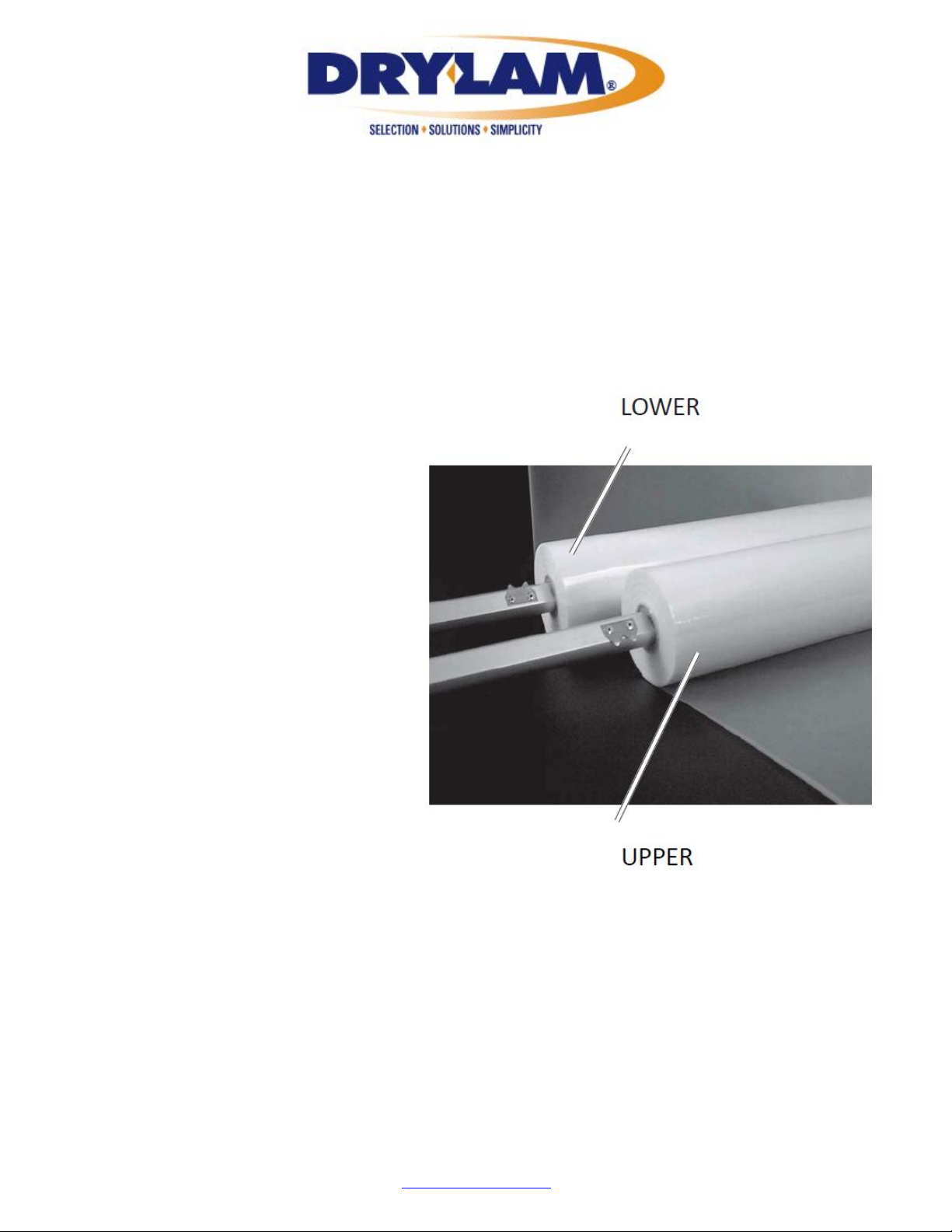

LOADING FILM ...................................................................................................................................................................... 12

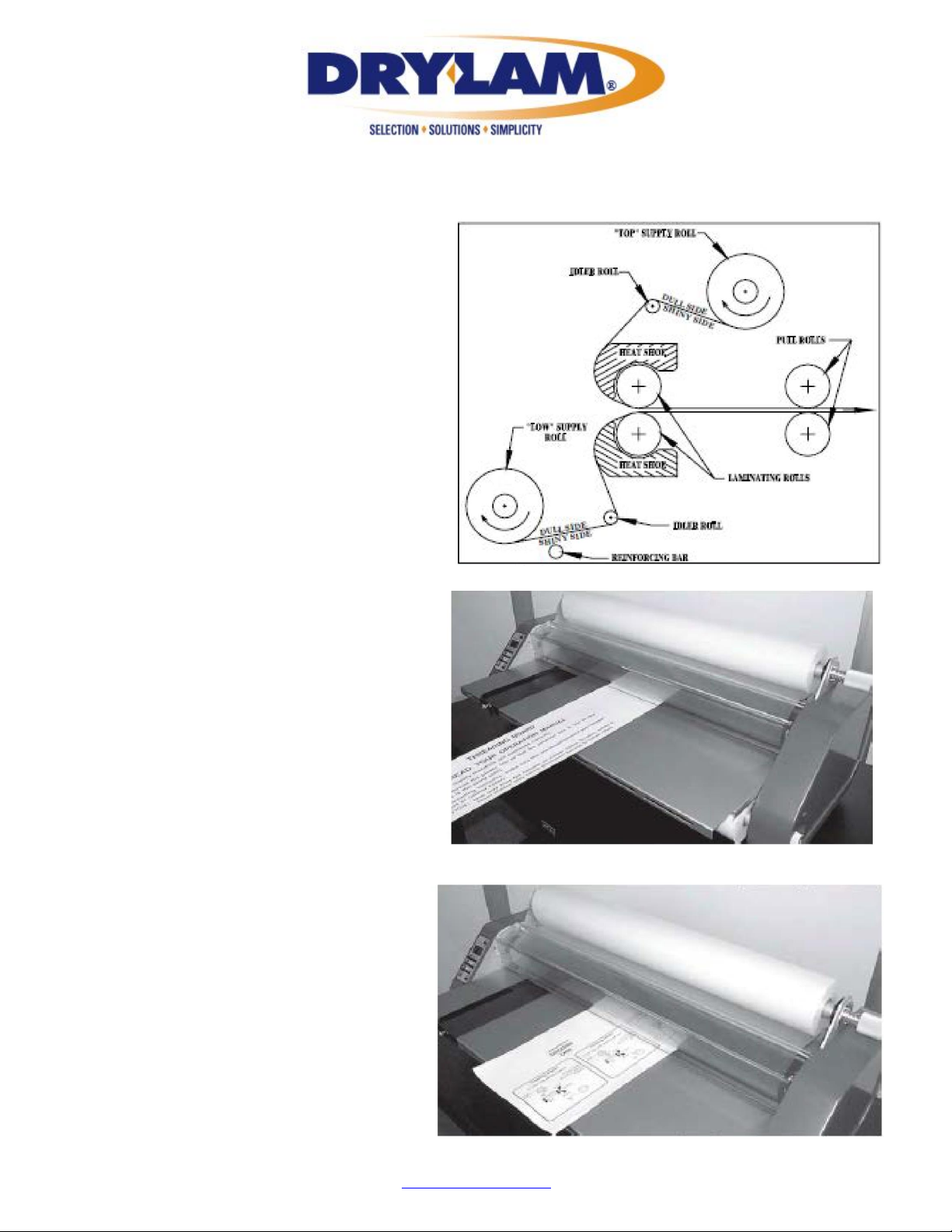

THREADING PROCEDURE ...................................................................................................................................................... 13

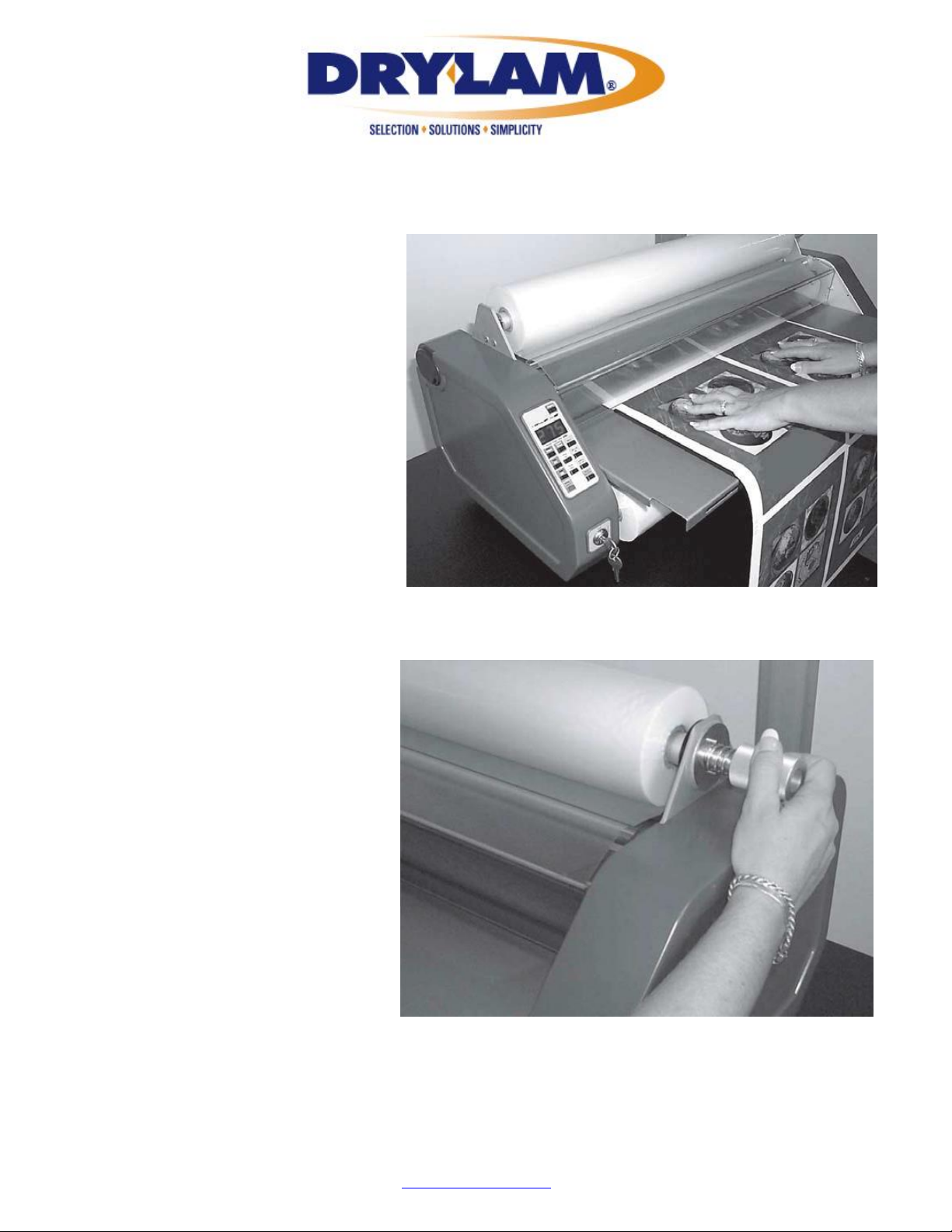

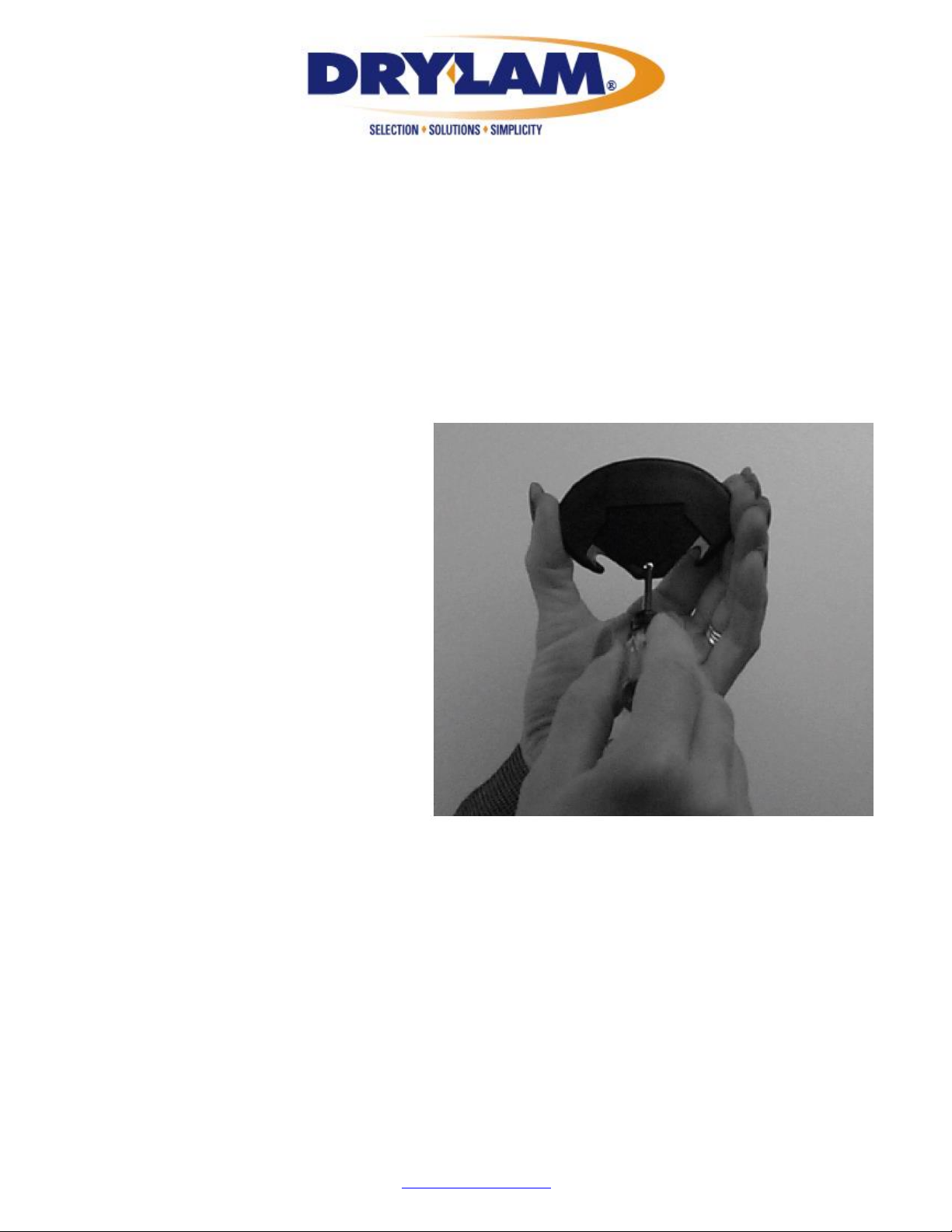

TENSION ADJUSTMENT ......................................................................................................................................................... 16

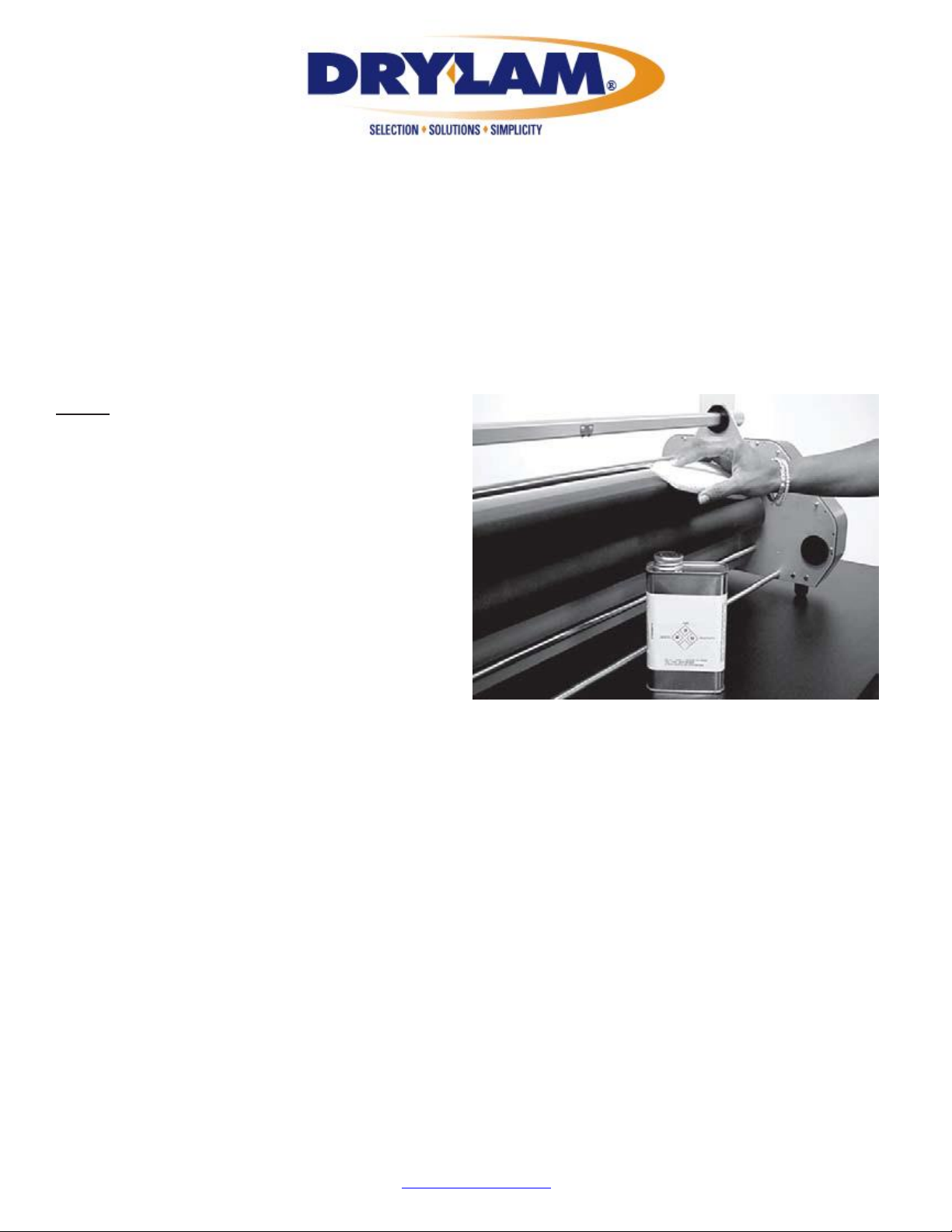

MAINTAINING THE DRYLAM LAMINATOR ............................................................................................................................ 17

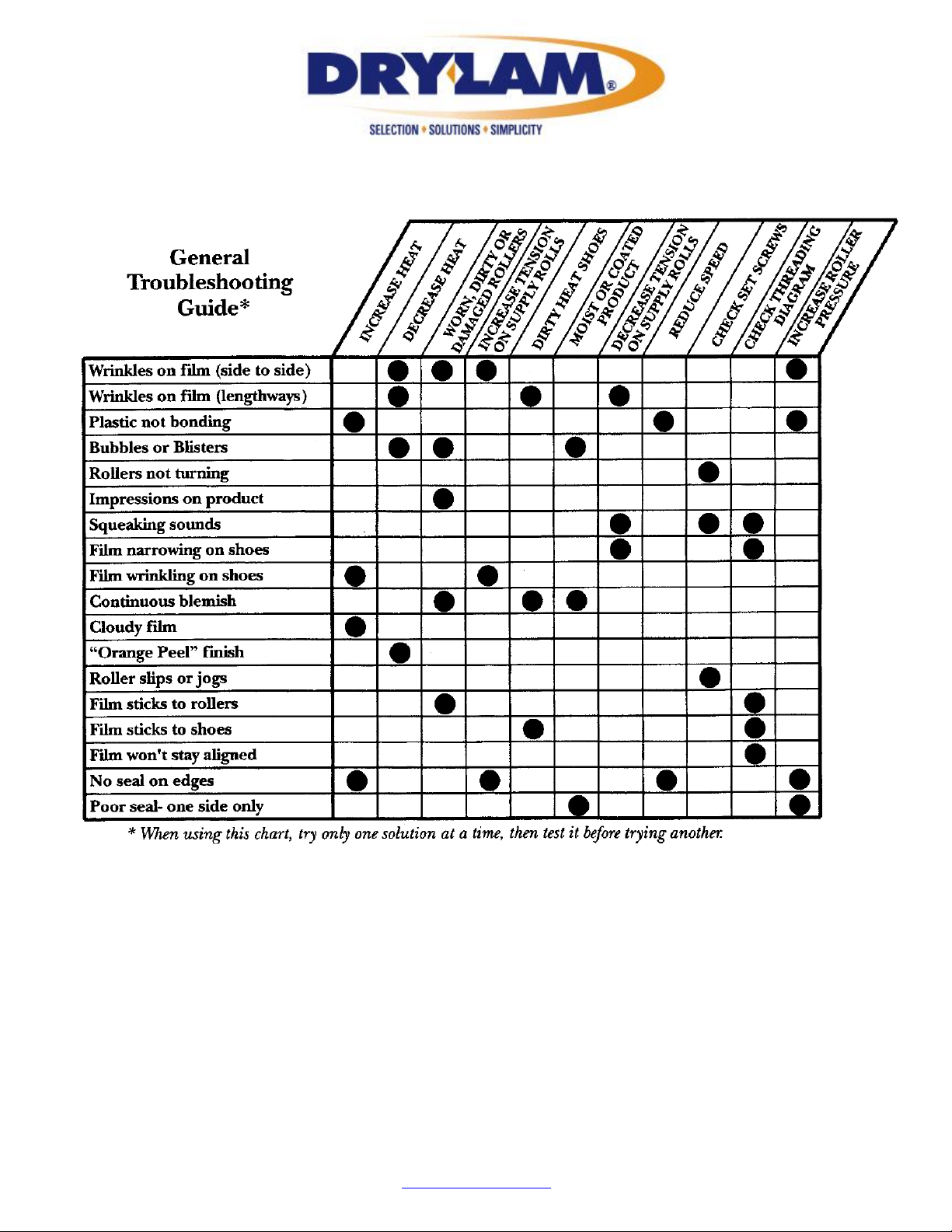

TROUBLESHOOTING GUIDE .................................................................................................................................................. 18

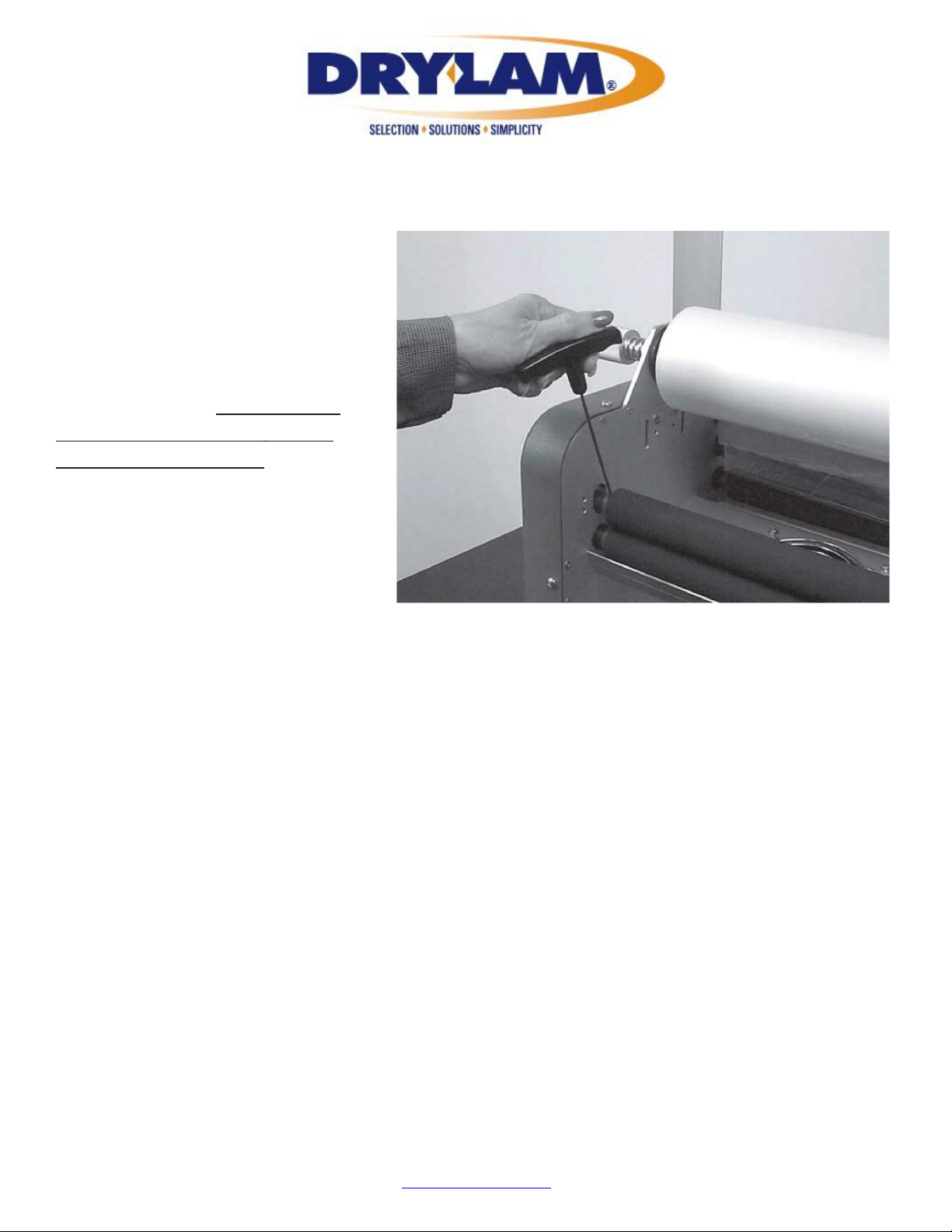

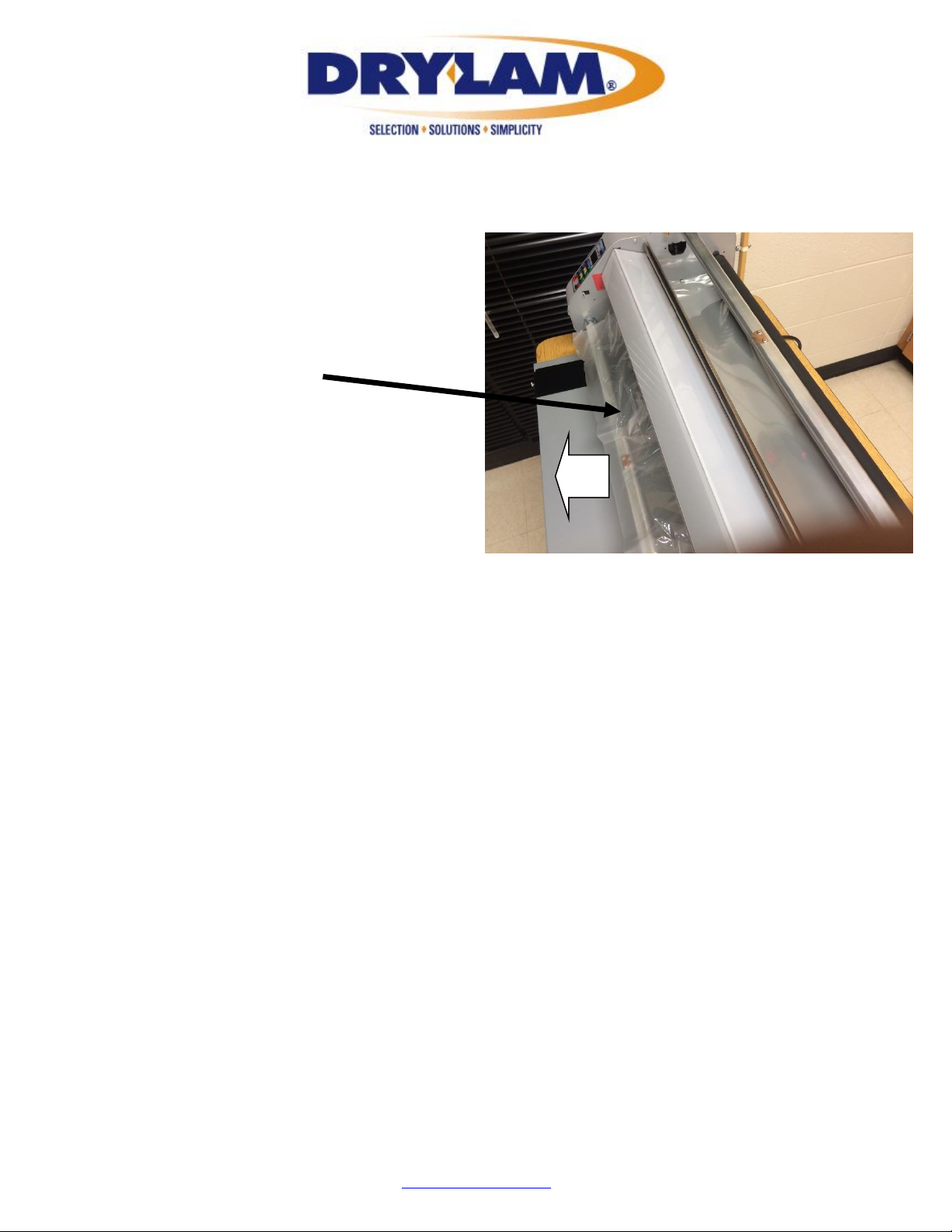

REMOVING A “WRAP-AROUND”........................................................................................................................................... 19
OPTIONS ................................................................................................................................................................................ 20

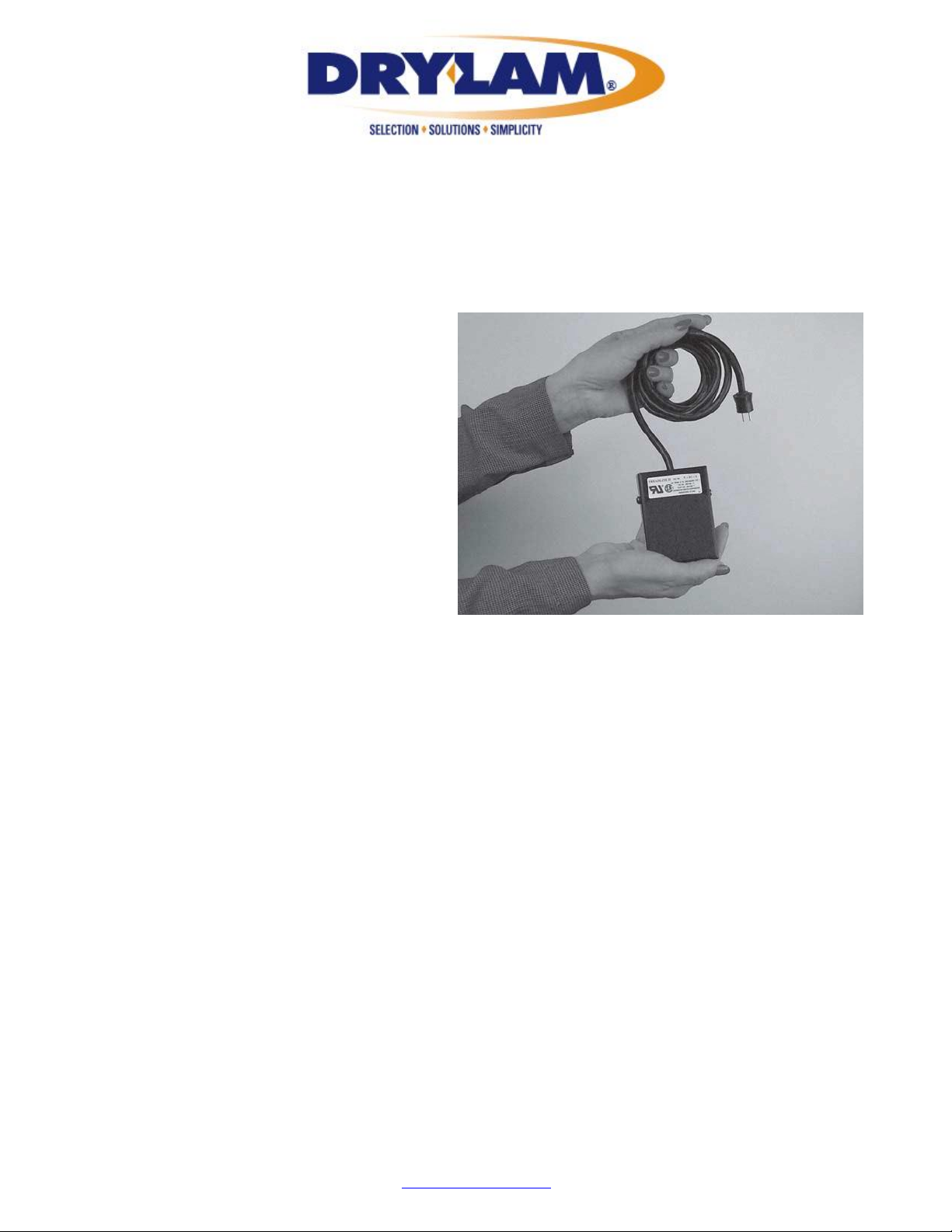

FOOTSWITCH .................................................................................................................................................................... 20

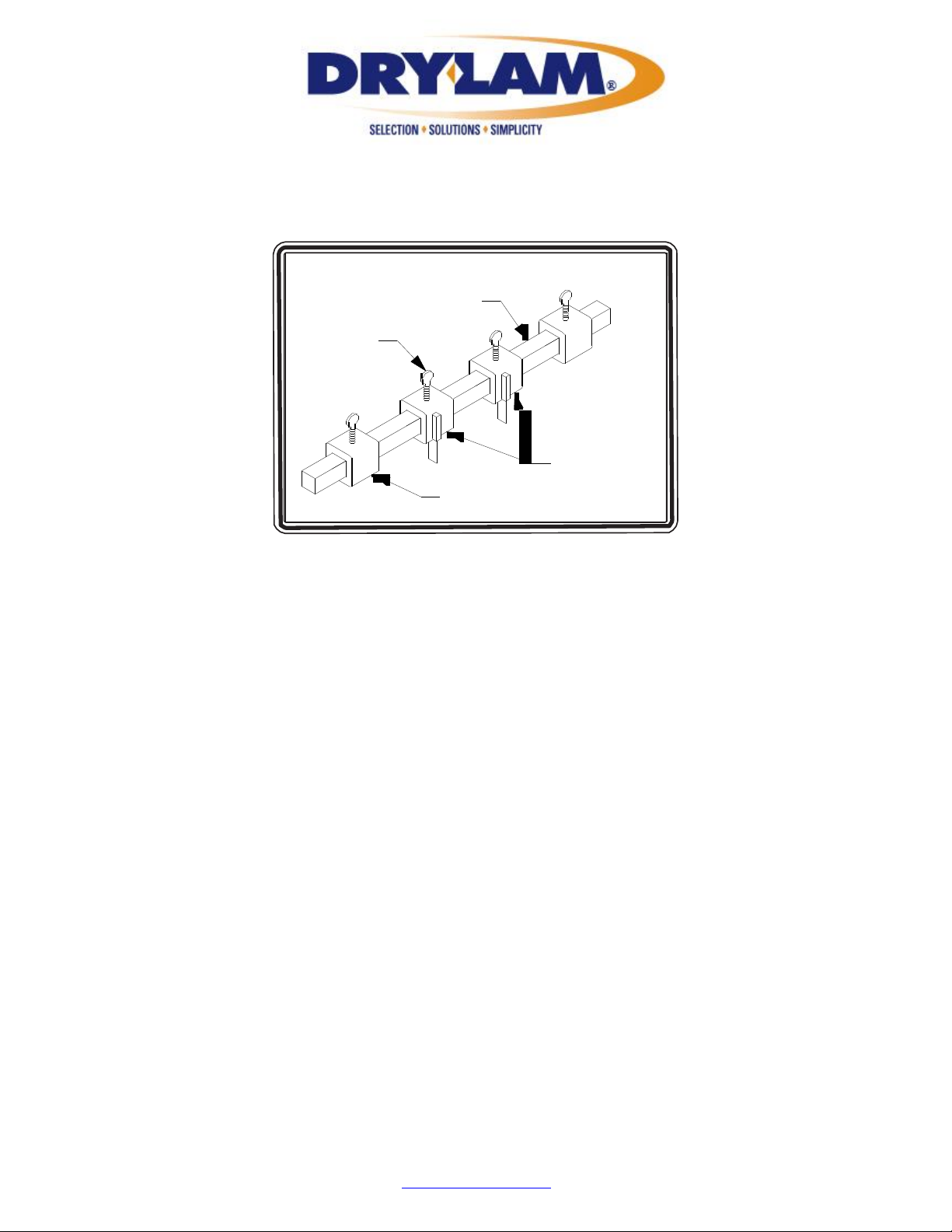

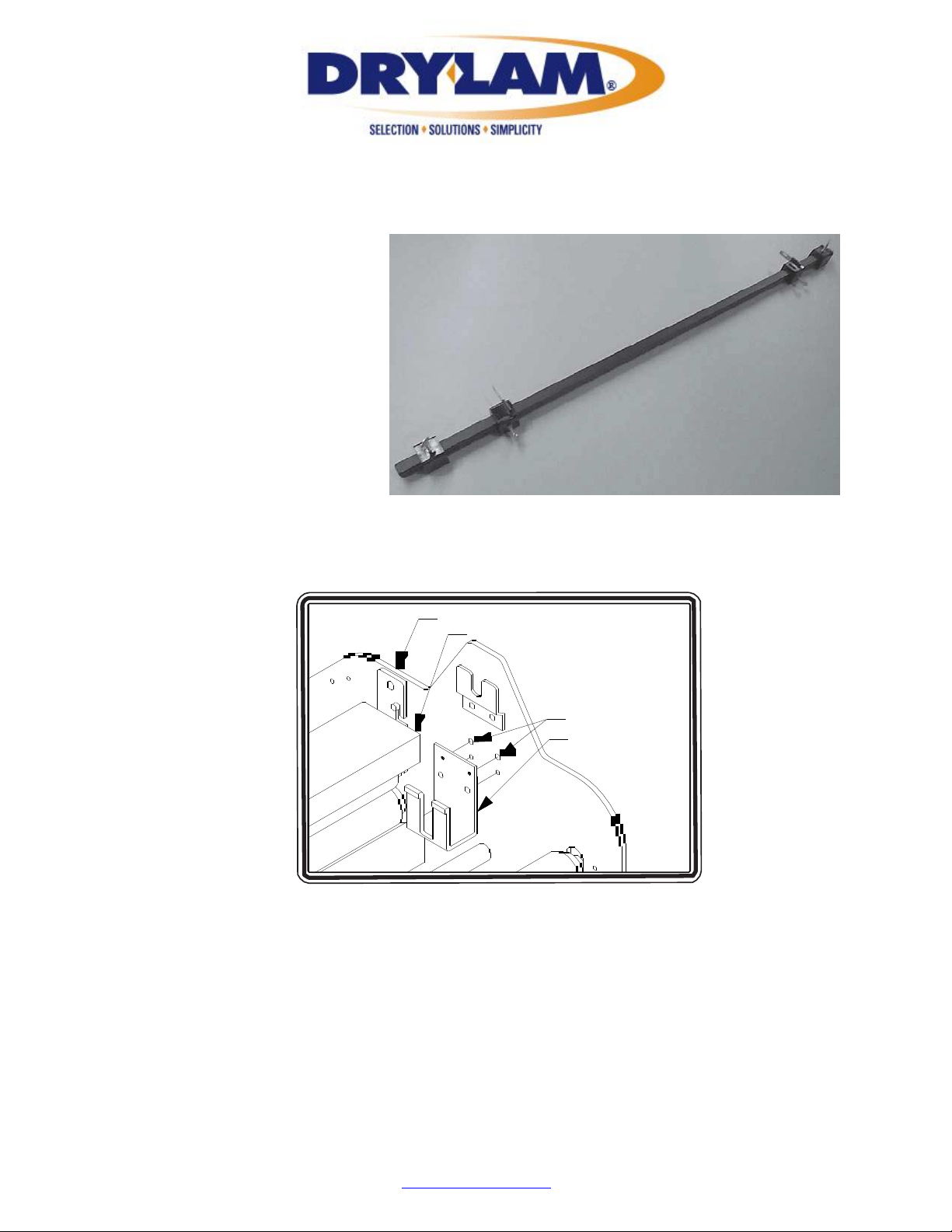

SLITTER KIT ........................................................................................................................................................................ 21

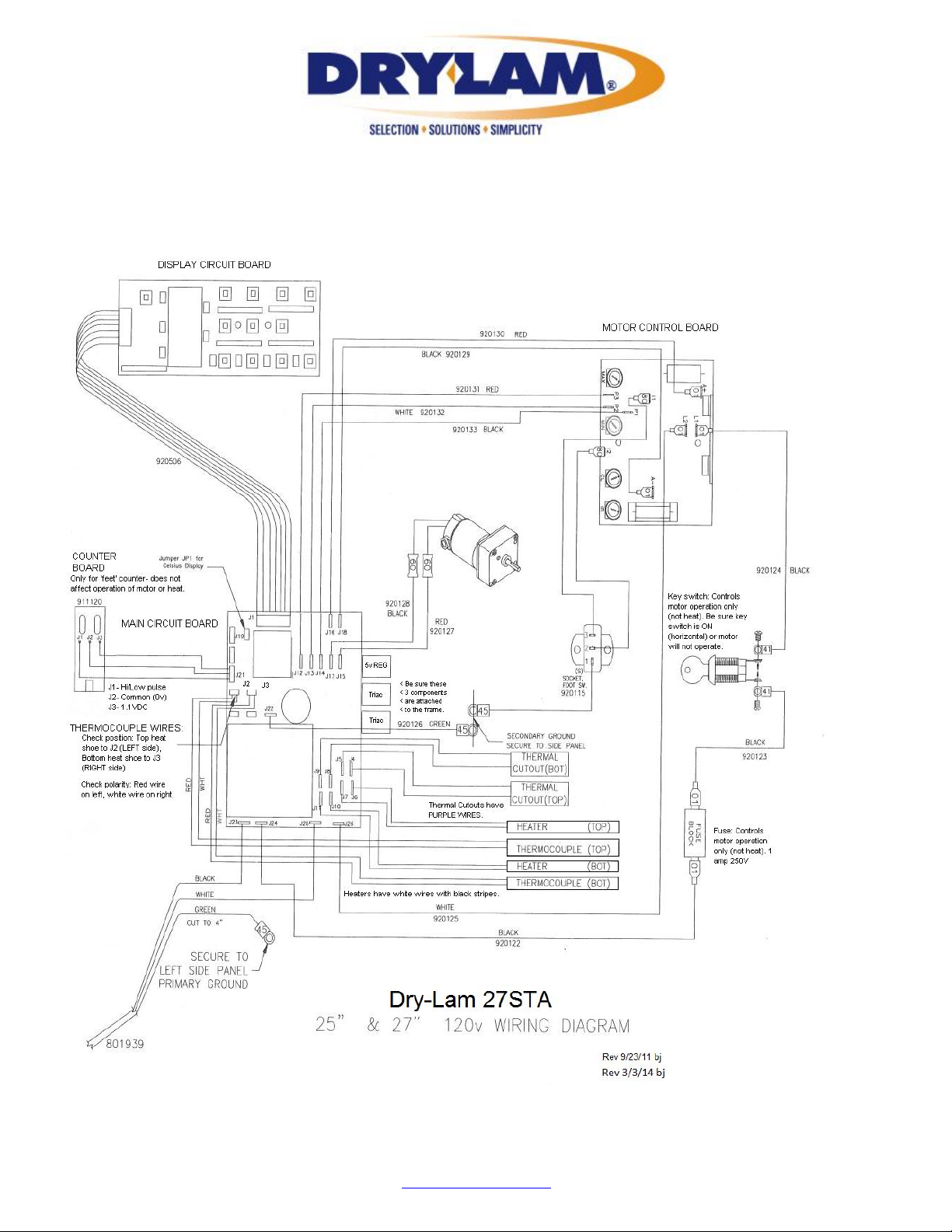

WIRING DIAGRAM ................................................................................................................................................................. 23
EQUIPMENT WARRANTY....................................................................................................................................................... 24
23220 W. 84th St., Shawnee, KS 66227
Phone: (888) 633-1973
Brian Jennett- Tech-Line/Service Manager ext 8575
http://www.DryLam.com
27STA Instruction manual.docx Page 2 of 24
27STA SPECIFICATIONS
Item
27STA (120V)
Feed Table Width
27"
Height
15”
Width (overall)
34”
Depth (with feed tray installed)
20"
Net weight
66 lbs.
Shipping weight
88 lbs.
Width of Lamination
27"
Electrical
120VAC 60 Hz 1400W
IMPORTANT INFORMATION
• Read all the safety and operating instructions before connecting or using this unit.
• Retain this notice and the owner’s manual for future reference.
• Adhere to all warnings and operating instructions.
• Do not use this unit near water (e.g. near a bathtub, etc.)
• The wearing of ties or jewelry while operating a laminator may be hazardous to the
operator.
• Warning: Do not touch Hot Surfaces such as heat shoes and heat rollers.
• Do not install optional slitter kit if Heat shoes are hot.
• This unit should be installed so that its location or position does not interfere with its proper
ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that
may block the ventilation openings; or placed in a built-in installation, such as bookcase or
cabinet or against the wall, that may impede the flow of air through its ventilation openings.
• This unit should be situated away from heat sources such as radiators, heat registers, stoves,
etc.
23220 W. 84th St., Shawnee, KS 66227
Phone: (888) 633-1973
Brian Jennett- Tech-Line/Service Manager ext 8575
http://www.DryLam.com
27STA Instruction manual.docx Page 3 of 24
• This unit should only be connected to a power supply outlet of the voltage, amperage and
Frequency marked on its serial tag.
• For 120 volt machines the socket outlet shall be installed near the equipment and be easily
accessible.
•For 240 volt machines a readily accessible disconnect device shall be incorporated in the
building installation wiring.
• The power supply cord should be routed so that it is not likely to be walked upon or pinched,
especially near the plug, convenience receptacles, or where the cord exits from the unit.
• Unplug the machine during any machine repairs.
• Clean unit only as recommended in this instruction manual.
• Make sure to remove the Feed Table before reversing the machine!
• Care should be taken so that objects do not fall, and liquids are not spilled, into the
enclosure through any openings.
• Caution: The Cutter blade is extremely sharp. Please handle carefully and dispose of
properly.
Save Your Carton! DryLam ships laminators in a special carton which protect them from
damage. Please store your carton in case your laminator should ever require servicing.
Remove the laminator from its box by grasping the housings and pulling up. Do not use rollers
or shafts as handles- this could cause damage.
The power supply cord should be unplugged from the wall outlet when it is to be unused for a
long period of time.
This manual is provided as an Operator’s Manual and covers most situations you will
encounter while using your laminator. It is not a Technical Service manual. For technical
assistance beyond what this manual provides, contact the DryLam Tech-Line at the email
23220 W. 84th St., Shawnee, KS 66227
Phone: (888) 633-1973
Brian Jennett- Tech-Line/Service Manager ext 8575
http://www.DryLam.com
27STA Instruction manual.docx Page 4 of 24
address and phone number below.
DryLam is a product line of
Phone (888) 633-1973 Tech-Line/Service- Ext 8575
DryLam, LLC
23220 West 84th Street
Shawnee, KS 66227
www.drylam.com
support@drylam.com
23220 W. 84th St., Shawnee, KS 66227
Phone: (888) 633-1973
Brian Jennett- Tech-Line/Service Manager ext 8575
http://www.DryLam.com
27STA Instruction manual.docx Page 5 of 24
Notes
RECORD SERIAL NUMBER HERE (LOCATED ON REAR PANEL OF MACHINE):
23220 W. 84th St., Shawnee, KS 66227
Phone: (888) 633-1973
Brian Jennett- Tech-Line/Service Manager ext 8575
http://www.DryLam.com
27STA Instruction manual.docx Page 6 of 24
INTRODUCTION
The DryLam 27STA Laminator, with variable speed and reverse is a reliable, easy-to-use
professional laminator designed to laminate a variety of materials using 25"or 27" laminating
film. The 27STA is capable of lamination from 1 to 9 feet per minute and can be reversed by
the push of a button.

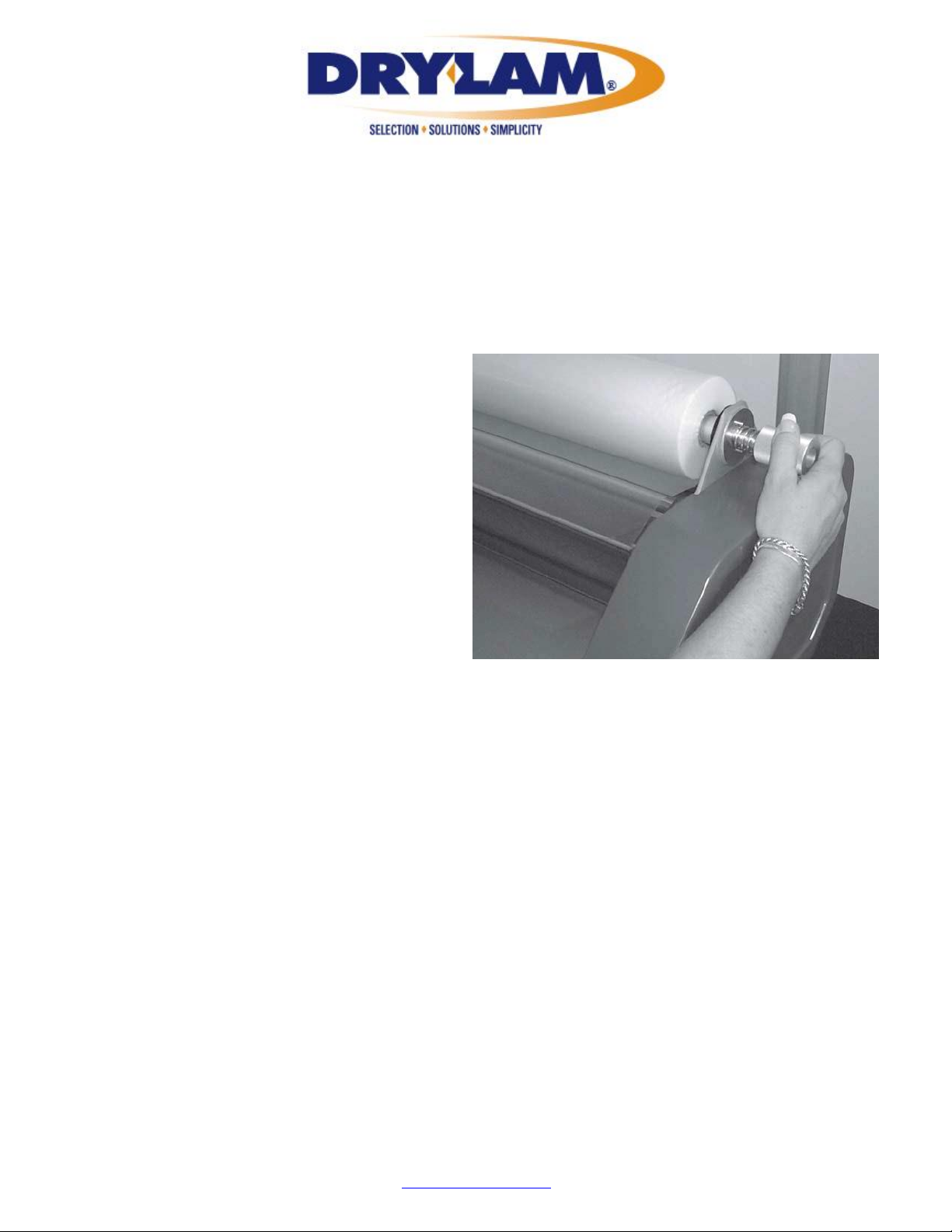

Tension Adjusting Knobs (A)
are conveniently located on
the Supply Mandrels (B) on
the right side panel for easy
access. A Control Panel (C) is
located on the Left Housing
(D), and is equipped with a
Power Button (E) to turn the
machine on, Temperature Up
(F) and Temperature Down (G)
buttons, two Preset buttons
(H), a Motor Start button (I) to
start the motor turning, Speed
Up (J) and Speed Down (K)
buttons to adjust the speed
as necessary, a Motor
Stop/Reverse button (L), a
User Preset button (M) to
save your own settings, and
a Count Reset button (N)
which resets the usage
counter. The Display button
(O) toggles the Display (P)
between 3 settings. The
Feed Tray (Q) and Feed
Guide (R) provide a smooth,
durable paper path and the
Heat Guard (S) protects
23220 W. 84th St., Shawnee, KS 66227
Phone: (888) 633-1973
Brian Jennett- Tech-Line/Service Manager ext 8575
http://www.DryLam.com
27STA Instruction manual.docx Page 7 of 24
hands from hot surfaces inside.
Teflon coated Heat Shoes (T)
minimize friction. The Cutter (U)
cuts and trims your laminated
documents and the Key switch
(V) prevents unauthorized usage
by preventing the motor from
running.
23220 W. 84th St., Shawnee, KS 66227
Phone: (888) 633-1973
Brian Jennett- Tech-Line/Service Manager ext 8575
http://www.DryLam.com
27STA Instruction manual.docx Page 8 of 24
