Drive Spitfire EX Quick Start Manual

Remove the battery pack by grasping the pack’s
handle and pulling upward firmly.

Raise the tiller to the upright position at the
desired angle and re-tighten the knob.

Insert the seat post bolt into the hole at the base

of the seat tube so that the bolt passes all the
way through both the seat tube and the seat post to
the hole on the opposite side.

Tighten the bolt near the top of the seat tube with the
included Allen wrench.

Remove your Spitfire Scooter from its

packaging. Loosen the tiller adjustment knob.

Replace the battery pack, ensuring the battery

is firmly in place.

Attach the seat by lifting up on the handle on

the right side of the seat and placing the seat
down on the scooter’s seat post. Release the handle
to lock the seat in place. When the seat is locked,
you will hear a click.

Install the seat post into the seat tube in the

scooter’s frame to the desired height.

Fully charge the scooter’s batteries by inserting

the round charger connector into the battery
charging terminal on the scooter’s battery pack and
inserting the 3-pronged plug into a standard electrical
outlet.

Full charging normally takes 6-8 hours, but can take
as many as 10 hours depending on the batteries’
charge level when starting and the ambient
temperature.

1. 2. 3. 4.

5. 6. 7. 8.

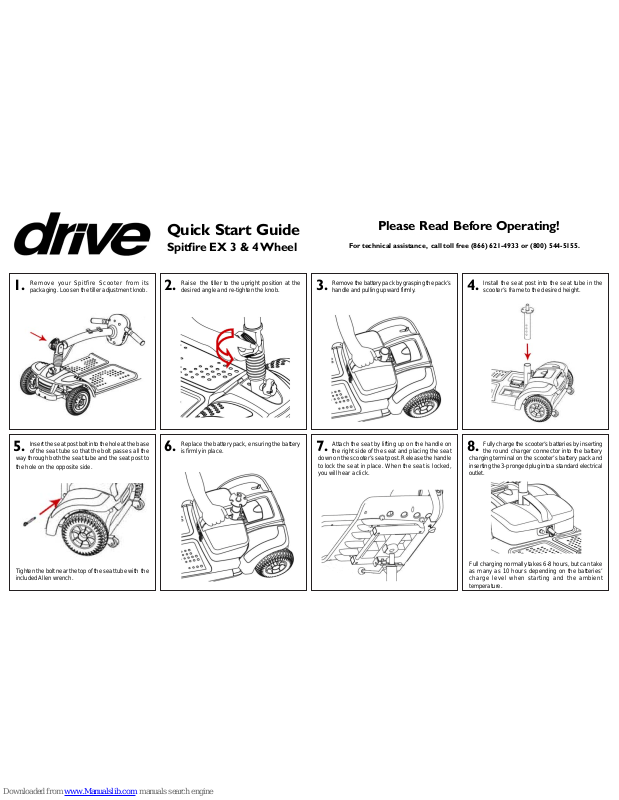

Quick Start Guide

Spitfire EX 3 & 4 Wheel

Please Read Before Operating!

For technical assistance, call toll free [phone] or [phone].

Before use, make sure that the scooter’s
freewheel mode lever is in the “drive”

position.

Spitfire EX Quick Start Guide

READ BEFORE UNPACKING

This Quick Start Guide offers basic information on initial product
setup only. Read the owner’s manual and all supplemental
information thoroughly before operating the product for
information on safety, battery charging, basic operation, comfort
adjustments, disassembly and care and maintenance.

NOTE: The illustrations provided may not reflect your actual unit.

READ

THIS

FIRST!

Your Spitfire EX Scooter is designed to be easily disassembled into 5 pieces for

convenient transport or storage.

The pieces are:

• Front Section (heaviest piece, 40 lbs.) • Rear Section • Battery Pack

• Seat • Front Basket

To disassemble your scooter:

1. Turn key switch to “OFF.”

2. Engage front wheel lock.

3. Place the freewheel mode lever in the “Drive” position.

4. Pull upward on the swivel-release lever to remove the seat from seat post.

5. Pull up on the battery pack to remove it from the scooter.

6. Pull up on the release lever to separate the front and rear sections.

9.

For information on the

comfort adjustments available

on your scooter, please

consult your owner’s manual.
