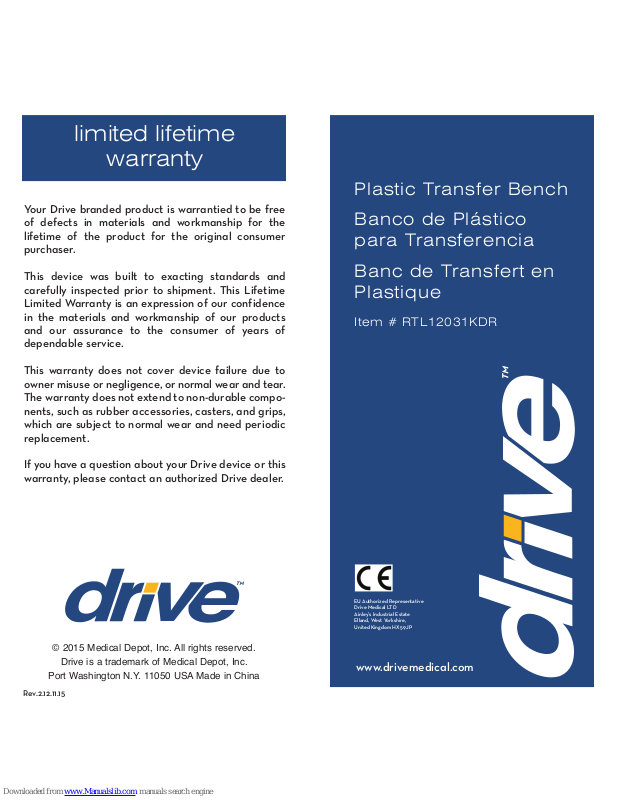

Drive RTL12031KDR User Manual

www.drivemedical.com

Plastic Transfer Bench

Banco de Plástico
para Transferencia

Banc de Transfert en
Plastique

Item # RTL12031KDR

EU Authorized Representative
Drive Medical LTD
Ainley’s Industrial Estate
Elland, West Yorkshire,
United Kingdom HX5 9JP

limited lifetime

warranty

Your Drive branded product is warrantied to be free
of defects in materials and workmanship for the
lifetime of the product for the original consumer
purchaser.

This device was built to exacting standards and
carefully inspected prior to shipment. This Lifetime
Limited Warranty is an expression of our confidence
in the materials and workmanship of our products
and our assurance to the consumer of years of
dependable service.

This warranty does not cover device failure due to
owner misuse or negligence, or normal wear and tear.
The warranty does not extend to non- durable compo­nents, such as rubber accessories, casters, and grips,
which are subject to normal wear and need periodic
replacement.

If you have a question about your Drive device or this
warranty, please contact an authorized Drive dealer.

© 2015 Medical Depot, Inc. All rights reserved.

Drive is a trademark of Medical Depot, Inc.

Port Washington N.Y. 11050 USA Made in China

Rev.2.12.11.15

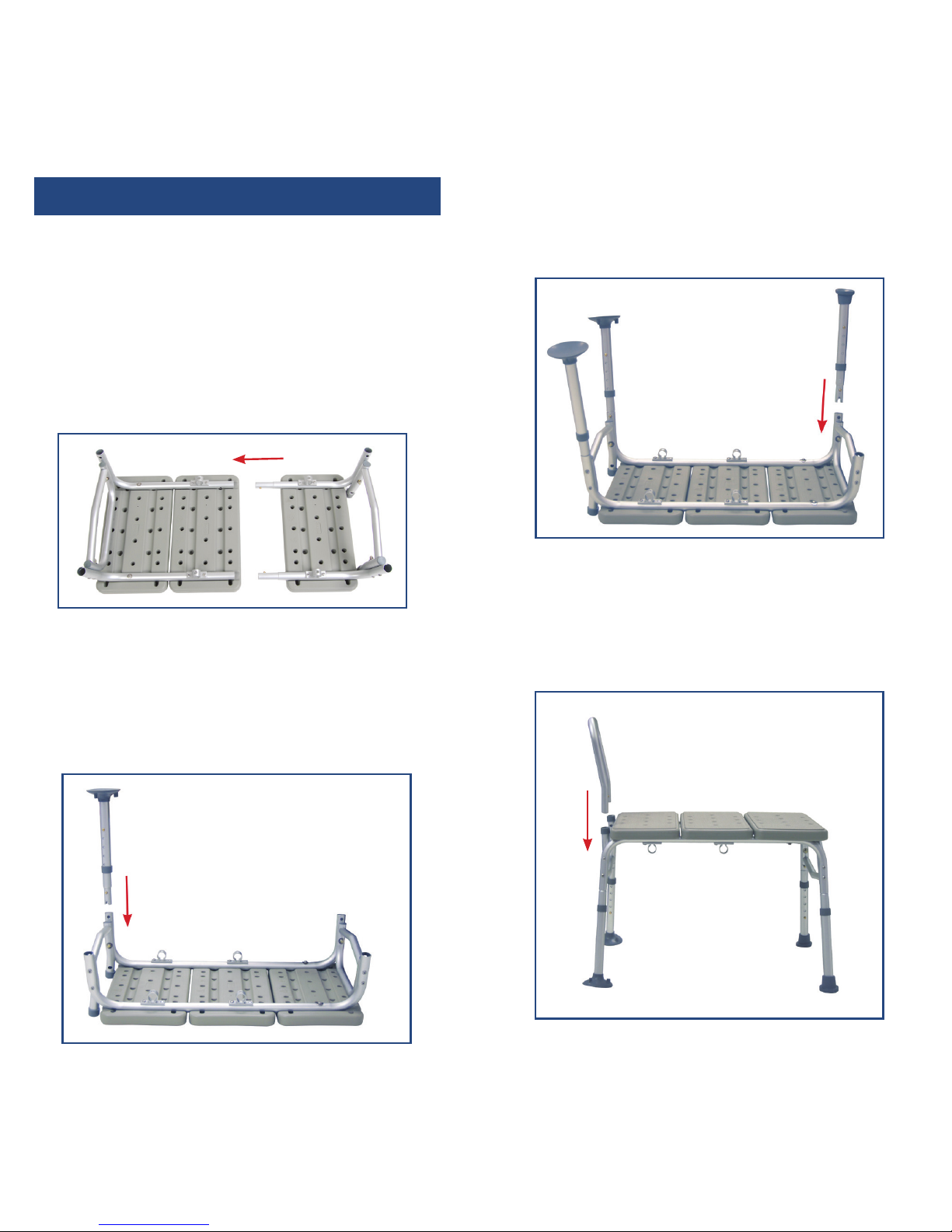

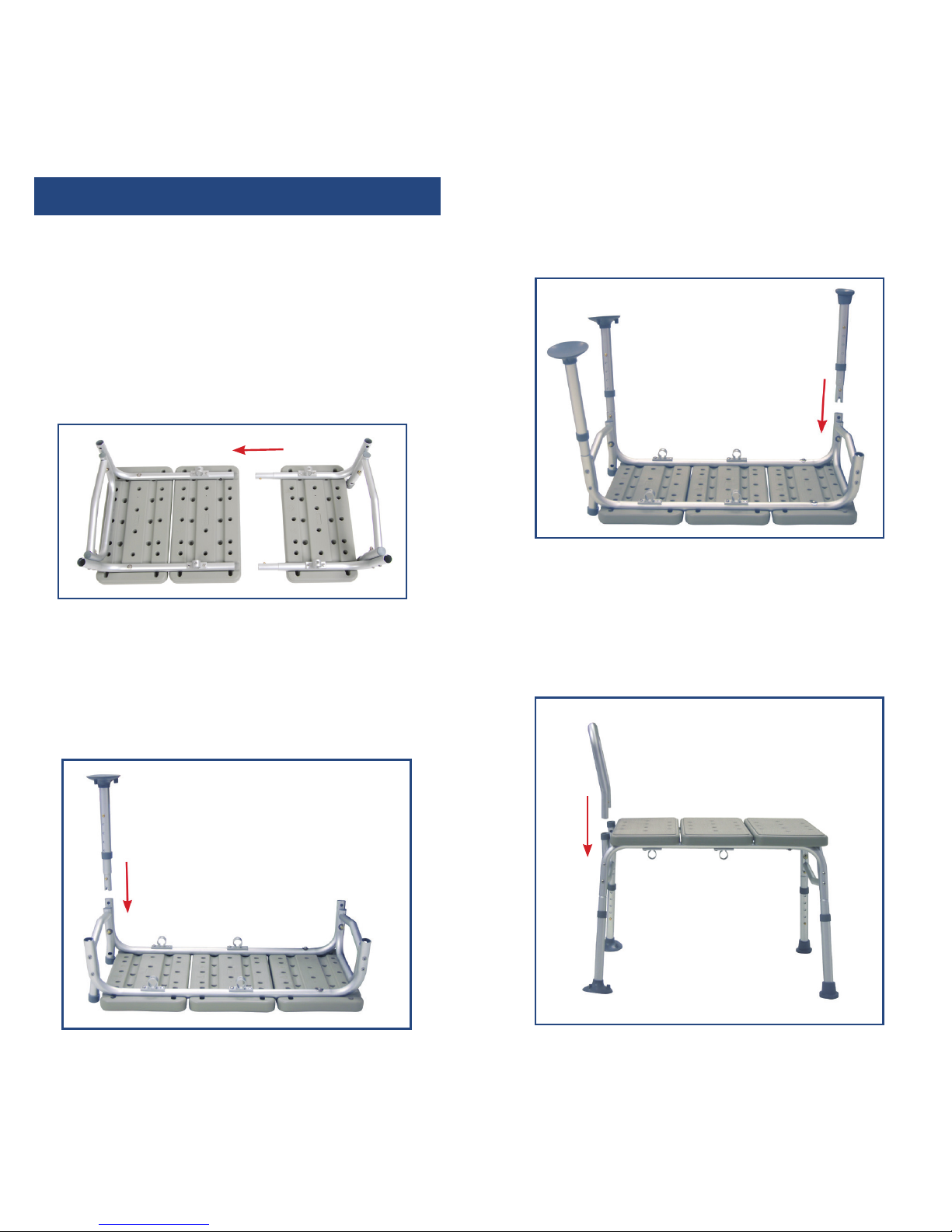

1. Remove contents from carton.

2. Lay both transfer bench seat sections upside down on
a flat surface.

3. Slide smaller seat section into larger section by
depressing the brass push pins and inserting into the
receptacles. Snap buttons will pop out when secure.
(Figure 1)

assembly instructions

6. Attach leg with small rubber tip (marked “B”) by
depressing brass push pin and inserting into the
receptacle with matching “B”. Repeat for second leg
(Figure 3).

figure 1

figure 3

Weight Capacity: 400 lbs (181 Kg)

4. Remove black top from 4 leg receptacles.

5. Attach leg with the large suction cup (marked “A”) by
depressing the brass push pin and inserting into the
receptacle with the matching “A”. Repeat for second
leg (Figure 2).

7. Turn transfer bench right-side-up. Attach armrest
by depressing brass push pins and sliding into the arm
receptacle on the side of the bench. Make sure the
arm arcs outward, not inward (Figure 4).

figure 4

figure 2

Rev.2.12.11.15

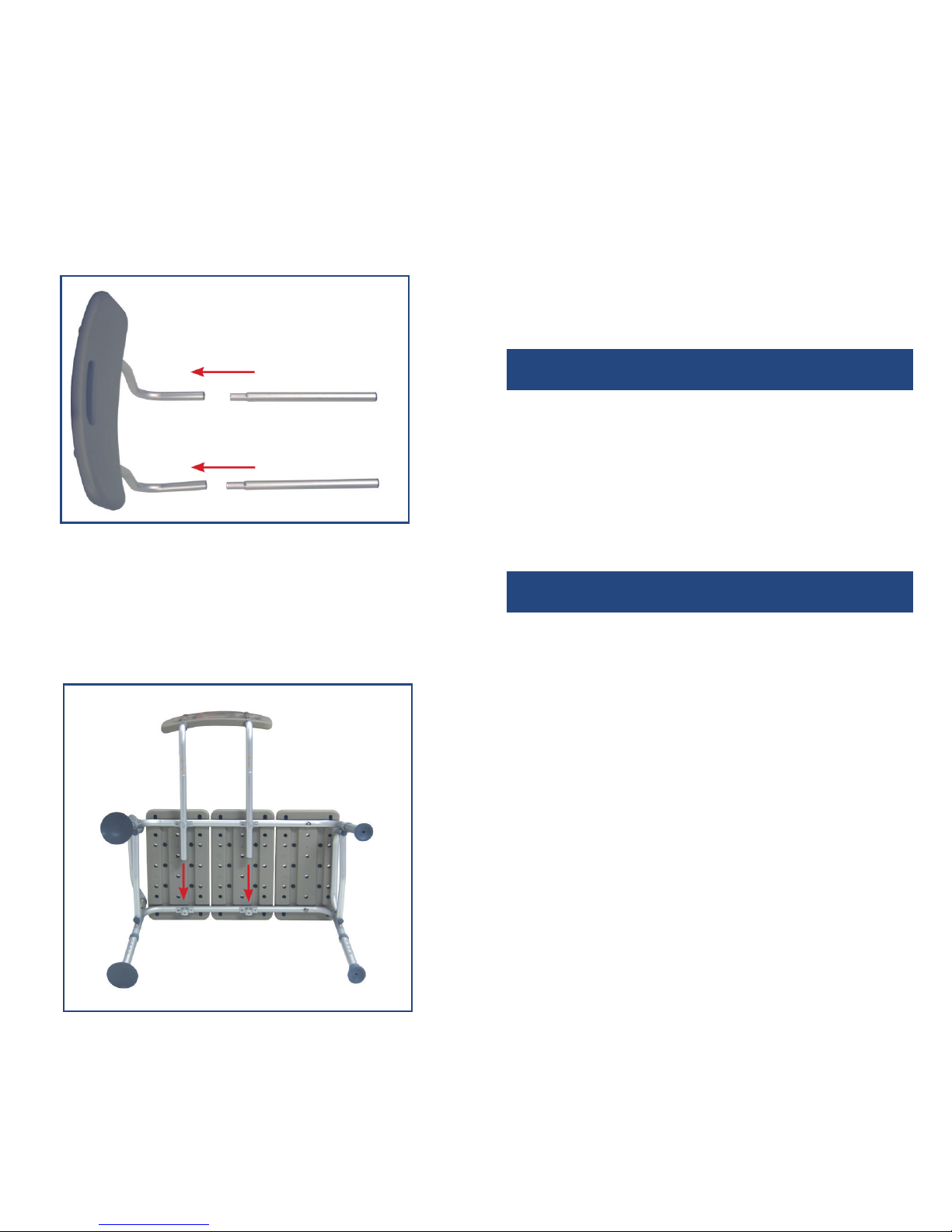

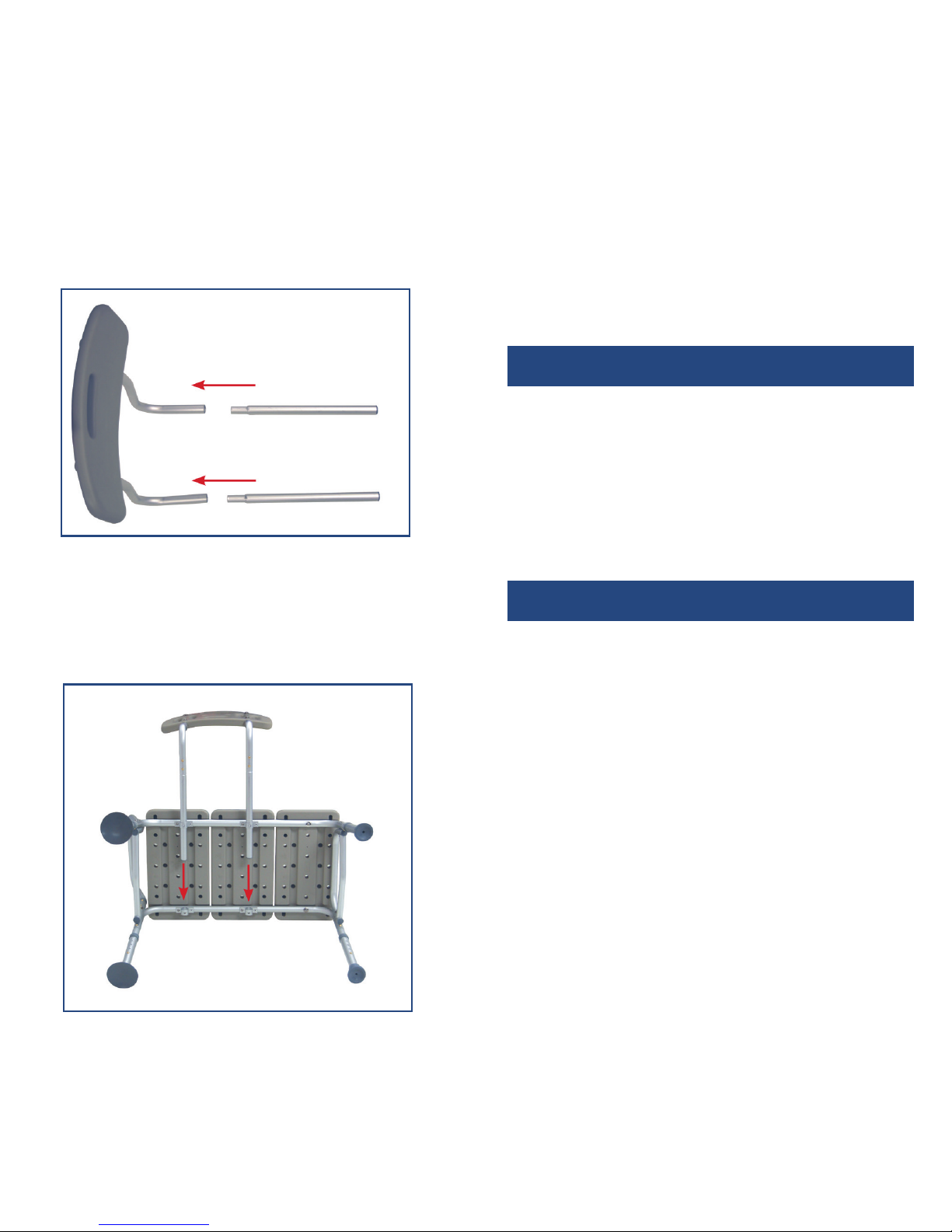

8. To assemble backrest, insert support tube into
backrest support by depressing push pin and
sliding into backrest tube. Repeat for second support
tube (Figure 5).

figure 5

9. Insert backrest into base by depressing push pins
and sliding support tubes through both receptacles.
Note: Backrest must go through both sets of
receptacles to become secure (Figure 6).

figure 6

NOTE: Back support is reversible to accommodate left
or right tub entry. You can also change the seat depth
of your transfer bench by pushing the pins under the
seat and sliding the tubes forward until the pins lock
into place.

8. Place legs with the large suction cups into bath tub.

1. Inspect all parts for shipping damage before assembly.
If there is shipping damage - DO NOT USE. Contact
dealer/carrier for further instructions.

2. Make certain that the snap buttons fully protrude
through the same respective holes of each leg
extension. This will ensure that the leg extensions
are securely locked in position and an even height is
achieved.

3. Ensure ALL screws, nuts and/or bolts are tightened.

4. Check the rubber tips on the leg extensions for rips,
wear or if they are missing. Immediately replace any
or all if any of these imperfections exist.

5. All four leg extensions with rubber tips MUST touch
the floor simultaneously at all times.

6. DO NOT stand on the bench.

additional precautions

NOTE: To maintain the beauty of the original finish,

clean with mild soap and rinse with warm water. Wipe
seat dry after each use.

adjusting leg height

1. To adjust leg height, remove U-Clip adjustment
hole, set leg to desired height and return U-clip
into adjustment hole. Make sure U-Clip clicks
into place. Repeat for remaining legs.

NOTE: Make sure all legs are set to the same height.

2. To be sure legs are locked into place, push down or
pull up on legs.
